Brief Operating Instructions

Micropilot FMR56, FMR57

HART

Free space radar

These Instructions are Brief Operating Instructions; they are

not a substitute for the Operating Instructions pertaining to

the device.

Detailed information about the device can be found in the

Operating Instructions and the other documentation:

Available for all device versions via:

– Internet: www.endress.com/deviceviewer

– Smart phone/tablet: Endress+Hauser Operations App

KA01102F/00/EN/03.15

71282542

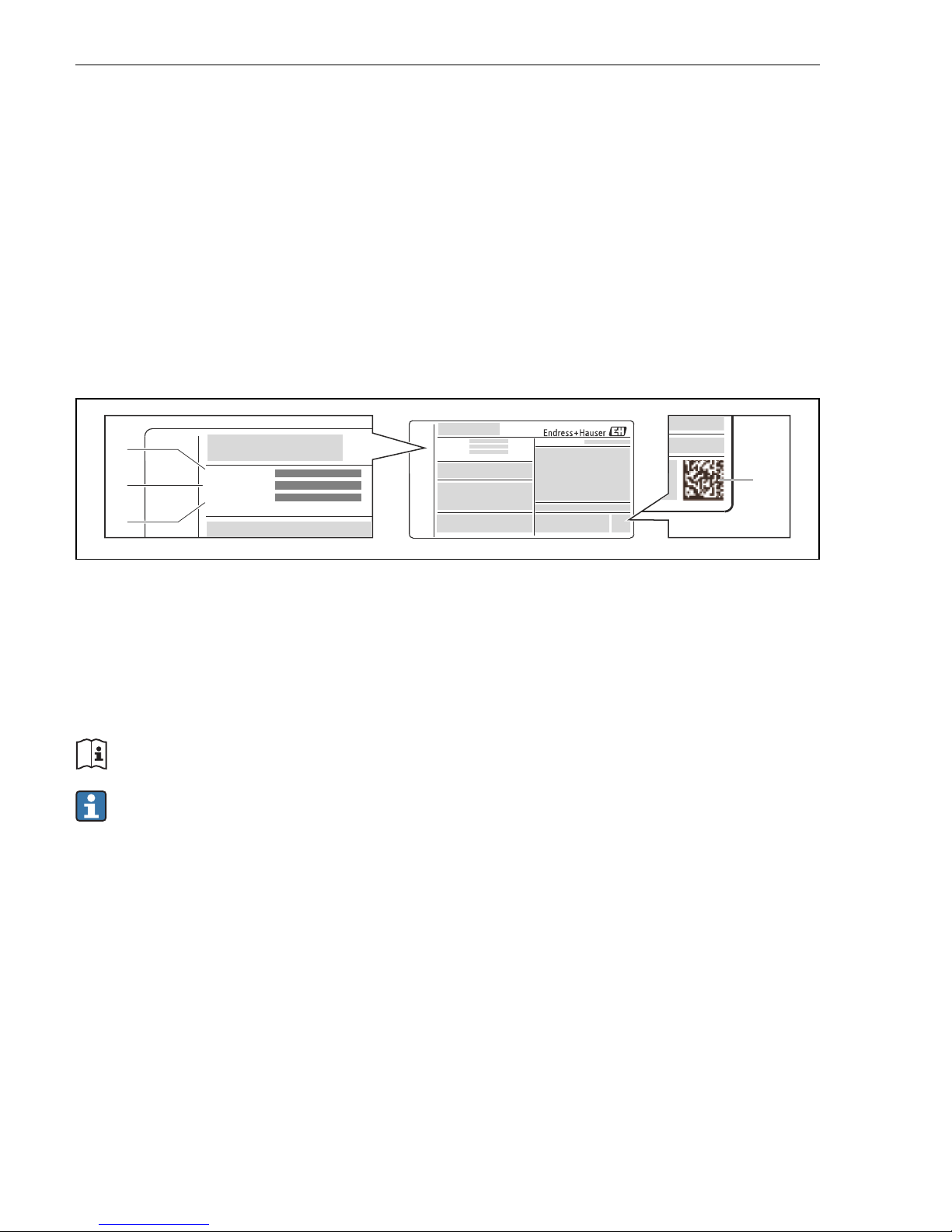

Micropilot FMR56, FMR57 HART

2 Endress+Hauser

TAG No.: XXX000

Ser. No.: X000X000000

Order code 00X00-XXXX0XX0XXX

www.endress.com/deviceviewer Endress+Hauser Operations App

Serial number

A0023555

Micropilot FMR56, FMR57 HART Table of contents

Endress+Hauser 3

Table of contents

1 Important document information ................................................ 4

1.1 Symbols ............................................................................ 4

2 Basic safety instructions ......................................................... 6

2.1 Requirements for the personnel ........................................................... 6

2.2 Designated use ....................................................................... 6

2.3 Workplace safety ...................................................................... 7

2.4 Operational safety ..................................................................... 7

2.5 Product safety ........................................................................ 7

3 Product description .............................................................. 8

3.1 Product design ....................................................................... 8

4 Incoming acceptance and product identification .................................. 9

4.1 Incoming acceptance ................................................................... 9

4.2 Product identification ................................................................. 10

5 Storage, Transport .............................................................. 11

5.1 Storage conditions .................................................................... 11

5.2 Transport product to the measuring point ................................................... 11

6 Installation ..................................................................... 12

6.1 Installation conditions ................................................................. 12

6.2 Measuring conditions ................................................................. 18

6.3 Installation in vessel (free space) ......................................................... 19

6.4 Vessels with heat insulation ............................................................. 28

6.5 Turning the transmitter housing ......................................................... 28

6.6 Turning the display module ............................................................. 29

6.7 Post-installation check ................................................................. 29

7 Electrical connection ............................................................ 30

7.1 Connection conditions ................................................................. 30

7.2 Connecting the device ................................................................. 44

7.3 Post-connection check ................................................................. 46

8 Commissioning (via operating menu) ........................................... 47

8.1 Display and operating module ........................................................... 47

8.2 Operating menu ..................................................................... 50

8.3 Unlock the device .................................................................... 51

8.4 Setting the operating language .......................................................... 51

8.5 Configuration of a level measurement ..................................................... 52

8.6 User-specific applications ............................................................... 53

Important document information Micropilot FMR56, FMR57 HART

4 Endress+Hauser

1 Important document information

1.1 Symbols

1.1.1 Safety symbols

Symbol Meaning

DANGER

DANGER!

This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in

serious or fatal injury.

WARNING

WARNING!

This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in

serious or fatal injury.

CAUTION

CAUTION!

This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in

minor or medium injury.

NOTICE

NOTE!

This symbol contains information on procedures and other facts which do not result in personal

injury.

1.1.2 Electrical symbols

Symbol Meaning Symbol Meaning

Direct current Alternating current

Direct current and alternating current Ground connection

A grounded terminal which, as far as

the operator is concerned, is grounded

via a grounding system.

Protective ground connection

A terminal which must be connected to

ground prior to establishing any other

connections.

Equipotential connection

A connection that has to be connected

to the plant grounding system: This

may be a potential equalization line or

a star grounding system depending on

national or company codes of practice.

1.1.3 Tool symbols

A0011219 A0011220 A0013442 A0011221 A0011222

Cross-head

screwdriver

Flat blade

screwdriver Torx screwdriver Allen key Hexagon wrench

Micropilot FMR56, FMR57 HART Important document information

Endress+Hauser 5

1.1.4 Symbols for certain types of information

Symbol Meaning Symbol Meaning

Permitted

Procedures, processes or actions that

are permitted.

Preferred

Procedures, processes or actions that

are preferred.

Forbidden

Procedures, processes or actions that

are forbidden.

Tip

Indicates additional information.

Reference to documentation Reference to page

Reference to graphic

,…

Series of steps

Result of a sequence of actions Visual inspection

1.1.5 Symbols in graphics

Symbol Meaning

1, 2, 3 ... Item numbers

,…

Series of steps

A, B, C, ... Views

A-A, B-B, C-C, ... Sections

Hazardous area

Indicates a hazardous area.

Safe area (non-hazardous area)

Indicates the non-hazardous area.

1.1.6 Symbols at the device

Symbol Meaning

Safety instructions

Observe the safety instructions contained in the associated Operating Instructions.

Temperature resistance of the connection cables

Specifies the minimum value of the temperature resistance of the connection cables.

Basic safety instructions Micropilot FMR56, FMR57 HART

6 Endress+Hauser

2 Basic safety instructions

2.1 Requirements for the personnel

The personnel must fulfill the following requirements for its tasks:

‣Trained, qualified specialists must have a relevant qualification for this specific function

and task

‣Are authorized by the plant owner/operator

‣Are familiar with federal/national regulations

‣Before beginning work, the specialist staff must have read and understood the instructions

in the Operating Instructions and supplementary documentation as well as in the

certificates (depending on the application)

‣Following instructions and basic conditions

2.2 Designated use

Application and measured materials

The measuring device described in these Operating Instructions is intended for the

continuous, contactless level measurement of mainly bulk solids. The device can also be freely

mounted outside closed metal vessels because of its operating frequency of about 26 GHz, a

maximum radiated pulsed power of 23.3 mW and an average power output of 0.076 mW.

Operation is completely harmless to humans and animals.

Observing the limit values specified in the "Technical data" and listed in the Operating

Instructions and supplementary documentation, the measuring device may be used for the

following measurements only:

‣Measured process variables: level, distance, signal strength

‣Calculated process variables: Volume or mass in arbitrarily shaped vessels; flow through

measuring weirs or flumes (calculated from the level by the linearization functionality)

To ensure that the measuring device remains in proper condition for the operation time:

‣Use the measuring device only for measured materials against which the process-wetted

materials are adequately resistant.

‣Observe the limit values in "Technical data".

Incorrect use

The manufacturer is not liable for damage caused by improper or non-designated use.

Verification for borderline cases:

‣For special measured materials and cleaning agents, Endress+Hauser is glad to provide

assistance in verifying the corrosion resistance of wetted materials, but does not accept any

warranty or liability.

Residual risk

The electronics housing and its built-in components such as display module, main electronics

module and I/O electronics module may heat to 80 °C (176 °F) during operation through heat

transfer from the process as well as power dissipation within the electronics. During operation

the sensor may assume a temperature near the temperature of the measured material.

Danger of burns due to heated surfaces!

‣For high process temperatures: Install protection against contact in order to prevent burns.

Micropilot FMR56, FMR57 HART Basic safety instructions

Endress+Hauser 7

2.3 Workplace safety

For work on and with the device:

‣Wear the required personal protective equipment according to federal/national

regulations.

2.4 Operational safety

Risk of injury.

‣Operate the device in proper technical condition and fail-safe condition only.

‣The operator is responsible for interference-free operation of the device.

Conversions to the device

Unauthorized modifications to the device are not permitted and can lead to unforeseeable

dangers.

‣If, despite this, modifications are required, consult with the manufacturer.

Repair

To ensure continued operational safety and reliability,

‣Carry out repairs on the device only if they are expressly permitted.

‣Observe federal/national regulations pertaining to repair of an electrical device.

‣Use original spare parts and accessories from the manufacturer only.

Hazardous area

To eliminate a danger for persons or for the facility when the device is used in the hazardous

area (e.g. explosion protection, pressure vessel safety):

‣Based on the nameplate, check whether the ordered device is permitted for the intended

use in the hazardous area.

‣Observe the specifications in the separate supplementary documentation that is an integral

part of these Instructions.

2.5 Product safety

This measuring device is designed in accordance with good engineering practice to meet state-

of-the-art safety requirements, has been tested, and left the factory in a condition in which

they are safe to operate.

It meets general safety standards and legal requirements. It also complies with the EC

directives listed in the device-specific EC Declaration of Conformity. Endress+Hauser confirms

this by affixing the CE mark to the device.

Product description Micropilot FMR56, FMR57 HART

8 Endress+Hauser

3 Product description

3.1 Product design

3.1.1 Micropilot FMR56

1 4

A0016791

 1 Design of the Micropilot FMR56 (26 GHz)

1 Electronics housing

2 Horn 80mm/100 mm (3in/4in), PP cladded

3 Flange

4 Mounting bracket

Micropilot FMR56, FMR57 HART Incoming acceptance and product identification

Endress+Hauser 9

3.1.2 Micropilot FMR57

2 4

5 7

1 1

A0016807

 2 Design of the Micropilot FMR57 (26 GHz)

1 Electronics housing

2 Process connection (Thread)

3 Horn antenna

4 Flange

5 Antenna extension

6 Alignment device

7 Parabolic antenna

4 Incoming acceptance and product identification

4.1 Incoming acceptance

Upon receipt of the goods check the following:

• Are the order codes on the delivery note and the product sticker identical?

• Are the goods undamaged?

• Do the nameplate data match the ordering information on the delivery note?

• Is the DVD with the operating tool present?

If required (see nameplate): Are the Safety Instructions (XA) present?

If one of these conditions is not satisfied, contact your Endress+Hauser Sales Center.

Incoming acceptance and product identification Micropilot FMR56, FMR57 HART

10 Endress+Hauser

4.2 Product identification

The following options are available for identification of the measuring device:

• Nameplate specifications

• Extended order code with breakdown of the device features on the delivery note

• Enter serial numbers from nameplates in W@M Device Viewer

( www.endress.com/deviceviewer ): All information about the measuring device is

displayed.

• Enter the serial number from the nameplates into the Endress+Hauser Operations App or

scan the 2-D matrix code (QR code) on the nameplate with the Endress+Hauser Operations

App: all the information for the measuring device is displayed.

4.2.1 Nameplate

Order code:

Ext. ord. cd.:

Ser. no.:

Order code:

Ext. ord. cd.:

Ser. no.:

A0021952

 3 Example of a nameplate

1 Order code

2 Serial number (Ser. no.)

3 Extended order code (Ext. ord. cd.)

4 2-D matrix code (QR code)

For detailed information about interpreting the nameplate specifications, refer to the

Operating Instructions for the device.

Only 33 digits of the extended order code can be indicated on the nameplate. If the

extended order code exceeds 33 digits, the rest will not be shown. However, the complete

extended order code can be viewed in the operating menu of the device: Extended order

code 1 to 3 parameter

Altri manuali per Micropilot FMR56

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Endress+Hauser Radar

Endress+Hauser

Endress+Hauser Micropilot FMR10 Manuale utente

Endress+Hauser

Endress+Hauser Micropilot M FMR245 Manuale utente

Endress+Hauser

Endress+Hauser PROFIBUS PA Micropilot FMR53 Specifiche tecniche

Endress+Hauser

Endress+Hauser Micropilot FMR53 Specifiche tecniche

Endress+Hauser

Endress+Hauser micropilot M FMR 240 Manuale utente

Endress+Hauser

Endress+Hauser Levelflex M FMP40 Manuale elenco delle parti

Endress+Hauser

Endress+Hauser Micropilot M FMR245 Manuale utente

Endress+Hauser

Endress+Hauser Micropilot FMR62B PROFINET with Ethernet-APL Specifiche tecniche

Endress+Hauser

Endress+Hauser Micropilot FMR67B Specifiche tecniche

Endress+Hauser

Endress+Hauser Micropilot FMR56 Specifiche tecniche

Endress+Hauser

Endress+Hauser Levelflex FMP55 Manuale utente

Endress+Hauser

Endress+Hauser Levelflex M FMP45 Manuale utente

Endress+Hauser

Endress+Hauser Levelflex FMP51 Manuale utente

Endress+Hauser

Endress+Hauser Micropilot M FMR245 Manuale utente

Endress+Hauser

Endress+Hauser Micropilot FMR63B PROFIBUS PA Manuale

Endress+Hauser

Endress+Hauser Levelflex FMP55 Manuale utente

Endress+Hauser

Endress+Hauser Levelflex FMP55 Manuale utente

Endress+Hauser

Endress+Hauser Micropilot FMR20 Manuale utente

Endress+Hauser

Endress+Hauser Micropilot FMR60B PROFIBUS PA Manuale utente

Endress+Hauser

Endress+Hauser Levelflex FMP50 Specifiche tecniche

Endress+Hauser

Endress+Hauser PROFIBUS PA Levelflex FMP51 Specifiche tecniche

Endress+Hauser

Endress+Hauser Micropilot S FMR540 Istruzioni per l'installazione

Endress+Hauser

Endress+Hauser Micropilot FMR53 Specifiche tecniche

Endress+Hauser

Endress+Hauser Micropilot FMR66B Specifiche tecniche

Manuali Radar popolari di altre marche

SAW D2L

SAW D2L Valentine One Gen2 Manuale utente

Raymarine

Raymarine Raytheon R20X Manuale utente

Simrad

Simrad CA34 Manuale utente

ECHOMAX

ECHOMAX Active-X-Band Manuale utente

AGD

AGD 340 Manuale utente

Kustom Signals

Kustom Signals Eagle 3 Manuale utente

SYMEO

SYMEO STU Manuale utente

Axis

Axis D2110-VE Manuale utente

MALA

MALA MIRA Manuale utente

Emerson

Emerson ROSEMOUNT 5300 Manuale utente

Rosemount

Rosemount 5300 Series Manuale utente

TERMA

TERMA SCANTER 5102 Manuale utente

GSSI

GSSI UtilityScan Manuale utente

Acconeer

Acconeer A111 Manuale utente

Crosley

Crosley CR37 Manuale utente

AGD

AGD 318 Manuale utente

Cobra

Cobra SLR 650G Manuale utente

Faselase

Faselase D10 Manuale utente
