Brief Operating Instructions

Liquiline Compact CM82

Compact multi-parameter transmitter for

Memosens sensors

These instructions are Brief Operating Instructions; they are

not a substitute for the Operating Instructions pertaining to

the device.

Detailed information on the device can be found in the

Operating Instructions and in the other documentation

available at:

• www.endress.com/device-viewer

• Smart phone/tablet: Endress+Hauser Operations App

KA01397C/07/EN/02.20

71497335

2020-02-29

Liquiline Compact CM82

2 Endress+Hauser

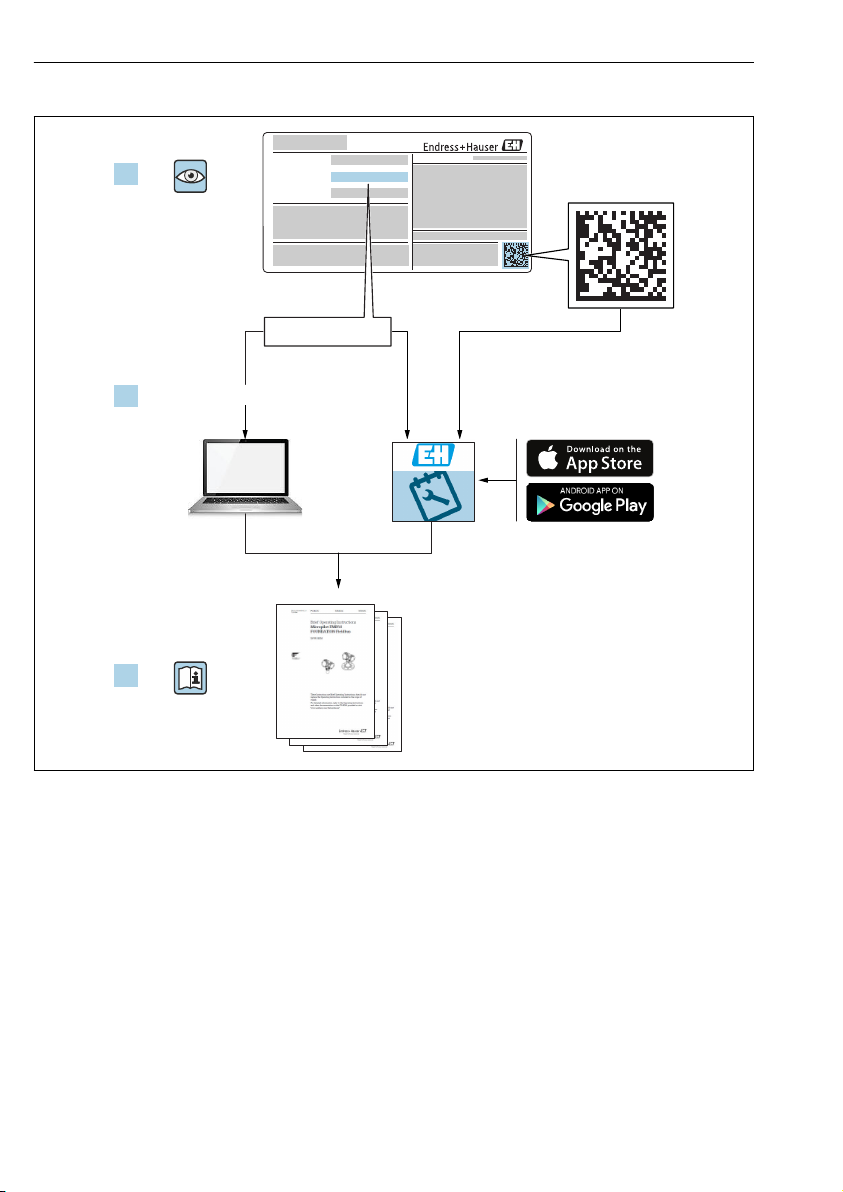

Order code:

Ext. ord. cd.:

Ser. no.:

www.endress.com/deviceviewer Endress+Hauser

Operations App

XXXXXXXXXXXX

XXXXX-XXXXXX

XXX.XXXX.XX

Serial number

A0023555

Liquiline Compact CM82 Table of contents

Endress+Hauser 3

Table of contents

1 About this document .............................................................. 4

1.1 Warnings ............................................................................ 4

1.2 Symbols ............................................................................. 4

1.3 Symbols on the device ................................................................... 5

1.4 Documentation ........................................................................ 5

2 Basic safety instructions .......................................................... 5

2.1 Requirements for personnel .............................................................. 5

2.2 Designated use ........................................................................ 5

2.3 Workplace safety ...................................................................... 6

2.4 Operational safety ......................................................................6

2.5 Product safety ......................................................................... 6

3 Product description ............................................................... 7

3.1 Product design ........................................................................ 7

4 Incoming acceptance and product identification ................................... 7

4.1 Incoming acceptance ................................................................... 7

4.2 Product identification ................................................................... 8

4.3 Certificates and approvals ................................................................ 8

5 Electrical connection ............................................................ 11

5.1 Environment ........................................................................ 12

6 System integration .............................................................. 13

6.1 Integrating the measuring device into the system .............................................. 13

7 Commissioning .................................................................. 14

7.1 Function check ....................................................................... 14

7.2 Setting the operating language ........................................................... 15

About this document Liquiline Compact CM82

4 Endress+Hauser

1 About this document

1.1 Warnings

Structure of information Meaning

LDANGER

Causes (/consequences)

If necessary, Consequences of non-

compliance (if applicable)

‣Corrective action

This symbol alerts you to a dangerous situation.

Failure to avoid the dangerous situation will result in a fatal or serious injury.

LWARNING

Causes (/consequences)

If necessary, Consequences of non-

compliance (if applicable)

‣Corrective action

This symbol alerts you to a dangerous situation.

Failure to avoid the dangerous situation can result in a fatal or serious injury.

LCAUTION

Causes (/consequences)

If necessary, Consequences of non-

compliance (if applicable)

‣Corrective action

This symbol alerts you to a dangerous situation.

Failure to avoid this situation can result in minor or more serious injuries.

NOTICE

Cause/situation

If necessary, Consequences of non-

compliance (if applicable)

‣Action/note

This symbol alerts you to situations which may result in damage to property.

1.2 Symbols

Symbol Meaning

Additional information, tips

Permitted or recommended

Not permitted or not recommended

Reference to device documentation

Reference to page

Reference to graphic

 Result of a step

Liquiline Compact CM82 Basic safety instructions

Endress+Hauser 5

1.3 Symbols on the device

Symbol Meaning

Reference to device documentation

1.4 Documentation

The following instructions complement these Brief Operating Instructions and are available on

the product pages on the Internet:

Operating Instructions Memosens, BA01245C

• Software description for Memosens inputs

• Calibration of Memosens sensors

• Sensor-specific diagnostics and troubleshooting

2 Basic safety instructions

2.1 Requirements for personnel

• Installation, commissioning, operation and maintenance of the measuring system may be

carried out only by specially trained technical personnel.

• The technical personnel must be authorized by the plant operator to carry out the specified

activities.

• The electrical connection may be performed only by an electrical technician.

• The technical personnel must have read and understood these Operating Instructions and

must follow the instructions contained therein.

• Faults at the measuring point may only be rectified by authorized and specially trained

personnel.

Repairs not described in the Operating Instructions provided must be carried out only

directly at the manufacturer's site or by the service organization.

2.2 Designated use

The Liquiline CM72 Liquiline CM82 is a transmitter for connecting digital sensors with

Memosens technology, configurable, with 4..20 mA/HART communication and optional

operation via smartphone or other mobile devices via Bluetooth.

The device is designed for use in the following industries:

• Life science

• Chemical industry

• Water and wastewater

• Food and beverages

• Power stations

• Other industrial applications

Basic safety instructions Liquiline Compact CM82

6 Endress+Hauser

2.3 Workplace safety

As the user, you are responsible for complying with the following safety conditions:

• Installation guidelines

• Local standards and regulations

• Regulations for explosion protection

Electromagnetic compatibility

• The product has been tested for electromagnetic compatibility in accordance with the

applicable international standards for industrial applications.

• The electromagnetic compatibility indicated applies only to a product that has been

connected in accordance with these Operating Instructions.

2.4 Operational safety

Before commissioning the entire measuring point:

1. Verify that all connections are correct.

2. Ensure that electrical cables and hose connections are undamaged.

3. Do not operate damaged products, and protect them against unintentional operation.

4. Label damaged products as defective.

During operation:

‣If faults cannot be rectified:

products must be taken out of service and protected against unintentional operation.

LCAUTION

Cleaning not switched off during calibration or maintenance activities

Risk of injury due to medium or cleaning agent!

‣If a cleaning system is connected, switch it off before removing a sensor from the medium.

‣If you wish to check the cleaning function and have therefore not switched off the cleaning

system, wear protective clothing, goggles and gloves or take other appropriate measures.

2.5 Product safety

2.5.1 State-of-the-art technology

The product is designed to meet state-of-the-art safety requirements, has been tested, and

left the factory in a condition in which it is safe to operate. The relevant regulations and

international standards have been observed.

Liquiline Compact CM82 Product description

Endress+Hauser 7

3 Product description

3.1 Product design

A0036216

 1 Transmitter design

1 Cable

2 Housing

3 Memosens connection

4 LED, for optical signaling of operating statuses of measuring point

3.1.1 Measuring parameters

The transmitter is designed for digital Memosens sensors with inductive plug-in head:

• pH, ORP, pH/ORP combined sensors

• Conductive conductivity

• Dissolved oxygen

4 Incoming acceptance and product identification

4.1 Incoming acceptance

1. Verify that the packaging is undamaged.

 Notify the supplier of any damage to the packaging.

Keep the damaged packaging until the issue has been resolved.

2. Verify that the contents are undamaged.

 Notify the supplier of any damage to the delivery contents.

Keep the damaged goods until the issue has been resolved.

3. Check that the delivery is complete and nothing is missing.

 Compare the shipping documents with your order.

Incoming acceptance and product identification Liquiline Compact CM82

8 Endress+Hauser

4. Pack the product for storage and transportation in such a way that it is protected

against impact and moisture.

 The original packaging offers the best protection.

Make sure to comply with the permitted ambient conditions.

If you have any questions, please contact your supplier or your local Sales Center.

4.2 Product identification

4.2.1 Nameplate

The nameplate provides you with the following information on your device:

• Manufacturer identification

• Order code

• Extended order code

• Serial number

• Firmware version

• Ambient and process conditions

• Input and output values

• Safety information and warnings

• Approvals as per version ordered

‣Compare the data on the nameplate with your order.

4.2.2 Product identification

Product page

www.endress.com/CM82

Manufacturer's address

Endress+Hauser Conducta GmbH+Co. KG

Dieselstraße 24

D-70839 Gerlingen

Scope of delivery

The scope of delivery includes:

• CM82

• Brief Operating Instructions

‣If you have any queries:

Please contact your supplier or local sales center.

4.3 Certificates and approvals

4.3.1  mark

Endress+Hauser Conducta GmbH+CO. KG hereby declares that the radio system type CM82

complies with directives 2014/53/EU and 2011/65/EU.

Liquiline Compact CM82 Incoming acceptance and product identification

Endress+Hauser 9

The complete text of the EU declaration of conformity can be found at the following web

address:

www.endress.com/CM82

Frequency band: 2400-2483.5 MHz, power output: < 10dBm EIRP

4.3.2 Marine approvals

A selection of the devices and sensors have type approval for marine applications, issued by

the following classification societies: ABS (American Bureau of Shipping), BV (Bureau

Veritas), DNV-GL (Det Norske Veritas-Germanischer Lloyd) and LR (Lloyd’s Register). Details

of the order codes of the approved devices and sensors, and the installation and ambient

conditions, are provided in the relevant certificates for marine applications on the product

page on the Internet.

4.3.3 Radio approval

USA/Canada radio approval (FCC/IC)

FCC ID: 2AKGY-BT41INTA01

IC: 22173-BT41INTA01

This device complies with Part 15 of the FCC Rules [and with Industry Canada license- exempt

RSS standard(s)]. Operation is subject to the following two conditions: (1) this device may not

cause harmful interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.

Any changes or modifications made to this equipment not expressly approved by Endress

+Hauser may void the FCC authorization to operate this equipment. This device complies with

Part 15 of the FCC Rules and with Industry Canada license- exempt RSS standard(s).

Operation is subject to the following two conditions:

• this device may not cause harmful interference, and

• this device must accept any interference received, including interference that may cause

undesired operation.

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio

exempts de licence. L'exploitation est autorisée aux deux conditions suivantes:

• l'appareil ne doit pas produire de brouillage, et

• l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le

brouillage est susceptible d'en compromettre le fonctionnement.

Note: This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment

generates, uses and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If

this equipment does cause harmful interference to radio or television reception, which can be

Incoming acceptance and product identification Liquiline Compact CM82

10 Endress+Hauser

determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

• Increase the separation between the equipment and receiver.

• Consult the dealer or an experienced radio technician for help.

Radio approval for Japan

202-LSF040

A0036603

Japanese Radio Law and Japanese Telecommunications Business Law Compliance. This device

is granted pursuant to the Japanese Radio Law (電波法). This device should not be modified

(otherwise the granted designation number will become invalid).

Radio approval for China

Certification number: CMIIT ID: 2017DJ6495

Radio approval for South Korea

R-CRM-E1H-CM82A

A0036602

Brazil radio approval

A0039074

00182-18-11036

Este equipamento não tem direito à proteção contra interferência prejudicial e não pode

causar interferência em sistemas devidamente autorizados.

Altri manuali per Liquiline Compact CM82

Indice

Altri manuali Endress+Hauser Trasmettitore

Endress+Hauser

Endress+Hauser Deltabar S FMD76 Manuale utente

Endress+Hauser

Endress+Hauser Liquisys M CUM 223 Manuale utente

Endress+Hauser

Endress+Hauser mycom COM 121 Manuale utente

Endress+Hauser

Endress+Hauser TMD1000 Manuale utente

Endress+Hauser

Endress+Hauser Liquisys M CLM223 Manuale utente

Endress+Hauser

Endress+Hauser cerabar S PMC Series Manuale utente

Endress+Hauser

Endress+Hauser TMT122 Manuale utente

Endress+Hauser

Endress+Hauser Proline 500 HART Specifiche tecniche

Endress+Hauser

Endress+Hauser Proline 200 HART Specifiche tecniche

Endress+Hauser

Endress+Hauser Proline 500 digital Modbus RS485 Specifiche tecniche

Endress+Hauser

Endress+Hauser Liquisys M COM 223 Manuale utente

Endress+Hauser

Endress+Hauser iTEMP TMT162 Istruzioni per l'installazione

Endress+Hauser

Endress+Hauser HMX50 Manuale utente

Endress+Hauser

Endress+Hauser iTEMP TMT182 Manuale utente

Endress+Hauser

Endress+Hauser Proline 500 digital HART Specifiche tecniche

Endress+Hauser

Endress+Hauser Liquisys M CLM223/253 Manuale utente

Endress+Hauser

Endress+Hauser iTEMP TMT162 Manuale utente

Endress+Hauser

Endress+Hauser cerabar S PROFIBUS-PA Manuale utente

Endress+Hauser

Endress+Hauser Proline 500 Specifiche tecniche

Endress+Hauser

Endress+Hauser Liquisys M CPM223 Manuale utente

Endress+Hauser

Endress+Hauser Nivotester FTR525 Manuale utente

Endress+Hauser

Endress+Hauser Cerabar S PMC71 Manuale

Endress+Hauser

Endress+Hauser iTEMP TMT82 Specifiche tecniche

Endress+Hauser

Endress+Hauser tmt142 Manuale utente

Manuali Trasmettitore popolari di altre marche

NIVELCO

NIVELCO EasyTREK SCA-300 Series Manuale del proprietario

Honeywell

Honeywell 5816WMBR Manuale utente

Kamstrup

Kamstrup READy MTU Istruzioni operative

Omega

Omega ZW Series Manuale utente

ABB

ABB Field 264H Guida

Alinco

Alinco DJ-V17T Manuale utente

Dejero

Dejero EnGo 3x Manuale utente

Rosemount

Rosemount 4600 Manuale utente

Speaka Professional

Speaka Professional 2342740 Manuale utente

trubomat

trubomat GAB 1000 Manuale utente

Teledyne Analytical Instruments

Teledyne Analytical Instruments LXT-380 Manuale utente

Rondish

Rondish UT-11 Manuale utente

MG 10JRE Manuale utente

Burkert

Burkert 8177 Manuale utente

Firetide

Firetide HotPort 3203 Manuale

Tele Radio

Tele Radio T9-02 Manuale utente

Rotronic

Rotronic HygroFlex HF3 Series Manuale utente

Jamara

Jamara FCX6 Pro Tel Manuale utente
