ENERMAX PRO82PLUS II Manuale utente

PRO82+ II Power supply series

www.enermax.co.uk

385W/425W/525W/625W

Features

80PLUS® Bronze efﬁciency

84-88% efﬁciency at 230V and 20-100% load. 80PLUS® Bronze certiﬁed.

Intel ATX12V v2.3

Compliant with the latest desktop power supply design guide. Full support of most current CPU: Intel® Core 2 Duo™/

Quad™/ Extreme™ / i7™ / i5™ / i3™ und AMD® Athlon™ 64X2/X4 oder Phenom™ X3/X4.

Stable and reliable

Three high performance and massive 12V rails.*

New: DXXI ready!

Full support of most current DX11 graphics cards due to 6+2P (8P) connectors.

Full graphics power

Supports SLI™ systems (PRO82+II 525/625W) and CrossFireX™ systems (PRO82+II 425/525/625W).

New: HeatGuard

Keeping PSU fan running for 30-60 seconds after shut down to dissipate the remaining system heat and prolonging

system lifetime.

SpeedGuard

Patented fuzzy logic 12cm fan speed control for optimal cooling and minimum noise.

AirGuard

Patented air-intake with optimal aero-dynamical design reduces noisy air turbulences.

SafeGuard

Industry-leading octuple protection circuitry of OCP, OVP, AC UVP, DC UVP, OPP, OTP, SCP & SIP.

New: CordGuard

Fixing the AC cord tightly to avoid accidental shutdowns of your PC.

Non-Stop @ 40°C

Non-stop industrial class performance at 40°C/104°F ambient.

EMC ready!

Full-scale electromagnetic ﬁltering protects against radiation interferences (CE EMC EN61204 compliance).

Worldwide compatibility

100-240V AC input with automatic adjustment and up to 99% active Power Factor Correction (PFC) for global usage.

Dimensions (W x H x D) 150 mm x 85 mm x 140 mm.

Warranty

3 years vendor warranty.

* 385W model is equipped with two 12V rails

外框線

www.enermax.co.uk

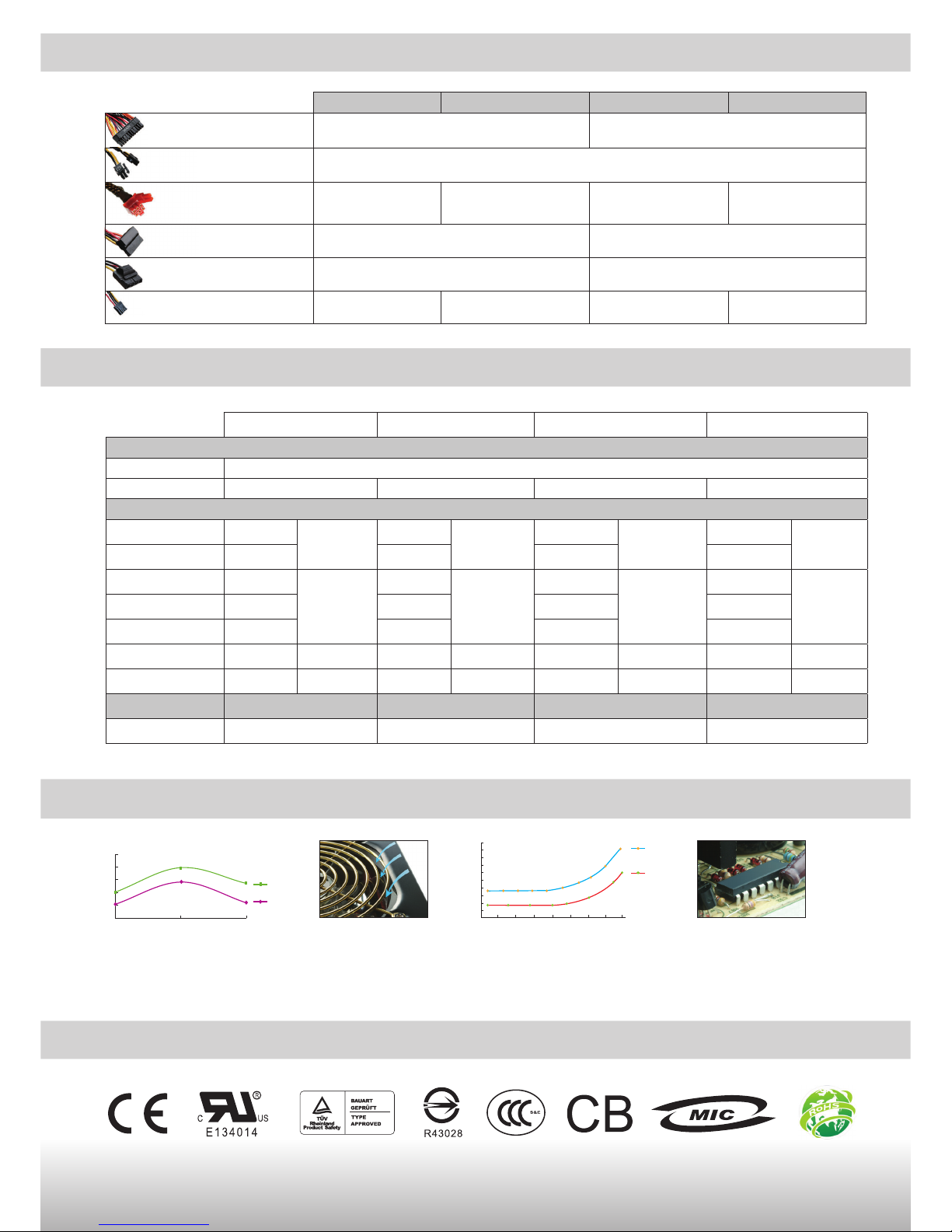

Cables & Connectors

82Plus Efﬁciency

Up to 88% at 230V

Speciﬁcations

Certiﬁcations & Standards

EPR385AWTII EPR425AWTII EPR525AWTII EPR625AWTII

AC Input Rating

Input Voltage 100-240VAC, 50-60Hz, Active PFC

Input Current 6-2.5A 6.7-3A 7.5-3.5A 9.5-4A

DC Output Rating

+3.3V 0.1–20A 110W 0.1–20A 120W 0.1–24A 140W 0.1–24A 140W

+5V 0.1–20A 0.1–20A 0.1–24A 0.1–24A

+12V1 0.1–20A

360W

(30A)

0.1–22A

396W

(33A)

0.1–25A

480W

(40A)

0.1–25A

600W

(50A)

+12V2 0.5–20A 0.5–22A 0.5–25A 0.5–25A

+12V3 0–22A 0–25A 0–25A

-12V 0–0.6A 7.2W 0–0.6A 7.2W 0–0.6A 7.2W 0–0.6A 7.2W

+5Vsb 0–3A 15W 0–3A 15W 0–3A 15W 0–3A 15W

Total Power 385W 425W 525W 625W

Peak Power 425W 470W 580W 690W

SpeedGuard SafeGuardAirGuard

PSU Loading

FAN RPM (±10%)

25% 50% 75% 100%

500

450 450 450 450 600

800

1000

1500

2000

2500

1200

1500

PSU Loading

20% 50% 100%

PSU Efficiency

230VAC

115VAC

Leading technology for highest efﬁciency Patented fuzzy logic 12cm fan speed

control for optimal cooling and minimum

noise.

Patented air-intake with

optimal aero-dynamical design

reduces noisy air turbulences.

Sextuple protection circuitry of OCP, OVP,

UVP, OPP, OTP and SCP.

EPR385AWTII EPR425AWTII EPR525AWTII EPR625AWTII

Mainboard 24P

(45cm)

24P

(55cm)

+12V CPU 4+4P

(60cm)

6+2P (8P)

PCI-E 2.0

(45cm)

(50cm)

SATA 5 7

3P Molex 4 6

FDD 1 1 1 1
