ENERMAX Revolution X't Manuale di installazione e funzionamento

www.enermax.co.uk

80 PLUS® GOLD

Up to 92 percent efﬁciency at 230V and 20 to 100 percent load. 80 PLUS® Gold certiﬁed.

ErP Lot 6 2013 ready!

Help systems to meet the latest EU eco-design directive ErP Lot 6 2013 (< 0.5W in standby mode*) due to a high-efﬁcient 5V standby

(+5Vsb) circuitry. *only in combination with an ErP Lot 6 2013 ready mainboard

DC-to-DC Design

The secondary voltages (+5V and +3.3V) are generated by the primary voltage rail (+12V). Positive effect: Higher efﬁciency, clean

output voltages (low ripple & noise) and a perfect voltage regulation at all loads.

Full GPU & CPU Power

Massive 12V rail to power high-performance and overclocked processors and graphics cards. More than 97 percent of the total power

of the PSU can be delivered by the 12V rail only.

Full Gaming Power

Min. two 6+2P (8P) PCI-E connectors to power the latest high-end graphics cards and multi-GPU systems (CrossﬁreX™ & SLI™).

Modular & Flat Cables

Simplify the cable routing and enhance the airﬂow inside the case.

Intel® Haswell™ Ready!

Supports the C6/C7 energy-saving functions of the latest Intel® CPUs incl. the forthcoming Intel® Haswell™ generation.

Intel ATX 12V v2.4

Compliant with the latest desktop power supply design guide. Full support of most current Intel® and AMD® CPU.

Worldwide Compatibility

100-240V AC input with automatic adjustment and up to 99% active Power Factor Correction (PFC) for global usage.

Air Cooling by Enermax

Integrated 13.9cm fan with patented Twister Bearing Technology ensures efﬁcient and ultra silent cooling and long lifetime

(100,000 hours MTBF).

SpeedGuard

Ultra silent and powerful cooling performance due to an advanced and intelligent fan speed control.

HeatGuard

Keeping PSU fan running for 30-60 seconds after shut down to dissipate the remaining system heat and prolonging the system‘s lifetime.

COOLING CONNECTIVITY & COMPATIBILITY POWER EFFICIIENCY

ERX430/530/630/730AWT

Features

www.enermax.co.uk

Features

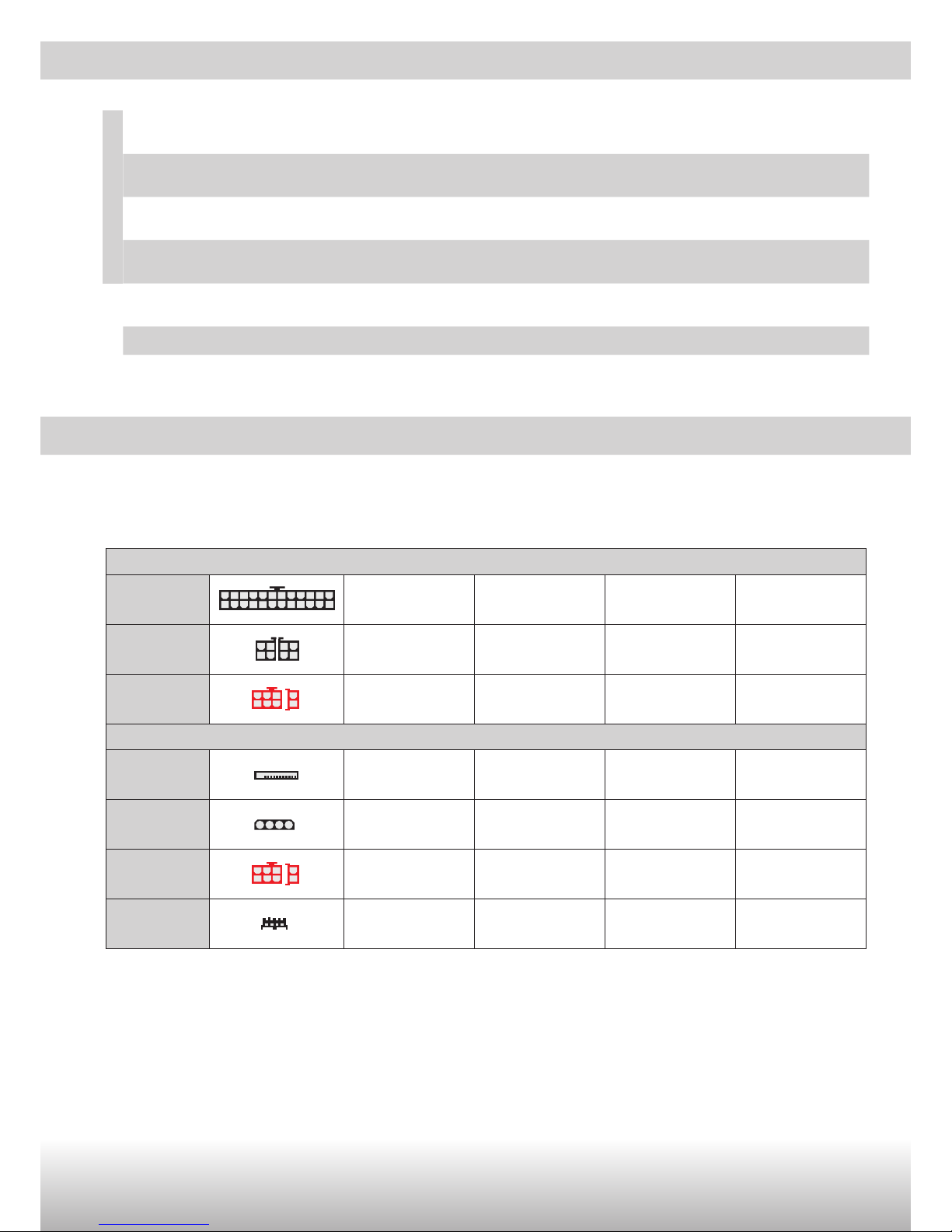

Cables and Connectors

ERX430

AWT

ERX530

AWT

ERX630

AWT

ERX730

AWT

Native Connectors

EPS12V 24 Pin 1x

55cm

CPU 4+4 Pin 1x

60cm

PCI-E 2.0

6+2P (8P)

- - 2x

45cm

Modular Connectors

SATA 8x 8x 8x 8x

4P Molex 4x 4x 4x 4x

PCI-E 2.0

6+2P (8P)

2x 2x 2x 2x

FDD 1x 1x 1x 1x

+ INFO QUALITY & SAFETY

High-quality Japanese Main Capacitors

Highest component standards for maximum stability and durability.

Non-Stop 24/7 @ 40°C

Non-stop industrial class performance at 40°C/104°F ambient.

SafeGuard

Multiple protection circuitry of OVP, OTP, OPP, SCP and SIP.

CordGuard

Fixing the AC cord tightly to avoid accidental shutdowns of your PC.

Compact, Scratch-resistant Housing

Dimensions: 150 mm x 86 mm x 140 mm (W x H x D)

5 years vendor warranty

www.enermax.co.uk

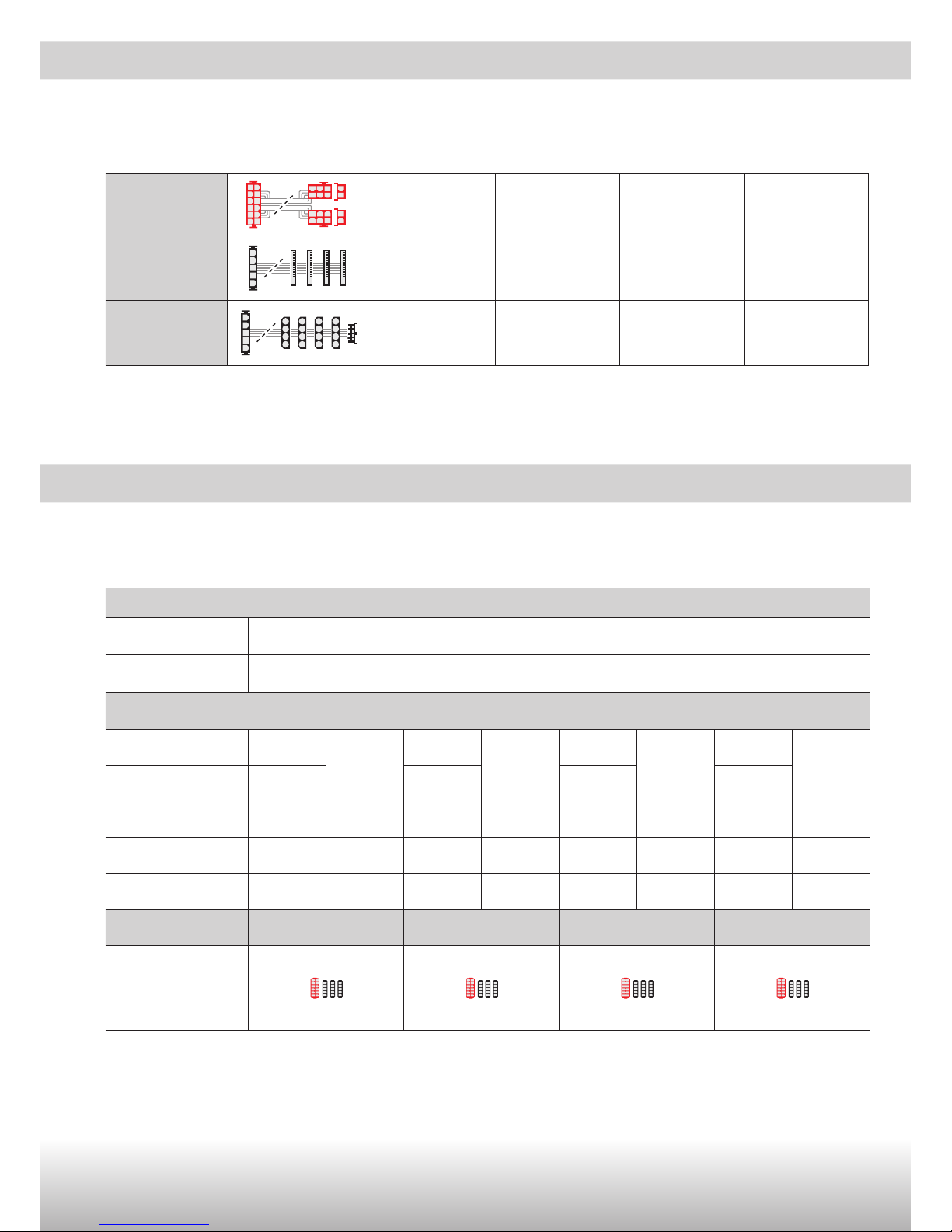

Modular Cables

ERX430

AWT

ERX530

AWT

ERX630

AWT

ERX730

AWT

EMC014-F

2x PCI-E 2.0 6+2 Pin

50cm

EMC019-F

4x SATA

45 / 60 / 75 / 90cm

EMC020-F

4x 4 Pin Molex +

FDD

45 / 60 / 75 / 90 / 105cm

Cables and Connectors

Speciﬁcations

ERX430

AWT

ERX530

AWT

ERX630

AWT

ERX730

AWT

AC Input Rating

Input Voltage 100-240VAC, 50-60Hz

Input Current 10–5A

DC Output Rating

+3.3V 20A

100W

20A

100W

25A

125W

25A

125W

+5V 20A 20A 25A 25A

+12V 35A 420W 43A 516W 51A 612W 60A 720W

-12V 0.8A 9.6W 0.8A 9.6W 0.8A 9.6W 0.8A 9.6W

+5Vsb 3A 15W 3A 15W 3A 15W 3A 15W

Total Power 430W 530W 630W 730W

Modular Sockets

www.enermax.co.uk

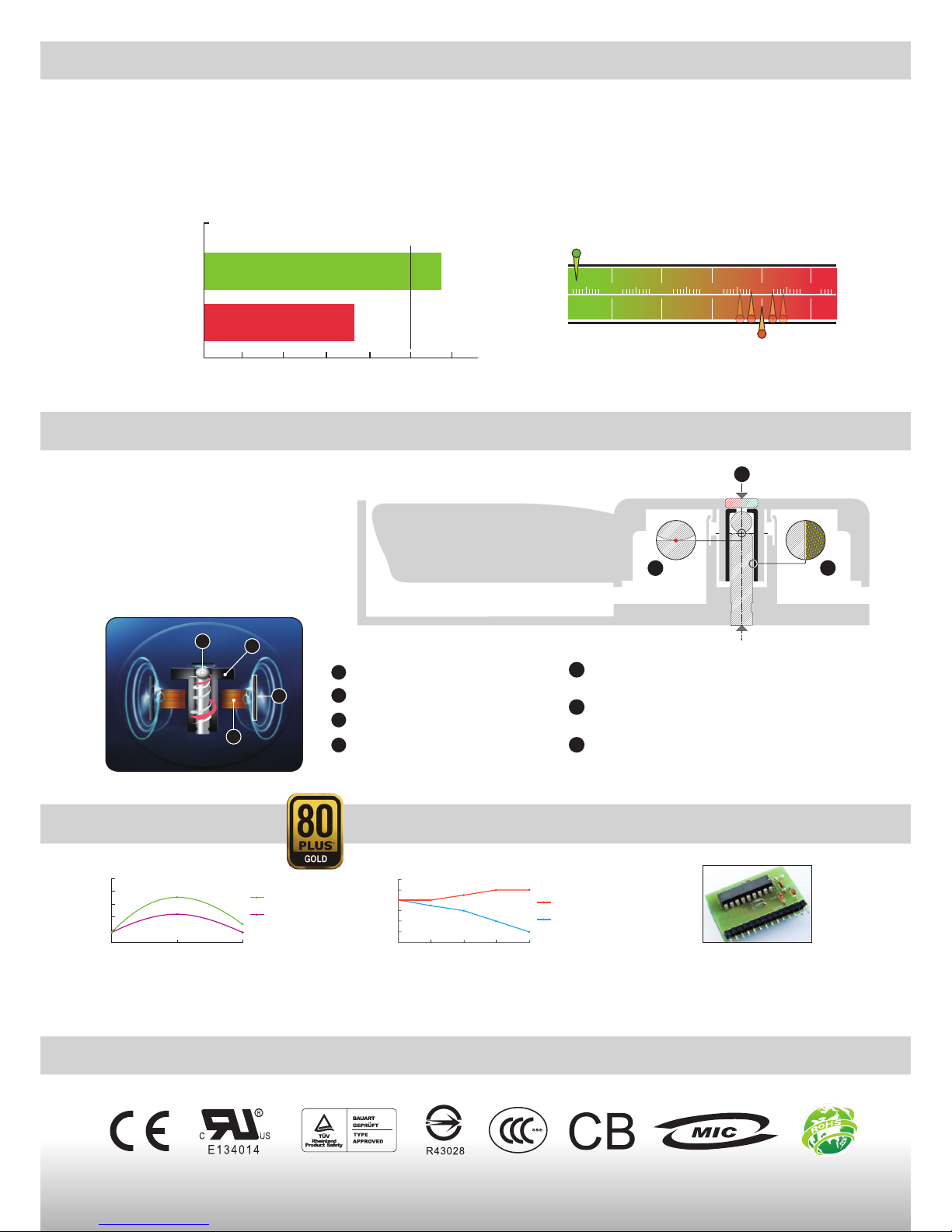

ErP Lot 6 2013 ready!

ErP Lot 6 (ErP = Energy-related Products, previously EuP = Energy-using Products) is part of the EU eco-design directive and

amongst others deﬁnes the maximum power consumption of PC systems in standby mode. Following this regulation, a PC

system must not consume more than 0.5W. The decisive components to fulﬁl the ErP Lot 6 targets are the mainboard and

the PSU. Enermax relies on a circuit design, which improves the efﬁciency of the 5V standby rail (+5Vsb) about 20 per cent.

1W 2W 3W 4W 5W

10 20 30 40 50 60 %

57%

36%

Intel Suggests

>50%

Non ErP Lot 6 2013

Compliant PSU

ENERMAX ErP Lot 6

2013 Compliant PSU

1W 2W 3W 4W 5W

10 20 30 40 50 60 %

57%

36%

Intel Suggests

>50%

Non ErP Lot 6 2013

Compliant PSU

ENERMAX ErP Lot 6

2013 Compliant PSU

1W 2W 3W 4W 5W

10 20 30 40 50 60 %

57%

36%

Intel Suggests

>50%

Non ErP Lot 6 2013

Compliant PSU

ENERMAX ErP Lot 6

2013 Compliant PSU

Supports ErP Lot 6 2013 PC-systems

1W 2W 3W 4W 5W

10 20 30 40 50 60 %

57%

36%

Intel Suggests

>50%

Non ErP Lot 6 2013

Compliant PSU

ENERMAX ErP Lot 6

2013 Compliant PSU

1W 2W 3W 4W 5W

10 20 30 40 50 60 %

57%

36%

Intel Suggests

>50%

Non ErP Lot 6 2013

Compliant PSU

ENERMAX ErP Lot 6

2013 Compliant PSU

1W 2W 3W 4W 5W

10 20 30 40 50 60 %

57%

36%

Intel Suggests

>50%

Non ErP Lot 6 2013

Compliant PSU

ENERMAX ErP Lot 6

2013 Compliant PSU

Does not support ErP Lot 6 2013 PC-systems

Twister Bearing Technology

AMinimal contact area

For an effective noise reduction

BRotor with integrated magnet

For a frictionless and smooth motion

CSelf-lubricating bearing sleeve

Abrasion protection for a longer lifetime

Magnetized steel ball

Self-lubricating nano bearing

Coils

Flexible magnets inside the rotor

Twister Bearing Technology

(patented)

Persistent low noise level

Longer life: up to 100,000 hours

MTBF A

Up to 92% Efﬁciency

@ 230V SafeGuardHeatGuard

PSU Loading

20% 50% 100%

PSU Eciency

230VAC

115VAC

PSU Loading

FAN RPM (±10%)

25% 50% 75% 100%

400

800

1200

1600

2000

900

330

Others

Seconds

0 30 4515 60

°C

Without

HeatGuard

With

HeatGuard

System Temperature

34.5

35.5

36 36

MODU87+

PRO87+

PSU Loading

20% 50% 100%

PSU Eciency

230VAC

115VAC

PSU Loading

FAN RPM (±10%)

25% 50% 75% 100%

400

800

1200

1600

2000

900

330

Others

Seconds

0 30 4515 60

°C

Without

HeatGuard

With

HeatGuard

System Temperature

34.5

35.5

36 36

MODU87+

PRO87+

Leading Technology for highest

efﬁciency.

Keeping PSU fan running for 30-60 seconds

after shut down to dissipate the remaining

system heat.

Multiple protection circuitry of

OVP, OTP, OPP, SCP and SIP.

Certiﬁcations & Standards
