ENERMAX REVOLUTION85PLUS Manuale utente
REVOLUTION85+ PSU SERIES
FEATURES
85PLUS ready!
FUTURE GPU ready!
Ready for most upcoming GPU generations by 12P sockets for possible connector changes, by massive 12V rails for
perfect load distribution & by ZERO LOAD Design for Hybrid Mode functions.
24/7 @ 50°C ready!
Non-Stop industrial class performance at 50°C ambient.
SafeGuard
Industry-leading octuple protection circuitry (OCP, OVP, AC UVP, DC UVP, OPP, OTP, SCP, and SIP).
AirGuard
Patented air-inlet with optimal aero-dynamical design reducing noisy air turbulences.
HeatGuard
Keeping PSU fan running for 30-60 seconds after shut down to dissipate the remaining system heat and prolonging
system lifetime.
SERVER ready!
99% 12V Power
World’s leading EPS12V PSU with 99% 12V output capability.
DXXI ready!
100% 6+2P (8P) PCI-E connector to support new generation DXXI graphic cards.
Silent ready!
Ultra-quiet 13.9cm fan with intelligent RPM control guarantees cool performance and silent operation.
FUTURE CPU ready!
Ready for most upcoming CPU generations by 12P sockets for possible connector changes, by complying to latest
EPS12V PSU design guides for compatibility & by ZERO LOAD Design for C6 state functions.
For Our Future.For Our Future
920W
1020W
CordGuard
Fixing the AC cord tightly to avoid accidental shutdowns of your PC.
World’s leading modular cable PSU series with 86-92.9% efficiency @ 20-100% load. Certified by 80 PLUS organization.
®
SSI PSDG 2008 v1.2 support for latest Intel Core™ Extreme/i7, Xeon™ and AMD Opteron™ and SLI or
CrossFireX™ and AMD GAME! or AMD GAME! Ultra systems and downward compatible with SSI PSDG 2008 v1.1, 1.0,
EPS12V v2.92, v2.91, v2.8.
® ® ®

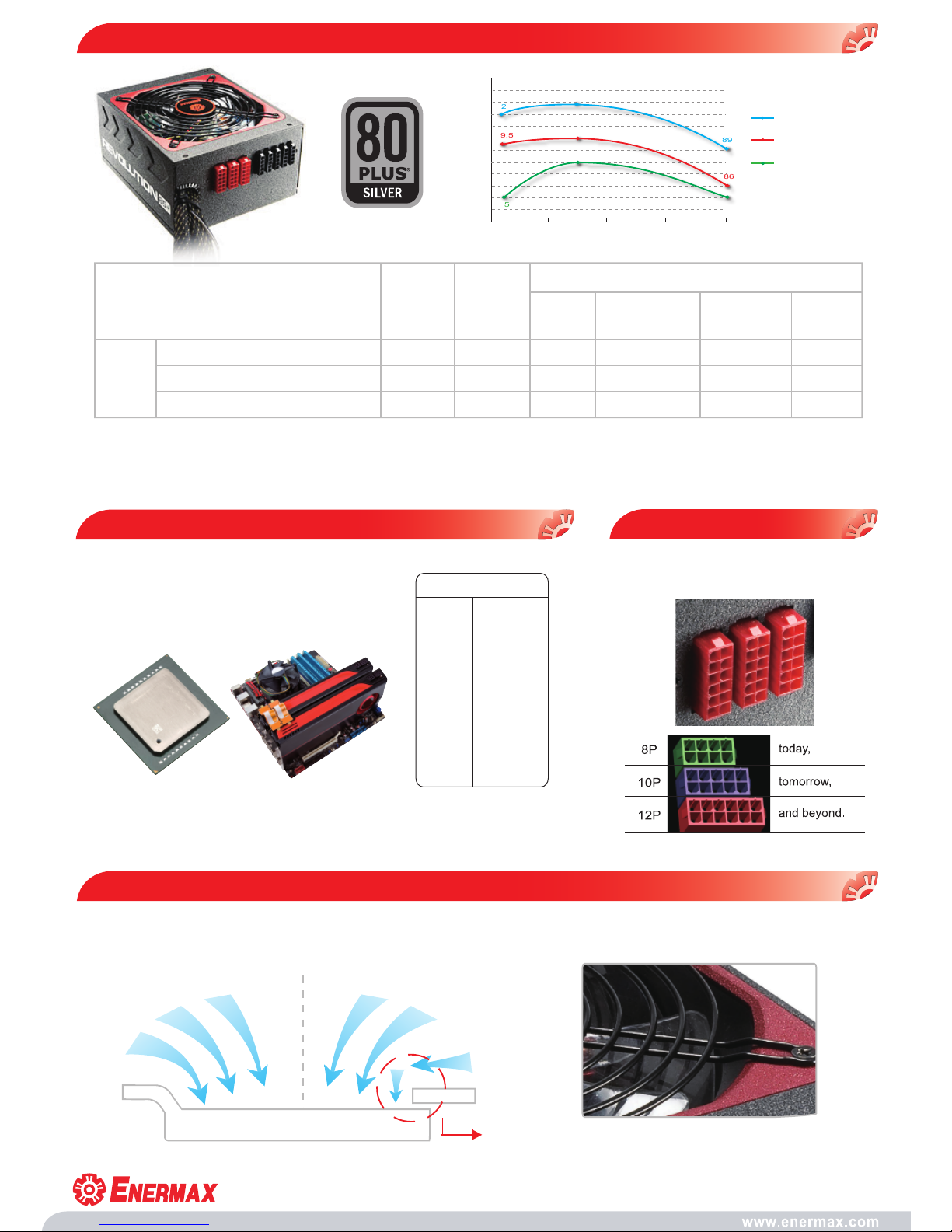

85PLUS ready!
AirGuard
*1 Estimation based on 24/7 heavy-duty server system.
*2 Electricity fare might vary by countries and regional providers.
*3 CO2comparison is based on 1kWh = 0.62kg CO2. Figures might vary by countries.
1020W
PSU
REVOLUTION85+
other ~82%
other ~80%
Efficiency
Energy Consumption Comparison
600W, 24/7 LOAD@230VAC
*1
AC draw
(W)
Annual
kWh draw kWh
wasted
€ 0.22/kWh
Hamburg
$ 0.1505/kWh
California CO2/kg *3
Annually wasted *2
92.0%
82.0%
80.0%
652
732
750
5713
6410
6570
-
697
857
-
€ 153.3
€ 188.5
-
$ 104.9
$ 129
-
432
531.3
1-130W
C6 state CPU
1-300W
Hybrid mode GPU
ENERMAX REVOLUTION85+ series provide tight
DC regulation to support C6 mode and Hybrid
graphic power saving mode thanks to its
ZERO LOAD (0W) Design. 3.3V
5V
12V1
12V2
12V3
•
•
•
-12V
5Vsb
ZERO LOAD
0A
For C6 state and Hybrid
mode support
12P socket design for possibly upcoming
10P & 12P connector generations.
Future ready!C6 & Hybrid mode ready!
Patented air-inlet with optimal aero-dynamical design reducing noisy air turbulences.
Noisy turbulence
FAN
with AirGuard without AirGuard
<
<
<
<
<
<
94
93
92
91
90
89
88
87
86
85
84
20% 40% 60% 80% 100%
92
89.5
92.9
89
90
86
85
88
85
Efficiency %
PSU load
230VAC
115VAC
80 PLUS Silver
requirement

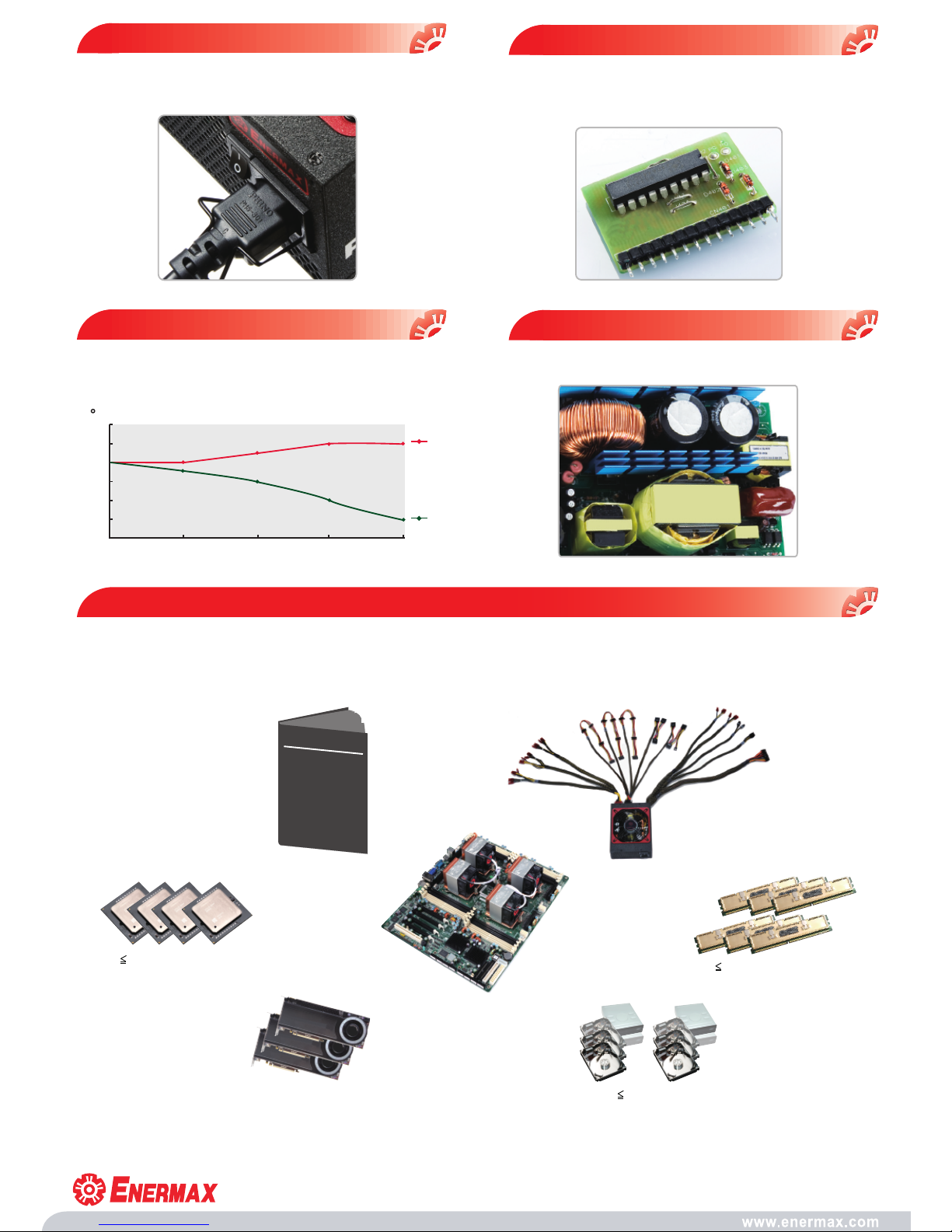

HeatGuard
After shut-down, HeatGuard will keep PSU fan running
for 30-60 seconds to dissipate the remaining system
heat and prolonging lifetime.
47
46
45
44
43
42
41
0 15 30 45 60
45
45.5
46 46
42
43
44
44.5
System Temperature
Time after system shut down
C
Without
HeatGuard
With
HeatGuard
sec.
CordGuard
Fixing the AC cord tightly to avoid accidental shutdowns
of your PC.
SafeGuard
Industry-leading octuple protection circuitry of OCP,
OVP, AC UVP, DC UVP, OPP, OTP, SIP, and SCP
protects your system.
99% 12V Power
Maximum CPU, GPU & RAID support.
SERVER ready!
For best compatibility
SSI 2008 v1.2
Power Supply
Design Guideline
Server System
Infrastructure
Specification
SSI
4 Multi-Core CPU
Multiple graphic cards
18 RAM modules
20 Drives
*1 Max. CPU/GPU support may need additional modular cables.
*2 Actual maximum support may vary by available connectors per model and by power consumption of connected components and is limited to
DC output specifications.
Workstation / Server mainboard
Ready for most upcoming CPU and GPU generations by 12P sockets for possible connector changes, by
complying PSDG 2008 v1.2 support for latest Intel Core™ Extreme/i7, Xeon™ and AMD Opteron™ and
SLI or CrossFireX™ and AMD GAME! or AMD GAME! Ultra systems and downward compatible with SSI
PSDG 2008 v1.1, v1.0, EPS12V v2.92, v2.91, v2.8.
® ®
®
ERV920/1020, AUG-2010, V3.0
© 2010 ENERMAX Technology Corporation. All rights reserved. Specifications are subject to change without prior notice. Actual products and accessories may
differ from illustrations. Omissions and printing errors excepted. Content of delivery might differ in different countries or areas. Some trademarks may be claimed
as the property of others.
80 PLUS is a brand and program run by Ecos Consulting. The 80 PLUS logos are the trademarks of Ecos Consulting. All rights reserved.
NVIDIA, SLI are registered trademarks or trademarks of NVIDIA Corporation.

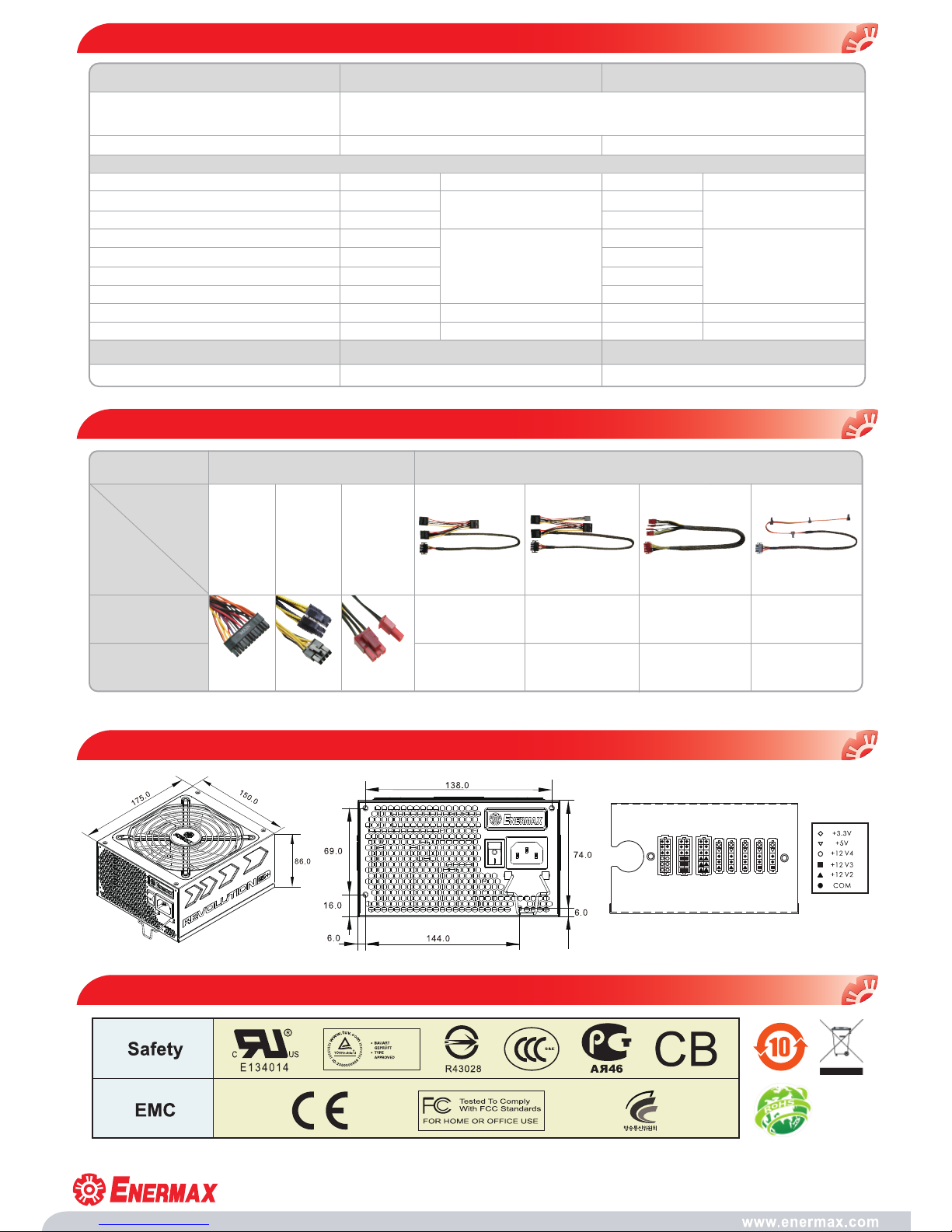

SPECIFICATIONS
CABLES & CONNECTORS
Modular CablesNative Cables
Mainboard CPU 12V 6+2P PCI-E
EMC012 EMC013 EMC014 EMC017
3 x 4P Molex 3 x 4P Molex
+ FDD Dual 6+2P(8P)
PCI-E 4 x SATA
24P 8P & 4+4P X2
Cables
Models
ERV920EWT-00
ERV1020EWT-00
x 1
x 1
x 1
x 1
x 2
x 2
x 3
x 3
DIMENSIONS
CERTIFICATIONS & STANDARDS
*Supplied modular cables might differ by countries or regional packages.
T o t a l P o w e r
AC Input voltage
AC Input c ur re nt 10 - 5A 11 - 5.5A
115-240VAC, 50-60Hz
(Maximum range: 100-264VAC, 47-63Hz)
Rated Combined Rated Combined
+3.3V 0-24A 0-24A
+5V 0-24A 0-24A
+12V1 0-35A 0-35A
+12V2 0-35A 0-35A
+12V3 0-35A 0-35A
+12V4 0-35A 0-35A
-12V 0-0.5A 6W 0-0.5A 6W
+5Vsb 0-3A 15W 0-3A 15W
DC Output
120W 120W
1020W
(85A)
912W
(76A)
Peak Power
920W
1010W
1020W
1120W
Model ERV920EW T-00 ERV1020EWT-00
