ENERMAX SGALAXY EVO Manuale utente

www.enermax.com forum.enermax.com

6GALAXY EVO PSU SERIES

FEATURES

POWER TOMORROW

850W/950W/1050W/1250W

High performance PSU series with max. 89% efficiency@ 20-100% load. Certified by 80 PLUS®organization.

The world’s most advanced design supporting the most diverse CPU, GPU & drive connector configurations.

World's strongest EPS12V PSU with 99% 12V output capability.

Ready for most upcoming CPU generations by 12P sockets for possible connector changes, by complying to latest EPS12V PSU design

guides for compatibility & by ZERO LOAD Design for C6 state functions.

Ready for most upcoming GPU generations by 12P sockets for possible connector changes, by six massive 12V rails for perfect load

distribution & by ZERO LOAD Design for Hybrid Mode functions.

Industry-leading “Asymmetric Hybrid DC-to-DC” topology with the world’s highest efficiency & most stable performance.

Non-Stop industrial class performance at 50°C/122°F ambient.

PSU status monitor with 4-mode LED (Off / Stand-by / OK / Fail).

Industrial-leading octuple protection circuitry of OCP, OVP, UVP AC, UVP DC, OPP, OTP, SIP & SCP protects your system.

Patented air-inlet with optimal aero-dynamical design reducing noisy air turbulences.

Keeping PSU fan running for 30-60 seconds after shut down to dissipate the remaining system heat and prolonging system lifetime.

Ultra-quiet 13.5cm fan with intelligent RPM control guarantees cool performance and silent operation.

SSI PSDG 2009 support for latest Intel®Core™ Extreme/i7, Xeon™ and AMD®Opteron™ and SLI™ or CrossFireX™ and AMD GAME! or

AMD GAME! Ultra systems and downward compatible with SSI PSDG 2008 1.0, EPS12V 2.92, 2.91, 2.8.

For PCI Express 2.0/DXX next-generation graphic cards with 6+2P(8P) PCI-E connectors.

Full-scale electromagnetic filtering protects your system against radiation interferences (CE EMC EN61204 compliance).

82PLUS ready!

12 CPU/GPU + 24 DRIVES MAX.

99% 12V Power

FUTURE CPU ready!

FUTURE GPU ready!

AHD² Topology

24/7 @ 50°C ready!

PowerGuard

SafeGuard

AirGuard

HeatGuard

SILENT ready!

SERVER ready!

DXX ready!

EMC ready!

www.enermax.com forum.enermax.com

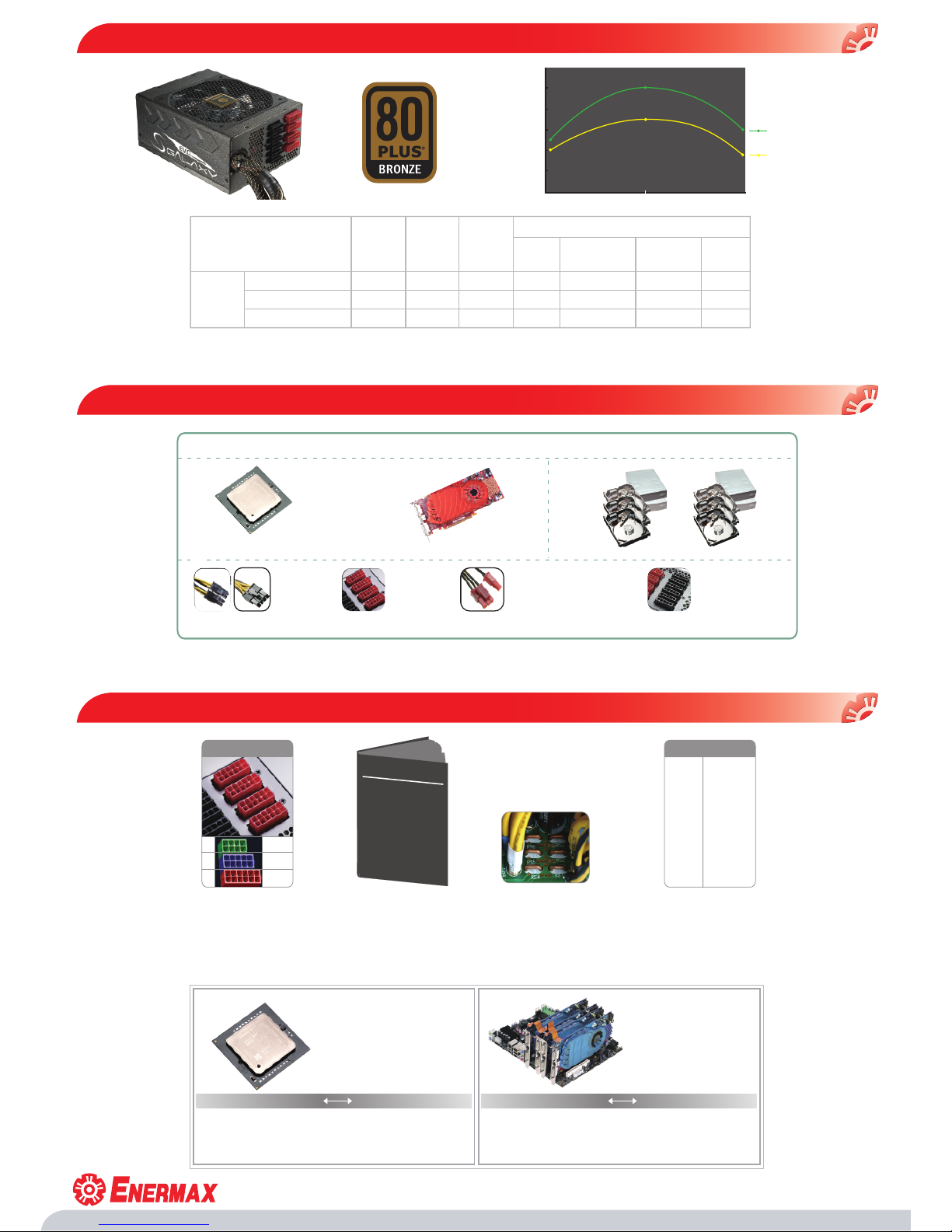

82PLUS ready! (Max. 89% @ 230VAC)

12 CPU/GPU + 24 DRIVES MAX.

FUTURE CPU / GPU ready!

4 x 12P sockets

3.3V

12V1

12V2

12V3

12V4

12V5

12V6

-12V

5Vsb

ZERO LOAD

12V Rails

+ + +

for possible connector

changes

for perfect load

distribution

For C6 state and Hybrid

mode support

For best compatibility

10P

12P

today,

tomorrow,

and beyond.

SSI 2009

Power Supply

Design Guideline

Server System

Infrastructure

Specification

SSI

C6 state

CPU

Hybrid mode

GPU

Future CPUs will have C6 power saving mode that causes them to

have wide dynamic load range from their respective maximums to only

1W!

Future GPUs will feature hybrid mode. When system is idle or in 2D

mode, the discrete GPU(s) will hibernate and shift all GPU processes

to CPU or chipset. This means they have such a wide dynamic load

range as well.

MAX　　　1WMAX　　　1W

Ready for most upcoming CPU and GPU generations by 12P sockets for possible connector changes, by complying to latest EPS12V PSU design guides for

compatibility, by six massive 12V rails for perfect load distribution & by ZERO LOAD Design for C6 state and Hybrid Mode functions.

GALAXY EVO can maintain extra tight DC regulation to support C6 mode and Hybrid graphic power saving mode thanks to its ZERO LOAD (0W) Design.

*1 Estimation based on 24/7 heavy-duty server system.

*2 Electricity fare might vary by countries and regional providers.

*3 CO2comparison is based on 1kWh = 0.62kg CO2. Figures might vary by countries.

1250W

PSU

SGALAXY EVO

other ~80%

other ~75%

Efficiency

Energy Consumption Comparison

800W, 24/7 LOAD@230VAC

AC (W)

draw

kWh

draw kWh

wasted

€ 0.22/kWh

Hamburg

$ 0.1512/kWh

California

CO2/kg

Annually wasted *2

89.0%

80.0%

75.0%

899

1000

1067

7875

8760

9347

885

1472

€ 195

€ 324

$125

$208

549kg

913kg

*Max. support may need additional modular cables.

*Actual maximum support may vary by available connectors per model and by power consumption of connected components and is limited to DC output specifications.

20% 50% 100%

Efficiency %

PSU load

230VAC

115VAC

+ +

4 x DUAL

CPU/GPU

6 x QUAD

DRIVES

1x(4+4)P

CPU

1x8P

CPU

2x(6+2)P

GPU

CPU GPU

www.enermax.com forum.enermax.com

HeatGuard

Silent ready!

PowerGuard SafeGuard

99% 12V Power

Patented air-inlet with optimal aero-dynamical design reducing

noisy air turbulences.

After shut-down, HeatGuard will keep PSU fan running for 30-60

seconds to dissipate the remaining system heat and prolonging

lifetime.

AirGuard

0 　　　　 15 　　　　 30 　　　　 45 　　　　 60

45.5

46 46

44.5

System Temperature

Time after system shut down

Without

HeatGuard

With

HeatGuard

sec.

LED

OFF

ORANGE

GREEN

RED

INFO

NO AC INPUT

STANDBY MODE

PSU NORMAL

PSU PROTECTION ACTIVE

POWERGUARD INDICTION

Ultra-quiet 13.5 cm fan with intelligent RPM control guarantees

cool performance and silent operation.

PSU status monitor with 4-mode LED (Off/ Stand-by/ OK/ Fail). Industry-leading octuple protection circuitry of OCP, OVP, UVP

AC, UVP DC, OPP, OTP, SIP, and SCP protects your system.

2500

2000

1500

1000

50020% 　　　　　　　 50% 　　　　　　　 100%

800

1000 900

1800

1300

2500

Fan RPM

PSU loading

Other

SGALAXY EVO

Maximum CPU, GPU & RAID support by AHD2topology.

Noisy turbulence

FAN

with AirGuard without AirGuard

Server ready!

For best compatibility

SSI 2009

Power Supply

Design Guideline

Server System

Infrastructure

Specification

SSI

Workstation / Server mainboard

Ready for most upcoming CPU and GPU generations by 12P sockets for possible connector changes, by complying with PSDG 2009 support

for latest Intel®Core™ Extreme/i7, Xeon™ and AMD®Opteron™ and SLI™ or CrossFireX™ and AMD GAME! or AMD GAME! Ultra systems

and downward compatible with SSI PSDG 2008 1.0, EPS12V 2.92, 2.91, 2.8.

≦

4 Multi-Core CPU

Multiple graphic cards

≦

18 RAM modules

≦

24 Drives

*1 Heavy-duty workstation with >16 FB-DIMM will neede 5A 5Vsb power in ACPI S3 mode. GALAXY EVO can perfectly support them and also >14 USB devices.

*2 Max. CPU/GPU support may need additional modular cables.

*3 Actual maximum support may vary by available connectors per model and by power consumption of connected components and is limited to DC output specifications.

differ from illustrations. Omissions and printing errors excepted. Content of delivery might differ in different countries or areas. Some trademarks may be claimed

as the property of others.

www.enermax.com forum.enermax.com

SPECIFICATIONS

CABLES & CONNECTORS

Total Power

AC Input Voltage

AC Input Current 9-4.5A 10-5A 11-5.5A 15-6A

115-240VAC, 50-60Hz, Active PFC

(Maximum range: 100-264VAC, 47-63Hz)

Rated Combined Rated Combined Rated Combined Rated Combined

+3.3V 0-25A 0-25A 0-25A 0-25A

+5V 0-25A 0-25A 0-25A 0-25A

+12V1 0-30A 0-30A 0-30A 0-30A

+12V2 0-30A 0-30A 0-30A 0-30A

+12V3 0-30A 0-30A 0-30A 0-30A

+12V4 0-30A 0-30A 0-30A 0-30A

+12V5 0-30A 0-30A 0-30A 0-30A

+12V6 0-30A 0-30A 0-30A 0-30A

-12V 0-0.6A 7.2W 0-0.6A 7.2W 0-0.6A 7.2W 0-0.6A 7.2W

+5Vsb 0-5A 25W 0-5A 25W 0-5A 25W 0-5A 25W

DC Output

160W 170W 170W 170W

1044W

(87A)

948W

(79A)

840W

(70A)

1248W

(104A)

Peak Power

1250W

1500W

950W

1140W

1050W

1260W

850W

1020W

Model EGX850EWT-01 EGX950EWT-01 EGX1050EWT-01 EGX1250EWT-01

Modular CablesNative Cables

Mainboard CPU 12V 6+2P PCI-E FAN RPM

x 1

x 2

x 3

x 4

EMC012 EMC013 EMC014 EMC017

3 x 4P Molex 3 x 4P Molex

+ FDD

Dual 6+2P(8P)

PCI-E 4 x SATA

24P 8P & 4+4P X2 X1

EGX850EWT-01

EGX950EWT-01

EGX1050EWT-01

EGX1250EWT-01

Cables

Models

DIMENSIONS

CERTIFICATIONS & STANDARDS

138.0mm

64.0mm

71.3mm

81mm

34.5mm

48mm

30.5mm

36.5mm

*Supplied modular cables might differ by countries or regional packages.

150.0mm

190.0mm

86.0mm
