ENERMAX ERV920EWT Manuale utente

www.enermax.co.uk

920W/1020W

80 PLUS® SILVER

86-92 per cent efﬁciency at 230V and 20 to 100 per cent load. 80 PLUS® Silver certiﬁed.

Multi Rail Design

Stable and safe power supply thanks to four high-performance and massive 12V rails each with separated over current protection

(OCP). Extremely low ripple noise.

Future CPU/GPU ready!

Ready for upcoming CPU and GPU generations due to 12P sockets for possible connector changes and support of latest EPS12V PSU

design guide for maximum compatibility.

DXXI ready!

Full support of most current DX11 graphics cards due to minimum two 6+2P (8P) PCI-E connectors.

C6 & Hybrid Support

Supports energy saving modes of current and future CPU & GPU generations (C6 & Hybrid Mode) due to ZERO LOAD Design (no

minimum load).

Fit4Server

SSI PSDG 2008 v1.2 support for latest Intel® Core™ Extreme/i7, Xeon™ and AMD® Opteron™ and SLI™ or CrossFireX™ and AMD

GAME! or AMD GAME! Ultra systems and downward compatible with SSI PSDG 2008 v1.1, v1.0, EPS12V v2.92, v2.91, v2.8.

99% 12V Power

Leading EPS12V PSU with 99% 12V output capability.

Non-Stop @ 50°C

Non-Stop industrial class performance at 50°C ambient.

Air Cooling by Enermax

Integrated 13.9cm fan with patented Twister Bearing Technology and intelligent RPM control ensures efﬁcient, silent cooling and long

lifetime (100,000 hours MTBF).

AirGuard

Patented air-intake with optimal aero-dynamical design reduces noisy air turbulences.

HeatGuard

Keeping PSU fan running for 30-60 seconds after shut down to dissipate the remaining system heat and prolonging system lifetime.

SafeGuard

Industry-leading octuple protection circuitry (OCP, OVP, AC UVP, DC UVP, OPP, OTP, SCP, SIP).

CordGuard

Fixing the AC cord tightly to avoid accidental shutdowns of your PC.

Worldwide compatible

100V - 240V AC input with automatic adjustment and active Power Factor Correction (PFC) for global usage.

EuP/ErP (Lot 3) ready!

Support computer system to meet EuP/ErP (Lot 3) standard.

ENERGY STAR 5.0 ready!

Support computer system to meet ENERGY STAR 5.0 standard.

Dimensions (D x H x W)

175 x 86 x 150 mm

Warranty

5 years manufacturer warranty

Features

NVIDIA®, SLI® are registered trademarks or trademarks of NVIDIA Corporation®

ERV920EWT / ERV1020EWT

REVOLUTION85+ PSU Series

www.enermax.co.uk

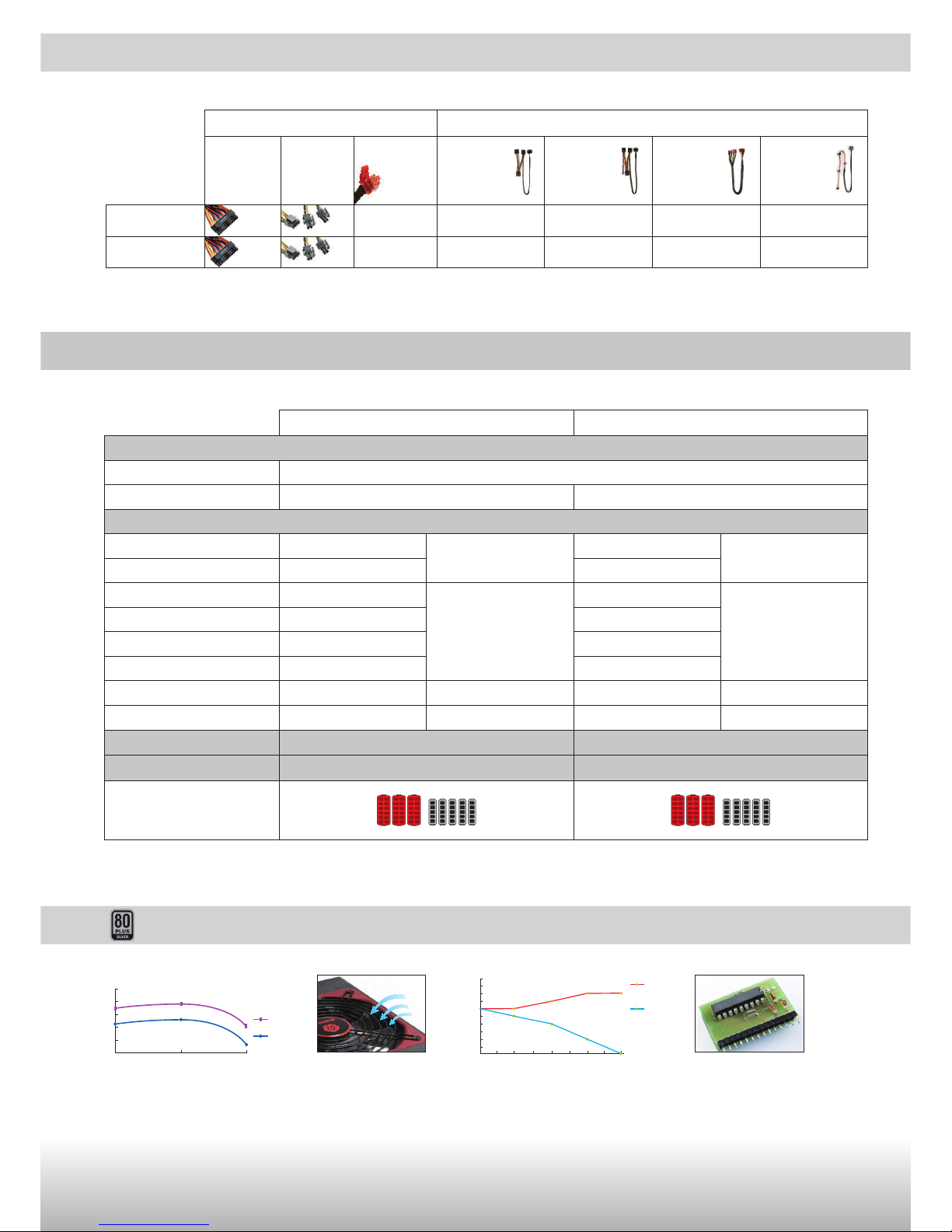

Cables & Connectors

Speciﬁcations

ERV920EWT ERV1020EWT

AC Input Rating

Input Voltage 115–240VAC, 50–60Hz, Active PFC

Input Current 10–5A 11–5.5A

DC Output Rating

+3.3V 0–24A 120W 0–24A 120W

+5V 0–24A 0–24A

+12V1 0–35A

912W

(76A)

0–35A

1020W

(85A)

+12V2 0–35A 0–35A

+12V3 0–35A 0–35A

+12V4 0–35A 0–35A

-12V 0–0.5A 6W 0–0.5A 6W

+5Vsb 0–3A 15W 0–3A 15W

Total Power 920W 1020W

Peak Power 1010W 1120W

Modular

cable management

80 PLUS® SILVER HeatGuard SafeGuardAirGuard

PSU Loading

20% 50% 100%

PSU Eciency

230VAC

115VAC

Time

15s 30s 45s 60s

44.5

45.5

46 46

2500

Without HeatGuard

With HeatGuard

86-92 per cent efﬁciency at 230V and 20 to

100 per cent load. 80 PLUS® Silver certiﬁed.

Keeping PSU fan running for 30-60 seconds

after shut down to dissipate the remaining

system heat and prolonging system lifetime.

Patented air-intake with

optimal aero-dynamical design

reduces noisy air turbulences.

Industry-leading octuple protection circuitry

(OCP, OVP, AC UVP, DC UVP, OPP, OTP, SCP, SIP).

Native cables Modular cables

Mainboard +12V

CPU 6+2P(8P)

EMC012

3x 4P Molex

45/55/65cm

EMC013

3x 4P Molex

+1x FDD

45/55/65/75cm

EMC014

2x 6+2P(8P)

PCI-E 2.0

50cm

EMC017

4x SATA

45/55/65/75cm

ERV920EWT 24P 8P / 4+4P 2x 1x 1x 2x 3x

ERV1020EWT 24P 8P / 4+4P 2x 1x 1x 2x 3x

BRotor with integrated magnet

For a frictionless and smooth motion

AMinimal contact area

For an effective noise reduction

CSelf-lubricating bearing sleeve

Abrasion protection for a longer lifetime

Twister Bearing Technology

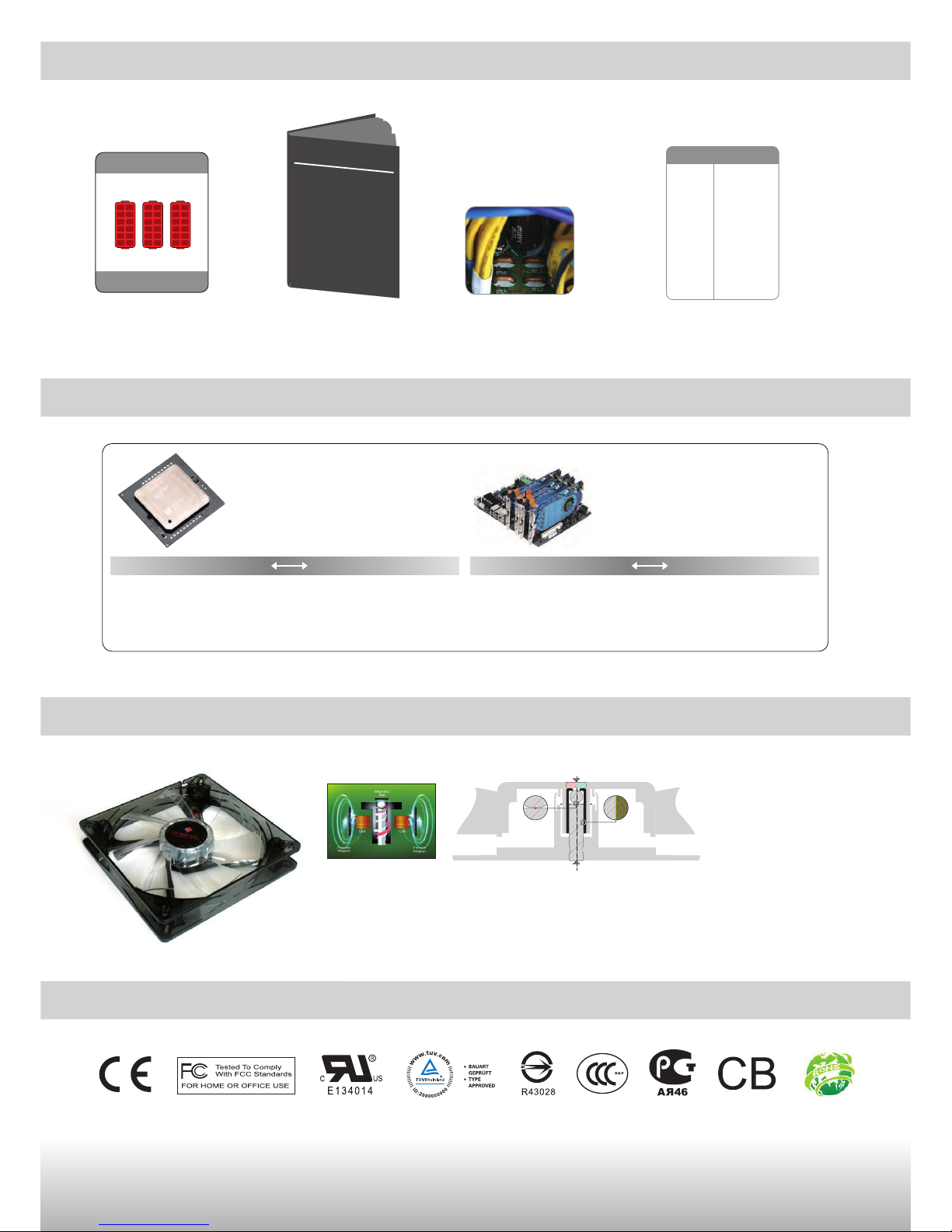

Certiﬁcations & Standards

www.enermax.co.uk

FUTURE CPU / GPU ready!

MAX 1W MAX 1W

Most current CPUs have C6 power saving modes that

cause them to have wide dynamic load range from

their respective maximums to only 1W!

Most current GPUs feature hybrid mode. When system is

in idle or in 2D mode, the discrete GPU(s) will hibernate

and shift all GPU processes to CPU or chipset. This means

they have a wide dynamic load range as well.

GPU Hybrid-ModusCPU C6-Status

3.3V

12V1

12V2

12V3

12V4

-12V

5Vsb

ZERO LOAD

12V Rails

+ + +

For possible

connector changes

For perfect load

distribution

For C6 state and Hybrid

mode support

For best compatibility

SSI 2009

Power Supply

Design Guideline

Server System

Infrastructure

Specication

SSI

3x 12P sockets

FutureReady!

ZERO LOAD Design

Twister Bearing Technology (patented)

Persistent low noise level. Longer life: up to 100.000 hours MTBF
