Enerzone Solution 2.5-ZC Manuale utente

45728A

Printed in Canada 11-03-2014

INSTALLATION

AND OPERATION

MANUAL

Solution 2.5-ZC US ENVIRONMENTAL PROTECTION

AGENCY PHASE II CERTIFIED WOOD

FIREPLACE

Listed to standards ULC-S610 and UL 127

by Intertek Testing Services

www.enerzone-intl.com

Stove Builder International Inc.

250, rue de Copenhague,

St-Augustin-de-Desmaures (Quebec)

Canada G3A 2H3

Tel: (418) 878-3040

Fax: (418) 878-3001

READ AND KEEP THIS MANUAL FOR REFERENCE

This manual is available for free download on the manufacturer’s web site. It is a

copyrighted document. Re-sale is strictly prohibited. The manufacturer may update this

manual from time to time and cannot be responsible for problems, injuries, or damages

arising out of the use of information contained in any manual obtained from unauthorized

sources.

2Solution 2.5-ZC Fireplace Installation and Operation Manual

THANK YOU FOR CHOOSING THIS ENERZONE WOOD FIREPLACE

As one of North America’s largest and most respected wood stove and fireplace

manufacturers, Stove Builder International takes pride in the quality and performance of all

its products. We want to help you get maximum satisfaction as you use this product.

In the pages that follow you will find general advice on wood heating, detailed instructions

for safe and effective installation, and guidance on how to get the best performance from

this fireplace as you build and maintain fires, and maintain your wood heating system.

We recommend that our wood burning hearth products be installed and serviced by

professionals who are certified in the United States by NFI (National Fireplace Institute®)

or in Canada by WETT (Wood Energy Technology Transfer) or in Quebec by APC

(Association des Professionnels du Chauffage).

Congratulations on making a wise purchase.

If this fireplace is not properly installed, combustible materials near it may overheat.

To reduce the risk of fire, follow the installation instructions in this manual exactly.

Contact local building or fire officials about restrictions and installation inspection

requirements in your area.

Please read this entire manual before you install and use your new fireplace. You

may need to get a building permit for the installation of this fireplace and the

chimney that it is connected to. Consult your municipal building department or fire

department before installation. We recommend that you also inform your home

insurance company to find out if the installation will affect your policy.

This heating unit is designed to serve as a supplementary heat source. We

recommend that a primary heat source also be available in the home. The

manufacturer cannot be responsible for costs associated with the use of another

heating system.

CAUTION:Do not attempt to modify or alter the construction of the fireplace or its

components. Any modification or alteration of construction may void the warranty, listings

and approvals of this system. In that case, Stove Builder International (SBI) will not be

responsible for damages. Install the fireplace only as described in these instructions.

Solution 2.5-ZC Fireplace Installation and Operation Manual 3

Table of content

PART A - OPERATION AND MAINTENANCE ...............................6

1Safety Information.....................................................................6

1.1Summary of Operation and Maintenance Cautions and Warnings......................... 6

2General Information...................................................................9

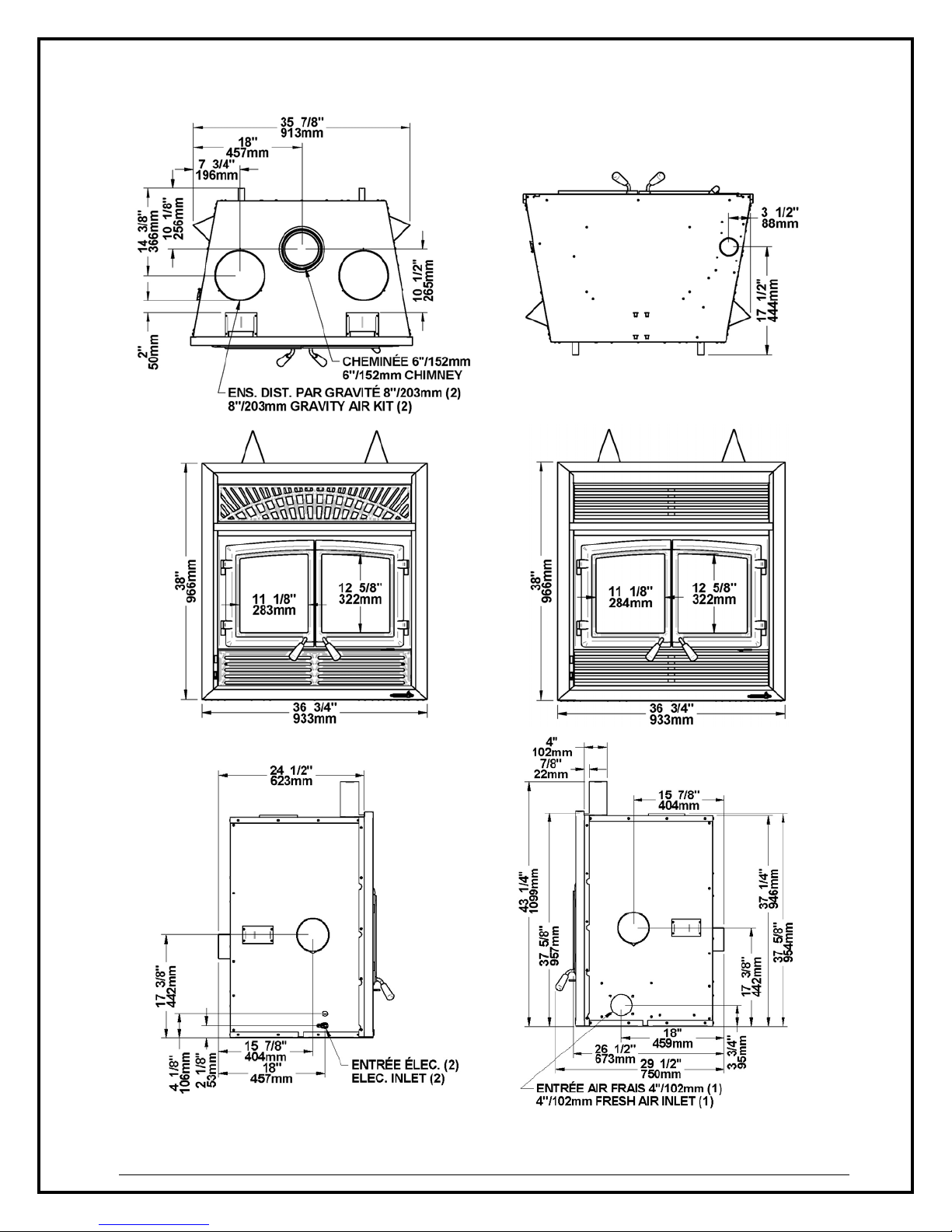

2.1Solution 2.5-ZC Specifications ............................................................................... 9

2.2Zone Heating and How to Make it Work for You .................................................. 12

2.3The Benefits of Low Emissions and High Efficiency............................................. 12

2.4The SBI Commitment to You and the Environment.............................................. 13

2.4.1What is Your New Fireplace Made Of?............................................................. 13

3Fuel ...........................................................................................14

3.1Materials That Should Not be Burned .................................................................. 14

3.2How to Prepare or Buy Good Firewood ............................................................... 14

3.2.1What is Good Firewood? .................................................................................. 14

3.2.2Tree Species..................................................................................................... 14

3.2.3Log Length........................................................................................................ 15

3.2.4Piece Size......................................................................................................... 15

3.2.5How to Dry Firewood ........................................................................................ 16

3.2.6Judging Firewood Moisture Content ................................................................. 17

3.3Manufactured Logs .............................................................................................. 17

4Operating Your Fireplace........................................................18

4.1The use of a fire screen ....................................................................................... 18

4.2Your First Fires..................................................................................................... 18

4.3Lighting Fires........................................................................................................ 18

4.3.1Conventional Fire Starting ................................................................................ 19

4.3.2The Top Down Fire ........................................................................................... 19

4.3.3Two Parallel Logs ............................................................................................. 20

4.3.4Using Fire Starters ............................................................................................ 20

4.4Maintaining Wood Fires ....................................................................................... 20

4.4.1General Advice ................................................................................................. 20

4.4.2Ash Removal .................................................................................................... 21

4.4.3Raking Charcoal ............................................................................................... 21

4.4.4Firing Each New Load Hot ................................................................................ 22

4.4.5Turning Down the Air Supply ............................................................................ 22

4.4.6Building Different Fires for Different Needs....................................................... 23

4Solution 2.5-ZC Fireplace Installation and Operation Manual

5Maintaining Your Wood Heating System ..............................26

5.1Fireplace Maintenance......................................................................................... 26

5.1.1Plated Finish Maintenance................................................................................ 26

5.1.2Glass Door Cleaning......................................................................................... 26

5.1.3Door Adjustment ............................................................................................... 27

5.1.4Door Alignment ................................................................................................. 28

5.1.5Replacing the Door Gasket............................................................................... 30

5.1.6Replacing the Glass Gasket and/or the Glass .................................................. 30

5.1.7Cleaning and Painting the Fireplace ................................................................. 31

5.2Chimney and Chimney Liner Maintenance........................................................... 32

5.2.1Why Chimney Cleaning is Necessary ............................................................... 32

5.2.2How Often Should You Clean the Chimney? .................................................... 32

5.2.3Cleaning the Chimney....................................................................................... 33

5.2.4Fire Baffle Removal Prior to Cleaning the Chimney.......................................... 34

5.2.5Chimney Fire .................................................................................................... 34

PART B – INSTALLATION............................................................35

6Safety Information...................................................................35

6.1Summary of Installation Cautions and Warnings.................................................. 35

6.2Regulations Covering Fireplace Installation ......................................................... 36

6.3Fireplace Installation ............................................................................................ 37

6.3.1Locating the SOLUTION 2.5-ZC ....................................................................... 37

6.3.2Minimum Heart Extension Requirements.......................................................... 43

6.3.3Framing, Facing, Mantel, and Combustible Shelf ............................................. 45

7Clearances to Combustible Material......................................52

7.1Locating the Certification Label ............................................................................ 52

8The Venting System ................................................................53

8.1General ................................................................................................................ 53

8.2Suitable Chimneys ............................................................................................... 53

8.3Minimum Chimney Height .................................................................................... 53

8.4The Relationship Between the Chimney and the House ...................................... 53

8.4.1Why the chimney should penetrate the highest heated space.......................... 53

8.5Chimney Installation Notes................................................................................... 54

8.6Chimney Installation Instructions.......................................................................... 57

8.6.1Examples of Typical Chimney Installation......................................................... 57

8.6.2Offset Chimney Installation ............................................................................... 62

8.7Angled Wall Radiation Shield ............................................................................... 65

Solution 2.5-ZC Fireplace Installation and Operation Manual 5

8.8Chimney Support Installation ............................................................................... 66

8.8.1Universal Roof Support..................................................................................... 66

8.8.2Universal Offset Support................................................................................... 67

8.9Installation Instructions for Masonry Application .................................................. 67

8.10Supply of Combustion Air..................................................................................... 68

8.10.1Air Supply in Conventional Houses................................................................... 69

Appendix 1: Hot Air Ducting Installation....................................70

Appendix 2: Blower Maintenance or Replacement ...................74

Appendix 3: Installing the Door Overlay ....................................78

Appendix 5: Installing the Fire Screen (AC01308).....................83

Appendix 6: Installation of Secondary Air Tubes and Baffle ...84

Appendix 7: Exploded Diagram and Parts List..........................87

ENERZONE LIMITED LIFETIME WARRANTY.............................92

To receive full warranty coverage, you will need to show evidence of the

date you purchased your stove. Keep your sales invoice. We also

recommend that you register your warranty online at:

http://enerzone-intl.com/warranty-registration.aspx

Registering your warranty online will help us to quickly track the

information we need about your stove.

6Solution 2.5-ZC Fireplace Installation and Operation Manual

PART A - OPERATION AND MAINTENANCE

Please see Part B for installation instructions.

1 Safety Information

1.1 Summary of Operation and Maintenance Cautions and Warnings

•HOT WHILE IN OPERATION, KEEP CHILDREN, CLOTHING AND FURNITURE

AWAY. CONTACT MAY CAUSE SKIN BURNS. GLOVES MAY BE NEEDED FOR

FIREPLACE OPERATION.

•USING A FIREPLACE WITH CRACKED OR BROKEN COMPONENTS, SUCH AS

GLASS OR FIREBRICKS OR BAFFLES MAY PRODUCE AN UNSAFE CONDITION

AND MAY DAMAGE THE FIREPLACE.

•OPERATE ONLY WITH DOOR FULLY CLOSED OR FULLY OPEN WITH FIRE

SCREEN IN PLACE. IF DOOR IS LEFT PARTLY OPEN, GAS AND FLAME MAY BE

DRAWN OUT OF THE OPENING, CREATING RISKS FROM BOTH FIRE AND

SMOKE.

•OPEN THE AIR CONTROL FULLY BEFORE OPENING THE LOADING DOOR.

•THIS FIREPLACE HAS BEEN TESTED FOR USE WITH AN OPEN DOOR IN

CONJUNCTION WITH A FIRE SCREEN (AC01308, SOLD SEPARATELY). THE

DOOR MAY BE OPEN OR FIRE SCREEN REMOVED ONLY DURING LIGHTING

PROCEDURES OR RELOADING. ALWAYS CLOSE THE DOOR OR PUT BACK

THE FIRE SCREEN AFTER IGNITION. DO NOT LEAVE THE FIREPLACE

UNATTENDED WHEN THE DOOR IS OPENED WITH OR WITHOUT FIRE SCREEN.

•DO NOT INSTALL THE FIREPLACE OUTDOORS.

•THE FIREPLACE AND CHIMNEY MUST BE IN AN ENCLOSURE UP TO THE

ATTIC.

•NEVER USE GASOLINE, LANTERN FUEL (NAPHTHA), FUEL OIL, MOTOR OIL,

KEROSENE, CHARCOAL LIGHTER FLUID, OR SIMILAR LIQUIDS OR AEROSOLS

TO START A FIRE IN THIS FIREPLACE. KEEP ALL SUCH LIQUIDS OR

AEROSOLS WELL AWAY FROM THE FIREPLACE WHILE IT IS IN USE.

•DO NOT STORE FUEL WITHIN HEATER MINIMUM INSTALLATION CLEARANCES.

•BURN ONLY SEASONED NATURAL FIREWOOD.

Solution 2.5-ZC Fireplace Installation and Operation Manual 7

•DO NOT BURN:

oGARBAGE OF ANY KIND,

oCOAL OR CHARCOAL,

oTREATED, PAINTED OR COATED WOOD,

oPLYWOOD OR PARTICLE BOARD,

oFINE PAPER, COLORED PAPER OR CARDBOARD,

oSALT WATER DRIFTWOOD,

oMANUFACTURED LOGS CONTAINING WAX OR CHEMICAL ADDITIVES,

oRAILROAD TIES OR

oLIQUIDS SUCH AS KEROSCENE OR DIESEL FUEL TO START A FIRE.

•THIS APPLIANCE SHOULD BE MAINTAINED AND OPERATED AT ALL TIMES IN

ACCORDANCE WITH THESE INSTRUCTIONS.

•DO NOT ELEVATE THE FIRE BY MEANS OF GRATES, AND IRONS OR OTHER

MEANS.

•THIS FIREPLACE MUST ALWAYS BE USED WITH THE ORIGINAL ANDIRONS

(SEE APPENDIX 7: EXPLODED DIAGRAM AND PARTS LIST FOR REPLACEMENT

PARTS).

•SOME JURISDICTIONS IN THE USA REQUIRE A SUPPLY OF OUTDOOR

COMBUSTION AIR FOR THE FIREPLACE. IN CANADA, AN OUTDOOR AIR

SUPPLY IS NOT REQUIRED, IF A CARBON MONOXIDE (CO) DETECTOR/ALARM

IS LOCATED IN THE ROOM IN WHICH THE FIREPLACE IS INSTALLED. THE CO

DETECTOR WILL PROVIDE WARNING IF FOR ANY REASON THE WOOD

FIREPLACE FAILS TO FUNCTION CORRECTLY. IF YOU ARE REQUIRED TO

INSTALL AN OUTDOOR AIR SUPPLY, WE RECOMMEND THAT YOU ALSO

INSTALL A CO DETECTOR/ALARM TO PROVIDE WARNING IF SMOKE

SPILLAGE FROM THE FIREPLACE OCCURS.

CAUTION: KEEP COMBUSTIBLE MATERIALS AT LEAST 48 INCHES AWAY FROM

THE FRONT OF THE FIREPLACE OPENING.

CAUTION: DO NOT USE A FIREPLACE INSERT AND OTHER PRODUCTS NOT

SPECIFIED FOR USE WITH THIS FIREPLACE.

CAUTION: DO NOT OBSTRUCT AIR INTLETS. THIS FIREPLACE NEEDS AIR FOR

ITS GOOD OPERATION.

CAUTION: DO NOT BLOCK THE HOT AIR VENTS TO THE FIREPLACE AS THIS

WILL CAUSE THE FIREPLACE TO OVERHEAT.

WARNING: DO NOT USE MATERIALS OTHER THAN THOSE LISTED IN THE

REPLACEMENT PARTS SECTION DURING INSTALLATION AS THEY

MAY BE SAFETY HAZARDS AND A FIRE COULD RESULT.

8Solution 2.5-ZC Fireplace Installation and Operation Manual

WARNING: THIS FIREPLACE HAS NOT BEEN TESTED WITH AN UNVENTED OR

VENTED GAS LOG SET. TO REDUCE RISK OF FIRE OR INJURY, DO

NOT INSTALL AN UNVENTED GAS LOG SET INTO THIS FIREPLACE.

CAUTION: DO NOT INSTALL IN A MOBILE HOME (CANADA) OR MANUFACTURED

HOME* (USA).

* The US department of Housing and Urban Development describes

“manufactured homes” better known as “mobile home” as followed;

Buildings built on fixed wheels and those transported on temporary

wheels/axles and set on a permanent foundation.

PLEASE NOTE THAT THE PICTURES SHOWN IN THIS

MANUAL ARE GENERIC AND MAY NOT MATCH

EXACTLY THE LOOK OF YOUR FIREPLACE.

Solution 2.5-ZC Fireplace Installation and Operation Manual 9

2 General Information

2.1 Solution 2.5-ZC Specifications

Fuel Type Cordwood

Test Standards (safety) ULC-S610 and UL 127

Test Standard (emissions) EPA Method 28 (40 CFR Part 60)

Heating capacity range* 500 to 2100 sq. ft. (46.5 to 195 m2)

Maximum heat output**

(EPA test fuel) 30,450 BTU/h (8.9 kW/h)

Maximum heat output**

(natural hardwood fuel) 75,000 BTU/h (22 kW/h)

Optimum efficiency 77 %

Particulate Emissions 4.4 g/h

Approximate Burn Time* 8 to 9 hours

Shipping Weight 456 lb (207 kg)

Firebox Volume 2.5 cu.ft. (0.071 m3)

Maximum Log Length 21" east-west***

Flue Outlet Diameter 6" (150 mm) diameter (vertical)

Baffle Material C-Cast

Mobile home approved No

* Burn time and heating capacity may vary subject to location in home, chimney draft,

chimney diameter, locality, heat loss factors, climate, fuels and other variables.

** The EPA test fuel is dimensional Douglas fir pieces stapled together into cribs with air

spaces between. We also test using the same procedure except using split hardwood

firewood to reflect real-world heat output. This fireplace is not intended to operate at its

peak heat output continuously.

*** East-west: through the door you see the sides of the logs.

10 Solution 2.5-ZC Fireplace Installation and Operation Manual

Altri manuali per Solution 2.5-ZC

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Enerzone Camino da interno

Enerzone

Enerzone SOLUTION 3.5 INSERT Manuale utente

Enerzone

Enerzone Solution 2.0 Manuale utente

Enerzone

Enerzone EB00005 Manuale utente

Enerzone

Enerzone Solution 1.8-I Manuale utente

Enerzone

Enerzone Destination 2.3 Insert Manuale utente

Enerzone

Enerzone Solution 2.5-ZC Manuale utente

Enerzone

Enerzone DESTINATION 1.9 Manuale utente

Enerzone

Enerzone SOLUTION 2.5ZC II Manuale utente

Enerzone

Enerzone BIO-35 Manuale utente

Enerzone

Enerzone DESTINATION 2.7 Manuale utente

Enerzone

Enerzone Destination 2.3 Manuale utente

Enerzone

Enerzone SOLUTION 1.7-I Manuale utente

Enerzone

Enerzone Destination 1.5 Insert Manuale utente

Enerzone

Enerzone Destination 1.5 Manuale utente

Manuali Camino da interno popolari di altre marche

Brigantia

Brigantia 35-DVRS31N-2 Manuale del proprietario

Nordpeis

Nordpeis Bergen Manuale utente

Superior

Superior BCT2536TMN Manuale utente

Quadra-Fire

Quadra-Fire 5100I-GD-B Manuale utente

Renaissance

Renaissance RUMFORD 1000 Manuale utente

Lacunza

Lacunza IV-800 Manuale utente

Baxi

Baxi 940 Istruzioni per l’uso

Dru

Dru Maestro 60/2 Tall RCH Manuale utente

Diamond Fireglass

Diamond Fireglass SS-O22 Manuale utente

HearthStone

HearthStone Windsor Bay 8830 Manuale di programmazione

Napoleon

Napoleon ASCENT B42 Manuale utente

Enviro

Enviro E33GI Manuale utente

Smeg

Smeg L30 FABE Istruzioni di montaggio

KEDDY

KEDDY K700 Manuale utente

Godin

Godin 3451 Manuale utente

Jøtul

Jøtul Jotul GI 535 DV IPI New Harbor Manuale utente

Austro Flamm

Austro Flamm Heidi Back 2.0 945048 Manuale utente

Desa

Desa CCFPDFT Manuale operativo
