EnGenius EnStation6 Manuale utente

User Manual

Ultra-long range

EnStation6/ENH500-AX

IMPORTANT

To install this Access Point please refer to the

Quick Installation Guide included in the product packaging.

Table of Contents

Chapter 1 Product Overview.................................................... 4

Chapter

Before

You

Begin.

.................................................... 12

Chapter3 Configuring Your Access Point............................ 24

Chapter 4 Building a Wireless Network................................... 27

Chapter

Status.

................................................................... 33

Chapter 6 Network................................................................ 38

Chapter 7 Wireless.

................................................................ 41

Chapter 8 Management

.......................................................... 52

Chapter 9 EnWiFi App........................................................... 66

Appendix ……………………………… …………………………………………79

Chapter 1

Product Overview

Key

Features

•

Supports IEEE802.11ax wireless standards

•

Antennas

-EnStation6: Internal 15.5dBi high gain directional antenna.

-ENH500-AX: Internal 13.26dBi high gain directional antenna.

•

Power Source

-ENH500-AX Can be used with included 54V PoE adapter

-EnStation6 Can be used with included 54V PoE adapter

•

Device can be reset from remote PoE adapter

•

Advanced 1024-QAM technology to achieve optimal

performance throughout ultra-long distance

EnStation6

ENH500-AX

14.04

•

In conjunction with 2.4GHz management interface and EnGenius

EnWiFi App can help device configuration and monitoring more

easily on smartphone or tablet.

Introduction

The EnStation6/ENH500-AX is a high-powered, ultra

long-range 2x2 Wireless 802.11ax/ac/a/n Outdoor

Access Point with speeds up to 1184 Mbps on both its high-

powered 5 GHz radios. It can be configured as an:

Access Point, Client Bridge or WDS (AP, Station & Bridge) .

The EnStation6/ENH500-AX is designed to operate in a

variety of outdoor environments. Its high- powered, long-

range characteristics make it a cost effective alternative to

ordinary Access Points that don’t have the range and

reach to connect to a growing number of wireless CPEs who

wish to connect to a business network. The

EnStation6/ENH500-AX supports the 5 GHz frequency

band for communicating to other 5GHz frequency bands

Access Points concurrently. Several EnStation6/ENH500-

AX can be networked in a campus setting using the 5

GHz band between countries, which is easy to be installed

in virtually any location with its included PoE (Power over

Ethernet) Adapter for quick outdoor installation. It also

supports wireless encryption including Wi-Fi Protected

Access (WPA2-PSK) Encryption and IEEE 802.1AX with

RADIUS.)

System

Requirements

The following are the Minimum System Requirements in

order to configure the device.

•

Computer with an Ethernet interface or wireless network capability

•

Windows OS (XP, Vista, 7, 8, 10), Mac OS, or Linux-based operating

systems

•

Web-Browsing Application (i.e.: Internet Explorer, Firefox, Safari, or

another similar browser application)

Package

Contents

The EnStation6 package contains the following items:*

•

EnStation6 Customer Premises Equipment

•

EnStation6 with PoE Adapter EPA5006GR

•

Power Cord

•

Pole Mount Strap

•

Wall Mount Bracket Base

•

Screw Sets Kit

•

Sealing Nut

•

Dynamic Stick

•

Quick Installation Guide

*(all items must be in package to issue a refund):

The ENH500-AX package

contains the following items:*

•

ENH500-AX

•

PoE Adapter (EPA5006GR)

•

Power Cord

•

Pole Mount Strap

•

Wall Mount Screw Set

•

Quick Installation Guide

*(all items must be in package to issue a refund):

Technical Specifications

Standard

IEEE802.11ax/ac/a/n on 5 GHz

Antenna

EnStation6: Internal 15.5dBi high gain directional antenna.

ENH500-AX: Internal 14.11dBi high gain directional antenna

Physical Interface

2 x 10/100/1000 Gigabit Ethernet Port with PoE support

LAN(PoE) Port supports 54V PoE Input

LED

Indicator

Power

LAN 1

LAN 2

WLAN

WLAN LED (Weak, Medium, Strong)

Power Requirements

ENH500-AX Include PoE Adapter, 54V 0.6A

EnStation6 Include PoE Adapter, 54V 0.6A

Optimal Performance

Distance Control (Ack Timeout)

Multicast Supported

Data Rate Selection

Auto Channel Selection

BSSID Support

AP Time Slot

Station Priority

Easily

Management

VLAN Tag / VLAN Pass-through

Guest Network

QoS: Complaint with IEEE 802.11e /WMM

RADIUS Accounting

Wireless STA (Client) connection list

Traffic Shaping (Per SSID)

Intuitive

Tools

SNMP v1/v2c/v3 support

MIB I/II, Private MIB

Save Configuration as Default

CLI

Support

WiFi-Scheduler/Auto Reboot

E-mail Alert

Reinforcement

Security

WPA2 Enterprise

Hide SSID in beacons

MAC address filtering, up to 32 MACs per SSID

Wireless STA (Client) connection list

Https Support

SSH Support

QoS (Quality of Service)

Complaint with IEEE 802.11e standard

Physical/Environment

Conditions

Operating:

Temperature: -20 °C to 60 °C (-4 °F to 140 °F)

Humidity (non-condensing): 90% or less

Storage:

Temperature: -30 °C to 80 °C (-22 °F to 176 °F )

Humidity (non-condensing): 90% or less

Physical

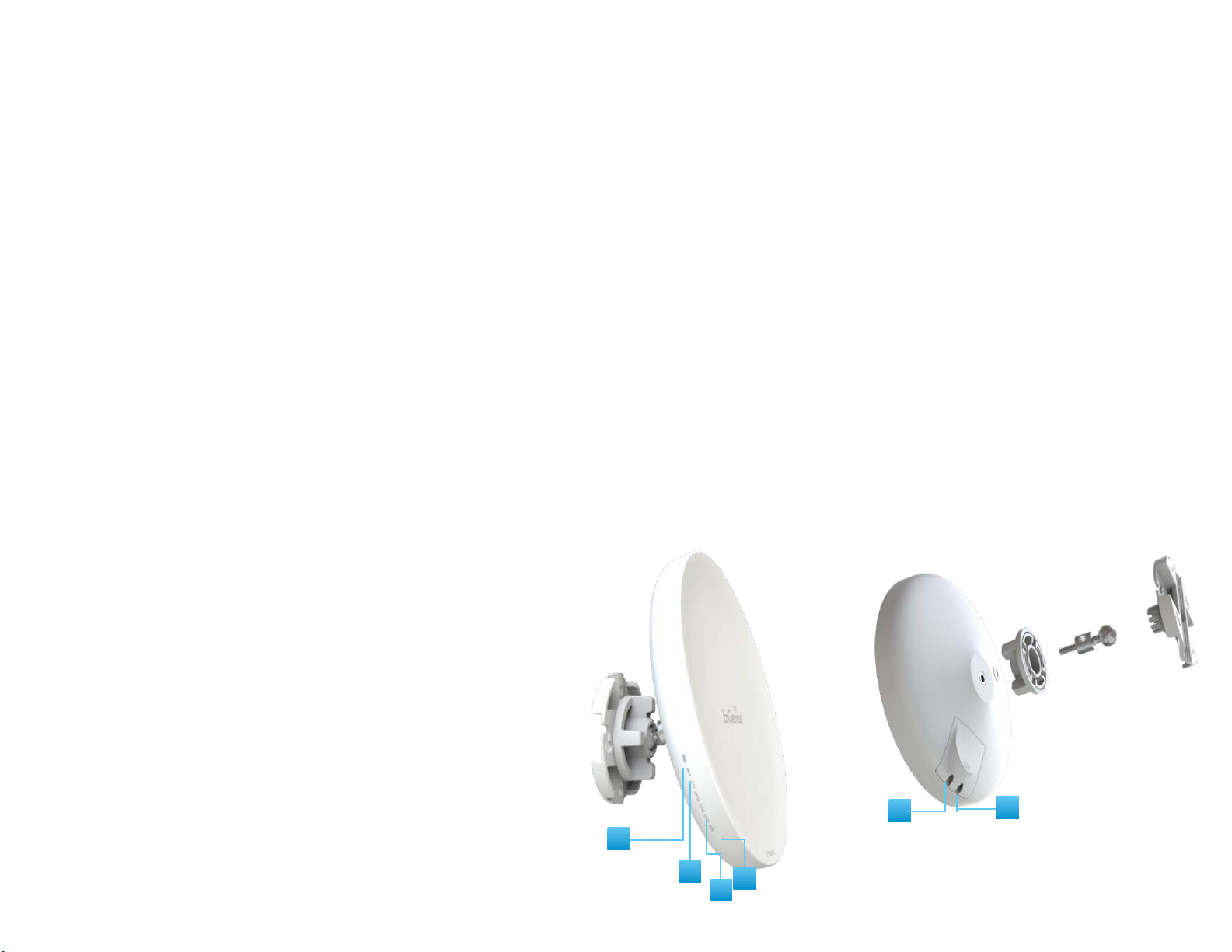

Interface - EnStation6

Dimensions and Weights

EnStation6

Dimension: 190mm (7.48”)

Height: 38mm (1.9”)

Weight: 527g (1.16 lbs)

WLAN Signal LED: Applied on Client Bridge/WDS

(1)

Red: Weak Signal: Connecting quality is bad.

(2)

Yellow: Connecting quality is Normal.

(3)

Green: Connection quality is Good.

LAN(PoE) Signal LED

LAN Signal LED of the 2nd Port

Power Signal:

LAN Port 1: Gigabit Ethernet port for RJ-45 cable.

LAN Port 2: Gigabit Ethernet port for RJ-45 cable.
