EnGenius ESR-1221N Manuale utente

ESR-1221N Wireless b/g/n Router/AP

• 2.4 GHz

• 150Mbps

• 11N Router/AP

Learn more about EnGenius Solutions at www.engeniustech.com.sg

HOME & HOME OFFICE

ESR1221N

ESR1221N Datasheet Version 240111

*Theoretical wireless signal rate based on IEEE standard of 802.11 b, g, n chipset used. Actual throughput may vary. Network conditions and environmental

factors lower actual throughput rate.

** All specifications are subject to change without notice

PRODUCT OVERVIEW

ESR1221N is a 150Mbps AP Router offers user unprecedented network

performance with economic circuit design. WMM support boosts streaming

and multimedia intensive services. Multiple SSID provides advance users

to manage multiple users of various needs. TX power control enables

flexible transmission tuning for different installation needs and prevents

malicious eaves-dropping. Isolation, filter, firewall and full coverage of

security standards promise a securer network environment.

Learn more about EnGenius Solutions at www.engeniustech.com.sg

Datasheet

ESR1221N

HOME & HOME OFFICE

ESR1221N

ESR1221N Datsa sheet

ersion 240111

*Theoretical wireless signal rate based on IEEE standard of 802.11 b, g, n chipset used. Actual throughput may vary. Network conditions and environmental

factors lower actual throughput rate.

** All specifications are subject to change without notice

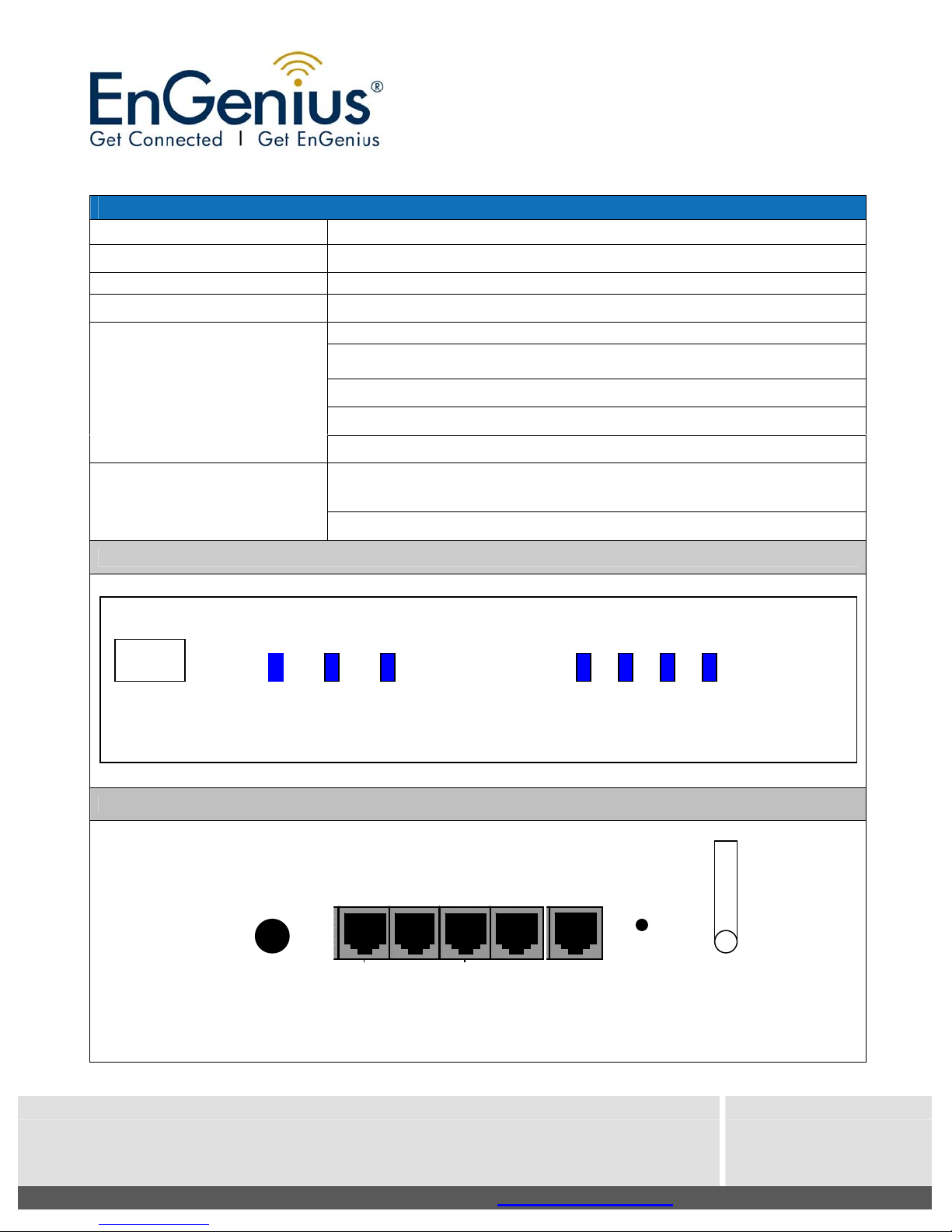

HARDWARE SPECIFICATIONS

MCU RTL8196C+8188RE

Memory 16MB SDRAM

Flash 2MB

PCB dimension 100mm * 90mm

WAN: 1 x 10/100 Fast Ethernet RJ-45

LAN: 4 x 10/100 Fast Ethernet RJ-45

Rest button

Power Jack

Physical Interface

WPS (WiFi Protected Setup)

Power Supply:

200 to 240 VDC ± 10％(ETSI)

100 to 120 VDC ± 10％(FCC)

Power Requirements

Device: 5V/1A

Front Panel (LED status)

Rear Panel (Interface)

Power 4

WLAN 3 2

WPS

WAN

LAN

10/100 WA

Jack Reset Ant

Learn more about EnGenius Solutions at www.engeniustech.com.sg

Datasheet

ESR1221N

HOME & HOME OFFICE

ESR1221N

ESR1221N Datsa sheet

ersion 240111

*Theoretical wireless signal rate based on IEEE standard of 802.11 b, g, n chipset used. Actual throughput may vary. Network conditions and environmental

factors lower actual throughput rate.

** All specifications are subject to change without notice

WIRELESS SPECIFICATION

Frequency Band 2.400～2.484 GHz(11b, 11g, 11n)

Modulation Technology OFDM: BPSK, QPSK, 16-QAM, 64-QAM

DBPSK, DQPSK, CCK

Operating Channels 11 for North America, 14 for Japan, 13 for Europe

Wireless Setting

Operation Mode – AP / Router

Wireless Mode – 11b/ 11g /11n

Channel Selection (Setting varies by Country)

Channel Bandwidth (Auto, 20Mhz, 40Mhz)

Transmission Rate - 11n only ,11b/g/n mix ,11b only ,11b/g

Receive Sensitivity (Typical)

2.412 ~ 2.472 GHz (11b) best ≦-90 dBm

2.412 ~ 2.472 GHz (11g) best ≦-88 dBm

2.412 ~ 2.472 GHz (11n) best ≦-85 dBm

Available transmit power

11b 1Mbps - 11Mbps 19

6Mbps - 9Mbps 19

12Mbps - 18Mbps 18

24Mbps - 36Mbps 17

11g

48Mbps - 54Mbps 16

MCS 0-1 / 8-9 19

MCS 2-3 / 10-11 18

MCS 4-5 / 12-13 17

11n

MCS 6-7 / 14-15 16

Antenna Fixed 2dBi Antenna (white)

SOFTWARE FEATURES

Router User Interface

Access method Web Based (HTTP 1.0 / 1.1)

Browser Compatibility Microsoft IE 6.0 or above

Management

System Information Y

System Up Time, Device Name, Wireless MAC, LAN MAC,

Country, Current Time, Firmware Version

System Status

Current IP Setting Y IP Address, Subnet Mack, Default Gateway, DHCP

Learn more about EnGenius Solutions at www.engeniustech.com.sg

Datasheet

ESR1221N

HOME & HOME OFFICE

ESR1221N

ESR1221N Datsa sheet

ersion 240111

*Theoretical wireless signal rate based on IEEE standard of 802.11 b, g, n chipset used. Actual throughput may vary. Network conditions and environmental

factors lower actual throughput rate.

** All specifications are subject to change without notice

Current Wireless

Setting Y

Operation mode, Wireless Mode, Channel/ Frequency, L2

Isolation, MSSID Setting

Client List List current associated clients. Show only authorized and associated clients

System Log Displays a list of events triggered

Wireless Functional List

Y Router

Operation mode

Y WDS

802.11 mode options Y b/g/n

Y Manual

Channel setting

Y Auto / Best Channel Selection

Transfer rate setting Y Auto and Manual

Output Power Control Y High / Medium / Low

Power Saving Y Wireless LAN power saving

Y 4 BSSID for 2.4Ghz

Multiple BSSID (Multi AP)

Y Each BSSID should has its own WiFi & security settings

WPS Y

WEP Y WEP(64/128bit)

WPA/ WPA2 Y TKIP / AES

Hidden ESSID Y

MAC address

filtering Y MAC address filtering (Both in WLAN and LAN)

L2 Isolation Y

Security

802.1x Authenticator Y MD5/ TLS/ TTLS, PEAP (Nice to Have)

Functional List

LAN Settings Y IP (check validity and DHCP server IP range)

MAC

DHCP server Y DHCP Range, Lease Time, Client list

NAT/ NAPT Y

Port Forwarding Y

Port Mapping Y Virtual Server: every single IP should support more than one

service port (UI forbids that)

Port Tagging Y

ALG Y

VPN VPN pass-thru Y

Router

Filtering URL Y URL-Keyword blocking

Learn more about EnGenius Solutions at www.engeniustech.com.sg

Datasheet

ESR1221N

HOME & HOME OFFICE

ESR1221N

ESR1221N Datsa sheet

ersion 240111

*Theoretical wireless signal rate based on IEEE standard of 802.11 b, g, n chipset used. Actual throughput may vary. Network conditions and environmental

factors lower actual throughput rate.

** All specifications are subject to change without notice

IP Y IP Filtering with scheduling function

Port Y TCP / UDP

ICMP Y

Block Ping From WAN Y Enable / Disable option box

DMZ Y Multiple DMZ records

Dynamic DNS Y

MAC Clone Y Clone WAN port MAC supported / Change in WAN side MAC

address

Y PAP/CHAP

Y Always (keep trying if fail)

Y On demand / Manual

PPPoE

Y Idle Time Out(disconnect if idled for a certain time)

DHCP Client Y

Y PAP/CHAP

Y Always (keep trying if fail)

Y On demand / Manual

PPTP

Y Idle Time Out(disconnect if idled for a certain time)

Fixed IP Y

WAN side form

L2TP Y

N User Name

Y Password

Administration

Y Confirmed Password

Remote Login Y Customizable Port

Default 8080

Backup/ Restore Setting Y

Save Current Setting

Restore Saved Setting

Reset to Factory Default

Firmware Upgrade Y Firmware Upgrade

Allow User to decide to Keep current setting or reset to default.

UPnP Y

Diagnosis Y Address to Ping :

Learn more about EnGenius Solutions at www.engeniustech.com.sg

Datasheet

ESR1221N

HOME & HOME OFFICE

ESR1221N

ESR1221N Datsa sheet

ersion 240111

*Theoretical wireless signal rate based on IEEE standard of 802.11 b, g, n chipset used. Actual throughput may vary. Network conditions and environmental

factors lower actual throughput rate.

** All specifications are subject to change without notice

ENVIRONMENT AND PHYSICAL

Temperature Range 0 to 45° C - Operating, -10 to 70 ° C - Storage

Humidity (non-condensing) 15%～95% typical

Dimensions 125mm (L) x 98mm (W) x 25mm (H)

PACKAGE CONTENT

►ESR1221N

►5V/1A Power Adapter

►CD with User’s Manual

►QIG
