ENIGMA XM88422 Digital Receiver

Version 1.50

5. Dual Line Card Module.......................23

General Information................................... 23

Line Card Features.................................... 23

Installation.................................................. 23

Line Card Controls .................................... 23

Liquid Crystal Display.......................................23

Line LED...........................................................23

Comm LED.......................................................24

Error LED..........................................................24

Audio LED ........................................................24

Arrow Buttons...................................................24

OK Button.........................................................24

CLR Button.......................................................24

Operation with the CPM Unit .................... 24

Stand-by Mode........................................... 24

Telephone Line Monitoring...............................24

CPM Unit Monitoring ........................................24

Call Reception..................................................25

2-way Audio Mode............................................25

Call Termination ...............................................25

Operating in Stand-alone Mode................ 26

Line Card Menu.......................................... 26

Moving in the Menu..........................................26

Line Card Program Options...................... 26

Line Card Number............................................26

Telephone Line Monitoring...............................26

Number of Rings to answer..............................27

Caller Identification...........................................27

Audio Monitoring...............................................27

Keep Last Message..........................................27

Debug Mode.....................................................27

LCD Contrast....................................................28

The Handshakes ..............................................28

Communication Options...................................28

2-way Audio Options ........................................29

6. Power Module .....................................31

Inputs and Outputs...........................................31

Battery Status...................................................31

Battery Testing..................................................31

Appendices.............................................32

Appendix A: CPM Reference.....................32

CPM Status Event Summary............................32

Serial Port Speed Configuration.......................32

The menu structure ..........................................33

Factory Defaults................................................33

Appendix B: Line Card Reference ............34

Communication Formats ..................................34

Line Card Menu Structure ................................34

Factory Defaults................................................35

Handshake Options..........................................35

Appendix C: Trouble Shooting Guide ......36

ENIGMA XM88422 Digital Receiver

Version 1.50

What’s new in version 1.50?

The 1.50 version of the ENIGMA Digital Receiver had been enhanced in both hardware and software compared to

the prior versions. The main changes are the following:

New Flash microcontrollers allow easy software upgrade in all modules.

Power Module is reconstructed. New microcontroller type supports better supervision of battery charging.

The LCD backlight system is reconstructed. On EL backlight versions (light green-blue backlight) new inverter

type used to ensure longer lifetime. Also introducing blue LED backlight versions (v1.50b).

Ademco High Speed format definition fixed. (now using different protocol for Acron/FBII SuperFast and

Ademco HS)

The Bus Master in CPM improved.

Reception cycle in LCM cards improved –simultaneous processing more tolerant to control panel errors in

communication.

In LCM cards FSK protocols improved –introducing new FSK reception algorithm with triple oversampling, bit

recovery and framing error checking –providing more accurate FSK reception.

Caller ID problems at Line Cards fixed. Now supports Bellcore and MTT message standards. Special DTMF

Caller ID supported on versions 1.50-T (Latin-America)

Caller ID assigned to Account ID of the current call. If no communication received, System ID (0000) is used.

(backward compatible to prior versions)

Enhanced Memory Dump feature on Line Cards.

RS232 Serial Protocols had been revised, new protocols added.

Emulation of ‘Event Type’ codes in Basic Signal Protocol providing 100% SurGard protocol compatibility.

Encoding of the reception power in radio events is changed.

ENIGMA XM88422 Digital Receiver

Version 1.50

1. Introduction

The ENIGMA XM88422 is a multi-line, multi-format

digital receiver for commercial fire and burglary

monitoring. The standard unit consists of a CPM

Central Processing Module, a DLCM Dual Line Card

Module and a PWR Power Module. With additional

Dual Line Card Modules, the receiver can be enabled

to monitor up to 30 telephone lines. The ENIGMA

XM88422 can receive and decode most of the

popular and commonly used communication formats.

See Appendix B. for details

The ENIGMA XM88422 stores all events with time

and date stamped. All information is displayed on the

large LCD screen, and the events may be printed

and/or forwarded to a computer. To ensure security,

all programming functions, including the adjustment

of the real time clock and date is password protected.

CPM Unit

The Central Processing Unit controls the operation of

the receiver. Along with its large graphical LCD

screen, the CPM Unit incorporates two serial and one

parallel interface for computer and printer interface.

The CPM Unit has two external inputs, one for

external acknowledge, and one for tamper

recognition. The CPM Unit also incorporates two

programmable outputs, which can be programmed to

follow different receiver status.

The CPM Unit features a 4096-event non-volatile

memory buffer. The contents of the buffer may be

browsed on the LCD screen. If the printer or

computer is off-line, the CPM Unit will retain the

incoming events in its buffer, and will automatically

forward them, when the connection restores.

The CPM Unit has a large graphical LCD display

which enables the CPM to implement unique, user

friendly features like changeable display font sizes,

and pull-down menus and dialog boxes for

programming.

Line Cards

Each Dual Line Card Module contains two

independent Line Cards and each Line Card can

monitor a telephone line. The Line Cards contain a

1600-event event memory to record events and caller

information. Caller Identification capability is built-in

and the telephone number of the calling party can be

displayed, printed, stored in memory and forwarded

to the automation computer. The Line Cards also

support the 2-way audio listen-in.

The Line Cards are continuously supervised by the

CPM Unit to ensure uninterrupted communication.

Any trouble conditions are immediately reported on

the LCD screens and printer and/or forwarded to the

computer. The Line Card Module also verifies the

communication with the CPM Unit. In case of CPM

malfunction the operator will be advised with an

audible indication and the Line Cards will continue to

function in stand-alone mode, with their individual

LCD displays and controls. Each Line Card will

continue receiving events and store them in its buffer.

The events will be forwarded to the CPM Unit after

the connection restores.

Power Module

The Power Module supplies the power for the other

modules in the receiver. It requires 16.5 VAC from a

115 or 230 VAC, 50/60 Hz, transformer. The Power

Module is equipped with automatic battery charger

and backup battery connections. In case of AC failure

the Power Module automatically switches to backup

battery power. The backup battery capacity can be

between 7 and 15 Ah. The Power Module supervises

the presence of the battery and the battery capacity

and the current status is reported to the CPM Unit.

Compatibility

The ENIGMA XM88422 Digital Receiver is

compatible with the most commonly used automation

software packages. The receiver has been tested

with the following software:

Alarm SyS

SIMS II

Microkey SIS

For other automation software, generally, it can be

used with selecting the Surgard interface.

ENIGMA XM88422 Digital Receiver

Version 1.50

System Overview

Up to 30 lines per receiver

8192-event non-volatile event buffer in the CPM

1600-event non-volatile buffer on each Line Card

Programming is stored in EEPROM in the CPM

and in each Line Card

Real-time clock and calendar in the CPM

LCD contrast can be changed from program on

both the CPM and the Line Cards

1 parallel printer port, 2 RS232 serial ports

Programmable serial port configuration

Fast transmission of multiple events to the

computer and/or printer to ensure fast operator

response

Continuous verification of the modules by the

CPM Unit

Continuous verification of the receiver-computer

link with “heartbeat” protocol

Caller ID capability (Bellcore and MTT)

Telephone line supervision

3/1, 4/2 formats with or without parity and 4/1

without parity at 10 –40 bps

4/1, 4/2, 4/3 DTMF formats

3/2 and 4/1 with checksum formats optional

Extended formats are optional

Acron DTMF format

Ademco Contact ID format

Ademco SuperFast or High Speed format with or

without parity

Ademco Express format

FBII Superfast format with or without parity

SIA format: 110 and 300 baud, tone and data

acknowledge. Full level 2, partial level 3 support.

1400Hz, 2300Hz, Dual-tone and SIA FSK/CFSK

handshakes in programmable sequence

Large graphical LCD screen in the CPM Unit,

individual LCD displays for all Line Cards

Event libraries for plain language message

display capability.

All modules can function individually to ensure

uninterrupted operation during servicing,

hardware or software upgrades

Each line card has an output for 2-way audio

Inputs on the CPM Unit for external acknowledge

and tamper supervision

2 Programmable Outputs on the CPM Unit

AC failure detection and backup battery

supervision for presence and capacity

High-performance Flash RISC microprocessors.

Highly reliable SMD technology

Modular eurocard circuit board design for

reduced complexity and easy servicing.

ENIGMA XM88422 Digital Receiver

Version 1.50

2. Quick Start

Receiver Setup and Operation

Unpacking

Carefully unpack the receiver and inspect the device

for shipping damage. If there is any apparent

damage, do not try to turn on the equipment, and

notify the carrier immediately. The package contents

are the following:

XM88422 Digital Receiver

(1 CPM, 1 LCM - 2 lines, 1 PWR)

AT Modem Cable

Instruction Manual

Introduction to Operation

Please, refer to the following chapters of this manual

to help you through the installation and operation of

the ENIGMA XM88422 digital receiver.

Chapter 3. Installation

Chapter 4. CPM Module

Chapter 5. Line Card Module

Chapter 6. Power Module

Bench Testing

It is highly recommended the receiver be tested

before commencing the actual installation, becoming

familiar with the connection and setup of the device,

and the receiver programming to make the final

installation more straightforward.

The following items are required for testing:

16.5V AC transformer

12V 6Ah battery with cables

2 telephone lines

a digital communicator, dialer or a control panel

capable for communication

Connect the transformer to the AC input terminal on

the backplane of the Power module. Connect the

battery cables to the BAT terminals with correct

polarity, but do not connect the battery to the cables

yet. (Note, that for connecting the transformer and

battery, you may have to disconnect the intercom

cable temporarily, and plug it back again after the AC

and battery connections have been made.)

Power Up

Powering up the unit starts with applying AC power to

the unit. After that, connect the battery to the battery

cables. The CPM unit carries out a comprehensive

memory test on power-up, which can take some time.

A counter in the upper-left corner of the CPM display

will count down during the memory test. If the CPM

finds any unreliable memory during the memory test,

it will stop, and display the faulty memory address on

the screen.

After the memory test had been finished, the CPM

resets the line cards. (The line cards may also reset

on power-up, and during the memory test they

display CPM error –it is normal, wait until the CPM

resets the line cards after memory test). The line

cards will beep, and their LCD display will show line

trouble condition, if no phone lines are connected to

the appropriate line inputs on the line card backplane.

The CPM unit displays the list of trouble and restores

condition occurred since powering up the receiver. If

no computer with proper automation software is

connected the COM1 port of the receiver, the CPM

will beep after encountering the COM1 error condition

waiting for manual acknowledge. Pushing the OK

button on the CPM unit can silence the buzzer.

Operation with the default programming

Without any changes to the factory default

programming, the receiver operates normally with the

following specifications:

Default Program Access Password is 1234 (right-

left-down-up)

Line cards answer to incoming calls on the first

ring

Caller identification is disabled

The handshake sequence is 2300,1400,dual tone

and FSK answer tone

Handles all formats except for 3/2, 3/1+Chk and

Surgard DTMF 4/3+Chk. These formats can be

enabled with programming.

Reception of Extended formats is disabled

Two Way Audio (listen in) is disabled

The printer operates in backup mode –prints

only events cannot be reported on COM1

If no computer connected, the events can be

acknowledged, and the buzzer silenced by

pressing the OK button on the CPM. The manual

acknowledgement will be registered with time

and date

COM1, Printer and Line Card operation

supervision is enabled.

Heartbeat supervisory protocol enabled

heartbeat in every 30 seconds.

ENIGMA XM88422 Digital Receiver

Version 1.50

Clock signal protocol is disabled, reports the

events to COM1 without time and date

External acknowledge is disabled

Tamper recognition is disabled

The signals will be displayed on the LCD of the Line

Cards as they are received. After the Line Card

acknowledged the event to the control panel, the

event will be displayed on the LCD screen of the

CPM Unit with time and date. Events coming in

Contact ID and SIA format are automatically decoded

from the predefined event libraries. For other formats,

only the incoming code will be displayed. The events

will be reported to the computer via the serial port

COM1 and printed, if the computer is absent.

If the computer is not connected, pushing the

ENTER/ACK button will silence the buzzer. The

manual acknowledgement is recorded with time and

date.

Return to the default programming

You can return to default programming at any time by

entering the menu and selecting the ‘Factory

Defaults’ menu point from the ‘Utils’ menu.

If by any means you forget the password, then it is

not possible to enter the menu any more. In this

case, the following procedure can be done to restore

default settings:

1. Turn off the receiver

2. Dismount the CPM module. (see ‘Removing

and Installing Modules, p. 11)

3. Open the bottom cover of the module

4. Take out the data EPROM from the memory

card. Do not mount the cover back this time.

5. Remount the CPM module

6. Turn the receiver on and wait a few seconds.

7. Turn it back off again

8. Dismount the CPM module

9. Replace the data EPROM and close cover.

10. Remount the CPM module

11. Turn on the receiver –the receiver will start

up with the factory defaults.

ENIGMA XM88422 Digital Receiver

Version 1.50

3. Installation

Mounting the Receiver

The ENIGMA XM88422 receiver is shipped by default

with a standard 3HE 19” desktop housing. The

housing can be extended using rack extender

brackets to 6 HE or more enabling the receiver to

build in additional Line Cards. Optional 19” rack

mounting brackets can be used to install the receiver

in standard 19” rack housings.

The LCD screens on the receiver are designed to be

viewed below eye level. If the receiver has to be

mounted above eye level, it is suggested to angle the

unit downward to improve visibility.

The following items can be supplied for installation:

19” rack extension kit for extra modules with

interconnect cables and 2 blank cover plates.

Extra Line Card Modules (shipped with

backplanes and mounting material)

19” rack mounts for mounting in cabinets

16.5V AC transformer (230V 50Hz version only)

Printer Connections

Any Printers equipped with a parallel Centronics

interface can be connected to the ENIGMA XM88422

receiver. To connect the printer to the receivers

parallel printer output use a parallel printer cable.

IMPORTANT: Using parallel printer cable with only

one common ground wire is not recommended.

Computer Connections

Connect the automation computer to the ENIGMA

XM88422 serial COM1 port using the supplied serial

cable. If the supplied cable is not long enough, a

standard serial AT Modem cable can be used up to

15 meters in length.

IMPORTANT: Do not use a null modem cable. Null

modem cables can only be used to connect other

receivers to the COM2 port of the ENIGMA.

The RS232 AT modem serial cable pins are

connected as follows:

ENIGMA

COM1

ENIGMA

COM2

Computer

25 pin

Computer

9 pin

CPM Module Backplane Connections

Serial Port 1 Serial Port 2 Printer Port

PGM1

PGM2

EXT TMP

EXT ACK

COM

Programmable Output 1

Programmable Output 2

External Tamper Input

External Acknowledge input

Common Signal Ground

ENIGMA XM88422 Digital Receiver

Version 1.50

Telephone Line Connections

Connect the telephone lines to the Line Cards LINE

modular jack with RJ11 4/6 pin modular cables. For

ISDN connection, use the 2 analog outputs of the

ISDN NT box.

The handsets for 2-way audio listen-in can be

connected to the modular jacks labeled HANDSET.

Ensure, that the handsets connected are off-hook,

because leaving the handsets on-hook will terminate

2-way Audio Mode. Measure the impedance of the

handsets to check, if the line will be terminated with

the proper impedance when switching to the handset.

On normal telephone lines, it should be around 600

ohms. When used in PBX system 2-way audio

communication needs bridging resistors with the

same value as measured on the handset. Using

improper termination the line will be dropped when

switched to 2-way Audio Mode

Grounding

To achieve the best resistance against static and

electric noise and electromagnetic interference (EMI)

connect the metal casing of the receiver to a

grounding point. Note that the grounding of the frame

has to be separate to the grounding of the Line Card

interfaces.

Proper grounding is essential also for the reliable

electric shock and lightning protection of the

telephone line interface of the Line Cards. Connect

the protective ground terminal of the Line Card

Module to a proper grounding point.

IMPORTANT: Do not connect the protective ground

terminals directly to each other, or to the metal frame.

Connect the terminals to the grounding pole

individually with separate wires. NEVER connect the

protective ground to the power/signal ground of the

receiver!!!

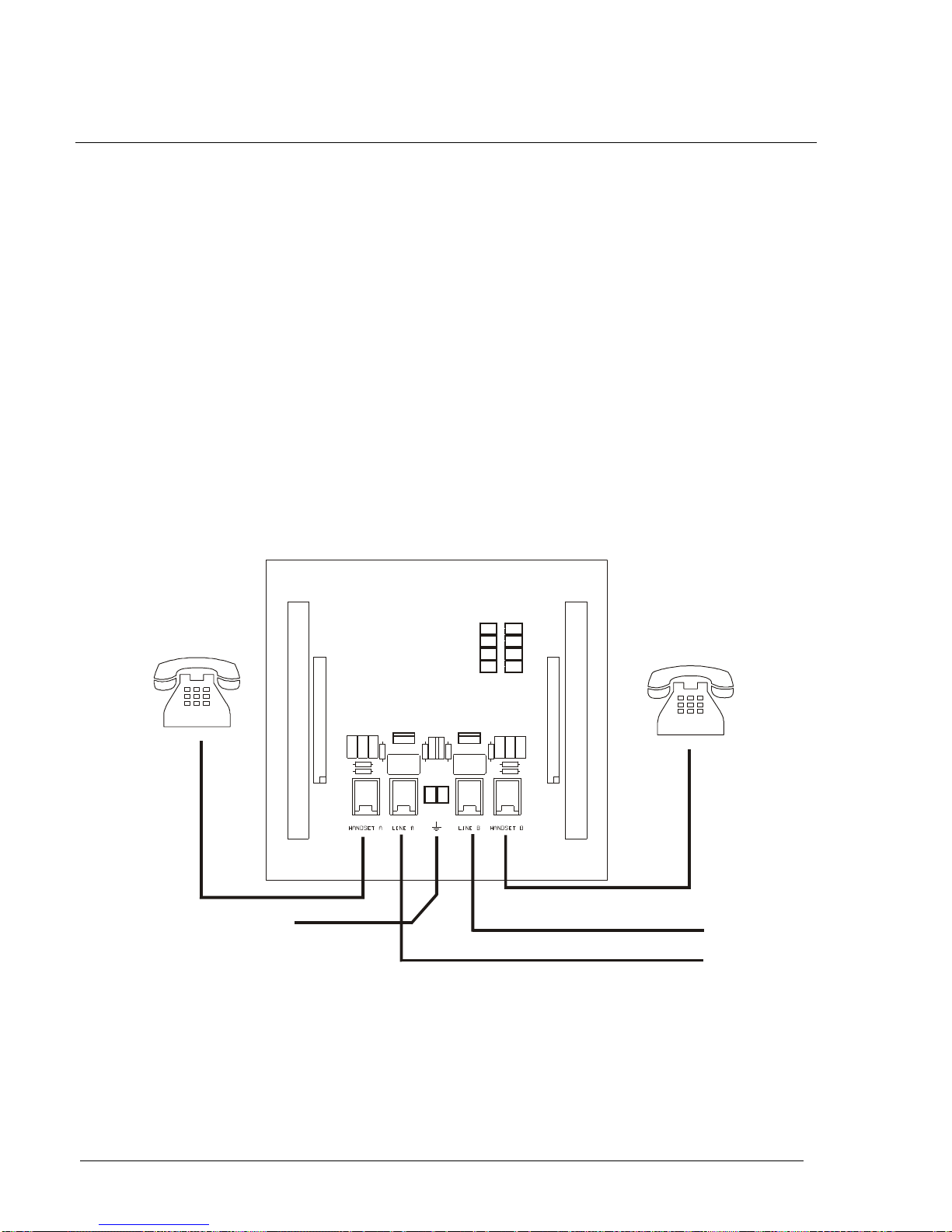

Dual Line Card Module Backplane Connections

Handset for

2-way Audio

on Line 2

Phone Line 2

Phone Line 1

Handset for

2-way Audio

on Line 1

Protective Ground

Indice

Altri manuali Enigma Ricevitore

Enigma

Enigma DR-81000 Manuale utente

Manuali Ricevitore popolari di altre marche

Garmin

Garmin GA 23 Manuale utente

Aiphone

Aiphone PS-12F Manuale utente

IMES

IMES TCS-01CA-PMI Manuale utente

BWI Eagle

BWI Eagle AIR-EAGLE SR Manuale

AMIMON

AMIMON AMN12310 WHDI Manuale utente

Dual

Dual DMCPA79BT Istruzioni operative

Sound Associates

Sound Associates SA652P Manuale utente

Sherwood

Sherwood NewCastle R-772 Manuale utente

Audio

Audio A10-RX Series Manuale utente

AllSee

AllSee PushShare PSRV1.1 Manuale utente

DEMAG

DEMAG DRC-DR D2 Manuale utente

Teleco

Teleco TVRCL868A02 Manuale utente

Bosch

Bosch RF3222E Manuale utente

Kramer

Kramer 631R Manuale utente

Xpress

Xpress xmc10 Manuale utente

JVC

JVC KD-MR1BTS Manuale utente

Omega Engineering

Omega Engineering UWTC-REC3 Manuale utente

e-survey

e-survey E300 Pro Manuale utente
