Entempo PLAYER Manuale utente

SPIRITMAN060104

Entempo

User’s Guide

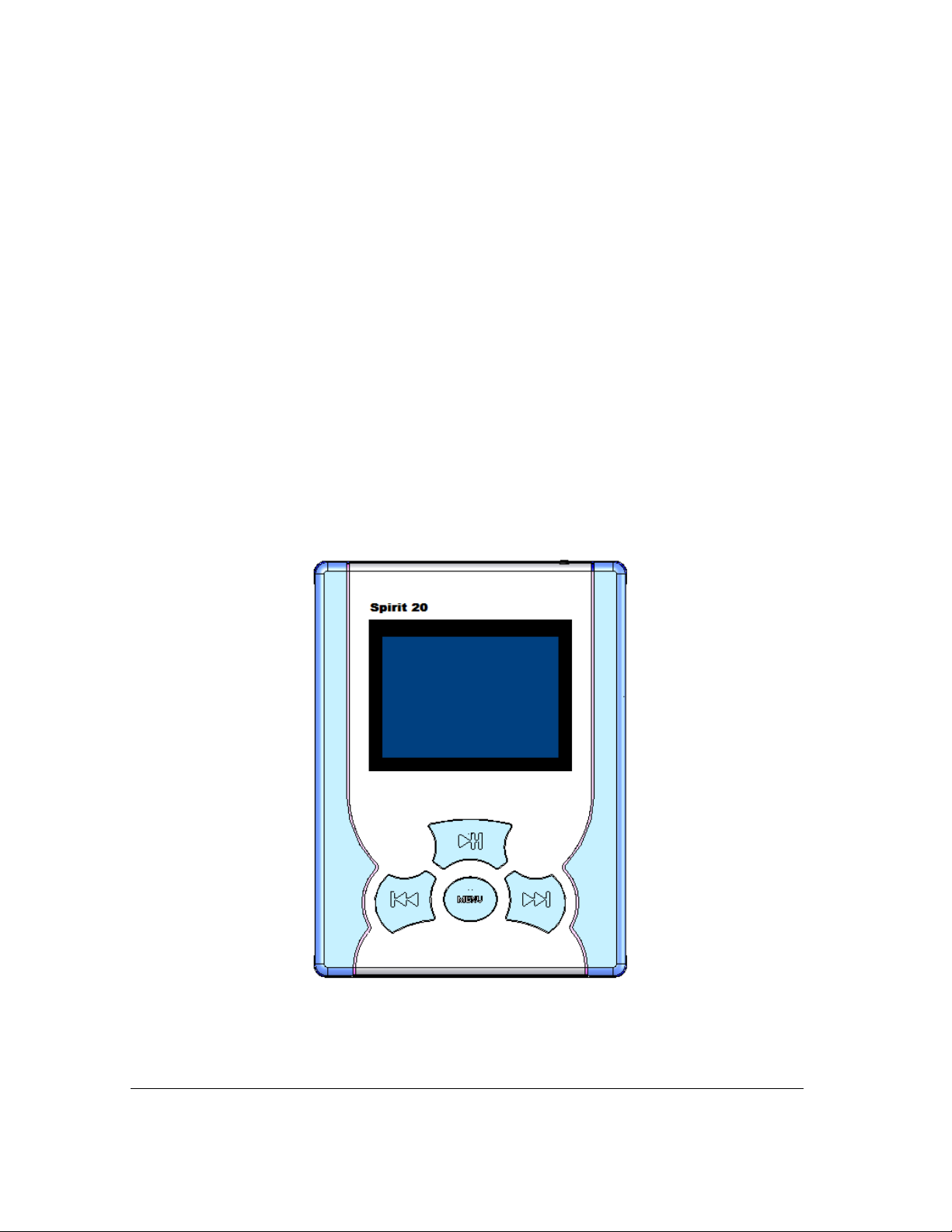

Spirit

PLAYER

SPIRITMAN060104

Entempo

IMPORTANT NOTES

Avoid installing the unit in locations described below.

• Places exposed to direct sunlight or close to heat radiating appliances as electric

heaters.

• On top of other stereo equipment that radiates too much heat.

• Places lacking ventilation or dusty places.

• Humid or moist places.

• Strong magnetic fields

CAUTION : TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR BACK). NO

USER-SERVICEABLE PARTS INSIDE. REFER

SERVICINGTOQUALIFIEDSERVICEPERSONNEL.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION

DANGEROUSVOLTAGE

ATTENTION

UninsulatedDangerousVoltage, that may be

of sufficient magnitude to constitute a risk of

electric shock to personsis presentwithin this

product’senclosure.

The Owner’s Manual contains important

operatingandmaintenanceinstructions.

For your safety, it is necessary to refer to the

manual.

WARNING: TO PREVENTFIRE OR SHOCKHAZARD,

DO NOT EXPOSETHISUNITTO RAINORMOISTURE.

IT IS NOT ALLOWABLE TO MODIFY THIS UNIT BY

USER.

WARNING:

ANY ATTEMPT TO OPEN THE DEVICE WILL

RENDER THE WARRANTY NULL OR VOID.

SPIRITMAN060104

Entempo

TABLE OF CONTENTS

CHAPTER 1 - SETTING UP THE SPIRIT ...................................................................4

1.1. SPIRIT AND ACCESSORIES .....................................................................................4

1.2. CHARGING THE BATTERY......................................................................................4

1.3. RUNNING THE SPIRIT WHILE PLUGGED IN .............................................................4

1.4. RESET ..................................................................................................................4

1.5. SOFTWARE INSTALLATION: ...................................................................................4

1.6. INSTALLATION OF SPIRIT DEVICE ON YOUR COMPUTER ..........................................5

CHAPTER 2 – USING SPIRIT ONCE CHARGED ......................................................7

2.1. SPIRIT BUTTON LAYOUT......................................................................................7

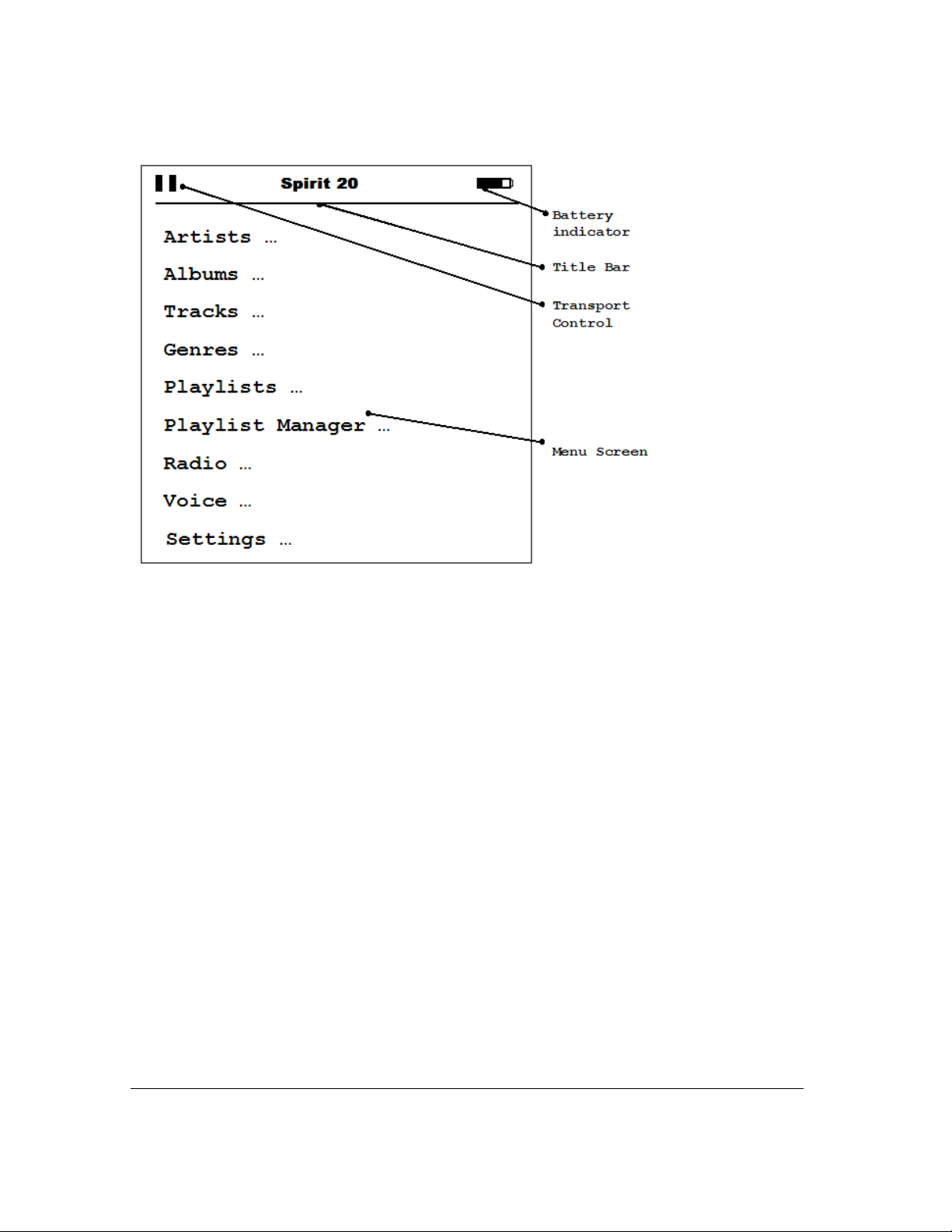

2.2. MENU SCREEN......................................................................................................9

2.3. PLAYLIST MANAGER ...........................................................................................12

2.4. PLAYLISTS..........................................................................................................12

2.5. RADIO ................................................................................................................12

2.6. VOICE.................................................................................................................14

2.7. SETTINGS ...........................................................................................................14

CHAPTER 3 - SPIRIT SPECIFICATION AND INFORMATION ................................16

3.1 PC SYSTEM REQUIREMENTS...............................................................................16

3.2 AUDIO SPECIFICATIONS ......................................................................................16

3.3 KEY FEATURES...................................................................................................16

CHAPTER 4 - PRECAUTIONS FOR USE ................................................................18

CHAPTER 5 - TROUBLE SHOOTING ......................................................................19

CHAPTER 6 - WARRANTY.......................................................................................20

SPIRITMAN060104

Entempo

Chapter 1 - Setting Up the Spirit

1.1. Spirit and accessories

• Spirit Player

• Software Installation CD

• USB Cable

• Universal AC Adapter/Charger

• Stereo Earphones with Microphone

• Carrying case

• Quick Start Guide Booklet

As delivered the SPIRIT battery is not charged. To start using your SPIRIT first charge

the battery as outlined in 1.2 below.

1.2. Charging the Battery

Your SPIRIT comes supplied with an integral rechargeable Lithium-Ion Polymer

battery. It is recommended that the battery be fully charged before you use the Player

for the first time. To charge the battery, connect the Universal AC Adapter/Charger to

the main AC supply and the DC (5V) plug to the “DC-In” socket on the bottom edge of

the SPIRIT. It will take approximately 3 hours to fully charge the battery. The battery

indicator, at the top right hand corner of the display, will show that the Player is being

charged,

(when device is switched on), unplug the charger after 3 hours,

SPIRIT will indicate

when the battery is fully charged.

1.3. Running the SPIRIT while plugged in

If operating the Player indoors and power is available, it is advisable to operate the

Player through the Universal AC Adapter/Charger. This will preserve battery life,

especially during power intensive operations such as downloading files from your PC

to the Player.

1.4. Reset

If the SPIRIT is not responding to any button presses then it is possible to restart it

using the reset switch. Before using resetting sequence, check that, the unit has a

fully charged battery or is running from the AC Adapter.

Resetting Sequence

Press and hold the play button. While play is pressed, press the reset button with a

paperclip, and finally release the “PLAY” button.

1.5. Software Installation:

The CD that comes with the player contains

• Windows Media

Player Software in many languages (English, French, German,

Spanish, Italian, Swedish and Portuguese). You can use Windows Media

Player to download, copy, rip and play your music.

• Mixman Studio

Software enables the budding musicians to create their own

music by “mixing” various predetermined sounds, adding voice and then

synchronizing it to a desired beat. Visit the Mixman’s official website for detailed

information (www. mixman.com).

SPIRITMAN060104

Entempo

• Soft copy of SPIRIT Manual and Quick Start Guide

• Drivers for Windows 98SE

• Registration form

1.6. Installation of Spirit Device on your computer

Power on the SPIRIT and connect the SPIRIT to your PC using the USB cable

provided. Launch Windows Explorer on the PC, and click on the “My Computer”

folder. Windows will automatically recognise the SPIRIT as a removable storage

device available to Windows. The SPIRIT will be allocated a drive letter (as with the

existing storage devices on your PC) and will be listed among the other storage

devices. You can treat this drive like any other system drive. Windows supports the

full range of file handling functions including: drag and drop, copy, paste and delete.

You can organize the drive space by creating folders and sub folders, as you require.

For Win98 users, please install the device driver from the CD. Insert CD. DO NOT

CONNECT THE DEVICE TO THE COMPUTER YET

Start >>>>>>Control Panel >>>>>>Add Hardware

Choose installation location and point to the Driver Folder on the CD-ROM

Windows will install the software.

Connect device and reboot computer. ‘My Com puter’ will assign a letter for the new

drive.

1.6.1. WAV, MP3 and WMA formats

The SPIRIT supports WAV files, for low bit rate voice recording, by the device and two

compressed music file formats: MP3 and WMA. The SPIRIT will play files in either file

format automatically. MP3 and WMA extens ions denote that these are compressed

files. The WAV format typically denotes the extension on a CD or hard drive in

UNCOMPRESSED format.

The SPIRIT is shipped with a few tracks loaded on the HDD. Your choice of format

and compression standard will affect the qua lity of the music and the corresponding

file size.

NOTE: WAV, MP3 and WMA are Music files.

1.6.2. Managing Music with Windows MediaTM Player

With Windows Media

Player installed on your PC, you can either build a library of

music files on your PC by “ripping” your audio CD collection or by transferring already

encoded MP3 or WMA files from your PC directly. (If you do not have Windows Media

Player installed on your PC, load the copy supplied with the SPIRIT CD. Follow the

installation instructions, which will automatically be presented when the CD is installed

in the drive.)

To load music from the PC, connect the SPIRIT to the PC using the USB cable

provided. The USB socket is on the bottom edge of the SPIRIT. Select the Windows

Media

Application on your PC and follow the A pplication instructions for the transfer

of files.

SPIRITMAN060104

Entempo

1.6.3. Managing Music with Windows Explorer Software

You can organize the drive space by creating folders and sub folders, as you require.

Drag and drop files from your desktop to the folder of your choice on the device. You

can also use standard windows copy commands to transfer these files. Wait until all

files are transferred – this can take a few seconds after the copying window has

closed.

Now remove the USB cable from the SPIRIT using Window’s ‘Safely Remove

Hardware’ feature. The Player will restart automatically. If the device is not

disconnected properly, it may freeze and require a reset. The PLAYER will now index

the new files you have downloaded; during this process, the SPIRIT will display

progress information on the display. This process may take several minutes, after

which the top-level menu will be displayed and you can now access your music.

You can also transfer data files this way, and use your SPIRIT as backup, or standard

file storage. The data files are not visible in the SPIRIT display. All management of

these files must be done with the player connected to a computer.

1.6.4. Creating New Folders and Sub-folders on the SPIRIT from your PC

New folders and sub folders can be created on the SPIRIT from your PC. This is

done from the Windows operating system, with the player connected as in 1.5.

Launch the Windows Explorer and select the SPIRIT drive, by selecting “FILE | NEW

> FOLDER”. A new folder can be created at any point in the directory structure.

Refer to the Windows Help for further information about file management.

1.6.5. Copying and Moving Data Files to the SPIRIT from your PC

Files can be copied and moved to the SPIRIT from your PC. This is done over USB

connection using the Windows operating system with the player connected as in 1.5

above. Launch the Windows Explorer and select the SPIRIT drive, select the file or

folder to be moved and drag and drop to the new location. A “Move” will be the

default action if the source and destination are on the same drive, a “Copy” will be

the default operation if the source is on a different drive from the destination. Refer to

the Windows Help for further information about file management.

Data files will not be listed with the music files in the index but should be organised

and managed with the SPIRIT attached to the PC.

1.6.6. Deleting Files from the SPIRIT using Windows

Files can be deleted from the SPIRIT during PC connected session. This is done from

the Windows operating system with the player connected over USB as in 1.5. Launch

the Windows Explorer and select the SPIRIT drive. Select the file you wish to delete

and press the delete key. Multiple files can be selected by holding down the control

key while selecting files to delete.

Refer to the Windows Help for further information about file management.

SPIRITMAN060104

Entempo

Chapter 2 – Using SPIRIT Once Charged

2.1. SPIRIT Button Layout

ME D

KIP BA

KIP F

RWARD

MENU/

POWER OFF

PLAY/PAUSE/

STOP/

POWER ON

RESET

SWITCH/HOLE

NAVIGATE

DOWN

SELECT

HEADPHONE

JACK

INTERNAL MI

USB 2.0 CABLE

CONNECTION

C ADAPTER/CHARGER

CONNECTION (DC IN)

MUSIC CENTER

CONNECTION

SPIRITMAN060104

Entempo

Volume Up Increases the volume level; progress bar on Play screen

converts to volume indicator

Volume Down Decreases the volume level; progress bar on screen

converts to volume indicator

3-way Select button

Navigate Up (slide up) In menus, moves cursor up; in radio, moves across

frequency range

Navigate Down (slide down) In menus, moves cursor down; in radio, moves across

frequency range

Select (Press in) Brings up the top level menu from play, else navigates

down one level; in radio selects frequency as new preset.

Stop/Menu/Power OFF Shows top level menu, powers OFF the SPIRIT

Play/Pause/Stop/Power ON Starts playback, else pauses/stops playback, and powers

ON the SPIRIT

Skip Forward Skips to next track, navigates down one menu level, in

radio steps forward through presets.

Skip Back Skips to previous track, navigates up one menu level, in

radio steps back through presets.

Record Starts and stops a voice recording from the internal

microphone.

Reset Resets the player under error conditions.

2.1.1. Power ON and OFF

To switch the SPIRIT on, press the “Play” button, and the main menu options will be

displayed on the screen.

To switch the SPIRIT off, press and hold the “Menu” button for four seconds. The

display will become blank.

If the SPIRIT is not in the play mode and not being charged, it will automatically

power off after a period. This period is a user-controlled setting, accessed from the

Settings Menu.

2.1.2. Volume

During play mode, the headphone volume can be adjusted by pressing the “Volume

Up” button or the “Volume Down” button. A volume level indicator will be displayed

on the screen, for several seconds, indicating the new volume level.

2.1.3. Hold/Button Lock

The button pad may be locked to prevent unintentional pressing of buttons or the

unintended activation of functions. To lock the buttons, simultaneously press the

“Select” button and the “Skip Forward” button. To unlock, simultaneously press the

“Select” button and the “Skip Back” button.

2.1.4. Title Bar

This is the top line of the display and is used to indicate what the player is currently

doing. If the user is browsing through the menu system, the title bar will display the

name of the menu or “SPIRIT 20” if it is the top-level menu. If the player is in play

mode then the title bar will display “Now playing”.

SPIRITMAN060104

Entempo

2.1.5. Battery Indicator

When the player is switched on, this icon will display the status of the battery. This

will show the battery as either: full, half or empty. When the player is being

recharged, this icon will change into the DC 5V icon when the player is turned on.

When the player is switched off and not being recharged, this icon will not be

displayed.

EMPTY 33% 66% FULL DC 5V

2.1.6. Transport Control Icons

During play mode the status icon will be displayed as either: play, pause or stop

depending on the current activity performed by the player.

PLAY

PAUSE STOP REWIND FFWD

2.1.7. Vertical Scroll Bar

At any time, if the amount of information to be displayed exceeds the size of the

screen, a vertical scroll bar will be displayed on the right hand edge. This will indicate

the current position information to be displayed. Use the “Navigate Up” and

“Navigate Down” buttons to view information before or after the current view

respectively.

2.1.8. Track Progress Bar

When a track is being played, a progress bar is displayed showing how much of the

track has been played and how much remains; the amount of time elapsed in minutes

and seconds is displayed to the left of the progress.

2.2. Menu Screen

This screen will display the contents of the current menu or sub-menu and will vary

according to the type of submenu selected.

SPIRITMAN060104

Entempo

The SPIRIT Menus

2.2.1. Top-level Menu

• Artists

• Albums

• Tracks

• Genres

• Playlists

• Playlist Manager

• Radio

• Voice

• Settings

NOTE: If you have entered the top-level m enu from playing a track pressing the “Skip

Back” button will take you back to play. “Menu” button always take you back to top

menu.

2.2.2. Selecting and Playing Music Files

All music stored on the SPIRIT can be referenced by any of the following: Album

name, Artist name, Track name or Genre. A music file can be located by initially

selecting any of these categories from the main menu. Playlists can also be created

and accessed.

If the SPIRIT is displaying a menu other than the top-level menu, press the “Menu” will

bring back the top-level menu. “Skip Back ” button will display the previous menu until

the top-level menu is displayed.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Entempo Lettore MP3

Entempo

Entempo Rubato Manuale utente

Manuali Lettore MP3 popolari di altre marche

Blaupunkt

Blaupunkt Compact Drive MP3 Manuale utente

Memorex

Memorex MMP9008 - 8GB USB 2.0 Manuale utente

Meizu Electronic Technology

Meizu Electronic Technology E5 Manuale utente

Naxa

Naxa NMV-173NX Manuale utente

Philips

Philips PSA250 Manuale utente

Zipy

Zipy go! Waving Manuale utente

Sylvania

Sylvania SMPK4068 Manuale utente

Sony

Sony NW-MS7 - Memory Stick Walkman Manuale utente

Irradio

Irradio RF-42UC Manuale utente

NABAIJI

NABAIJI SWIM MUSIC 100 Manuale utente

Laser

Laser MP3-A9-4GB Manuale utente

Samsung

Samsung YP-T7F Manuale utente

Savant

Savant SMS-1001-00 Guida di riferimento rapido

Trevi

Trevi XP 71 BT Manuale utente

AGPtek

AGPtek C2 Manuale utente

MobiBlu

MobiBlu DAH-1500i Manuale utente

Denver

Denver MPS-201 Manuale utente

Steren

Steren MP3-002 Manuale utente
