Envertech EVT1600SE Manuale utente

USM-SE-2023-V01

Envertech Corporation Ltd.

Tel: +86 21 6858 0086

Web: www.envertec.com

Email: inf[email protected]

Add: No.138, Xinjunhuan road, Minhang District, Shanghai, China

EVT1600SE

EVT1800SE

EVT2000SE

User Manual

USM-SE-2023-V01

Content

1. Important Safety Information............................... 1

1.1 Read it First............................................................... 1

1.2 Safety Instructions .................................................... 1

2. Envertech Microinverter System .......................... 1

2.1 How it Works ............................................................ 2

2.2 Monitoring Device EnverBridge................................ 2

2.3 Optimal Reliability..................................................... 3

2.4 Simple Design............................................................ 3

3. Product Information............................................. 3

3.1 Overview................................................................... 3

3.2 Major Characteristics................................................ 3

3.3 Datasheet.................................................................. 3

4. Preparation.......................................................... 6

4.1 Packing Checklist....................................................... 6

4.2 Product Description.................................................. 6

4.3 Further Information.................................................. 6

4.4 Symbols on Inverter.................................................. 6

4.5 Accessories................................................................ 7

5. Microinverter System Installation......................... 7

6. Debugging and Operating..................................... 14

6.1 Energize the System.................................................. 14

6.2 Microinverter Operation........................................... 14

7. Troubleshooting and Maintenance....................... 14

7.1 LED Status Indications and Error Reporting.............. 14

7.2 Troubleshoot an Inoperable Microinverter.............. 15

7.3 Disconnect Microinverters from PV Modules .......... 15

8. System Diagram ................................................... 16

9. Recycling and Disposal ......................................... 17

10. Contact ................................................................ 17

1. Important Safety Information

1.1 Read it First

This manual contains important instructions for the installation and maintenance

of the microinverter.

To reduce the risk of electrical shock, and to ensure safe installation and

operation of the microinverter, the following safety symbols appear throughout

this document to indicate dangerous conditions and important safety

instructions.

1.2 Safety Instructions

Do not use Envertech equipment in a manner not specified by the

manufacturer. Doing so may cause death or injury to persons, or damage to

equipment.

Be aware that only qualified personnel should install or replace the Envertech

microinverters and the cables and accessories.

Do not attempt to repair the Envertech microinverter; it contains no user-

serviceable parts. If it fails, contact Envertech customer service to start the

replacement process. Tampering with or opening the Envertech microinverter

will void the warranty.

If the AC cable on the microinverter is damaged or broken, do not install the

unit.

Before installing or using the Envertech microinverter, read all instructions and

cautionary markings in the technical description and on the Envertech

microinverter system and the PV equipment.

Connect the Envertech microinverter to the utility grid only after you have

completed all installation procedures and received approval from the electric

utility company.

Please be kindly note that the Envertech microinverter itself is a heat sink.

Under normal operating conditions, its temperature is 20°C above ambient, but

under extreme conditions, the microinverter can reach a temperature of 90°C.

Do not disconnect the PV module from the Envertech microinverter without

rusty disconnecting AC power.

2. Envertech Microinverter System

The Envertech microinverter system is an on-grid microinverter system with

world-top-class technology. This manual gives details about the safe installation

and operation of the Envertech microinverter.

The three key elements of an Envertech microinverter system include:

EVT1600SE/EVT1800SE/EV2000SE microinverter: Converting the DC of the PV

module into AC

DANGER indicates a hazardous situation which, if not

avoided, will result in death or serious injury.

WARNING indicates a hazardous situation which, if not

avoided, can result in death or serious injury or

moderate injury.

NOTICE indicates a situation that can result in property

damage, if not avoided.

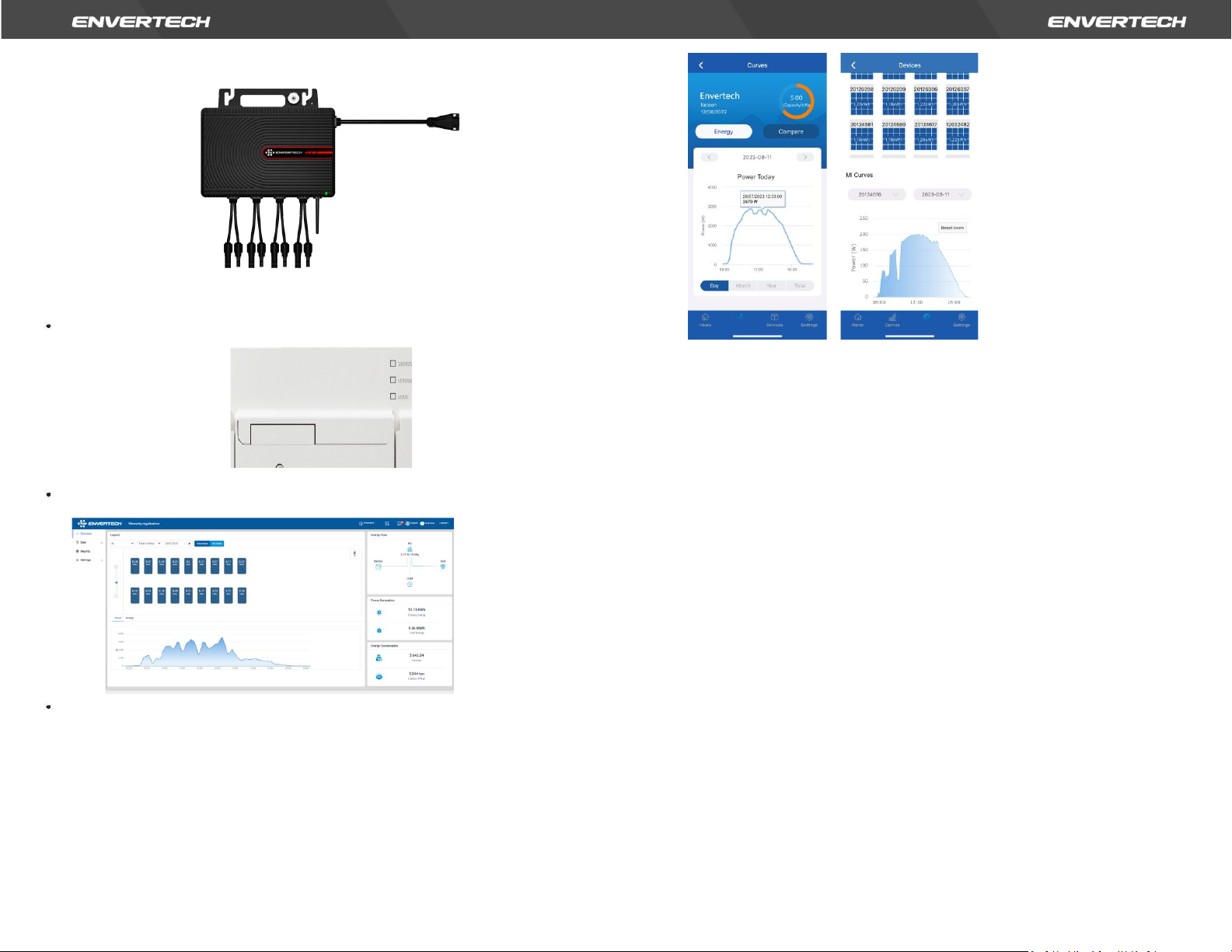

EnverBridge (Optional): monitoring and protecting PV system.

EnverPortal: http://www.envertecportal.com

EnverView: IOS, Android App

You can view the real-time data from a web browser or Enverview app.

This integrated solar system maximizes energy harvest, increases system

reliability. Simplifies design, installation and management.

2.1 How it Works

The Envertech microinverter maximizes energy production from your

photovoltaic (PV) array. Each Envertech microinverter is individually connected

to one PV module in your array. This unique conjuration means that an individual

Maximum Peak Power Point Tracker (MPPT) controls each PV module. This

ensures that the maximum power available from each PV module is exported to

the utility grid regardless of the performance of the other PV modules in the

array. That is, although individual PV modules in the array may be acted by

shading, soiling, orientation, or PV module mismatch, the Envertech

microinverter ensures top performance for its associated PV module. The result

is maximum energy production from your PV system.

2.2 Monitoring Device: EnverBridge

Once you install EnverBridge and have it connected to your broadband router or

modem, Envertech microinverters automatically begin to report to EnverBridge’s

server. EnverBridge monitoring system presents both real-time and history

performance data.

2.3 Optimal Reliability

Microinverter systems are inherently more reliable than traditional inverters.

The distributed nature of a microinverter system ensures that there is no single

point failure in the PV system. Envertech Microinverters are designed to operate

at full power at ambient temperatures as high as +65 ℃(150 ℉). The

microinverter casing is designed for outdoor installation and complies with the

IP67 protection level.

Note: To ensure optimal reliability and to meet warranty requirements, the

microinverter must be installed according to the instructions in this manual.

2.4 Simple Design

PV systems using Envertech microinverters are very simple to design and install.

You can install a combination of PV modules of any type, at any orientation and

in any quantity. You won’t need to install cumbersome traditional inverters. Each

microinverter can be quickly mounted on the PV rack, directly beneath each PV

module. Low voltage DC wires connect from the PV module directly to the co-

located microinverter, eliminating the risk of personnel exposure to dangerously

high DC voltage.

3. Product Information

Note: For optimum reliability and to comply with warranty conditions, the

microinverter must be installed according to the instructions in this manual.

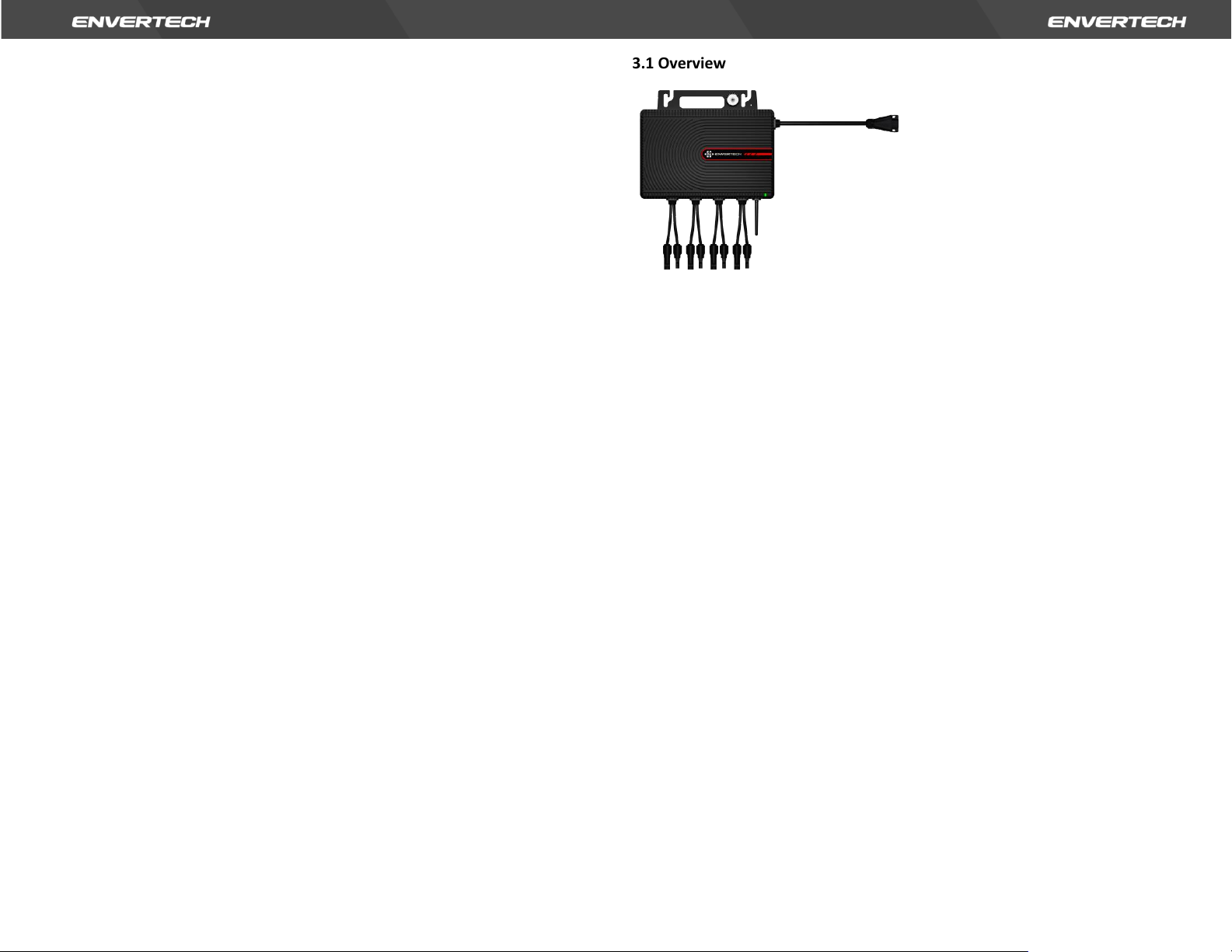

3.1 Overview

3.2 Major Characteristics

Envertech microinverters have the following characteristics which make

Envertech microinverters “Highly Efficient, Highly Reliable, Highly Cost Effective”.

Low DC input voltage.

Wide MPPT voltage range ensures high yield under various weather conditions.

High MPPT accuracy ensures minimum power loss during converting. Complete

set of protective functions.

Also, the following protective functions are integrated into Envertech

microinverters. Internal overvoltage/undervoltage protection

Faulty grounding protection Grid monitoring.

Current monitoring in grounding DC current monitoring.

Microinverter can be adapted to almost all modules. Before installation, please

check the parameters of the microinverters and modules to ensure that they are

compatible.

3.3 Datasheet

Model

EVT1600SE

EVT1800SE

EVT2000SE

Input Data（DC）

Recommended Module Power Range (W)

(250W～650W+)*4

Maximum Input Voltage (V)

60V

Minimum Start Voltage (V)

16V

Maximum Continuous Input Current (A)

20A*4

Maximum Input Short Circuit Current (A)

25A

Number of MPPT

Output Data（AC）

Maximum Continuous Output Power (VA)

1600VA

1800VA

2000VA

Nominal Output Voltage/Range (V)

220/230/ (189-260)

Maximum Continuous Output Current (A)

7.27A

8.18A

9.09A

Nominal Frequency/Range (Hz)

50Hz (47.5-52.5Hz)

60Hz (57.5-62.5Hz)

50Hz (47.5-52.5Hz)

60Hz (57.5-62.5Hz)

50Hz (47.5-52.5Hz)

60Hz (57.5-62.5Hz)

Power Factor(Adjustable)

+/-0.90

Total Harmonic Distortion

<3%

Maximum Units Per 12AWG Branch

3 Units

2 Units

Maximum Units Per 10AWG Branch

4 Units

3 Units

Efficiency

Peak Efficiency

96.5%

96.3%

96.0%

MPPT Efficiency

99.9%

Nighttime Power Consumption (mW)

<100mW

Features

Communication

PLCC (Power Line Carrier Communication) / Wi-Fi

Compliance

IEC/EN 62109-1/-2,IEC/EN 61000-3-2/-3,IEC/EN 61000-6-1/-2/-3/-4,IEC/EN 55014-1/-

2, EN 50549- 1 :2019, IEC/EN 62920:2017, VDE-AR-N 4105:2018, TOR 2019,0VE

R25:2020, NA/EEA-NE7-CH2022, C10/11 :2019, UTE C15-712-1 :2013,VFR 2019, CEI 0-

21 :2019, 2016/631 EU –(NC RfG)

Inverter Isolation

High Frequency Isolated

Overvoltage Category

OVC III (AC Main), OVC II (PV)

Protective Class

Class |

Warranty

15 Years (20 Years Optional)

Mechanical and Environment Data

Ambient Temperature Range (°C)

-40℃to +65℃

Relative Humidity

0%～98%

Dimensions (W*H*D)

300*199.5*41mm

Weight

4.92kg

Ingress Protection (IP)

IP 67

Cooling

Natural convection

4. Preparation

4.1 Packing Checklist

After you receive the Envertech microinverter, please check if there is any

damage on the carton, and then check the inside completeness for any visible

external damage on the microinverter and accessories. Contact your dealer if

anything is damaged or missing.

4.2 Product Description

4.3 Further Information

If you have any further questions concerning accessories or installation, please

check our website www.envertec.com or send an email to [email protected]om.

4.4 Symbols on Inverter

Item

Description

AC Connector

Wi-Fi Antenna

AC Extension Cable

T-connector

M8 x 25 mm Screws (Prepared by Installer)

Grounding Screw

Trunk Cable

End Cap

Symbol

Description

Dangerous electrical voltage

This device is directly connected to public grid, thus

all work related to the inverter shall only be carried

out by qualified person

NOTICE, danger!

This device directly connected with electricity generators and

public grid

Danger of hot surface

The components inside the inverter will release a log of heat

during operation. DO NOT touch aluminum casing during

operating.

An error has occurred

Please go to Chapter 8 “Trouble Shooting” to repair the error.

This device SHALL NOT be disposed of in residential waste.

Please go to Chapter 10 “Recycling and Disposal” for proper

treatments.

No unauthorized perforations or modifications

Any unauthorized perforations or modifications are

strictly forbidden. If any defect or damage

(device/person) is occurred, Envertech shall not take

any responsibility for it.

E E

FDA

User Identifica ti on Nu mber

www.enverte c.c om

Enverte ch( S ha n gh ai)CorporationL T D .

Address:BuildingC , N o.8 Shiyuan Road,Songjia ng District,Shangh ai

Operating Ran ge (V dc):

MPPTVoltage Ra ng e (Vdc):

Max. DC Input(Vdc):

Max. InputContinuo u sCurrent(A):

Max. InputShort-CircuitCurrent(A):

IngressProt e ction (IP):

Temperatu re( ℃):Power (Max. Contin uous)(W):

16V~60 V

22V~50V

60V

20Ax4

25Ax4

IP67

-40℃to+6 5 ℃2000W

Current(Max.Contin uous)(A) :

NormalFrequency(Hz):

Power FactorRange :

Protect iv e Class:

OvervoltageCategory:

L/N/PE,2 20 V /230V

9.09A

50Hz/60Hz

+/-0.90

Class I

OVCI II (A C Main),OV CII(PV)

VFR20 1 9 ,CEI0-21:2019,2016/631 EU - ( NCR f G)

IEC/EN6 2 10 9-1/-2,IEC/EN 61000-3-2/-3,IEC/EN 61000-6-1/-2/-3/-4

IEC/EN 5 5 0 1 4-1/-2,EN50 54 9-1:201 9,VDE-AR-N 4105: 2 01 8,TOR2019

OVER25: 2 0 20,NA/EEA-NE7-CH:2022 ,C10/11 : 20 19, UTEC15-712-1:2013

2 3 4

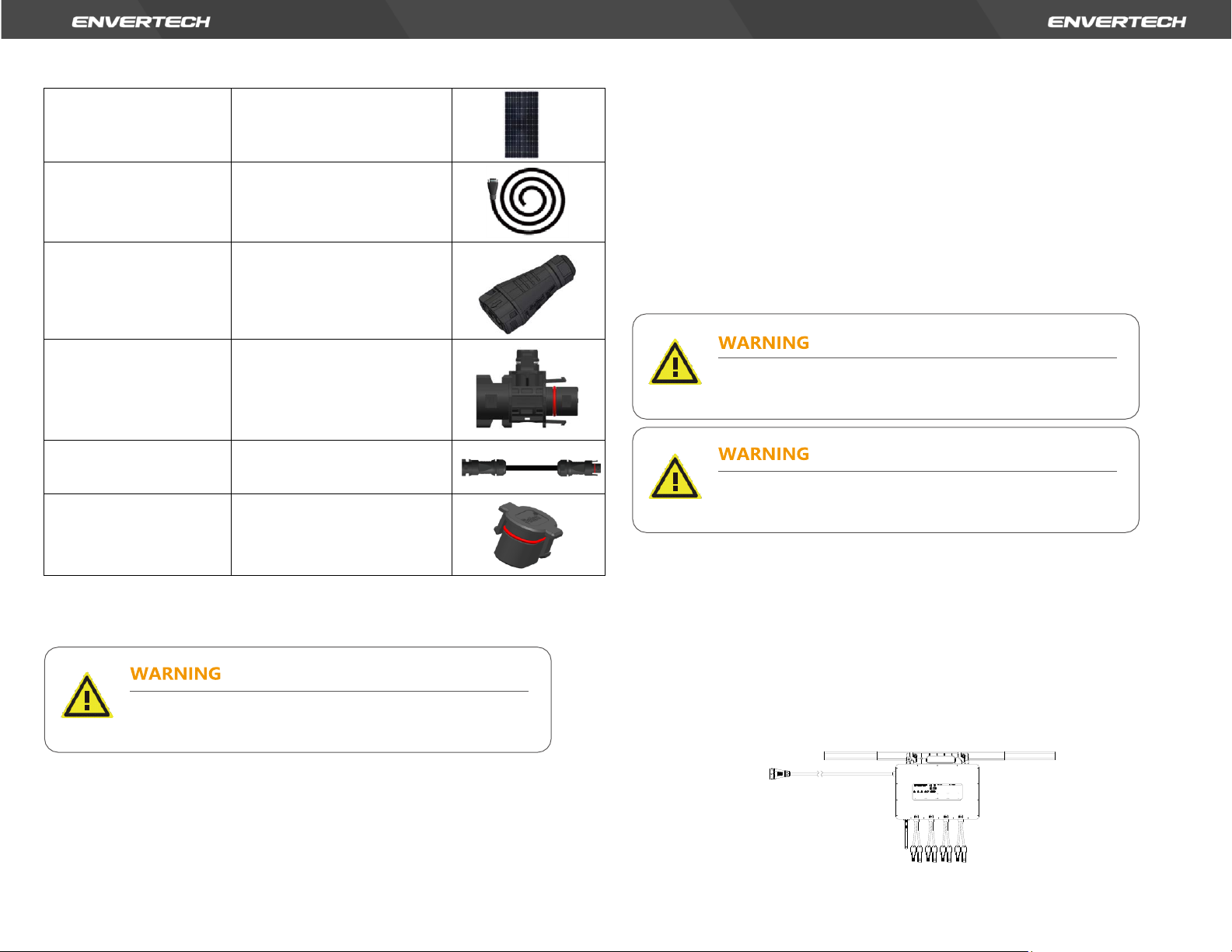

4.5 Accessories

PV Module

Module

AC Extension Cable

To connect the AC side to

the grid.

AC Connector

Connect the

microinverter's AC side to

the trunk cable.

T-Connector

For connecting the

microinverter's AC

connector to the trunk

connector.

Trunk Cable with

Trunck Connector

Connect two T-connectors

End Cap

Male End Cap

5. Microinverter System Installation

Installing Envertech microinverter system involves several key steps. Each

step listed here is elaborated on the following pages.

Step 1. Verify voltage

Step 2. Mount microinverters onto the rack

Step 3. Ground the system

Step 4. Install a Wi-Fi antenna

Step 5. Connect the trunk cable with T-connector

Step 6. Connect to the trunk cable

Step 7. Fasten AC cables

Step 8. Cover any unused connector with end caps

Step 9. Connect to the grid

Step 10. Connect PV modules to microinverters

Step 11. Switch on the PV system

Step 12. WIFI Configuration

Step 13. Monitoring through EnverPortal

Step 1. Verify the voltage range

Verify the grid and PV panel voltages are within the microinverter voltage

range.

Step 2. Mount microinverters

Mark out the estimated center of 4 PV modules on the rack to mount the

microinverter.

Mount all microinverters under modules to avoid rain and sun. Make sure

you can see the LED light.

Step 3. Ground the system

UserIdentificationNumber

www.envertec.com

Envertech(Shanghai)CorporationLTD.

Address:BuildingC,No. 8 Shiyuan Road,Songjiang District,Shanghai

OperatingRange(Vdc):

MPPTVoltageRange (Vdc):

Max.DCInput (Vdc):

Max.InputContinuous Current (A):

Max.InputShort-Circuit Current (A):

IngressProtection(IP): Temperature(℃):Power(Max.Continuous) (W):

16V~60V

22V~50V

60V

20Ax4

25Ax4

IP67 -40℃to+65℃2000W

NormalVoltage(Vac):

Current(Max.Continuous) (A):

NormalFrequency(Hz):

PowerFactorRange:

ProtectiveClass:

OvervoltageCategory:

L/N/PE,220V/230V

9.09A

50Hz/60Hz

+/-0.90

ClassI

OVCIII(ACMain),OVC II(PV)

VFR2019,CEI0-21:2019,2016/631 EU - (NC RfG)

IEC/EN62109-1/-2,IEC/EN61000-3-2/-3,IEC/EN 61000-6-1/-2/-3/-4

IEC/EN55014-1/-2,EN50549-1:2019,VDE-AR-N 4105:2018,TOR2019

OVER25:2020,NA/EEA-NE7-CH:2022,C10/11:2019,UTEC15-712-1:2013

234

Only qualified personnel may connect the Envertech

microinverter to the utility grid after receiving prior approval

from the electrical utility company.

You must install the microinverter system under connection

neither to the grid nor to the PV modules (or if not

disconnected, the modules should be shaded).

Installation could only be implemented when the system is

disconnected from the grid, and the solar panel has been

covered or disconnected.

Microinverters and modules must be connected to the ground. Fix the

screws to the microinverter installation hole. Make sure that the grounding

screw thread is firmly connected the bracket.

Step 4. Install the Wi-Fi antenna

Rotate the antenna clockwise until it is firmly secured to the microinverter.

Step 5. Connect the trunk cable with T-connector

Plan each cable segment to allow T-connectors on the trunk cable to align

with each PV module. Allow extra length for slack, cable turns, and any

obstructions.

Mark the approximate centers of each PV mod-ule on the PV racking.

Lay out the cabling along the installed racking for the AC branch circuit.

Note: Please make sure that there are less than 2 units of

EVT1800SE/EVT2000SE or less than 3 units of EVT1600SE in each branch

(12AWG). The maximum number per 10 AWG branch is 3 for EVT1800SE/

EVT2000SE or 4 for EVT1600SE.

Step 6. Connect to the trunk cable

Connect female AC connector to the quick plug T-connector of the trunk

cable.

Step 7. Fasten cables

Fasten AC cables and trunk cables to the rack with cable ties.

Step 8. Cover any unused connector with end caps

Insert the end cap into the connector on the unused end, and check if it is

inserted in place.

Step 9. Connect to the grid

1) Remove the skin of the two ends of the extension cable by y=40mm

and remove the skin of internal wires by x=14mm. Set the metal terminals

onto the open parts and clamp them to tighten the connection;

2) Connect the other side of the extension cable to the air switch.

a. Connect more than one microinverters in the system.

User Identification N um ber

www.envertec. com

Envertec h ( Sh a ng h ai)CorporationLT D .

Address:BuildingC ,N o. 8 Shiyu an Road ,Son gjia ng District,Shanghai

OperatingRange ( V dc ):

MPPTVoltageRange( V dc) :

Max. DC Input(Vd c):

Max. InputContinuousCu rrent(A):

Max. InputShort-CircuitCurrent(A):

Ingress Protection(IP):

Temperatur e(℃):Power ( M a x . Continuous)(W):

16V~60V

22V~50V

60V

20Ax4

25Ax4

IP67

-40℃to+65℃2000W

Normal Voltage(Vac) :

Current(Max. Continuous)( A) :

Normal Frequency(Hz):

Power FactorRange:

Overvolt age C ategory:

L/N/PE ,220V/230V

9.09A

50Hz/60Hz

+/-0.90

ClassI

OVCIII ( AC Main),OVC II(PV)

VFR2019,CEI0-21:2019,2016/631EU- (NC RfG)

IEC/EN62109-1/-2,IEC/EN61000-3-2/-3,IEC/EN61000-6-1/-2/-3/-4

IEC/EN55014-1/-2,EN50549-1:2019,VDE-AR-N4105:2018,TOR2019

OVER25:2020,NA/EEA-NE7-CH:2022,C10/11:2019,UTEC15-712-1:2013

2 3 4

Use r Identific a t ion N u mber

www .envertec. com

Enve r t e c h ( Sh a ng h ai)Corp oration LT D .

Address:B uilding C, N o. 8 Sh iyu an R oad ,So n gji a ng Dis tr ict,Shanghai

Operat ing Range (Vd c ):

MPPTVoltage R ange ( V dc ) :

Max . DC Input(V dc ):

Max . InputC ont inuousC u rrent(A ):

Max . Input Short-Circu it Cu rrent(A):

Ingres s Prot e ction(IP):

Temper atu re(℃):Po w er (M ax . C ontinuous) (W ) :

16V~6 0V

22V~5 0V

60V

20Ax4

25Ax4

IP67

-40 ℃to + 65 ℃2000W

Nor m a l Volta ge ( V ac) :

Current( Ma x . Co n t inuous) ( A) :

Nor m a l Fr equency (Hz):

Po w er F a ctorRange:

Pr ote c t iv e Cla ss:

Ove r v o lt age C at egory :

L/N / PE,220V/ 230V

9.0 9 A

50Hz/60H z

+/-0. 9 0

Clas s I

OV C I II( AC Main), O VC II(PV)

VFR2019,CEI0- 21:2019,2016/631 EU - (NC RfG)

IEC/EN 62109-1/-2,IEC/EN 61000-3-2/-3,IEC/EN61000-6-1/-2/-3/-4

IEC/EN 55014-1/-2,EN50549-1 :2019,VDE-AR -N 4105:2018,TOR 2 01 9

OVER25:2020,NA/EEA-NE7-CH:2022,C10/11:2019,UTEC 15-712-1:2013

2 3 4

Cable tie

Y=40mmR

Y=14mmR

UserIdentifica tionN u m ber

www.envertec.com

Envertech( S ha n gh ai)CorporationLTD.

Address:BuildingC, No. 8 Shiyu an Ro ad,S ongjia ng District,Shanghai

OperatingRange(V dc) :

MPPTVoltageRange(Vdc ):

Max. DCInput(Vdc):

Max. InputContinuousCurrent(A):

Max. InputShort-CircuitCurrent(A):

IngressPro tection(IP):

Temperature(℃):Power( Ma x . Continuous)(W):

16V~60V

22V~50V

60V

20Ax4

25Ax4

IP67

-40℃to+65℃2000W

Normal Voltage ( Va c ):

Current(Max. C o nt inuous) ( A) :

NormalFr equency (Hz):

PowerFactor Range:

OvervoltageC a tegory:

L/N/PE,220V/230V

9.09A

50Hz/60Hz

+/-0.90

ClassI

OVCIII(AC Main),OVCII (PV )

VFR2019,CEI0-21:2019,2016/631EU-(NCRfG)

IEC/EN62109-1/-2,IEC/EN61000-3-2/-3,IEC/EN61000-6-1/-2/-3/-4

IEC/EN55014-1/-2,EN50549-1:2019,VDE-AR-N4105:2018,TOR2019

OVER25:2020,NA/EEA-NE7-CH:2022,C10/11:2019,UTEC15-712-1:2013

2 3 4

Grid

Altri manuali per EVT1600SE

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Envertech Invertitore

Envertech

Envertech EVT560 Manuale utente

Envertech

Envertech EVT2000 Manuale utente

Envertech

Envertech EVT500 Manuale utente

Envertech

Envertech EVT720 Manuale utente

Envertech

Envertech EVT360 Manuale utente

Envertech

Envertech EVT300 Manuale utente

Envertech

Envertech EVT300 Manuale utente

Envertech

Envertech EVT1200 Manuale utente

Envertech

Envertech EVT2000 Manuale utente

Envertech

Envertech EVT248 Manuale utente

Envertech

Envertech EVT2000SE Manuale utente

Envertech

Envertech EVT500 Manuale utente

Envertech

Envertech EVT1600SE Manuale utente

Envertech

Envertech EVT300 Manuale utente

Envertech

Envertech EVT300 Manuale utente

Envertech

Envertech EVT248 Manuale utente

Envertech

Envertech EVT400-R Manuale utente

Envertech

Envertech EVT1200 Manuale utente

Envertech

Envertech EVT800 Manuale utente

Envertech

Envertech EVT800-B Manuale utente

Manuali Invertitore popolari di altre marche

Fourgroup

Fourgroup Easy Manuale utente

Velleman

Velleman PI300M Manuale utente

Sungrow

Sungrow SG350HX-US Manuale utente

WilTec

WilTec 61897 Manuale utente

SMA

SMA SUNNY BOY STORAGE 2.5 Manuale utente

Simplicity

Simplicity LANDLORD 316 Manuale utente

Santak

Santak SMAX 3000 Manuale utente

ATON

ATON RA.Store-3 Manuale utente

ZIEHL-ABEGG

ZIEHL-ABEGG FXET4AMQ Manuale utente

Tektronix

Tektronix CFG250 Manuale utente

Champion

Champion 200989 Manuale utente

Vanner

Vanner 20-500 Series Manuale utente

GE GEP Manuale utente

Astrel Group

Astrel Group Power Reducer Guida rapida

MULTIQUIP

MULTIQUIP GDP-5H Guida

GoWISE

GoWISE PS1007 Manuale utente

Promate

Promate PM13500D ES Manuale utente

Mastervolt

Mastervolt WHISPER 3.5M3000 RPM Manuale utente
