Q2 FIREPLACE

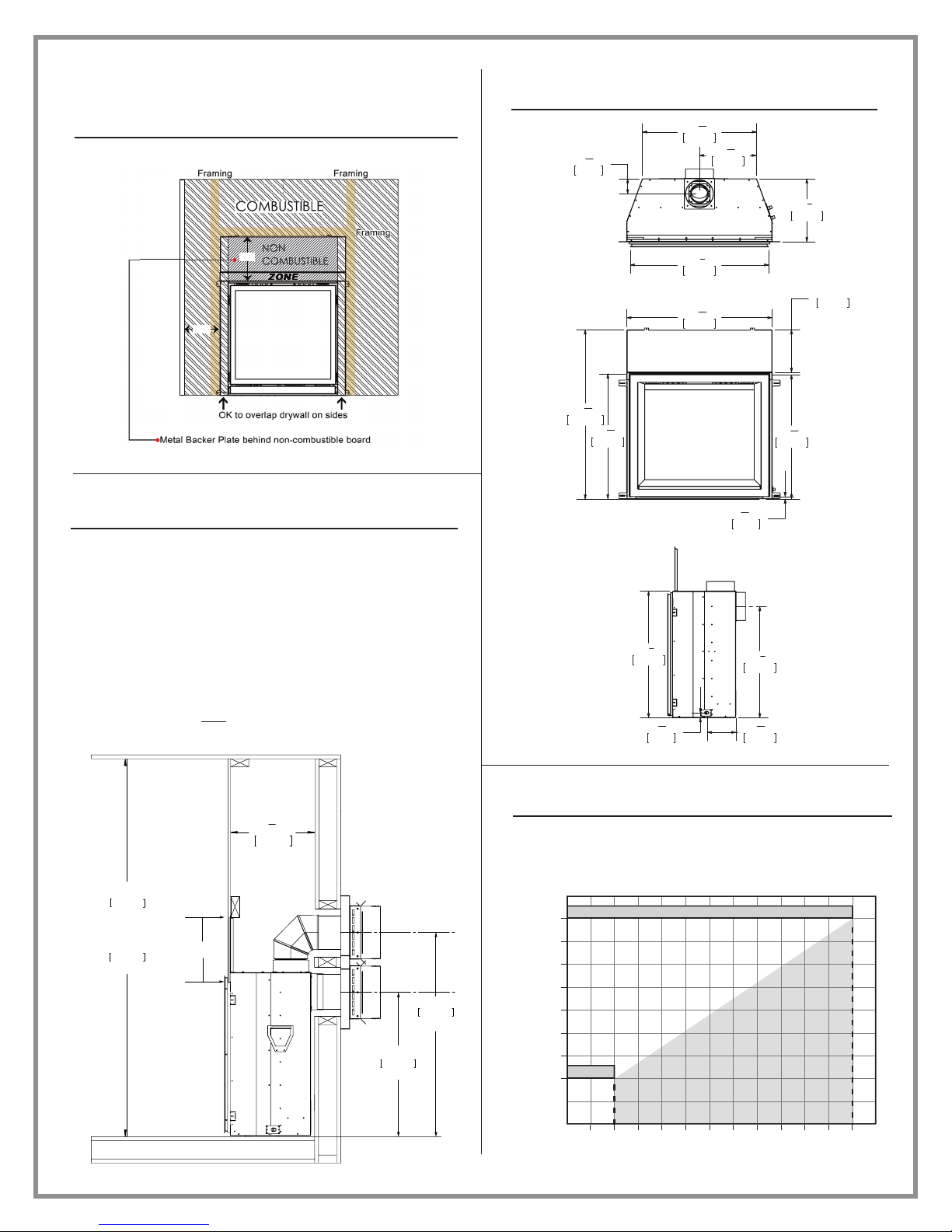

Installation Reference Guide

REFER TO OWNER’S MANUAL FOR SPECIFIC INSTALLATION REQUIREMENTS AND ADDITIONAL PRODUCT INSTRUCTIONS

Clearance to Combustibles

A - Side of unit to side wall 4 /" 117 mm

B - Minimum clearance to enclosure ceiling

(Top Vent) 54" 1372 mm

B - Minumum clearance to enclosure ceiling

(Rear Vent) 43 / 1105 mm

C - Minimum clearance to mantel height See Chart See Chart

D - Front of door to edge of floor protection 0" 0 mm

E - Minimum aclove width 48” 1220 mm

54”

1,372mm

15 /” 403 mm

34 / ”

879.5 mm

40”

1,016 mm

1” 25mm

Clearance from

framing studs

to venting

Depth 15 /” 403 mm

Width 34 /” 879.5 mm

Header Height 40” 1016 mm

Enclosure Ceiling

(Top Vent) *54” 1372 mm

Enclosure Ceiling

(Rear Vent) 43 / 1105 mm

Minimum

Framing Dimensions

*Minimum dimension with only an elbow off

the top. Any additional vertical rise added will

increase the enclosure height accordingly.

9”

9 3/4”

Side wall 4 5/8”

10”

49”

48”

47”

46”

45”

44”

43”

42”

1 2 3 4 5 6 7 8 9 10 11 12

M A NTL E HEIGH T

M A NTLE D E P T H

12” MANTLE

2” MANTLE

43.5"

1105mm

REAR (MIN)

15 7

403mm

26.25"

667mm

REAR

37.5"

953mm

TOP (MIN)

*54"

1372mm

TOP (MIN)

Non-combustible

Zone

Non-Combustible Board

Placement

Mantel Projections

Note: Mantle height dimensions are based from the bottom of

the appliance.

Minimum Venting Requirements

This appliance uses a 4” (101mm) exhaust / 6 /” (168mm) air

intake vent pipe system. For safe and proper operation of the

appliance follow the venting instructions exactly. Deviation from

the minimum vertical length can create diculty in burner start-up

and sooting. Allow several minutes for the ame to stabalize after

ignition under extreme vent congurations. It is recommended for

vent lengths that pass through unheated spaces (garages, attics,

crawl spaces) be insulated to minimize condensation. See manual

for more info.

Fireplace Dimensions

*Note: Glass Units can NOT be rear vented.

871mm

1014mm

750mm

744mm

14mm

10"

254mm

684mm

378mm

341mm

91mm

832mm

170mm

29mm

759mm

667mm

Gas Inlet Left
