01 Safety

IMPORTANT

Be sure to have read and understood these

instructions before beginning the installation

process.

SAFETY AND RECOMMENDATIONS

• All wiring must comply with Building

Regulations and the current I.E.E. Wiring

Regulations (BS7671) or the equivalent

standards for your country. The nal

installation should be examined and tested

by a qualied electrician.

• DO NOT WIRE THROUGH A LIGHT

SWITCH

This is a constant trickle fan which requires

permanent electrical supply.

• DO NOT REMOVE OR TAMPER WITH

ELECTRONIC CIRCUIT BOARD

This is not a user function.

• This appliance can be used by children

aged from 8 years and above and

persons with reduced physical, sensory or

mental capabilities or lack of experience

and knowledge if they have been given

supervision or instruction concerning

use of the appliance in a safe way and

understand the hazards involved. Children

shall not play with the appliance. Cleaning

and user maintenance shall not be made

by children without supervision.

This fan can be wall, ceiling, inline or

window mounted

You must ensure that any emissions

from any other systems such as gas

or oil boilers, do not contaminate the

air entering the product. Therefore,

before installation, consider where the

external cowl will be located in relation

to any boiler ues etc. Externally, you

must ensure that the unit is positioned

a minimum distance away of; 1 metre

horizontally, 1 metre below or 3 metres

above any boiler ue etc.

In kitchens, if the unit has to be tted

above a cooker, it must be installed a

minimum distance of 650mm above

electric cookers and 750mm above gas

cookers, and not have a pullcord tted.

AFTER INSTALLING THIS UNIT PLEASE PASS ONTO END USER

DO NOT THROW AWAY

02 Introduction

Thank you for choosing EnviroVent

The fastest growing ventilation company in the UK

HOTLINE: 0345 27 27 810

Due to our policy of continuous innovation and improvement EnviroVent

reserves the right to alter products specication and appearance without

notice.

You are about to install a product that is designed to outlast

the life-cycle of the building. Once installed the unit will operate

continuously for 5 years and beyond without a major service.

Please therefore ensure that this product is treated with care

and installed properly i.e. for the life of the building. If the unit

is mishandled you might break it! This invalidates the warranty.

And remember, if you have any problems please call our

dedicated Technical Team. We are always pleased to help and

in an emergency will come out to site quickly, completely free

of charge.

SHOULD YOU ENCOUNTER ANY PROBLEMS INSTALLING THIS UNIT CALL

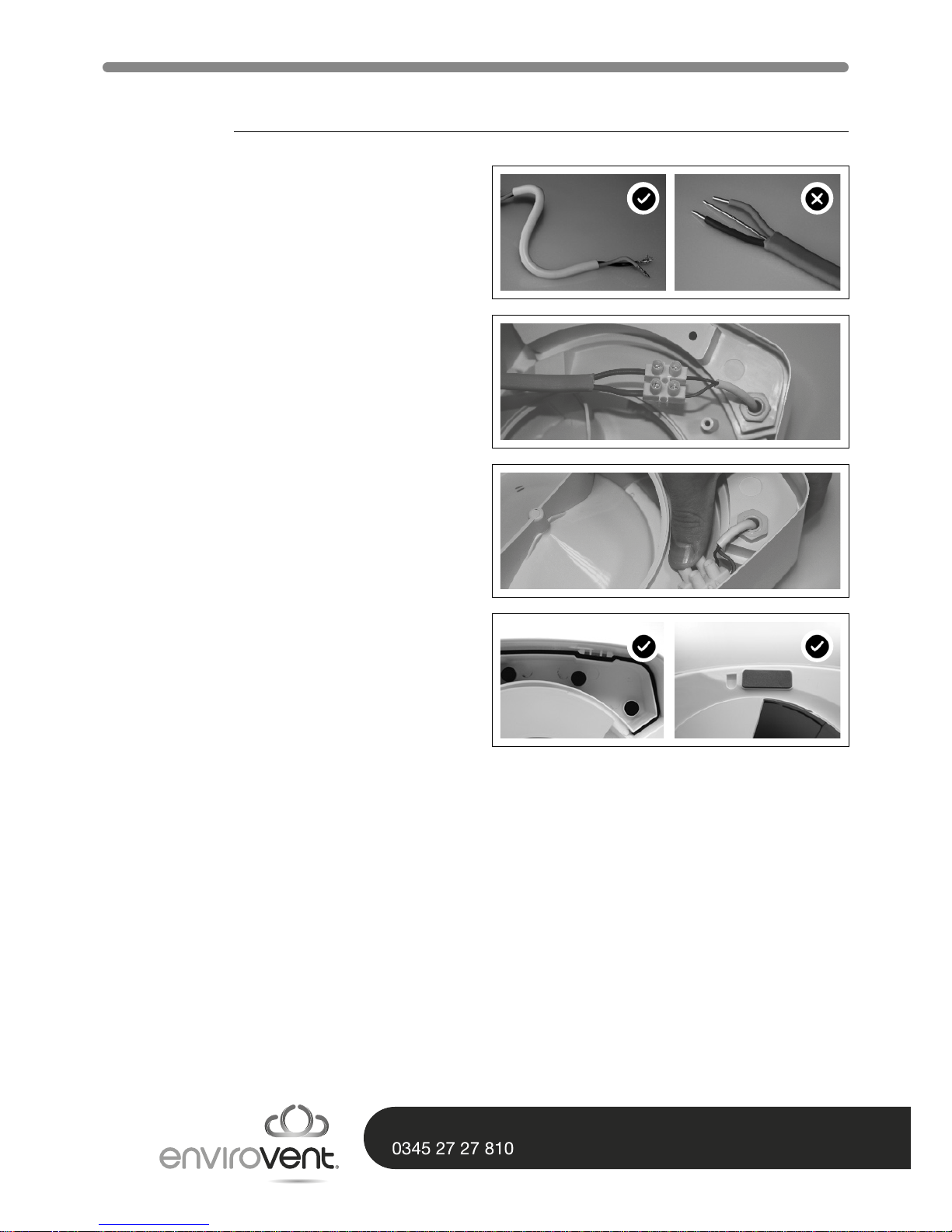

03 Wiring

Wiring the fan correctly...

1. The connection into the fan MUST be a

exible cable and NOT solid core twin

and earth, if the fan is mishandled or a

solid core twin and earth cable is forced

into the terminals you WILL break it, this

will invalidate the warranty.

2. If it is necessary to use twin and earth

you must not take it into the fan. Use a

terminal block to make the connection

between the exible cable supplied with

the fan and your solid core twin and earth

cable.

3. Place the cables inside the void in the

back of the back carcass next to the

cable gland and secure the fan to the

wall securely.

IMPORTANT: The black grommets and

sticky pad provided must be tted in this

unit. Not using these items will jeopardise

both the IP rating and the warranty.

Electrical Assembly

When wiring the unit in, a suitable disconnect

device such as a fused spur should be

used, do not use a plug. The means of

disconnecting the unit from the mains power

supply must be incorporated in the xed

wiring in accordance with the wiring rules.

There must be a necessity to allow

disconnection of the appliance from the

supply after installation, unless the appliance

incorporates a switch complying with the

wiring regulations The disconnection may

be achieved by incorporating a switch in the

xed wiring in accordance with the wiring

regulations.

If the supply cord is damaged, it must be

replaced by the manufacturer, its service

agent or similarly qualied persons in

order to avoid a hazard.

AFTER INSTALLING THIS UNIT PLEASE PASS ONTO END USER

DO NOT THROW AWAY

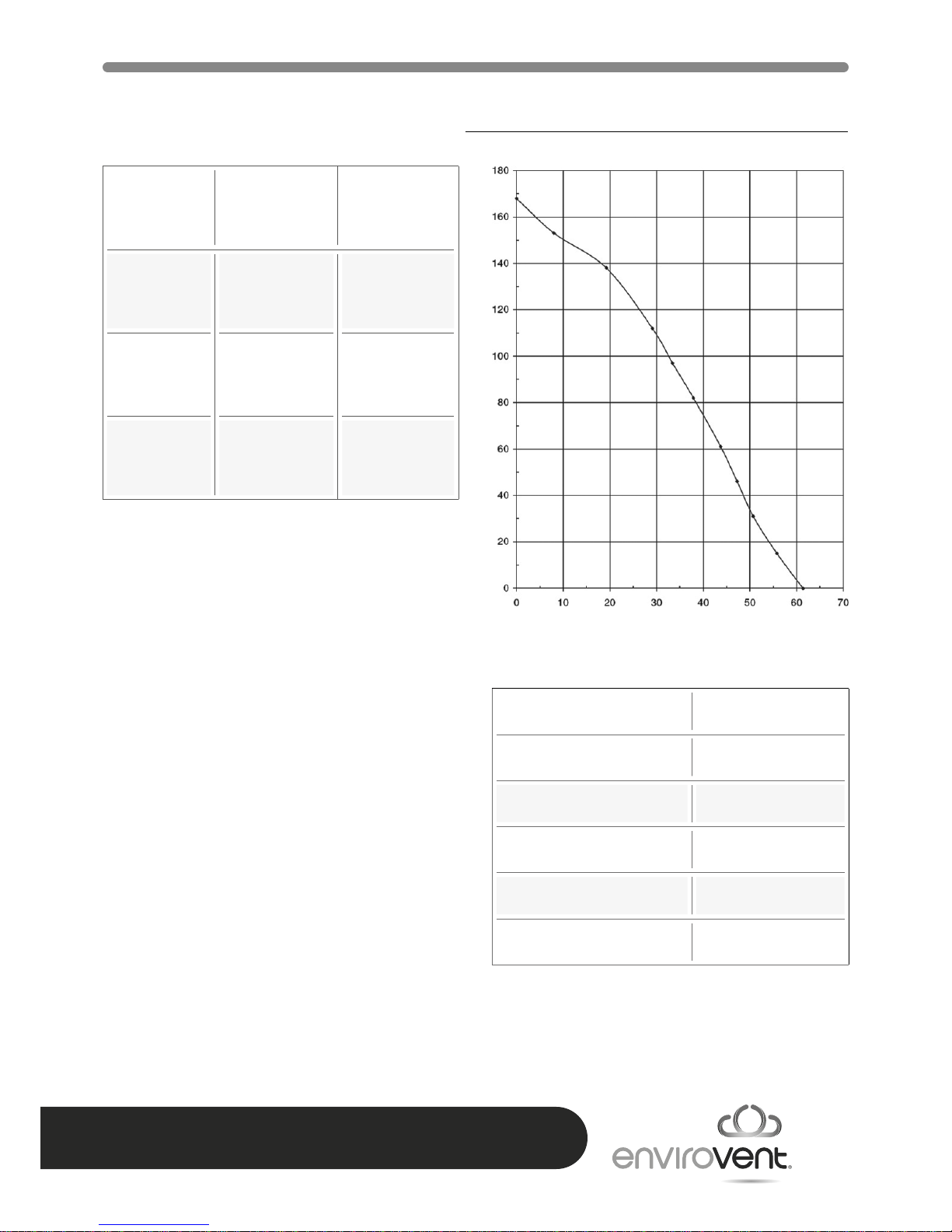

04 Technical Specications

Duty (l/s) Power (W) Sound dB(A)

@ 3M

15 2 30.8

35 7 36

60 25 46.2

Airow (l/s)

Options & Ancillaries

Description Code(s)

Wall Mounted Kit 1RD EFWAK

Ceiling Mounted Kit 1AC EFCMBR

Window Fixing Kit (230V) EFWIK230V

Window Fixing Kit (SELV) EFWIK12V

In-line Fixing Kit EFIL-WIK

SHOULD YOU ENCOUNTER ANY PROBLEMS INSTALLING THIS UNIT CALL

05 About The Unit

This fan is designed for easy cleaning and

long life. Keep this user guide handy. The

fan has been set by the installation engineer

to suit your kitchen or bathroom application.

Your EnviroVent Filterless Extract Fan has

been designed to improve air quality and

reduce humidity levels in kitchens and

bathrooms to help resolve the condensation

and mould problems which can eect

dwellings in winter.

HOW IT WORKS

The EnviroVent Filterless Extract Fan

works in a constant trickle mode to create

background ventilation to maintain a healthy

environment.

Vapour tracking

As standard the unit is tted with vapour

tracking (except for 2 speed models, see

below). The fan senses the amount of

moisture being created in the room which

causes the fan to increase in speed to match

the rising humidity and reduce in speed

to match falling humidity. This intelligent

function reduces your energy costs, wear

and tear on the motor and ensures a long

quiet life.

Pullcord

All units are tted with a pullcord override for

odour control (if remote see below). In the

event that you wish to activate the fan to full

power in conditions of low humidity simply

pull on the pullcord and the fan will boost to

maximum extraction rate.

OPTIONS

Remote control

Remote control override for odour control. In

the event that you wish to activate the fan to

full power in conditions of low humidity simply

press the remote control boost switch and

the fan will boost to the maximum extraction

rate for 3 to 4 minutes before returning to

the trickle extract rate.

2 Speed Version

The unit is also available in a two speed

conguration, without vapour tracking.

These units run at a constant trickle or at

boost speed as required by the user.

Remote Switch Wire

The unit is available with a remote switch

wire. On these units the boost switch may be

located up to 3 meters away from the unit.

AFTER INSTALLING THIS UNIT PLEASE PASS ONTO END USER

DO NOT THROW AWAY

05 About The Unit

ENERGY USE

The EnviroVent Filterless Extract Fan uses

award-winning Ultra Low Watt motor

technology to give the lowest running

costs of any domestic extract fan. It uses

only a minimal amount of electricity whilst

eliminating stale and moist air from the

home.

This gives an annual running cost of only

£1.97 based on an electricity cost of £0.15

per unit (kWh) and a two hour ‘boost’

per day. In addition, the Filterless Extract

Fan is guaranteed for 5 years and has no

maintenance requirement during this period

saving both time and money for the user.

Setting

Background

Trickle

Bathroom

on boost

Kitchen

on boost

Watts 1 7 26

Hours run

per day 22 2 2

Energy cost

p/a (£) 1.20 0.77 2.85

Total cost

p/a (£) 1.97 1.97 4.05

Filterless Extract Fan Components

Central

cartridge

Back Carcass

(Permanent xture - DO NOT

REMOVE ONCE INSTALLED)

Impeller

Front cover

SHOULD YOU ENCOUNTER ANY PROBLEMS INSTALLING THIS UNIT CALL

06 Installation Instructions

1. Loosen the two plastic screws and

remove front cover. (Fig 1.)

2. Carefully withdraw central cartridge

from the carcass. Disconnect green

male/female connector. (Fig 2.)

3. This fan must be installed by a competent

person. Complete electrical wiring of fan

and tighten cable gland.

4. Oer up the central cartridge, join green

male/female connector (230V) and

carefully insert the central cartridge into

back carcass.

5. Insert four silver screws to x central

cartridge in place. N.B. Take care not to

trap cables.

6. Please note that a suitable isolation

switch or fuse spur rated at 3amp

should be used in the xed wiring.

7. This fan is factory set to kitchen duty

with humidity tracking function. If two

speed or bathroom option is required,

commission the fan by setting the slider

switch as appropriate. Fix supplied

gasket over selector switches (Fig.3).

8. Check that the impeller is tted correctly

- ensure ‘click’ action engaged cleanly.

9. Fix front cover (Fig.1). Ensure that the

pullcord nestles into groove. N.B. Fan

will not operate unless front cover is in

position.

10.This fan is factory set to kitchen duty

with humidity tracking function (Fig.3).

Cable gland

Alternative xings

100mm ducting

(Ø106)

125mm ducting

(Ø131)

Wall xings

NOT TO SCALE -

FOR GENERAL INFORMATION ONLY

NO CABLES

Avoid cable entry into

shaded areas

Fig.3

Fig.2

Fig.1

Back carcass Central carcass

Gasket

Impeller

230V

Slider

Cable gland

LEFT - HUMIDITY TRACKING

RIGHT - TWO SPEED

LEFT - KITCHEN

RIGHT - BATHROOM

AFTER INSTALLING THIS UNIT PLEASE PASS ONTO END USER

DO NOT THROW AWAY

07 Maintenance

All repair, maintenance and component

replacement is carried out simply and

quickly by exchanging the plug out/plug in

central cartridge.

The worn out cartridge can then be returned

to the EnviroVent factory to be recycled/

reworked.

This ‘when necessary’ cartridge exchange –

with re-worked components will ensure that

the basic fan installation will remain intact

throughout the repair cycle of the dwelling,

eliminating the wasteful disposal of plastic

and other non biodegradable material to

landll sites.

Cleaning

Your Filterless Extract Fan has been designed

for easy safe cleaning.

ISOLATE THE UNIT FROM ELECTRICAL

MAINS SUPPLY BEFORE REMOVING

ANY COVER, OR SERVICING THE UNIT

1. Isolate from mains.

2. Remove front cover. (Fig.1)

3. Pull the front cover towards you from

the bottom. It will pull towards you with

a slight hinge action from the top.

4. Push the impeller clips together with

forenger and thumb and pull the

impeller towards you. (Fig.2)

5. Wash the cover and impeller in warm

soapy water. Dry and replace as above

in reverse. (Fig.3)

6. N.B. Use damp, soapy cloth to clean

scroll (NO solvents).

Fig.3

Fig.2

Fig.1

SHOULD YOU ENCOUNTER ANY PROBLEMS INSTALLING THIS UNIT CALL

08 Troubleshooting

• Check feed/power supply

• Have you checked connections (green male/female connector)?

• Have you removed printed circuit board for any reason?

• Is the cartridge correctly seated (no stray wires trapped)?

• Does the impeller spin freely (check click)?

• Is the front cover in place?

• Does the pullcord activate freely?

• If you still experience diculties then please call our hotline on 0345 27 27 810

AFTER SALES SERVICE

We recommend that you do not dismantle or remove any other parts than those mentioned, as

any tampering would automatically cancel the guarantee. If you detect any fault, please contact

EnviroVent on 0345 27 27 810.

OTHER APPLICATIONS/VARIATIONS

For recessed only installations we can supply a bezel.

Gold Standard After Sales Service

In the unlikely event of any on-site installation problems or queries regarding the EnviroVent

Filterless Extract Fan, just call our hotline number. We will take your details and appoint

a regional installation manager to call you back to discuss the problem. In the majority

of cases, the problem can be resolved over the phone. However, in cases where the

problem cannot be resolved over the phone, we will arrange a visit from our Gold Standard

Engineer. He will meet with your contractor/direct labour on-site to discuss and resolve

the problem, he will also provide training and give advice on the installation of the fan.

Installer Hotline: 0345 27 27 810

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Envirovent Fan

Envirovent

Envirovent Eco dMEV+ Manuale utente

Envirovent

Envirovent PIV AIR SOURCE Manuale utente

Envirovent

Envirovent PIV Manuale utente

Envirovent

Envirovent Damp Pro DP-EVL Manuale utente

Envirovent

Envirovent SILENT MV Series Istruzioni per il montaggio

Envirovent

Envirovent MEV SPIDER Manuale utente

Envirovent

Envirovent PROFILE–150S Istruzioni per il montaggio

Envirovent

Envirovent fliterless infinity fan 230v Guida rapida

Envirovent

Envirovent SILENT 100 Manuale

Envirovent

Envirovent energisava 380 Manuale utente

Envirovent

Envirovent energiSava 250 Manuale utente

Envirovent

Envirovent PIV Manuale utente

Envirovent

Envirovent ECO DMEV+ LC Manuale utente

Envirovent

Envirovent CYCLONE 7 230V Series Guida rapida

Envirovent

Envirovent SLIMLINE 300 Guida rapida

Envirovent

Envirovent energiSava 200 Manuale utente

Envirovent

Envirovent energisava250 Manuale utente

Envirovent

Envirovent SABIK 350 Manuale utente

Envirovent

Envirovent VENTY ECO2 Air Guida rapida

Envirovent

Envirovent POWER-170 Istruzioni per il montaggio

Envirovent

Envirovent fliterless infinity fan 230v Manuale utente

Envirovent

Envirovent ATMOS WALL Manuale utente

Envirovent

Envirovent filterless extractor fan Manuale utente

Envirovent

Envirovent SILENT MV-160/100 Istruzioni per il montaggio

Manuali Fan popolari di altre marche

ELTA FANS

ELTA FANS H03VV-F Manuale utente

Hunter

Hunter 20714 Manuale di istruzioni

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manuale utente

Hunter

Hunter Caraway Manuale di istruzioni

Panasonic

Panasonic FV-15NLFS1 Manuale utente

Kompernass

Kompernass KH 1150 Manuale utente

VES

VES FALA100/12V/TR Manuale utente

Vertiv

Vertiv Liebert DCD Manuale utente

Westinghouse

Westinghouse GFP Series Manuale utente

Venmar

Venmar KUBIX HRV PLUS Series Manuale utente

Maico

Maico ECR 31 Manuale utente

Sonnenkonig

Sonnenkonig Dinky Manuale utente

S&P

S&P ECOWATT HXBR Manuale utente

Wider

Wider IMP03369BH Manuale utente

Panasonic

Panasonic F-60DHN Manuale utente

Hinkley

Hinkley HIGHLAND Manuale utente

Broan

Broan 766BN Manuale utente

Premium

Premium PFS16022 Istruzioni per il montaggio
