Epicgear Dezimator Manuale utente

Mechanical Gaming Keyboard

Owner’s Manual V1.0

CONTENTS

P2 - Introduction

P3 - Specifications/Package Contents / System Requirements

P4 - Setting Up Your DeziMator

P5 - Installation

P6 - Using The “Fn”Key And Related Functions

P9 - DeziMator GUI Software

P14 - Macro Setup

P17 - Key Assignment

P19 - Safety & Maintenance/Contact

www.epicgear.com / P2

Introduction

Form Follows Function

The DeziMator is designed with both esthetics and functionalities in mind. The purposefully designed geometric of an arch-like base formed

between the wrist-rest and the trapezoid rear base, creating a rock-solid, yet balanced chassis. Such setup tilts the keyboard at a 9 degree

angle and 13 degrees when the keyboard legs are propped. Together with the cushioned wrist-rest, allowing the wrists to be lay flat without

any upward-bending to provide a stress-free posture.

Superior Gaming Support

Anti-slip composite cloth wrapped wrist cushion providing superior support and comfort even after long hours of playtime.

Gaming Optimized Toughness

The DeziMator™ is composed of 70% aluminum for enhanced sturdiness and durability.

Full Mechanical Key Architecture

The DeziMator™ is equipped with full Cherry® mechanical key switches and gamers are given the options of choosing different Cherry® MX

color switches to suit individual actuation preference.

Individually Backlit “Warzone” & Macro Keys

The DeziMator™ “Warzone” keys are defined as the color-matched WASD, QERF and numeric 1~6.

In addition, 5 fully programmable macro keys are all backlit for superior visibility under low light conditions.

10 Customizable Gaming Profiles

Customize each of the 10 profiles to suit your different gaming needs.

System Requirements

．PC with USB port

．Earphone-out

．Microphone-in

．Internet connection for driver and software download

．Windows® 8 / Windows® 7 / Windows Vista® / Windows® XP

Package Content

．DeziMator keyboard x 1

．Cloth dust cover x 1

．Quick start guide x 1

．Accessory pack: 14 additional EG orange key caps and 1 key cap tool

Specifications

．Product name: DeziMator™

．Full-mechanical key switches

．Extreme anti-ghosting

．N-key rollover (NKRO): 20 Keys

．5 programmable macro keys with backlit: M1~M5

．10 color-matched “Warzone” keys with backlit: WASD + Numeric 1-6

．Backlit & lighting options:

- FPS-focused mode: WASD + 6 numeric hot keys illumination

- RTS-focused mode: Macro keys illumination

- Full illumination mode: Warzone + Macro keys, 15 keys

illumination

- Twilight mode: Underbody lighting on only

- Blackout mode: All backlights + underbody LED lighting off

．1000Hz extreme-polling, adjustable 125/250/500/1000Hz

．Gaming mode option for deactivation of the Windows key

．10 customizable profiles

．Multi-media controls

．Soft wrist-rest cushion wrapped in anti-slip composite cloth

．Gaming-grade braided cable

．Earphone-out & microphone-in jacks

．2 USB full speed port

．Connection type: USB

．Dimension: 524.5mm x 240mm x 57mm

．Weight: 1.9 kg

．Limited warranty: 2 years

www.epicgear.com / P3

Knowing DeziMator

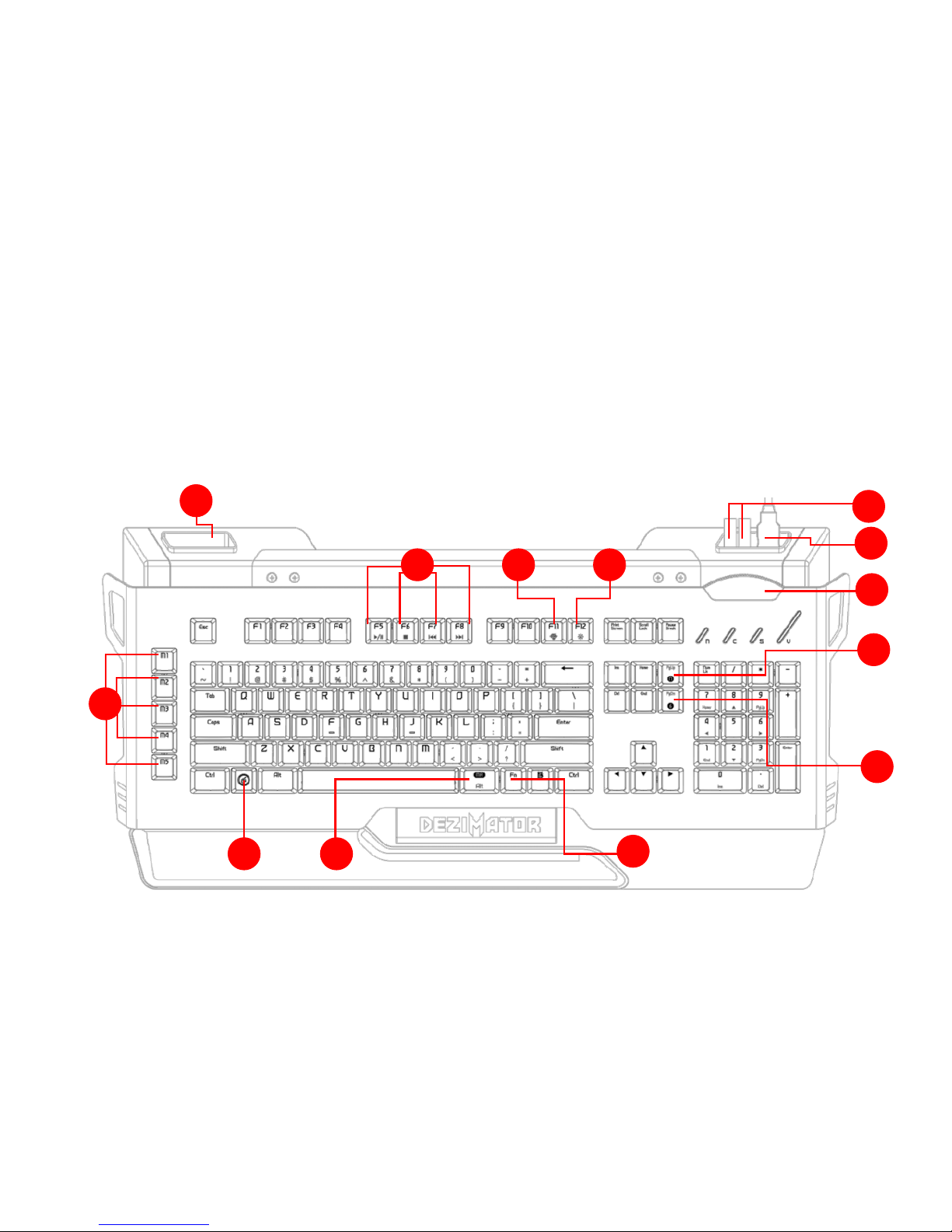

A. 5 additional macro keys, M1~M5

B. EG/Windows lock indicator key

C. On-the-fly macro recording key

D. Function key

E. Multimedia control keys, F5~F8

F. “WZ”lighting zone selection key, F11

G. Lighting brightness selection key, F12

H. Volume control wheel, turn wheel to

the right for volume up, left for down,

double-left to mute and push again to

un-mute

I. N-key rollover key

J. 6-key rollover key

K. Earphone-out & microphone-in

L. USB hub 1

M. USB hub 2

www.epicgear.com / P4

N. Main USB connector for keyboard

O. Earphone-out

P. Microphone-in

Q. USB connector for USB hubs

Installation

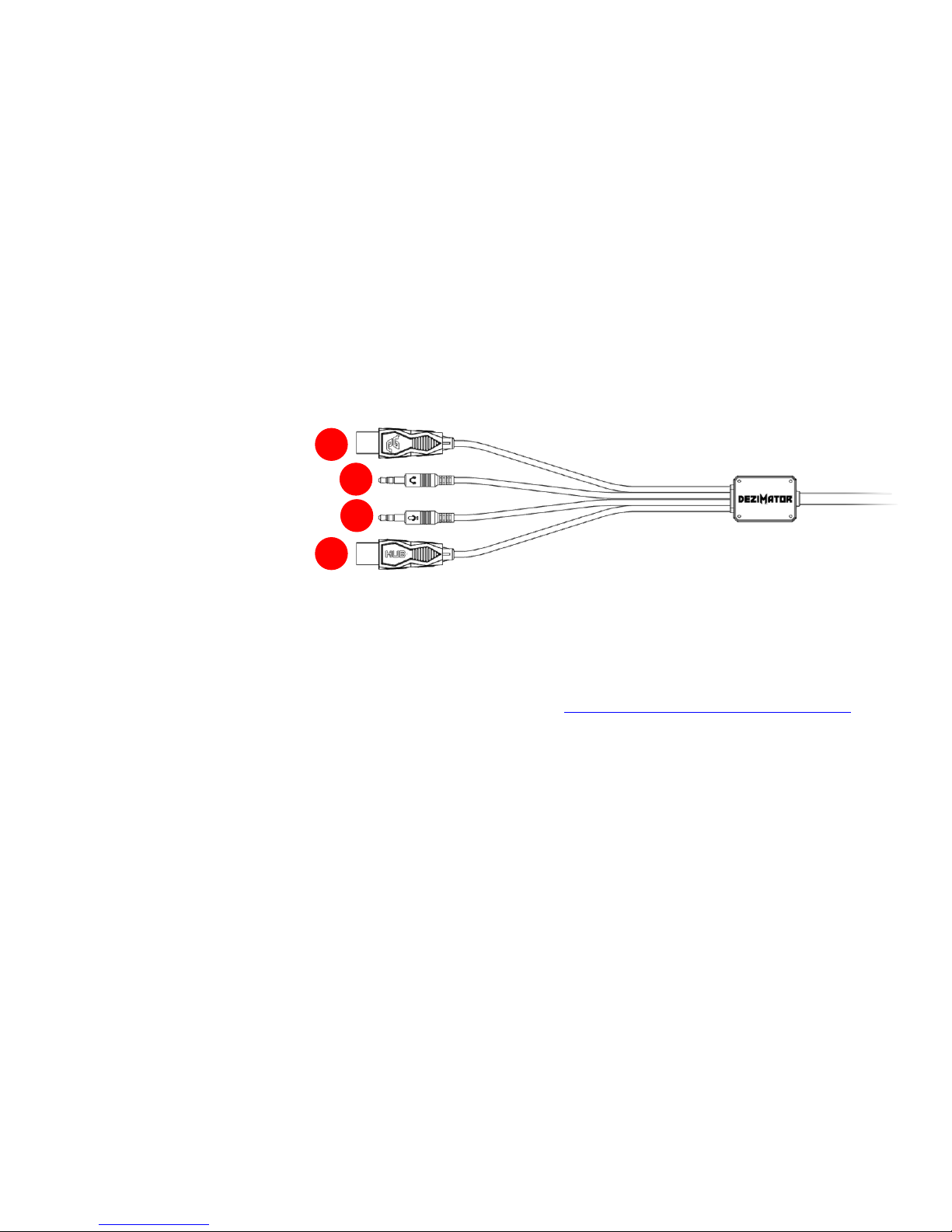

．Step 1 –Plug DeziMator USB and audio connectors, N~Q as indicated above, to the corresponding ports on your computer

．Step 2 –Download the latest DeziMator GUI software & driver at the following link: www.epicgear.com/en/support/keyboard:dezimator

．Step 3 –Run install procedure and follow on-screen instruction to complete GUI & driver installation

Note: You should also download and install the DeziMator firmware if the current version on your DeziMator is not up-to-date. Current

software and firmware version can be determined on the “Support”page of the DeziMator GUI.

www.epicgear.com / P5

Using The “Fn”Key And Related Functions

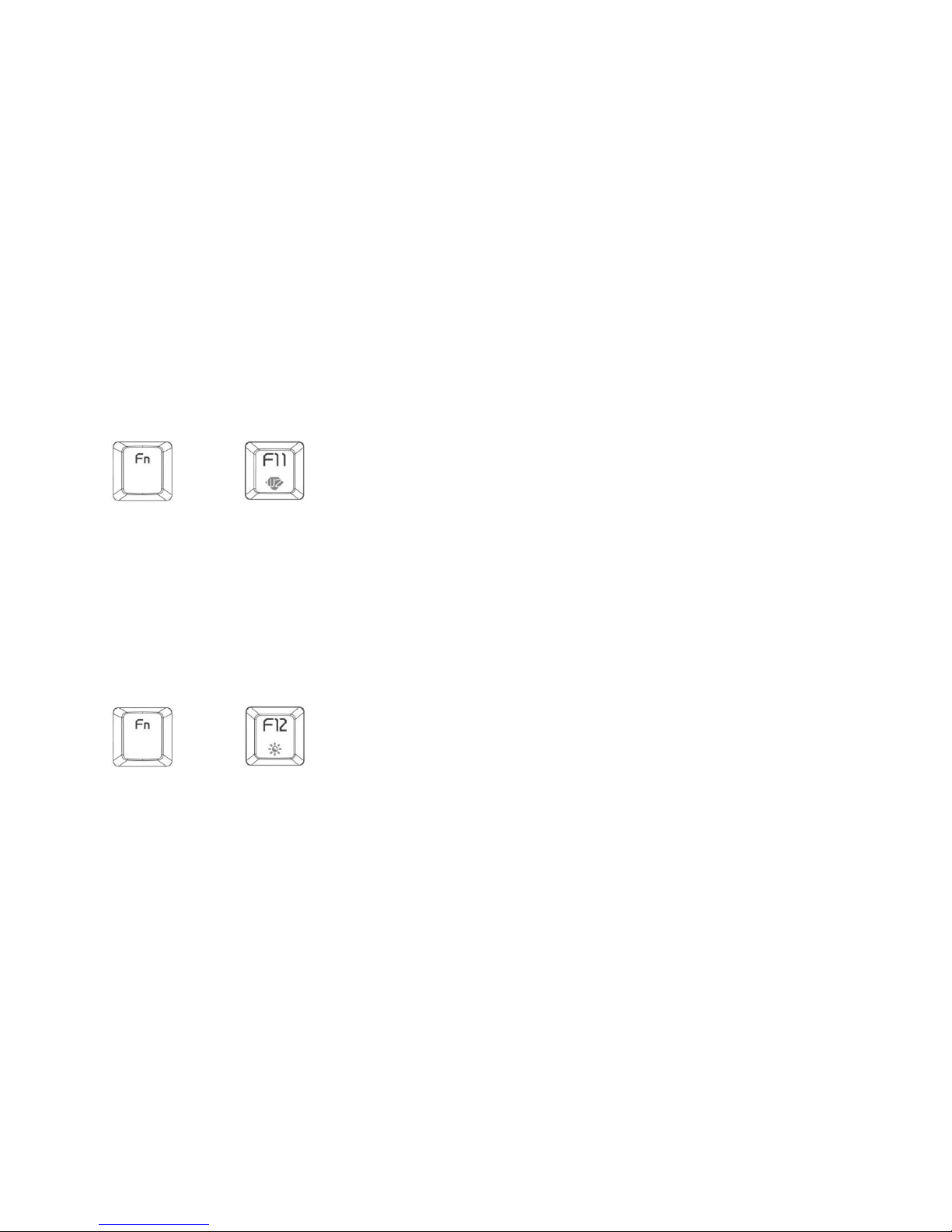

1. Backlit Mode Change

Press the “Fn”and “F11/WZ”key to change the backlit options from mode 1 to 5. Each of the 5 modes can be individually defined in the

DeziMator GUI. The default 5 backlit modes are defined as follow:

Mode 1) Full illumination –WASD + Numeric 1~6 + Marco 1~5 + Underbody lighting

Mode 2) FPS illumination –WASD + Numeric 1~6 illumination + Underbody lighting

Mode 3) RTS illumination –Macro 1~5 illumination + Underbody lighting

Mode 4) Twilight illumination –Underbody lighting only

Mode 5) All backlights off

2. Backlit Brightness Adjustment

Press the “Fn”and “F12”key to adjust the brightness of the LED backlit in 4 levels. Each of the 4 levels can be individually defined in the

DeziMator GUI. The 4 levels of brightness are defined as follow:

Level 1) 0%, Level 2) 33%, Level 3) 66% and Level 4) 100%

www.epicgear.com / P6

3. Multimedia Control

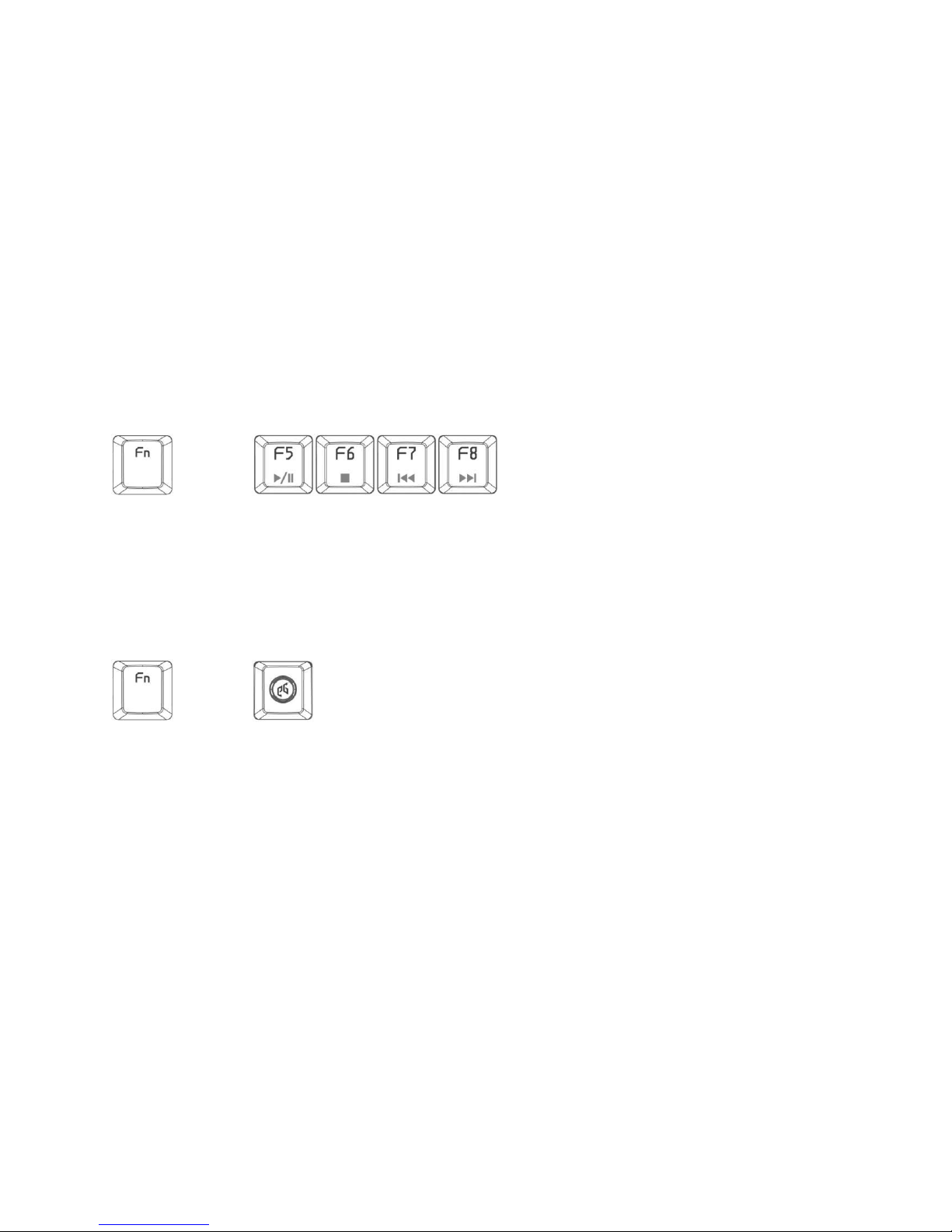

Press the “Fn”and “F5~F8”keys for multimedia control commands defined as follow:

Fn + F5 Play/Pause

Fn + F6 Stop

Fn + F7 Rewind/Back

Fn + F8 Forward/Next

4. EG Game Mode - Deactivation of Windows Key

Press the “Fn”and “EG”key to enter the EG Game Mode where the Windows Key function will be disabled. When in Game Mode the “EG”

key will be lit up.

www.epicgear.com / P7

5. Gaming Profile Selection

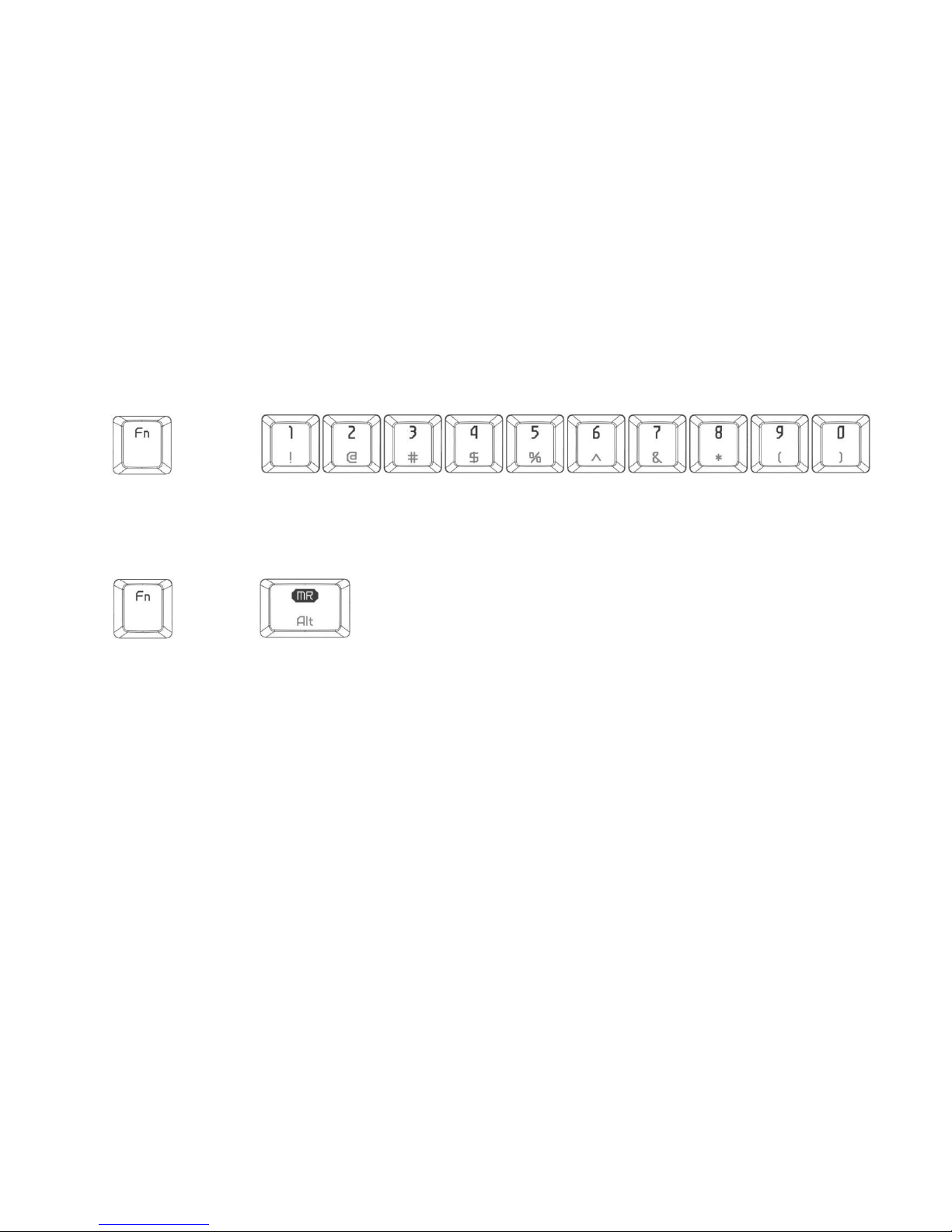

Press the “Fn”and numeric “1~0”keys to select between the 10 user-defined gaming profiles. Each profile can be customized in the

DeziMator GUI.

6. On-the-fly Macro Recording

Press the “Fn”and “MR/Alt”key once to enter macro recording mode, the “MR”key will be lit up. Start to punch the key/keys for the macro

combination and then press the “Fn”and “MR”key again. When the “MR”key starts to flash, click on one of the five dedicated macro keys

you wish to assign the recorded macro to. Press the “Fn”and “MR”key again to complete the recording process, at this point the “MR”key’s

backlight will be off. Recorded macro key can be revised/overridden when perform the recording procedure described above again. You can

always restore the assigned macro key to its original factory setting by using the “Restore Default”function under “Keys Management”page

in the DeziMator GUI software.

*Note: On-the-fly recorded macro can only be assigned to one of the five dedicated macro keys on the far left. When recording and using the

on-the-fly macro, the DeziMator GUI software should stay resident at all time.

www.epicgear.com / P8

7. N-Key Rollover & 6-Key Rollover Mode Change

Press the “Fn”and “PgUp/n”key for NKRO mode of up to 20 keys rollover, which the “PgUp/n”key will be lit up. Press the “Fn”and “PgDn/6”

key for 6-Key rollover mode, which the “PgDn/6”key will lit up. Please note that the factory default mode is set at 6-key rollover and when

switching between modes it will take about 10 seconds for the switching process to complete.

Please Note: You should always leave the DeziMator in 6-Key rollover mode for macro setup and key assignment.

www.epicgear.com / P9

DeziMator GUI Software

The DeziMator GUI software can be downloaded from the Support page on EpicGear’s official website at the following link:

http://www.epicgear.com/en/support/software-downloads

The GUI is divided into four pages, Main Control, Keys Management, Macro Management and Support. In the following section, the features of

each page will be explained.

When an updated version of GUI (or firmware) is released, announcement will be made on EG’s official website and all related social media

networks. EpicGear users are recommended to visit EG’s website and follow EG on Facebook for the latest news and updates.
