Epomaker Aura75 Manuale utente

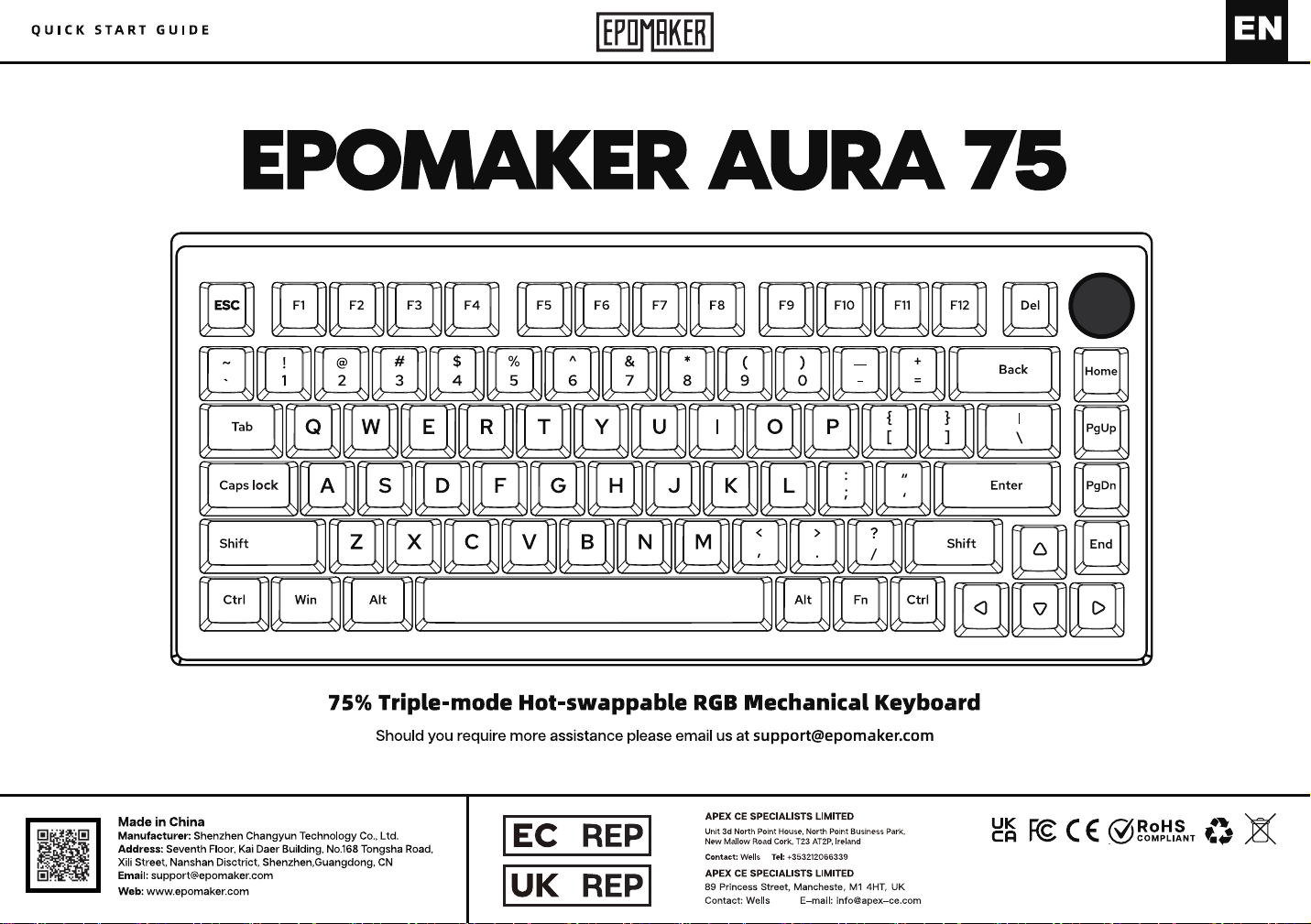

QUICK START GUIDE RKER

EPOMAKER AURA 75

JgJgJgJg

2 3 4 5 6 7 8 9 Home

oj,äj

Shift

Enter

Shift

75% Triple-mode Hot-swappable RGB Mechanical Keyboard

Should you require more assistance please email us at [email protected]

PgDn

End

•@

Made in China

Manufacturer: Shenzhen Changyun Technology co., Ltd.

Address: Seventh Floor, Kai Daer Building, No.168 Tongsha Road,

Xili Street, Nanshan Disctrict, Shenzhen,Guangdong, CN

Email: [email protected]

Web: www.epomaker.com

EC REP

REP

APEX CE SPECIALISTS LIMITED

unit 3d North point House, North point Business park,

New Mallow Road Cork, T23 AT2P, Ireland

contact: wells Tel: +353212066339

APEX CE SPECIALISTS LIMITED

89 Princess Street, Mancheste, MI 4HT, UK

Contact: Wells E—mail: info@apex—ce.com

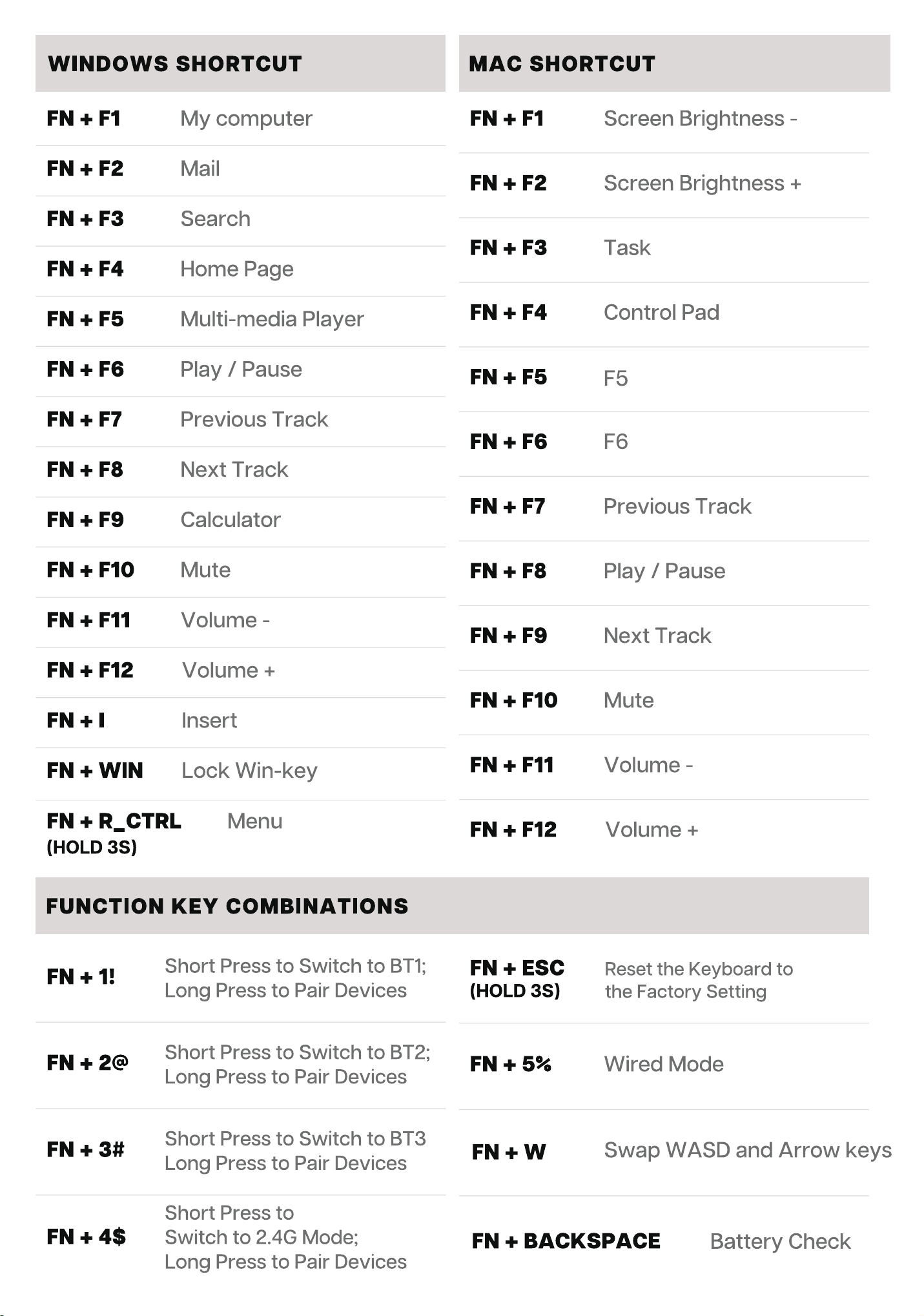

WINDOWS SHORTCUT MAC SHORTCUT

FN + Fl

FN + FIO

FN + Fli

FN + F12

FN + WIN

FN + R_CTRL

(HOLD 3S)

My computer

Mail

Home Page

Multi-media Player

Play / Pause

Previous Track

Next Track

Calculator

Mute

Volume -

Volume +

Insert

Lock Win-key

FN + Fl

FN + FIO

FN + Fli

FN + F12

FN + ESC

(HOLD 3S)

FUNCTION KEY COMBINATIONS

Short Press to Switch to BTI;

Long Press to Pair Devices

Short Press to Switch to BT2;

Long Press to Pair Devices

Short Press to Switch to BT3

Long Press to Pair Devices

Short Press to

Switch to 2.4G Mode;

Long Press to Pair Devices

Screen Brightness -

Screen Brightness +

Task

Control Pad

Previous Track

Play / Pause

Next Track

Mute

Volume -

Volume +

Reset the Keyboard to

the Factory Setting

Wired Mode

Swap WASD and Arrow keys

FN + BACKSPACE Battery Check

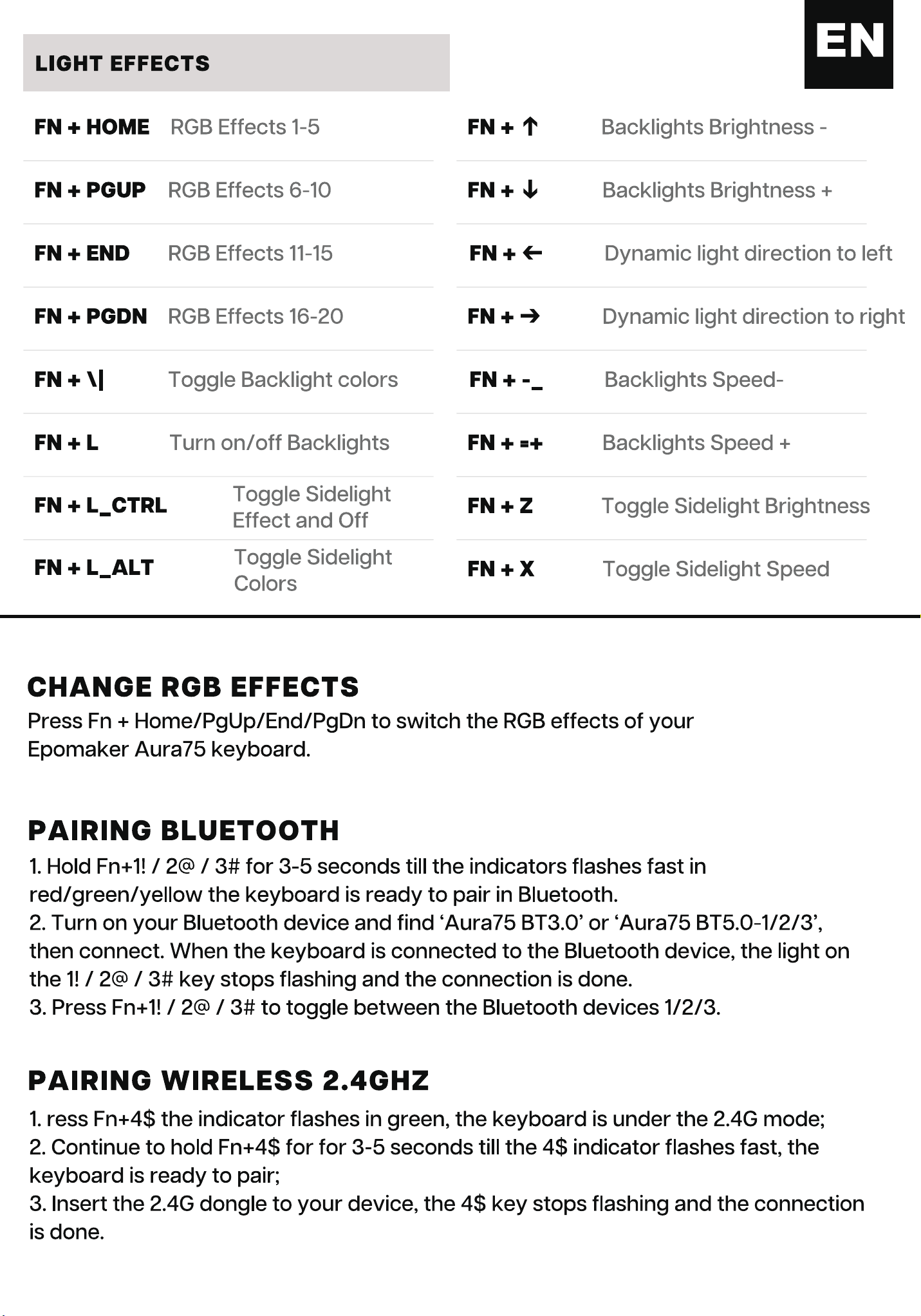

LIGHT EFFECTS

FN + HOME

FN + PGUP

FN + END

FN + PGDN

FN + L_CTRL

FN + L_ALT

RGB Effects 1-5

RGB Effects 6-10

RGB Effects 11-15

RGB Effects 16-20

Toggle Backlight colors

Turn on/off Backlights

Toggle Sidelight

Effect and Off

Toggle Sidelight

Colors

FN +

Backlights Brightness -

Backlights Brightness +

Dynamic light direction to left

Dynamic light direction to right

Backlights Speed-

Backlights Speed +

Toggle Sidelight Brightness

Toggle Sidelight Speed

CHANGE RGB EFFECTS

Press Fn + Home/PgUp/End/PgDn to switch the RGB effects of your

Epomaker Aura75 keyboard.

PAIRING BLUETOOTH

1. Hold Fn+l! / 2@ / 3# for 3-5 seconds till the indicators flashes fast in

red/green/yellow the keyboard is ready to pair in Bluetooth.

2. Turn on your Bluetooth device and find 'Aura75 BT3.O' or 'Aura75 BT5.O-1/2/3',

then connect. When the keyboard is connected to the Bluetooth device, the light on

the 1!/ 2@ / 3# key stops flashing and the connection is done.

3. Press Fn+l! / 2@ / 3# to toggle between the Bluetooth devices 1/2/3.

PAIRING WIRELESS 2.4GHZ

1. ress Fn+4$ the indicator flashes in green, the keyboard is under the 2.4G mode;

2. Continue to hold Fn+4$ for for 3-5 seconds till the 4$ indicator flashes fast, the

keyboard is ready to pair;

3. Insert the 2.4G dongle to your device, the 4$ key stops flashing and the connection

is done.

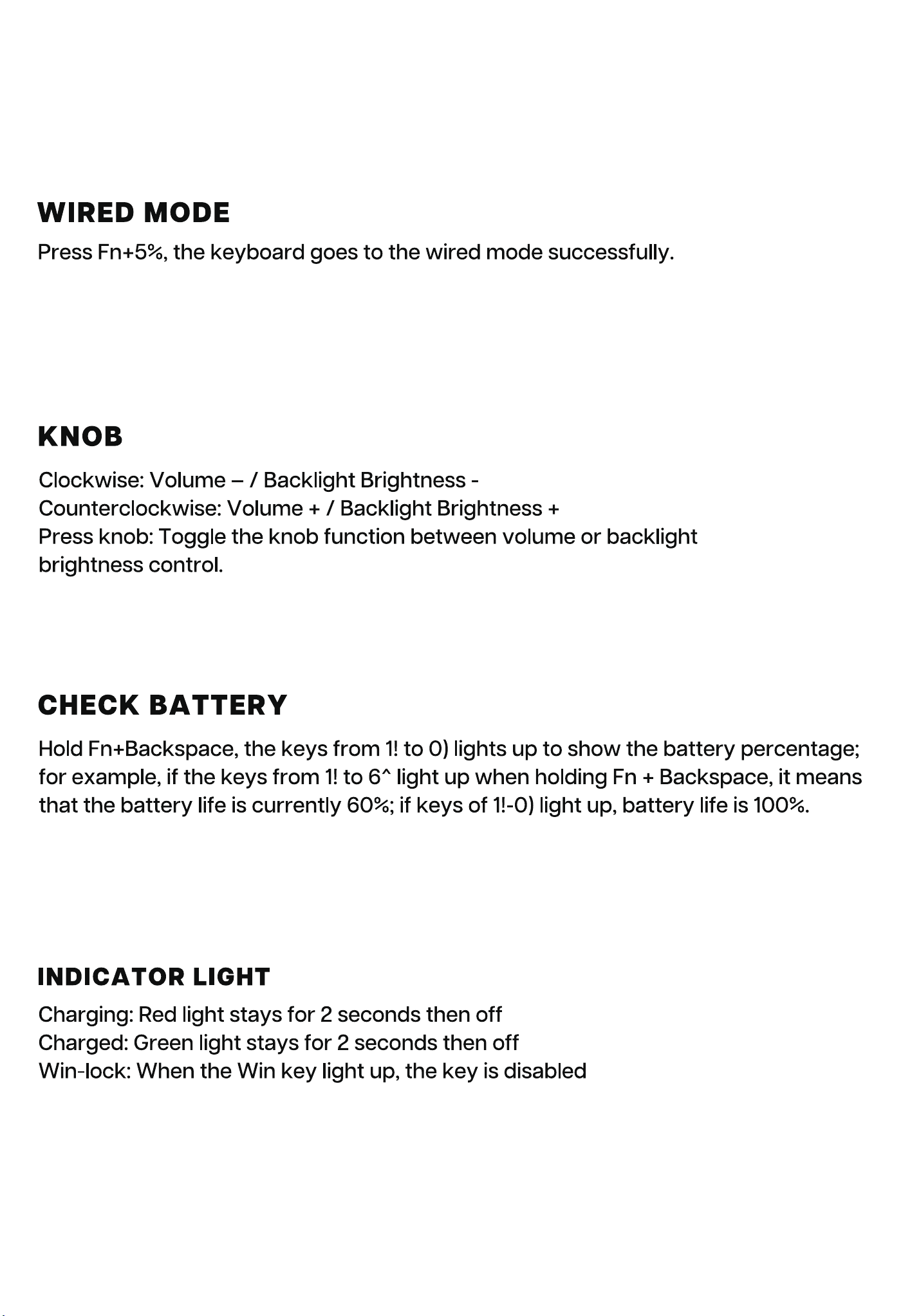

WIRED MODE

Press Fn+5%, the keyboard goes to the wired mode successfully.

KNOB

Clockwise: Volume —/ Backlight Brightness -

Counterclockwise: Volume + / Backlight Brightness +

Press knob: Toggle the knob function between volume or backlight

brightness control.

CHECK BATTERY

Hold Fn+Backspace, the keys from 1!to O) lights up to show the battery percentage;

for example, if the keys from 1!to 6A light up when holding Fn + Backspace, it means

that the battery life is currently 60%; if keys of 1!-0) light up, battery life is 100%.

INDICATOR LIGHT

Charging: Red light stays for 2 seconds then off

Charged: Green light stays for 2 seconds then off

Win-lock: When the Win key light up, the key is disabled

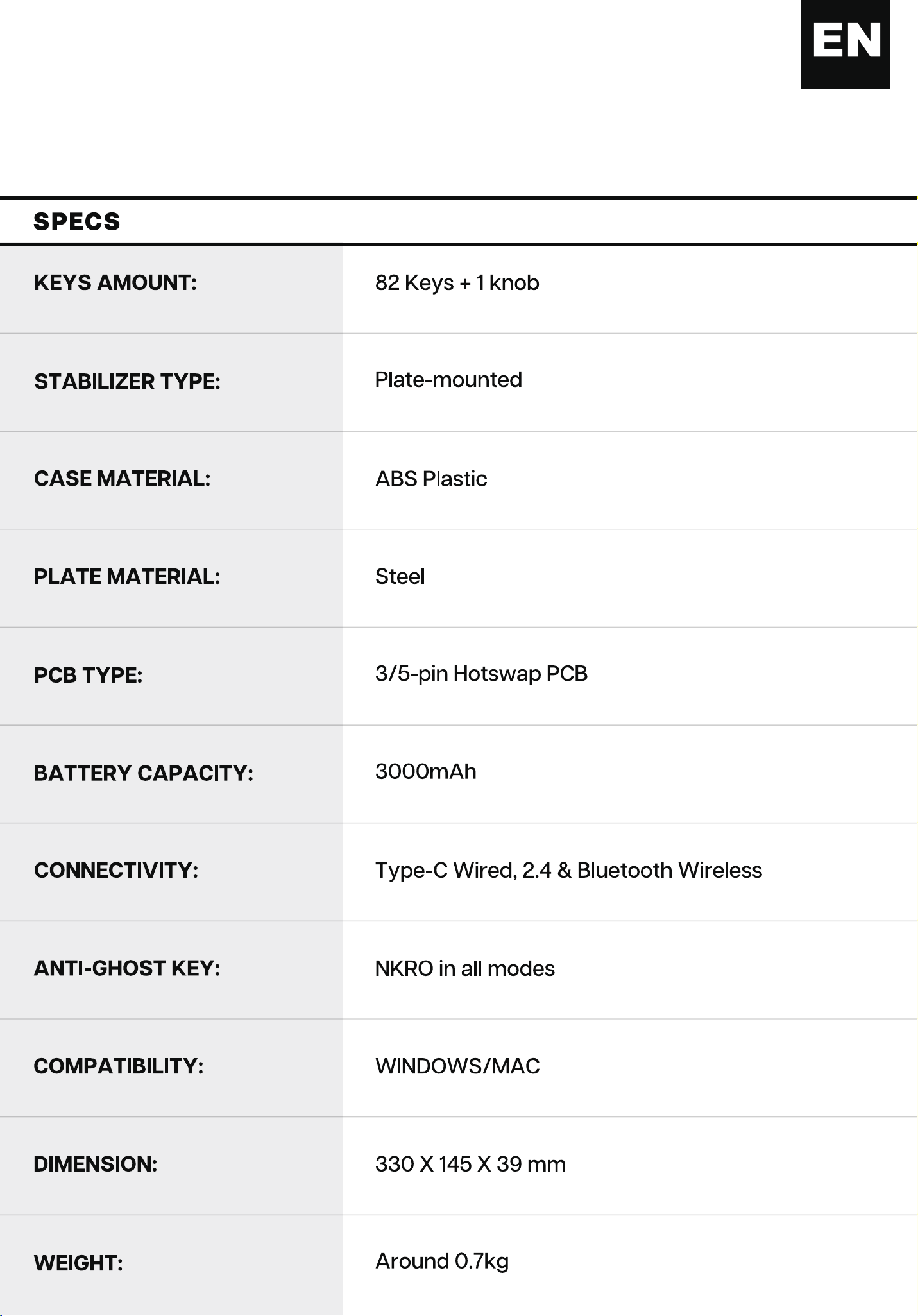

SPECS

KEYS AMOUNT:

STABILIZER TYPE:

CASE MATERIAL:

PLATE MATERIAL:

PCB TYPE:

BATTERY CAPACITY:

CONNECTIVITY:

ANTI-GHOST KEY:

COMPATIBILITY:

DIMENSION:

WEIGHT:

82 Keys + 1 knob

Plate-mounted

ABS Plastic

Steel

3/5-pin Hotswap PCB

3000mAh

Type-C Wired, 2.4 & Bluetooth Wireless

NKRO in all modes

WINDOWS/MAC

330 X 145 X 39 mm

Around 0.7kg

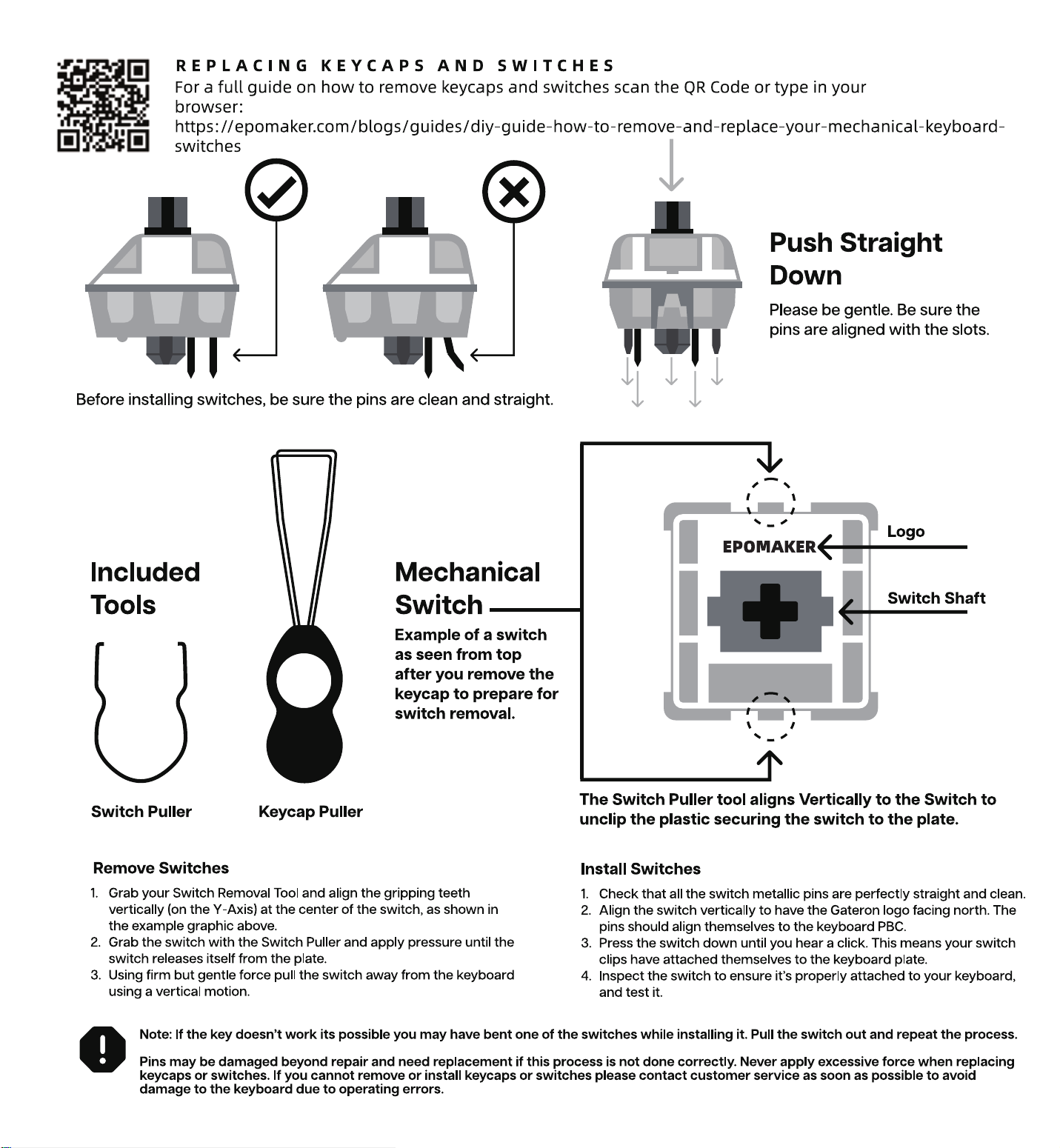

REPLACING KEYCAPS AND SWITCHES

For a full guide on how to remove keycaps and switches scan the QR Code or type in your

browser:

https://epomaker.com/blogs/guides/diy-guide-how-to-remove-and-replace-your-mechanical-keyboard

switches

Please be gentle. Be sure the

pins are aligned with the slots.

Before installing switches, be sure the pins are clean and straight.

EPOMAKER

Included

Tools

Switch Puller

Remove Switches

Mechanical

Switch

Example of a switch

as seen from top

after you remove the

keycap to prepare for

switch removal.

Keycap Puller

Logo

Switch Shaft

The Switch Puller tool aligns Vertically to the Switch to

unclip the plastic securing the switch to the plate.

Install Switches

I. Grab your Switch Removal Tool and align the gripping teeth

vertically (on the Y-Axis) at the center of the switch, as shown in

the example graphic above.

2. Grab the switch with the Switch Puller and apply pressure until the

switch releases itself from the plate.

3. Using firm but gentle force pull the switch away from the keyboard

using a vertical motion.

Check that all the switch metallic pins are perfectly straight and clean.

Align the switch vertically to have the Gateron logo facing north. The

pins should align themselves to the keyboard PBC.

Press the switch down until you hear a click. This means your switch

clips have attached themselves to the keyboard plate.

Inspect the switch to ensure it's properly attached to your keyboard,

and test it.

Note: If the key doesn't work its possible you may have bent one of the switches while installing it. Pull the switch out and repeat the process.

Pins may be damaged beyond repair and need replacement if this process is not done correctly. Never apply excessive force when replacing

keycaps or switches. If you cannot remove or install keycaps or switches please contact customer service as soon as possible to avoid

damage to the keyboard due to operating errors.

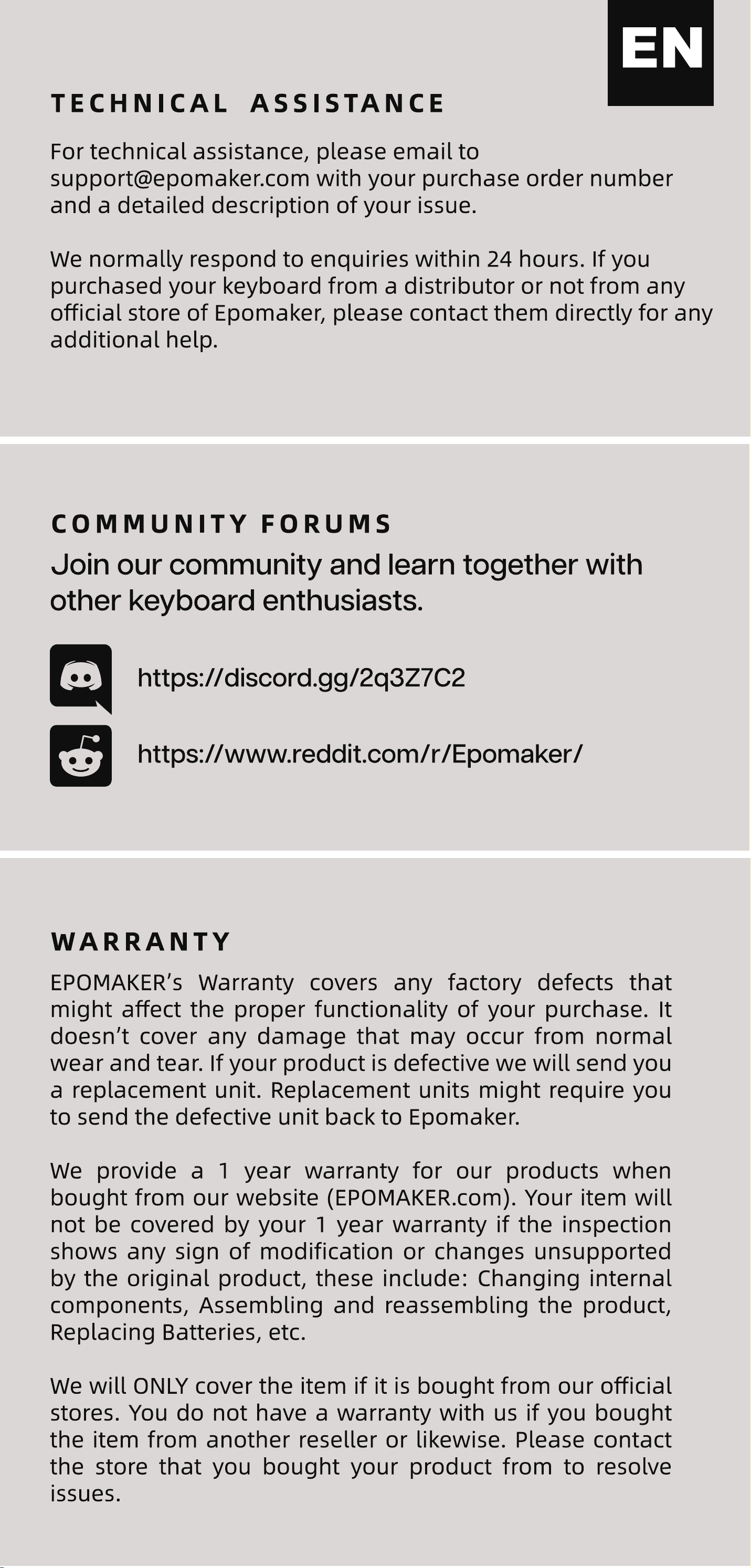

TECHNICAL ASSISTANCE

For technical assistance, please email to

[email protected] with your purchase order number

and a detailed description of your issue.

We normally respond to enquiries within 24 hours. If you

purchased your keyboard from a distributor or not from any

official store of Epomaker, please contact them directly for any

additional help.

COMMUNITY FORUMS

Join our community and learn together with

other keyboard enthusiasts.

https://discord.gg/2q3Z7C2

https://www.reddit.com/r/Epomaker/

WARRANTY

EPOMAKER's Warranty covers any factory defects that

might affect the proper functionality of your purchase. It

doesn't cover any damage that may occur from normal

wear and tear. If your product is defective we will send you

a replacement unit. Replacement units might require you

to send the defective unit back to Epomaker.

We provide a 1 year warranty for our products when

bought from our website (EPOMAKER.com). Your item will

not be covered by your 1 year warranty if the inspection

shows any sign of modification or changes unsupported

by the original product, these include: Changing internal

components, Assembling and reassembling the product,

Replacing Batteries, etc.

We will ONLY cover the item if it is bought from our official

stores. You do not have a warranty with us if you bought

the item from another reseller or likewise. Please contact

the store that you bought your product from to resolve

issues.
