Epomaker TH100 Manuale utente

96% Hot Swappable Triple-Mode Wired/Wireless

Mechanical Gaming Keyboard

TH100

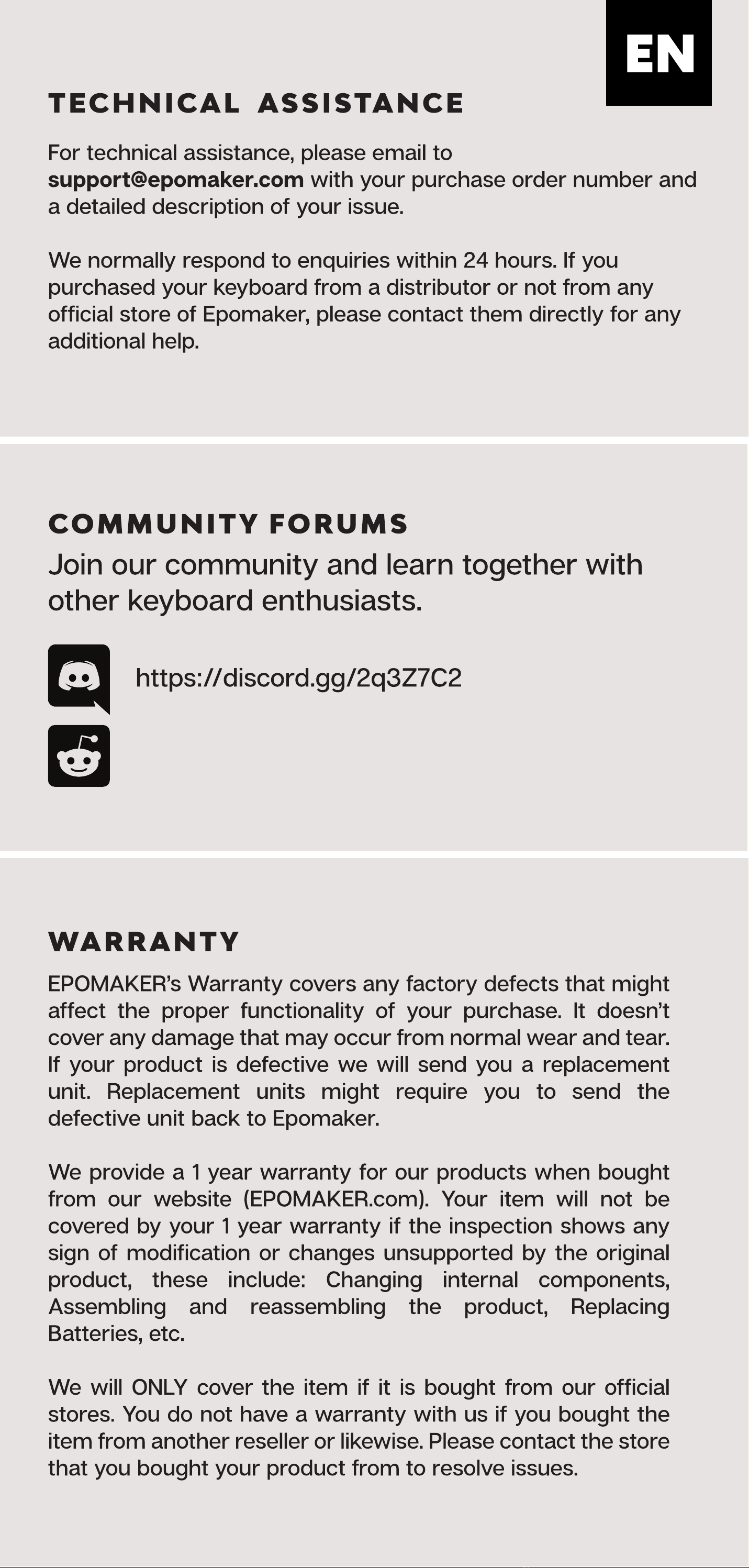

Should you require more assistance please email us at support@epomaker.com

374 x 126.7 x 32.96mm

100

1.67kg

001

PRTSE HOME END

NUM

7 8 9

4 5 6

1 2

PGUP PGDNDEL

89 PRINCESS STREET, MANCHESTER, M1 4HT, UK

Contact: Wells E-mail: [email protected]

APEX CE SPECIALISTS LIMITED

UNIT 3D NORTH POINT HOUSE, NORTH POINT BUSINESS PARK,

NEW MALLOW ROAD CORK, T23 AT2P, IRELAND

Contact: Wells Phone: +353212066339 Email: [email protected]

CHANGE RGB EFFECTS

FN+TAB Toggle Win/Mac OS

FN+F1 Multimedia

FN+F2 Volume -

FN+F3 Volume +

FN+F4 Mute

FN+F5 Stop

FN+F6 Previous track

FN+F7 Play/Pause FN+F8 Previous track

FN+F9 Email

FN+F10 Home page

FN+F11 Calculator

FN+F12 Search

Fn+PrtSc Insert

Fn+Home Scroll

Fn+P PAUSE

Fn+[ Turn on/off Backlights

Fn+] Toggle Backlight Effects

Fn+\| Toggle Backlight Colors

Fn+↑Backlight Brightness +

Fn+↓Backlight Brightness -

Fn+←Backlight Speed -

FN+Esc Long press 3s to restore the default

setting

F1 Screen Brightness -

F2 Screen Brightness + Pressing Fn+] to switch the RGB effect of your Epomaker TH100 keyboard.

WIRED MODE

Press Fn+5% till the key light up, the keyboard enters the wired mode.

PAIRING WIRELESS 2.4GHz

1. Press Fn+4$ to the 2.4Ghz mode, and then holding Fn+4$ for for 3-5 seconds till the light flashes

fast, the keyboard is ready to pair.

2. Insert the 2.4G dongle to your device, the 4$ key stops flashing and the connection is done.

PAIRING BLUETOOTH

1. Press Fn+1!/2@/3# to toggle to the Bluetooth mode, and thenhold Fn+1!/2@/3# for 3-5 seconds

till the light flashes fast, the keyboard is ready to pair.

2. Turn on your Bluetooth device and find ‘K100Max 5.0’, then connect. When the keyboard is

connected to the Bluetooth device, the 1!/2@/3# key stops flashing and the connection is done.

3. Press Fn+1!/2@/3# to toggle between the Bluetooth devices 1/2/3.

F3 Control Center

F4 Siri

F9 Next track

F10 Mute

F11 Volume -

F12 Volume +

Fn+DEL Toggle Sidelight Effects

Fn+B Battery Percentage（Wireless mode）

FN+~ Swap L- CTRL & CAPS

Fn+WIN Lock/Unlock Win Key

Fn+1!/2@/3# Bluetooth Device 1/2/3

FN+4$ 2.4Ghz Mode

FN+5% Wired Mode

Fn+→Backlight Speed +

HOT KEY

CHANGE RGB EFFECTS

FN+TAB Toggle Win/Mac OS

FN+F1 Multimedia

FN+F2 Volume -

FN+F3 Volume +

FN+F4 Mute

FN+F5 Stop

FN+F6 Previous track

FN+F7 Play/Pause FN+F8 Previous track

FN+F9 Email

FN+F10 Home page

FN+F11 Calculator

FN+F12 Search

Fn+PrtSc Insert

Fn+Home Scroll

Fn+P PAUSE

Fn+[ Turn on/off Backlights

Fn+] Toggle Backlight Effects

Fn+\| Toggle Backlight Colors

Fn+↑Backlight Brightness +

Fn+↓Backlight Brightness -

Fn+←Backlight Speed -

FN+Esc Long press 3s to restore the default

setting

F1 Screen Brightness -

F2 Screen Brightness + Pressing Fn+] to switch the RGB effect of your Epomaker TH100 keyboard.

WIRED MODE

Press Fn+5% till the key light up, the keyboard enters the wired mode.

PAIRING WIRELESS 2.4GHz

1. Press Fn+4$ to the 2.4Ghz mode, and then holding Fn+4$ for for 3-5 seconds till the light flashes

fast, the keyboard is ready to pair.

2. Insert the 2.4G dongle to your device, the 4$ key stops flashing and the connection is done.

PAIRING BLUETOOTH

1. Press Fn+1!/2@/3# to toggle to the Bluetooth mode, and thenhold Fn+1!/2@/3# for 3-5 seconds

till the light flashes fast, the keyboard is ready to pair.

2. Turn on your Bluetooth device and find ‘K100Max 5.0’, then connect. When the keyboard is

connected to the Bluetooth device, the 1!/2@/3# key stops flashing and the connection is done.

3. Press Fn+1!/2@/3# to toggle between the Bluetooth devices 1/2/3.

F3 Control Center

F4 Siri

F9 Next track

F10 Mute

F11 Volume -

F12 Volume +

Fn+DEL Toggle Sidelight Effects

Fn+B Battery Percentage（Wireless mode）

FN+~ Swap L- CTRL & CAPS

Fn+WIN Lock/Unlock Win Key

Fn+1!/2@/3# Bluetooth Device 1/2/3

FN+4$ 2.4Ghz Mode

FN+5% Wired Mode

Fn+→Backlight Speed +

HOT KEY
