InstructionforEPSONCX7300

Youarewelcomedtouse continueInkSupplySystemwhichwill greatlyreduce yourcost.And

itistheidealproductssuitingforColorInkjetPrinter.PlsPlease lookovertheinstruction

carefullybeforeusingit, whichwill makeyouuse thissystemeasily, safelyandstably.

1. GeneralGuide

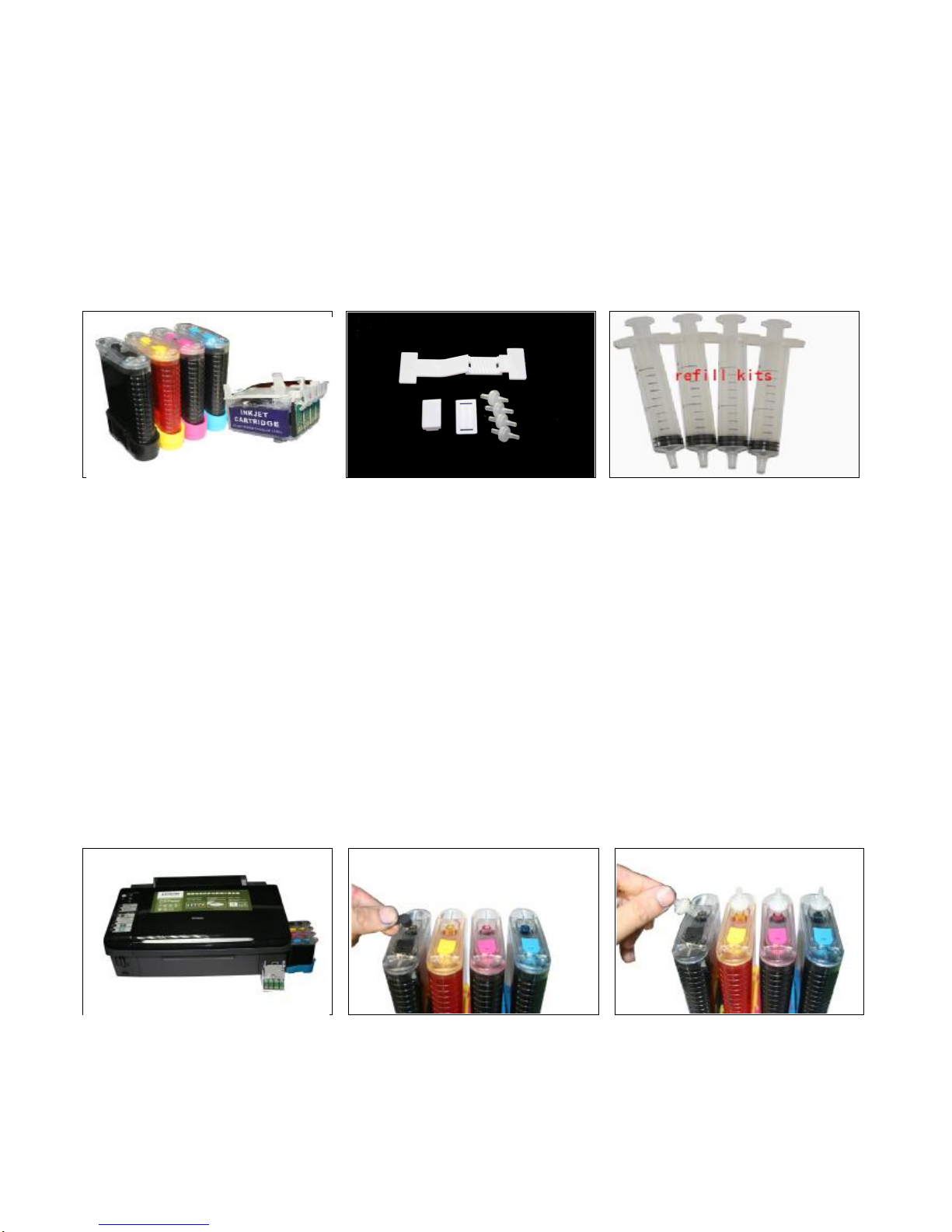

1Components

aCISSystem1setb AirFilters6pcs c SupportArm1set

dStandbyRefill Kit6pcse Instruction CD1pc

2Openingboxinspection

aCheck whetherall the accessoriesarereadybeforeinstalling.

bCheck whetherthere'sthe leakageofthe CISS,whethersometubeshavebeen separatedfromthe CISS

2. PrinterTesting

1)Check whetherthe printerisinnormalcondition, likemechanicalstatus, lubrication statusetc.

2)Print testinglinestoensuretheprintinghead isgood condition.

3)Print picturestosee whethertheprintingimageisgood ornot..

PleaseusethisCISSystemeasily,itwill notreduceorraisethe accurateness ofthe printer.Ifthe testingresultis

abnormal, pleaseconsult the localdealerforthisproducts.

3. InstallationProcedures

Step1:Preparation

PuttheCISSontherightsideof theprinter.PulloutthesmallrubberplugfromthePlace6pcs ofairfiltersinto airholes,

and placeallthetubesatcorrectposition.airholeaspictureshownabove.

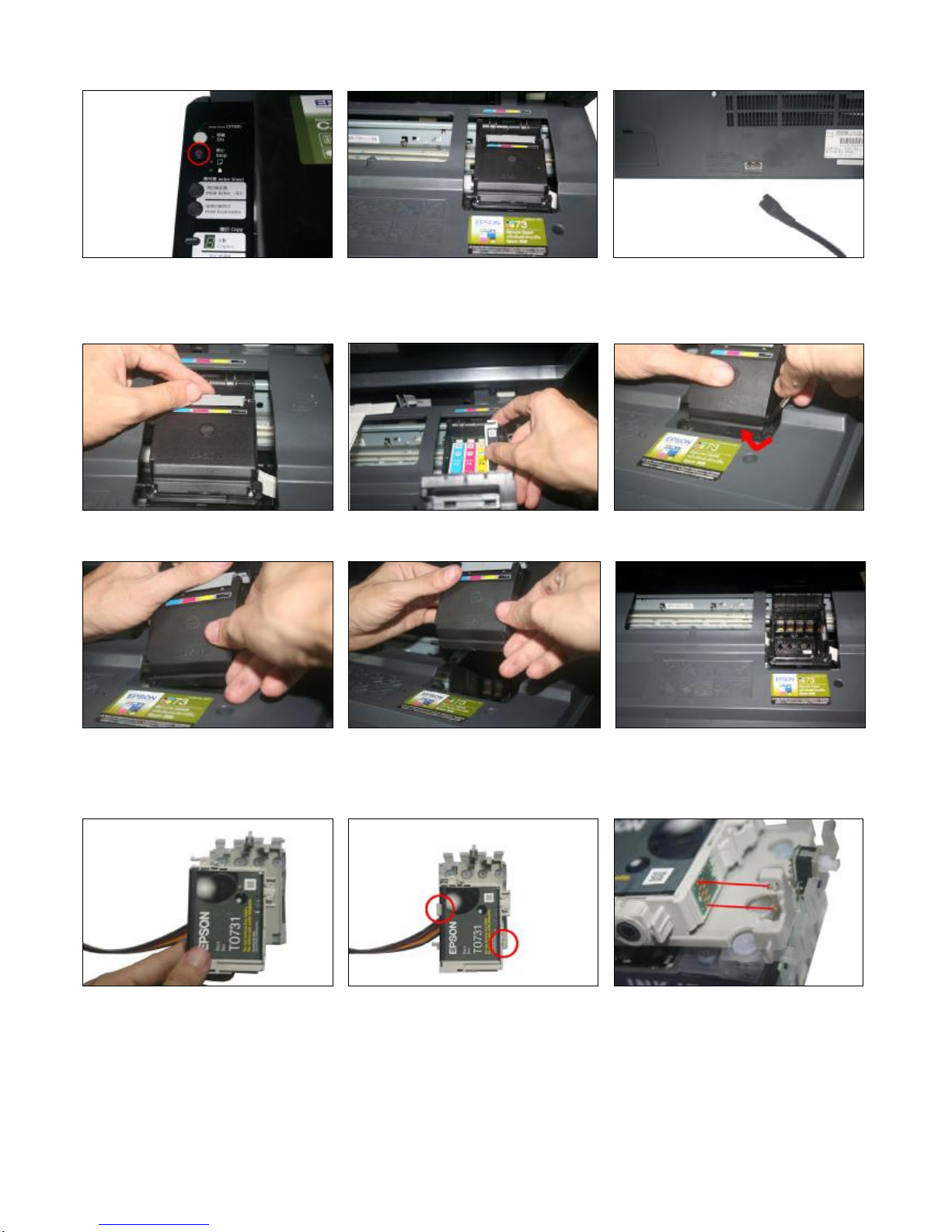

Step2:Take outtheoriginal cartridges

Press theink-changing button Carriage moveoutPulloutthepowerlineofthe printerand

movethecarriagetotherightside.

Step3:Removethecartridgecover

Openthecartridgecover Takeout theoriginalcartridgesprizethecoverlightlyalong withthegap with

screwdriver

Takeonesidefirst. ThentakeoutthewholecoverCarriageisemptyand getreadyforputtingin

thenewCISS

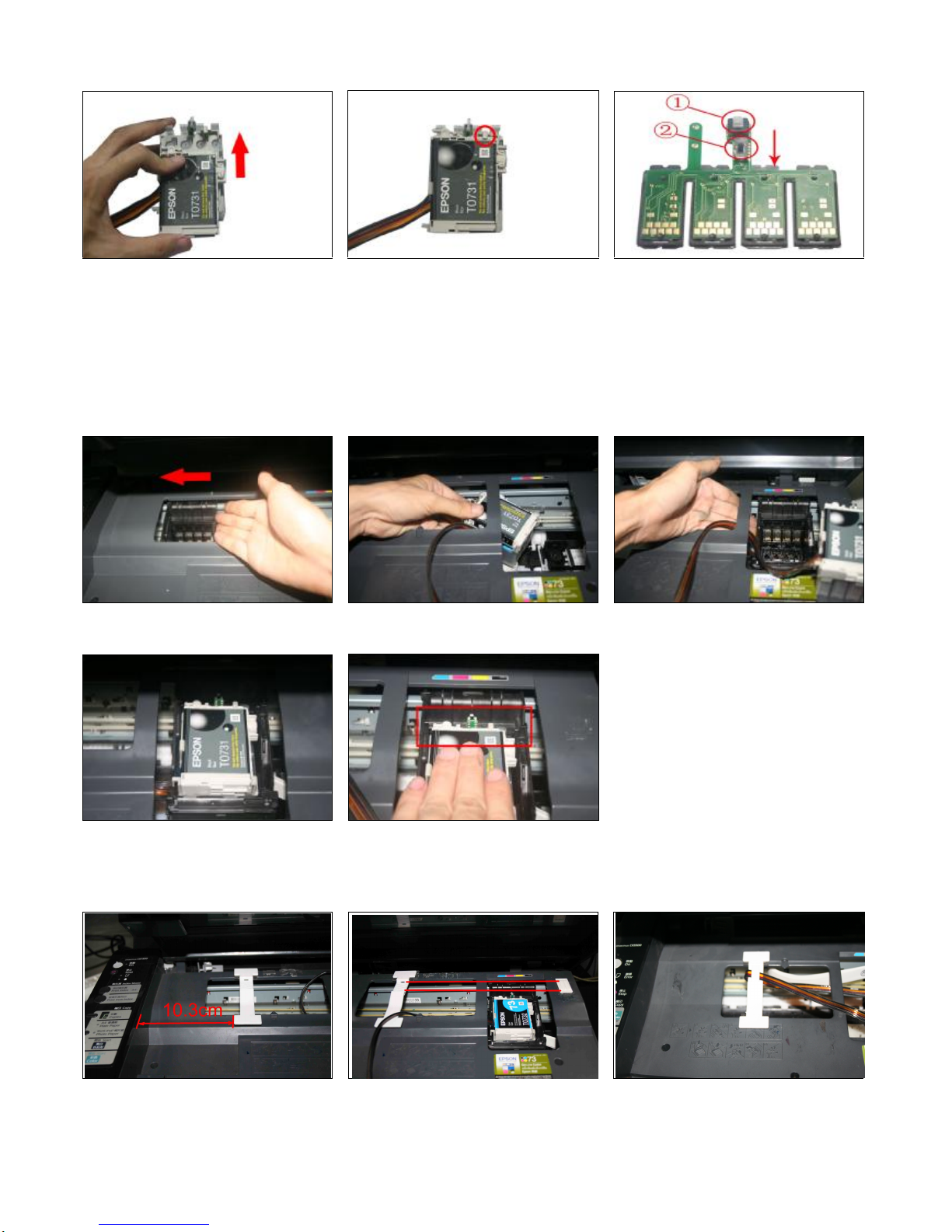

Step4:Install Original Cartridges

PuttheoriginalcartridgeabovetheCISPress thecartridgedownuntilitislockedThetwometalsheetsatthetopand bottom

Cartridges.bythetwoclips.Shouldmatchthetwosprings.

Pushitupsideuntil it islockedbythethirdclipintheredcircle.

Step5:Install CISCatridges

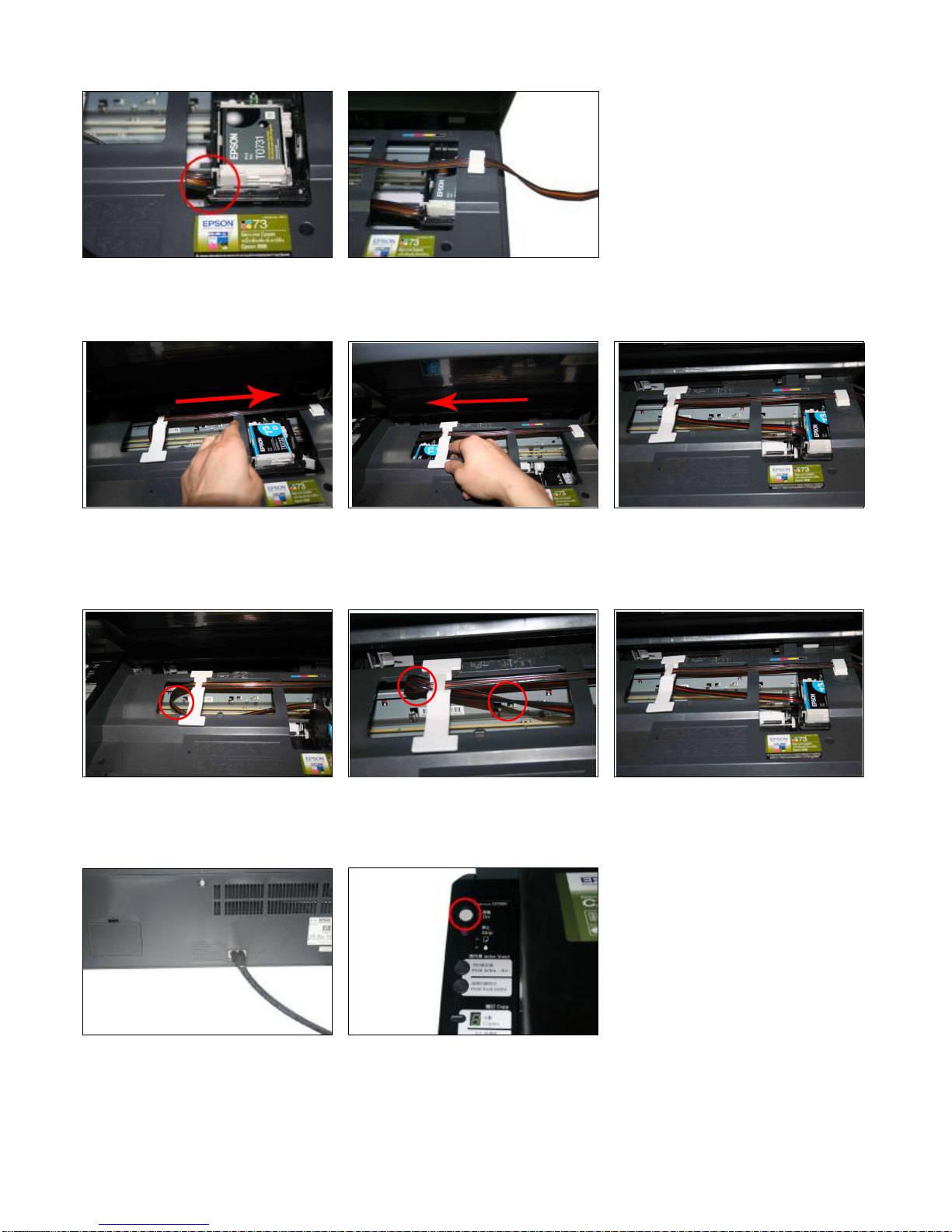

Movethecarriagetotheleft sideMakethecartridgeround theprintercoverasaboveshowMovethecarriagebacktothe

originalposition

PutinthespecialcartridgeofCISS accordingtoAsoundDawillheardwhenthecliplocksthecartridgecompletely

thecolormarkandlockthecartridge.

Step6:FixtheSupportArm andTubeline

Fit thesupport armlikethepictureshownFixthebalancearmonthesupportarm.Fixthetubeonthesupportarmastheabove


reset button. ②switch.

If the switchis turnedto upplace,then CISS

should work with original cartridge.

If the switch is turned to down palce,then CISS

Can work without original cartridge.

TubewentthroughthefluteClipthetubeonthetubing holderbyclaspers.

Step7:AdjustTubeLine

AdjustthetubelengthandmovetheStimulatethemoveofthecartridgecar.Adjustment isfinished.

cartridgecar.Insurethere'splentylengthInsuretherewill no block whenthe

oftubetomakethecartridgecartcan tubesmovingwithcartridgecarand

thoroughlymovetotheleftside.abnormalphenomena fortheprinter.

Too long TwistPerfect

Step8:

Connectthepowercord.Turnonthepowerand check whetherthe

printercanworkwell.

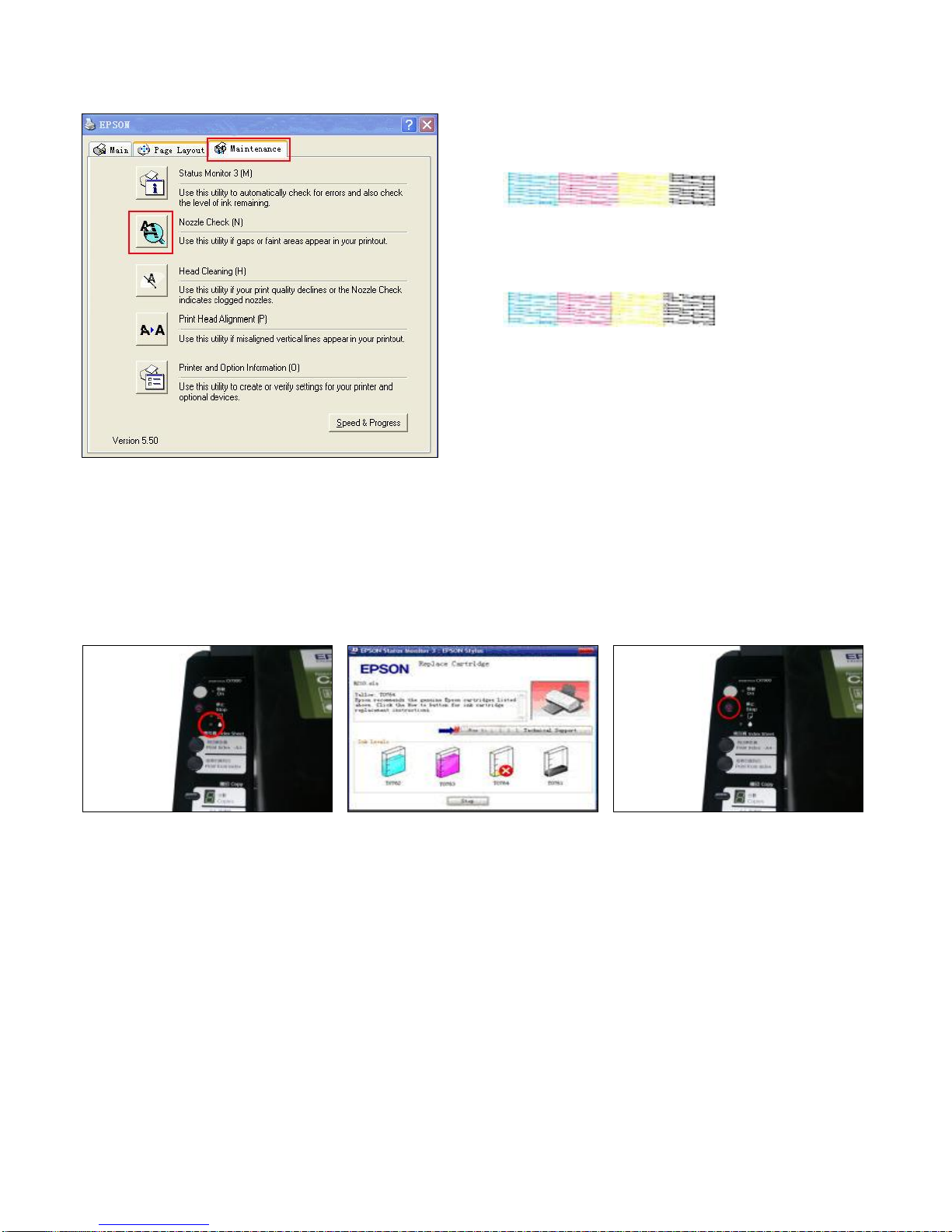

Step9:Check thenozzle

Nozzleisok

Printtest lines. IfitisOK, thenyoucanbeginusing.

BrokenLines

Ifthereisbrokenlines,thenplsclean theprinterhead.

EnterChecking NozzlePanel

Brokenlinesmaybecausedbyairentering thenozzles.Ifthereisstillsomebrokenlinesaftercleaning printerheadrepeatedly,

especiallyforsinglecolor,thenyoucanleavetheprinterforabout1hour.Thenthebrokenlinesmaydisappear.Ifthereisstillsuch

problem,thenplscontactlocaldealer.

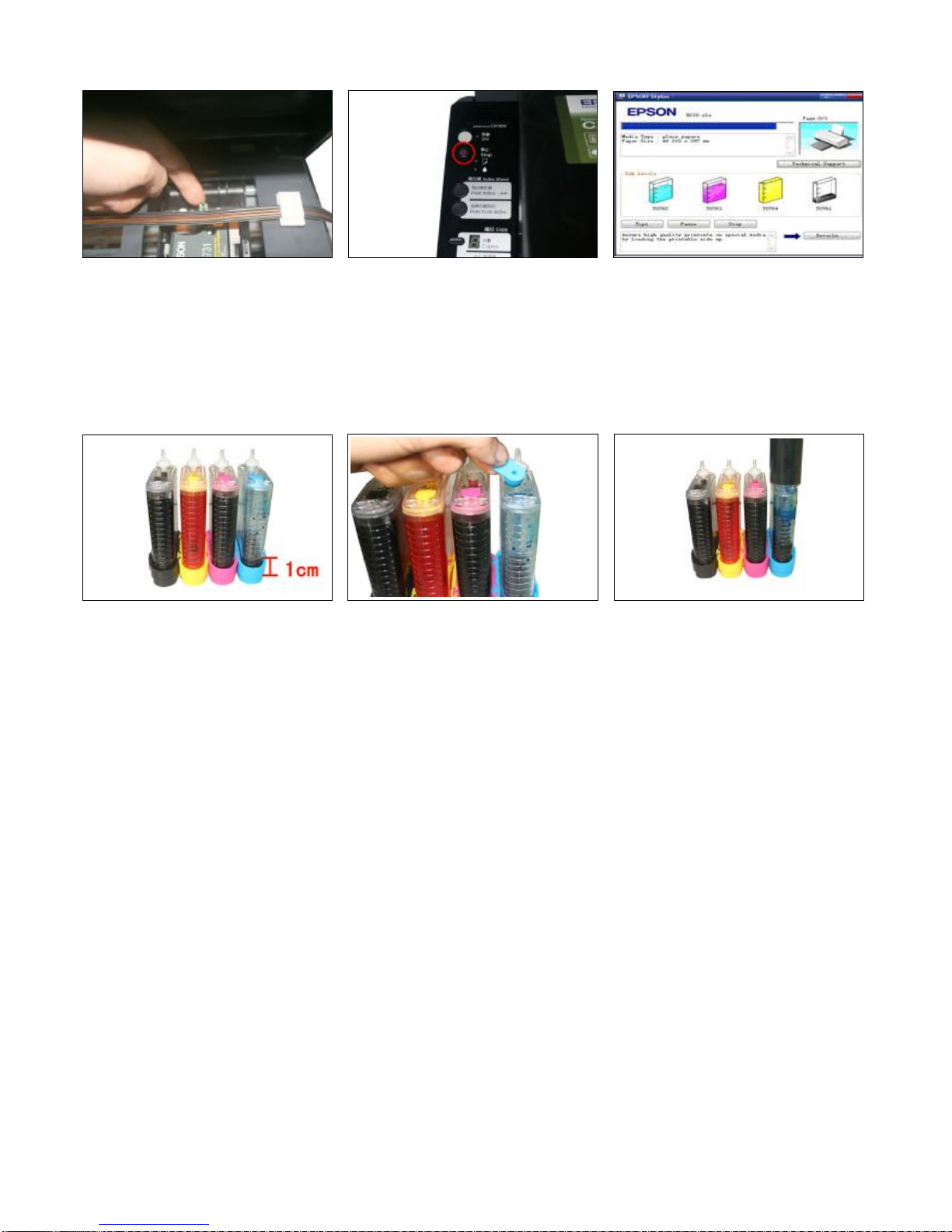

4. ChipReset

If ink-lackinglightoftheprinterisflashing,it isaimed toremand youtochangethecartridges. Pressink-changingbutton twotimes

untilthecarriagestopsatthe

ink-changingplace.

Press theresetbuttonPress theink-changingbutton againPresstheink-changingbuttonagain,then

you willfind thecartridgesarefullofink.

And youcanprintagain.

Anotherresetmethodis:turndowntheprinterforoneminuteand thenturniton.

5. RefillInk

Pleasepayattentiontotheinklevelinthereservoirs;iftheinklevelisbelow1CMasthepictureshownabove, pleaseuserefill kitstofill

inkintoReservoirbottles.Carefullypullout therubberplugsfromtheinkrefillholes(Thereispossibilityof inkspattering.Plsbecareful.)

Refillinkaccordingtothecolors.Thenre-cap therubber.(Pleasekeeptheprinterand thereservoirbottlesat thesamehorizontalline

during theprocess ofrefilling ink.)

6. Attentionfor Maintenance:

Takeoutthe CISS includingthe innercartridgesandothercomponents.Then removesupportarmfromprinter,and

re-install originalcartridges. Pleaseinquirelocaldealerbeforesendingtomaintenance.

7. Notice:

1.Pleasedonttakeoutcartridgeatrandomafterinstallingthe CISsystem.Keepthe reservoirbottlesonthe same

levelwiththe printer.

2. Trytokeepat least1/2inchofinkinthebottles.

3. Don t placetheReservoirBottlestoo muchhigherorlowerthan the printer.

4. Suggested usinginadryplacebetween 15 and 35degree.Avoidexposuretodirect sunlight.

5. Don t reverseorleanthecontinuousinksupplysystemsduringshipping. Pleasemakesureall theinkfillingholes

and ventilation holesareclosedtightlyduringtransportation.Otherwise, the inkmayleak.

6. Don t swaythecartridgefrequently. Itmaycauseinkleakage.

7. Don t pull out the connectorofcartridgeand don ttearoffadhesivetapeat the bottomofcartridge.

8. Warning:

1. Not drinkable; keepit out reachofchildren.

2.Avoidexposuretodirect sunshine and don t keepit inhighorfreezingtemperature.

3.Avoidcollision and fallen down.
