Epson Vi-POSIF-S Installing Manuale utente

Installing the Epson printer interface

Vi-POSIF-S EPSON TM T 88 serial SHEET 1-9

Vi-POSIF-S

Epson TM T88

(serial interface)

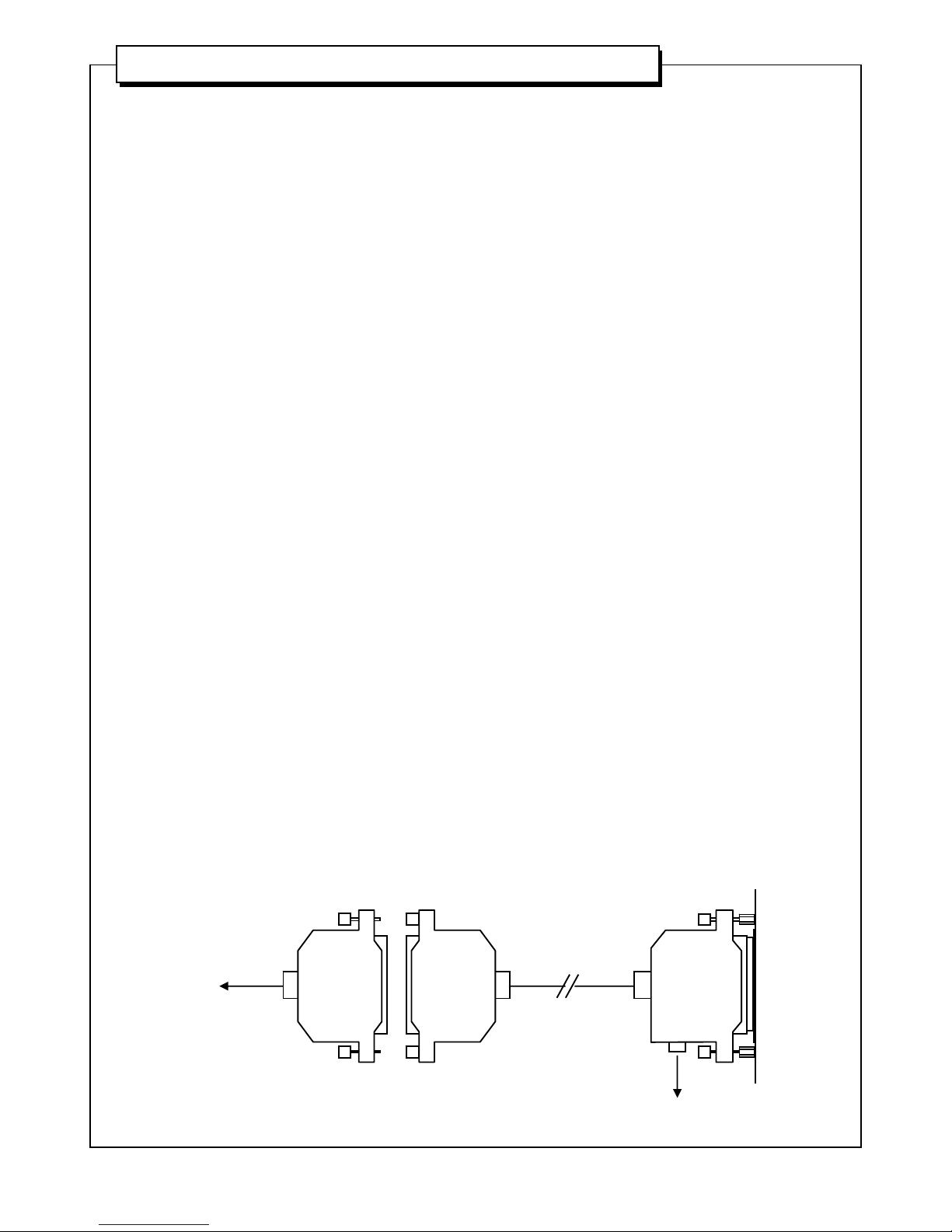

Installing the Epson printer interface

Vi-POSIF-S EPSON TM T 88 serial

Before installing the printer interface, review the site survey and identify the registers that will

be monitored, then refer to the printer interface installation diagram on this page before

following the instructions.

Epson TM T88 serial INTERFACE

Install Kit

Item Part Number Description Quantity

1 IF-0829-063 Epson TM T88 Interface 1

2 500114 Interposer cable 1

or 500227

or 500260

3 580003 Ferrite Sleeve 2

4 IDB-1556-01 INSTALL MANUAL 1

Switch Settings

SHEET 2-9

SW1 settings

software (SW-2393-01) rev D0

Default: switches 1 and 2 OFF

switches 3 and 4 ON

switch(es) state function

1ONraw data

2ONtest mode

34 output baud rate

ON ON 9600, N, 8, 1

ON OFF 4800, N, 8, 1

OFF ON 2400, N, 8, 1

OFF OFF 1200, N, 8, 1

SW2 settings

input baud rate 3 2 1 baud rate

ON ON ON 300

ON ON OFF 600

ON OFF ON 1200

ON OFF OFF 2400

OFF ON ON 4800

OFF ON OFF 9600

OFF OFF ON 19200

OFF OFF OFF 38400

input data bits 5 4 data bits

ON ON 5

ON OFF 6

OFF ON 7

OFF OFF 8

input parity 76 parity

ON ON none

ON OFF even

OFF ON odd

OFF OFF none

switch 8 8function

Xunused

set Vi-POSCON input baud rate to match

Even if a SW2 default is indicated, the printer could be

configured differently than shown. In this case, SW2

settings may need to be determined experimentally.

default settings shown in bold

Installing the Epson printer interface

Vi-POSIF-S EPSON TM T 88 serial SHEET 3-9

power P8

24Vac Pins 1 and 2

12Vdc Pin 3 ground

Pin 4 +12Vdc

check power supply first !

24 VAC or 12 VDC ?

Interface Connection Details

Failure to install the ferrite sleeves on the power and data

cables as shown, will compromise the EMC performance

of this unit, relevant to the EMC directive 89/336/EEC. ferrite

cable gland on

rear of interface

interface

route data / power cables through their respective

ferrites and loop through once again.

*IMPORTANT: cable must be looped through ferrite sleeve.

ferrite

sleeve

ferrite

sleeve

‘DATA INPUT’

data out P4

Pin 2 ground black

Pin 3 TX data red

data out from P4 should be terminated

with a DB9 as shown below;

Vi-POSCON

DB 9 (F)

DATA IN

Pin 2 Rx Data Red

Pin 5 Ground Black

Installing the Epson printer interface

Vi-POSIF-S EPSON TM T 88 serial SHEET 4-9

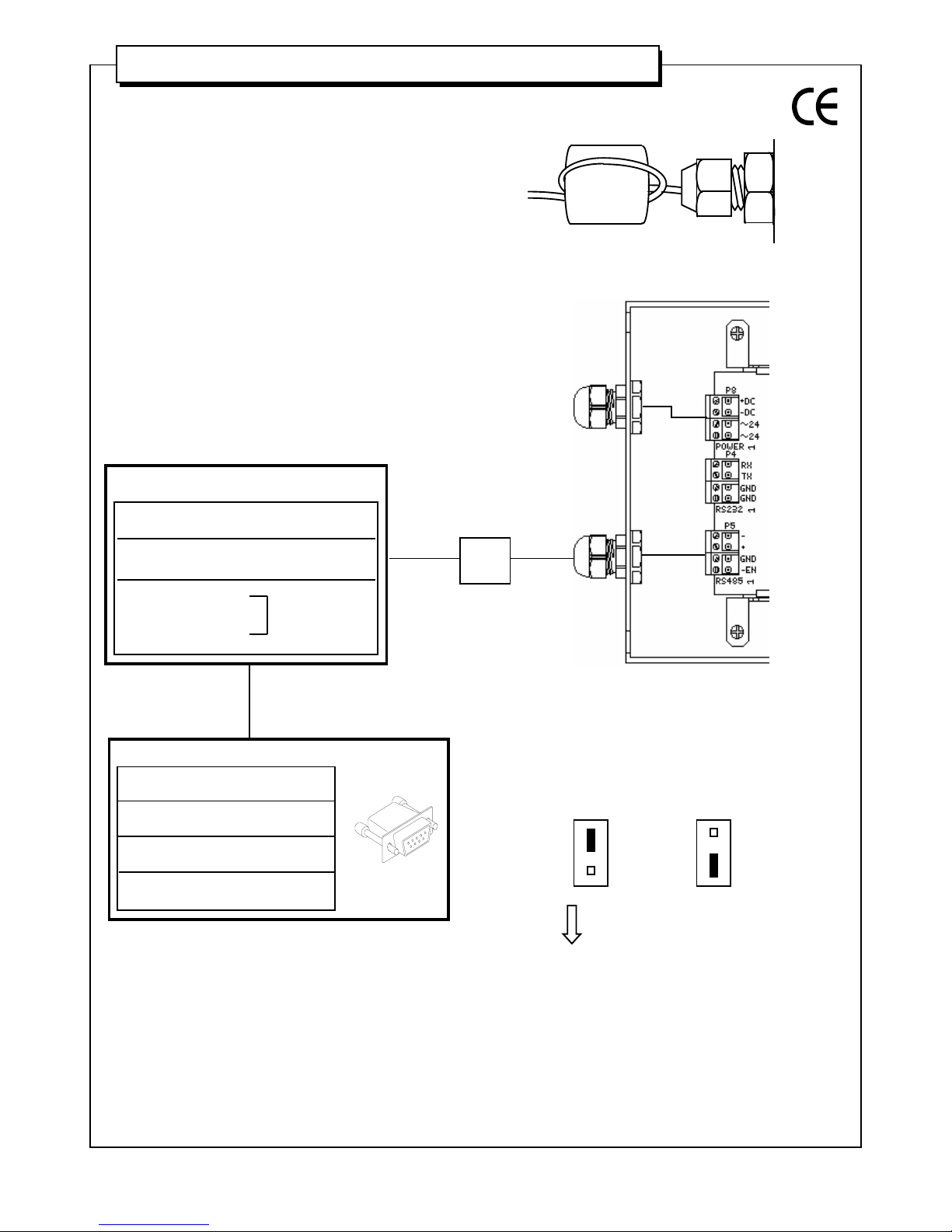

Interface Connection Details – RS485

Failure to install the ferrite sleeves on the power and data

cables as shown, will compromise the EMC performance

of this unit, relevant to the EMC directive 89/336/EEC.

RS485 data out P5

Pin 4 - Black

Pin 3 + Red

Pin 2 ground White

Pin 1 -EN

LINK

ferrite

sleeve

ferrite

cable gland on

rear of interface

interface

route data cable through the respective ferrite and loop

through once again.

*IMPORTANT: cable must be looped through ferrite sleeve.

data out from P5 should be terminated with a

DB9 (Vi-POSCON)

Vi-POSCON

DB 9 (F)

DATA IN

Pin 4 RX+ Red

Pin 9 RX- Black

Pin 5 ground White

N.B. towards front of Vi-POSCON unit.

On Vi-POSCON pcb, enable the relevant RS485 input by moving

the corresponding jumper (P9 - P12) per input channel (1-4)

i.e. from ; to ;

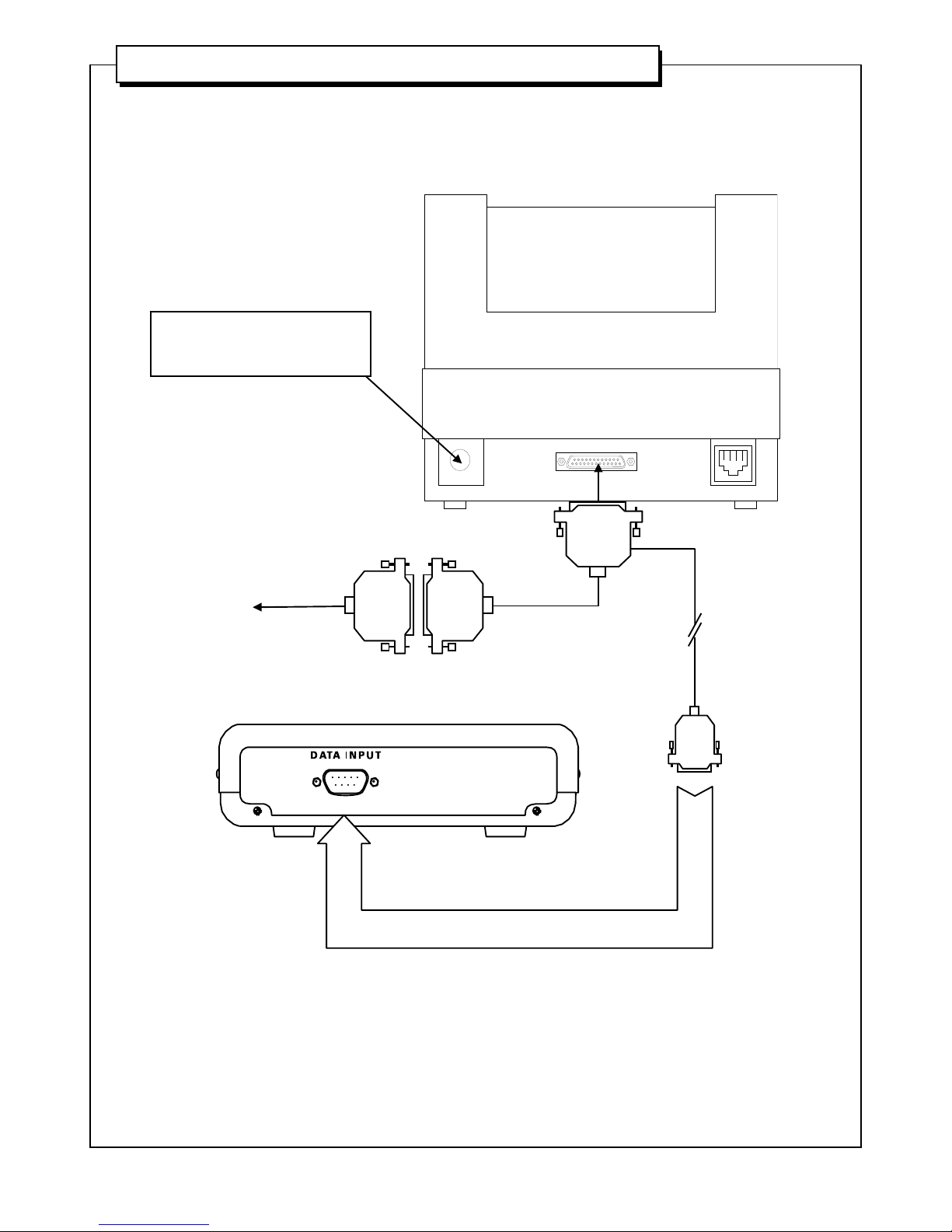

Installing the Epson printer interface

Vi-POSIF-S EPSON TM T 88 serial SHEET 5-9

Epson TM T88

(rear view)

Interface Connection Details

(printer end)

cable from interposer

original cable

from processor

ensure that the power cord is

connected and seated correctly

before the printer is repowered !

All logos and names used within this document are properties of their respective companies and are used

here for identification purposes. The afore-mentioned items may also be copyright, trademarks or

registered trademarks of their respective companies and no infringement of those rights is intended.

Cable : 500114

(supplied)

Installing the Epson printer interface

Vi-POSIF-S EPSON TM T 88 serial

cable from interposer

original cable

from CPU to printer

Epson TM T88

(rear view)

Interface Connection Details

(printer end)

SHEET 6-9

All logos and names used within this document are properties of their respective companies and are used

here for identification purposes. The afore-mentioned items may also be copyright, trademarks or

registered trademarks of their respective companies and no infringement of those rights is intended.

Cable : 500227

(supplied)

Installing the Epson printer interface

Vi-POSIF-S EPSON TM T 88 serial

1. Check advice note.

Check engineering advice note in case the system is to be installed without prior knowledge of store personnel. Only

contact the nominated manager / supervisor in such a situation.

Ensure that the store (check-out supervisor or nominated person) have taken readings from the register before it is

powered down.

2. Identify the EPSON TM-T88 printer.

The EPSON TM-T88 is a modular printer and as such has no fixed position. It is therefore important to identify both the

printer and a suitable location for mounting the printer interface.

3. Install the Interposer Cable.

WARNING! - RISK OF ELECTRIC SHOCK.

Ensure power to the printer and terminal is off and the power cord(s) disconnected before connecting the interface.

Remove the printer-to-CPU cable from the RS-232C port at the rear of the printer. Connect the interposer cable supplied

with the interface to this port. Re-connect the printer-to-CPU cable into interposer cable.

Ensure that the locking hardware is secure.

4. Installing the printer interface data cable.

The interface data cable runs from the interposer cable and should be routed along the most direct route available to the

printer interface.

5. Check printer operation.

Before supplying power to the interface connect the power cord(s) back to the printer and terminal and ensure that power

is restored. Check the printer and terminal for normal operation (It may be necessary to contact nominated store

personnel to do this).

6. Power the interface.

As the interface only passively monitors the data line and the units are opto-isolated there should be no degradation in

printer operation once the interface is powered.

If possible, check that valid text is appearing on Laptop/PC and/or Vi-POSCON screen(s).

If the printer displays abnormal operation, check that all connectors are seated properly. If this does not resolve the

problem, return the register to its initial state by removing the interface and contact your FTSS.

SHEET 7-9

original printer-to-

cpu cable

to printer

DB9 to interface

‘DATA INPUT’

I N T E R P O S E R C A B L E

PRINTER PORT

on rear of printer

Installing the Epson printer interface

Vi-POSIF-S EPSON TM T 88 serial SHEET 8-9

All logos and names used within this document are properties of their respective companies and are used

here for identification purposes. The afore-mentioned items may also be copyright, trademarks or

registered trademarks of their respective companies and no infringement of those rights is intended.

cable from interposer

Epson IM-300

(rear view with cover removed)

Interface Connection Details

Cable : 500260

(supplied)

Installing the Epson printer interface

Vi-POSIF-S EPSON TM T 88 serial SHEET 9-9

1. Check advice note.

Check engineering advice note in case the system is to be installed without prior knowledge of store personnel. Only

contact the nominated manager / supervisor in such a situation.

Ensure that the store (check-out supervisor or nominated person) have taken readings from the register before it is

powered down.

2. Identify the EPSON IM-300 terminal.

The EPSON IM-300 has an integrated Epson TM-T88iiR Serial printer. It is therefore important to identify both the

EPOS terminal and a suitable location for mounting the printer interface.

3. Install the Interface Cable.

WARNING! - RISK OF ELECTRIC SHOCK.

Loosen the screw securing the rear cover of the terminal. Remove the rear cover by pulling the upper part of the rear

cover backward then downward.

Identify the COM3 port at the rear of the printer (refer to SHEET 8-9). Connect one 9 way ‘D’ socket end of the interface

cable supplied (500260) to this port. The other 9 way ‘D’ socket end of this cable should be routed along the most direct

route available to the interface.

Ensure that the locking hardware is secure.

Replace the rear cover and fasten the securing screw.

4. Check terminal operation.

Before supplying power to the interface connect the power cord back to the terminal and ensure that power is restored.

Check the terminal for normal operation (It may be necessary to contact nominated store personnel to do this).

5. Power the interface.

As the interface only passively monitors the data line and the units are opto-isolated there should be no degradation in

printer operation once the interface is powered.

If possible, check that valid text is appearing on Laptop/PC and/or Vi-POSCON screen(s).

If the terminal displays abnormal operation, check that all connectors are seated properly. If this does not resolve the

problem, return the register to its initial state by removing the interface and contact your FTSS.
