Quick Reference

Control Panel Functions

Advanced

Copy

Color/Black button

Switches between color

and monochrome

modes.

Touch screen

Sets various copy

functions.

Memory button

Selects, saves, or deletes user-

defined copy job memories.

Reset button

Sets all copy job settings

to default values.

Error light

On when an error occurs.

(See “Error Messages” on

page 4.)

Ready light

On when ready to copy.

Power light

On when the printer is on.

Start button

Starts copying.

Stop button

Stops copying.

Numeric key pad

Used to enter the number

of copies, the zoom ratio,

and other values.

Admin button

Displays the administrator’s

mode selection screen.

Available settings:

Key Tone

Standby Control

Auto Feed

Set Default Copy Job

Color Calibration

Select Language

Restore Default

face-down tray

face-up tray

Face Down/Face Up button

Switches between the face-

up tray and face-down tray.

4012842-00

XXX

LProof Sign-off:

T.Ichihashi _______

M.Miyazaki _______

K.Norum _______

R4C3900

Rev. C

A5 wide size Q_REF.FM

4/6/01 Pass 1

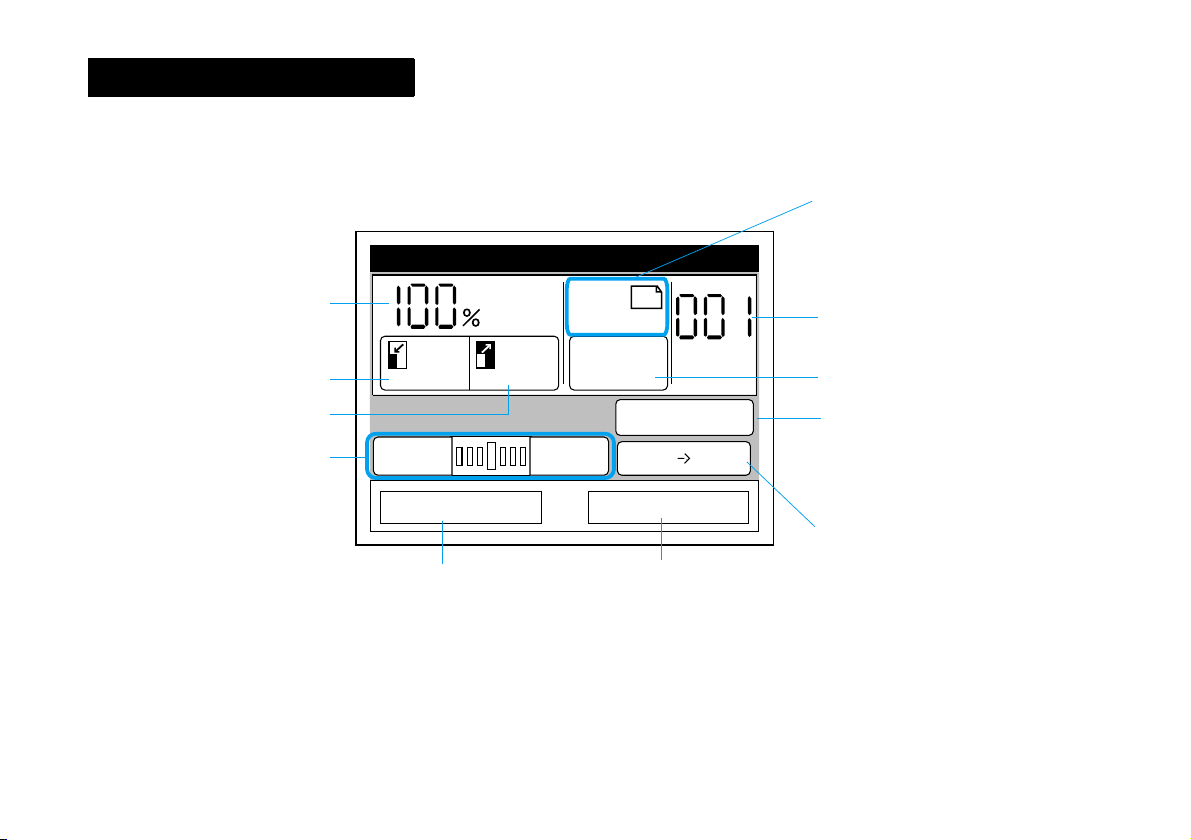

The following screen appears when the copy station is ready for copying.

Touch Panel Functions

Ready to Copy

Reduce Enlarge

Plain

Copy

LC1

Paper

Adjust Advanced

Type: Magazine

1-Sided

DarkerLighter

Sets the zoom ratio and

displays the current

zoom ratio.

Displays the advanced copy mode

selection screen. Available settings:

Join Pages

Margin

Split Pages

Remove Shadows

Collate

Selects a paper source, size,

and document orientation.

Selects 1-sided/2-sided

printing modes.

Displays the color adjustment mode

selection screen. Available settings:

Contrast

RGB Adjust

Saturation

Hue

Selects a document type.

Available settings:


Text

Magazine

Map

Detail

Shows the number of copies.

Shows the current paper size,

document orientation, and

paper type.

Reduces the copy size.

Enlarges the copy size.

Adjusts brightness.

R4C3900

Rev. C

A5 wide size Q_REF.FM

4/6/01 Pass 1

Proof Sign-off:

T.Ichihashi _______

M.Miyazaki _______

K.Norum _______

Document and Paper Source Orientation

Document

2 ± 1.5 mm

Place your document on the

scanning table with the side to

be scanned facing down.

An area 2 ± 1.5 mm in from

both horizontal and vertical

rulers will not be scanned.

corner of the

document

When placing a document vertically

Document table

When placing a document horizontally

Document table

MP tray MP tray

Paper cassettePaper cassette

When copying A4, Letter, Executive, or B5 size documents, select the paper source setting that matches

the orientation of the document on the document table. See the figure below.

Setting on paper

selection screen:

Letter

Executive

Setting on paper

selection screen:

Letter

Executive

LProof Sign-off:

T.Ichihashi _______

M.Miyazaki _______

K.Norum _______

R4C3900

Rev. C

A5 wide size Q_REF.FM

4/6/01 Pass 1

The following error messages will appear on the touch screen when an error has occurred in the copy station.

Copy system errors Printer errors

Printer error messages are displayed on both the copy

station’s touch screen and on the printer’s LCD panel.

When an error occurs, see the section about error

messages in the EPSON AcuLaser Color Copy Station

8500 Reference Guide or in the printer’s Quick Reference

guide, then try the solutions provided.

Scanner and calibration errors

For scanner or calibration errors, see the section about

error messages in the EPSON AcuLaser Color Copy

Station 8500 Reference Guide.

Error Messages

Display on the control panel Details and Solution

System Error

Internal Error

Restart

System

Restart System.

(1) Turn off the scanner and

the printer.

(2) Wait for approximately

three minutes, and then turn

the devices back on.

(3) If the same message

reappears, this may indicate

malfunctioning interface

boards.

In this case, contact your

dealer or the closest customer

support services for assistance.

System Error

Fatal Error

Restart

System

System Error

Paper Error

Press the Stop button

A document that cannot be

scanned is placed on the

scanner.

Press the

ystop button, and

check the document type.

System Error

HDD Full

Press the Stop button

In the Collate mode, scanning

cannot be completed

because the optional Hard

Disk Unit is full.

Press the

ystop button to

cancel the copy job.

Printed in Japan 00.xx.xx
