Product Support Bulletin

Subject:

Power Specifications

Date: 2/7/90 PSB No: P-0060

Page: 1 of 2

Originator: RFB

The following information is a list of the power requirements for

the Epson 9 and 24 pin printers and laser printers.

504

VA maximum

PSB No: P-0060

Page: 2 of 2

Product

Voltage

Max. Current

Consumption

Power Consumption

BTU/HR

LX810

120V

.7 Amp

84 VA maximum

286.69

T750 120V 1.0

Amp

120

maximum

409.56

T1000

120V

Amp 84 VA

maximum

286.69

If the power requirements of a particular Epson printer is not listed please

refer to the appropriate User's Manual for the electrical specifications.

In the event that the User's Manual is not available, locate the silver label

on the back of the Epson printer.

This is a reliable source for the electrical

requirements.

The following formula is used to calculate the electrical

power requirements:

VOLTAMPS is equivalent to WATTS

VOLTAMPS = Volts * Amps

AMPS

BTU/HR = Voltamps/Volts

= Watts * 3.413

Example:

120V * 1A = 120VA

120VA/120V = 1A

120VA is equivalent to 120W

120W * 3.413 = 409.56 BTU/HR

Heat output is rated in BTU/HR.

EPSON

EPSON AMERICA, INC.

INFORMA

Product Support Bulletin

Subject: Tractor

Pin Alignment

Date: 5/15/89

PSB No: P -

0044

Page: 1 of 1

Originator: RP

The purpose of this bulletin is to insure the proper installation and alignment of

the FX-850/1050 and LQ- 850/1050 push tractor assemblies.

There are two possible ways to install the tractor frame on the push tractor

assembly. If the frame is installed incorrectly, the tractor belt pins on the two

tractors will not be aligned, and the resulting printout appears to be slanted on

the page, or the perforated edge will be tom. This is caused by the marks on

the tractor shaft holders being 180 degrees ‘out of phase.’

When assembling a tractor, there are two grooves in the shaft, and two tabs

on the tractor shaft holder. lf the pins on both tractor belts are not aligned, it

will be necessary to disassemble the tractor, and rotate one tractor shaft

holder

180 degrees, to

bring it back into alignment with the other shaft holder.

Alignment can be verified by examining the marks in

the shaft holders, which

will both be in the forward position when properly aligned, as shown in

Figure

4- 51 below.

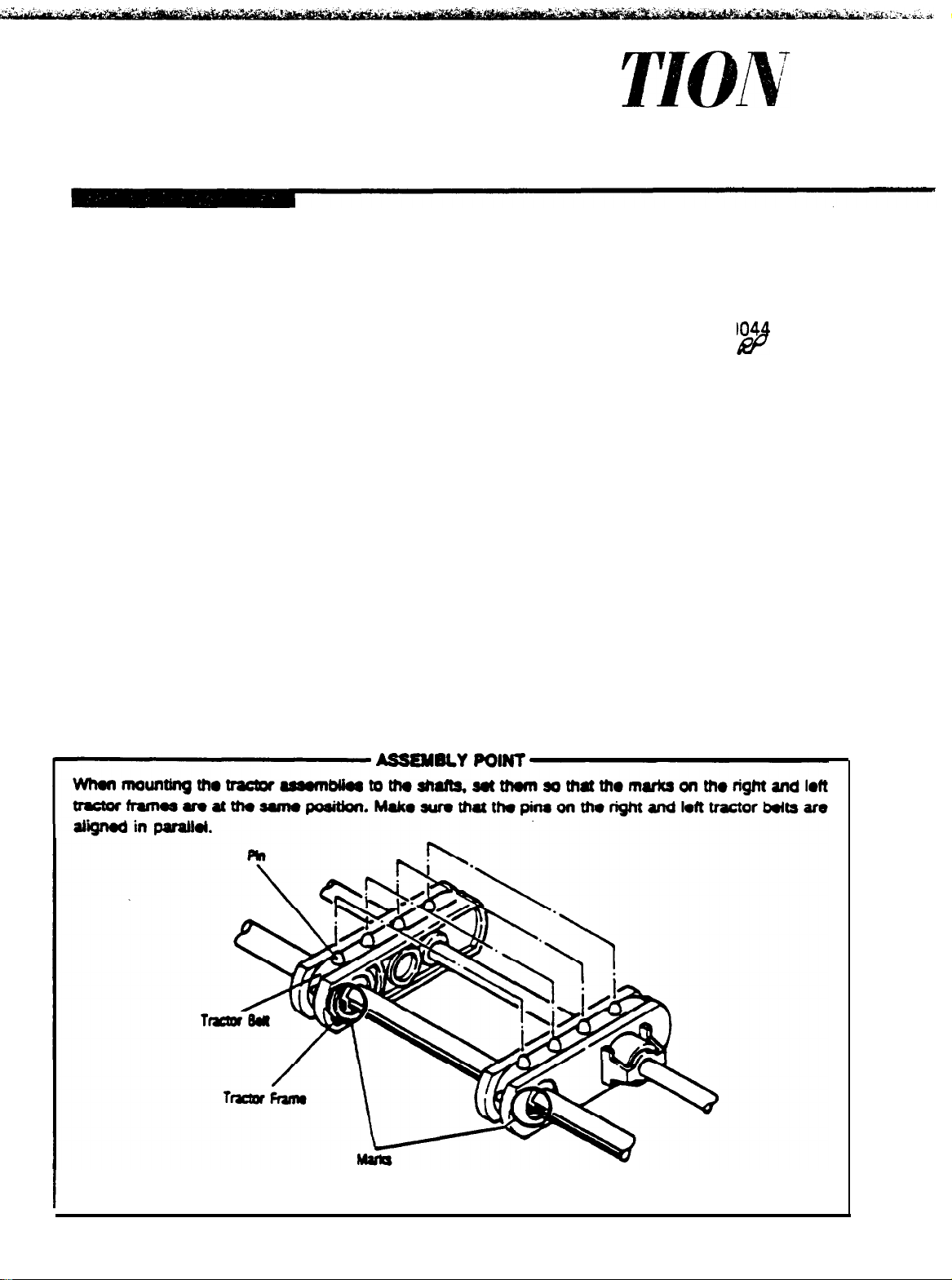

Figure 4-51. Tractor Assembly

Phases

EPSON

EPSON AMERICA, INC.

SERVICE

PRODUCT SUPPORT BULLETIN

PSB NO.:

P-0024

DATE:

8/01/88

PAGE:

SUBJECT: FX-850/1050 UNDOCUMENTED BUFFER FEATURE

The FX-850/1050 dot matrix printers support an important feature

that is currently undocumented in the printer's User's manual.

The FX-850/1050 printers have the ability to enable or disable

the input buffer. This feature is controlled from the printer's

front panel by holding down the Load/Eject button during power

The printer will beep once indicating that the buffer is

disabled or will beep twice indicating that it is enabled.

The

condition of the input buffer may be changed back by simply

repeating the above operation. The printer's Self Test feature

may be used to determine the current setting of the input buffer

without changing it.

Please

refer to the Self Test examples shown

below.

Skip Perforation

None

Auto LF Depend on I/F

2-4 OFF

Input Buffer

Valid

"'#$X%-o*+,-

GF$%a-

(

)*+,-

./0123456789:;<=>?UBCDEF'GHIJKUlNOPQRSTUVWXYZC'

~~#$%a-

(

)*+*

./0123456789:;<=>?8ABCDEFGHIJKLMNOPQRSTWWXYZC\

-./0123456789:;<=>[email protected]\l

sTwwxYzc\3

Skip Perforation None

2-3 OFF

Auto LF Depend on I/F 2-4 OFF

Input Buffer

Invalid

'"jW&'O*+,-./0123456789:;

n#$%&'

(

>*+

<=>?@ABCDEFGHIJKLMNOPQRSTWWXYZC

-./0123456789:;<=>?$DEFGHIJKLMNOPQRSTWWXYZ~\

"#$xh'O*+,k/0123456789

:;<=>?QABCDEFGHIJKLMNOPQRSTWWXYZ~\l

#$%a-(

I*+,-

./0123456789:;<=>?6ABCDMWIJKLMNOPQRSTWWXYZC\l-

EPSON AMERICA SERVICE, 23610 TELO AVENUE, TORRANCE, CALIF. 90505

EPSON

EPSON AMERICA, INC.

INFORMATION

Product Support Bulletin

Subject:

Epson Dot - Matrix Printer Options and Accessories

Date: 8/1/89

Page: 1 of 2 PSB No: P-0017B

Originator: RFA

9 - PIN DOT MATRIX OPTIONS

LX-810 FX-850 FX-1050 DFX-5000

TRACTOR UNITS

PULL TRACTOR C800061

7311 -A 7312-A 8309-A

CUT SHEET FEEDERS

SINGLE BIN C806121

7339-A 7340-A

DOUBLE BIN

N/A

N/A 7346-A 7348-A N/A

RIBBONS

STANDARD (BLACK)

INTERFACE BOARDS

SERIAL

- 0K BUFFER

8143

8143 8143

SERIAL

- 8K BUFFER

8148 8148 8148 8148

PARALLEL - 32K BUFFER

8172 8172 8172 8172

IEEE 488 - 8K BUFFER

8165 8165 8165 8165

8750 8750 8755 8766

CABLES

STANDARD IBM PARALLEL

SERlAL DB-25 TO DB-9

SERIAL DB-25 TO DB-25

C1-9E-A C1-9E-A C1-9E-A C1-9E-A

=I;

EiZx

EEx

g:;

MISC. PRINTER ACCESSORIES

PRINTER STAND

CPD-552 CPD-552

KP - STAND

8501-A

PSB No: P-0017B

Page: 2 of 2

24 - PIN MATRIX OPTIONS

TRACTOR UNITS

PULL TRACTOR

CUT SHEET FEEDERS

SINGLE BIN

DOUBLE BIN

INTERFACE BOARDS

SERIAL

- 0K BUFFER

- 8K BUFFER

PARALLEL - 32K BUFFER

IEEE 488 -

8K BUFFER

CABLES

STANDARD IBM PARALLEL

SERIAL DB-25 TO DB-9

SERIAL DB-25 TO DB-25

SERIAL DIN-6 TO DB-9

SERIAL DIN-6 TO DB-25

APPLE ][e. DB-25 TO DIN-6

APPLE ][c. DIN-6 TO DIN-5

FONT MODULES

COURIER

PRESTIGE

ELFi3

MULTI

MISC.

PRINTER ACCESSORIES

WINDOWS DRIVER SOFTWARE

APPLE MAC LQ SOFTWARE

LQ PATCH SOFTWARE

PRINTER STAND

DCB-LQ2

El=

CPD-552

LQ-510 LQ-850 LQ-950 LQ-1050 LQ-2550

C800061

7311 -A 7313-A 7312-A 7314-A

C806121

7339-A 7345-A 7340-A N/A

N/A 7346-A 7347-A 7348-A 7343-A

7753 7767

N/A N/A

7768 7769

7754

N/A

7762

7763

7764

8143 8143 8143 8143

8143

8148 8148 8148 8148

8148

8172

8172 8172 8172

8172

8165 8185 8165 8165

8165

C1-9E-A

E-i

N/A

C1-9E-A

E-X

8239

C1-9E-A

z:;

8239

C1-9E-A

=I;

N/A

7400A 7400A 7400A 7400A 7400A

7401A 7401A 7401A

7401A

7402A 7402A 7402A 7402A 7402A

7403A 7403A 7403A 7403A 7403A

7407-A 7407-A 7407-A 7407-A 7407-A

DCB-LQ2

C842001

LQ1

CPD-552

DCB

LQ2

ZYO’

DCB-LQ2

C842001

LQ1

KP - STAND KP - STAND

DCB-LQ2

i?iF1

KP - STAND

EPSON AMERICA, INC.

EPSON

Product Support Bulletin

Subject:

Quick Reference for Printer Acoustic Noise Levels

Date: 6/5/91

PSB No:

P-0016D

Page(s): 1 of 2

Originator: SLS

Sound intensity is measured in units called Bels (named after Alexander Graham Bell,)

or more commonly in tenths of this fundamental unit: decibels. In making noise

measurements a weighting network is applied in an attempt to match the frequency

response of the instrument to that of the human ear. The most common is the A

weighting network, with resulting measurements expressed in dB(A).

The following is a list of current product’s noise levels tested in accordance with

standards set by the International Standards Organization (ISO). The acoustic noise

levels for the 9 pin printers are averages while printing in Near Letter Quality (NLQ)

mode using continuous paper and are not guaranteed figures. The acoustic noise

levels for the 24 pin printers are averages while printing in Letter Quality (LQ) mode

using continuous paper and are not guaranteed figures. The acoustic noise levels for

the laser printers are averages while using single sheet paper and are not guaranteed

figures.

9 PIN PRINTERS

MODEL

NOISE LEVEL

LX-810

56 dB(A)

FX-850

FX-1050

56 dB(A)

DFX-5000

55 dB(A)

DFX-8000

55 dB(A)

24 PIN PRINTERS

LQ-510

LQ-1010

56 dB(A)

LQ-850

56 dB(A)

PSB No: P-0016D

Page:

of 2

MODEL NOISE LEVEL

LQ-860

55 dB(A)

LQ-1050 55 dB(A)

LQ-2550 55 dB(A)

LASER PRINTERS
