Epson LX-300+ Manuale

Read All About It

What’s new about the EPSON®LX-300+?

It’s faster, more durable,

and handles more parts per form. But don’t worry; it works the same

way as the EPSON LX-300. Take a few minutes to read this booklet so

you can get up and running quickly.

Here’s what you’ll find inside:

PRINTER ANNOUNCEMENT

NEWS

INFORMATION

EXTRA! EXTRA!

New Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Printer Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Turning On the Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

The Control Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Paper Handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Selecting Fonts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Adjusting for Different Top and Bottom Margins. . . . . . . . 8

Adjusting the Loading (Top-of-Form) and Tear-off

Positions with Micro Adjust . . . . . . . . . . . . . . . . . . . . . . . 8

Differences in the Default Setting Mode. . . . . . . . . . . . . . . . 8

Using the EPSON Remote! Utility . . . . . . . . . . . . . . . . . . . . . 10

Printing a Self Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

About Your EPSON LX-300+

This booklet briefly describes the new features provided by the

EPSON LX-300+. It is intended for LX-300 users who are

upgrading to the LX-300+. If you are not familiar with the

LX-300, please see the LX-300+ User’s Guide for detailed

instructions on using the printer.

Your new LX-300+ printer is very similar to the LX-300, only

better. It’s faster, more reliable, and accommodates more copies

per multi-part form (1 original plus 4 copies). It is backward

compatible with the LX-300, so you should not have any

problems using it with your current software.

Be sure to consult the LX-300+ User’s Guide for setup instructions

and detailed information about your printer.

New Specifications

This table summarizes the basic specification differences

between the two models.

Function LX-300 LX-300+

Printing speed NLQ (10 cpi): 44 cps

(uni-d)

Draft (10 cpi): 220 cps

High speed draft

(10 cpi): not available

High speed draft

(12 cpi): not available

NLQ (10 cpi): 56 cps

(bi-d)

Draft (10 cpi): 225 cps

High speed draft

(10 cpi): 300 cps

High speed draft

(12 cpi): 337 cps

Copy capability 1 + 2 1 + 4

Printable area

Top margin

Bottom margin

5.3 mm (.2 in)

9 mm (.35 in)

4.2 mm (.17 in)

Built-in fonts Roman, Sans Serif,

Draft, Draft

condensed

Roman, Roman

condensed, Sans Serif,

Sans Serif condensed,

Draft, Draft condensed

Bar code fonts none 8 fonts

Character set tables 9 13

Paper feed speed 79 ms/line at 1/6-inch

line spacing,

intermittent

2.78 inches/second,

continuous

80 ms/line at 1/6-inch

line spacing,

intermittent

3 inches/second,

continuous

Parallel interface Parallel Bidirectional parallel

supporting IEEE 1284

nibble mode

Control code

emulation

EPSON ESC/P,

IBM®2380

EPSON ESC/P,

IBM 2380 PLUS

Input buffer 4 KB 8 KB

Reliability

MVBF

MTBF (power-on

hours), 25% duty cycle

3 million lines

4,000 hours

12 million lines

(except print head)

6,000 hours

Single sheet paper

width

7.2 to 10.1 inches

(182 to 257 mm),

single sheets

3.9 to 10.1 inches

(100 to 257 mm),

single sheets and

multipart forms

Energy saving mode

Copy mode

Quiet mode

Yes

Physical dimensions

Width

Depth

Height

Weight

14.4 inches (366 mm)

10.8 inches (275 mm)

5.2 inches (132 mm)

8.8 lb. (4.0 kg)

14.4 inches (366 mm)

10.8 inches (275 mm)

5.8 inches (147 mm)

9.8 lb. (4.4 kg)

Function LX-300 LX-300+

Printer Software

The LX-300+ comes with printer software on a CD-ROM which

includes a printer driver for Microsoft®Windows®and some

helpful utilities. You do not need to install this driver if you are

happy with the driver(s) you are currently using for your

LX-300. The LX-300+ printer hardware is backward compatible

with ESC/P software drivers.

If you decide to install the software, you can take advantage of

the following features:

❏A printer driver which lets you control printing.

❏The EPSON Status Monitor 3 utility for Windows versions

95, 98, 2000, and NT 4.0 (or later). The Status Monitor

displays information about the printer’s status and lets you

know if there is a problem with a print job.

❏The EPSON Remote! utility, a DOS-based printer setup

utility that lets you change printer default settings from your

monitor screen. (This provides an alternative way to change

the default settings as described on page 10.)

See the LX-300+ User’s Guide for instructions on installing and

using the printer software.

Turning On the Printer

The power switch has been moved to the side of the printer.

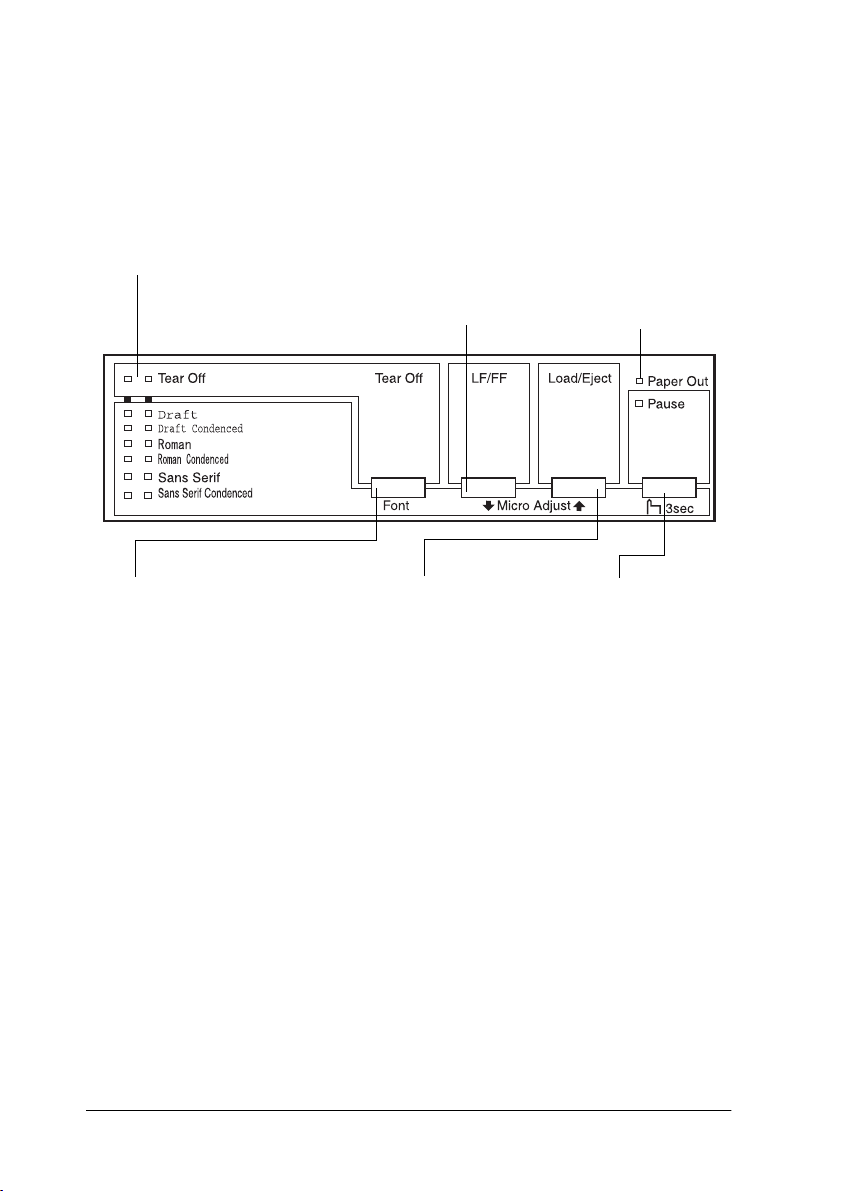

The Control Panel

The control panel has been modified, as shown on the next page.

It now includes a Load/Eject button, which loads or ejects a

single sheet. It also loads continuous paper from the standby

position or feeds it backward to the standby position; it replaces

the Paper Park feature on the LX-300.

The FONT button is now referred to as the Tear Off button. It

still lets you select one of the printer’s built-in fonts (through the

Micro Adjust mode, as described on page 7), plus it advances

continuous paper to the tear-off position or feeds continuous

paper backward to the top-of-form position.

The control panel also features a Paper Out light to let you

know when the printer has run out of paper or paper is not

loaded correctly. Additionally, because the LX-300+ has six

built-in fonts (instead of four on the LX-300) the Tear Off lights

now indicate which of the built-in fonts is currently selected.

power switch

Control Panel

r O

f b

n**

****

Advances continuous

paper to the tear-off

position.

Feeds continuous paper

backward from the

tear-off position to the

top-of-form position.

iiic

o A

jjju

t m

When you hold down the Pause button for 3 seconds,

the printer enters the Micro Adjust mode. In this mode,

you can press the LF/FFDand Load/EjectUbuttons to

adjust the top-of-form or tear-off position. (See page 8.)

****

**F

t s

llle

In Micro Adjust mode, you can select the font to use for

printing by pressing the Tear Off button. The Tear Off

lights turn on, off, or flash to indicate the selected font.

(See page 7.)

e b

Stops printing

temporarily, and

resumes printing when

pressed again. When

pressed for three

seconds, turns on the

Micro Adjust mode.*

To turn off, press

again.

e li

lili

lig

On when the printer is

paused.

Flashes when the

printer is in Micro

Adjust mode.*

Flashes when the print

head has overheated.

r O

t l

llli

iiig

On when no paper is

loaded in the selected

paper source or paper

is not loaded correctly.

Flashes when paper

has not been fully

ejected or a paper jam

has occurred.

F b

Feeds paper line by line

when pressed and

released.

Ejects a single sheet or

advances continuous

paper to the next

top-of-form position

when held down.

jjje

t b

utt

tttt

tto

Loads a single sheet of

paper.

Ejects a single sheet of

paper.

Loads continuous paper

from the standby position.

Feeds continuous paper

backward to the standby

position.

r O

f li

lili

lig

s**

****

f f (both lights flashing)

when continuous paper is

in the tear-off position,

otherwise the LEDs indicate

the selected font. (See

page 7.)

Paper Handling

While the LX-300+ handles paper much like the LX-300, there

are certain differences. Be sure to consult your LX-300+ User’s

Guide for instructions on loading and removing paper, changing

the tractor position, and switching between continuous and

single sheets.

Selecting Fonts

On the LX-300 you pressed the Font button to select one of the

printer’s four built-in fonts. On the LX-300+, you can select from

six built-in fonts as follows. Hold down the Pause button for 3

seconds. Make sure the Pause light is flashing. Then press the

Tear Off button to select one of the fonts listed in the table

below. Continue pressing the Tear Off button until the lights

indicate the one you want. Then press the Pause button again to

exit Micro Adjust mode.

n= on

o= off

f = flashing

The selected font stays in effect until you change it again or turn

off the printer. However, any font choices you make with your

software will override your control panel selection.

Font Tear Off (Font) lights

1 2

EPSON Draft

o n

EPSON Draft condensed

o f

EPSON Roman

n o

EPSON Roman condensed

n n

EPSON Sans Serif

n f

EPSON Sans Serif condensed

f o

Adjusting for Different Top and Bottom Margins

The LX-300+ allows for smaller top and bottom margins—

4.2 mm (.17 inch) for both—increasing the maximum printable

area on the page. You will not notice any difference in printing

unless you have specified margins in your software applications

that are less than the minimum allowed by the LX-300 (5.3 mm

[.2 inch] for the top and 9 mm [.35 inch] for the bottom). In this

case you may need to adjust your top and bottom margin

settings through your software or by adjusting the top-of-form

position. See your LX-300+ User’s Guide.

Adjusting the Loading (Top-of-Form) and Tear-off

Positions with Micro Adjust

To adjust the top-of-form or tear-off position, make sure paper is

loaded in the printer. Then hold down the Pause button for 3

seconds to enter Micro Adjust mode. Make sure the Pause light

is flashing. Then press the Load/Eject

Uor LF/FF

Dbutton to

adjust the position. When you are done, press Pause again to

exit Micro Adjust mode.

Differences in the Default Setting Mode

Like the LX-300, the LX-300+ lets you change printer settings

through the Default Setting mode. The LX-300+ includes more

settings and offers different options for some of the settings. A

few settings that were available on the LX-300 are no longer

necessary on the LX-300+. The following table compares the

settings for both printers. Default settings are in bold.

Note: You can also change the default settings from the DOS prompt

using EPSON Remote!, which you may find easier to use. See page 10

for instructions.

Setting LX-300 LX-300+

Page length for

tractor (continuous

paper)

Length in inches: 3, 3.5, 4,

5.5, 6, 7, 8, 8.5, 1

1, 70/6, 12,

14, 17

Length in inches: 3, 3.5, 4,

5.5, 6, 7, 8, 8.5, 1

1, 70/6,

12, 14, 17, Other

Skip over

perforation

On, O

Off

ffff

ff On, O

Auto tear-off On, O

Off

ffff

ff On, O

Auto line feed On, O

Off

ffff

ff On, O

Print direction not available B

iii-

-D

D, Uni-D

Software (printer

mode)

P, IBM 2380 E

P, IBM 2380 Plus

0 slash , 0

0,0

High speed draft not available O

n, Off

I/F mode A

o (1

0 or 30 second

wait), parallel, serial

o, Parallel, Serial

Auto I/F wait time not available 1

0 s

s, 30 seconds

Baud rate (bps) 300, 600, 1200, 2400, 4800,

0, 19,200

300, 600, 1200, 2400, 4800,

9600, 1

,,,2

Parity N

e, Odd, Even N

e, Odd, Even, Ignore

Parallel I/F

bidirectional mode

not available O

n, Off

Packet mode (IEEE

1284.4 protocol)

not available A

o, Off

Character table Italic, P

7, PC 850,

PC 861, PC 863, PC 685,

Brascii, Abicomp

Italic, P

7, PC 850,

PC 860, PC 863, PC 865,

PC 861, BRASCII,

Abicomp, Roman 8,

ISO Latin 1, PC 858,

ISO 8859-15

International

character set for

Italic table

not available I

IIIt

ali

lili

lic

c U

...S

...A

..., Italic France,

Italic Germany, Italic U.K.,

Italic Denmark1, Italic

Sweden, Italic Italy,

Italic Spain1

Manual feed wait

time

not available 1 second, 1

...5

5 s

2 seconds, 3 seconds

0 0

* These settings take effect only when IBM 2380 emulation is selected.

To enter the Default Setting mode, make sure the printer is off

and paper is loaded. Then hold down the Tear Off button and

press the power switch to turn on the printer. Instructions are

printed which you can follow to change any settings. When you

are finished, turn off the printer to exit the Default Setting mode.

See Chapter 2 in your LX-300+ User’s Guide for instructions on

using the default setting mode.

Using the EPSON Remote! Utility

The printer software CD-ROM contains a new utility called

EPSON Remote! which provides another way to change the

default settings. Follow the steps below to install and use the

utility.

Buzzer not available O

n, Off

Auto CR (IBM 2380

Plus)*

On, O

fOn,O

IBM character

table*

not available Table 1, T

llle

e 2

Data length 7/8 bit

(serial I/F)

7 bit, 8

8 b

iiit

t8bitonly

EXT/ACK (serial I/F) D

iiis

llle

e, Enable not available

Tractor S

iiin

llle

e, double not available

Character spacing 1

0 c

iii, 12 cpi Not selectable through

Default Setting mode. To

select spacing other than

10 cpi (the printer’s

default), such as 12, 15,

17, or 20 cpi, use ESC/P

command).

Setting LX-300 LX-300+

Altri manuali per LX-300+

Indice

Altri manuali Epson Stampante

Epson

Epson A381H Guida alla configurazione

Epson

Epson EPL N2700 Manuale utente

Epson

Epson 875DC - Stylus Photo Color Inkjet Printer Guida all'installazione

Epson

Epson Stylus Pro 5000 Manuale utente

Epson

Epson PictureMate PM-401 Manuale utente

Epson

Epson TM-U200 Series Manuale utente

Epson

Epson WF-2520 Manuale utente

Epson

Epson 3800 - Stylus Pro Color Inkjet Printer Manuale operativo e di manutenzione

Epson

Epson R1800 - Stylus Photo Color Inkjet Printer Manuale

Epson

Epson Stylus Photo 900 Manuale di installazione e funzionamento

Epson

Epson Stylus Pro 10600 - UltraChrome Ink - Stylus Pro 10600 Print... Manuale utente

Epson

Epson SureColor S70670 Guida per l'amministratore

Epson

Epson FX 890 Manuale utente

Epson

Epson Stylus Pro 4880 ColorBurst Edition - Stylus Pro 4880... Manuale utente

Epson

Epson FX-2190 Manuale di istruzioni

Epson

Epson AL-M200 Series Manuale utente

Epson

Epson 980N - Stylus Color Inkjet Printer Manuale tecnico

Epson

Epson AcuLaser C1750N Manuale utente

Epson

Epson Small-in-One XP-970 Manuale di istruzioni

Epson

Epson Stylus C80WN - Ink Jet Printer Istruzioni di montaggio

Epson

Epson XP-211 Manuale di istruzioni

Epson

Epson STYLUS COLOR 580 Manuale utente

Epson

Epson PictureMate Snap PM 240 Manuale utente

Epson

Epson WF-2820 Series Manuale utente

Manuali Stampante popolari di altre marche

Lexmark

Lexmark 1400 Series Manuale

Canon

Canon i70 Series Manuale utente

Evolis

Evolis Elypso Manuale utente

Kyocera

Kyocera FS-9530DN Manuale utente

Canon

Canon LASER SHOT LBP-1210 Manuale utente

Samsung

Samsung BIXOLON SRP-350plusF Manuale utente

Canon

Canon PIXMA PRO-1 Series Manuale utente

Canon

Canon PIXMA G3560 Guida all'installazione

Dell

Dell Color Laser Printer 2130cn Manuale utente

Tektronix

Tektronix Phaser 840 Manuale utente

Canon

Canon CLBR 460ps Manuale utente

Eltron

Eltron P210 Guide Manuale utente

Ricoh

Ricoh MD-P1 Manuale utente

Canon

Canon imagePASS-A2 Manuale utente

Canon

Canon S820D Manuale utente

IRA3D

IRA3D POETRY4 Manuale utente

Ricoh

Ricoh Aficio AP400 Manuale utente

BIXOLON

BIXOLON SRP-352plusV Manuale utente
