Quick Setup
Here’s how to set up your new EPSON®printer ...
Remove any packing material from the printer, as described on
the Notice Sheet in the box. Save all the packaging so you can
use it if you need to transport the printer later. You’ll find these
items inside:
Place the printer flat on a stable desk near a grounded outlet.
Leave plenty of room in back for the cables and enough room
in front for opening the output tray.
Do NOT put the printer:
◗In an area with high temperature or humidity
◗In direct sunlight or dusty conditions
◗Near sources of heat or electromagnetic interference, such
as loudspeakers or cordless telephone base units.
Also, be sure to follow the Safety Instructions in the
Introduction of your User’s Guide.
Unpack the Printer
○○○○○○○○○
○○○○
paper
support
black ink
cartridge
○○○○○○○○
color ink
cartridge
4006677
Untitled-1 5/22/97, 10:20 AM1
Attach the Paper Support
Caution:
Do not plug the printer
into an outlet
controlled by a wall
switch or timer, or on
the same circuit as a
large appliance. This
may disrupt the power,
which can erase
memory and damage
the power supply.
Plug In the Printer

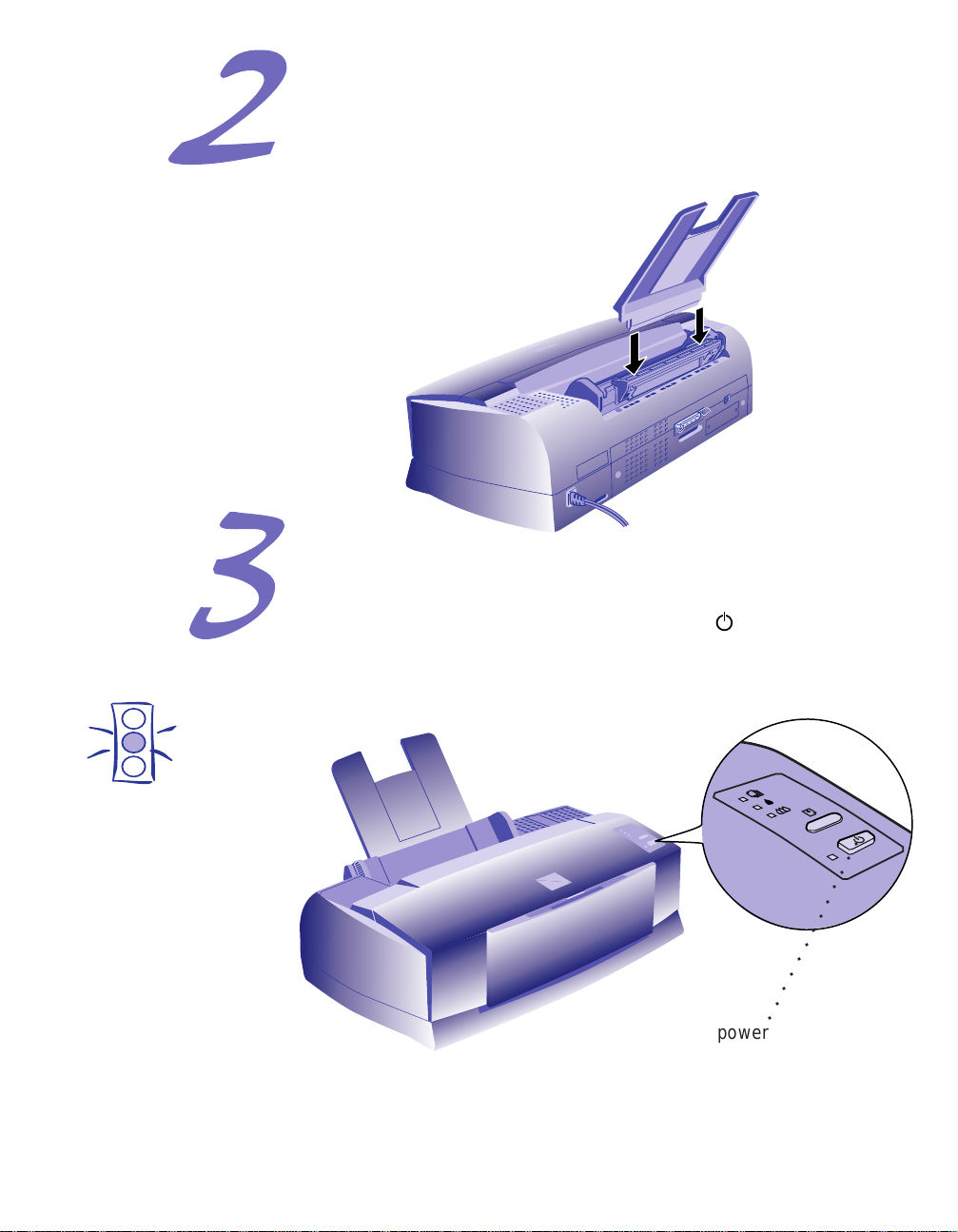

Insert the paper support in the top slot on the back of the
printer.
First make sure the power is off. Check the power button;
it’s off when its surface is raised above the printer surface.
Plug the power cord into a properly grounded outlet.
○○○○○○○○○○○○○
power
Untitled-1 5/22/97, 10:20 AM2
1. Lower the output tray and raise the printer cover.
2. Press the power button to turn on the printer. The power
light flashes, the and ink out lights come on, and the ink
cartridge holders move to the left.
3. Lift up the black ink cartridge clamp.
4. Open the black ink cartridge package. Remove the yellow tape
seal on top.
Install the Ink Cartridges
Caution:
You must remove the
tape seal from the top
of the cartridge or you
will permanently
damage it. Don’t
remove the tape seal
from the bottom or ink
will leak.
Warning:
If ink gets on your
hands, wash them
thoroughly with soap
and water. If ink gets in
your eyes, flush them
immediately with water.
color ink
cartridge
○○○○○
○○○○
black ink
cartridge
Untitled-1 5/22/97, 10:20 AM3
5. Lower the ink cartridge into the holder with the label face
up and the arrow pointing toward the back of the printer.
6. Push down the clamp until it locks in place.
7. Press the color cleaning button. The print heads move
to the left again so you can install the color ink cartridge.
8. Follow steps 3 through 6 to install the color ink cartridge.
9. Press the load/eject button.
The printer moves the print heads and begins charging the ink
delivery system. The power light flashes, and the printer
makes various sounds. Charging can take up to seven minutes.
When it’s finished, you can close the printer cover.
Caution:
Never turn off the
printer when the
power light is
flashing.
Caution:
If the ink cartridge
holders move back to
the right before you
start the installation
process, don't try to
move them by hand.
Press the black
cleaning button and
hold it down for 3
seconds. This moves
the ink cartridge
holders back to the
loading position.
○○ ○ ○○○○○○
load/eject
button
○○○○○○○○○○
color
cleaning
button
○○○○○○○○○○○
black
cleaning
button
○○○○○○○○○
black ink
cartridge
Untitled-1 5/22/97, 10:20 AM4
1. Slide the left edge guide all the way left and pull out the
output tray extensions.
2. Fan a stack of plain paper and then even the edges.
3. Load the stack with the printable surface face up. Push the
paper against the right edge guide.
4. Slide the left edge guide back against the stack of paper.
Note:
Don’t load paper above
the arrow mark inside the
left edge guide.
Load the Paper
arrow
mark
○○ ○ ○○○○○○○
Untitled-1 5/22/97, 10:20 AM5
1. Turn off the printer.
2. Press the load/eject button and hold it down while you
press the power button. Continue to hold the buttons
until the power light starts to flash.
Pages showing a nozzle check pattern and samples of
fonts and colors begin to print.
3. Turn off the printer to end the test. If you have any
problems with the test, see Chapter 6 in your User’s Guide
for more information.
You can connect your EPSON Stylus™COLOR 800 to either an
IBM®-compatible PC or an Apple®Macintosh®
. You’ll need a
shielded, twisted-pair parallel cable to connect to a PC or an
Apple System Peripheral-8 cable to connect to a Macintosh.
For a complete list of system requirements, see the Introduc-
tion of your printer User’s Guide.
1. Turn off the printer and your computer.
2. Connect the cable to the printer’s parallel interface; then
squeeze the wire clips together until they lock in place. (If
your cable has a ground wire, connect it now.)
3. Connect the other end of the cable to your computer’s
parallel port and secure it as necessary.
Check the Printer
Note:
The printer is assigned to
parallel port LPT1; if you
want to use a different
port, see your Windows
documentation for
instructions.
Connect the Printer toYour Computer
Connecting to a PC
○○○○○○○○○○○○○
ground
wire
Untitled-1 5/22/97, 10:20 AM6
Connecting to a Macintosh
1. Turn off the printer and your Macintosh.
2. Connect one end of the cable to the serial connector on
the back of the printer.
3. Connect the other end of the cable to either the modem
port or the printer port on your Macintosh.
Now you need to install the printer software so you can
control printing from your computer. You must install the
software for the printer to work correctly. See the instructions
included with your EPSON printer software CD-ROM or
diskettes.
Install the Printer Software
Note:
If you want to use your
printer on a network, you
need to follow special
setup procedures. See
your
User’s Guide
for
more information.
Untitled-1 5/22/97, 10:20 AM7
EPSON is a registered trademark and EPSON Stylus is a trademark of SEIKO EPSON CORPORATION.
General Notice: Other product names used herein are for identification purposes only and may be trademarks of their respective owners.
EPSON disclaims any and all rights in those marks.
Copyright © 1996 by Epson America, Inc. 11/96
Printed on recycled paper with at least 10% post-consumer content.
Your EPSON Stylus COLOR 800 User’s Guide tells you how to:
◗print everything from a memo to a glossy photo
◗use your printer software to fine-tune your printouts
◗keep your printer working at its best
◗solve any problems you may have
You can also access EPSON’s convenient online help from the
printer software to get quick information while you’re printing.
SeeYour EPSON Documentation
Untitled-1 5/22/97, 10:20 AM8
