Epson Stylus Photo 925 Manuale utente

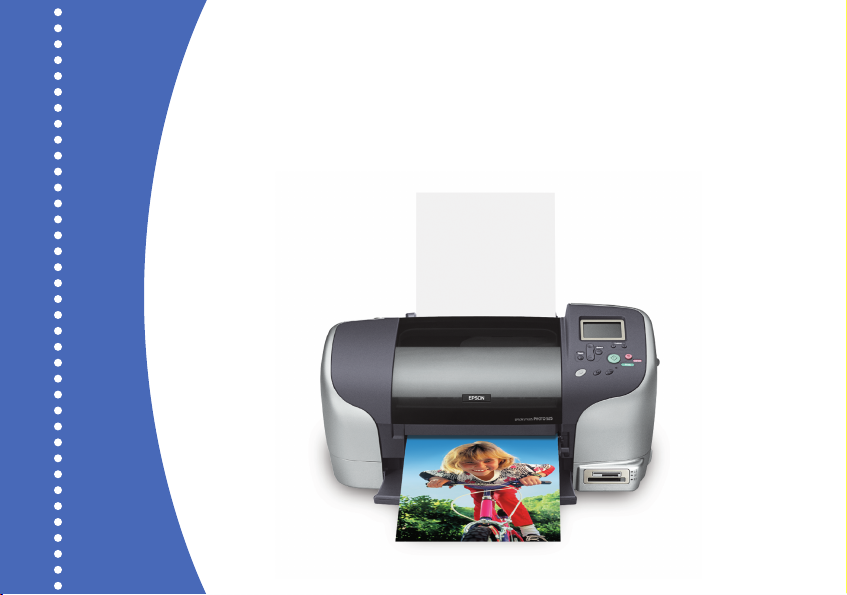

EPSON Stylus®Photo 925

Quick Reference

CPD-14610

Printing Without a Computer

Using This Guide

Your EPSON Stylus Photo 925 lets you print without even connecting a computer.

It’s as easy as following these steps:

Turn on the printer

Connect your camera or insert its memory card (pages 3 and 4)

Select your photos (page 6) and print settings (page 8)

Load paper (page 5 for sheets or page 12 for roll paper)

Print your photos

For more details on printing—with or without

a computer—see Printer Basics.

Keeping This Guide Handy

Use the hook that came with this guide to

hang it on the side of your printer.

Using the Control Panel

Cancel control panel

settings or cancel

printing

Start printing

Select your photos

and print settings

Turn on the printer

Load, cut, and eject

roll paper

Inserting a Memory Card

1. Insert the memory card into the appropriate slot, as shown:

Note: If you’re using a Memory Stick or SmartMedia card, it won’t be possible

to insert it fully; this is normal.

2. The printer checks for images on the card.

After a moment, you see a screen similar to

this and your images are available for printing.

Caution: Do not eject a card while the light next to the card slot is flashing, or you may

lose data on the card.

If your computer is connected to the printer, do the following before ejecting the card.

Windows XP or 2000: Click the Unplug or Eject Hardware icon on the taskbar, then stop

the EPSON Mass Storage Device. Macintosh: Drag the memory card icon to the trash.

SmartMedia™

(top)

Memory Stick®

(middle)

CompactFlash™ or

Microdrive™ (bottom)

Connecting a Digital Camera

1. Remove any memory cards from the printer.

2. Connect the USB cable from your camera to the back of the printer. Some digital cameras

require a special USB cable; if so, be sure to use the one that came with the camera.

3. Make sure the printer and your camera are turned on.

The printer checks for images on the card. After a moment,

you see a screen similar to this and your images are

available for printing.

Note: Not all cameras are compatible. If necessary, remove the camera’s card and

insert it in the printer as described on page 3.

Printing an Index

An index shows small, numbered images of all the photos

on your memory card. This helps you select the photos

you want to print.

1. Load several sheets of plain paper in the printer:

•Place the paper against the right edge of the feeder.

•Slide the left edge guide against the paper.

2. Press the Cancel button to clear any settings

you may have made. Index is automatically

selected as the Print Mode setting:

3. Press the Print button. Your index starts printing.

Index is

automatically

selected

Selecting Photos to Print

You can select one photo or a set of photos for printing.

If you don’t have the optional preview monitor, first

print an index as described above.

Selecting One Photo

1. Press the Cancel button to clear any previous settings.

2. Highlight Print Mode, then press the Select button.

3. In the Print Mode menu, use

the and buttons to

highlight One, then

press Select.

4. Highlight the Select Photo menu, then press the

Select button. Use the and buttons

to select the photo you want to print, then

press Select.

Be sure to select your paper type and layout options before printing. See page 8.

Selecting a Set of Photos

1. Press the Cancel button to clear any previous settings.

2. Highlight Print Mode, then press the Select button.

3. In the Print Mode menu, highlight Set then press Select.

4. Use the button to highlight the Select Photo menu, then press Select.

5. Highlight Select, press Select, then press Select again.

6. Use the and buttons to select the first photo

you want to print, then press Select.

7. Use the button to highlight Enter, then press Select.

8. Repeat steps 5 through 7 for each additional photo you want to print.

Note: If you want to print all

your photos, select All as the

Print Mode.

When done, your list of selected photos is displayed.

(If you’ve selected four or more photos, use the

button to scroll up and view the rest of them.)

9. Use the button to highlight Close, then press Select.

Your photos are selected for printing.

Be sure to select your paper type and layout options before printing. See below.

Printing Your Selected Photos

1. Load paper in the printer. If you’re using roll paper, see page 12.

2. Enter the Paper Type menu. Highlight the type of paper

you’ve loaded, then press Select.

Note: It’s important to select the correct Paper Type setting for

the paper you’re using, or the print quality may not be what you

expect. See Printer Basics for details.

3. Enter the Paper Size menu, then select the size of paper you’ve

loaded. For example, if you’re printing with roll paper, select 4" Roll.

continue

4. In the Layout menu, select one of the options listed below.

Note: The printer automatically resizes your photos to fit the size of paper you’ve selected.

5. If you’re printing a single photo (Print Mode is set to One), you can print multiple sheets

of your selected layout. Enter the Copies menu, then select from 1 to 100 copies.

(You can also use Copies if you’ve selected All as your Print Mode.)

If you’ve selected a set of photos for printing, the number of pages required to print the

photos is automatically determined (it’s displayed as Pages next to the Copies setting).

6. To adjust the quality of your printout, enter the Quality menu and select a setting (some

settings may not be available, depending on your selected Paper Type).

7. Press the Print button. Your photos are printed.

One photo, borderless, printed lengthwise 20 photos per sheet; includes the

on the paper photo number and date

Roll paper only. One photo, borderless, Roll paper only. Prints one photo, borderless,

printed across the paper. along the length of the paper (photo is cropped

to create a “panoramic” look).

1, 2, 3, 4, or 9 photos,

with borders Six photos in various sizes on one sheet
