Epson Stylus Pro 7700/9700/7890/9890

Network Printer Sharing

1.) Ensure the network cable is connected to the printer and the printer is powered ON. To nd your IP

address, press the Right (menu) button located on the control panel of the printer (see FIGURE 1)

FIGURE 1

2.) Press the Down button to locate/highlight NETWORK SETUP, then Press the Right button to select

NETWORK SETUP (see FIGURE 2).

FIGURE 2

NOTE: DHCP must be enabled in your network conguration. In a DHCP environment, the IP

address may change periodically. As a result, this procedure will need to be repeated each time

the IP address changes.

IMPORTANT: Before proceeding, please ensure the Epson (OEM) printer driver and Sawgrass

PowerDriver or Winprole have been installed. For assistance with driver or prole installation, please

refer to the Installation Guide.

PAGE 2 of 9 >>

Epson Stylus Pro 7700/9700/7890/9890

Network Printer Sharing

3.) Press the Right button to select NETWORK SETUP (see FIGURE 3).

FIGURE 3

4.) Press the Down button to locate/highlight ENABLE, then Press the OK button to select ENABLE (see

FIGURE 4).

FIGURE 4

5.) Press the Left button to return to the previous screen (see FIGURE 5).

FIGURE 5

PAGE 3 of 9 >>

Epson Stylus Pro 7700/9700/7890/9890

Network Printer Sharing

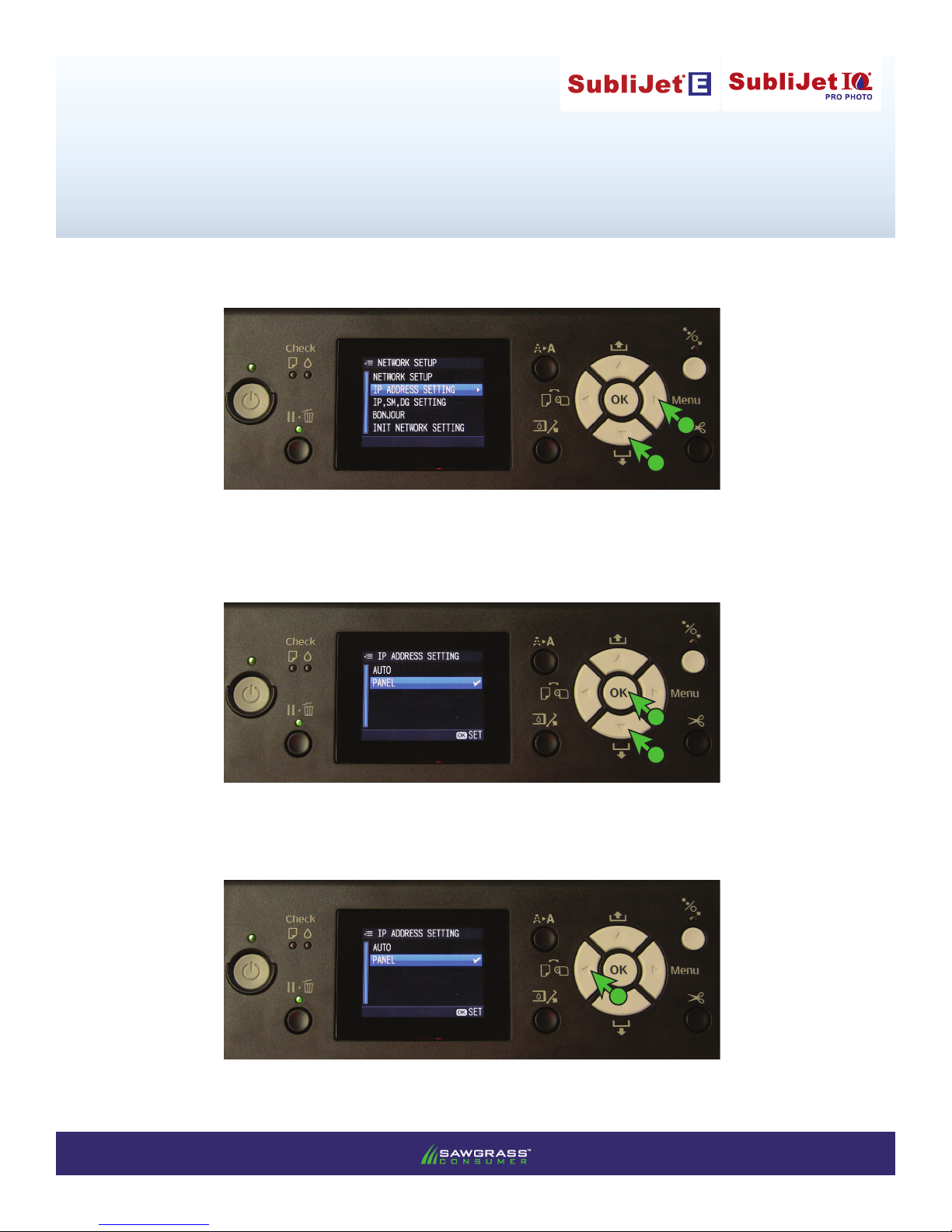

6.) Press the Down button to locate/highlight IP ADDRESS SETTING, then Press the Right button to select

IP ADDRESS SETTING (see FIGURE 6).

FIGURE 6

7.) Press the Down button to locate/highlight PANEL, then Press the OK button to select PANEL (see

FIGURE 7).

FIGURE 7

8.) Press the Left button to return to the previous screen (see FIGURE 8).

FIGURE 8

PAGE 4 of 9 >>

Epson Stylus Pro 7700/9700/7890/9890

Network Printer Sharing

9.) Press the Down button to locate/highlight IP,SM,DG SETTING, then Press the Right button to select

IP,SM,DG SETTING (see FIGURE 9).

FIGURE 9

10.) Record the IP address number as this will be needed for conguring the port later (see FIGURE 10).

FIGURE 10

PAGE 5 of 9 >>

SubliJet-E Professional & SubliJet IQ Pro Photo: Epson Stylus Pro 7700/9700/7890/9890

Network Printer Sharing

11.) In the bottom left-hand corner of your desktop, click the Start icon and select Devices and Printers

(see FIGURE 11).

NOTE: If you are using an older version of Windows OS, you will instead select Printers and

Faxes.

FIGURE 11

12.) In the Devices and Printers folder, right-click the Epson Stylus Pro 7700/9700 or Epson Stylus Pro

7890/9890 icon and select Printer Properties (see FIGURE 12). This will open the Epson Stylus Pro

Properties window (see FIGURE 13).

FIGURE 12

PAGE 6 of 9 >>

SubliJet-E Professional & SubliJet IQ Pro Photo: Epson Stylus Pro 7700/9700/7890/9890

Network Printer Sharing

13.) In the Properties window, click the Ports tab and click Add Port... (see FIGURE 13).

FIGURE 13

14.) In the Printer Ports window, select Standard TCP/IP Port and click New Port... (see FIGURE 14).

FIGURE 14

NOTE: When printing to multiple printers, simultaneously and from one work station, you will

need to install PowerDriver-E and assign a new “Local Port” for each printer.

PAGE 7 of 9 >>

SubliJet-E Professional & SubliJet IQ Pro Photo: Epson Stylus Pro 7700/9700/7890/9890

Network Printer Sharing

xx.x.x.xxx

Type Custom Name Here

15.) The following window will appear instructing you to power ON the printer and ensure the network is

connected and congured. Click Next to continue (see FIGURE 15).

16.) In the Printer Name or IP Address eld, type in your IP address from Step 10. In the Port Name eld,

name your port for easy identication. When nished, click Next to continue (see FIGURE 16).

FIGURE 16

FIGURE 15

NOTE: You will need to drop any preceding 0’s from your IP address. For example, if your IP

address is 010.000.000.073, you will need to enter 10.0.0.73 instead.

PAGE 8 of 9 >>

SubliJet-E Professional & SubliJet IQ Pro Photo: Epson Stylus Pro 7700/9700/7890/9890

Network Printer Sharing

17.) Click Finish to complete the setup (see FIGURE 17).

FIGURE 17

18.) Click Close to exit the Printer Ports wizard (see FIGURE 18).

FIGURE 18

SubliJet-E Professional & SubliJet IQ Pro Photo: Epson Stylus Pro 7700/9700/7890/9890

Network Printer Sharing

PAGE 9 of 9 >>

19.) Click Apply to save your changes and click Close (see FIGURE 19).

FIGURE 19

Congratulations! You have successfully congured the Epson Stylus Pro driver for printing over a network.

For the absolute latest information and updates on all products, materials, processes and/or

procedures relative to all offerings by or through Sawgrass Technologies, Inc., refer to our website:

www.sawgrassink.com
