Introduction

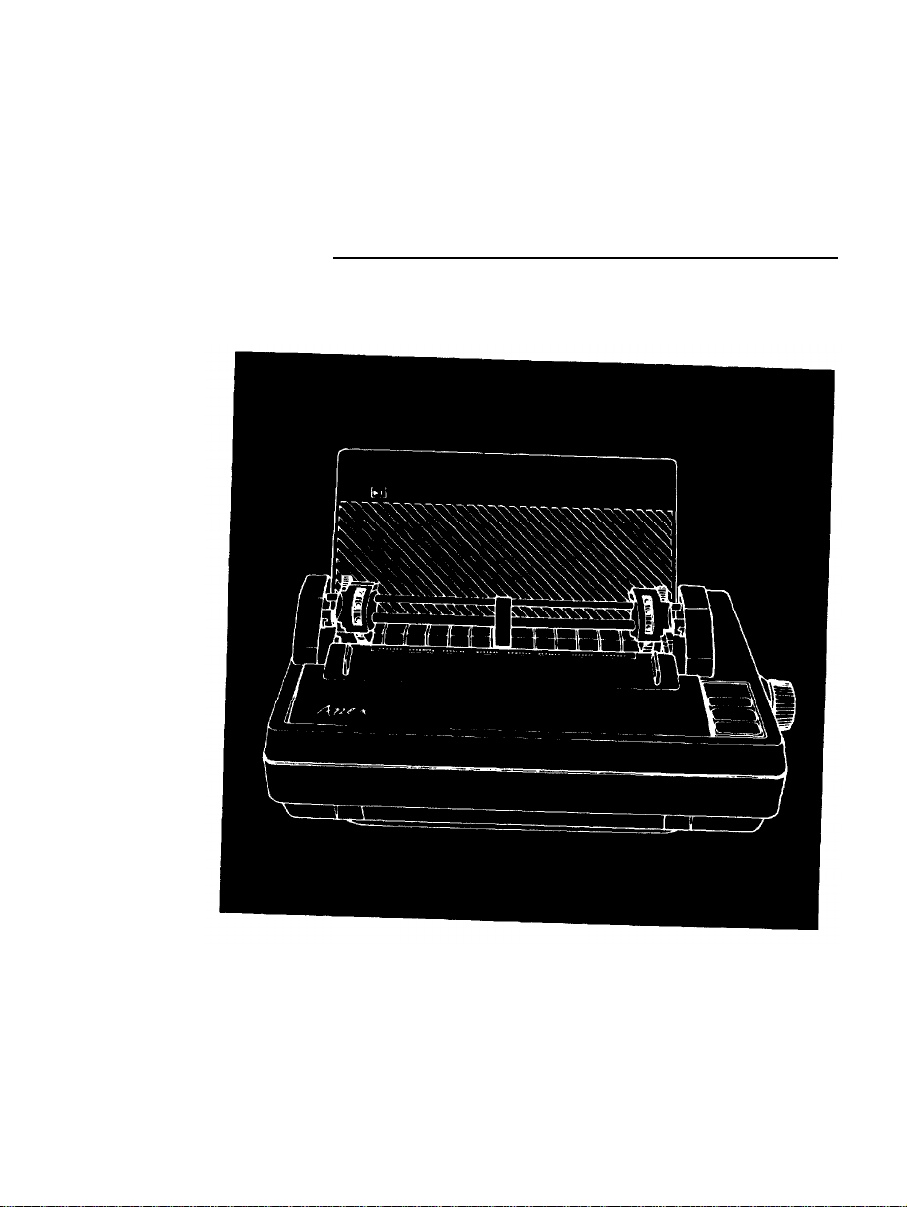

The ActionPrinter

T-1000 combines low price with high quality printing

and advanced features.

Features

In addition to the high performance and reliability you’ve come to expect

from Epson® printers, this printer offers the following features:

Draft mode for quick printing. The speed of draft printing is 150

characters per second in pica and 180 in elite.

Near Letter Quality (NLQ)mode for top quality printing. When you

have perfected a document, you can switch to one of two NLQ

fonts-Roman or Sans Serif.

A variety of print styles, including emphasized, double-strike,

condensed, italic, and double-wide.

Selection of typestyles with the control panel.

User-defined characters so you can create and print your own

symbols or characters.

Dot graphics for charts, diagrams, and illustrations.

Easy paper loading.

A ribbon cassette for quick and clean ribbon changing.

The Epson Character Graphics set, which includes character graphics

that are used on IBM® and compatible computers as well as

international characters used by IBM-compatible software.

Introduction 1

Introduction

About This Manual

Chapter 1 gives you step-by-step instructions on setting up your new

printer, and Chapters 2 through 6 cover the basic and advanced

functions. Chapter 7 contains a summary of the printer’s commands, and

the Appendix contains information on optional interfaces.

Attached to the cover of this manual is a Quick Reference card

containing the information you need most.

Introduction

Chapter 1

Setting Up

Identifying Printer Parts

..............................

1-2

Selecting a Place for the Printer

........................

1-4

Installing the Paper Feed Knob

........................

1-5

Installing and Replacing the Ribbon

....................1-6

Replacing the ribbon

..............................1-8

Using Continuous-feed Paper

.........................

1-9

Installing the tractor unit

...........................

1-9

Loading continuous-feed

paper

......................1-12

Installing the paper guide

...........................1-14

Setting top of form

................................

1-16

Removing the tractor unit

..........................

1-17

Using Single-sheet Paper

.............................

1-18

Installing the paper guide

...........................1-18

Automatic paper loading

...........................

1-19

Reloading during printing

..........................

1-21

Printing multi-part forms and copies

.................

1-21

Operating the Control Panel

..........................

1-22

Indicator lights

...................................

1-22

Buttons

.........................................1-23

Performing the self test

..............................1-24

Connecting the Printer to Your Computer

...............1-26

Printer

Selection Menus

..............................1-28

Choosing from a menu

............................

1-28

A quick test

......................................

1-28

Setting Up 1-1

Identifying Printer Parts

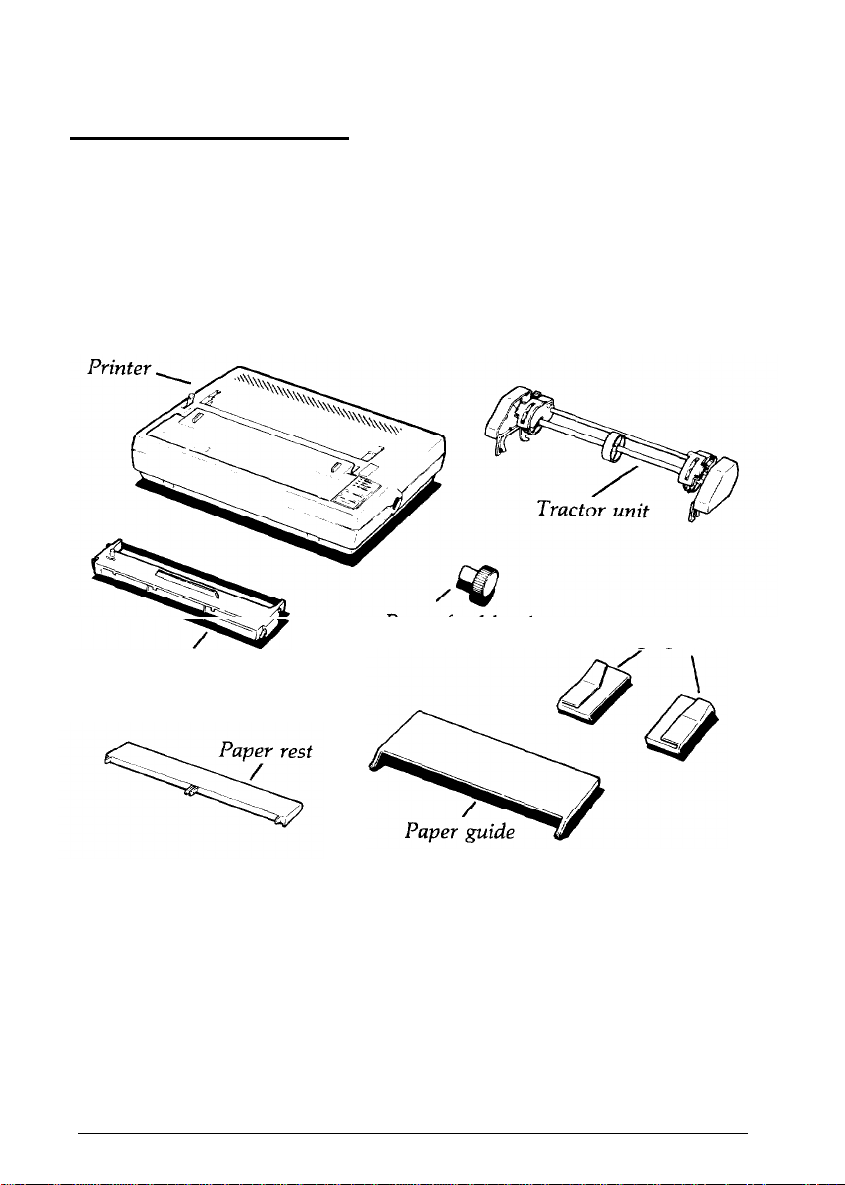

First, see that you have all the parts you need. In addition to this

manual, the printer box should contain the items shown in the

illustration below. The paper feed knob is packed into an indentation in

the white foam material.

Ribbon cartridge

Paper feed knob

Edge guides-

1-2 Setting Up

Identifying Printer Parts

In addition to the items in the box, you need a proper shielded cable to

connect the printer to your computer. Though unlikely, you may also

need an interface board, which is necessary only for those computers

that can’t use the Centronics® parallel interface. Your computer manual

can tell you which cable you need and whether or not you require a

special interface.

Note: If you plan to use a printer stand, make sure it meets the

following requirements:

The stand must support at least

22.4

lb or 10.2 kg (twice the

weight of the printer).

The stand must not tilt the printer more than 15 degrees from

horizontal. With a cut sheet feeder, the stand must keep the

printer level.

If the paper supply is below the printer stand, make sure that

the paper cannot catch on the underside of the stand or on

the stand supports.

lMake sure that the power cord and the interface cable do not

interfere with paper feeding. If possible, secure them to a

printer stand support.

Setting Up 1-3
