Epson SureColor F10070 Manuale utente

Handling and Unpacking

Instructions for the Main Unit

and Option Set

Epson® SureColor® F10070

*No Stacking

* Handling Instructions for Forklift

*Unpacking Instructions

HANDLING AND UNPACKING 1

Confidential 1

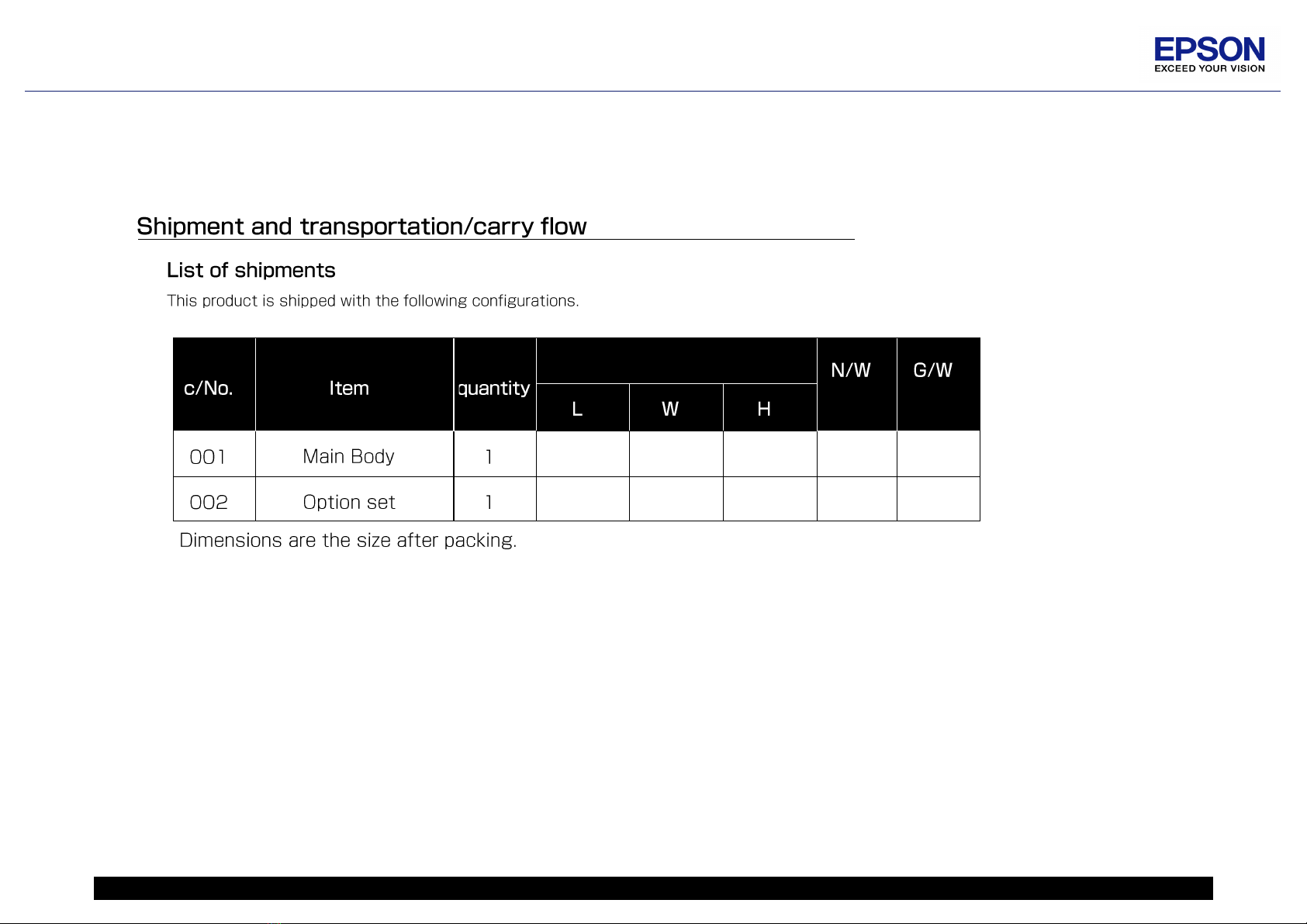

SC F10070 Shipment Overview

Overview 2

Confidential 1

Size (ft)

12.6 3.7

12.6 3.7 4.4

(lb) (lb)

6.1 1259

361

1991

728

HANDLING AND UNPACKING

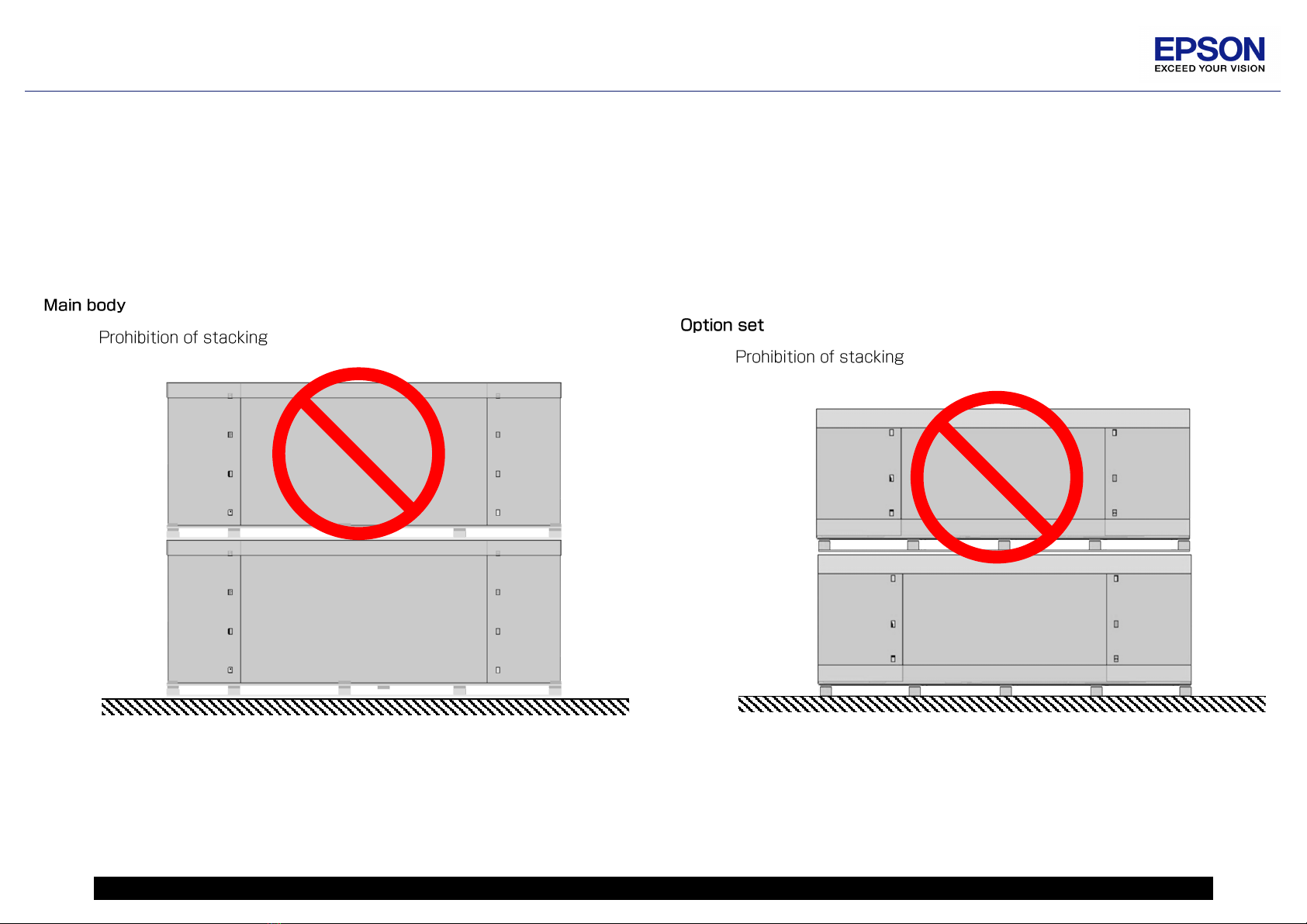

SC F10070 No Stacking

Note： No Stacking

No Stacking 3

Confidential 1

HANDLING AND UNPACKING

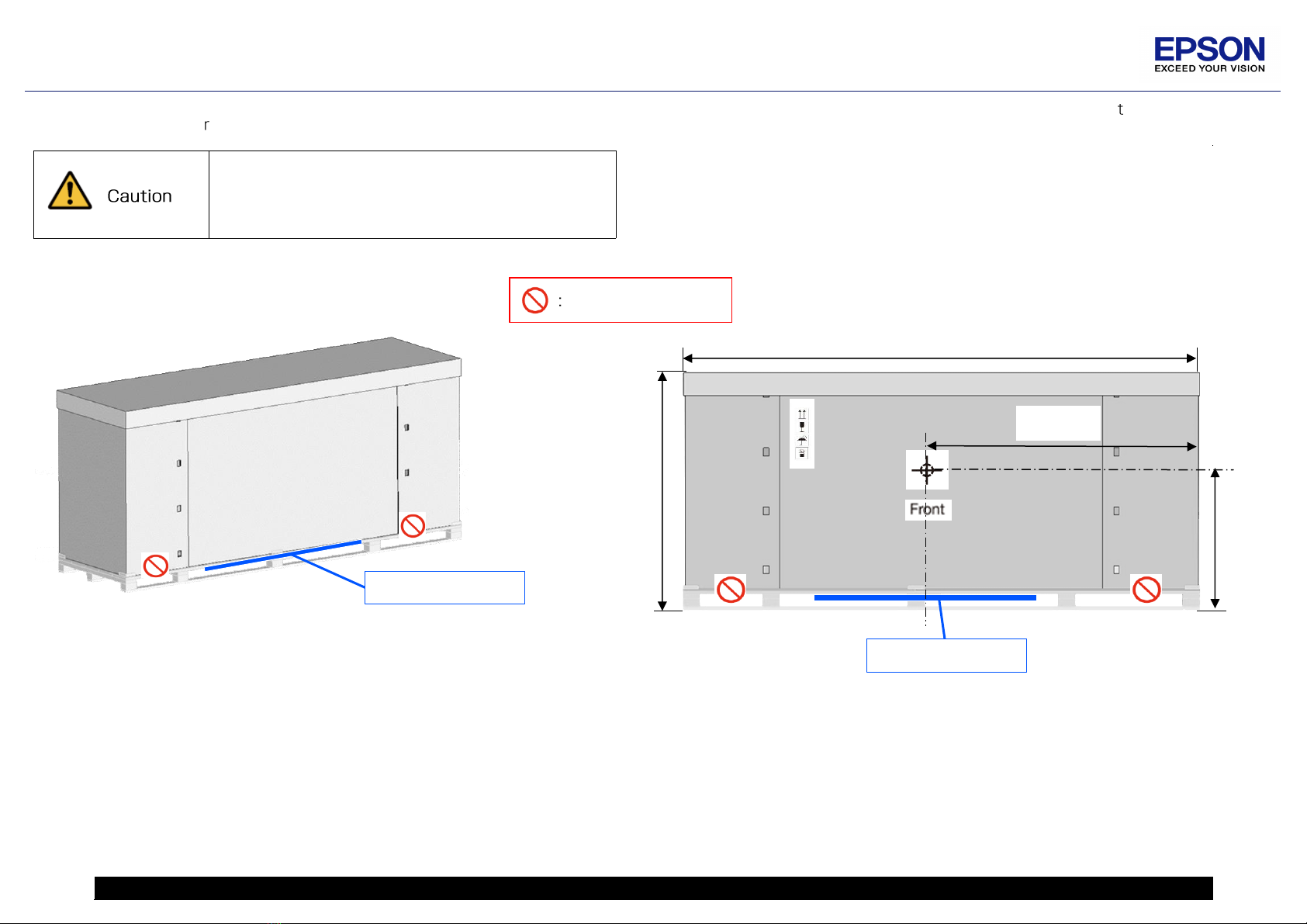

SC F10070 Lifiting Points - Main Unit

Confidential 1

12.6 ft

6.1 ft 3.8 ft

6.56 ft

Do not lift where prohibited.

If lifting from an incorrect position, the device will

be damaged.

Location of correct lifting positions on the rear side and prohibited areas.

Insert forklift forks into the lifting position while maintaining the center of gravity from

the long or short side of the pallet. Make sure the forks are inserted all the way in. Lifting position

No lifting position

Lifting position

Handling Instructions for ForkliftHANDLING AND UNPACKING

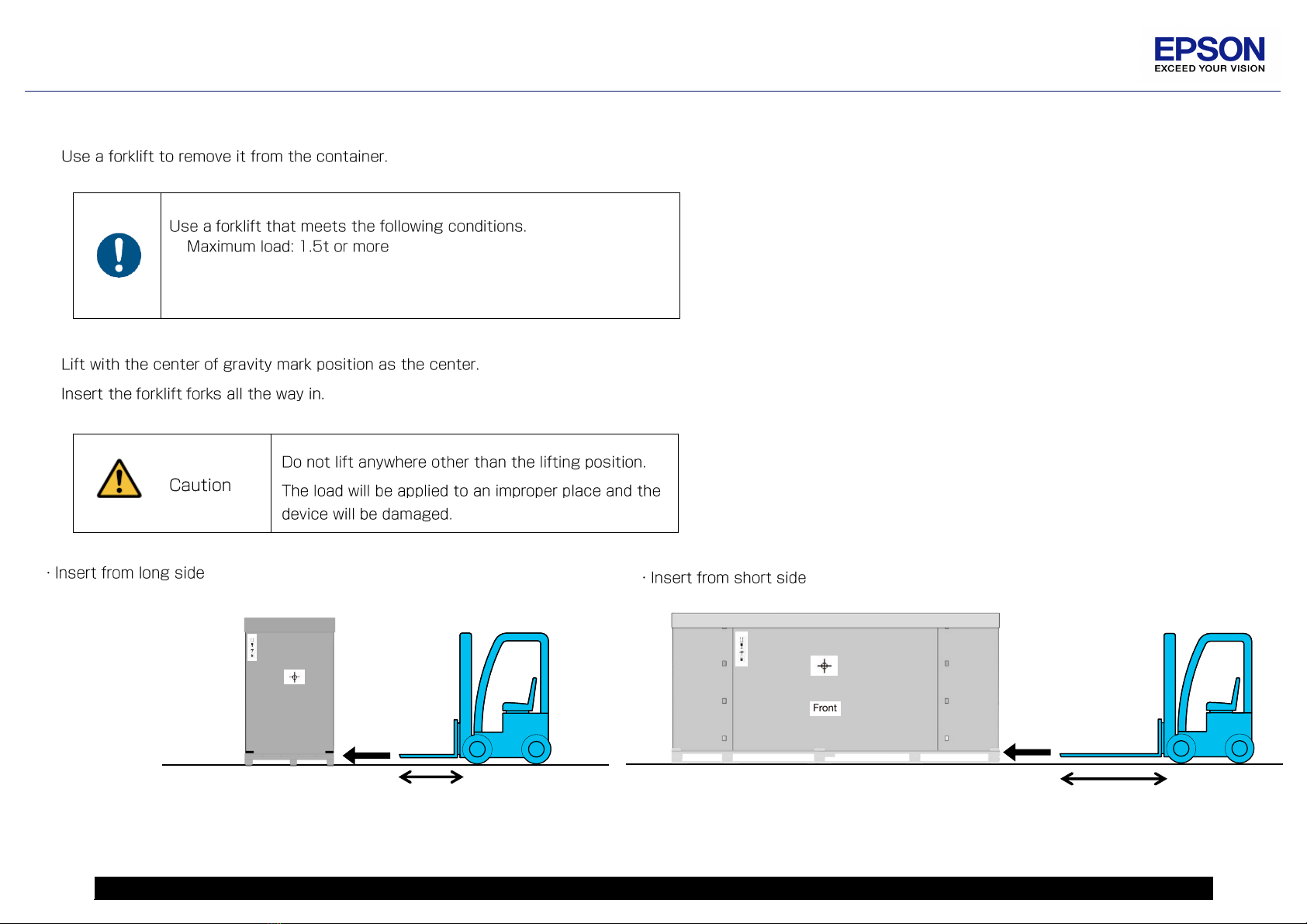

SC F10070 Positioning the Forklift - Main Unit

Confidential 1



Forklift forks length 8.2 ft or more

Forklift forks length 3.3 ft or more

Forklift forks thickness should be within 7.3 in.

Allowable load: Printer load is less than 1.5t

Location of correct lifting positions on the rear side and prohibited areas.

Handling Instructions for ForkliftHANDLING AND UNPACKING

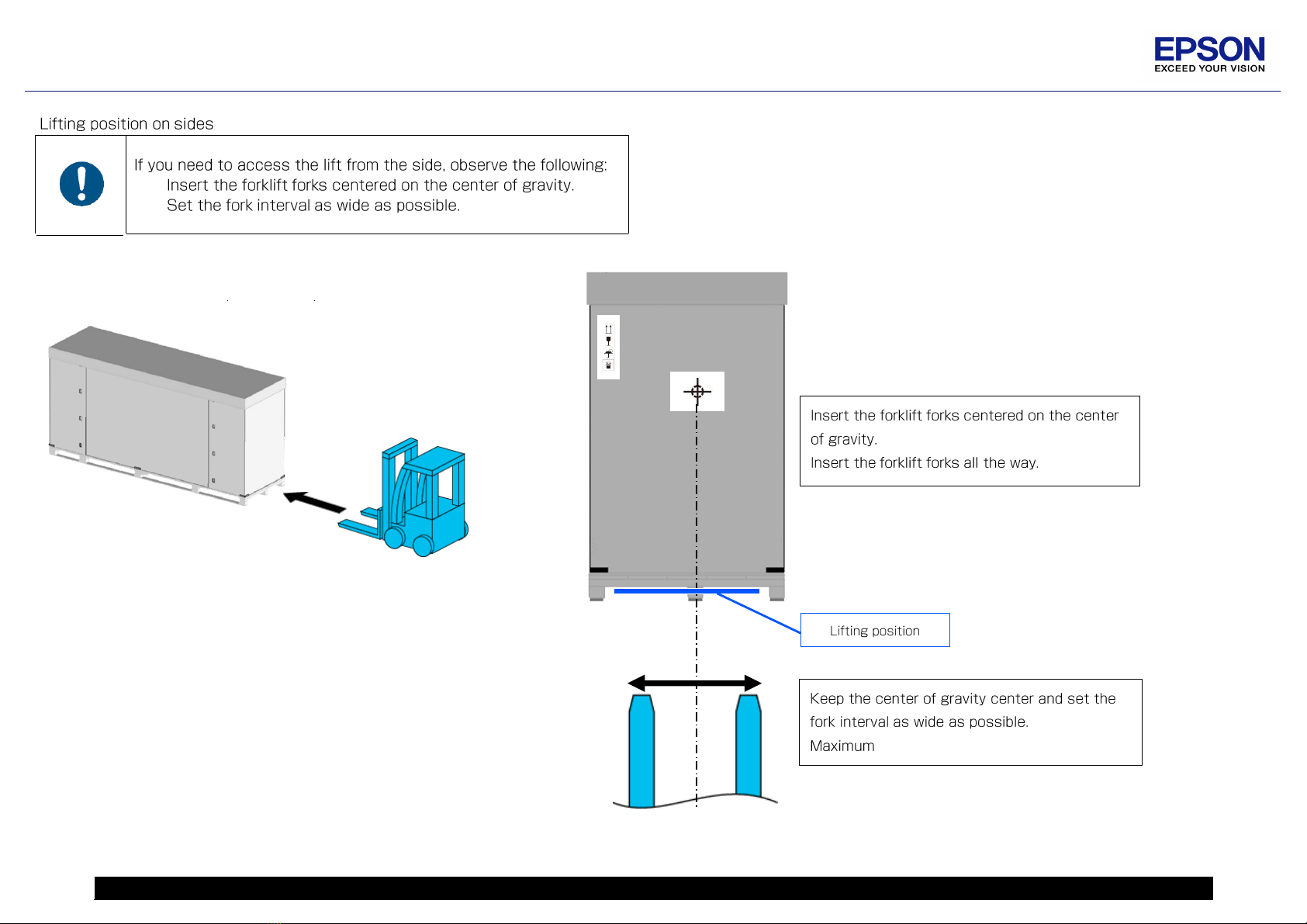

SC F10070 Lifting Position on Sides - Main Unit

Confidential 1

3.7 ft 3.7 ft

3.8 ft

2.0 ft

3.8 ft

2.0 ft

Handling Instructions for ForkliftHANDLING AND UNPACKING

SC F10070 Lifting Position on Sides - Main Unit

Confidential 1



2.62 ft

Handling Instructions for ForkliftHANDLING AND UNPACKING

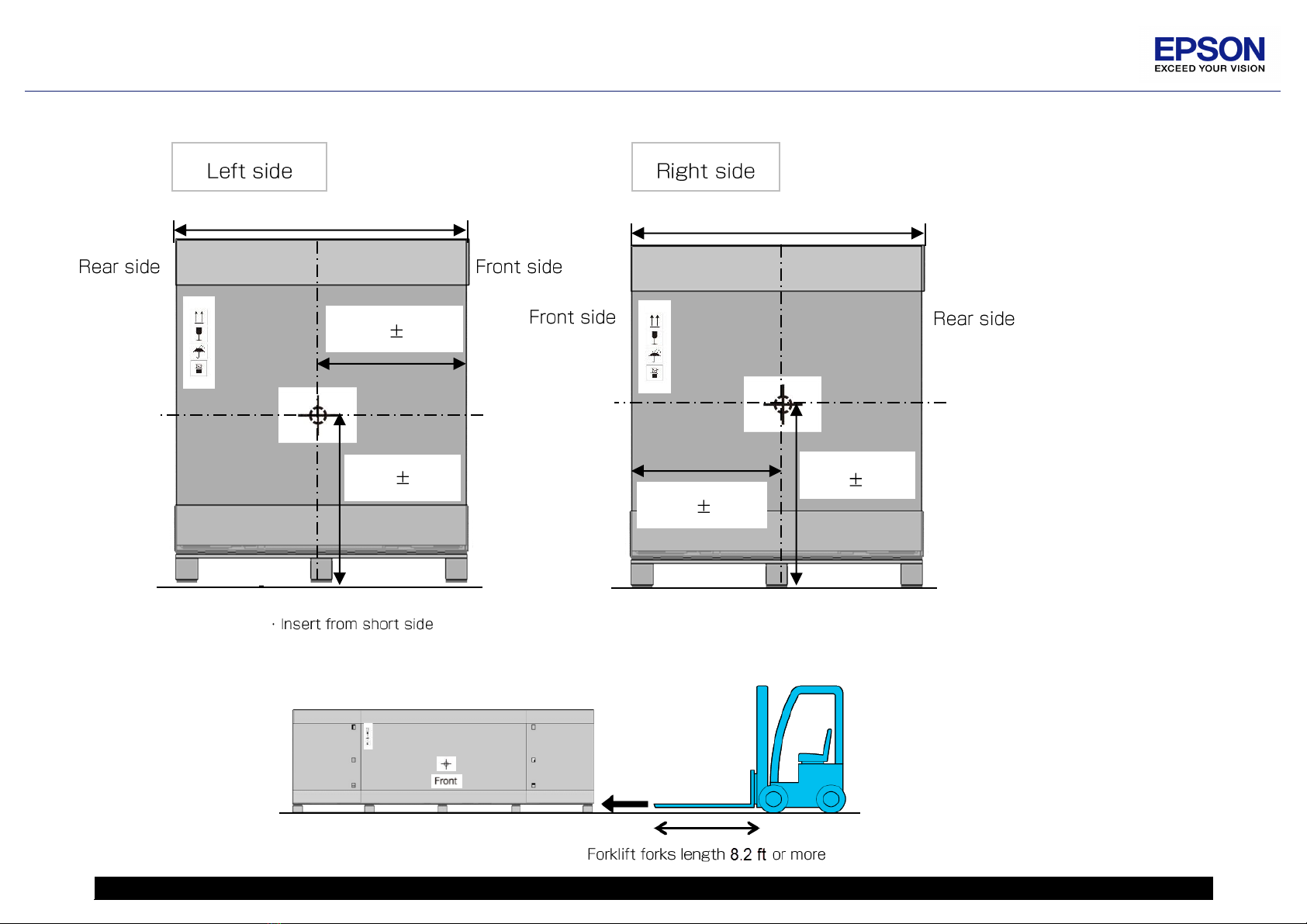

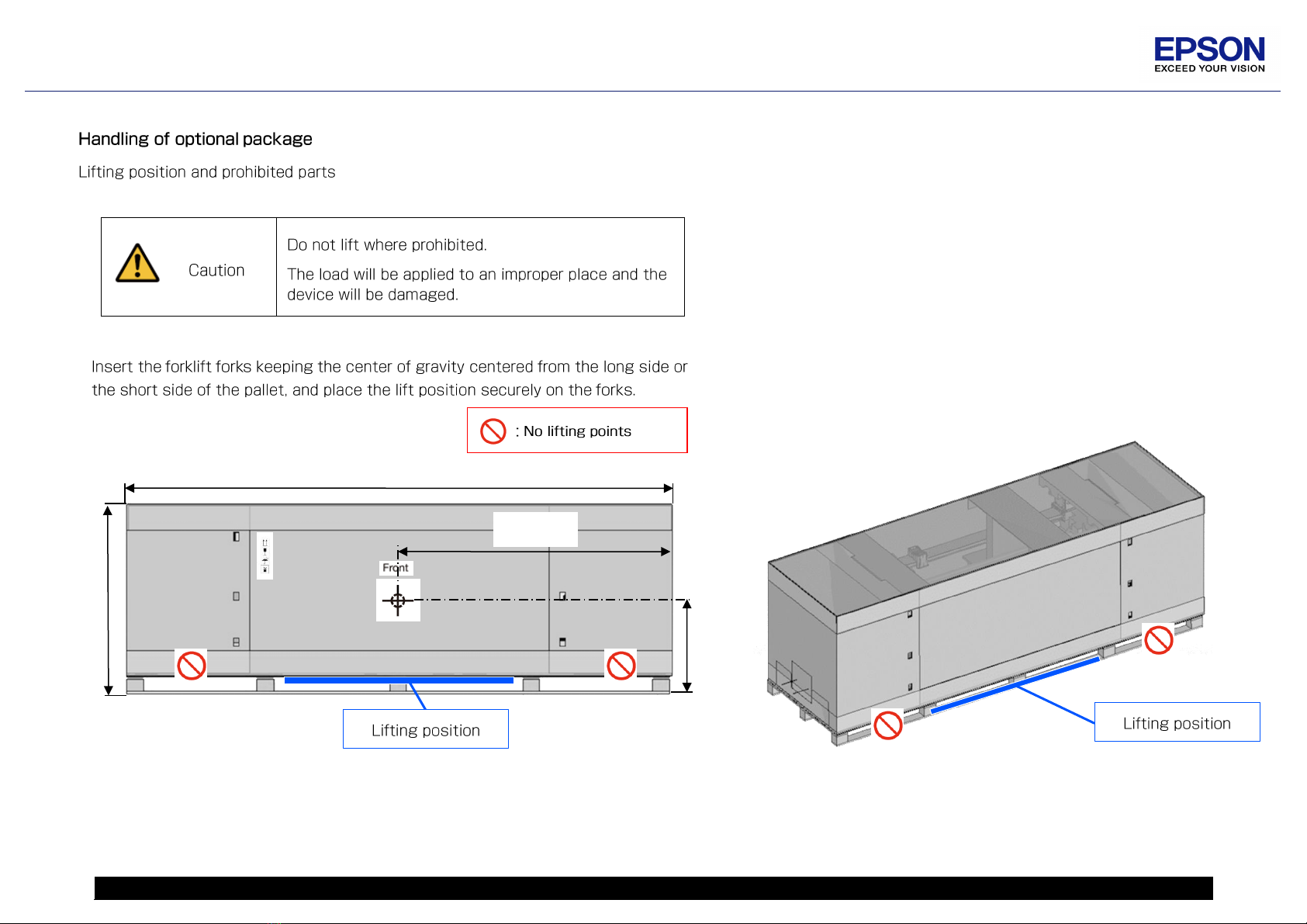

SC F10070 Option Set Lifting Position

Confidential 1

4'4"

12'6"

1'87"

6'1"

IMPORTANT

1. Move the box inside the building near the main unit setup location.

2. Do not unbox the Option Set at this time.

Handling Instructions for ForkliftHANDLING AND UNPACKING

SC F10070 Option Set Lifting Position

Confidential 1

3.7 ft 3.7 ft

22.2 in 0.79 in

22.4 in 0.79 in 22.4 in 0.79 in

Handling Instructions for ForkliftHANDLING AND UNPACKING

SC F10070 Option Set Cardboard Removal

Confidential 1

IMPORTANT

1. After moving the Option Set box to the printer setup location, remove the top and side

cardboard pieces from the pallet.

2. Leave the option components on the pallet.

3. Do not open the Bundled Accessories box.

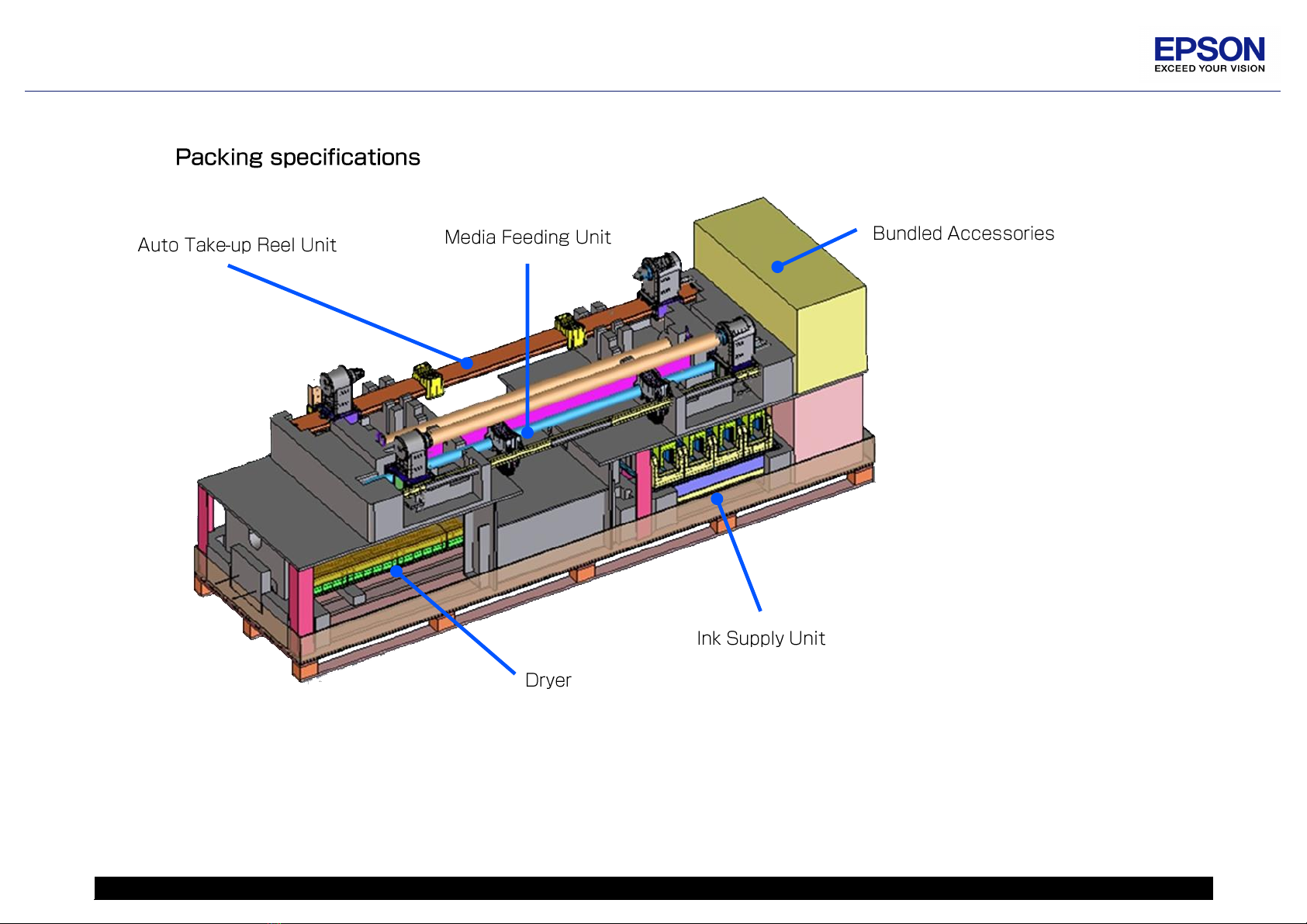

HANDLING AND UNPACKING Included in the Box
