Epson TM-C3400BK Manuale utente

User’s Manual / Petunjuk Penggunaan

Di Impor oleh:

PT. Epson Indonesia

Wisma Kyoei Prince Lt.16

Jalan Jenderal Sudirman Kav.3

Jakarta Pusat 10220, Indonesia

M00046400

User’s Manual

transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise,

without the prior written permission of Seiko Epson Corporation. No patent liability is assumed with respect

to the use of the information contained herein. While every precaution has been taken in the preparation of

this book, Seiko Epson Corporation assumes no responsibility for errors or omissions. Neither is any liability

assumed for damages resulting from the use of the information contained herein.

Neither Seiko Epson Corporation nor its affiliates shall be liable to the purchaser of this product or third

parties for damages, losses, costs, or expenses incurred by purchaser or third parties as a result of: accident,

misuse, or abuse of this product or unauthorized modifications, repairs, or alterations to this product, or

(excluding the U.S.) failure to strictly comply with Seiko Epson Corporation’s operating and maintenance

instructions.

Seiko Epson Corporation shall not be liable against any damages or problems arising from the use of any

options or any consumable products other than those designated as Original Epson Products or Epson

Approved Products by Seiko Epson Corporation.

EPSON is a registered trademark of Seiko Epson Corporation in Japan and other countries/regions.

Microsoft, Windows, Windows Vista, and Windows Server are registered trademarks of Microsoft

Corporation.

The Ethernet interface model of this product includes software developed by the University of California,

Berkeley, and its contributors.

NOTICE: The contents of this manual are subject to change without notice.

English

4TM-C3400BK User’s Manual

English

Precautions When Using This Printer for the First Time

CAUTION:

When using this printer for the first time, ink charging into the printer

automatically starts.

Never take the following actions during ink charging.

Opening the roll paper cover

Opening the ink cartridge cover

Turning off the power

Doing so will cause a significant amount of ink to be consumed, and the

ink cartridge may need to be replaced before ink charging is

completed.

1. Ink charging starts automatically after ➀installing the roll paper,

➁turning on the printer, and ➂installing the ink cartridge.

2. It takes approximately 8 minutes for ink charging. (During ink

charging, the Power LED flashes and the fan sounds.)

3. When ink charging is complete, the Power LED stays on, and the

fan sound stops.

4. After confirming that ink charging is complete, make the printer

settings according to your usage.

Notes:

After ink charging is complete, ink is not wasted by opening the covers or

turning off the power.

The printable amount is less than normal for the ink cartridge that is used

for ink charging.

Precautions on use

If you turn off the printer without using the power switch while using the

printer, the print head may not return to its home position. In this case,

the next time the printer is turned on, auto head cleaning is performed,

which wastes ink.

The colors of printouts may become uneven if you subject the printer to

shock or vibration. When you move this printer after ink charging, check

the colors by performing a test print before use.

If the colors of printouts are not normal, perform head cleaning.

TM-C3400BK User’s Manual 5

Safety Precautions

This section presents important information intended to ensure safe

and effective use of this product. Please read this section carefully and

store it in an accessible location.

WARNING:

Shut down your equipment immediately if it produces smoke, a strange

odor, or unusual noise. Continued use may lead to fire. Immediately

unplug the equipment and contact your dealer or a Seiko Epson service

center for advice.

Never attempt to repair this product yourself. Improper repair work can

be dangerous.

Never disassemble or modify this product. Tampering with this product

may result in injury or fire.

Use the specified AC Adapter (Epson Model M159B [PS-180]) only.

Connection to an improper power source may cause fire.

Be sure your power cable meets the relevant safety standards and

includes a power-system ground terminal (PE terminal). Otherwise shock

may result.

Do not allow foreign matter to fall into the equipment. Penetration by

foreign objects may lead to fire.

If water or other liquid spills into this equipment, unplug the power cord

immediately, and then contact your dealer or a Seiko Epson service

center for advice. Continued usage may lead to fire.

Do not use aerosol sprayers containing flammable gas inside or around

this product. Doing so may cause fire.

CAUTION:

Do not connect cables in ways other than those mentioned in this

manual. Different connections may cause equipment damage and

burning.

Be sure to set this equipment on a firm, stable, horizontal surface. The

product may break or cause injury if it falls.

Do not use in locations subject to high humidity or dust levels. Excessive

humidity and dust may cause equipment damage or fire.

Do not place heavy objects on top of this product. Never stand or lean

on this product. Equipment may fall or collapse, causing breakage and

possible injury.

To ensure safety, unplug this product before leaving it unused for an

extended period.

Do not remove the ink cartridge from the product when you ship it.

6TM-C3400BK User’s Manual

English

Caution Label

The caution label on the product indicates the following precaution.

CAUTION:

Take care not to injure your fingers on the fixed blade of the autocutter.

Restriction of Use

When this product is used for applications requiring high reliability/

safety, such as transportation devices related to aviation, rail, marine,

automotive, etc.; disaster prevention devices; various safety devices,

etc.; or functional/precision devices, etc.; you should use this product

only after giving consideration to including fail-safes and

redundancies into your design to maintain safety and total system

reliability.

Downloading Drivers, Utilities, and Manuals

Drivers, utilities, and manuals can be downloaded from the following

URL.

http://download.epson-biz.com/?service=pos

Unpacking

The following items should be included with the printer. If any items

are damaged, contact your dealer.

❏Label paper roll

❏Ink cartridge [Model: SJIC20P(K)]

❏Paper ejection tray

❏Power switch cover

❏AC adapter [Model: M159B (PS-180)]

❏AC cable

❏USB cable (USB interface model only)

❏Instruction sheet

❏User’s Manuals (for printer and AC adapter)

* The AC adapter is embedded in the printer.

* The AC cable may not be included with the printer.

TM-C3400BK User’s Manual 7

Part Names

Power switch

Turns on/off the printer.

Power switch cover

Installing the power switch cover onto the power switch prevents

inadvertent changing of the power switch.

WARNING:

If an accident occurs with the power switch cover attached, unplug

the AC cable immediately. Continued used may cause fire.

Release lever

Paper ejection guide

Paper ejection guide lock

Roll paper cover

Power switch

Ink cartridge cover

Paper ejection tray

Power LED

Error LED Ink LED

Paper LED

Cut button

Feed button

Paper ejection table

Power switch cover

Fanfold paper cover

Paper feed guide

Fanfold paper guide

8TM-C3400BK User’s Manual

English

Power LED

Lights when the power is on, and is off when the power is off.

Flashes when the printer is operating (initializing, head cleaning, or

printing) or in an error state.

Error LED

Lights or flashes when the printer is offline, and is off when the printer

is online.

Ink LED

Flashes when ink is low or waste ink in the ink cartridge is nearly full.

Lights when it is time to replace the ink cartridge, when the ink

cartridge is not installed or is not correctly installed, and when waste

ink in the ink cartridge is full.

Off when ink in the ink cartridge is adequate.

Paper LED

Lights when the paper is not installed or is not correctly installed.

Off when the paper is correctly installed.

Cut button

Cuts the paper.

FEED button

Feeds the paper.

Setup

Follow in order the steps below to set up the printer.

1. Installing the printer (See page 9.)

2. Connecting the AC cable (See page 9.)

3. Installing the ink cartridge (See page 10.)

4. Installing the printer driver and connecting the printer to the

computer (See page 11.)

5. Setting the DIP switches (See page 12.)

6. Installing the paper (See page 13.)

7. Attaching/adjusting the paper ejection tray (See page 21.)

TM-C3400BK User’s Manual 9

Installing the Printer

CAUTION:

Install the printer horizontally on a flat, stable, and vibration-free surface.

Otherwise, the roll paper cover may not operate correctly, and your

fingers may be caught.

Do not tilt the printer with the roll paper cover open. The roll paper

cover may close unexpectedly, and your fingers may be caught.

cover may be closed unexpectedly, and your fingers may be caught.

❏Be sure to open the roll paper cover and remove the cushion

materials in the printer.

❏Leave enough space in front of the printer for the ink cartridge

cover and the roll paper cover to be fully opened.

❏Do not place the printer in dusty locations.

❏Protect the printer from heavy impacts. They may cause defective

print.

❏Do not allow cables to catch or foreign matter to accumulate under

the printer.

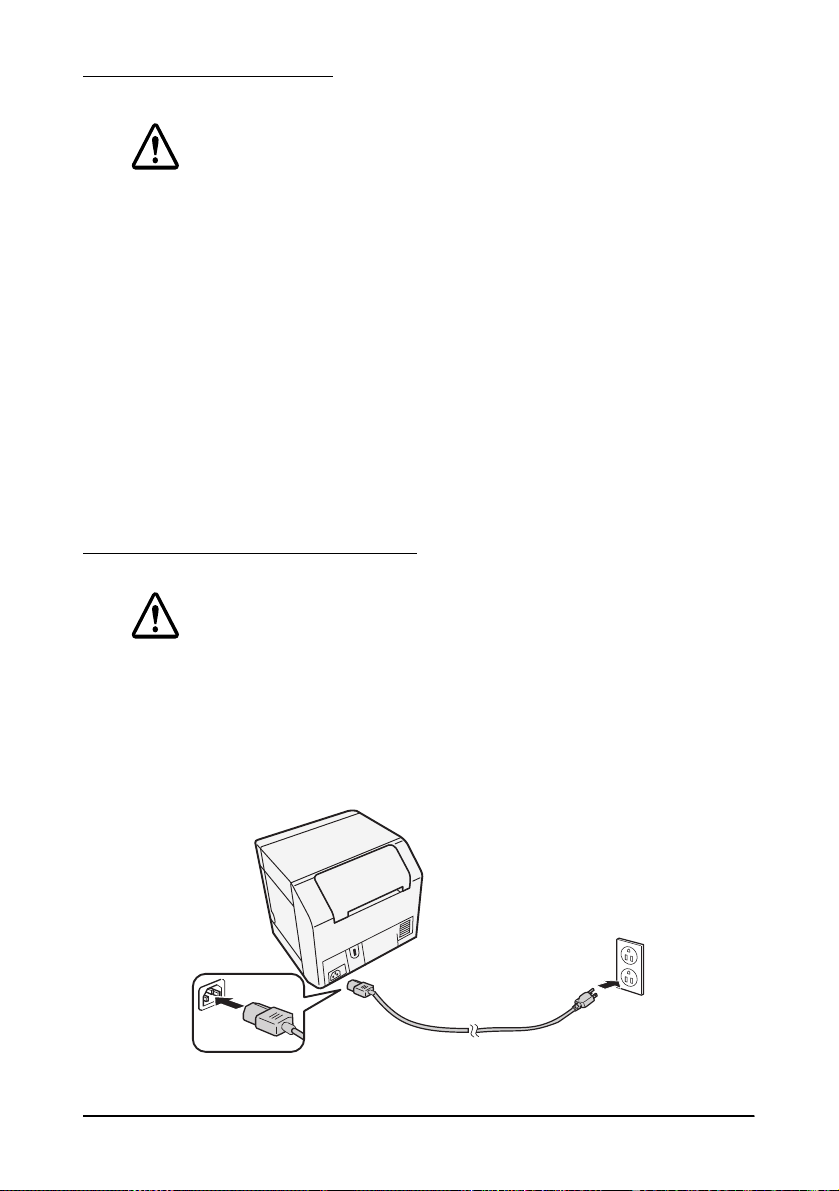

Connecting the AC Cable

WARNING:

Always use the Epson Model M159B (PS-180) as the AC adapter. Using

the other AC adapter can result in electric shock and fire.

Should a fault ever occur in the AC adapter, immediately turn off the

power to the printer and remove the AC cable from the wall socket.

Insert the connector of the AC cable to into the AC inlet, and then

insert the power plug of the AC cable into the wall socket.

10 TM-C3400BK User’s Manual

English

Installing/Replacing the Ink Cartridge

CAUTION:

When the ink cartridge is installed for the first time, be sure to install the

roll paper before installing the ink cartridge. For details on how to install

the label paper roll, see “Installing Paper” on page 13.

Epson recommends the use of genuine Epson ink cartridges. The use of

non-genuine ink may cause damage that is not covered by Epson's

warranties, and under certain circumstances, may cause erratic

product behavior.

Do not open the ink cartridge package until you are ready to install it in

the printer.

Do not remove the ink cartridge from the printer when you ship it.

1. Turn on the printer and make sure that the Ink LED lights.

2. Pull the ink cartridge cover to open it.

3. Remove the used cartridge, if any.

4. Shake the ink cartridge package 4 or 5 times before opening it.

5. Push the ink cartridge gently into the cartridge holder as shown below.

6. Close the ink cartridge cover.

When the ink cartridge is installed for the first time, the printer

takes approximately 8 minutes for ink charging. The Power LED

flashes during ink charging. Do not turn off the printer or open the

roll paper cover or the ink cartridge cover. When ink charging

finishes, the Power LED stays on after flashing.

Note:

When the ink cartridge is installed for the first time, the printer uses ink to

prepare for printing (ink charging).

Cartridge yields vary based on such factors as type of item printed, print

settings, paper type, frequency of use, and temperature.

To insure print quality, some ink remains in the cartridge after the Ink LED

comes on.

Altri manuali per TM-C3400BK

Indice

Lingue:

Altri manuali Epson Stampante

Epson

Epson C1100 - AcuLaser Color Laser Printer Manuale utente

Epson

Epson TM-H6000II M147B Manuale utente

Epson

Epson Stylus Pro GS6000 Manuale d'uso e manutenzione

Epson

Epson Stylus Color 880 Manuale di istruzioni

Epson

Epson PhotoPC 700 Manuale utente

Epson

Epson Stylus Pro 7500 Manuale utente

Epson

Epson AcuLaser C8600 Manuale utente

Epson

Epson Proo?ng Edition Series Manuale utente

Epson

Epson Stylus C80WN Istruzioni operative e di sicurezza

Epson

Epson R320 - Stylus Photo Color Inkjet Printer Manuale di istruzioni

Epson

Epson LQ-300+II Manuale di istruzioni

Epson

Epson TM-P60II Manuale utente

Epson

Epson WorkForce WF-M1030 Manuale di istruzioni

Epson

Epson B-300 - Business Color Ink Jet Printer Manuale del proprietario

Epson

Epson Aculaser C9200N Manuale utente

Epson

Epson Stylus TX235 Manuale utente

Epson

Epson Stylus Color 660 Manuale utente

Epson

Epson LQ-2080 Manuale utente

Epson

Epson Stylus COLOR 3000 Manuale utente

Epson

Epson Stylus Photo - Ink Jet Printer Manuale utente

Epson

Epson Stylus Pro 4800 Portrait Edition Manuale utente

Epson

Epson ET-5850U Manuale utente

Epson

Epson Stylus Pro 7880 ColorBurst Edition - Stylus Pro 7880... Manuale utente

Epson

Epson ET-16650U Manuale utente

Manuali Stampante popolari di altre marche

Lexmark

Lexmark 1400 Series Manuale

Canon

Canon i70 Series Manuale utente

Evolis

Evolis Elypso Manuale utente

Kyocera

Kyocera FS-9530DN Manuale utente

Canon

Canon LASER SHOT LBP-1210 Manuale utente

Samsung

Samsung BIXOLON SRP-350plusF Manuale utente

Canon

Canon PIXMA PRO-1 Series Manuale utente

Canon

Canon PIXMA G3560 Guida all'installazione

Dell

Dell Color Laser Printer 2130cn Manuale utente

Tektronix

Tektronix Phaser 840 Manuale utente

Canon

Canon CLBR 460ps Manuale utente

Eltron

Eltron P210 Guide Manuale utente

Ricoh

Ricoh MD-P1 Manuale utente

Canon

Canon imagePASS-A2 Manuale utente

Canon

Canon S820D Manuale utente

IRA3D

IRA3D POETRY4 Manuale utente

Ricoh

Ricoh Aficio AP400 Manuale utente

BIXOLON

BIXOLON SRP-352plusV Manuale utente
