DIP Switch Tables

*1. Only when DIP Switches 1-7 and 1-8 are on, the

transmission speed can be selected from one of

seven speeds: 2400, 4800, 9600, 19200, 38400, 57600,

and 15200 bps. The default is 38400.

Specifications

Serial Interface (DIP switch 1)

SW Function ON OFF

1-1 Data receive error Ignored Prints “?”

1-2 Receive buffer

capacity

45 bytes 4K bytes

1-3 Handshaking XON/XOFF DTR/DSR

1-4 Data word length 7 bits 8 bits

1-5 Parity check Enabled Disabled

1-6 Parity selection Even Odd

1-7

1-8

Transmission speed (See table below.)

Transmission speed

Transmission speed (bps)-bits per second 1-7 1-8

38400 *1 ON ON

4800 OFF ON

9600 ON OFF

19200 OFF OFF

Serial Interface (DIP switch 2)

SW Function ON OFF

2-1 Handshaking

(BUSY condition)

Receive buffer

full

Offline or

Receive buffer

full

2-2 Do not change

2-3

2-4

Print density/

Low power

See Table A

2-5 Release condition

of receive buffer

BUSY (If receive

buffer capacity

set to 4 KB.)

Releases BUSY

when remaining

receive buffer

capacity

reaches

138 bytes.

Releases BUSY

when remaining

receive buffer

capacity

reaches

256 bytes.

2-6 Do not change

2-7 I/F pin 6 reset Enabled Disabled

2-8 I/F pin 25 reset Enabled Disabled

Parallel Interface (DIP switch 1)

SW Function ON OFF

1-1 Auto line feed Always

enabled

Always disabled

1-2 Receive buffer

capacity

45 bytes 4K bytes

1-3 Select paper

sensors to output

paper-end

signals (default

value of ESC C 3)

Disabled Roll Paper end

sensor enabled,

Roll Paper near-

end sensor

enabled

1-4 Error signal output Disabled Enabled

1-5~

1-8

Undefined

Parallel Interface (DIP switch 2)

SW Function ON OFF

2-1 Handshaking

(BUSY condition)

Receive buffer

full

Offline or

Receive buffer

full

2-2 Do not change

2-3

2-4

Print density/

Low power

See Table A

2-5 Release condition

of receive buffer

BUSY (If receive

buffer capacity

set to 4 KB.)

Releases BUSY

when remaining

receive buffer

capacity

reaches

138 bytes.

Releases BUSY

when remaining

receive buffer

capacity

reaches

256 bytes.

2-6

2-7

Do not change

2-8 I/F pin 31 reset (Do not change)

Table A

Print density/low power SW 2-3 SW 2-4

– Low power consumption mode ON ON

Print density “Normal” OFF OFF

Print density “Medium” ON OFF

Print density “Dark” OFF ON

Printing method Thermal line printing

Dot density 180 dpi ×180 dpi [dots per 25.4 mm {1"}]

Printing direction Unidirectional with friction feed

Printing width 80 mm paper width model: 72 mm {2.83"}, 512 dot positions

Characters per line

(default)

80 mm paper width model: Font A: 42; Font B: 56

English

lps: lines per second dpi: dots per 25.4 mm (dots per inch)

Character spacing

(default)

Font A: 0.28 mm {.01"} (2 dots); Font B: 0.28 mm {.01"} (2 dots)

Character size Standard/Double-height/Double-width/Double-width and Double-height

Font A: 1.41 × 3.39 mm/1.41 × 6.77 mm/2.82 × 3.39 mm/2.82 × 6.77 mm

Font B: 0.99 × 2.40 mm/0.99 × 4.80 mm/1.98 × 2.40 mm/1.98 × 4.80 mm

Number of characters Alphanumeric characters: 95; International characters: 37

Extended graphics: 128 × 11 pages (including user-defined page)

Printing speed High-speed mode:

200 mm/s {7.9"/s} max.; 47.2 lps (4.23 mm {1/6"} feed)

Ladder bar code and 2D code: 100mm/s {2.4"/s}

Low-power consumption mode:

150 mm/s {5.9"/s} max.; 35.5 lps (4.23 mm feed {1/6"})

Bit image, Ladder bar code, 2D code and Page mode: 60mm/s {2.4"/s}

The above speed values are approximate.

The values are when the printer prints with density "Normal" at 24 V and

25°C {77°F}

Speed is adjusted automatically depending on the voltage applied and

head temperature.

Paper feed speed Approx. 200 mm/s {approx. 7.9"/s} continuous paper feed

Line spacing (default) 4.23 mm {1/6"}

Character structure Font A: 12 × 24; Font B: 9 × 17 (including 2-dot horizontal spacing)

Font A is the default.

Roll Paper (single-ply) Size: 80 mm paper width model: 79.5 mm ± 0.5 mm {3.13" ± 0.02"},

Maximum outside diameter: 83 mm {3.26"}

Roll Paper spool diameter: Inside: 12 mm {0.47"}; Outside: 18 mm {0.71"}

Thermal paper type Specified: NTP080-80

Interface

(compatible)

Serial (RS232/RS485)/Parallel (IEEE1284)/Ethernet (10/100Base-T)/

USB (Full speed)

Receive buffer 4KB/45 bytes

Cash drawer function 2 drives

Supply voltage DC + 24 V ± 7%

Current consumption High-speed mode: Mean: Approx. 1.8A

Low-power consumption mode: Mean: Approx. 1.1A

Temperature Operating: 5 to 45°C {41 to 113°F}

Storage: –10 to 50°C {14 to 122°F}, except for paper

Humidity Operating: 10 to 90% RH

Storage: 10 to 90% RH, except for paper

Overall dimensions 148 × 145 × 195 mm {5.83 × 5.71 × 7.68"} (H × W × D)

Weight (mass) Approx. 1.8 kg {3.96 lb}

English

TM-T88IV User’s Manual 1

English

TM-T88IV

User’s Manual

DIP Switch Tables and Specifications

The DIP switch tables and technical specifications are at the beginning of this manual.

Illustrations

All of the illustrations are at the beginning of this manual. They are identified by letters (A, B, C . . .). Some

of the illustrations have numbers in them. See the list below for the meaning of the numbers.

transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise,

without the prior written permission of Seiko Epson Corporation. No patent liability is assumed with

respect to the use of the information contained herein. While every precaution has been taken in the

preparation of this book, Seiko Epson Corporation assumes no responsibility for errors or omissions.

Neither is any liability assumed for damages resulting from the use of the information contained herein.

Neither Seiko Epson Corporation nor its affiliates shall be liable to the purchaser of this product or third

parties for damages, losses, costs, or expenses incurred by purchaser or third parties as a result of:

accident, misuse, or abuse of this product or unauthorized modifications, repairs, or alterations to this

product, or (excluding the U.S.) failure to strictly comply with Seiko Epson Corporation’s operating and

maintenance instructions.

Seiko Epson Corporation shall not be liable against any damages or problems arising from the use of any

options or any consumable products other than those designated as Original Epson Products or Epson

Approved Products by Seiko Epson Corporation.

EPSON and ESC/POS are registered trademarks of Seiko Epson Corporation.

NOTICE: The contents of this manual are subject to change without notice.

Illustration A: Illustration C:

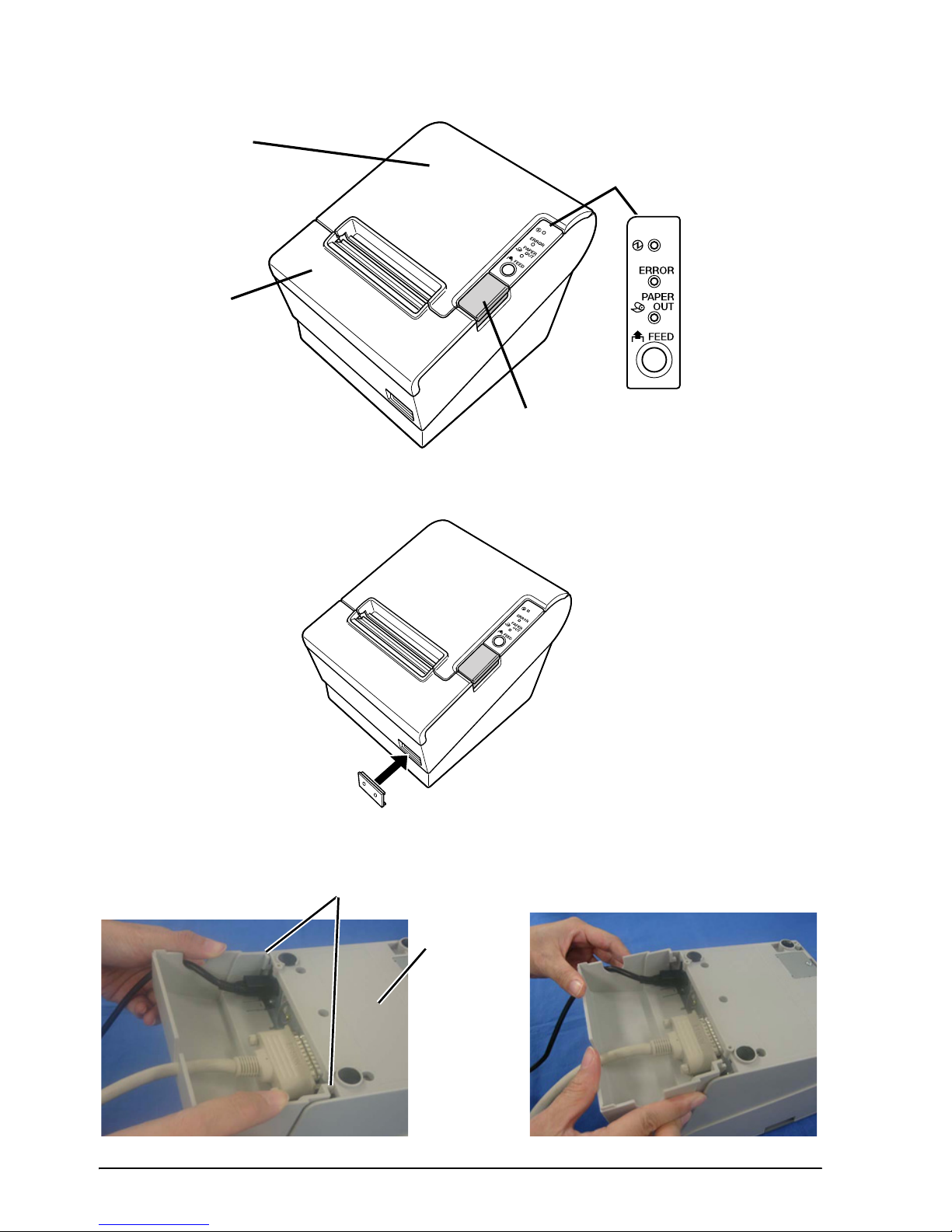

Printer Parts 5. Hook

1. Printer cover 6. Bottom of the printer

2. Cutter cover

3. Cover open button

4. Control panel

2TM-T88IV User’s Manual

English

EMC and Safety Standards Applied

Product Name: TM-T88IV

Model Name: M129H

The following standards are applied only to the printers that are so labeled. (EMC is tested using the

Epson power supplies.)

Europe: CE marking

Safety: EN 60950

North America: EMI: FCC/ICES-003 Class A

Safety: UL 1950/CSA C22.2 No. 950

Japan: EMC: VCCI Class A

Oceania: EMC: AS/NZS CISPR22 Class B

China: EMC: GB9254

GB17625.1

Safety: GB4943

Taiwan: EMC: CNS13438

Safety: CNS14336

WARNING

The connection of a non-shielded printer interface cable to this printer will invalidate the EMC standards

of this device. You are cautioned that changes or modifications not expressly approved by Seiko Epson

Corporation could void your authority to operate the equipment.

CE Marking

The printer conforms to the following Directives and Norms:

Directive 89/336/EEC EN 55022 Class B

EN 55024

IEC 61000-4-2

IEC 61000-4-3

IEC 61000-4-4

IEC 61000-4-5

IEC 61000-4-6

IEC 61000-4-11

FCC Compliance Statement For American Users

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant

to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference when the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference, in which case the

user will be required to correct the interference at his own expense.

For Canadian Users

This Class A digital apparatus complies with Canadian ICES-003.

Precautions When Installing the Power Supply Box

A description of EMI standards is on the bottom of the printer. When the optional

power supply box (OT-BX88) is installed, it is hard to check it. In such case,

uninstall the power supply box if necessary.

TM-T88IV User’s Manual 3

English

Safety Precautions

This section presents important information intended to ensure safe and effective

use of this product. Please read this section carefully and store it in an accessible

location.

WARNING:

Shut down your equipment immediately if it produces smoke, a strange odor, or

unusual noise. Continued use may lead to fire. Immediately unplug the

equipment and contact your dealer or a Seiko Epson service center for advice.

Never attempt to repair this product yourself. Improper repair work can be

dangerous.

Never disassemble or modify this product. Tampering with this product may

result in injury or fire.

Be sure to use the specified power source. Connection to an improper power

source may cause fire.

Do not allow foreign matter to fall into the equipment. Penetration by foreign

objects may lead to fire.

If water or other liquid spills into this equipment, unplug the power cord

immediately, and then contact your dealer or a Seiko Epson service center for

advice. Continued usage may lead to fire.

If you open the DIP switch cover, be sure to close the cover and tighten the

screw after adjusting the DIP switch. Using this product with the cover open

may cause fire or electric shock.

CAUTION:

Do not connect cables in ways other than those mentioned in this manual.

Different connections may cause equipment damage and burning.

Be sure to set this equipment on a firm, stable, horizontal surface. The product

may break or cause injury if it falls.

Do not use in locations subject to high humidity or dust levels. Excessive humidity

and dust may cause equipment damage or fire.

Do not place heavy objects on top of this product. Never stand or lean on this

product. Equipment may fall or collapse, causing breakage and possible injury.

To ensure safety, unplug this product before leaving it unused for an extended

period.

When using compressed air products; such as air dusters, for cleaning during

repair and maintenance, the use of such products containing flammable gas is

prohibited.

Caution Labels

CAUTION:

The thermal head is hot.

CAUTION:

Touching the manual cutter may cause injury.

4TM-T88IV User’s Manual

English

Unpacking

The following items are included with the standard specification printer. If any

item is damaged, contact your dealer.

❏Printer ❑Roll Paper

❏Power switch cover ❑Connector cover *

❏AC adapter *

* May not be included with your printer.

Important Installation Notes

❏For a serial interface, use a null modem cable.

❏For a parallel interface, use an IEEE 1284 cable.

❏For a USB interface, install the driver before connecting the printer.

Downloading Drivers, Utilities, and Manuals

Drivers, utilities, and manuals can be downloaded from one of the following

URLs.

For customers in North America, go to the following web site:

http://www.epsonexpert.com/ and follow the on-screen instructions.

For customers in other countries, go to the following web site:

http://www.epson-pos.com/

Select the product name from the “Select any product” pulldown menu.

Installing the Printer Horizontally or Vertically

You can install the printer horizontally on a flat surface (with the paper exit on

top) or vertically (with the paper exit at the front) by hanging it on a wall, using

the optional WH-10 hanging bracket set.

WARNING:

When hanging the printer on the wall with the hanging bracket set, be sure to

attach a connector cover to the printer.

Control Panel

FEED button

This button feeds paper.

(Power) LED

This LED is on when the printer is on.

ERROR LED

This indicates an error.

PAPER OUT LED

On indicates a paper near end or out. Flashing indicates standby.

Altri manuali per TM-T88IV ReStick

Indice

Lingue:

Altri manuali Epson Stampante

Epson

Epson Stylus Pro 4800 Portrait Edition Manuale utente

Epson

Epson LQ 1050 - B/W Dot-matrix Printer Manuale utente

Epson

Epson TM T81M Manuale utente

Epson

Epson 7800 - Stylus Pro Color Inkjet Printer Manuale

Epson

Epson Stylus Pro 10000CF Guida utente

Epson

Epson Stylus C62 Manuale di istruzioni

Epson

Epson FX-2175II Manuale utente

Epson

Epson WF-4830 Series Manuale utente

Epson

Epson Stylus Pro 7700 Series Manuale utente

Epson

Epson B-510DN - Business Color Ink Jet Printer Manuale utente

Epson

Epson Stylus Color C70 Manuale utente

Epson

Epson PictureMate PM 210 Manuale utente

Epson

Epson Artisan 635 Manuale utente

Epson

Epson Mobilink TM-P60 Manuale utente

Epson

Epson Stylus CX3800 Series Manuale utente

Epson

Epson 2000P - Stylus Photo Color Inkjet Printer Manuale utente

Epson

Epson Expression Premium XP-800 Manuale di istruzioni

Epson

Epson Stylus Photo - Ink Jet Printer Manuale utente

Epson

Epson EPL-N7000 Istruzioni di installazione e manutenzione

Epson

Epson R2880 - Stylus Photo Color Inkjet Printer Manuale utente

Epson

Epson M119A Manuale utente

Epson

Epson SureColor F2100 Series Manuale utente

Epson

Epson GP-C831 Manuale dell'operatore

Epson

Epson WF-2650 Manuale di istruzioni

Manuali Stampante popolari di altre marche

Lexmark

Lexmark 1400 Series Manuale

Canon

Canon i70 Series Manuale utente

Evolis

Evolis Elypso Manuale utente

Kyocera

Kyocera FS-9530DN Manuale utente

Canon

Canon LASER SHOT LBP-1210 Manuale utente

Samsung

Samsung BIXOLON SRP-350plusF Manuale utente

Canon

Canon PIXMA PRO-1 Series Manuale utente

Canon

Canon PIXMA G3560 Guida all'installazione

Dell

Dell Color Laser Printer 2130cn Manuale utente

Tektronix

Tektronix Phaser 840 Manuale utente

Canon

Canon CLBR 460ps Manuale utente

Eltron

Eltron P210 Guide Manuale utente

Ricoh

Ricoh MD-P1 Manuale utente

Canon

Canon imagePASS-A2 Manuale utente

Canon

Canon S820D Manuale utente

IRA3D

IRA3D POETRY4 Manuale utente

Ricoh

Ricoh Aficio AP400 Manuale utente

BIXOLON

BIXOLON SRP-352plusV Manuale utente
