Epson TM-T88V-i Manuale utente

User’s Manual

Important Safety Information. . . . . . . . . . . . . . . . . . .page 2

Part Names and Functions. . . . . . . . . . . . . . . . . . . . . .page 4

Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 6

Basic Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 10

Installing/Replacing the Roll Paper . . . . . . . . . . . page 12

Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 14

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 15

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 17

Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 18

M00076400EN

English

Important Safety Information

This manual presents important information intended to ensure safe and effective use of this

product. Read this manual carefully and store it in an accessible location.

For information on development of a system with this product and setup, see also Technical

Reference Guide. You can access Technical Reference Guide from the included Manual CD.

Key to Symbols

The symbols in this manual are identified by their level of importance, as defined below. Read the

following carefully before handling the product.

WARNING:

Warnings must be observed carefully to avoid serious bodily injury.

CAUTION:

Cautions must be observed to avoid minor injury to yourself, damage to your equipment, or loss of

data.

QNote:

Notes have important information and useful tips on the operation of your product.

Safety Precautions

WARNING:

❏

If this product produces smoke, a strange odor, or unusual noise, immediately unplug the

AC cable, and then contact your dealer or an Epson service center for advice. Continued

use may lead to fire or electric shock.

❏

Do not use this product with any voltage other than the specified one. Doing so may lead

to fire or electric shock.

❏

Be sure to use the specified power source, Epson AC adapter, RA (Model: M266A).

Connection to an improper power source may lead to equipment damage, fire, or electric

shock.

❏

Do not connect the cables in ways other than those specified in the manuals. Different

connections may cause equipment damage or fire.

❏

Do not use this product where inflammable fumes of gasoline, benzine, thinner, or other

inflammable liquids may be in the air. Doing so may cause an explosion or fire.

❏

Do not use aerosol sprayers containing flammable gas inside or around this product.

Doing so may cause fire.

❏

If water or other liquid spills into this product, immediately unplug the AC cable, and then

contact your dealer or an Epson service center for advice. Continued use may lead to fire

or shock.

❏

Do not allow foreign objects to fall into this product. Penetration by foreign objects may

lead to fire or electric shock.

❏

Never attempt to repair this product yourself. Improper repair work can be dangerous.

English

❏

Never disassemble or modify this product. Tampering with this product may result in

injury, fire, or electric shock.

CAUTION:

❏

Do not use this product in locations subject to high humidity or dust levels. Excessive humidity

and dust may cause paper jams and other problems, such as fire, or electric shock.

❏

Be sure to set this product on a firm, stable, horizontal surface. The product may break or cause

injury if it falls.

❏

Do not stand on or place heavy objects on top of this product. Equipment may fall or collapse,

causing breakage and possible injury.

❏

Take care not to injure your fingers on the manual cutter

• when you remove printed paper.

• when you perform other operations such as installing/replacing roll paper.

❏

The print head can be very hot during and immediately after printing. If you need to touch it, such

as for cleaning, wait until it cools down. Touching it before that may cause burns.

❏

Do not connect a telephone line to the drawer-kick connector of this product. The telephone line

or product may become damaged.

❏

To ensure safety, unplug this product before leaving it for an extended period.

Caution Labels

The caution label on the product indicates the following precautions.

CAUTION:

Do not touch the thermal head and the frame on its side because they can be very hot after printing.

CAUTION:

When connecting external devices to the USB (including Micro-USB) ports, follow the precautions

below.

❏

Confirm the rated current of the external devices by checking the descriptions on the devices or

manuals. Connect the external devices only when those total rated current is less than 2.0 A. Do

not use a device whose rated current is unclear.

❏

Use UL-approved external devices (only for North American users).

English

Part Names and Functions

Roll paper cover

Open this cover to install/replace the roll paper.

Manual cutter

Use this cutter when you cut the roll paper manually.

Cutter cover

Open this cover to unlock the autocutter blade when the roll paper cover does not open due to a

paper jam. (U

“Paper is jammed” on page 15

)

Power switch

Use this switch to turn on or off the printer.

Cover open button

Use this button to open the roll paper cover.

Connector cover

Use the printer with this cover attached to protect cables. (U

“Attaching the Connector Cover” on

page 8

)

Roll paper cover

Manual cutter

Cutter cover

Power switch

Cover open button

Connector cover

Control panel

English

Control panel

❏

(Power) LED: This LED is on when the printer is on.

❏

Error LED: This LED indicates an error. (U

“Error LED is on” on page 15

“Error LED is

flashing” on page 15

)

❏

Paper LED: This LED is on when the paper is near end or out. This LED flashes when the

printer is in standby.

❏

Feed button: This button feeds paper.

Interface

All the ports and connectors are located on the back of the printer.

QNote:

If the connector cover is attached, detach it to access the ports or connectors. (U

“Detaching the

connector cover” on page 9

)

Drawer kick-out connector

Serial port

micro SD card slot

Micro-USB port

Ethernet port

USB ports

DC-in (5 V)

DC-in

(24 V)

USB port

English

Setup

Connecting the AC Adapter

Follow the steps below to connect the AC adapter.

WARNING:

Be sure to use the specified AC adapter [AC adapter, RA (Model: M266A)]. Connection to an

improper power source may lead to equipment damage, fire, or electric shock.

1. Firmly insert the DC connectors of the AC adapter all the way into the 5 V and 24 V DC-in

connectors on the printer.

2. Firmly insert the connector of the AC cable all the way into the AC inlet on the AC adapter.

3. Firmly insert the plug all the way into the grounded wall outlet.

4. Set the AC adapter so that its label side is facing down.

DC-in (24V)

DC-in (5V)

English

Connecting External Devices

If you connect external devices, connect each cable to the port/connector on the back of the

printer. (U

“Interface” on page 5

)

CAUTION:

❏

When connecting external devices to the USB (including Micro-USB) ports, follow the precautions

below.

• Confirm the rated current of the external devices by checking the descriptions on the devices or manuals.

Connect the external devices only when those total rated current is less than 2.0 A. Do not use a device

whose rated current is unclear.

• Use UL-approved external devices (only for North American users).

❏

When using the printer, make sure the protective cover fits firmly into place.

❏

When Ethernet cables are installed outdoors, make sure devices without proper surge protection

are cushioned by being connected through devices that do have surge protection. Otherwise, the

devices can be damaged by lightning.

QNote:

Connecting the optional Wireless LAN Cable Set (OT-WL01) to the USB connector enables the

wireless LAN connection. While connecting via wireless LAN, keep the Ethernet cable unconnected to

the printer.

English

Attaching the Connector Cover

Follow the steps below to attach the connector cover to protect the cables.

1. Turn over the printer.

2. Position the two hooks on both sides of the connector cover so that they hook the printer case,

and then push the connector cover to click onto the printer case.

3. Pass each cable through the cable exits of the connector cover. If the cables are too many for one

cable exit, use multiple exits.

4. Turn over the printer, and make sure the cables are not pinched.

QNote:

When connecting the cables whose connectors do not lock themselves (USB cable and DC 5 V cable),

pass the cables through the cable band to prevent them from coming off.

Cable band

English

Detaching the connector cover

To remove the connector cover, turn the printer over, and push the connector cover down while

pushing the both sides of the connector cover inward to detach the hooks from the printer case.

Attaching the Power Switch Cover

Attaching the enclosed power switch cover prevents inadvertent changing of the power switch and

tampering. You can turn the power switch on and off by inserting a sharp-pointed object in the

holes in the power switch cover.

To detach the cover, also use a sharp-pointed object.

WARNING:

If an accident occurs with the power switch cover attached, unplug the AC cable immediately.

Continued use may lead to fire or electric shock.

English

Basic Operations

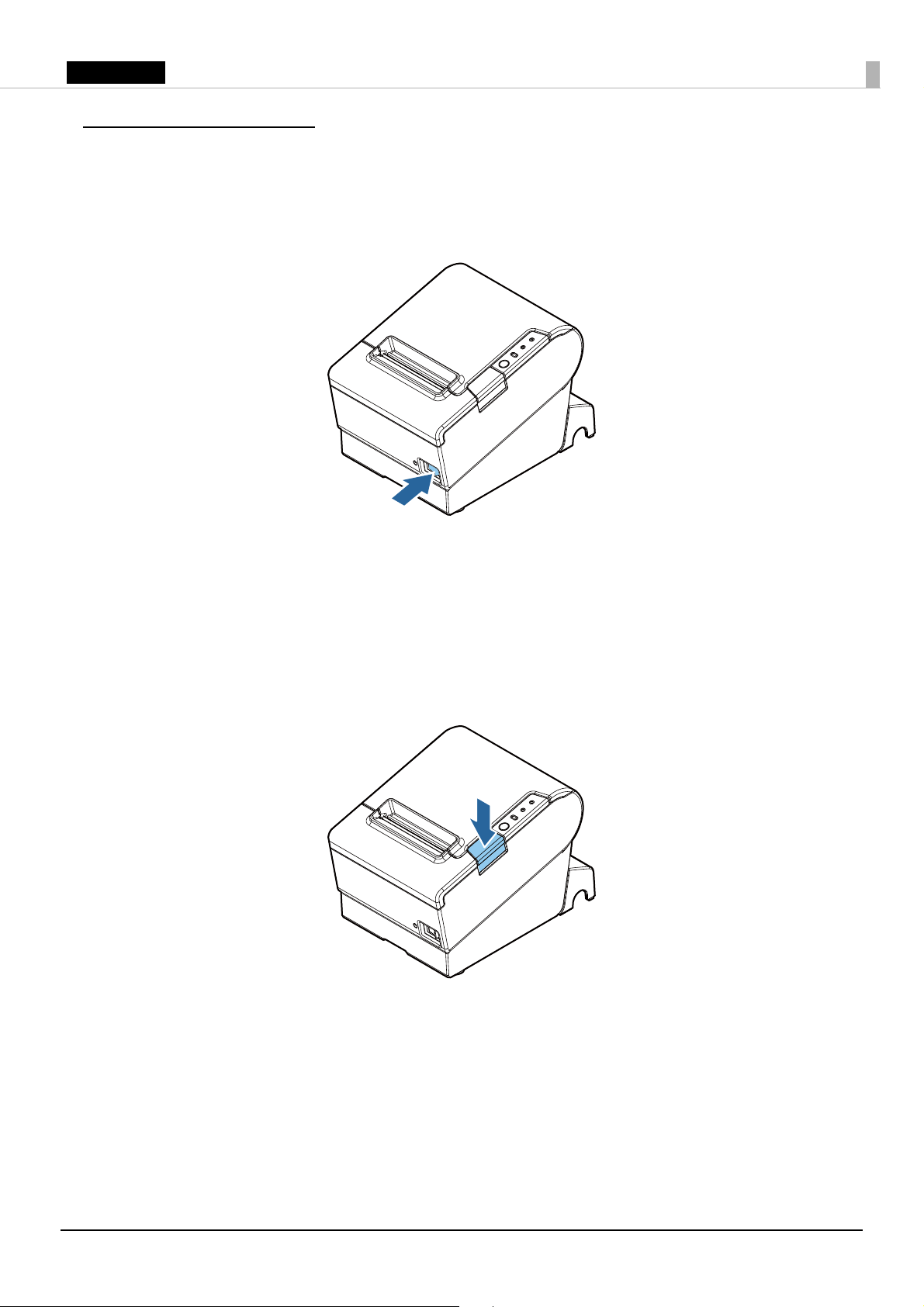

Turning Power On/Off

Press the power switch to turn on/off the printer.

QNote:

It takes approximately 30 seconds after the printer is turned on until it is ready for printing.

Opening the Covers

Opening the roll paper cover

Press the cover open button to open the roll paper cover.
