EPSON PRODUCT SUPPORT BULLETIN

Date: 12/18/2008 Originator: DS

PSB #: PSB.2009.01.006 Authorization:

Reference: TI 08-22e Rev. A/B Total Pages: 7

Product(s): PowerLite 735c / 737c / 745c / 755c / 765c / 835p

1705c / 1715c / 1815p / 1825p / 7850p / 8300i with EasyMP.net option

Pro G5150 / Pro G5350 / 1725 / 1735W

Subject: Release of Check Tool for Network Projectors V1.00 (for Windows)

This bulletin was created to inform you about the release of Epson Check Tool software

for Network Projectors version 1.00.

Description of Change:

First release of the Check Tool for Network Projectors for Windows

Reason:

The Check Tool for Network Projectors makes it possible to easily check whether

EPSON Quick Wireless Connection and EMP NS Connection’s Quick Connection mode

can operate on the users’ Windows PC properly. The Check Tool for Network Projector

can also be used as a reference check before the purchase of the projector or as a

troubleshooting Tool.

1) Function of the Application

Application

name Check Tool for Network Projector V1.00

Notes

The Check Tool checks automatically whether EMP Quick

Wireless Connection and EMP NS Connection’s Quick

Connection mode can operate properly on the user’s Windows PC

in terms of the following four points:

1. Checks OS support.

•Checks whether the OS is supported by EMP Quick

Wireless Connection / EMP NS Connection.

2. Checks user account

•Checks user’s account for administrator privileges to

install EMP Quick Wireless Connection / EMP NS

Connection.

3. Checks the wireless LAN adapter

•Checks whether the wireless LAN adapter and

driver are installed on the PC.

•Checks whether the wireless LAN is active.

Page 1 of 7

PSB.2009.01.006

Notes

4. Checks wireless LAN switching

•Checks whether wireless LAN adapter is turned ON.

•Checks whether EMP Quick Wireless Connection

and EMP NS Connection’s Quick Connection mode

can set the SSID on the user’s PC when trying to

connect to a projector using EMP Quick Wireless

Connection and EMP NS Connection’s Quick

Connection Mode.

The Check Tool checks for communication conflict and whether it

can actually stop the utilities when both utilities--EMP Quick

Wireless Connection V1.00 and EMP NS Connection-- are both

installed on the users PC.

Page 2 of 7

PSB.2009.01.006

Notes

Output of the log file:

•The Check Tool records the result in a text file (log file).

Usually, the log file is saved under the name of

CheckInfoDATE.log in the directory where “EB_CHT.exe”

is stored

Limitations •When the Check Tool is checking the user’s PC, the user’s

PC drops off network.

•The Check Tool does not check whether the firewall of

manufacturers of security software other than Windows

may be blocking EPSON Quick Wireless Connection/EMP

NS Connection.

2) Operating Environment

Check Tool for Network Projector V1.00

OS Windows 2000 SP4 Rollup1

/ XP Home Edition/ XP Professional(32bit) non-SP,SP1,SP2,SP3

/Vista SP1 Home Basic/Home

Premium/Ultimate/Business/Enterprise(32bit)

non-SP,SP1

CPU Windows: Mobile Pentium III 1.2GHz at least (Pentium M1.6GHz

at least recommended)

Memory 256MB at least (Recommendation: 512MB at least)

Disk space 20MB at least

Display Resolution: At least VGA(640 x 480) but no more than UXGA

(1600 x 1200)

At least 16 bit color

Page 3 of 7

PSB.2009.01.006

3) Location of download file: Check Tool for Network Projector V1.00

Download epson12794.exe from the Epson website (www.epson.com).

This is a self-extracting file; please follow the screen prompts to install the

Check Tool software.

4) Double-click the [EB_CHT.exe] icon

5) Read the contents of the [SOFTWARE LICENSE AGREEMENT], and click the

[Agree] button.

6) A dialog indicating the program is starting opens with the following message:

This tool cuts off the network connection temporarily.

Click the [Start] button to begin verification.

Page 4 of 7

PSB.2009.01.006

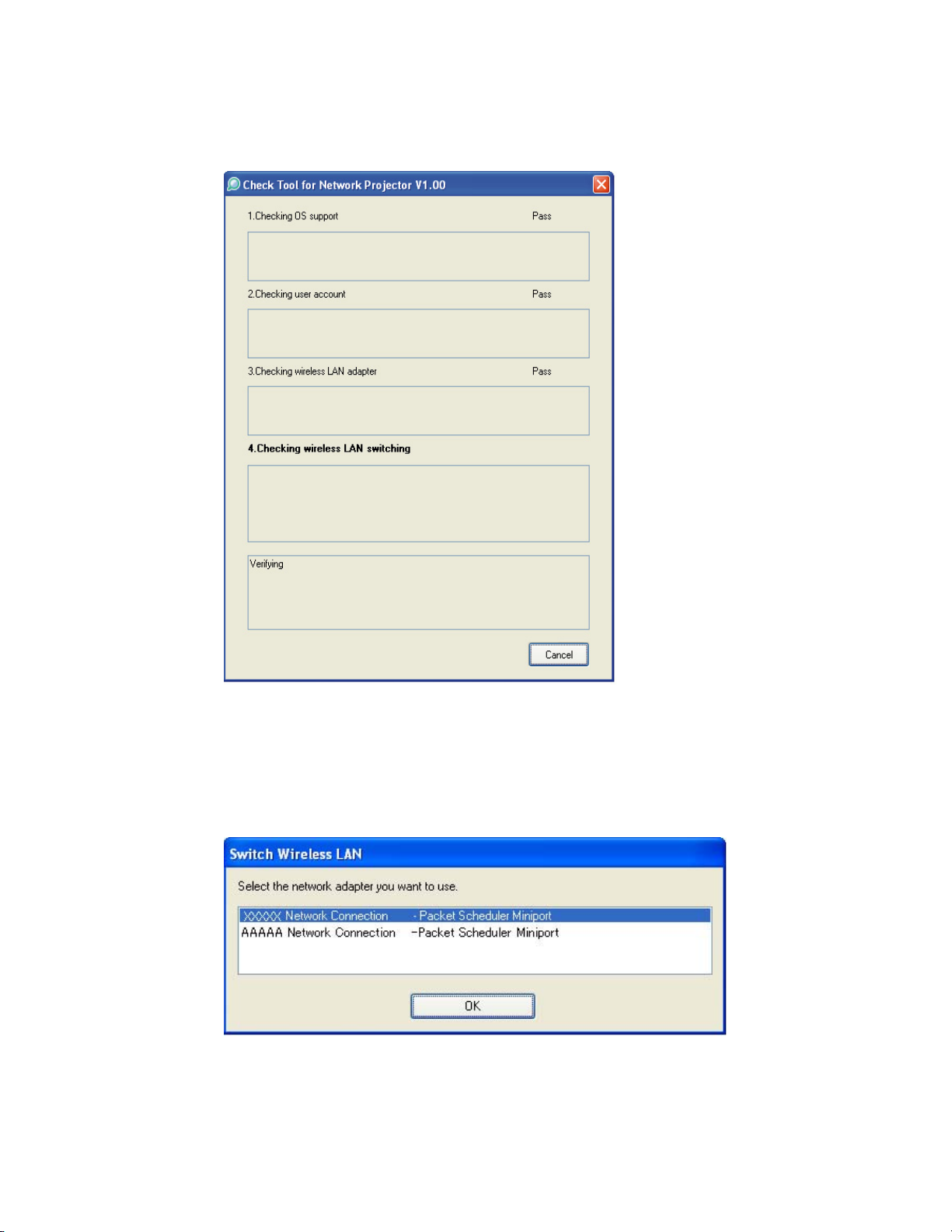

7) The Check tool dialog is displayed. It takes a few minutes for the results

of the verification are displayed

8) When two or more wireless LAN adapters are available on your computer, the

adapter selection dialog opens.

Select the wireless LAN adapter and press the OK button to continue.

Page 5 of 7

PSB.2009.01.006

9) When the verification is complete, the result is displayed on the bottom of the

dialog.

The result is stored in the same folder as the check tool.

File Name: CheckInfo<****>.log

**** indicates the created date and time.

[Exhibit 1]

Wireless LAN client list that NSC and Quick Wireless Connection stop their

service process

Manufacturer

Name Adapter Name Wireless LAN Utility Name

D-Link Air Plus

XTREMEG

DWL-G650

D-Link AirPlus XtremeG Utility

(CD)

NETGEAR WN511T Smart Wireless Utility

Ver.1.1.5.9(CD)

BUFFALO Buffalo all

products Client Manager 3

Ver.1.2.10(Web)

IBM ThinkPad

products Access Connection(Web) *1

Ver.4 or later

IBM ThinkPad

products Access Connection(Web) *1

Ver.3.71

Logitec Logitec LAN-

WAG/U2

Wireless LAN

Adapter

Logitec Wireless LAN Client Utility

Linksys Wireless-G

Notebook

Adapter v.5.0

WPC54G-JP setting utility

NETGEAR WG511AJP NETGEAR WG511A Smart

Wizard Ver3.2.3.306

NETGEAR WGM511 NETGEAR SMART WIZARD -

Wireless Assistant WGM511 Ver

1.0.0.7

Supported by

NSC V2.30

NETGEAR WPNT511 NETGEAR WPNT511 SMART

WIZARD Ver1.1.3.0

Page 6 of 7

PSB.2009.01.006

Linksys WPC300N Wireless-N Notebook Adapter

Wireless Network Monitor v1.05

Linksys WPC54G Wireless-G Notebook Adapter

Wireless Network Monitor Ver 3.1

Manufacturer

Name Adapter Name Wireless LAN Utility Name

Linksys WPC54GX4 Wireless-G Notebook Adapter with

SRX400 Setup Wizard V1.1

Linksys WUSB54GP Wireless-G Portable USB Adapter

WLAN Monitor v1.05

Linksys WUSBF54G Wireless-G USB Adapter with Wi-

Fi Finder

NETGEAR WG511 v2

Linksys WPC54GX Wireless-G Notebook Adapter

With SRX Wireless Network

Monitor v. 1.2

Supported by

NSC V2.40 Linksys WUSB54GSC Compact Wireless-G USB Adapter

Wireless Network Monitor v1.05

Supported by

NSC V2.50 &

Quick

Wireless

Connection

V1.00

Atheros Atheros Client Utility

*1: Because Access Connection service stops, power display of Power Manager becomes

invalid.

Software Upgrade History Quick Wireless

Version Release date Remark

V1.00 August. 12, 2008 V1.00 release

Page 7 of 7

PSB.2009.01.006

EPSON PRODUCT SUPPORT BULLETIN

Date: 09/17/2008 Originator: VS

PSB #: PSB.2009.01.003 Authorization:

Reference: TI 08-29e Rev. A Total Pages: 8

Product(s): PowerLite 1735W, 735c, 737c, 745c, 755c, 765c, 835p, 1705c, 1715c, 1725,

1815c, 1825, 7850p, 7950p, 8300i with EasyMP.Net optional module,

Pro G5150 and Pro G5350 projectors

Subject: EMP SlideMaker2 updated Version 1.30 – provides scenario support for

WXGA

(1280 x 800) resolution

This bulletin was created to inform users about a software update for the EMP SlideMaker2 to

Version 1.30.

Description of Change:

Updated software release for creating scenarios in WXGA (16:10) format.

Reason:

•The updated version of EMP SlideMaker2 provides support for creating scenarios in

XGA (1024 x 768) resolution and WXGA (1280 x 800) resolution.

•It also provides the ability to select scenarios in XGA (4:3) or WXGA (16:10) format,

depending on the projector model used for the presentation.

Limitations:

•When creating a 16:10 scenario, the JPEG image must be in a 16:10 format.

•A 16:10 converted scenario can only be displayed with a WXGA (1280 x 800) projector.

•A 4:3 converted scenario can be displayed with a XGA or WXGA supported projector.

•When adding a PowerPoint slide from a thumbnail window to EMP SlideMaker2 with

Microsoft Office 2007, the scenario image file may deteriorate due to an issue with

Microsoft Office 2007 SP1.

1 of 8

PSB.2009.01.003

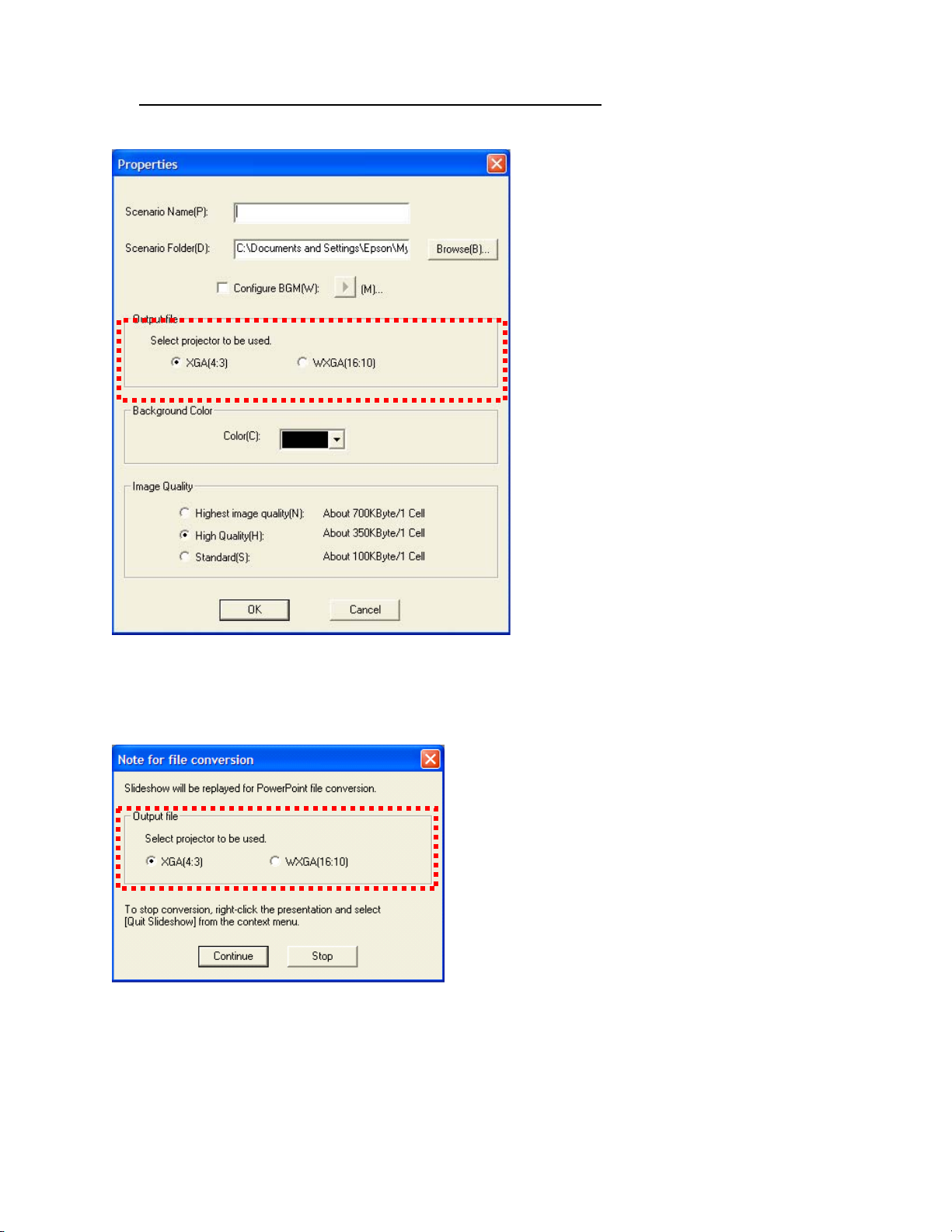

1) Selecting Aspect Ratio for the Projector being used:

a) Properties Window

b) Drag and Drop Window

2 of 8

PSB.2009.01.003

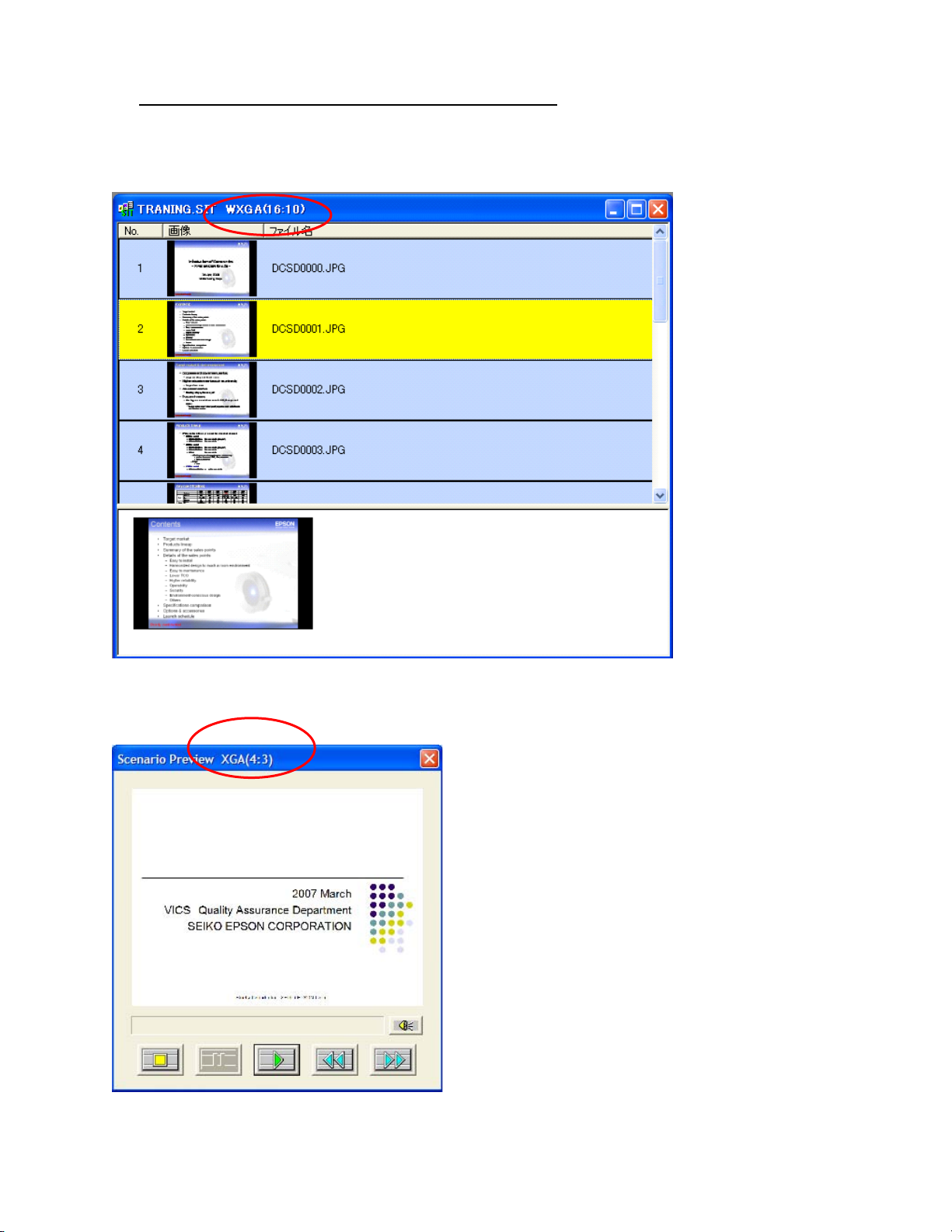

2) How to Verify the Aspect Ratio of the Scenario:

The resolution of the scenario is displayed in the window title of the Scenario Window and

Scenario Preview as shown below:

a) Scenario Window

b) Scenario Preview

3 of 8

PSB.2009.01.003
