EPSON PRODUCT SUPPORT BULLETIN

Date: 04/20/2009 Originator: JAM

PSB #: PSB.2009.06.001 Authorization:

Reference: TI 09-05e Rev. A/B Total Pages: 5

Product(s): PowerLite 735c / Cinema 500 / 737c / 745c / 755c / 765c / 830p / 835p /

1705c / 1715c / 6100i / 6110i / 7800p / 7850p / 7900NL / 8300i / 8300i with

EasyMP.net module / 9300NL / 1815p / 1825 / 822p / 83c / 822+ / 83+ /

G5000 / Pro G5150 / Pro G5350 / Pro G5200W / 1725 / 1735W / 400W /

410W / 84 / 85 / 825 / 826W

PowerLite 61p / 81p / 82c / 821p / 1810 / 260d (Latin America) / 280d (Latin

America) with TCP/IP to Serial converter

Subject: Release of EMP Monitor for Windows version 4.30

This bulletin was created to inform you of the release of the new version 4.30 of the Epson

EMP Monitor software utility.

Description of Change:

Improvements have been made to the EMP Monitor software utility.

Note: For the PowerLite 61p / 81p / 82c / 821p / 1810 / 260d (Latin America) / 280d (Latin

America) models, a serial to TCP/IP conversion adapter is necessary. The function of Auto

Update does not work for these models. You need to manually click on refresh to get an

updated status of projectors.

Reason:

The improved points of version 4.30 are as follows:

Application EMP Monitor

Version

upgraded Version 4.22 ÆVersion 4.30

Improved

points (1) Addition of 7 new languages

-Indonesian, Croat, Slovak, Bulgarian, Malay, Vietnamese, and

Hebrew

Existing 27 languages

-Chinese (Traditional), Netherlands, Danish, Polish, Hungarian,

Czech, Romanian, Slovene, Norwegian, Swedish, Finnish, Russian,

Ukrainian, Greek, Turkish, Arabic (Windows NT4 does not support),

English, Japanese, French, German, Italy, Spanish, Portuguese,

Chinese (Simplified), Korean, Catalan, Thai

Page 1 of 4

PSB.2009.06.001

(2) Addition of Input Source (Only PowerLite 84 / 85 / 825 / 826W)

Previous version of EMP Monitor included USB Display, USB and LAN as

one source: EasyMP.

The input source buttons for USB display, USB, and LAN are available as

separate input sources as shown below:

- Old version - EMP Monitor V4.22

EMP Monitor V4.22

- New version - EMP Monitor V4.30

EMP Monitor V4.30

(3) New feature for the PowerLite 84 / 85 / 825 / 826W.

Displays projector’s serial number in the Menu settings

-The projector’s serial number is now displayed in the projector’s

menu under “info”,

-EMP Monitor can also display the projector’s serial number as

shown below:

Page 2 of 4

PSB.2009.06.001

Limitations When the PowerLite1725 / 1735W exhibit a Lamp Cover Open error state,

EMP Monitor cannot detect the error. The reason is that when the lamp

cover is opened, the primary power source that reports the error state to

EMP Monitor is turned off immediately. This is different from other models

which make the secondary power source turn off under the same condition.

Note: EMP Monitor Ver. 4.xx is not compatible with EMP Monitor Ver. 3.05 and earlier

versions. EMP Monitor Ver. 4.xx cannot read the setting files of EMP Monitor Ver. 3.05

and earlier versions.

System Requirements:

OS •Windows 98 SE / Me / NT 4.0 (SP6) *Except Arabic and

Hebrew / Windows 2000 Pro / XP Home Edition / XP

Professional (32 bit) / Vista Home Basic / Home Premium /

Ultimate / Business / Enterprise (32 bit) *Except Ukrainian /

Vista SP1 Home Basic / Home Premium / Ultimate /

Business / Enterprise (32 bit)

•Internet Explorer Ver. 5.0 or later must be installed

CPU Minimum: Pentium MMX 166 MHz (Recommended: Pentium II

233 MHz or higher)

Memory At least 64 MB (Recommended: 128 MB or above)

Available hard disk

space At least 50 MB

Display SVGA (800×600) or higher resolution, 32 bit or higher display

color

Obtaining the Update:

Download epson13055.exe from www.epson.com to get the version 4.30 update for EMP

Monitor. The files are extracted and copied to C:\EPSON\epson13055_emp_monitor_430.

This file is a self-extracting archive and will start the installation utility for EMP Monitor. Follow

the on-screen instructions during the installation process.

Page 3 of 4

PSB.2009.06.001

Software Upgrade History:

Version Release date Remarks

3.00 December

25,2002 Supported PowerLite 735c

3.01 February

26,2003 Supported PowerLite 7800p / 8300i

3.02 April

18,2003 Supported PowerLite 7850p / 8300i with EasyMP.net option

module

3.03 November

21,2003 Supported PowerLite Cinema 500

3.04 April

1, 2004 Supported Serial -TCP/IP conversion adapter for PowerLite

61p / 81p

4.01 October

18, 2004 Supported projectors that are configured on a large-scale

network.

4.02 August

29, 2005 Addition of timer function and auto search function by

specifying IP addresses.

Improvement of communication logs size.

4.10 May

8, 2006 Addition of new functions, Improvement of usability, and

Corresponding to PowerLite 6100i.

4.20 May

15, 2007 EMP NS Connection V2.20 supports Windows Vista (Home

Basic / Home Premium / Ultimate / Business / Enterprise).

4.21 September

26, 2007 Supported 25 languages

4.22 March 31, 2008 Supported 27 languages

Addition of new Error Information

Supported Video (BNC)

4.30 April 3, 2009 Supported 34 languages

Additional Input Sources

Displays projector’s serial number in Menu settings

Page 4 of 4

PSB.2009.06.001

Page 1 of 3

PSB.2007.11.005A

EPSON PRODUCT SUPPORT BULLETIN

Date: 11/13/2007 Originator: AP

PSB #: PSB.2007.11.005A Authorization:

Reference: TI 07-63e, Rev. A Total Pages: 3

Product(s): Epson EMP Monitor

Subject: EMP Monitor Version 4.21 Release

This bulletin was created to inform you of the release of Epson EMP Monitor version 4.21

utility.

New Functions and Improvements:

New Functions,

Improvements

Supported Models Function / Improvement

Description

Support for 25

languages

All projectors (see Supported

Projectors table)

Language support extended to

include Chinese (traditional),

Dutch, Danish, Polish,

Hungarian, Czech, Romanian,

Slovene, Norwegian, Swedish,

Finnish, Russian, Ukrainian,

Greek, Turkish, Arabic.

Languages supported in prior

version of EMP Monitor: English,

Japanese, French, German,

Italian, Spanish, Portuguese,

Chinese (simplified), Korean

Abnormally low air

flow notification

PowerLite 6100i / 6110i Indicates an abnormal decrease

in the force of air flow through

the air filter. User should check

for air filter obstructions, clean

and replace air filter as

necessary.

This feature is available only for

the indicated models.

Air flow sensor error PowerLite 6100i (with firmware

version 1.10 or later) / 6110i

Indicates air flow sensor error.

This feature is available only for

the indicated models

Clean air filter

notification

PowerLite 6110i User notification to clean air filter.

This feature is available only for

the indicated model.

Supported Projectors:

This application supports the following Epson projectors:

Page 2 of 3

PSB.2007.11.005A

PowerLite 735c PowerLite 1715c PowerLite 1815p

PowerLite 737c PowerLite 6100i PowerLite 822p

PowerLite 745c PowerLite 7800p PowerLite 6110i

PowerLite 755c PowerLite 7850p PowerLite Cinema 500

PowerLite 765c PowerLite 7900NL PowerLite 61p

PowerLite 830p PowerLite 8300i / 8300NL PowerLite 81p

PowerLite 835p PowerLite 8300i with the

EasyMP.net Option Module

installed

PowerLite 82c

PowerLite 1705c PowerLite 9300NL PowerLite 821p

Supported Operating Environment:

Operating System requirement •Windows 98SE / Me / NT 4.0 SP6 (except

Ukrainian) / 2000 Professional / XP Home Edition

/ XP Professional (32 bit) / Vista Home Basic /

Vista Home Premium / Vista Ultimate (32 bit) /

Vista Business (32 bit) / Vista Enterprise (32 bit)

(except Arabic)

•Internet Explorer 5.0 or later

Minimum CPU requirement Pentium MMX 166 MHz (Recommended: Pentium II 233

MHz or faster)

Minimum RAM requirement At least 64 MB (Recommended: 128 MB or more)

Drive space requirement At least 50 MB free

Display requirements SVGA (800 x 600) or higher resolution, 32 bit color

display or higher

Obtaining the Update:

Download epson12456.exe from www.epson.com to get the version 4.21 update for EMP

Monitor. This file is a self-extracting archive and will start the installation utility for EMP

Monitor.

Page 3 of 3

PSB.2007.11.005A

Software History:

Version Release Date Notes

3.00 December 25, 2002 Added support for the PowerLite 735c

3.01 February 26, 2003 Added support for the PowerLite 7800p / 8300i

3.02 April 18, 2003 Added support for the PowerLite 7850p / PowerLite 8300i

with the EasyMP.net option module installed

3.03 November 21, 2003 Added support for the PowerLite Cinema 500

3.04 April 1, 2004 Added support for the Serial ↔TCP/IP conversion

adapter for the PowerLite 61p / 81p

4.01 October 18, 2004 Added support for projectors installed on large scale

networks

4.02 August 29, 2005 Addition of timer function, auto search by specifying IP

address.

Improvement of communication logs sizes

4.10 May 8, 2006 Addition of support for PowerLite 6100i with support for

additional monitoring features unique to the PowerLite

6100i

4.20 May 29, 2007 Added support for Windows Vista (32 bit)

4.21 September 26, 2007 Increased language support to 25 languages

Page 1 of 3

PSB.2004.10.005

EPSON PRODUCT SUPPORT BULLETIN

Date: 10/18/2004 Originator: TC

PSB #: PSB.2004.10.005 Authorization:

Reference: N/A Total Pages: 3

Product(s): PowerLite 7800p / 7800NL / 7850p / 7850NL

Subject: Proper Selection Of RGB Video

This bulletin was created to inform you of an issue that can occur when a PC is connected to a

PowerLite 7800p / 7850p 15 pin VGA “Computer” port with the input mode set to “RGB-Video.”

The image is displayed, but all 4 sides are clipped. No amount of adjustments on the PC or

the projector settings can fix the screen.

Reason:

The PowerLite 7800p/7850p has 2 video input signal modes for the 15 pin VGA “Computer”

connector. The two signal modes are “Analog-RGB” and “RGB-Video.” To connect a PC to

the 15 pin VGA connector, be sure that you have selected “Analog-RGB” as the signal mode.

Refer to page 72 of the PL-7800p User’s Guide or page 133 of the PL-7850p User’s Guide for

more information on customizing projector features.

If you have selected “RGB-Video” you will see clipping on all four sides of the displayed image.

There are 2 ways to change the input signal mode. The easiest method is to repeatedly press

the “Comp” button on the remote control until “Computer (Analog-RGB)” is displayed in the

upper right corner. To toggle the input signal mode you must press the button while the source

message is still displayed in the upper right corner. This will correct the clipping issue.

Notes:

1. If you do not see a message in the upper right corner go to the projector’s menu, and

navigate to the “Setting” menu and set “Message” to “On.”

2. Do not use the projector’s control panel with this method.

The second method is to use the projector’s menus. Bring up the projector’s menu by pressing

the “Menu” button on the projector’s control panel, or on the remote control. Then using the

arrow buttons, navigate to the “Setting” menu, press enter, and arrow down to “Computer

Input” and press enter. Select “Analog-RGB” and press enter. When you exit the menu

system, the displayed image will appear without any clipping.

The BNC Input connector also has 4 input signal modes including the two signal modes of

“Analog-RGB” and “RGB-Video.” To connect a PC to the BNC connector, be sure that you

have selected “Analog-RGB” just like the 15 pin VGA “Computer” connector. You can use the

same methods described above for changing the BNC Input signal modes, just substitute

“BNC” for “Computer.”

Note: Connection of a PC to the BNC Input is seldom used, as it requires a special cable.

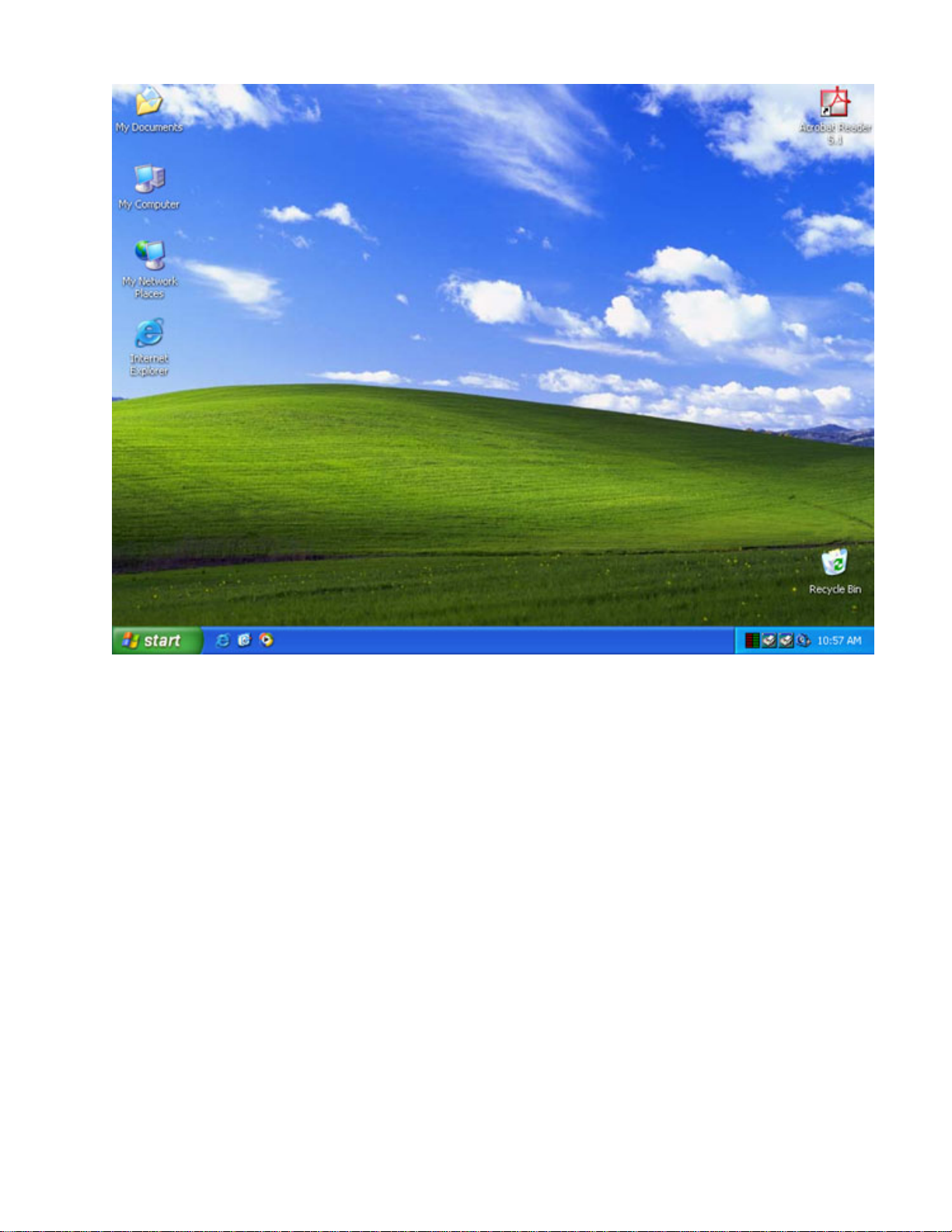

Normal display of a PC connected to the 15 pin VGA connector with “Analog-RGB” as the

signal mode.

Page 2 of 3

PSB.2004.10.005

Page 3 of 3

PSB.2004.10.005

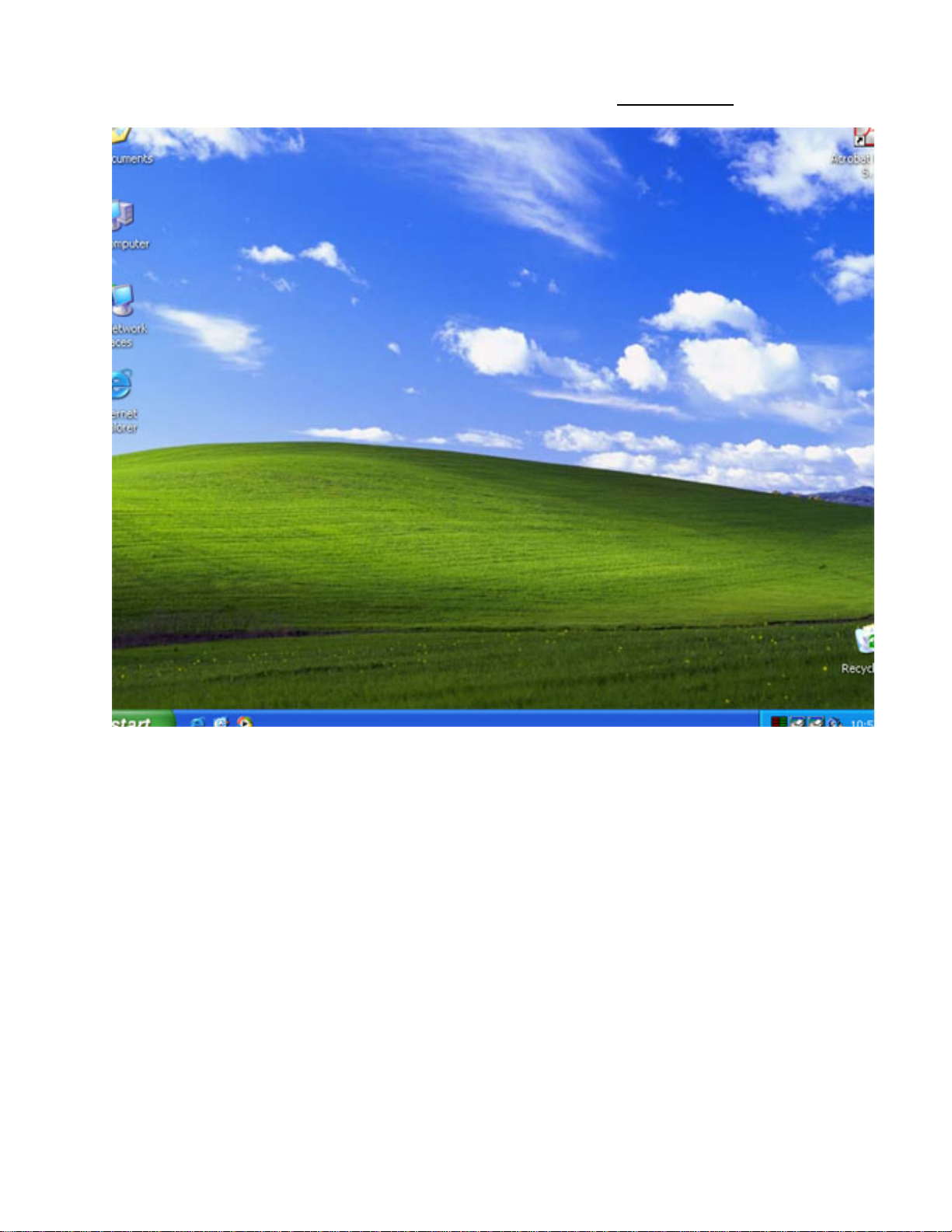

Display of a PC connected to the 15 pin VGA connector with “RGB-Video” selected as the

signal mode. Notice the clipping on all four sides of the displayed image.

Altri manuali per 7800p - PowerLite XGA LCD Projector

Questo manuale è adatto per i seguenti modelli

Altri manuali Epson Proiettore

Epson

Epson PowerLite 420 Manuale utente

Epson

Epson PowerLite 1266 Manuale utente

Epson

Epson PowerLite W16SK Manuale utente

Epson

Epson 7900p - PowerLite XGA LCD Projector Manuale utente

Epson

Epson EB-1965 Manuale utente

Epson

Epson BrightLink 475Wi Manuale del sistema

Epson

Epson 755c - PowerLite XGA LCD Projector Scheda tecnica

Epson

Epson PowerLite 800p Manuale utente

Epson

Epson PowerLite 760c Manuale utente

Epson

Epson PowerLite S5 Series Manuale utente

Epson

Epson EF11 Manuale utente

Epson

Epson BrightLink 455Wi Manuale utente

Epson

Epson PowerLite D6150 Manuale del sistema

Epson

Epson 6110i - PowerLite XGA LCD Projector Scheda tecnica

Epson

Epson EB-L20002U Manuale per l'uso e la cura

Epson

Epson PowerLite 8000i Scheda tecnica

Epson

Epson PowerLite 900 Scheda tecnica

Epson

Epson ELPLP29 Manuale utente

Epson

Epson EB-W8D Istruzioni per l'installazione

Epson

Epson EB-W7 Manuale utente

Epson

Epson PowerLite Home Cinema 600 Manuale utente

Epson

Epson PowerLite 1880 Scheda tecnica

Epson

Epson H654A Manuale utente

Epson

Epson PowerLite 1221 Manuale del proprietario

Manuali Proiettore popolari di altre marche

iEmmet

iEmmet MP-312 Manuale utente

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuale utente

Sony

Sony VPL-HW65ES Manuale di servizio

Toshiba

Toshiba TLP-791U Manuale utente

Philips

Philips LC1341 Guida di riferimento

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuale utente

NEC

NEC NP600S EDU Manuale utente

BenQ

BenQ SH753P Manuale utente

Eiki

Eiki EK-623U series Manuale utente

Christie

Christie LHD700 Manuale utente

Navitar

Navitar FX Manuale utente

InFocus

InFocus LitePro 560 Manuale utente

Sony

Sony SRX-R815P Manuale utente

Vivitar

Vivitar DP1500 X Manuale utente

Acer

Acer C20 Series Manuale utente

Asus

Asus ZenBeam Latte Manuale utente

BOXLIGHT

BOXLIGHT CP-322i/CP-634i Manuale utente

JVC

JVC 1108TTH-AO-AO Manuale utente
