Epson EX7200 Manuale utente

Setting Up the Projector 31

Connecting to a Computer

You can connect the projector to a Windows or Macintosh computer

using the projector’s TypeB USB port. This lets you carry a

lightweight cable with you when you transport the projector (see

page 31).

You can connect the projector to any computer that has a standard

video output (monitor) port, including desktop models, PC and

Macintosh computers, and hand-held devices. See page 34 for

instructions.

To play sound through the projector, connect an audio cable (see

page 41).

You may be able to use your remote control as a wireless mouse when

projecting from a computer (see page 61).

Connecting to the USB Port

You can connect a PC with a 32-bit version of Windows 7, Windows

Vista®, Windows XP, or Windows 2000 (SP4) or a Macintosh

computer with OS X 10.5.1 or 10.6.x to the projector’s TypeB

(square) USB port and project your computer’s display. A USB

2.0 connection (recommended) provides better picture quality and

response than USB 1.1.

1. Follow the instructions beginning on page 45 to turn on the

projector.

2. Make sure the USB Type B setting on the Extended menu is set

to USB Display (see page 75).

3. Turn on your computer.

note

To connect a Macintosh

that includes only a Mini

Display Port or Mini-DVI

port for video output, you

need to obtain an adapter

that allows you to connect to

the projector's VGA video

port. Contact Apple for

compatible adapter options.

32 Setting Up the Projector

4. Connect the square end of a USB cable to the projector’s TypeB

(square) USB port.

5. Connect the flat end of the cable to any available USB port on

your notebook or desktop computer.

The first time you connect a computer to the projector’s USB

port, you will need to install software from the projector on your

computer (see page 33).

6. You can connect an optional audio cable if you want to play

sound through the projector (see page 41).

When you’ve finished making connections, see Chapter 2 for

instructions on displaying and adjusting the image.

When you’re done projecting from your computer, disconnect the

USB cable.

VS200/EX3200

USB TypeB port USB TypeB port

EX5200/EX7200

Setting Up the Projector 33

Installing Software

The first time you connect a computer to the projector’s USB port,

you will need to install software from the projector on your computer.

Follow the instructions for your operating system.

Windows 7 and Windows Vista

When you see the Auto Play window, click Run EMP_UDSE.EXE.

Follow the instructions on the screen to install the Epson USB

Display software.

After the software is installed, you see your computer’s current

desktop displayed by the projector. You can switch the projector to

other image sources using the Source Search button on the remote

control or the projector.

Windows XP and Windows 2000

Follow the instructions on the screen to install the Epson USB

Display software.

After the software is installed, you see your computer’s current

desktop displayed by the projector. You can switch the projector to

other image sources using the Source Search button on the remote

control or the projector.

Macintosh

The setup folder for USB display is displayed in the Finder.

Double-click the USB Display Installer icon and follow the

on-screen instructions to install the software.

After the software is installed, you see your computer’s current

desktop displayed by the projector. You can switch the projector to

other image sources using the Source Search button on the remote

control or the projector.

note

If the software screen does

not display automatically,

double-click Computer or

My Computer, then

double-click

EPSON_PJ_UD.

note

It may take a few minutes

before the computer’s

desktop is displayed by the

projector.

34 Setting Up the Projector

Connecting to the VGA Computer Port

You can connect to the projector using the VGA computer cable that

came with it (the monitor port on your computer must be a D-sub

15-pin port).

1. Connect one end of the VGA computer cable to the projector’s

Computer (Component Video) port and the other end to your

computer’s monitor port.

2. You may need to change the Input Signal setting in the

projector’s Signal menu to RGB or Auto (see page 72).

3. You can connect an optional audio cable to play sound through

the projector (see page 41).

caution

Don’t try to force a

connector to fit a port with a

different shape or number of

pins. You may damage the

port or connector, or the

device you are trying to

connect.

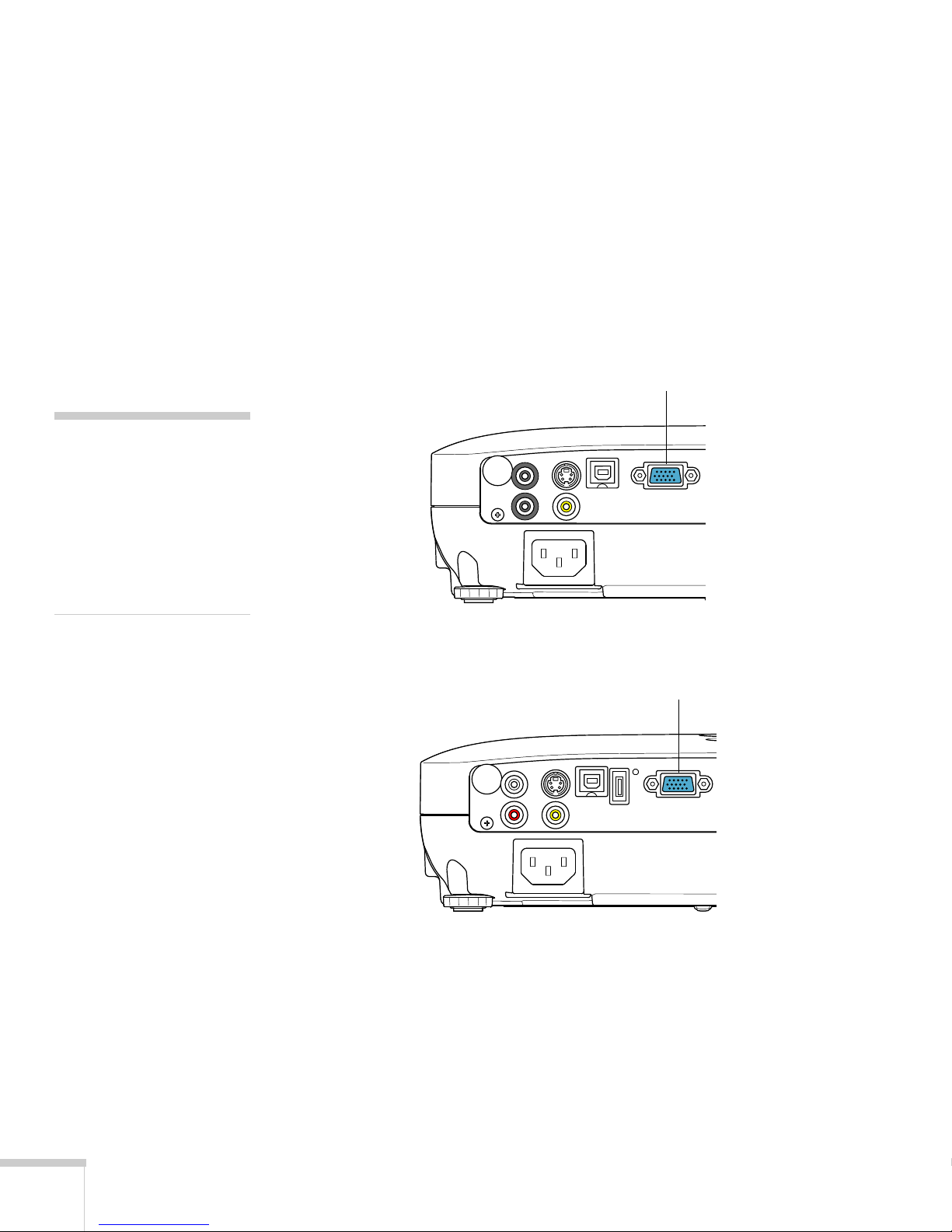

VS200/EX3200

Computer (Component

Video) port

EX5200/EX7200

Computer (Component

Video) port

Setting Up the Projector 35

4. You may also be able to use the remote control as a wireless mouse

(see page 61).

When you’ve finished making connections, see page 45 for

instructions on turning on the projector and Chapter 2 for

instructions on displaying and adjusting the image.

Connecting to Video Equipment

You can connect several video sources to the projector at the same

time. Before starting, look at your video equipment to determine its

available video output connections:

■EX5200/EX7200 only: If your video device has an HDMI

connector, see “Connecting an HDMI Video Source (EX5200/

EX7200 Only)” on page 36.

■If your video device has a yellow RCA video output connector, see

“Connecting a Composite Video Source” on page 37.

■If your video device has an S-Video connector, see “Connecting

an S-Video Source” on page 38.

■If your video device has a component video port (three connectors

labeled either Y/Cb/Cr or Y/Pb/Pr), see “Connecting a

Component Video Source” on page 39.

■If your video device has an RGB video port, see “Connecting an

RGB Video Source” on page 40.

After connecting video cables, you may also want to connect an

optional audio cable to play sound through the projector; see page 41.

If you connect using an HDMI cable (EX5200/EX7200 only), the

video and sound are both transferred and you won’t need to connect

any additional cables for audio.

36 Setting Up the Projector

Connecting an HDMI Video Source (EX5200/

EX7200 Only)

For the best image and sound quality, connect your video equipment

to the HDMI (High-Definition Multimedia Interface) port, if

possible.

Connect an HDMI cable to the HDMI connector on your video

equipment and the HDMI connector on the projector.

When you’ve finished making connections, see page 45 for

instructions on turning on the projector and Chapter 2 for

instructions on displaying and adjusting the image.

note

If an HDMI cable was not

rovided with your video

equipment, you can

urchase one from an

electronics dealer. HDMI port

Setting Up the Projector 37

Connecting a Composite Video Source

1. If your video cable has an RCA connector, connect it to the

yellow video output connector on your device and the yellow

Video port on the projector.

2. If you want to play sound through the projector, see page 41 for

instructions on connecting an audio cable.

When you’ve finished making connections, see page 45 for

instructions on turning on the projector and Chapter 2 for

instructions on displaying and adjusting the image.

note

If the video cable was not

rovided with your video

device, you can purchase one

rom an electronics dealer.

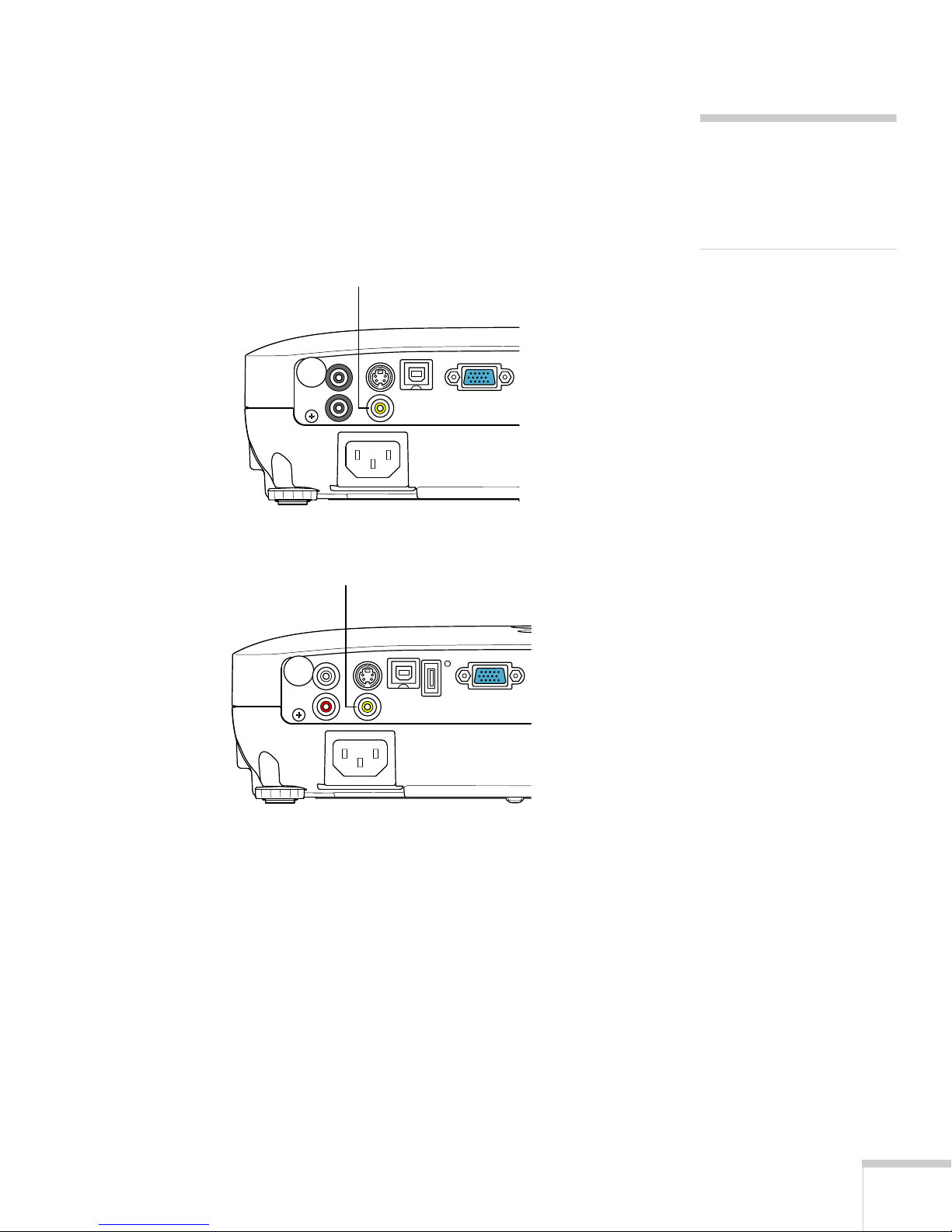

VS200/EX3200

Video port

EX5200/EX7200

Video port

38 Setting Up the Projector

Connecting an S-Video Source

1. Connect the S-Video cable to the S-Video connector on your

device and the S-Video port on the projector.

2. If you want to play sound through the projector, see page 41 for

instructions on connecting an audio cable.

When you’ve finished making connections, see page 45 for

instructions on turning on the projector and Chapter 2 for

instructions on displaying and adjusting the image.

note

If the S-Video cable was not

rovided with your video

device, you can purchase one

rom Epson; see page 18. VS200/EX3200

S-Video port

EX5200/EX7200

S-Video port

Setting Up the Projector 39

Connecting a Component Video Source

If your video equipment has component video connectors (three

connectors labeled either Y/Cb/Cr or Y/Pb/Pr), you can purchase a

component-to-VGA video cable from Epson (see page 18) or an

electronics dealer.

1. Connect the component end of the cable (3 male RCA) to the Y/

Cb/Cr (or Y/Pb/Pr) connectors on your device.

2. Connect the other end of the cable (HD15 male) to the

Computer (Component Video) port on your projector using an

optional component-to-VGA video cable or adapter.

3. You may need to change the Input Signal setting in the

projector’s Signal menu to Auto (see page 72).

VS200/EX3200

Computer (Component

Video) port

EX5200/EX7200

Computer (Component

Video) port

40 Setting Up the Projector

4. If you want to play sound through the projector, see page 41 for

instructions on connecting an audio cable.

When you’ve finished making connections, see page 45 for

instructions on turning on the projector and Chapter 2 for

instructions on displaying and adjusting the image.

Connecting an RGB Video Source

You can connect to an RGB video source using the VGA computer

cable provided with the projector.

1. Connect the cable to the RGB video port on your player and the

Computer (Component Video) port on the projector.

2. You may need to change the Input Signal setting in the

projector’s Signal menu to RGB (see page 72).

VS200/EX3200

Computer (Component

Video) port

EX5200/EX7200

Computer (Component

Video) port
