Epson 826W - PowerLite WXGA LCD Projector Manuale utente

Message Broadcasting 1

Message Broadcasting

Message Broadcasting is a plug-in for EMP Monitor. Administrators

can use the plug-in to send messages or announcements to one or

more projectors or all the projectors on the network. You can send

messages manually, or use the Timer function in EMP Monitor to

have messages sent automatically.

You can use Message Broadcasting to send images in JPEG format.

The maximum resolution for an image is 1920 × 1200 pixels.

Getting Started

Before you install the Message Broadcasting plug-in, make sure EMP

Monitor (version 4.30 or later) is installed, and your projectors are

registered in EMP Monitor. Make sure your projectors support

Message Broadcasting; check epson.com/support if necessary.

Follow the instructions on the Epson website for downloading and

installing.

You need to use a networked Windows computer running Windows®

Vista®, XP, or 2000 Professional to install the plug-in.

If any of the projectors you select are switched off, they will power on

automatically when you begin Message Broadcasting. For network

communication, make sure the Standby Mode setting in the

projectors’ Extended menu is set to Communication On.

2Message Broadcasting

Creating Messages

The easiest way to create messages in the JPEG format is to save slides

from Microsoft®PowerPoint®as .JPG files.

1. After you create a slide or series of slides in PowerPoint, open the

File menu and select Save As.

2. For the file type, select JPEG File Interchange Format (*.jpg),

then click Save.

If you are working with a series of slides, you can select whether

you want to save all slides or just the curent slide.

Broadcasting Manually

You can broadcast a single image or select a folder containing a series

of images to broadcast as a slideshow.

1. Start EMP Monitor. You may see a screen like the following,

showing your registered projectors and groups:

2. Open the Tool menu and select Plug-in > Message

Broadcasting.

note

This screen shows an

example of Group View.

Your screen will look

different in Detail View.

Message Broadcasting 3

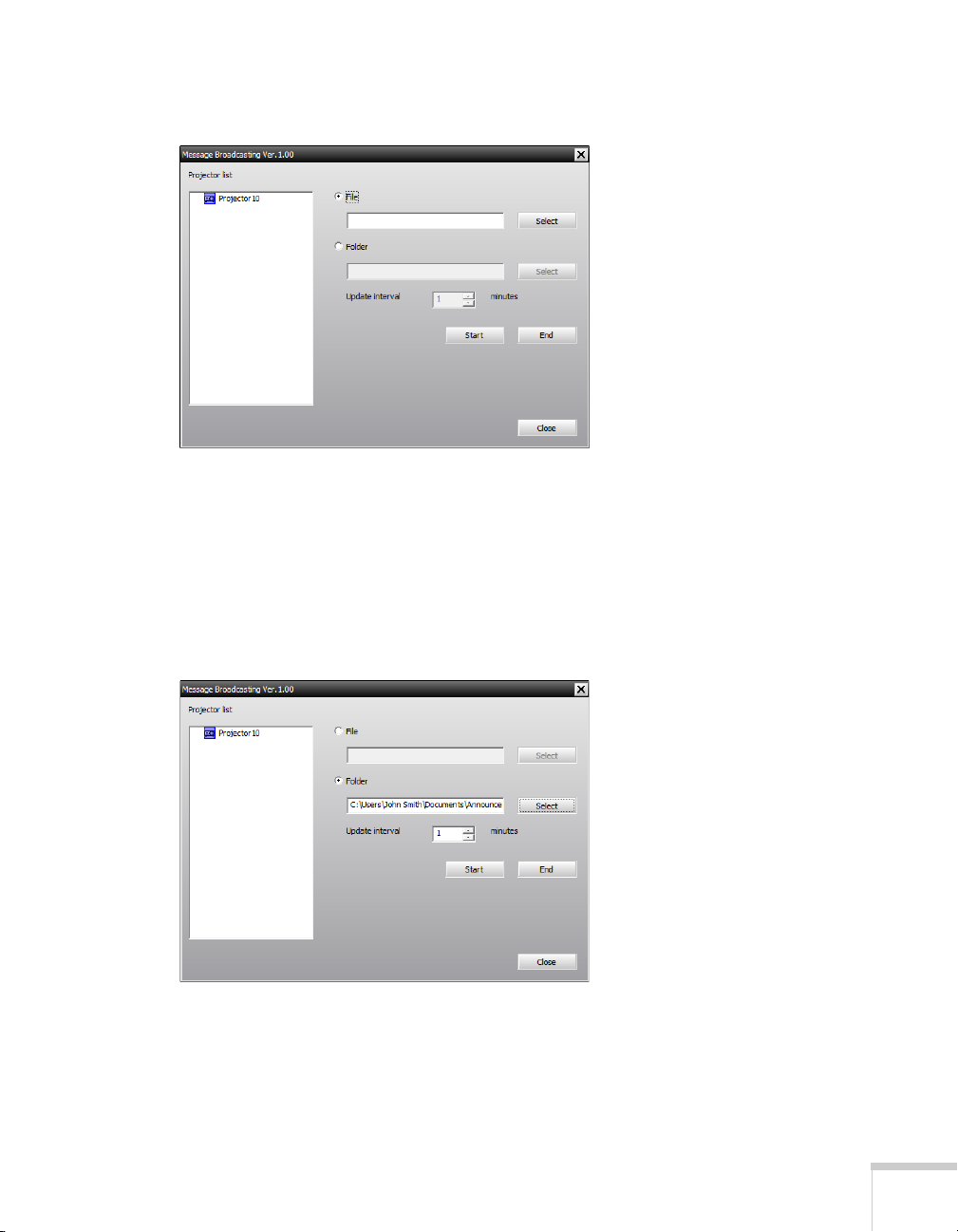

You see the Message Broadcasting window:

3. Select the projector or group you want to send your message to.

4. Click the File or Folder button, depending on whether you want

to broadcast an individual message (File) or a series of slides

(Folder).

5. Click Select, then select the file or folder you want to broadcast.

You see the file or folder on the Message Broadcasting window:

6. If you have selected a folder, you can specify the timing between

slides. Select the number of minutes for the Update interval.

7. Click Start. Your message or slideshow is sent to the selected

projector or group. You will not see a confirmation message.

4Message Broadcasting

If a projector is already operating, the Message Broadcast will

interrupt the existing projection.

8. When you want to end the message display or slideshow, click

End.

If you are broadcasting a series of slides, you may need to calculate

the end time. Multiply the number of slides by the Update

interval between slides, then add the number of minutes to the

start time.

If you do not click End, the message will remain on the screen. If you

are broadcasting a slideshow, it will repeat until you end it.

However, individual projector users or presenters can stop the

broadcast by pressing the Esc button on the projector or remote

control. Once the Esc button is pressed, the projector will not receive

broadcast messages until it is restarted.

Broadcasting Automatically

You can use the Timer function in EMP Monitor to set up slideshows

or messages for automatic broadcasting.

1. Start EMP Monitor. You may see a screen like the following,

showing your registered projectors and groups:

2. Open the Tool menu and select Timer > Timer Settings.

note

Projector users or presenters

can end the message

broadcast at any time by

pressing the Esc button on

the projector or remote

control. The following

reminder is displayed in the

lower left corner of the

screen: [ESC]: Close

Message Broadcasting.

Once the Esc button is

pressed, the projector will

not receive broadcast

messages until it is restarted.

note

This screen shows an

example of Group View.

Your screen will look

different in Detail View.

Message Broadcasting 5

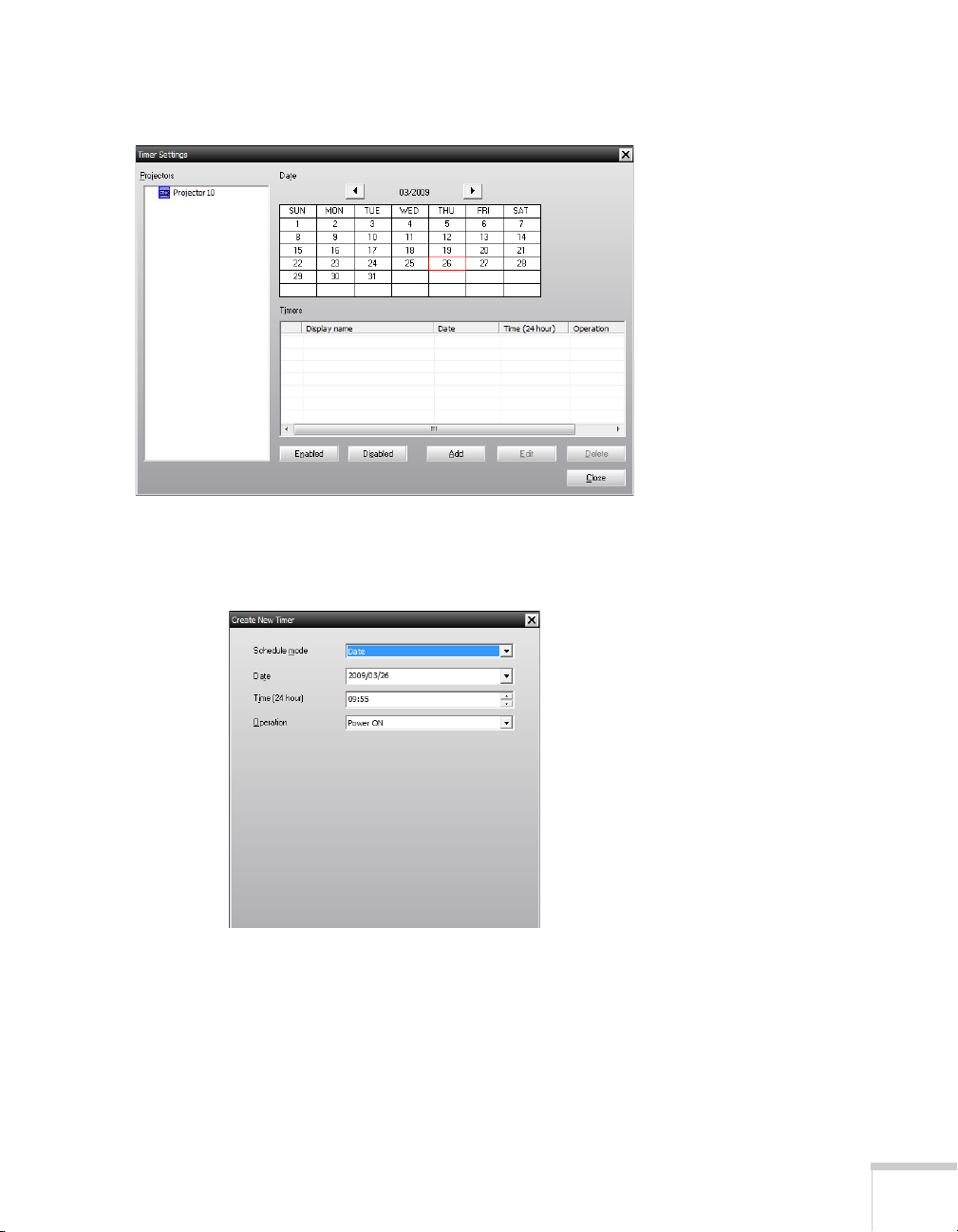

You see the Timer Settings window:

3. Select the projector or group you want to send your message to.

4. Click Add. You see the Create New Timer window:

6Message Broadcasting

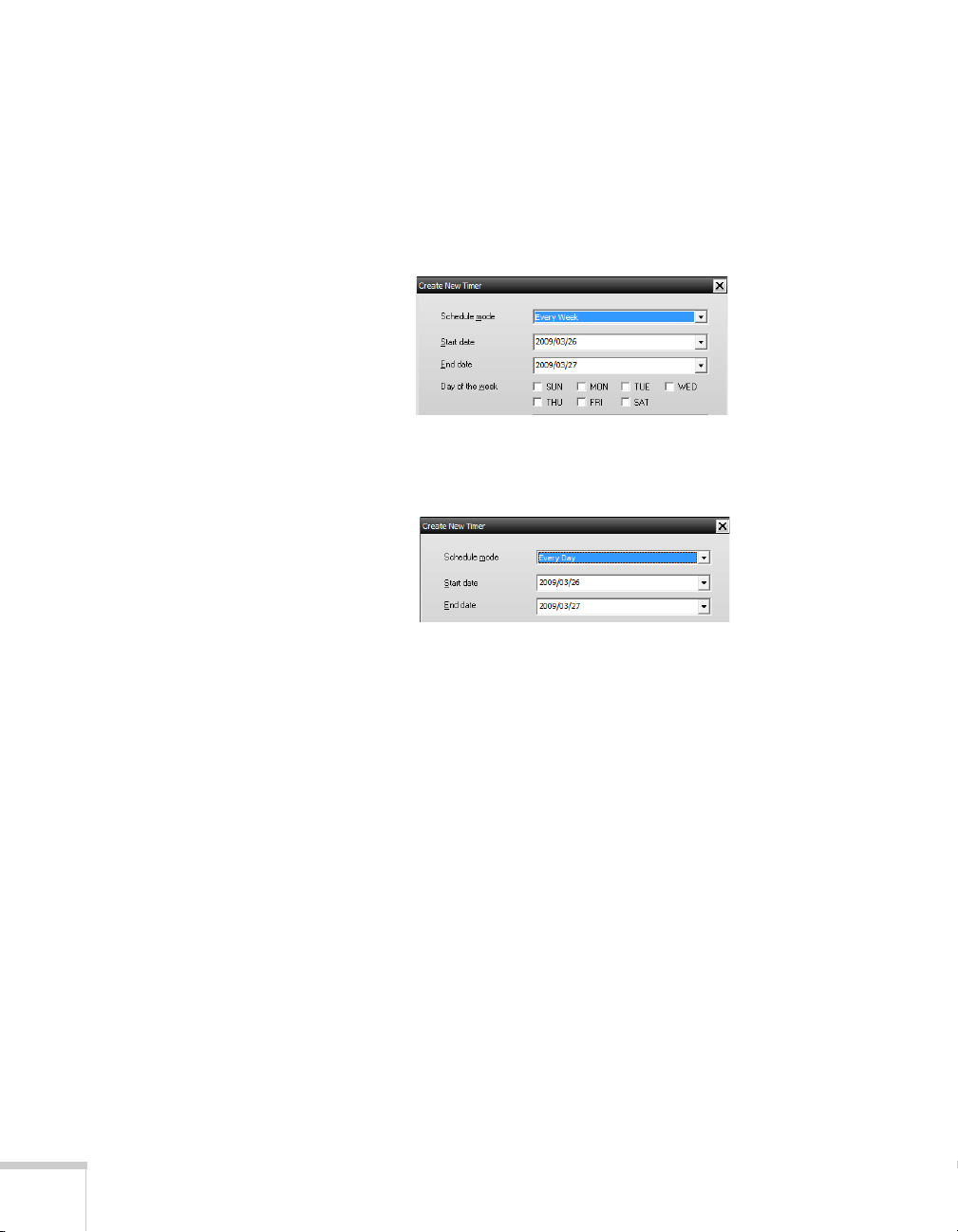

5. Click the arrow in the Schedule mode box and select one of the

following:

■Date—Select the date you want to broadcast.

■Every Week—Select the start and end dates, and the day or

days you want to broadcast.

■Every Day—Select the start and end dates for the daily

broadcast.

6. Select the time you want to start broadcasting.

7. Click the arrow in the Operation box and select Message

Broadcasting start, then click OK.

Message Broadcasting 7

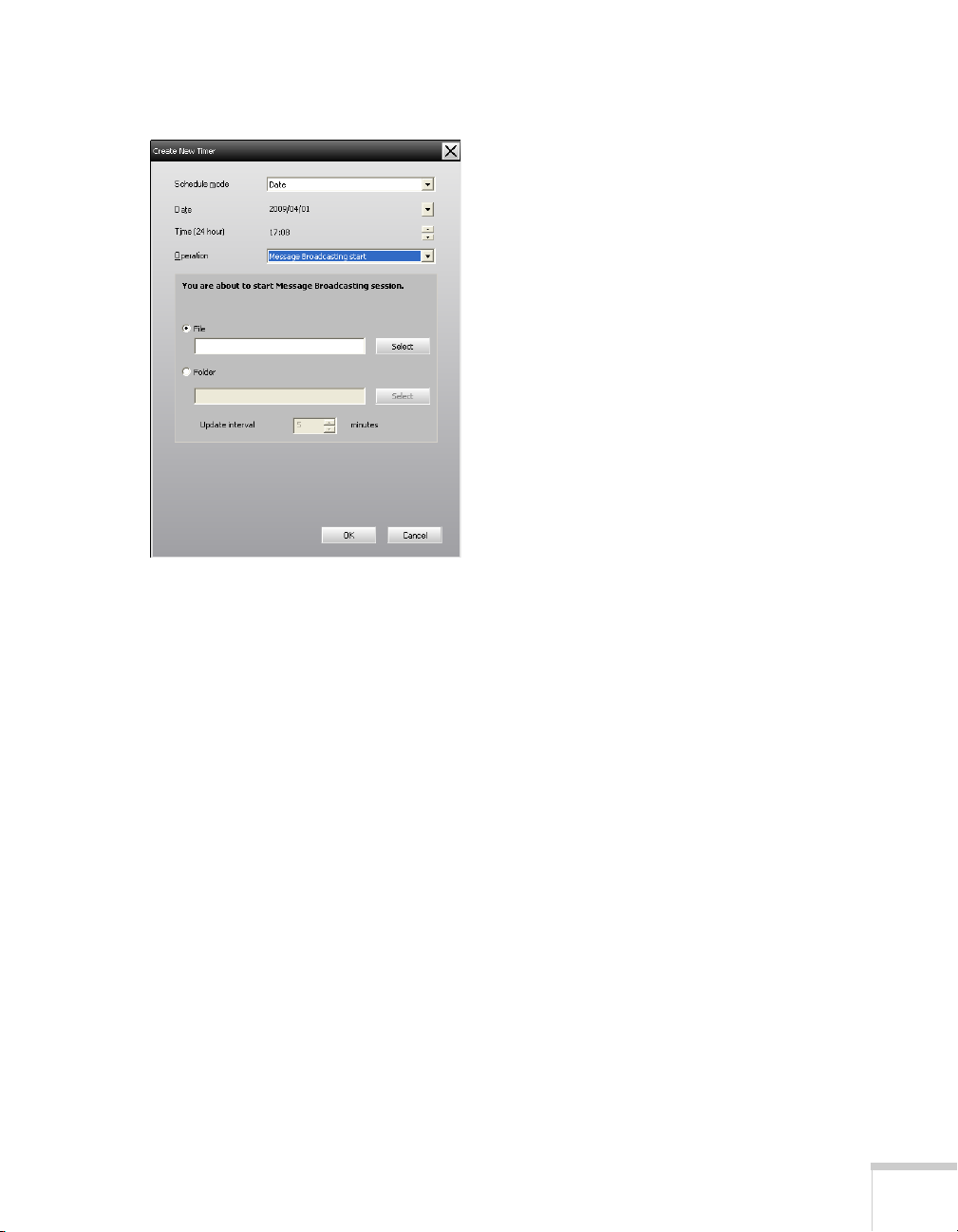

You see the following:

8. Click the File or Folder button, depending on whether you want

to broadcast an individual message (File) or a series of slides

(Folder).

9. Click Select, then select the file or folder you want to broadcast.

10. If you are broadcasting a slideshow, you can specify the timing

between slides. Select the number of minutes for the Update

interval.

11. Click OK.

8Message Broadcasting

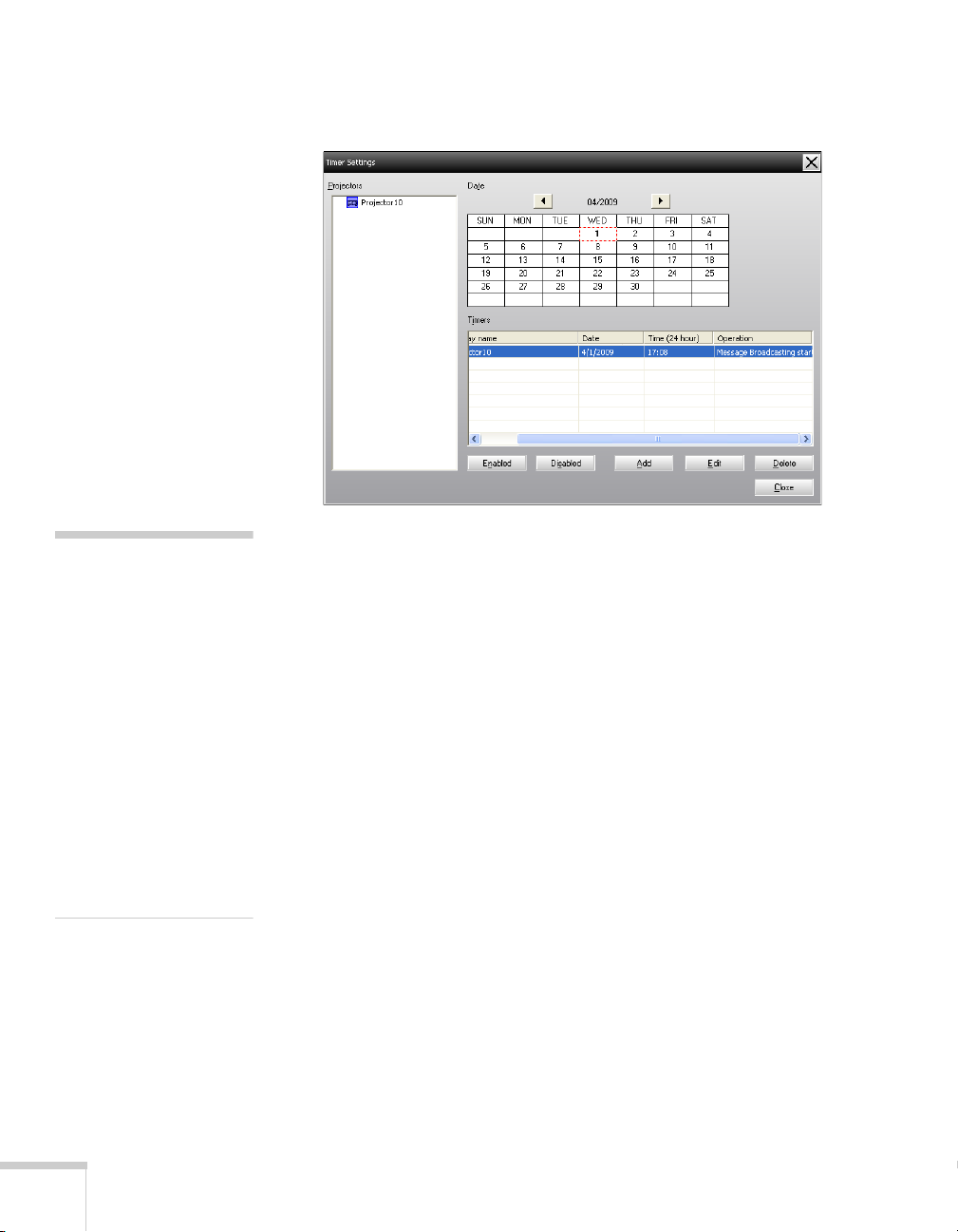

You see your schedule in the Timer Settings window:

12. To set the message end time, click Add, select the time, then

select Message Broadcasting end in the Operation box and

click OK. You must set the end time; otherwise, your message

broadcast will continue indefinitely.

You can use the buttons at the bottom of the screen to enable,

disable, edit, or delete your timer settings.

13. When you are finished adjusting timer settings, click Close to

save the settings.

note

Projector users or presenters

can end the message

broadcast at any time by

pressing the Esc button on

the projector or remote

control. The following

reminder is displayed in the

lower left corner of the

screen: [ESC]: Close

Message Broadcasting.

Once the Esc button is

pressed, the projector will

not receive broadcast

messages until it is restarted.

Message Broadcasting 9

Solving Problems

If messages fail to display on the selected projectors, check the

following:

■If the message does not appear on any of the projectors, check the

firewall settings on the computer running EMP Monitor. Make

sure EMP Monitor is selected as an exception.

■If an individual projector fails to display the message, make sure

the Standby Mode setting in the projector’s Extended menu is

set to Communication On.

■Try restarting the projector. If a projector user or presenter has

pressed the Esc button to stop the message broadcast, the

projector will not receive messages until it is restarted.
