Watch Movement Specification and Drawing

SOLAR SERIES

Cal. AS01A

Movement Size

Casing Diameter

Height

Running Time

6 3/4 × 8’’’

15.3 × 17.8 mm

3.45 mm

Approx. 4 months

Date: 30/Jul./'19

Cal. AS01A

Items Rev. Page

Features 01 1

Specifications 01 2

Appearance 01 3

Casing 01 4

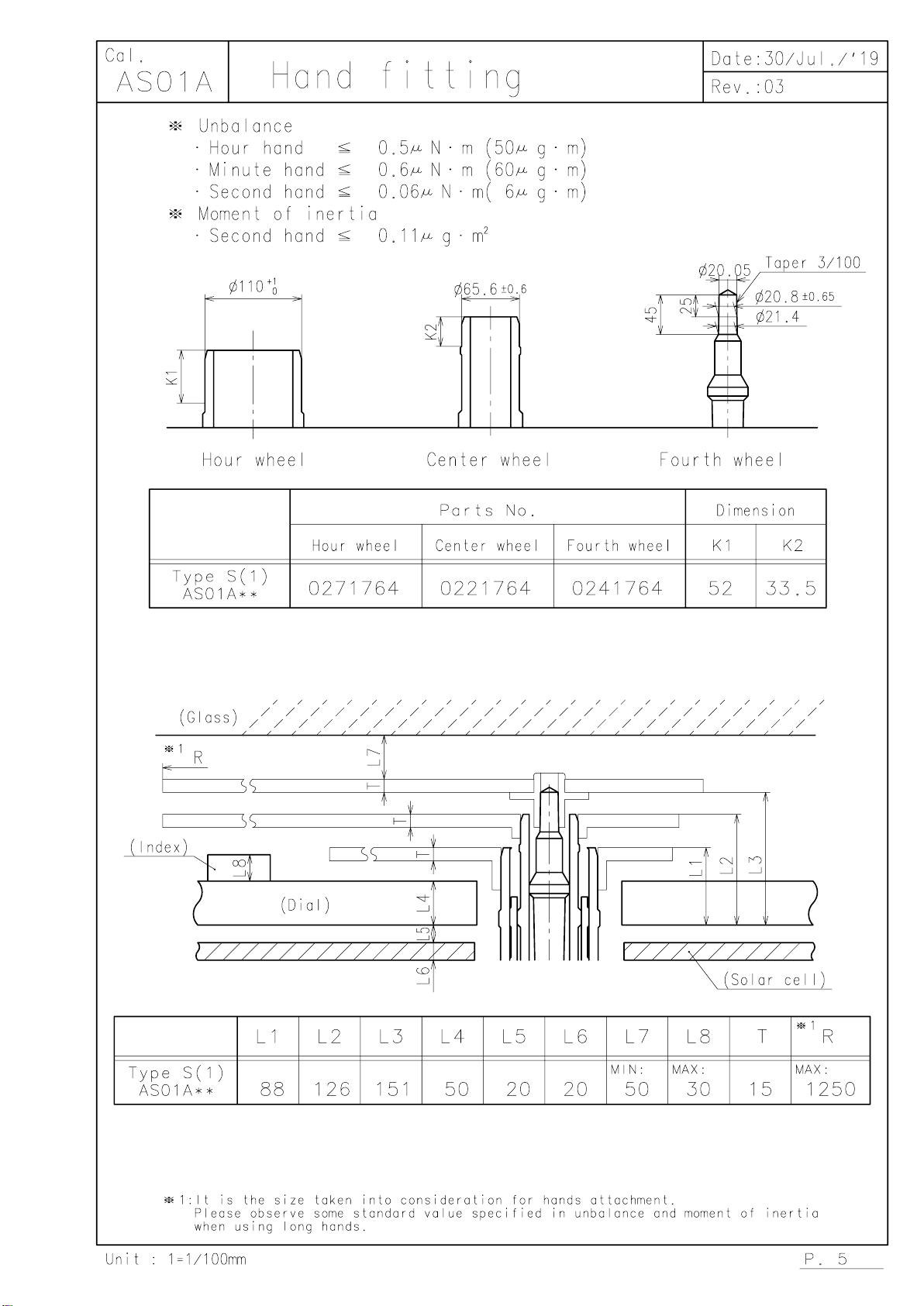

Hand fitting 03 5

Hand setting stem 02 6

Dial-01 02 7-01

Dial-02 02 7-02

Dial-03 02 7-03

Casing ring 02 8

Solar cell unit-01 01 9-01

Solar cell unit-02 01 9-02

Solar cell unit-03 01 9-03

Attention-01 01 10-01

Attention-02 01 10-02

Attention-03 01 10-03

Date :

1.Solar-powered watch

2. Eliminating the need for battery replacement

3. You can use the dial which light transmittance is more than 30%

It is possible to assemble the dial which transmits light on the solar cell.

It enabled to cover the solar cell color, and you can design variety colors of dials.

4. Running time

Expected running time from full charge to stoppage will be around 4 months.

5. Power depletion warning function

The two-second intervals movement of the second hand is a signal of energy depletion.

The watch continuous running time after two-second intervals movement is approximately 1 day.

6. Structure of the separated parts

Unlike conventional quartz watches, this watch does not use a silver oxide battery, thus eliminating the

need for battery replacement.

This watch is a solar-powered watch containing a solar cell underneath the dial to convert any form of

light into '' electrical energy'' and store the power in a secondary battery.

Cal. AS01A Features 24/Apr./'15

Rev. : 01

Movement

Hand setting stem

P. 1

Date :

1. MOVEMENT DIMENSIONS

Outside diameter 15.30mm(3-9H) ×18.20mm(12-6H)

Casing diameter 15.30mm(3-9H) ×17.80mm(12-6H)

Total height 3.05mm (Including solar cell : 3.45mm)

2. TIME STANDARD

Type of quartz oscillator Tuning fork

Frequency of quartz oscillator 32,768 Hz

Accuracy ±20 seconds per month (on wrist)

Operating temperature range −5℃to ＋50℃

Regulation device Nil (Pre-adjusted)

3. INDICATOR / FUNCTIONS

3 Hands Hour / Minute / Second

Reset switch

Power depletion warning function

(Second hand moves at 2-second intervals when voltage is 1.15V)

Running time Approx. 4 months (After fully charged)

Setting mechanism Crown at normal position : Free

Crown pulled out 1st click : Time setting / Reset

4. FEATURES

Jewels 0 Jewels

Anti-magnetism Over 1600A/m (Direct current magnetic field)

Driving current consumption Approx. 0.93μA (1.4V)

Operation stopping voltage 1.0 V

Solar cell type Amorphous silicon solar cell

Maximum unbalance of hands Second hand : 0.06μN・m

Minute hand : 0.6μN・m

Hour hand : 0.5μN・m

Moment of inertia Second hand : less than 0.11 μg・m²

5. SECONDARY BATTERY (Installed)

Type Titanium-lithium-ion secondary battery

Size φ6.8mm ×t 2.15mm

Nominal voltage 1.5 V

Capacity 2.5 mAh

6. SEPARATED PARTS (Parts code)

Hand setting stem 0354788

7. TEST OF ACCURACY

Equipment to be used SEIKO quartz tester QT-99,

Greiner quartz timer-C , Witschi Q-tester 4000

Duration of measurement 10 seconds

Microphone to be used Electromagnetic detection type

All specifications are subject to change without notice.

Cal.

Solar Quartz 6 3/4 × 8''' Movement / Three Hands (H/M/S)

AS01A Rev. : 01

24/Apr./'15

Specifications

P. 2
