Equip USB Cable KVM Switch 2 Port + Audio Manuale utente

Manual

www.equip-info.net

USB Cable KVM Switch 2 Port + Audio

english

Manual_Page 2

www.equip-info.net

Content

1. Introduction________________________________________________________________________________________3

1.1 Features ________________________________________________________________________________________________3

1.2 Physical Diagram ____________________________________________________________________________________4

1.3 Package Contents____________________________________________________________________________________4

2. Specifications ____________________________________________________________________________________5

2.1 General ________________________________________________________________________________________________5

3. Installing the Cable KVM Switch________________________________________________________6

3.1 System Requirements ____________________________________________________________________________6

3.2 Hardware Installation ____________________________________________________________________________6

3.3 Notice for Sun Micro System user ____________________________________________________________7

3.4 Hot Swappable ____________________________________________________________________________________7

3.5 Driver Installation (Windows 98/SE only) ____________________________________________________7

4. Operation ________________________________________________________________________________________11

4.1 Push Button ________________________________________________________________________________________11

4.2 Hot-Key operation ________________________________________________________________________________11

4.3 PC+Audio Combination Selection ____________________________________________________________11

4.4 Auto-Scan Function ________________________________________________________________________________11

4.5 Hot Key definition table ________________________________________________________________________12

Disclaimer / FCC Statement ____________________________________________________________13

Manual_Page 3

www.equip-info.net

1. Introduction

Thank you for your purchase of the 2-port USB Cable KVM Switch with Audio! You now

have a high quality, durable system that enables you to control two computers and/or ser-

vers from one console (USB Mouse, Keyboard, and Monitor).

1.1 Features

1. Controls 2 computers from a single console (Keyboard/Mouse) over USB connection.

2. Support Window 98SE/ME/2000/XP/Vista/2003 server, Sun Micro , Mac , Linux

3. Allows sharing of audio devices.

4. Emulates a keyboard on each PC to allow your computers to boot normally without

a keyboard error.

5. Supports hot-swap. All devices connected to the KVM can be added or removed at

any time, without shutting the unit down.

6. Supports USB keyboard Hot-Key Switch and push buttons for easy operation.

7. Supports Auto-Scan function to alternate video between both computers in

preset intervals.

8. Supports LED display for PC and audio status monitoring.

9. Supports VGA resolutions up to 2048x1536 @ 85HZ.

10. Supports Plug and Play.

11. Self powered through USB connection.

12. Provides innovative cable management system to prevent tangles.

Manual_Page 4

www.equip-info.net

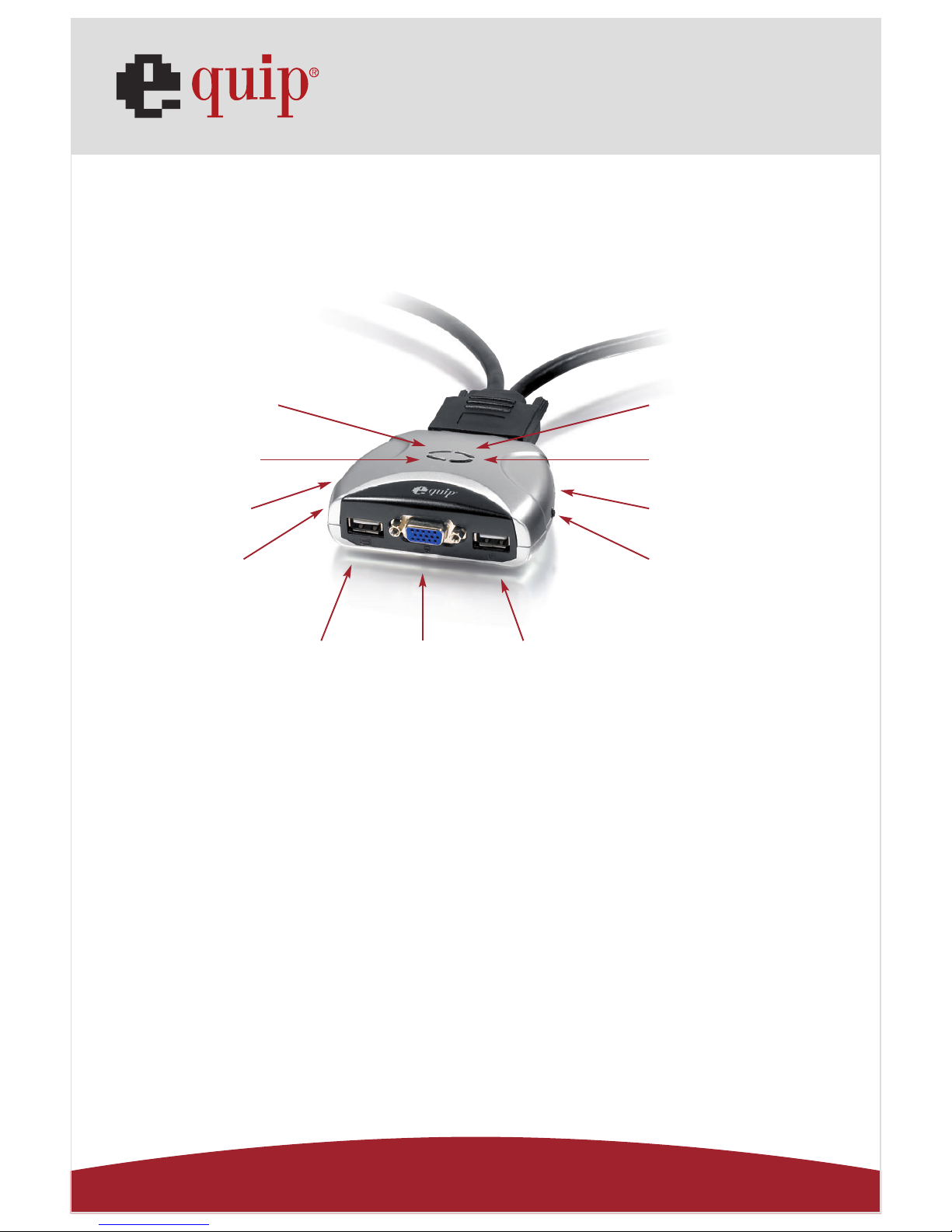

1.2 Physical Diagram

PC LED Indicators:

RED LED indicates that the 2-port USB Cable KVM Switch

is switched to the corresponding PC.

PC connection LED Indicators:

GREEN LED indicates the status of PC connection.

1.3 Package Contents

The product you purchased should contain the following equipment and accessories:

1. One 2-port USB Cable KVM Switch with Audio.

2. User Manual.

USB Keyboard VGA Output USB Mouse

PC connection 2 LED

Indicators (Green)

PC 2 LED

Indicators (Red)

Speaker Jack

PC Selection

Push Button

PC connection 1 LED

Indicators (Green)

PC 1 LED

Indicators (Red)

MIC Jack

PC Selection

Push Button

Manual_Page 5

www.equip-info.net

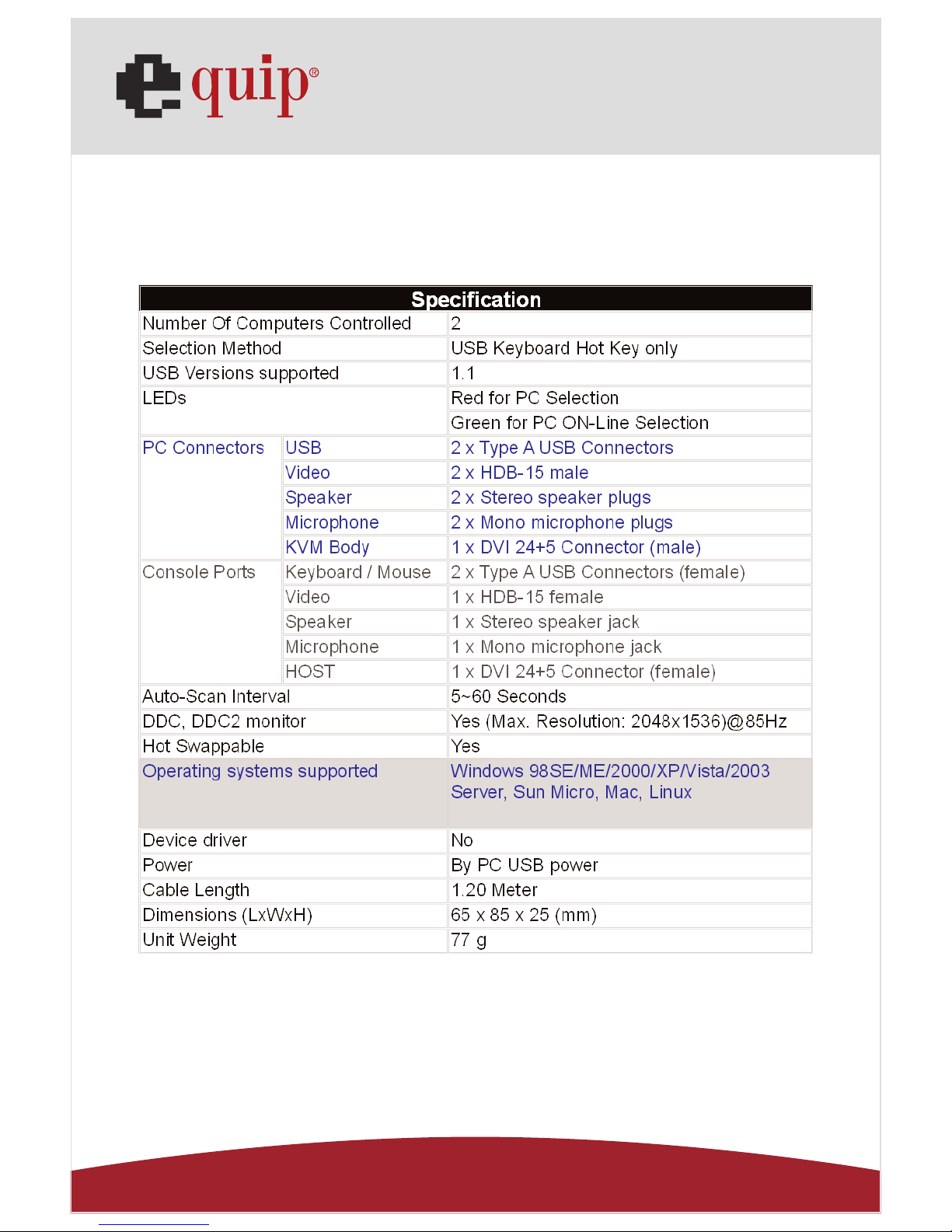

2. Specifications

2.1 General

3. Installing the Cable KVM Switch

3.1 System Requirements

• A PC with USB port and 1 VGA port.

• Windows 98SE or later, Mac OS 8/9/OS X, Solaris 8 (SUN BLADE 100),

Linux Kernel 2.3 or later.

• USB keyboard and mouse.

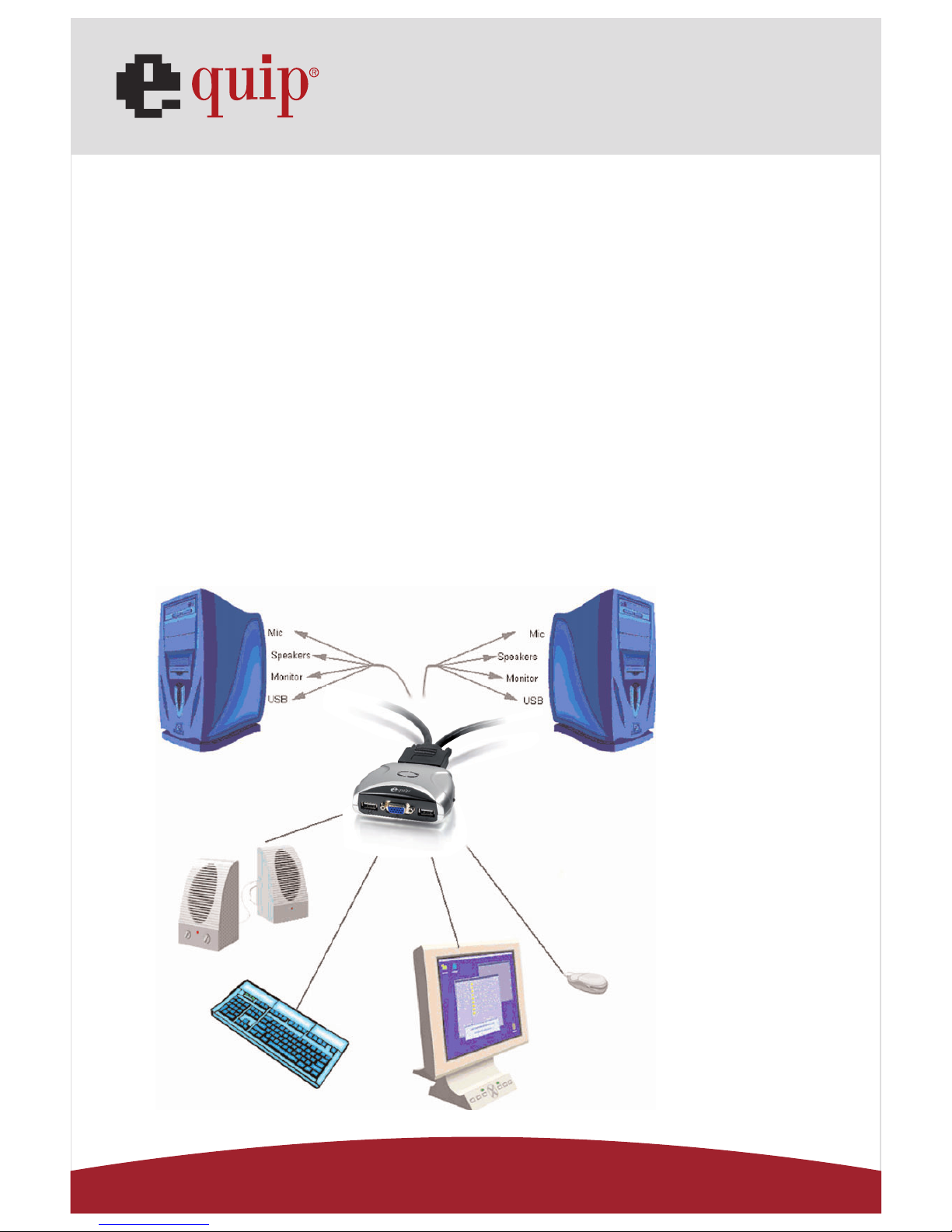

3.2 Hardware Installation

• Plug the USB keyboard, USB mouse, and monitor into the corresponding connectors of

your 2-port USB Cable KVM Switch.

• Plug the speakers into the corresponding jacks of your 2-port USB Cable KVM Switch.

• Connect the KVM cables into the corresponding ports on the computers.

Manual_Page 6

www.equip-info.net

Manual_Page 7

www.equip-info.net

3.3 Notice for Sun Micro System user

Since some Sun Micro system will detect the monitor information, if system fail to get infor-

mation from the Monitor, then you won’t get any screen came out. So for safety, “YOU

MUST SWITCH USB KVM SWITCH TO THE SUN MICRO SYSTEM” before you power on the

Sun Micro System. After you seeing the screen from the Sun Micro System, then you can

switch to any other Host. If you have multiple Sun Micro systems, then you have to repeat

this procedure one by one.

3.4 Hot Swappable

The 2-port USB Cable KVM Switch supports hot-swap technology. All the components can

be added or removed at any time without shutting the PC down.

3.5 Driver Installation (Windows 98/SE only)

After you connect the 2-port USB Cable KVM Switch to your PC, Win 98 will automatically

detect the device and prompt for the driver installation. Please install the 2-port USB Cable

KVM Switch by the following instruction from Step A-E. Please have your Windows 98 CD

ready.

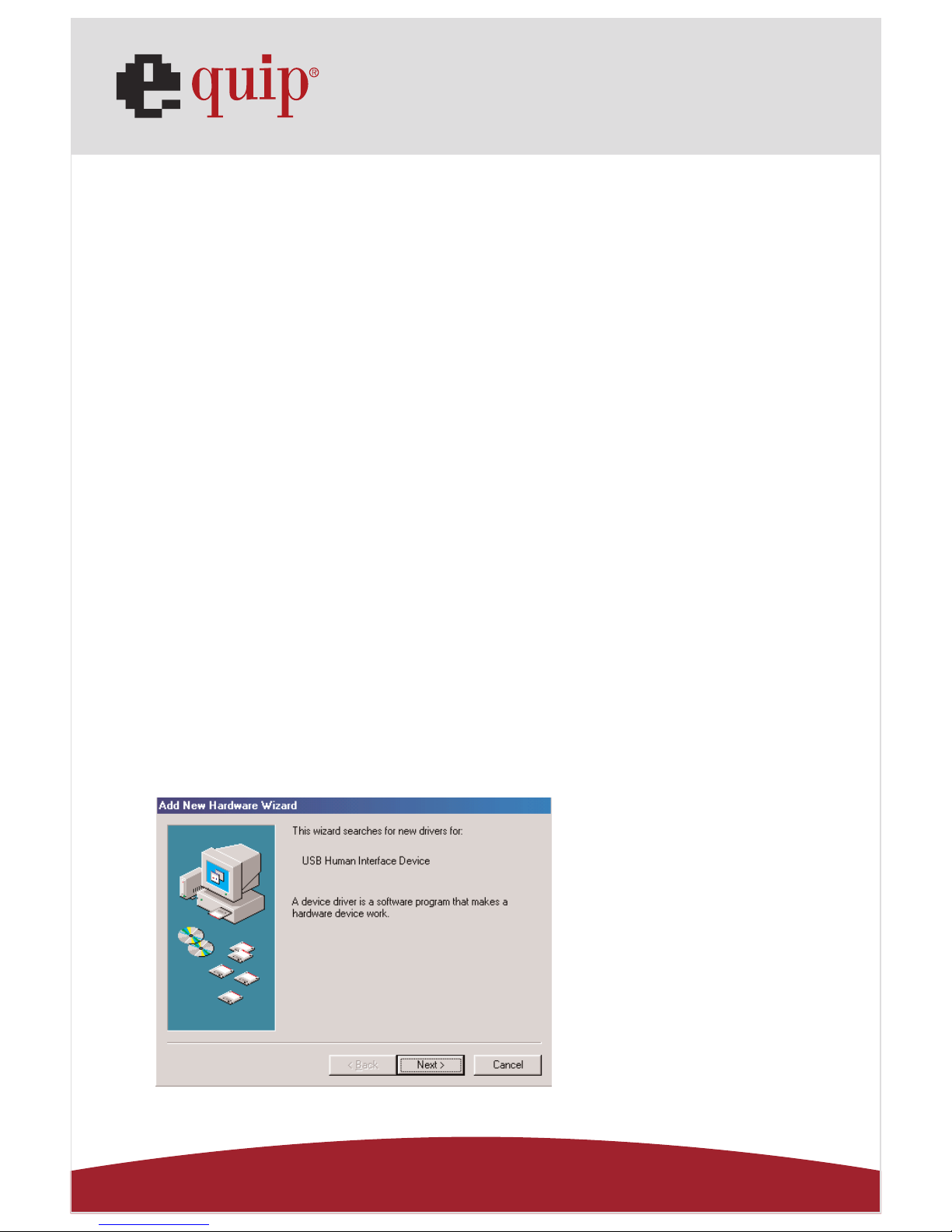

A. Press “Next” to Continue.

Manual_Page 8

www.equip-info.net

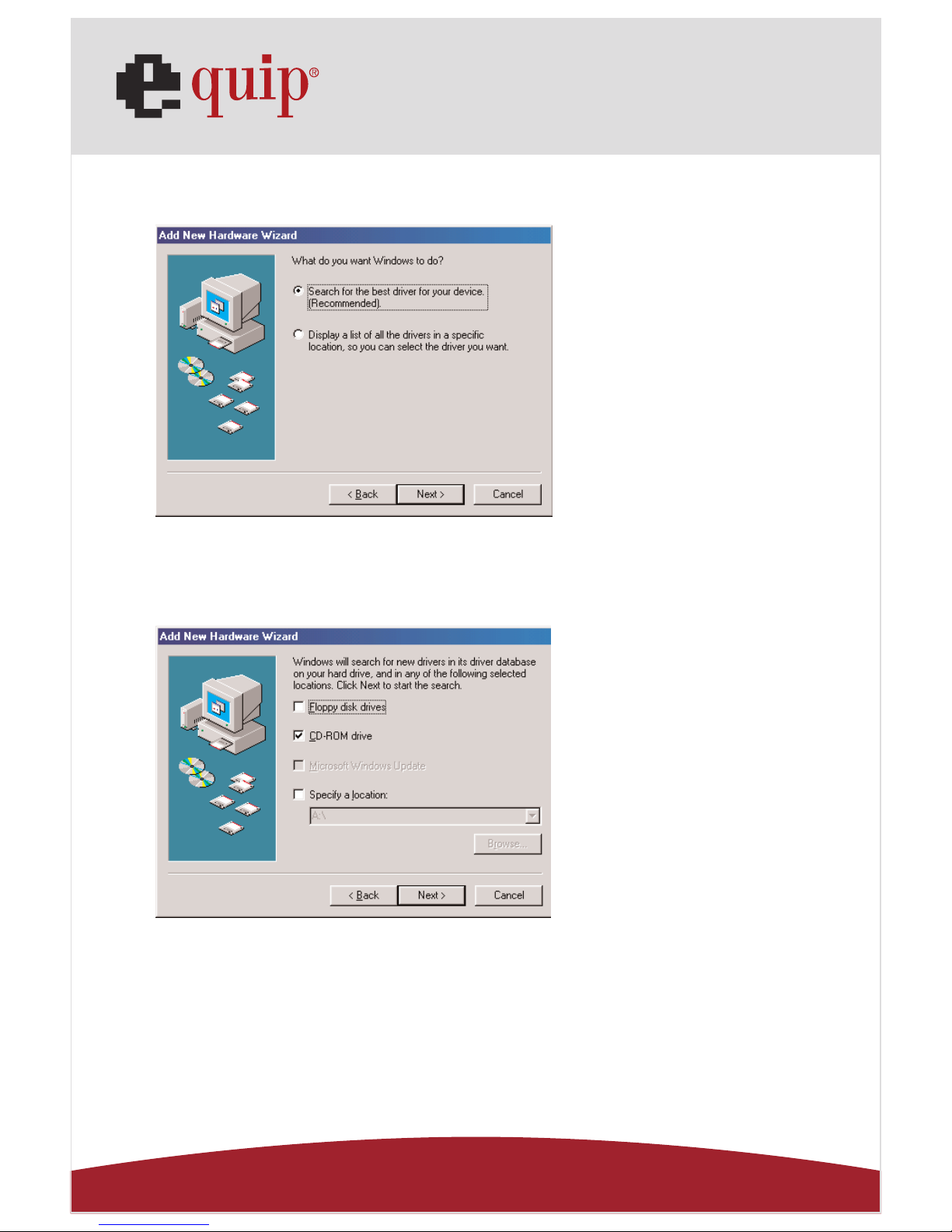

B. Select “Search for the best driver for your device” and press “Next” to continue.

C. Please insert the “Windows 98” CD into your CD-ROM drive. Click “CD-Rom drive” and

press “Next” to continue.

Manual_Page 9

www.equip-info.net

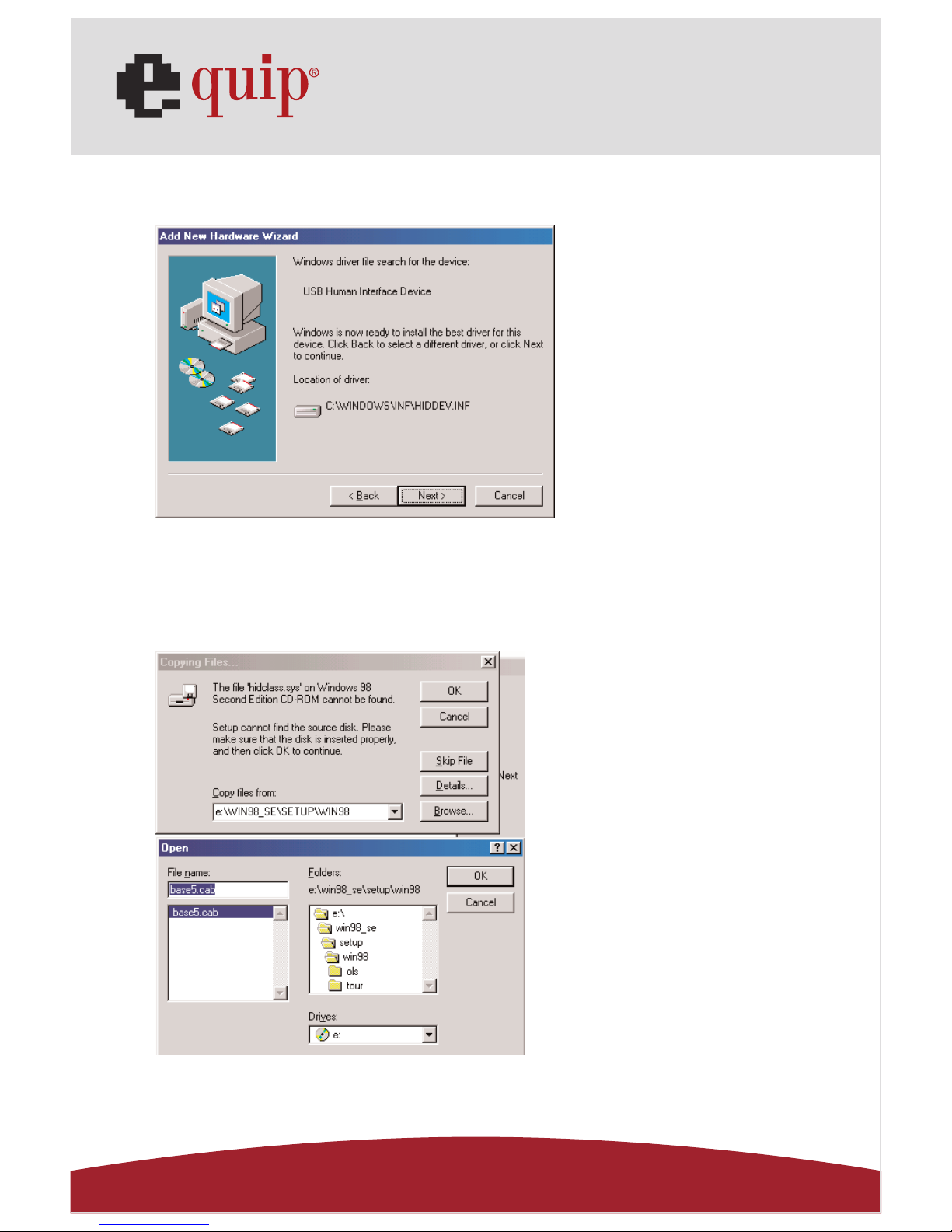

D. Press “Next” to start the installation process.

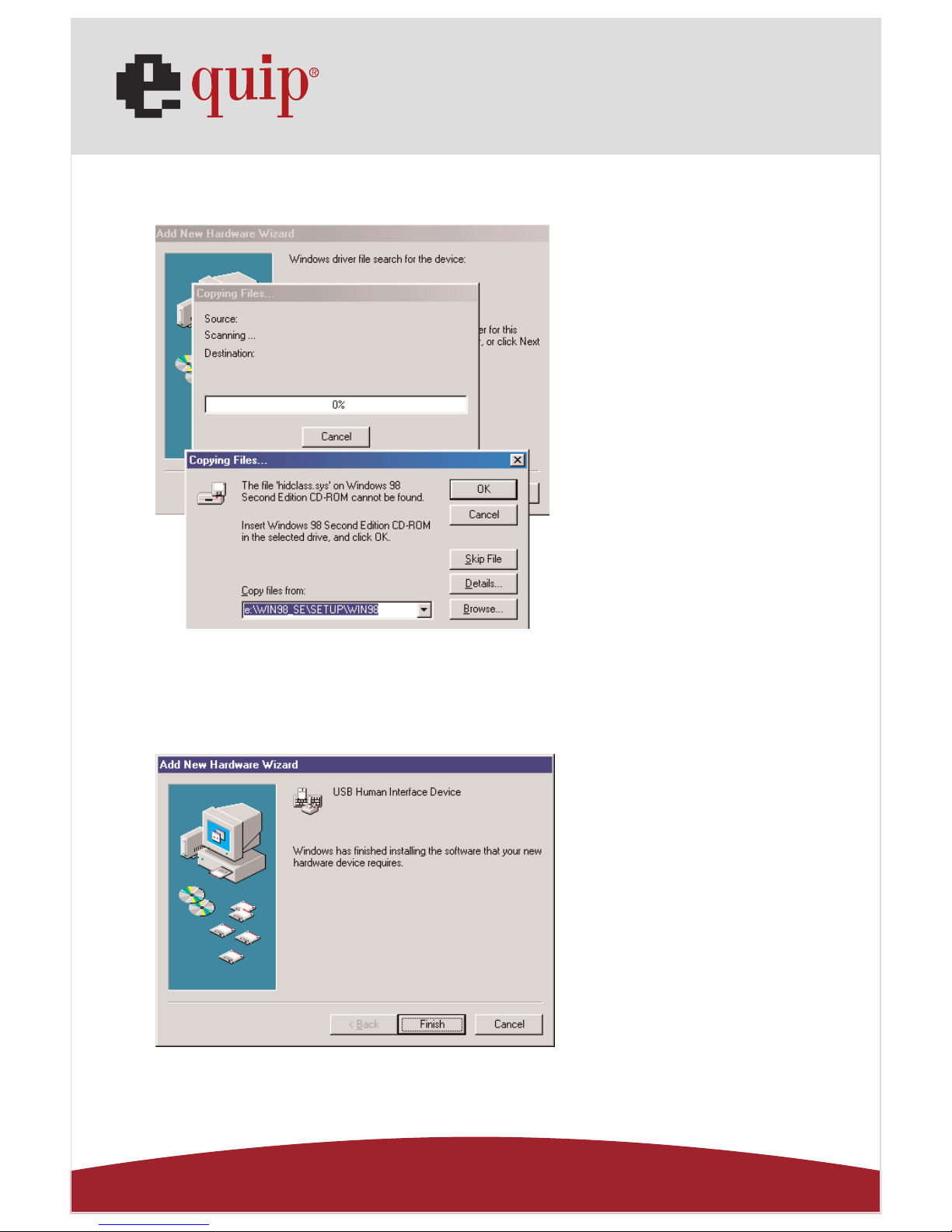

D1.Sometimes Windows cannot locate the necessary driver automatically. So you need to

choose “Browse” to specify the location of the driver on your “Windows 98” CD

manually. (The driver might be located in a different directory from the figure below.)

Manual_Page 10

www.equip-info.net

D2.Press “OK” to continue

E. Press “Finish” and Windows has finished installing the USB Human Interface Device

driver for PS/2 keyboard & mouse.
