ERGATTA Rower Manuale utente

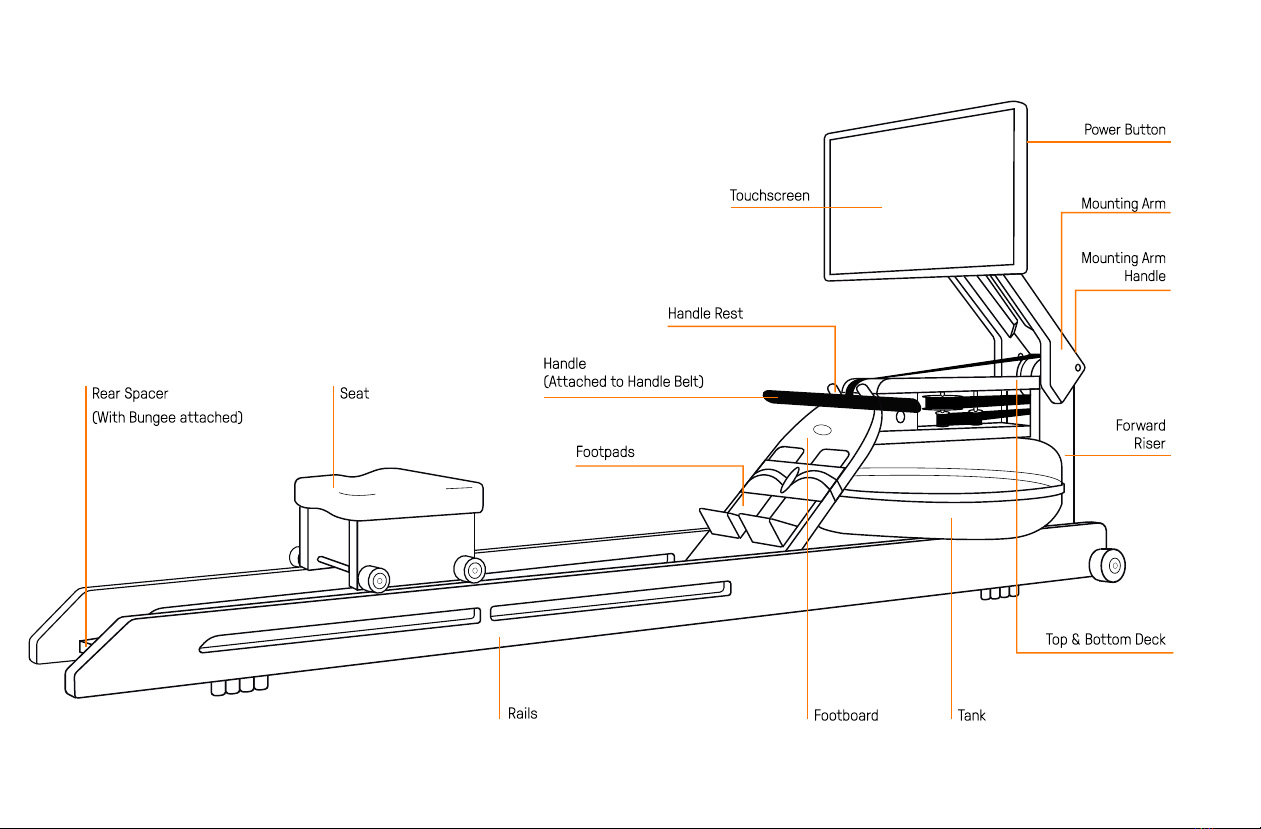

A S S E M B L Y M A N U A L

Touchscreen

Footboard

Rails

Forwar

Riser

To & Bottom Deck

Tank

Seat

Mounting Arm

Power Button

Mounting Ar

Handle

Handl

(Attached to Handle Belt)

Handle Rest

Foot ads

Rear S ace

(With Bungee attached)

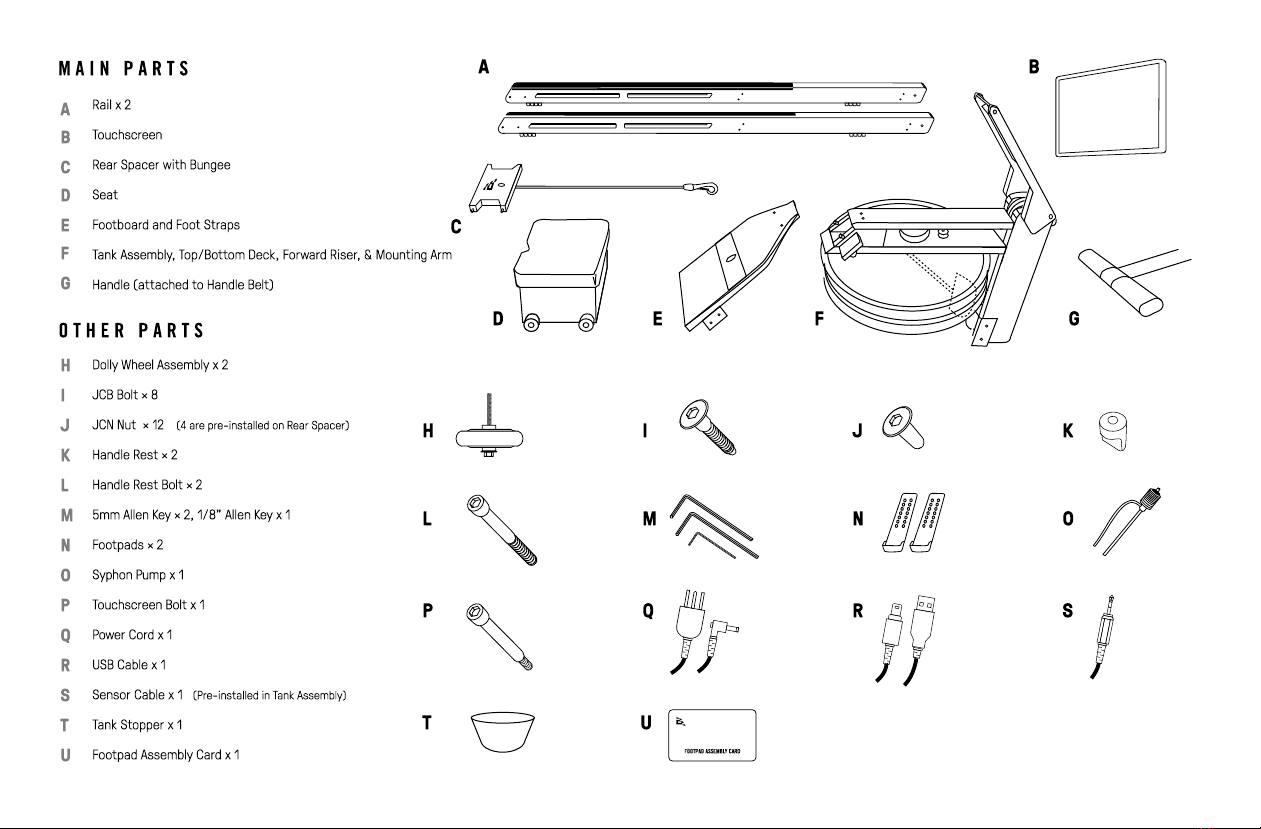

M A I N P A R T S

O T H E R P A R T S

Rail x 

Touchscree

Rear Spacer with Bunge

Sea

Footboard and Foot Strap

Tank Assembly, Top Bottom Deck, Forward Riser, & Mounting Ar

Handle (attached to Handle Belt)

Dolly Wheel Assembly x 

JCB Bolt × 

JCN Nut × 1

Handle Rest × 

Handle Rest Bolt × 

5mm Allen Key × 2, 1 8” Allen Key x 

Footpads × 

Syphon Pump x 

Touchscreen Bolt x 

Power Cord x 

USB Cable x 

Sensor Cable x 

Tank Stopper x 

Footpad Assembly Card x 

(4 are pre-installed on Rear Spacer)

(Pre-installed in Tank Assembly)

A B

H I J

L M N

T U

Q R

D E F G

Footpad Assembly Card

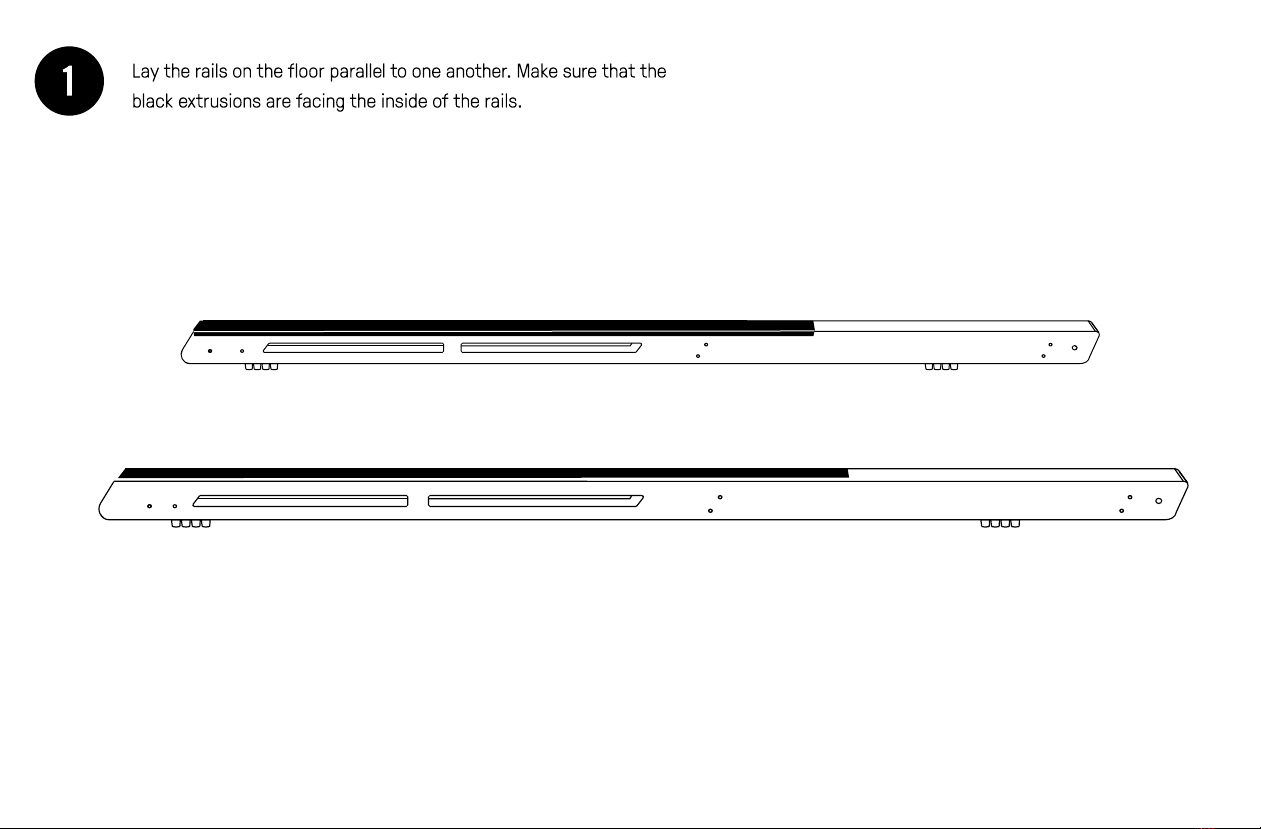

1Lay the rails on the floor parallel to one another. Make sure that the

black extrusions are facing the inside of the rails.

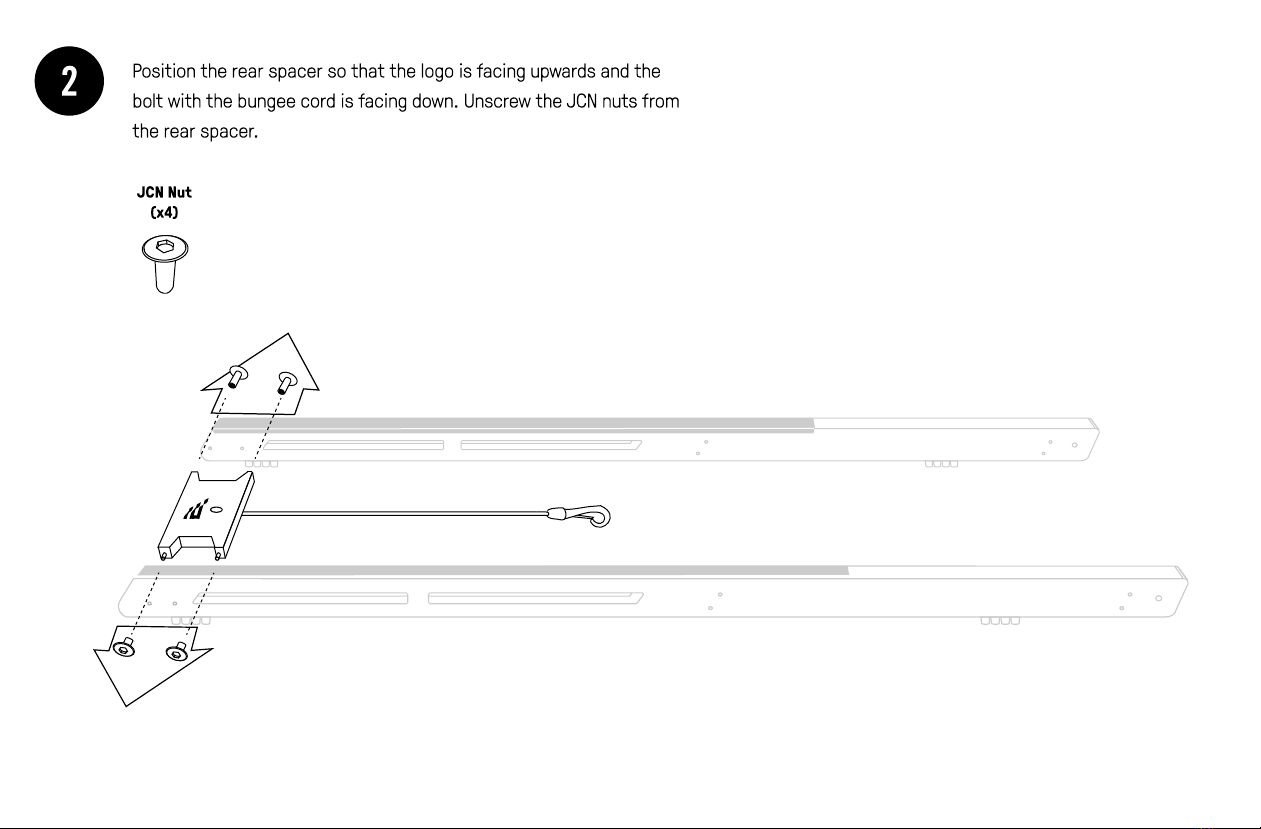

2Position the rear spacer so that the logo is facing upwards and the

bolt with the bungee cord is facing down. Unscrew the JCN nuts from

the rear spacer.

JCN Nu

(x4

3Connect the rear spacer to the rails, then secure using the JCN nuts.

At this stage, the JCN nuts should be left hand-tight.

JCN Nu

(x ) Allen Keys

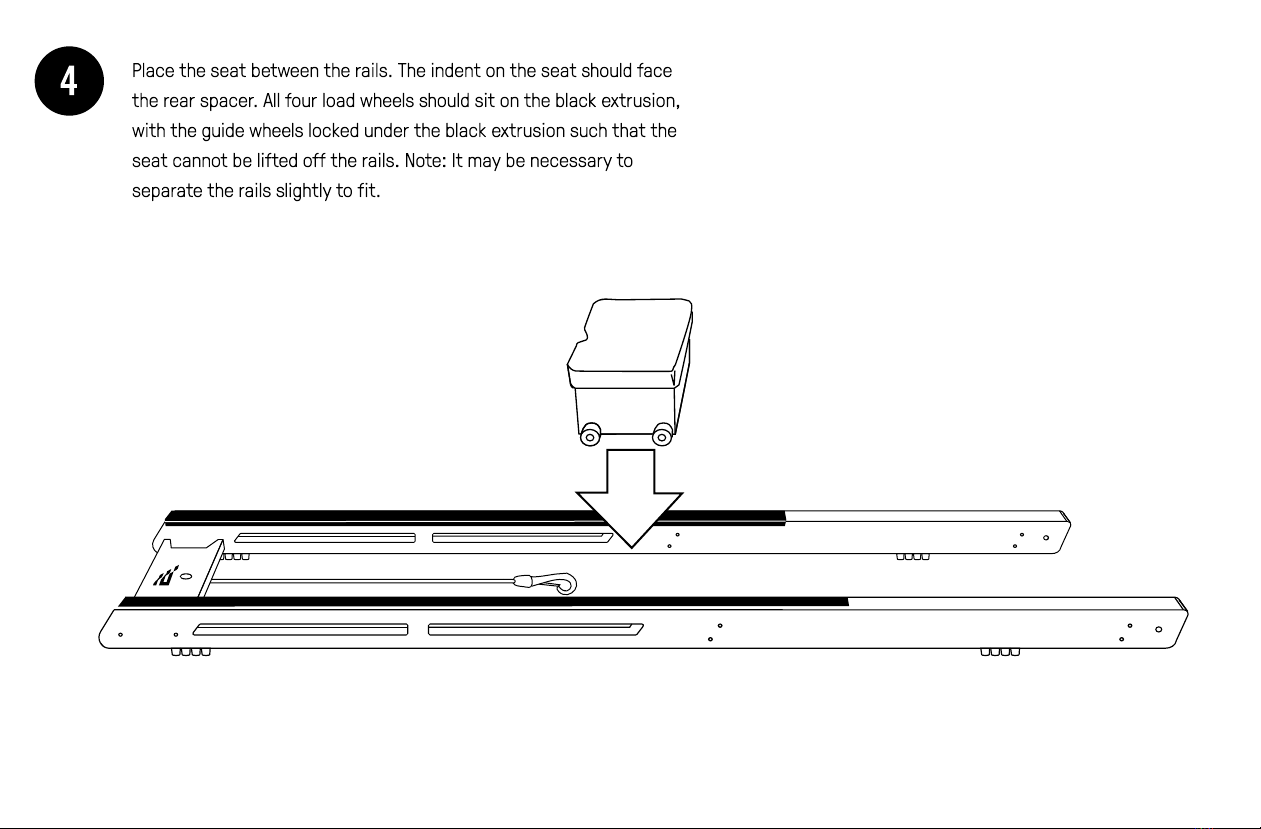

4Place the seat between the rails. The indent on the seat should face

the rear spacer. All four load wheels should sit on the black extrusion,

with the guide wheels locked under the black extrusion such that the

seat cannot be lifted off the rails. Note: It may be necessary to

separate the rails slightly to fit.

5Unscrew the JCN nuts from the wheel assembly and attach the wheels

to the outside of the rails. Attach the JCN first using your hands, then

tighten with the 5mm Allen key.

JCN Nu

( 2) Wheel Assembl

( 2)

Allen Keys

6Raise the mounting arm by gently pulling the spring lock on the back

of the forward riser, and lifting the arm until it locks in place.

STEP 1

STEP 2

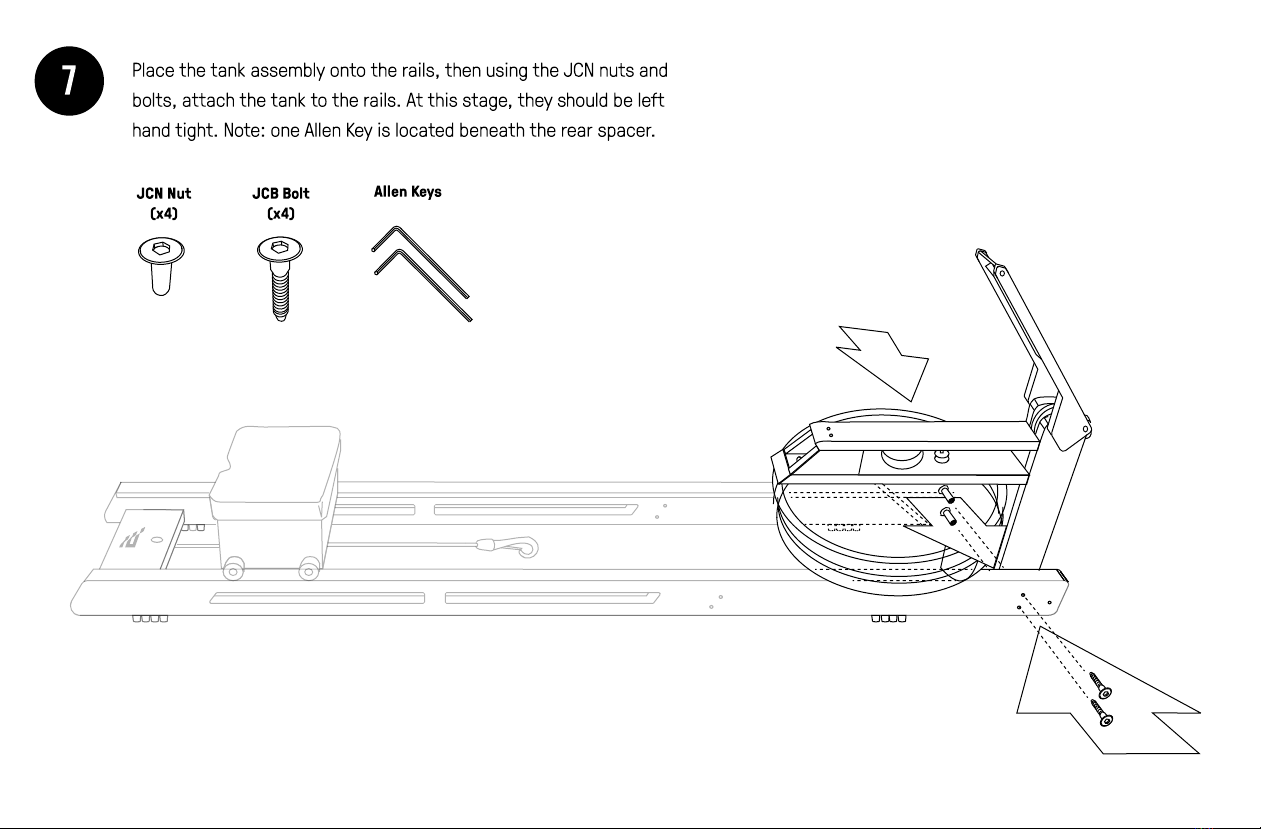

7Place the tank assembly onto the rails, then using the JCN nuts and

bolts, attach the tank to the rails. At this stage, they should be left

hand tight. Note: one Allen Key is located beneath the rear spacer.

JCN Nu

( 4) JCB Bol

( 4)

Allen Keys
