Ergotron StyleView Manuale utente

5˚

20˚

+12˚

180˚

20"

(508 mm)

(127 mm)

16”

(406 mm)

12˚

www.ergotron.com

USA: 1-800-888-8458

Europe: +31 (0)33-45 45 600

China: 400-120-3051

Japan: [email protected]

777-24-046-G-01 rev. D • 03/19

STYLEVIEW®

QUICK REFERENCE

Release Brake to move riser.

Loosen knob,

tilt Display to

desired position

then retighten

knob.

ERGONOMICS

RANGE OF MOTION

Working customize - to your size

1 Set top of monitor screen about one inch below eye level - Release brake and lift or

lower riser as needed.

2 Tilt screen for comfortable viewing and to reduce eye and neck strain.

3 Pull keyboard tray forward and position mouse tray and mouse pouch on right or

left, as needed.

4 Work with elbows bent at about 90° to minimize muscle strain.

5 If the riser moves up and down with diculty, or if it drifts out of set position,

consult the product manual for adjustment information.

6 Stay in charge!

Powered carts should be plugged

into outlet as often as possible to

keep battery charged and computer

running.

Moving stow - before you go

1 During normal movement, release brake and lower worksurface to lowest

position for optimal stability and unobstructed view.

2 Tuck away open trays and return mouse, scanner and other accessories to

their places. Clear worksurface

3 Unlock both front casters.

4 Push cart from rear with elbows bent at about 90° to maximize control and

minimize muscle strain.

5 Don’t run out!

Before moving, make sure

cord is unplugged from

outlet and hooked to basket

for safe travel. Remember,

charge battery fully 100%

every day!

CAUTION! Completely

release brake engagement

before raising or lowering

the cart. Raising or lowering

the cart with the brake

partially engaged may cause

product damage.

www.ergotron.com

USA: 1-800-888-8458

Europe: +31 (0)33-45 45 600

China: 400-120-3051

Japan: [email protected]

777-24-046-G-01 rev. D • 03/19

STYLEVIEW®

QUICK REFERENCE

KEYBOARD LIGHT

Your computer must be on for this light to function.

Keyboard Light will automatically turn o after 15 minutes if not manually turned o.

CAUTION: Close worksurface before opening drawers. Open only one drawer at a time. Do

Not push cart when drawers or worksurface are open. Failure to follow these instructions

may cause the cart to be unstable.

*Drawer Row Numbers:

Lock Drawer:

• Wait 4 seconds for lock to engage automatically.

NOTE: Always ensure drawer is pushed in all the way and engaged with lock.

Unlock Drawer (2 methods):

NOTE: All Drawers in row must be closed before a new row can be unlocked.

• Enter User PIN and press ENTER (only numbers for available drawer rows ash green), then press desired drawer row number*.

• Key

Altri manuali per StyleView

Altri manuali Ergotron Scrivania

Ergotron

Ergotron WorkFit-S Manuale utente

Ergotron

Ergotron StyleView Manuale utente

Ergotron

Ergotron StyleView Manuale utente

Ergotron

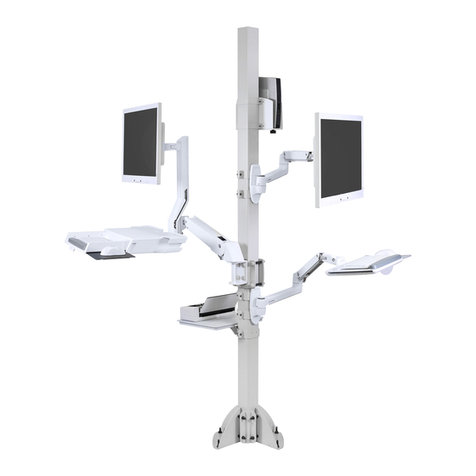

Ergotron Command Post Manuale utente
