Ergotron 97-742 Manuale utente

888-97-300-G-00 rev A • 11/12 1 of 5

Tablet Management Cart / Module

Service Manual

USB Slideout Drawer Replacement Kit

Compatibility Alert:

Drawer part numbers 97-741 and

97-742 can only be installed in

Module part numbers 24-2xx-085

with ABS Doors.

Drawer part numbers 06-073 and

06-074 can only be installed in

Module numbers 24-3xx-085 with

Steel Doors.

Please verify you have the

correct service kit before

proceeding with installation!

Drawers 97-742 and 06-074 are without LEDs

Drawers 97-741 and 06-073 include LEDs

Make sure the Module power cord is

disconnected from wall power supply

before proceeding.

Unlock the module and open the doors.

NOTE: the Module power cord acts

as the connect/disconnect device

switching power o and on.

888-97-300-G-00 rev A • 11/12

2 of 5

1 2 3

Use a Phillips screwdriver to remove the two

screws located on the interior sides of the

module; save screws to reinsert later.

Partially slide out the module drawer. You’ll

need to unplug two cables before sliding the

drawer completely out. Open the strap to

access the two cables.

Unplug the USB and DC power cables

(push up on the lever under the DC

connector to release). The drawer can

now be removed.

888-97-300-G-00 rev A • 11/12 3 of 5

Place the new drawer up-side-down

on the cart/module top. Line up

one of the replacement USB cables

along numbers 1 to 8 on the drawer

as a way to measure out slack

(represented by dashed line).

Remove the existing

drawer from the module.

NOTE: Please recyle or

dispose the removed

drawer in a responsible

manner.

Remove cables and

re-install on new drawer.

For Kits 97-741 and 97-742 only:

a. Remove USB box from existing drawer by removing the 4 screws.

b. Replace with new USB box and replace the 4 screws.

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

888-97-300-G-00 rev A • 11/12

4 of 5

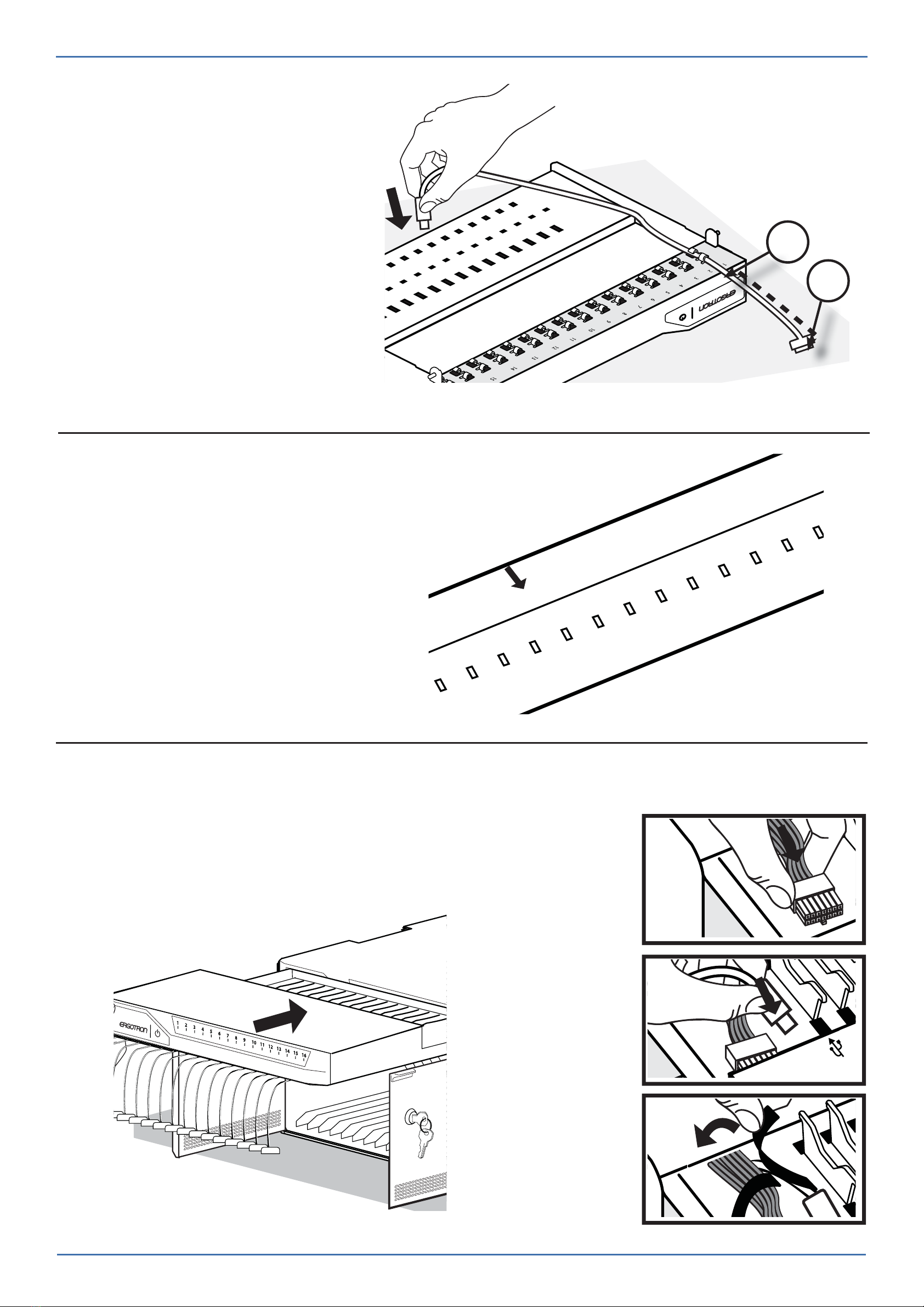

Slide the replacement drawer partially into the

module. Connect the USB and DC cables and

wrap the straps around the cables.

3 4 5 6 7 8 9 10 11 12 13 14 15

Connect the replacement USB cable

to the corresponding USB port of

the new drawer. Repeat USB cabling

steps 7 through 8 for the rest of the

portable devices going into this

module.

Route the replacement USB cable

through the front slot to the back

of the new drawer maintaining

the slack measured in previous

step.

888-97-300-G-00 rev A • 11/12 5 of 5

Slide the new drawer completely

into the module. Insert the screws

removed in step 2 and tighten.

Insert portable devices into the module. Connect the

tablet USB charging cables to the portable devices.
