Ergotron WorkFit LX Manuale utente

1 of 19

888-45-323-G-00 rev.C • 12/18

www.ergotron.com | USA: 1-800-888-8458 | Europe: +31 (0)33-45 45 600 | China: 400-120-3051 | Japan: [email protected]

English, Español, Français, Deutsch, Nederlands, Italiano, Svenska, 日本語, 汉语

WorkFit

Sit Stand Desk Mount System

™

< 25 lbs

(11.3 kg)

0-5 lbs

(0-2.3 kg)

0.78”-2.25” (20-57mm)

0.5"-2.5" (13-64mm)

0.78"-2.56"

(20-65mm)

CLAMP GROMMET HOLE

User's Guide

English

For the latest User Installation Guide please visit: www.ergotron.com

Maximum Screen

Size* = 42”

*Limited to 25 lbs

maximum

2 of 19

888-45-323-G-00 rev.C • 12/18

180°

360°

180°

90°

5°

20"

(508 mm)

3°3°

5°

70°

360°

180°

20"

(508 mm)

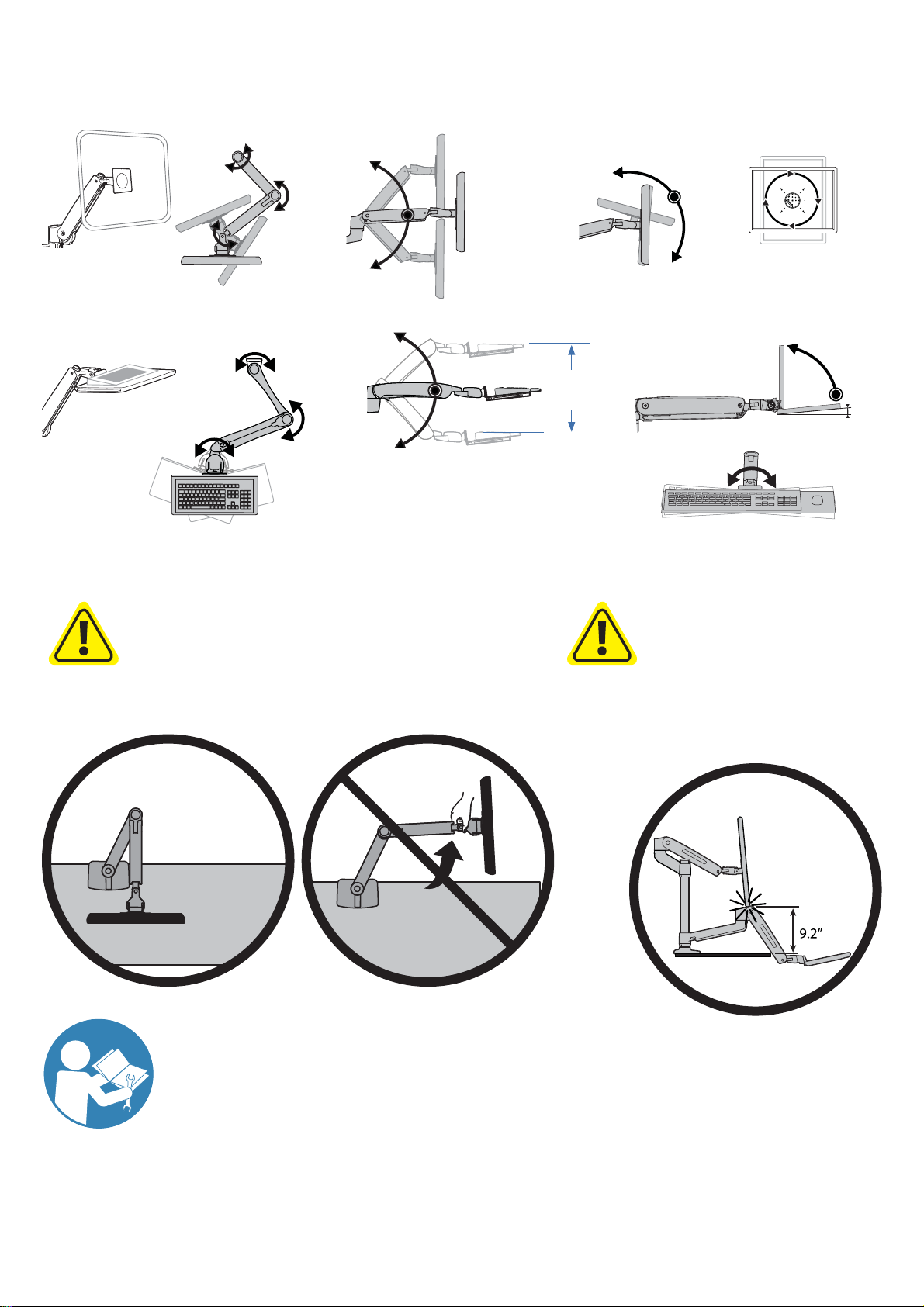

Safety

Important! You will need to adjust this product after installation is complete. Make sure all your equipment is properly

installed on the product before attempting adjustments. This product should move smoothly and easily through the

full range of motion and stay where you set it. If movements are too easy or difﬁcult or if product does not stay in

desired positions, follow the adjustment instructions to create smooth and easy movements. Depending on your

product and the adjustment, it may take many turns to notice a difference. Any time equipment is added or removed

from this product, resulting in a change in the weight of the mounted load, you should repeat these adjustment steps

to ensure safe and optimum operation.

CAUTION: DO NOT rotate monitor past rear

edge of desk. Doing so will create an unstable

situation and may cause equipment damage or

personal injury.

CAUTION: Monitor may

hit Keyboard arm in some

congurations. Use caution

when moving your monitor

and keyboard arms.

Features & Speciﬁcations

3 of 19

888-45-323-G-00 rev.C • 12/18

AB CD

1x 1/4”

8mm

M6 x 45mm

2x 4x

1x 1x

M4 x 10mm

M4 x 8mm

M4 x 10mm

M3 x 6mm

2.5mm

M4 x 14mm

4x M4 x 12mm

4x M5 x 12mm

4x M6 x 12mm

M5 x 7mm

M5 x 20mm

1x 4mm

1x 5mm

1x 1x

1/4"

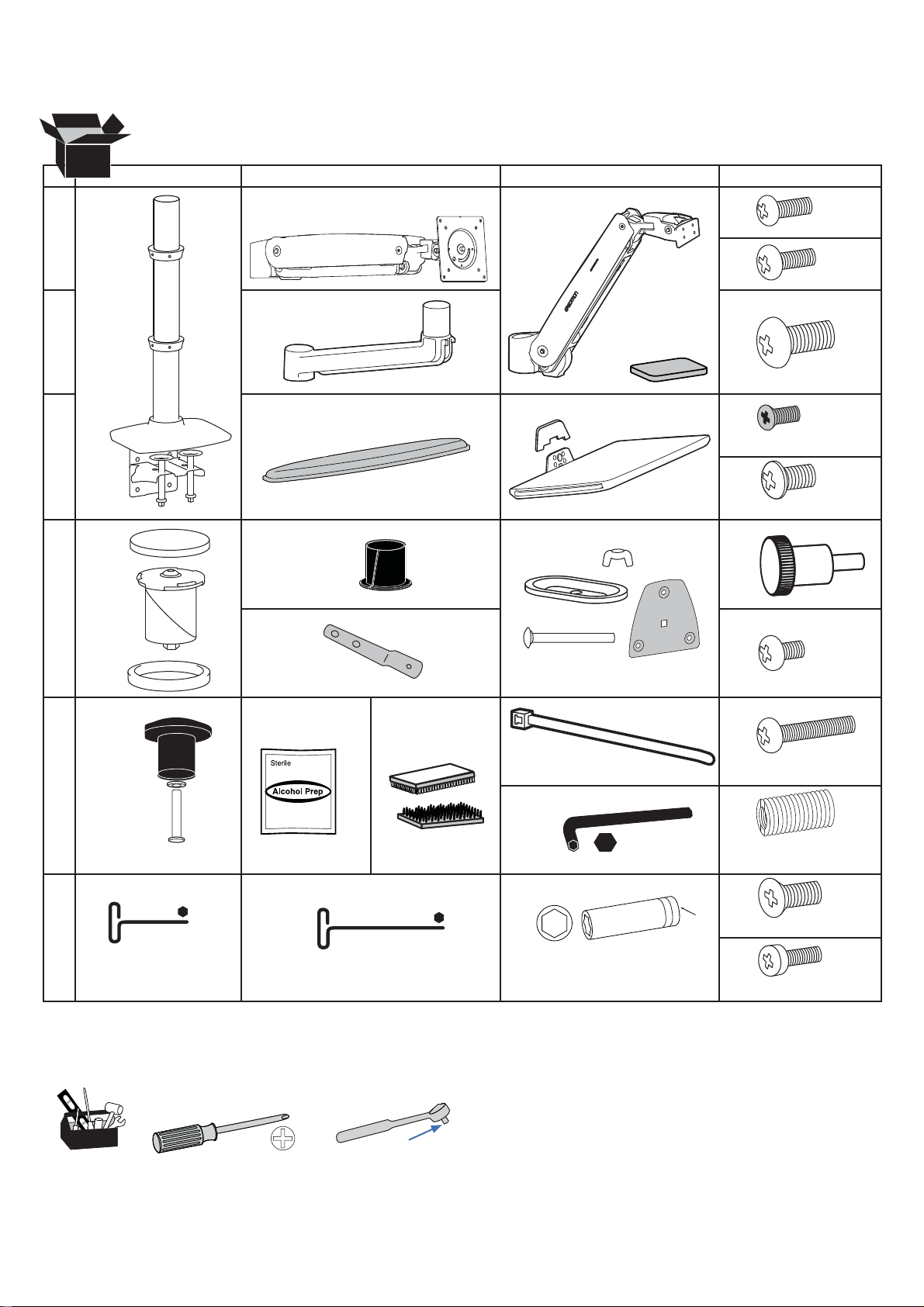

Components

M8M5 Converter

Tools Needed

4 of 19

888-45-323-G-00 rev.C • 12/18

13.3"

(338 mm)

13.3"

(338 mm)

5.9"

(150 mm)

5.9"

(150 mm)

5.9"

(150 mm)

5.9"

(150 mm)

19.2"

(488 mm)

19.2"

(488 mm)

10.75"

(273 mm) 10.75”

(273 mm)

10.3"

(262 mm)

10.3"

(262 mm)

10.3"

(262 mm)

10.3"

(262 mm)

11.7"

(297 mm)

17.6"

(447 mm)

17.6"

(447 mm)

22"

(559 mm)

23.6"

(599 mm)

3.7"

(93 mm)

3.7"

(93 mm)

18.3"

(466 mm) 18.3"

(466 mm)

11.7"

(297 mm)

1.75"

(44 mm)

11.5"

(292 mm)

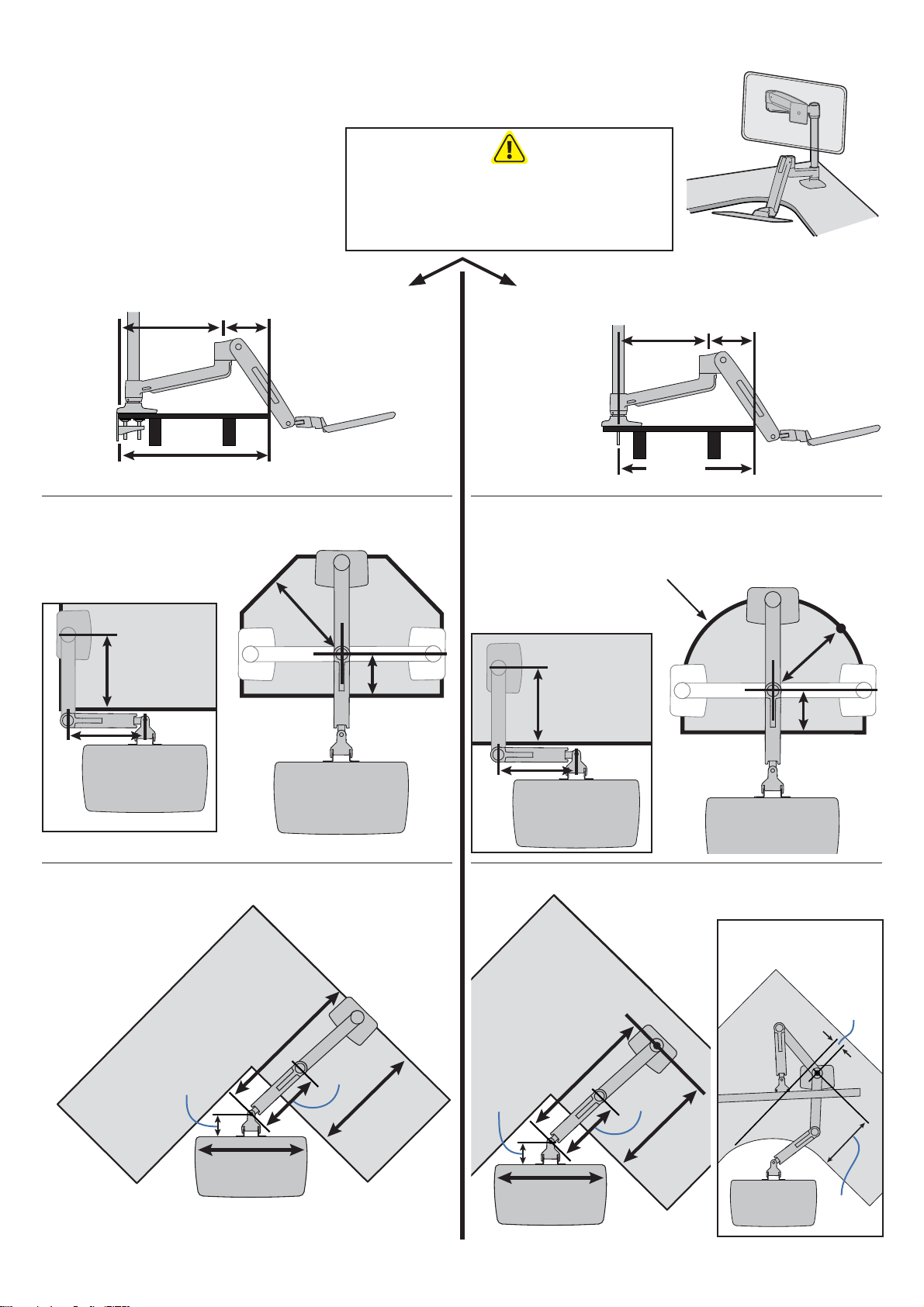

Desk Placement

Maximum dimensions to

allow keyboard arm to

lower below front of desk.

CLAMP GROMMET HOLE

Grommet hole can be located anywhere along this arch.

CAUTION: Base must be completely on desk surface.

Failure to follow these instructions may result in

equipment damage or personal injury.

Top View Top View

Example of one conguration

Corner mount - Top ViewCorner mount - Top View

Front of Desk

Side View Side View

Front of Desk

5 of 19

888-45-323-G-00 rev.C • 12/18

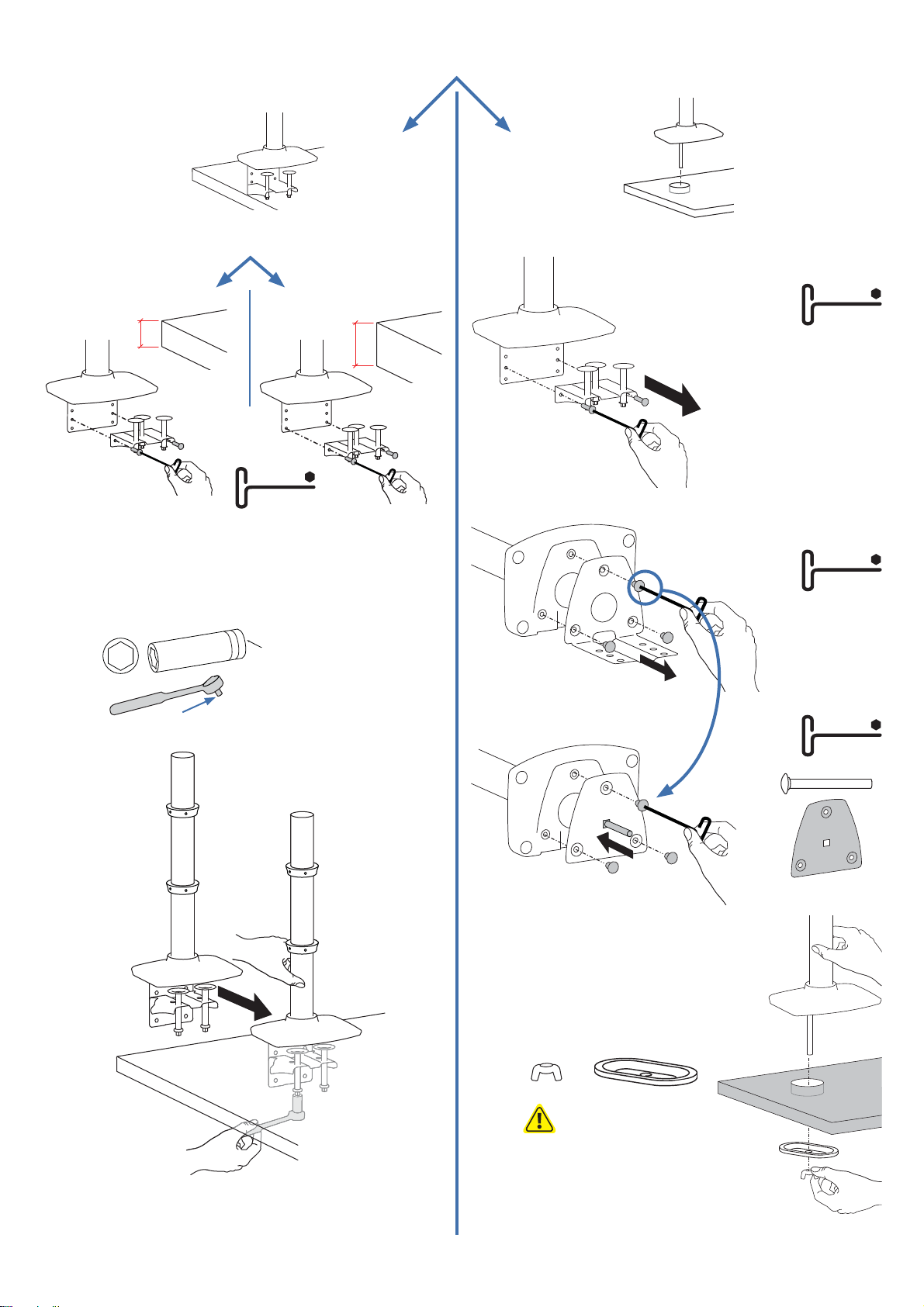

0.78"-1.38" (20-35mm) 1.18"-2.56" (30-65mm)

1/4"

1/4”

8mm

4mm

CAUTION: Bolt must be

centered in hole.

CLAMP GROMMET HOLE

DESK THICKNESS

6 of 19

888-45-323-G-00 rev.C • 12/18

abc

M6 x 45mm

4mm

2.5mm

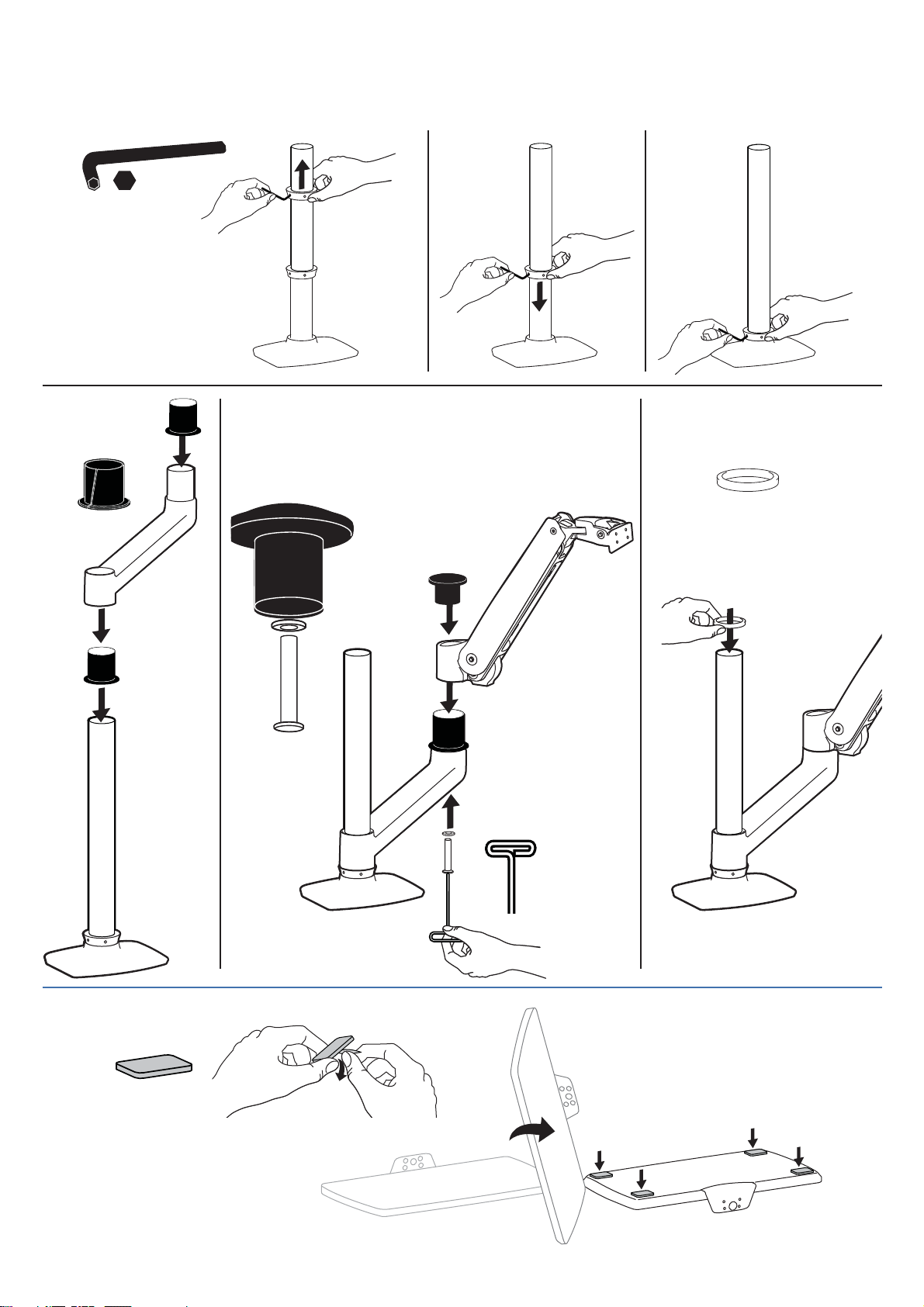

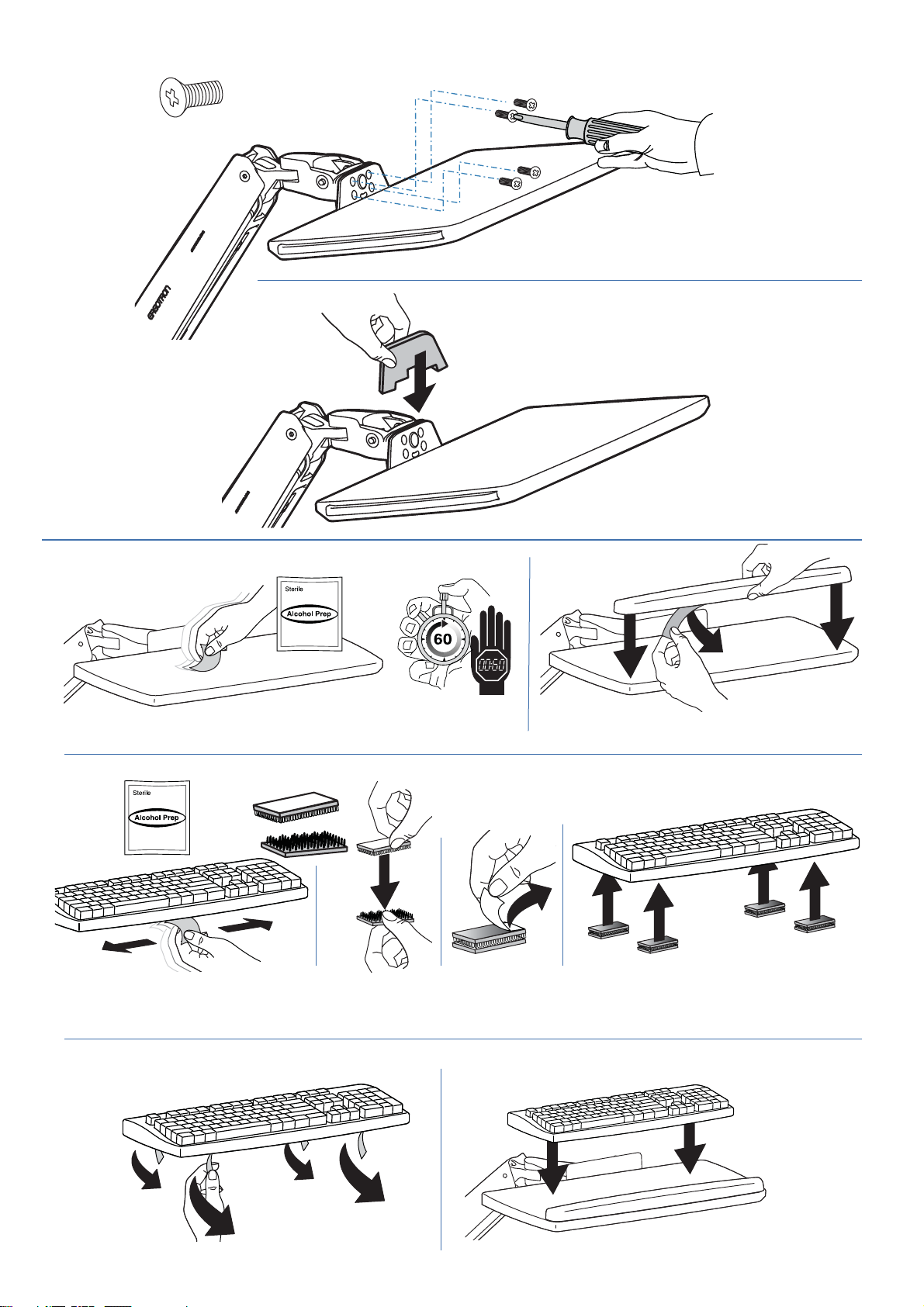

Mount extension and arm to pole.

7 of 19

888-45-323-G-00 rev.C • 12/18

M4 x 8mm

8 of 19

888-45-323-G-00 rev.C • 12/18

0˚

iii

M3 x 6mm

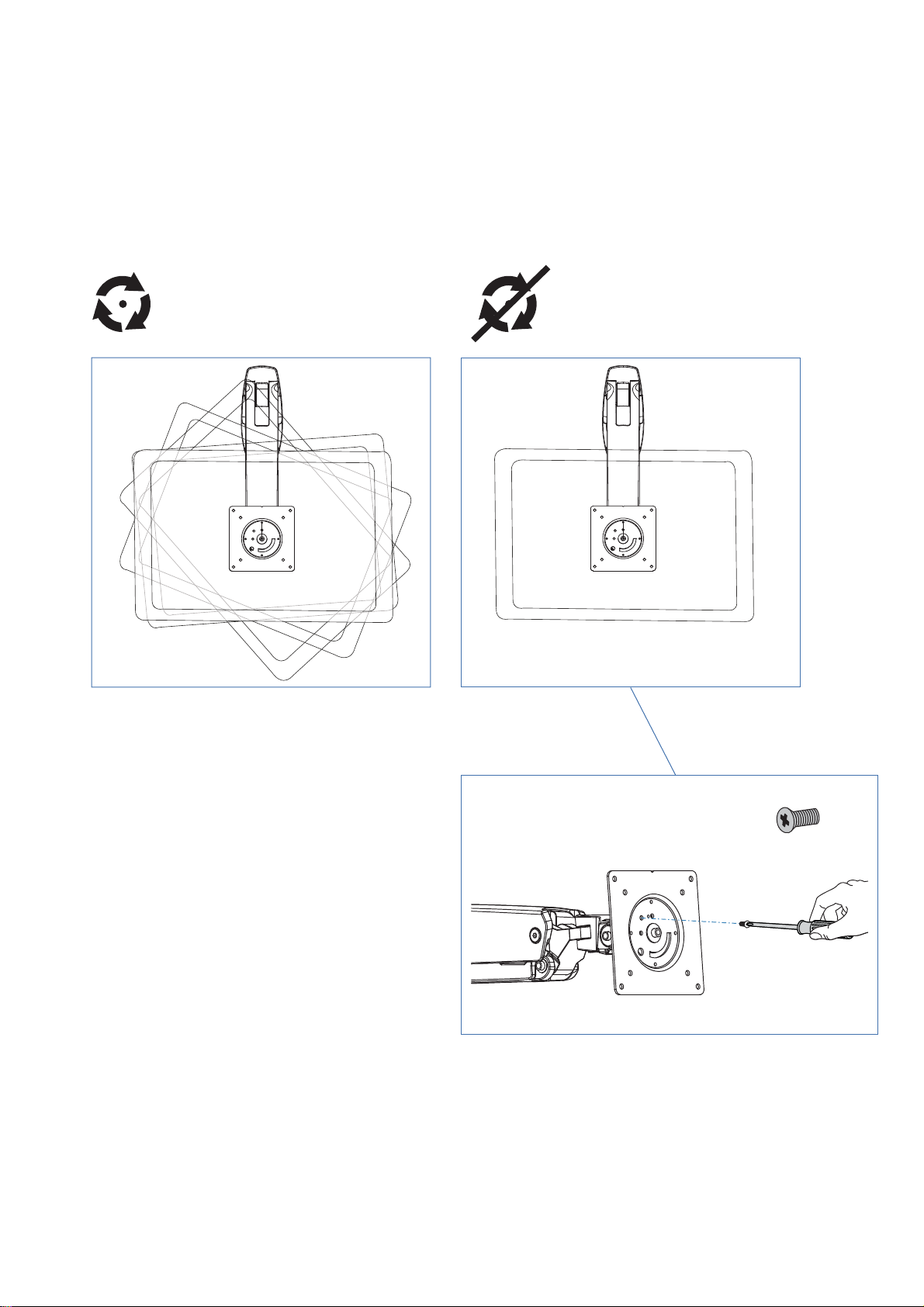

Portrait / Landscape Options

OPTION i If you want full portrait/landscape rotation, skip to step 8 on the next page.

OPTION ii If you do not want your TV/Monitor to rotate all all, you can stop rotation by inseting

the set screw.

9 of 19

888-45-323-G-00 rev.C • 12/18

75x75mm

100x100mm

100x200mm

200x200mm

200x100mm

100mm (3-15/16”)

75mm (2-15/16”)

100mm (3-15/16”)

75mm (2-15/16”)

100mm (3-15/16”)

200mm (7-7/8”)

100mm (3-15/16”)

200mm (7-7/8”)

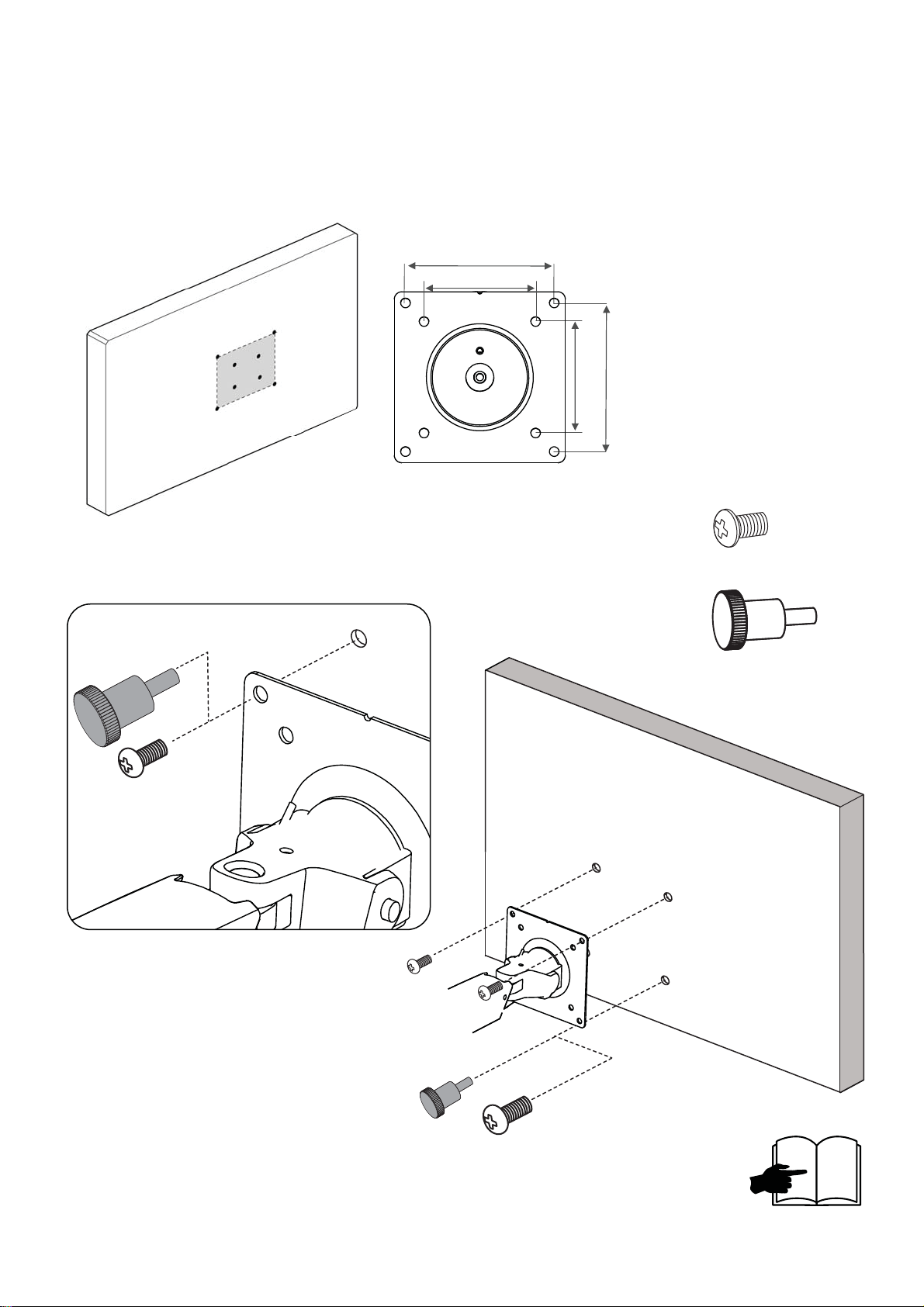

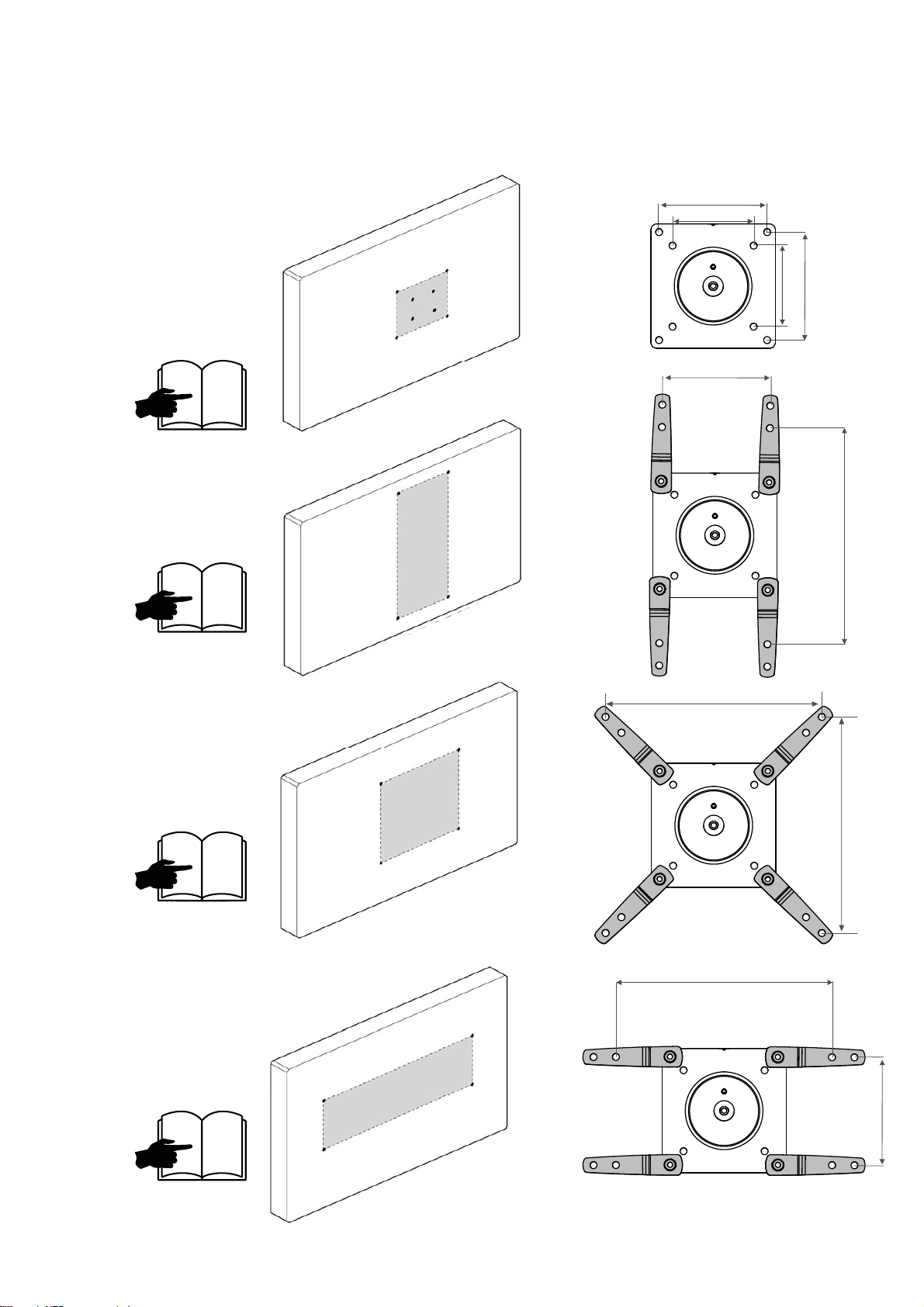

VESA Adapter

Congurations

TV/Monitor Hole

Pattern Sizes

Check size of

TV/Monitor hole

pattern

10 of 19

888-45-323-G-00 rev.C • 12/18

75x75mm

100x100mm 100mm (3-15/16”)

75mm (2-15/16”)

100mm (3-15/16”)

75mm (2-15/16”)

813

M4 x 10mm

Mount Type A TV/Monitor to Arm
