What to read first

This user’s guide consists of several sections and topics which can be read individually. You will

find each section and topic listed in the table of contents. In addition, the “Index” at the back of

this guide shows where to find help on each topic. If you are already familiar with this type of

product, the “Quick start” section helps you get the phone up and running quickly. However, for

basic use of the phone, you should read the “Getting started” section and “Using the menus” on

page 19 in particular. Other parts can be read when needed.

About this user’s guide

This user’s guide is published by Ericsson Mobile Communications AB, without any warranty.

Improvements and changes to this user’s guide necessitated by typographical errors, inaccuracies

of current information, or changes to programs and/or equipment, may be made by Ericsson

Mobile Communications AB at any time and without notice. Such changes will, however, be

Cordless phone features

•Superb sound quality

•Comfortable, easy-to-use handset

•Large illuminated display

•Phone book for 100 names and numbers

•Advanced calling costs management

•Expandable from 1 to 8 handsets

•Total privacy, no eavesdropping

Not for CommercialUse

Ericsson Mobile Communications AB

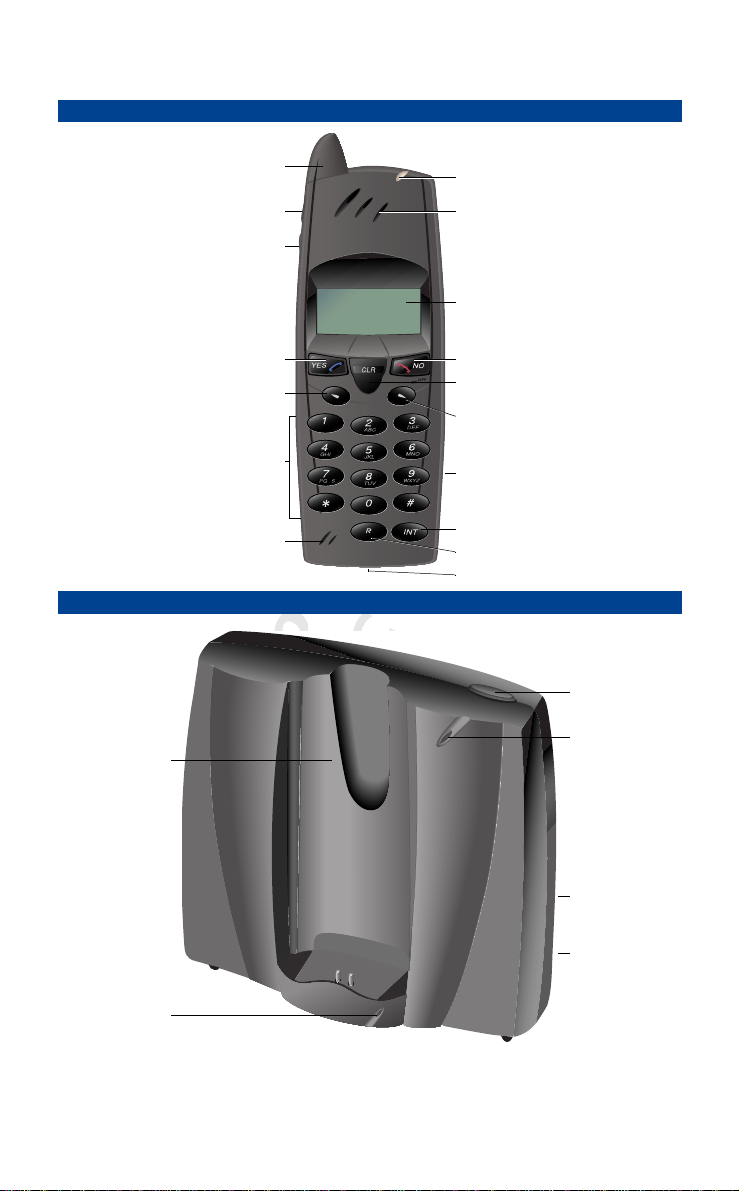

HANDSET

BASE STATION

Earpiece

Volume up key

Volume down key

Off hook key Clear/Mute key

On Hook/On/Off key

R key

Internal call key

Up key Down key

Microphone

Battery compartment (back)

Warning light

Number keys

Display

Accessory contacts

Antenna

Page button

Desk stand

Cable

External line

Charging light

Handset

compartment light

(back)

connection

(back)

Not for CommercialUse

Ericsson Mobile Communications AB

For further details, please see section “Reference” on page 85 of the user’s guide.

HANDSET DISPLAY ICONS AND INDICATORS

On Flashing Flashing quickly

Signal strength Visible when con-

nected to a base station

Ring off Ring signal muted or

microphone off

Key Keys locked

Hook Handset off hook Connection being made Handset is ringing

Message New message received

by the voice mailbox

Call Info New unanswered entry

in the who called list

Battery Battery status (4 blocks

is fully charged) Battery casing flashes;

battery almost empty Blocks flash succes-

sively; battery is being

charged (steady blocks

indicate the battery

level)

Warning light Baby phone call

interrupted Warning (battery low/no

connection) Incoming call

Message waiting

BASE STATIONS INDICATORS

On Flashing Flashing quickly

Red top light External line occupied Incoming external call No external line

connection

Green bottom light Handset battery is

being charged

Not for CommercialUse

Ericsson Mobile Communications AB

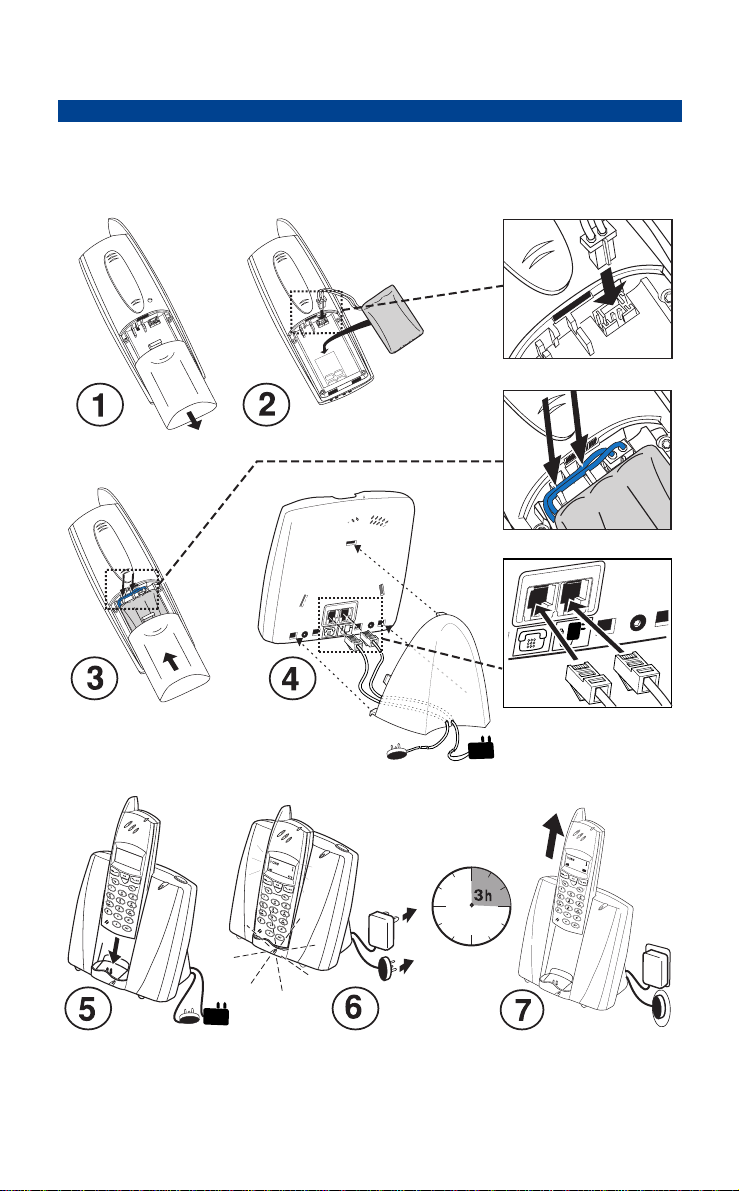

This page helps you to get the cordless phone up and running quickly. For a more detailed instal-

lation procedure, see “Preparing for use” on page 9. You should read the “Getting started” section

afterwards.

QUICK START

Not for CommercialUse

Ericsson Mobile Communications AB

Contents

Getting started 9

What is in the box 9

Preparing for use 9

Battery 12

Switching the handset on and off 15

Attaching and removing the clip 15

A brief guide 16

Information on display 18

Using the menus 19

Changing the menu language 20

Telephoning 23

Making a call 23

Call using the phone book 23

Redialling 25

Returning a call 26

Receiving a call 27

Turning off the microphone 27

Turningofftheringerandwarningsound 27

Paging a handset from the base station 28

Advanced

telephoning 29

When using more than one handset 29

Making and receiving an internal call 29

Receiving a second call 30

Searching for handsets or people 31

Consulting with another handset or

transferring a call 31

Making a three-party call 32

Setting the handset to tone dialling 32

Setting the handset to long tones 32

Sending a dial tone pause 33

Phone book 35

Phone book use 35

Adding name and number 36

Adding last dialled numbers 36

Adding caller’s number 37

Editing names and numbers 38

Deleting names and numbers 39

Personalizing the

handset 41

Language 41

Earpiece volume 41

Ring volume 42

Ringer tones or melodies 42

Discreet ringing 43

Automatic answering 43

Key click 43

Display light 44

Display contrast 44

Clearing all handset settings 44

Personalizing the base

station 45

Changing settings (PIN code) 45

Language 45

Ring volume 46

Ringing order 46

Call waiting notification 47

Priority phone 47

Least cost routing 49

Dial tone pause 50

Clearing all base station settings 51

Not for CommercialUse

Ericsson Mobile Communications AB

Blocking keys and extra

security 53

Blocking handset keys 53

Setting handset locks 53

Changing the handset PIN code 54

Unblocking the handset 55

Changing the base station PIN code 56

Resetting the base station PIN code 57

Showing the IPEI code 57

Overview PIN and other codes 58

Extra features 59

Emergency call 59

Baby phone 59

Direct call 60

Call barring 61

Exempt numbers 62

Call tariff 63

Call budget 64

Call statistics handset 66

Call statistics base station 66

Voice mail 67

Subscribing handsets 68

Using multiple base stations 70

Single or multi-cell mode 71

Using a switchboard 71

Pulse or tone dialling 72

Signalling methods 73

Transferring calls 75

Using base stations 77

Connecting to base stations 77

Subscribing to a base station 78

Re-subscribing to a base station 79

Selecting another base station 80

Editing base station name 81

Deleting subscription 82

Tips and tricks 83

Reference 85

Safety instructions 85

Troubleshooting 85

Buttons and keys 88

Display icons and terminology 89

Signals 90

Menu structure 91

Maintenance 93

Technical specifications 93

Spare parts and accessories 96

Warranty 96

Index 99

Handset quick

reference (inside back

cover)

Not for CommercialUse

Ericsson Mobile Communications AB

Not for CommercialUse

Ericsson Mobile Communications AB

Getting started 9

Getting started

Make sure that all the parts are in the box. If anything is missing, please con-

tact your dealer.

The box should contain:

1. Base station

2. Desk stand for the base station

3. Wall mounter for the base station

4. Screws and plugs for the wall mounter

5. Handset

6. Battery

7. Clip

8. Power adaptor with cable

9. Telephone line cable

10.User’s guide

11.Warranty card

To install the set, follow the steps below. The cordless phone will then be

ready for use.

Warnings Make sure the local mains voltage corresponds to the voltage on

the power adaptor.

Only use the power adaptor that comes with the set.

WHAT IS IN THE BOX

PREPARING FOR USE
