Ericsson EDACS PRISM HP Manuale utente

Operator’s Manual

EDACS®PRISM HP

Radio

ericssonz

NOTICE!

This manual covers Ericsson and General Electric

products manufactured and sold by Ericsson Inc.

NOTE!

Repairs to this equipment should be made only by an

authorized service technician or facility designated by

the supplier. Any repairs, alterations or substitution of

recommended parts made by the user to this equipment

not approved by the manufacturer could void the user’s

authority to operate the equipment in addition to the

manufacturer’s warranty.

Thismanualispublished byEricsson Inc., without anywarranty. Improvementsandchanges

to this manual necessitated by typographical errors, inaccuracies of current information, or

improvements to programs and/or equipment, may be madebyEricssonInc.,at anytimeand

without notice. Such changes will be incorporated into new editions of this manual. No part of

this manual may be reproduced or transmitted in any form or by any means, electronic or

mechanical,includingphotocopyingand recording,foranypurpose,withouttheexpresswritten

permission of Ericsson Inc.

The software contained in this device is

copyrighted by Ericsson Inc. Unpublished rights

are reserved under the copyright laws of the

United States.

NOTE

TABLE OF CONTENTS

INTRODUCTION . . . . . . . . . . . . . . . . . . 7

USER INTERFACE . . . . . . . . . . . . . . . . . 8

BUTTONS AND KNOBS . . . . . . . . . . . . . 12

KEYPAD . . . . . . . . . . . . . . . . . . . . . 14

Standard Functions . . . . . . . . . . . . . 15

Scan Model . . . . . . . . . . . . . . . . . 16

System Model . . . . . . . . . . . . . . . . 16

BUTTON AND KEYPAD REASSIGNMENT . . . 18

DISPLAY . . . . . . . . . . . . . . . . . . . . . 19

Radio Status Icons . . . . . . . . . . . . . . 20

Hidden Status Icons . . . . . . . . . . . 22

Messages . . . . . . . . . . . . . . . . . . 22

Error Messages . . . . . . . . . . . . . . . 25

UNIVERSAL DEVICE CONNECTOR (UDC) . . 25

ALERT TONES . . . . . . . . . . . . . . . . . . 25

Call Originate . . . . . . . . . . . . . . . . . 26

Call Queued (Trunked Mode Only) . . . . . 26

Autokey (Trunked Mode Only) . . . . . . . . 26

System Busy (Trunked Mode Only) . . . . . 26

Call Denied (Trunked Mode Only) . . . . . . 27

Carrier Control Timer . . . . . . . . . . . . . 27

Low Battery Warning . . . . . . . . . . . . . 27

Low Battery Alert (Transmit Lockout) . . . . 27

Key Press Alert . . . . . . . . . . . . . . . . 28

OPERATION . . . . . . . . . . . . . . . . . . . . 28

TURNING ON THE RADIO . . . . . . . . . . . . 28

SYSTEM/GROUP/CHANNEL SELECTION . . . 29

System Selection . . . . . . . . . . . . . . . 29

Group or Channel Selection . . . . . . . . . 32

TRUNKED MODE OPERATION . . . . . . . . . 34

Receiving A Group Call . . . . . . . . . . . 34

Sending A Group Call . . . . . . . . . . . . 36

Conventional Failsoft . . . . . . . . . . . . . 37

Emergency Operation . . . . . . . . . . . . 37

TABLE OF CONTENTS (Continued)

Receiving An EmergencyCall . . . . . 38

Declaring An EmergencyCall . . . . . 38

SCANNING TRUNKED GROUPS . . . . . . . . 39

Turning Scan On and Off . . . . . . . . 39

SCAN Radio . . . . . . . . . . . . . . . . . . . 40

Adding Groups to a Scan List . . . . . . . . 40

Deleting Groups from a Scan List . . . . . . 41

SYSTEM Radio . . . . . . . . . . . . . . . . . 42

Adding Groups To A Scan List . . . . . . . 42

Deleting Groups From AScan List . . . 44

SCANNING TRUNKED SYSTEMS . . . . . . . . 44

Wide Area System Scanning . . . . . . . . 44

Priority System Scan . . . . . . . . . . . . 45

ProSound



. . . . . . . . . . . . . . . . . 45

INDIVIDUAL CALLS . . . . . . . . . . . . . . . 46

Receiving And Responding To An Individual Call

(Trunked Mode Only) . . . . . . . . . . . . 46

Sending An Individual Call

(Trunked Mode Only) . . . . . . . . . . . . 48

Pre-Stored Individual Calls . . . . . . . 48

System Model . . . . . . . . . . . . . 48

Scan Model . . . . . . . . . . . . . . . 48

Direct Dialing of Individual Calls (System

Model only) . . . . . . . . . . . . . . . 49

Call Storage Lists . . . . . . . . . . . . . . 50

TELEPHONE INTERCONNECT CALLS . . . . 51

Receiving A Telephone Interconnect Call

(Trunked Mode Only) . . . . . . . . . . . . 51

Sending A Telephone Interconnect Call

(Trunked Mode Only) . . . . . . . . . . . . 51

Pre-Stored Number . . . . . . . . . . . 51

Direct Dialing of Phone Calls (System Model

only) . . . . . . . . . . . . . . . . . . 53

DTMF Overdial / Conventional Mode Telephone

Interconnect . . . . . . . . . . . . . . . . . 54

SCAN Radio: . . . . . . . . . . . . . . 55

System Radio: . . . . . . . . . . . . . . 56

PROGRAMMABLE ENTRIES . . . . . . . . . . . 57

Prestoring Individual and Telephone Interconnect

Calls from the Keypad (System Model only) . 57

STATUS/MESSAGE OPERATION . . . . . . . . . 58

STATUS OPERATION . . . . . . . . . . . . . . 58

MESSAGE OPERATION . . . . . . . . . . . . . 59

DYNAMIC REGROUP OPERATION . . . . . . . 59

Emergency Operation . . . . . . . . . . . . 60

MACRO KEY OPERATION . . . . . . . . . . . . . 60

EDACS CONVENTIONAL P1 SCAN . . . . . . . . 61

MENU . . . . . . . . . . . . . . . . . . . . . . . . 61

PROFEATURE . . . . . . . . . . . . . . . . . . 67

Serial Number ROM (12 Hex Digits) . . 68

Feature Encryption Data Stream . . . . 68

Number Fields . . . . . . . . . . . . . . 69

Features Enabled . . . . . . . . . . . . 70

AEGIS OPERATION . . . . . . . . . . . . . . . . 71

VOICE MODES . . . . . . . . . . . . . . . . . . 71

Mode 1: Clear Modes . . . . . . . . . . . . 71

Mode 2: Aegis Digital Mode . . . . . . . . . 71

DTMF . . . . . . . . . . . . . . . . . . . . . 72

Mode 3: Aegis Private Modes . . . . . . . . 72

Transferring Keys Into the Radio . . . . . . . 73

Displaying The Currently Used Cryptographic

Key Number . . . . . . . . . . . . . . . 74

System Encryption Key . . . . . . . . . 75

Group/Channel Encryption Key . . . . . 75

Key Zero . . . . . . . . . . . . . . . . . 76

Private Operation . . . . . . . . . . . . . . 76

Receiving An EncryptedCall . . . . . . 76

Transmitting An Encrypted Call . . . . . 76

Scanned Group Calls . . . . . . . . . . 77

PORTABLE DATA . . . . . . . . . . . . . . . . . . 78

TABLE OF CONTENTS (Continued)

DISPLAYS . . . . . . . . . . . . . . . . . . . . 79

DATA OFF OPERATION . . . . . . . . . . . . . 80

DATA ON OPERATION . . . . . . . . . . . . . 80

EXITING DATA CALLS . . . . . . . . . . . . . . 80

SCAN LOCKOUT MODE . . . . . . . . . . . . 81

DATA LOCKOUT MODE . . . . . . . . . . . . . 82

CONVENTIONAL MODE OPERATION . . . . . . 82

Receiving A Call . . . . . . . . . . . . . . . 83

Sending A Call . . . . . . . . . . . . . . . . 83

Adding Channels To A Scan List . . . . . . 84

Deleting Channels From AScan List . . . . 85

Turning Scan On . . . . . . . . . . . . . . 86

Turning Scan Off . . . . . . . . . . . . . . 87

OPERATING RULES AND REGULATIONS . . . . 87

OPERATING TIPS . . . . . . . . . . . . . . . . . 89

BATTERY PACKS . . . . . . . . . . . . . . . . . 89

CHARGING THE BATTERY PACK . . . . . . . 89

RECHARGEABLE BATTERY PACK DISPOSAL 91

INSTALLING THE BATTERY PACK . . . . . . . 91

REMOVING THE BATTERY PACK . . . . . . . 92

INTRINSICALLY SAFE USAGE . . . . . . . . . . 93

BATTERY PACKS . . . . . . . . . . . . . . . . 93

GLOSSARY . . . . . . . . . . . . . . . . . . . . 94

WARRANTY . . . . . . . . . . . . . . . . . . . . 99

NICKEL-CADMIUM BATTERY WARRANTY . . . 100

OPERATOR’S RADIO SETUP . . . . . . . . . . . 101

INTRODUCTION

This manual describes how to use the EDACS

PRISM HP Radio. The PRISM HP is a synthesized,

microprocessor-based, high performance portable FM

radio providing reliabletwo-way communicationsin both

the Enhanced Digital Access Communications System

(EDACS) trunking environment and conventional com-

munication systems.

In the EDACS or trunked system mode, the user

selects a communications system and group. In this

mode, channel selection is transparent to the user and

is controlled via digital communication with the system

controller. This provides advanced programmable fea-

tures and fast access to communication channels.

In the conventional mode, the user selects a channel

anddirectlycommunicatesonthatchannel.Inthismode,

a system refers to a set of channels. A channel is a

transmit/receive radio frequency pair.

USER INTERFACE

The PRISMHP operating controls are located on the

radio’sfront,topandleftpanels.A6-button(scan model)

or 15-button (system model) keypad,Liquid Crystal Dis-

play (LCD), microphone and speaker are on the front

panel. The top panelhousesarotary SYSTEM/GROUP/

CHANNEL knob, POWER ON-OFF/VOLUME control

knob and an EMERGENCY button. An OPTION button,

CLEAR/MONITOR button and the Push-To-Talk (PTT)

buttonarealllocatedontheleftsidepanel.TheUniversal

Device Connector (UDC) is located on the right panel

and is used while programming the radio and for acces-

sory connection. A battery release button is located on

the back adjacent to the PPT button.

Thedisplayhasthree,twelvecharacteralphanumeric

lines used to show the operational mode of the radio. A

back light illuminates the display and the keypad for

nighttime use. An LED is located on the front topedge of

the radio. Red indicates transmit.

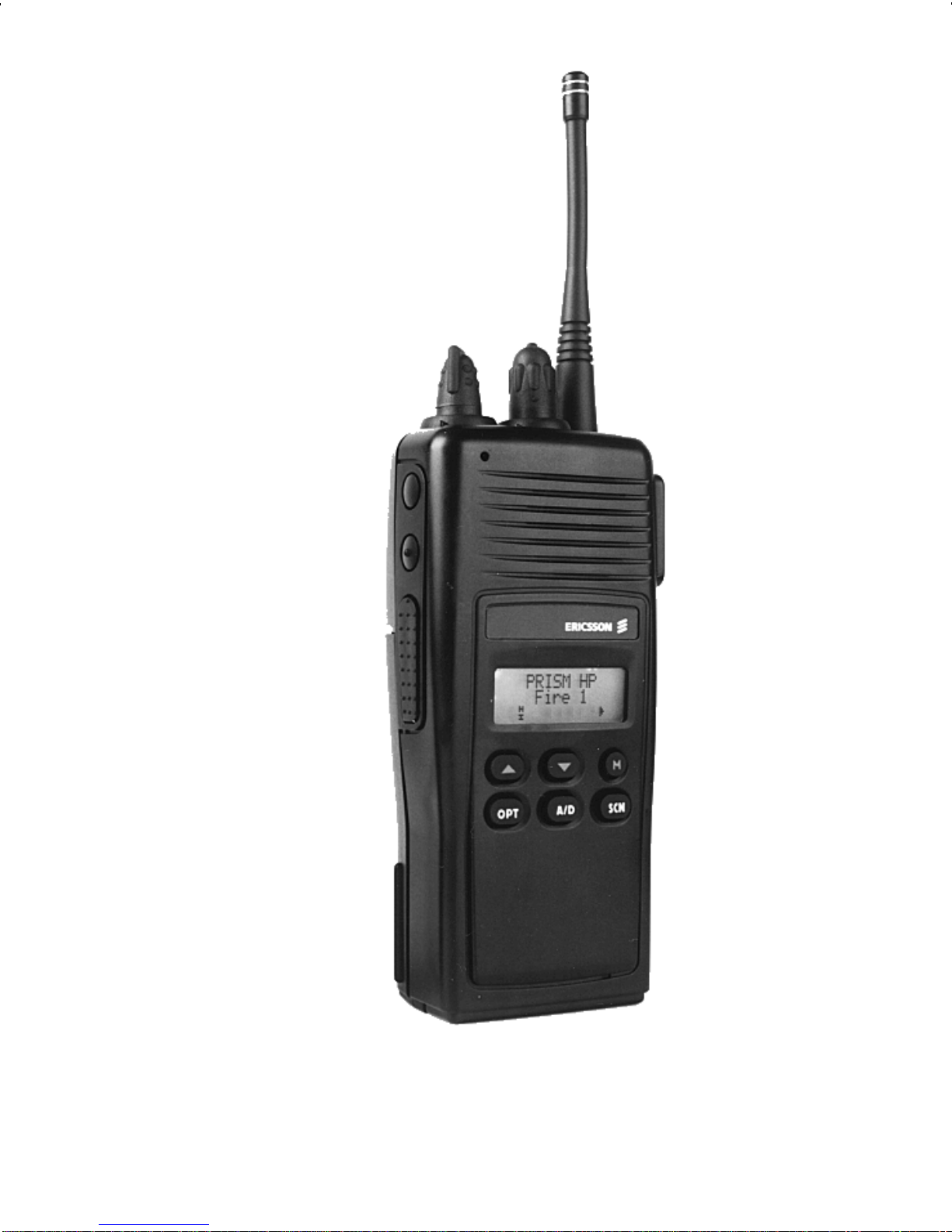

Figure 1 - PRSM HP Radio

(Scan Model) 9

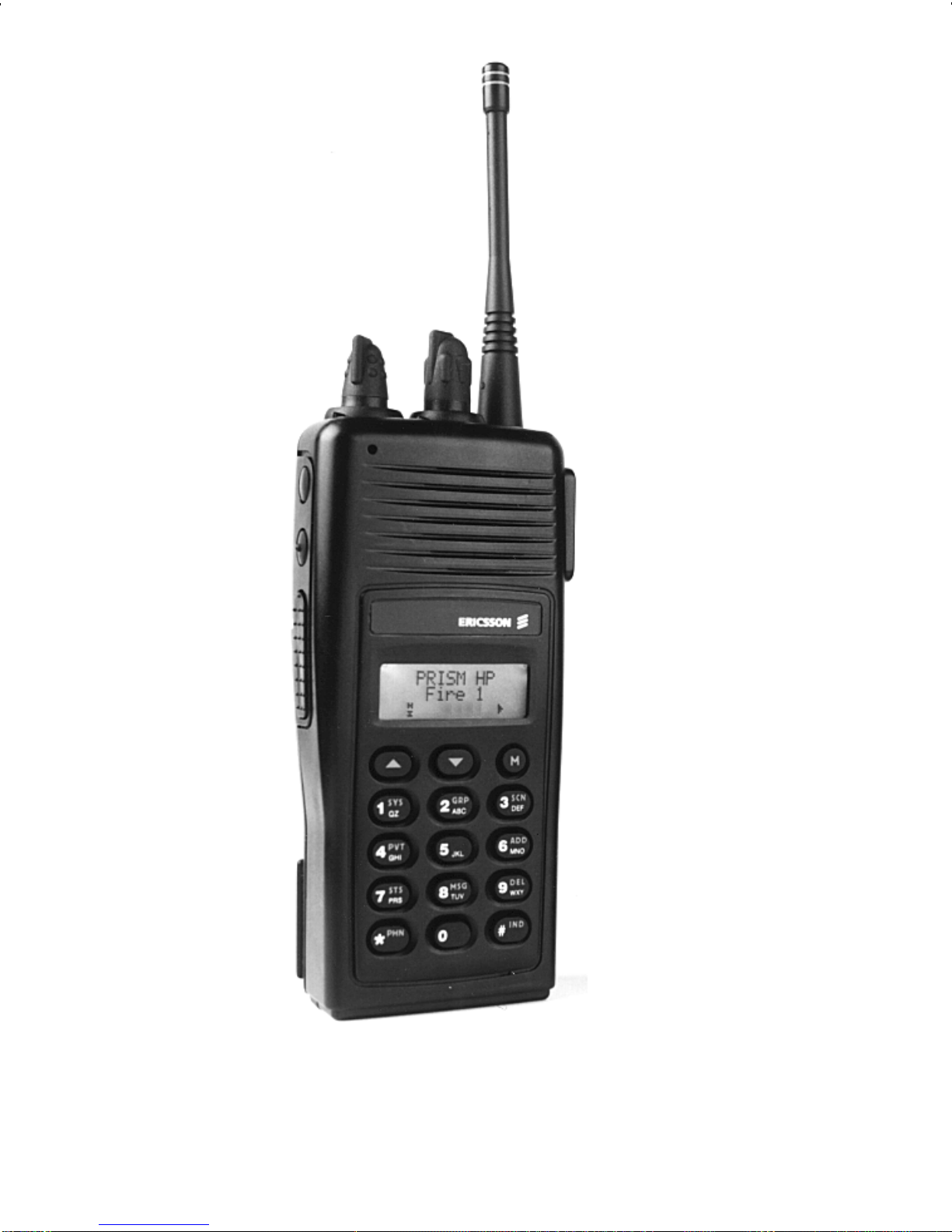

Figure 2 - PRSM HP Radio

(System Model)
