Dialog 4223 Professional / Dialog 3213

BusinessPhone Communication Platform

User Guide

BusinessPhone – Dialog 4223 Professional / Dialog 32132

EN/LZTBS 160 1322 R1A

3BusinessPhone – Dialog 4223 Professional / Dialog 3213

Table of Contents

page

Welcome .......................................................... 4

Description ....................................................... 6

Incoming Calls ............................................... 18

Outgoing Calls ............................................... 21

Phone Book ................................................... 32

During Calls .................................................... 33

Call Metering .................................................. 38

Call Forwarding .............................................. 45

Absence Information ...................................... 51

Messages ...................................................... 56

Security .......................................................... 71

Group Features .............................................. 74

ISDN Facilities ................................................ 79

Other Useful Features ..................................... 86

Write Text ....................................................... 95

Settings .......................................................... 96

Accessories ................................................. 105

Useful Hints .................................................. 111

Glossary ....................................................... 112

Installation .................................................... 115

Index ............................................................ 126

Quick Reference Guide ................................ 131

Welcome

BusinessPhone – Dialog 4223 Professional / Dialog 32134

Welcome

Welcome to the User Guide for the Dialog 4223 Professional /

Dialog 3213 in the BusinessPhone Communication Platform from

Ericsson. The BusinessPhone Communication Platform consists of

BusinessPhone 50, BusinessPhone 128i and BusinessPhone 250.

The features described in this User Guide are related to version 5.1

or higher of the BusinessPhone Communication Platform. Some

might not work in earlier versions of the system and/or might be

protected by a hardware dongle that has to be bought separately.

The User Guide describes the facilities of the BusinessPhone

Communication Platform and the Dialog 4223 Professional /

Dialog 3213 with a default programming. There may be some

differences in the way your phone is programmed. Please consult

your system administrator if you need further information.

The latest version of this User Guide can also be downloaded from:

http://www.ericsson.com/enterprise/

Note: Dialog 4223 Professional / Dialog 3213 is a system

telephone, i.e. it can only be used for an Ericsson private

branch exchange that supports this type of telephone.

Function descriptions that do not include speaking in the handset,

are described as off-hook, if nothing else is stated. Instead of

pressing the Clear key, you can always replace the handset. The

Dual-Function keys allow two functions to be combined on the

same keys.

5BusinessPhone – Dialog 4223 Professional / Dialog 3213

Welcome

stored in retrieval systems, or transmitted in any form or by any

means, electronic, mechanical, photocopying, recording or

otherwise, without prior written permission of the publisher except

in accordance with the following terms.

If this publication is made available on Ericsson media, Ericsson

gives its consent to downloading and printing copies of the content

provided in this file only for private use and not for redistribution. No

parts of this publication may be subject to alteration, modification

or commercial use. Ericsson will not be liable for any damages

arising from use of an illegal modified or altered publication.

Warranty

ERICSSON MAKES NO WARRANTY OF ANY KIND WITH

REGARD TO THIS MATERIAL, INCLUDING, BUT NOT LIMITED

TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND

FITNESS FOR A PARTICULAR PURPOSE. Ericsson shall not be

liable for errors contained herein nor for incidental or consequential

damages in connection with the furnishing, performance or use of

this material.

Declaration of Conformity

Hereby, Ericsson Enterprise AB, S-131 89 Stockholm, declares

that this telephone is in conformity with the essential requirements

and other relevant provisions of the R&TTE directive 1999/5/EC.

Details to be found at:

http://www.ericsson.com/sdoc

Description

BusinessPhone – Dialog 4223 Professional / Dialog 32136

Description

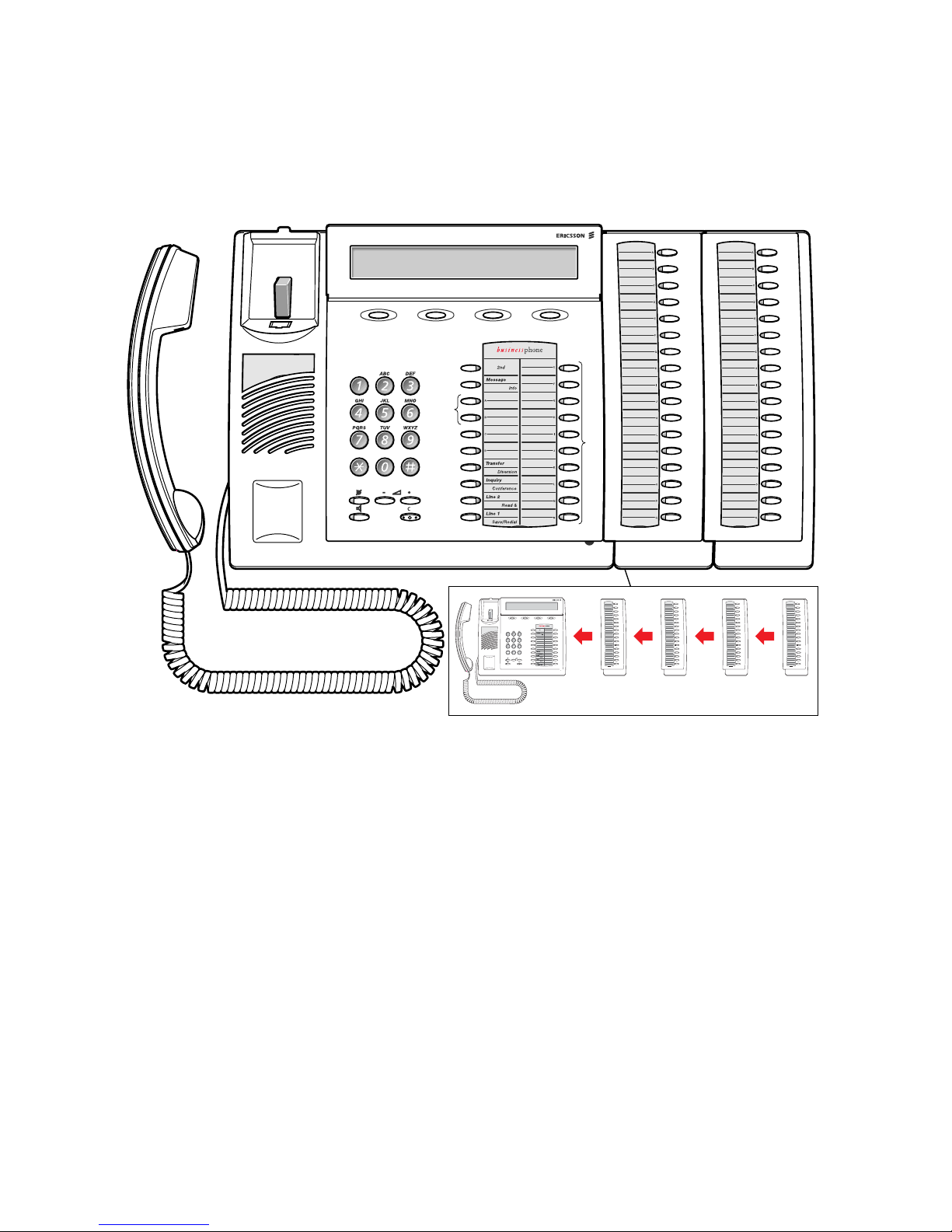

Dialog 4223 Professional

16 16

7BusinessPhone – Dialog 4223 Professional / Dialog 3213

Description

1Display

3x40 characters. See section “Display info” on page 14.

2 Menu Function keys

The functions depend on the traffic state and will be shown on the

last line of the display. When you are requested to (see display),

press the required key to access the function.

3 2nd

Key for access to secondary key functions (these functions are

stated on the second line of the corresponding key).

4 Message / Info

a. To send and receive messages. See section “Messages” on

page 56.

b. To enter information. See section “Absence Information” on

page 51.

5 Dual-Function programmable keys

Storing numbers, program functions. See section “Settings” on

page 96.

6 Transfer / Diversion

a. Transfer an ongoing call. See section “During Calls” on page 33.

b. Activate/Deactivate diversion. See section “Call Forwarding” on

page 45.

7 Inquiry / Conference

a. To make an inquiry to an internal or external party.

b. To establish a telephone conference.

See section “During Calls” on page 33.

8Line2/Read&

a. Line key 2 for in and outgoing calls.

b. Read information. See section “Absence Information” on

page 51.

9 Line 1 / Save/Redial

a. Line key 1 for in and outgoing calls.

b. Save or redial an external number. See section “Outgoing Calls”

on page 21.

10 Mute

To switch the microphone on or off. See sections “During Calls” on

page 33 and “Silent Ringing” on page 20.

11 Loudspeaker on/off

To switch the loudspeaker on or off. See section “During Calls” on

page 33.

Description

BusinessPhone – Dialog 4223 Professional / Dialog 32138

12 Headset

See section “Headset - Dialog 4223 Professional” on page 107.

13 Volume control

To adjust the volume. Also space/backspace in writing mode.

14 Clear

To disconnect calls or to clear the display in programming.

15 Microphone

16 Optional key panel

17 Dual-Function programmable keys per key panel. Four panels

can be connected.

Note: Use only optional key panels of type DBY 419 01.

17 Loudspeaker

18 Handset with hearing aid function

Please note: The handset may attract and retain small

metal objects in the earcap region.

9BusinessPhone – Dialog 4223 Professional / Dialog 3213

Description

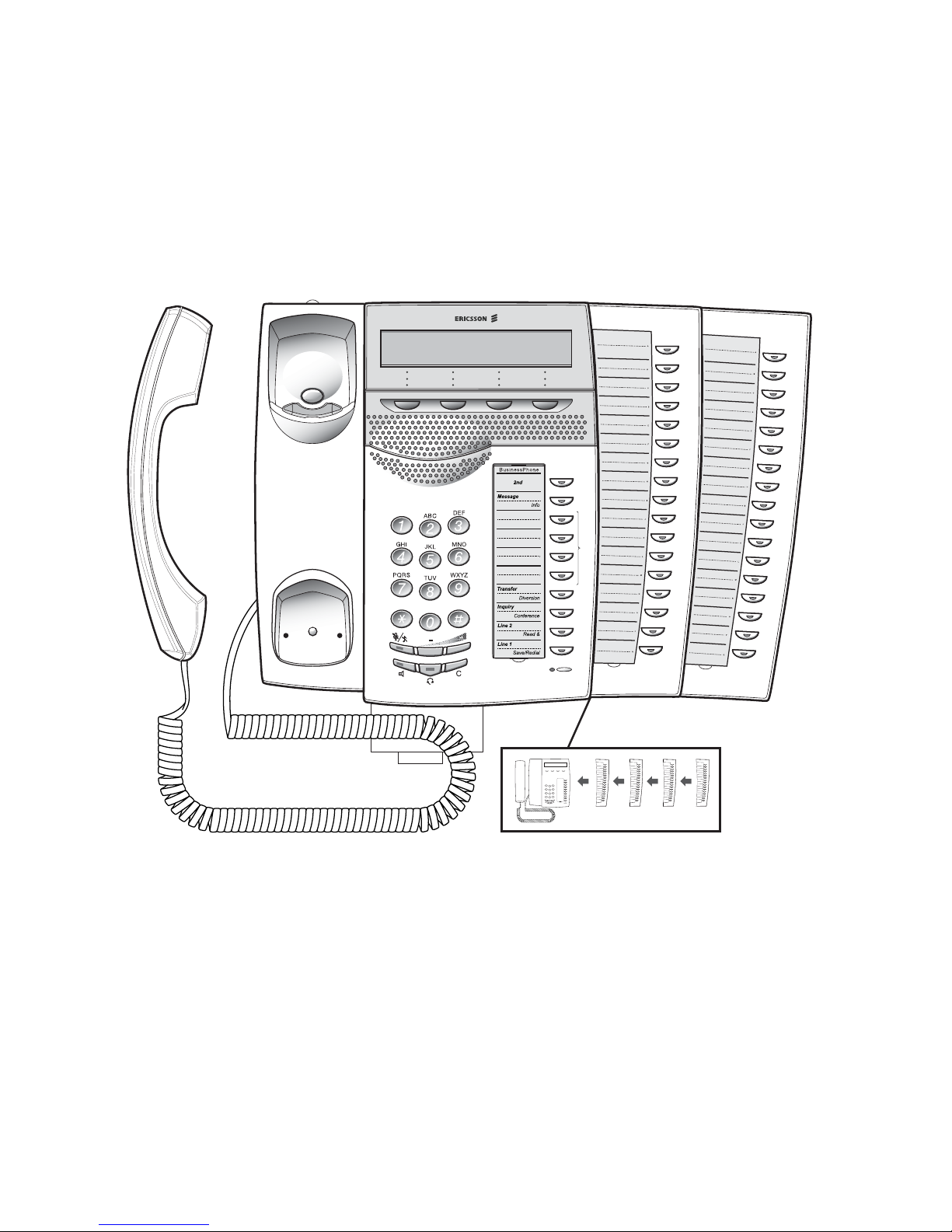

Dialog 3213 Executive

13 14

15 16 16

17 55

Description

BusinessPhone – Dialog 4223 Professional / Dialog 321310

1Display

3x40 characters. See section “Display info” on page 14.

2 Menu Function keys

The functions depend on the traffic state and will be shown on the

last line of the display. When you are requested to (see display),

press the required key to access the function.

3 2nd

Key for access to secondary key functions (these functions are

stated on the second line of the corresponding key).

4 Message / Info

a. To send and receive messages. See section “Messages” on

page 56.

b. To enter information. See section “Absence Information” on

page 51.

5 Dual-Function programmable keys (A-N)

Storing numbers, program functions. See section “Settings” on

page 96.

6 Dual-Function programmable key (C) / Headset key

a. Storing numbers and program functions.

b. The Headset function is only available with option unit

(DBY 410 02) installed. The Headset key is programmed by the

system administrator. See section “Accessories” on page 105.

7 Transfer / Diversion

a. Transfer an ongoing call. See section “During Calls” on page 33.

b. Activate/Deactivate diversion. See section “Call Forwarding” on

page 45.

8 Inquiry / Conference

a. To make an inquiry to an internal or external party.

b. To establish a telephone conference.

See section “During Calls” on page 33.

9 Line 2 / Read &

a. Line key 2 for in and outgoing calls.

b. Read information. See section “Absence Information” on

page 51.

10 Line 1 / Save/Redial

a. Line key 1 for in and outgoing calls.

b. Save or redial an external number. See section “Outgoing Calls”

on page 21.

11 Volume control

To adjust the volume. Also space/backspace in writing mode.
