(Original) Use and maintenance manual
Type: Timing belt welder & milling machine
Model: LRSE-180.
IMPORTANT:
Read this user manual and follow the instructions and warnings before operating this device.
Any modification or transformation performed on this machine may cause loss of the
manufacturer’s guarantee and liability.
This manual must always remain near to the machine and visible to all the operating and
maintenance staff, for any future consultation, forming part of the equipment.
Use and maintenance manual
Timing belt welder
Model: LRSE-180
_______________________________________________________________________________________________________________________
P a g . 2
Index:
Page
-CE Declaration of conformity: ................................................................................................................................................3
-Description: ..................................................................................................................................................................................4
-Technical Characteristics: .......................................................................................................................................................4
-Standard equipment: ................................................................................................................................................................4
-Warnings and safety:.................................................................................................................................................................4
-Installation and start-up:.........................................................................................................................................................5
-Operation: .....................................................................................................................................................................................8
Preparation................................................................................................................................................................................................................ 8
-Care and maintenance:.......................................................................................................................................................... 14
Use and maintenance manual
Timing belt welder
Model: LRSE-180
_______________________________________________________________________________________________________________________
P a g . 3
-CE Declaration of conformity:
WE DECLARE, under our responsibility, that the machine:
- Type: Timing belt welder
- Brand: ERM Engineering
- Model: LRSE-180
- Serial No.: xxxxxx
- Manufacturer date: 2021
Inspired by the directives of the Official Journal of the European Communities:
2006/42/CE Machinery Directive
2014/35/UE Low Voltage Directive
2014/30/UE Electromagnetic Compatibility Directive
Complies with the design and construction specifications of the European Standards on General
Machine Safety:
EN 349 –EN 614-1 –EN 614-2 –EN 12100 –EN 11161-1 - EN 1005-1 –EN 1005-2 –EN
1005-3 - EN 1005-4 –EN 13849-1 –EN 13849-2 –EN 894-3 –EN 13850 - EN 13857 –EN
61310-1 EN 60204-1 - EN 14118 - EN 14120 –EN 13732-1
General Manager: Eduardo Ramos Martínez
Arenys de Munt (Barcelona)-SPAIN
Date: 2021/08
Use and maintenance manual
Timing belt welder
Model: LRSE-180
_______________________________________________________________________________________________________________________
P a g . 4
-Description:
Continuous longitudinal welder and milling V-guides for timing belts using a milling tool to pull
out fabrics and hot air blower to weld a profile. Fitted with speed, temperature and pressure
controls for different types of material.
-Technical Characteristics:
Dimensions 1995x900x1870 mm (LxWxH)
Weight 538 kg
Max. Belt Width 1250 mm
Max. Belt Thickness 12 mm
Motor milling 1x 750 W
Motor belt 1x 250 W
Leister Welder 1x 1600 W
Voltage 1x230 V 50/60 Hz
Air pressure 6 bar
-Standard equipment:
•One Leister head
•One milling head
•5 V-guides pulleys
•5 Milling tools
•One vacuum system
-Warnings and safety:
−ERM Engineering recommends the users of this machine to fully read this user’s manual
prior to its use to guarantee safe work.
−It also advises and recommends equipment not being used by unqualified staff who have
not received prior training from ERM Engineering
−A copy of this manual delivered along with the machine must always remain at hand during
its use, both for the production operators as well as the maintenance managers.
NOTE: ERM Engineering shall not be held liable under any case for damage caused by
undue or improper use of this equipment.
−Any repairs or modification of the machine performed by personnel not qualified by ERM
Engineering or use of non-original spare parts provided by persons unrelated to the
company, shall give rise to loss of the manufacturer’s guarantee.
Use and maintenance manual
Timing belt welder
Model: LRSE-180
_______________________________________________________________________________________________________________________
P a g . 5
−During use of the machinery and industrial use, people are subject to the risk of damage or
injury by mechanical elements in linear or gyrating movement, high voltage electric
components and static components under high temperature, due to which, during design
and construction of its equipment, ERM Engineering. has aimed to reduce and minimise
those risks by including protection devices and safety systems based on the European
Community Council Directives.
−Pay special attention to the following danger, prohibition and obligation signs located at
different places on the machinery:
-Installation and start-up:

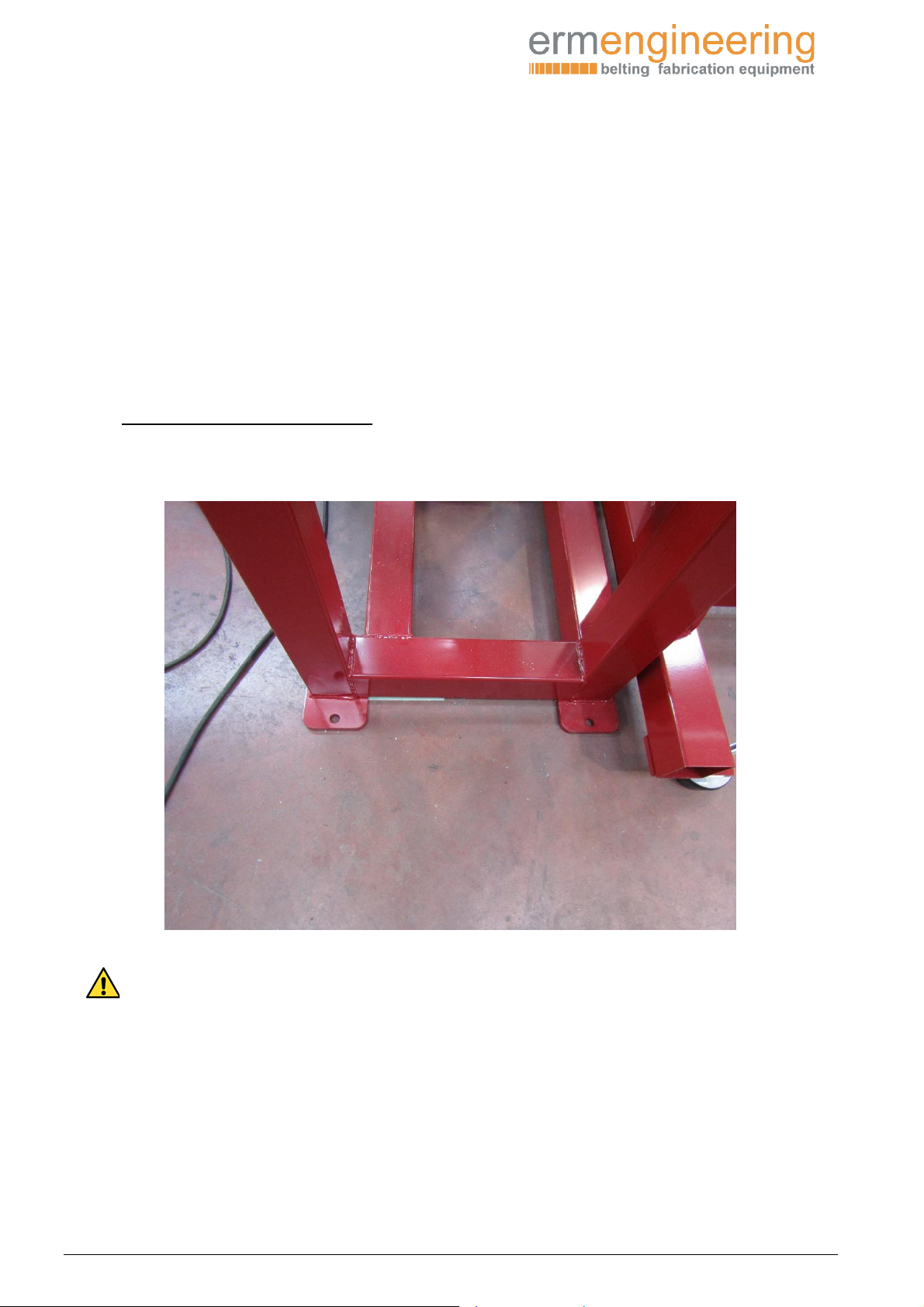

Site the machine in working area and fix the two-back mast with metallic’s bolts on floor.
ATTENTION: DO NOT USE THE MACHINE IF NOT FIXED ON FLOOR; RISK OF
FALLING.
Install a vacuum cleaner and connect the milling head tube.
Connect power supply cable 3 phases 230V:
Use and maintenance manual
Timing belt welder
Model: LRSE-180
_______________________________________________________________________________________________________________________
P a g . 6

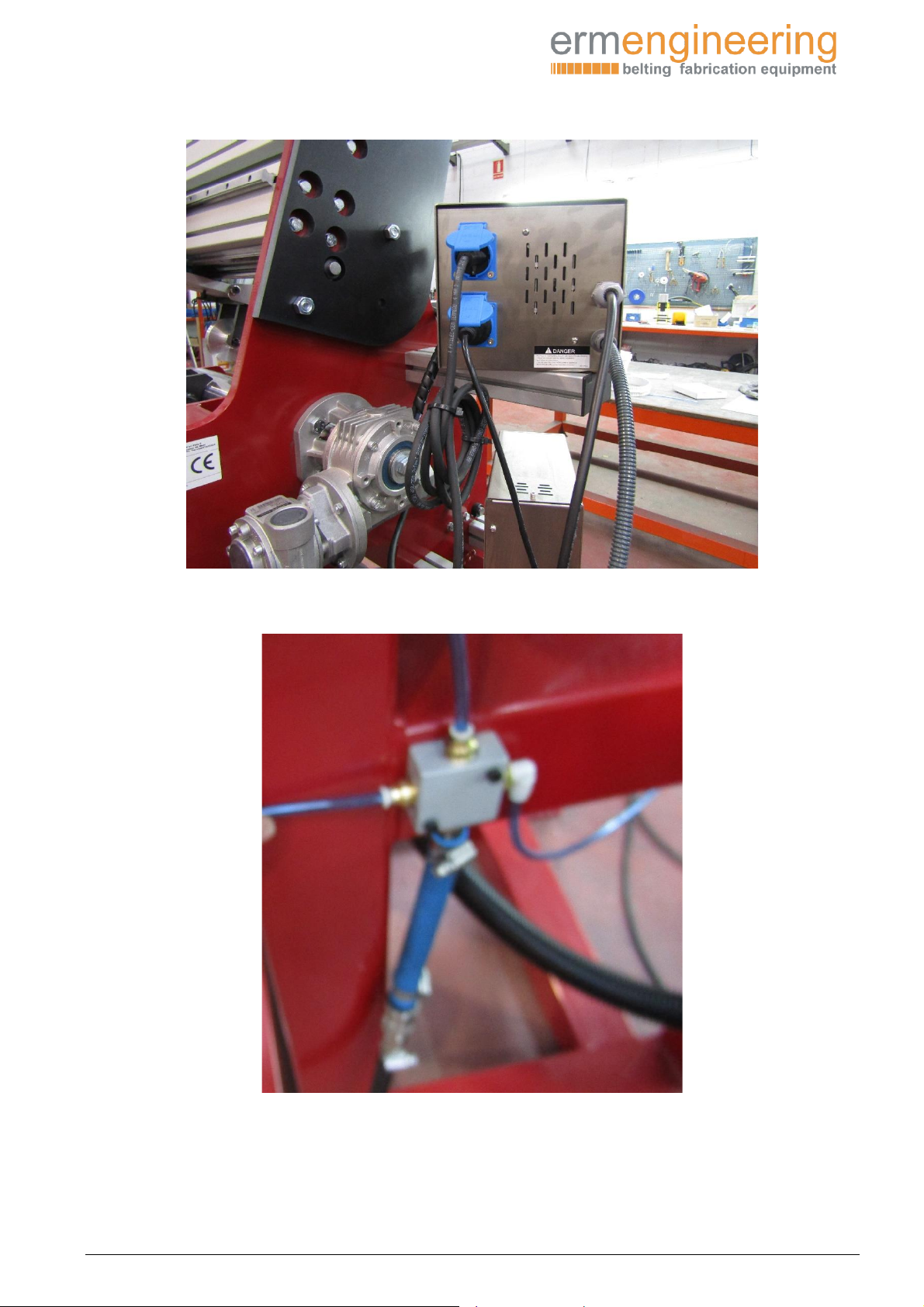

It must also be connected to a compressed air supply with input pressure 6 bar.

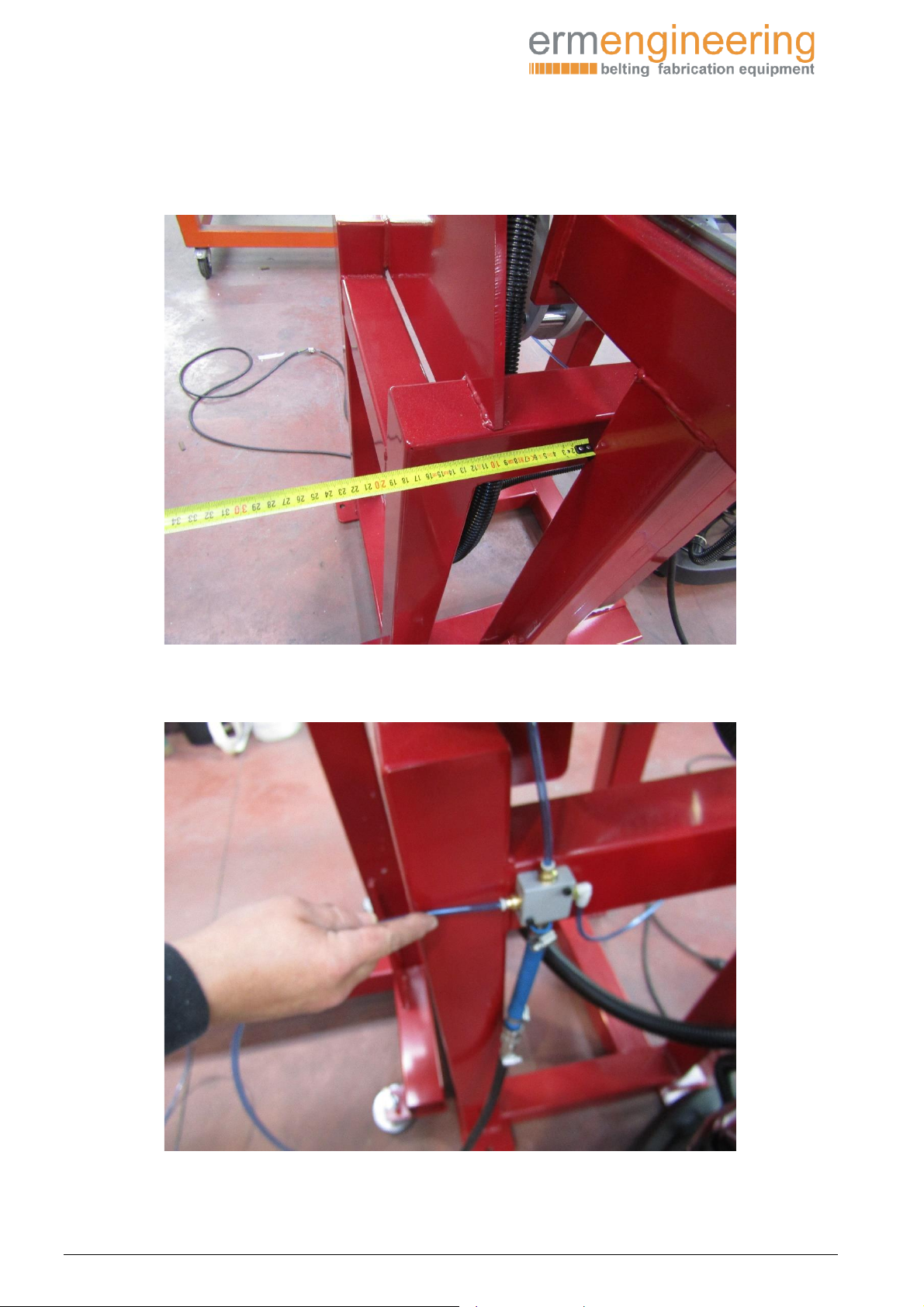

Place the tensioner body aligned with the driver roller to the size of 18 centimeters on the side
as shown on the picture.
Use and maintenance manual
Timing belt welder
Model: LRSE-180
_______________________________________________________________________________________________________________________
P a g . 7
NOTE: Depending on the strap length we can distance this tensioning body from the drive
head.
Connect the air tube of the tensioning body to the driving body.
Use and maintenance manual
Timing belt welder
Model: LRSE-180
_______________________________________________________________________________________________________________________
P a g . 8
-Operation:
Preparation

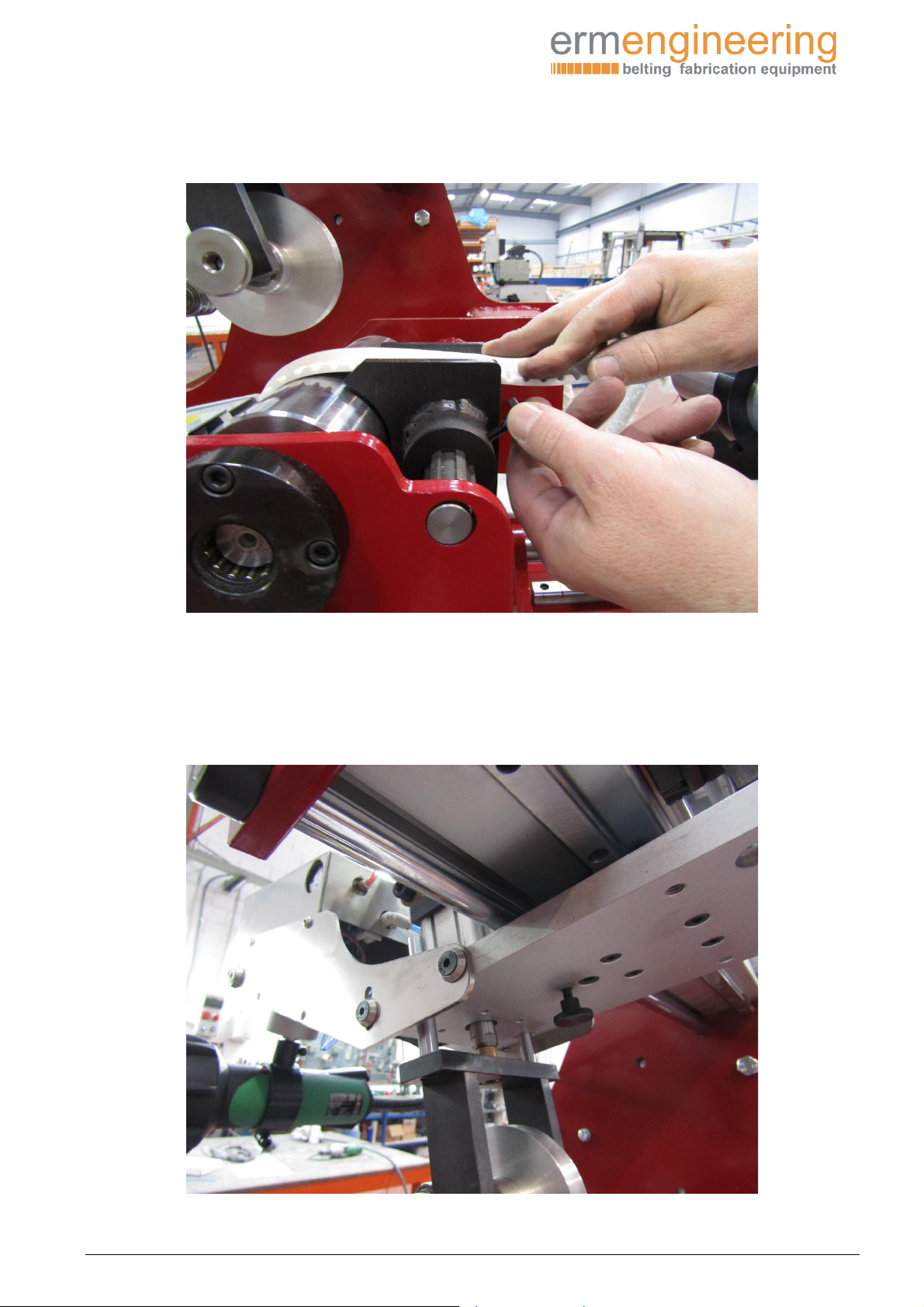

Remove the control knob from the support plate of the drive roller.
Remove the support from the drive roller to insert the “endless” belts for this, remove the
control knob.
Remove the support from the driver roller to insert the “endless” belts.
Insert the belt and then reassemble and fix the plate.
Use and maintenance manual
Timing belt welder
Model: LRSE-180
_______________________________________________________________________________________________________________________
P a g . 9
NOTE. Do not operate or tighten the belt without this fastening element, could cause mechanical
damage.
Then we will adjust the tension roller to the size of the tape, loosening the tension cylinder
moving it to the size required.
Place the tension roller inside the strap and tension the strap activating the valve of the tensor
cylinder.
Use and maintenance manual
Timing belt welder
Model: LRSE-180
_______________________________________________________________________________________________________________________
P a g . 10
Once the strap is tensioned adjust the roller guides.
To achieve a good centering of the strap, it is recommended to start-up the the drive motor to
the highest speed.
Now adjust the “milling” head and welding to the size required, to achieve this we must release
the brake from the welding head.
And from the milling head.
