ESAB Miggytrac 1001 Manuale utente

Valid for serial no. 05360449 476 001 GB 2011--08--16

Miggytrac 1001

Instruction manual

-- 2 --

DECLARATION OF CONFORMITY

ESAB AB, Welding Equipment, SE--695 81 Laxå, Sweden, gives its unreserved guarantee that auto-

matic welding machine Miggytrac 1001 from serial number 0536 (2005 w.36) complies with standard

EN 12100--2 and EN 60204--1, in accordance with the requirements of directive (98/37/EEC) and with

standard EN 61000--6--2 and also EN 61000--6--3, in accordance with the requirements of directive

(2004/108/EEC).

-- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- ------------------------------------

Kent Eimbrodt

Global Director

Equipment and Automation

Laxå 2007--05--23

-- 3 --

TOCe

Rights reserved to alter specifications without notice.

1SAFETY 4...........................................................

2 INTRODUcTION 6....................................................

2.1 General 6..................................................................

2.2 Technical data 7............................................................

3 INSTALLATION 8....................................................

3.1 General 8..................................................................

3.2 Other connections 9.........................................................

4 OPERATION 13.......................................................

4.1 General 13..................................................................

4.2 Start / stop of carriage 13.....................................................

4.3 Welding 13..................................................................

4.4 Magnet 13...................................................................

5 MAINTENANCE 14....................................................

5.1 General 14..................................................................

5.2 Daily 14.....................................................................

5.3 As necessary 14.............................................................

6 ACCESSORIES 15....................................................

7 ORDERING OF SPARE PARTS 15......................................

DIMENSION DRAWING 16................................................

DIAGRAM 17............................................................

SPARE PARTS LIST 19...................................................

-- 4 --

SafE

1SAFETY

Users of ESAB welding equipment have the ultimate responsibility for ensuring that anyone who

works on or near the equipment observes all the relevant safety precautions. Safety precautions

must meet the requirements that apply to this type of welding equipment. The following recommen-

dations should be observed in addition to the standard regulations that apply to the workplace.

All work must be carried out by trained personnel well--acquainted with the operation of the welding

equipment. Incorrect operation of the equipment may lead to hazardous situations which can result

in injury to the operator and damage to the equipment.

1. Anyone who uses the welding equipment must be familiar with:

Sits operation

Slocation of emergency stops

Sits function

Srelevant safety precautions

Swelding

2. The operator must ensure that:

Sno unauthorised person is stationed within the working area of the equipment when it is

started up.

Sno--one is unprotected when the arc is struck

3. The workplace must:

Sbe suitable for the purpose

Sbe free from draughts

4. Personal safety equipment

SAlways wear recommended personal safety equipment, such as safety glasses, flame--proof

clothing, safety gloves.

SDo not wear loose--fitting items, such as scarves, bracelets, rings, etc., which could become

trapped or cause burns.

5. General precautions

SMake sure the return cable is connected securely.

SWork on high voltage equipment may only be carried out by a qualified electrician.

SAppropriate fire extinquishing equipment must be clearly marked and close at hand.

SLubrication and maintenance must not be carried out on the equipment during operation.

-- 5 --

SafE

WARNING

READ AND UNDERSTAND THE INSTRUCTION MANUAL BEFORE INSTALLING OR OPERATING.

ARC WELDING AND CUTTING CAN BE INJURIOUS TO YOURSELF AND OTHERS. TAKE PRECAU-

TIONS WHEN WELDING. ASK FOR YOUR EMPLOYER’S SAFETY PRACTICES WHICH SHOULD BE

BASED ON MANUFACTURERS’ HAZARD DATA.

ELECTRIC SHOCK -- Can kill

SInstall and earth the welding unit in accordance with applicable standards.

SDo not touch live electrical parts or electrodes with bare skin, wet gloves or wet clothing.

SInsulate yourself from earth and the workpiece.

SEnsure your working stance is safe.

FUMES AND GASES -- Can be dangerous to health

SKeep your head out of the fumes.

SUse ventilation, extraction at the arc, or both, to take fumes and gases away from your breathing zone

and the general area.

ARC RAYS -- Can injure eyes and burn skin.

SProtect your eyes and body. Use the correct welding screen and filter lens and wear protective

clothing.

SProtect bystanders with suitable screens or curtains.

FIRE HAZARD

SSparks (spatter) can cause fire. Make sure therefore that there are no inflammable materials nearby.

NOISE -- Excessive noise can damage hearing

SProtect your ears. Use earmuffs or other hearing protection.

SWarn bystanders of the risk.

MALFUNCTION -- Call for expert assistance in the event of malfunction.

PROTECT YOURSELF AND OTHERS!

-- 6 --

fhc1d1ea

2INTRODUCTION

2.1 General

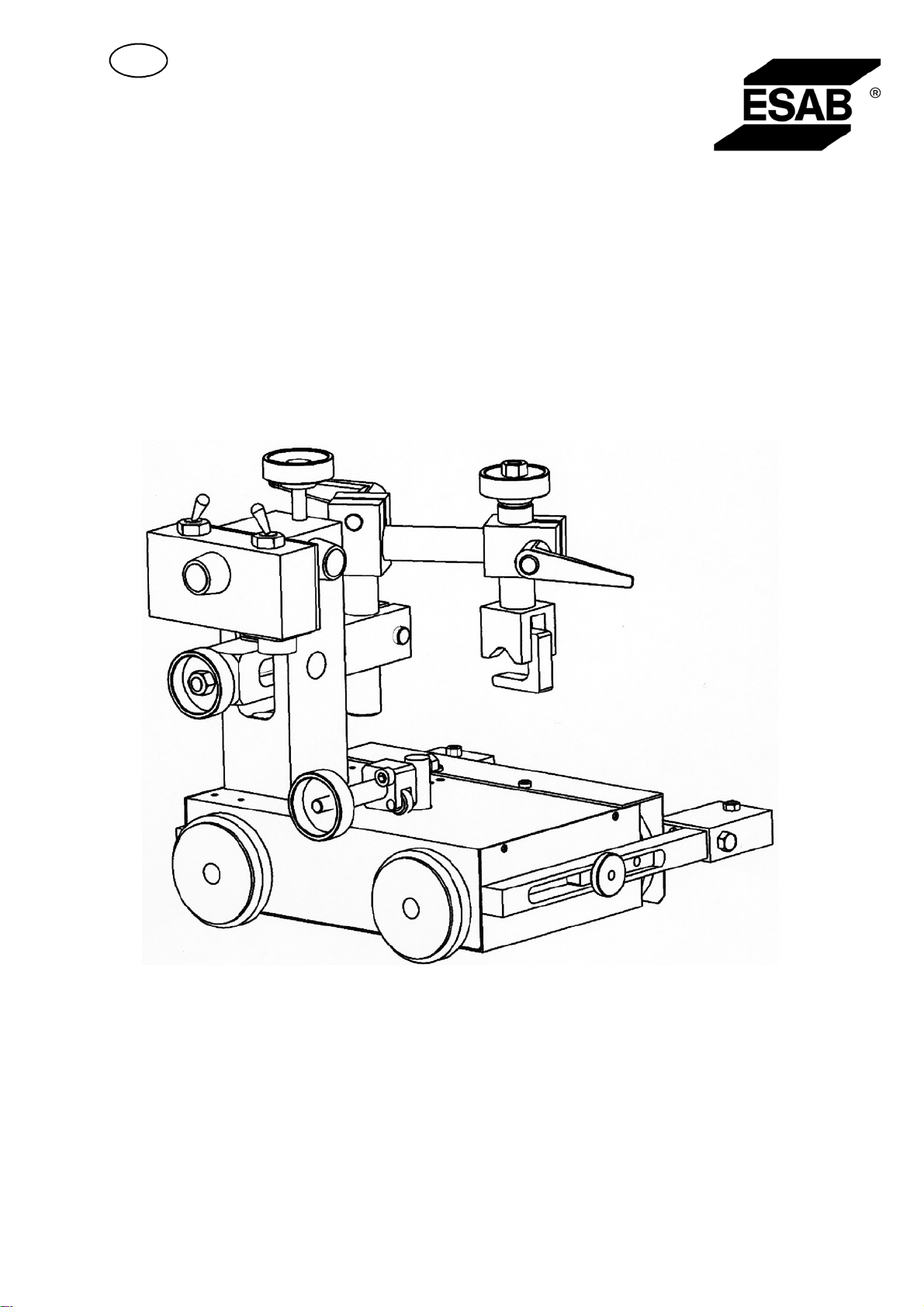

Miggytrac 1001 is designed for MIG/MAG welding of plates and beams.

It is a compact motor--driven carriage, where in one single operation you can fit a

standard welding gun.

The welding carriage is powered by an electric motor. It is provided with a 12--pin

Burndy socket for connection to a corresponding 23--pin socket on the wire feed

units for remote control of the wire feed.

The connection is done by way of two prepared control cables, which are plugged

directly into the ESAB feed unit. The advantage of this is that you get power supply

for the carriage, start and stop functions for the feed unit as well as the possibility of

remote control of current and voltage in one and the same cable. No external power

is necessary.

Miggytrac 1001 is a small compact motor--driven carriage on which an ESAB

standard welding gun can easily be fitted. The four driving wheels together with a

powerful magnet which is integrated in the chassis of the carriage guarantee smooth

and regular operation.

The magnet keeps the carriage in the right position in proportion to the foundation,

even if you weld on bent plates or use long cable bundles.

The magnet is protected behind the stainless steel plate and can be switched off by

way of a grip on top of the chassis, when the carriage is going to be moved or

cleaned. The carriage follows the weld joint by way of two guide wheels, which are

adjusted so as to make the carriage drive diagonally towards the edge of the plate.

The carriage is easy to operate with one switch for the travel direction and one knob

for the speed. There are separate potentiometers for the remote control.

-- 7 --

fhc1d1ea

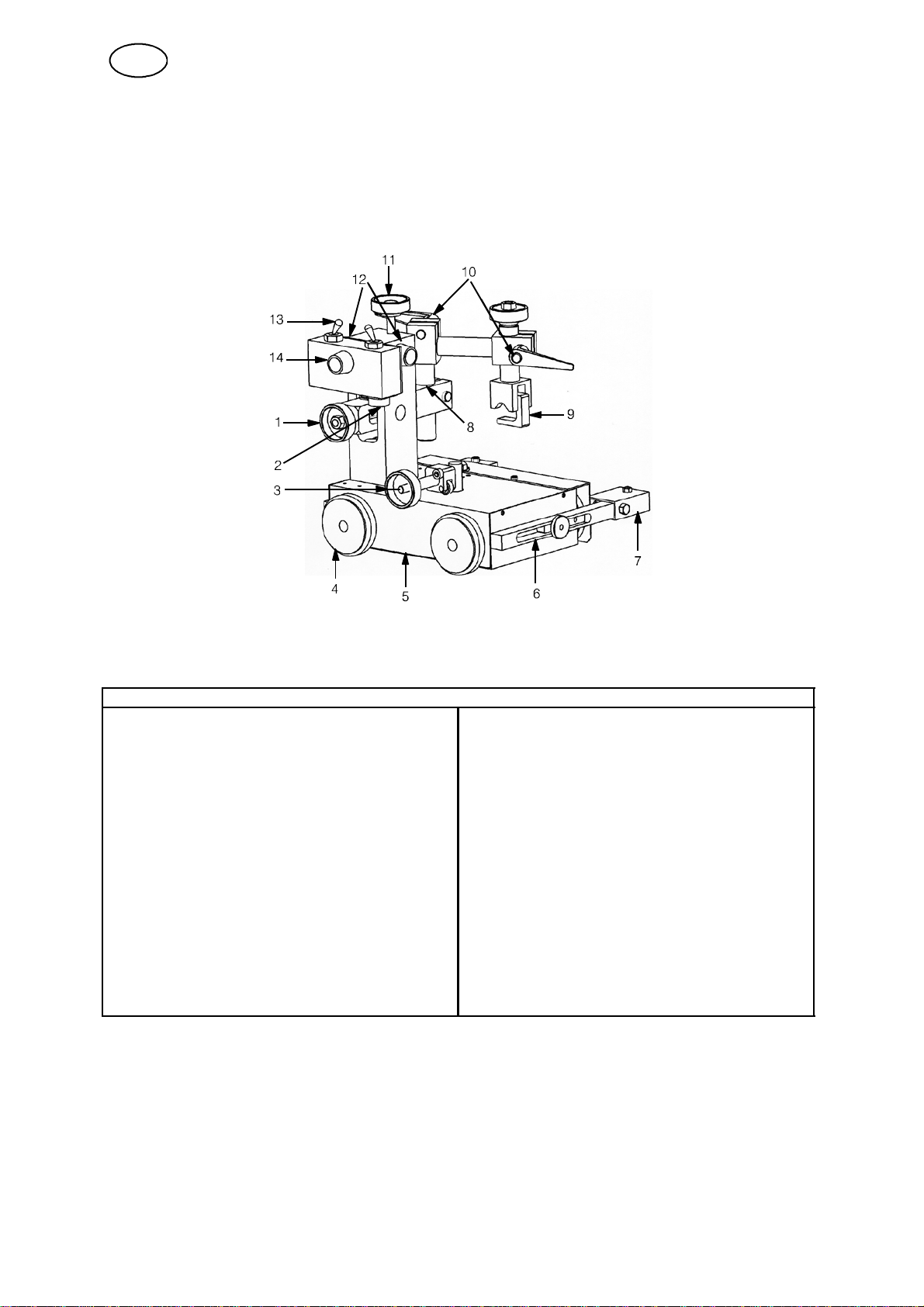

1. Slide

2. Connection

3. Magnet ON/OFF

4. Driving wheels

5. Magnet

6. Adjustable arm

7. Support wheels

8. Height adjustment

9. Gun bracket

10. Angle adjustment

11. Gun angle adjustment

12. Remote control (Volt/ Amp)

13. Direction Start/stop

14. Travel speed

2.2 Technical data

Miggytrac 1001

Supply voltage 36 -- 46 VAC

Power 20 W

Welding speed 150 -- 1200 mm/min

Dimensions ( l x w x h ) 266x257x261 mm

Weight 7kg

Slide adjustment +/-- 20 mm

Remote control socket Volt and ampere (wire feed)

Max. values, remote control 1 kohm, 0.1 W

Max. current, start relay 2A

Connection Burndy, 12 --pin

Enclosure class IP 23

Enclosure class

The IP code indicates the enclosure class, i. e. the degree of protection against penetration by solid

objects or water. Equipment marked IP 23 is designed for indoor and outdoor use.

-- 8 --

fhc1i1ea

3 INSTALLATION

3.1 General

The installation must be executed by a professional.

Miggytrac 1001 can be connected to most of ESAB’s feed units.

For connection to older feed units, please contact your nearest ESAB retailer.

In the case of welding at a great distance from the feed unit an intermediate wire

feed unit (MEK 25) can be connected.

Miggytrac 1001 can also be powered by other welding power sources via a

separate transformer, see page 12.

For connection of the wire feed unit to Miggytrac 1001, use control cable acc. to

Accessories, on page 15.

-- 9 --

fhc1i1ea

3.2 Other connections

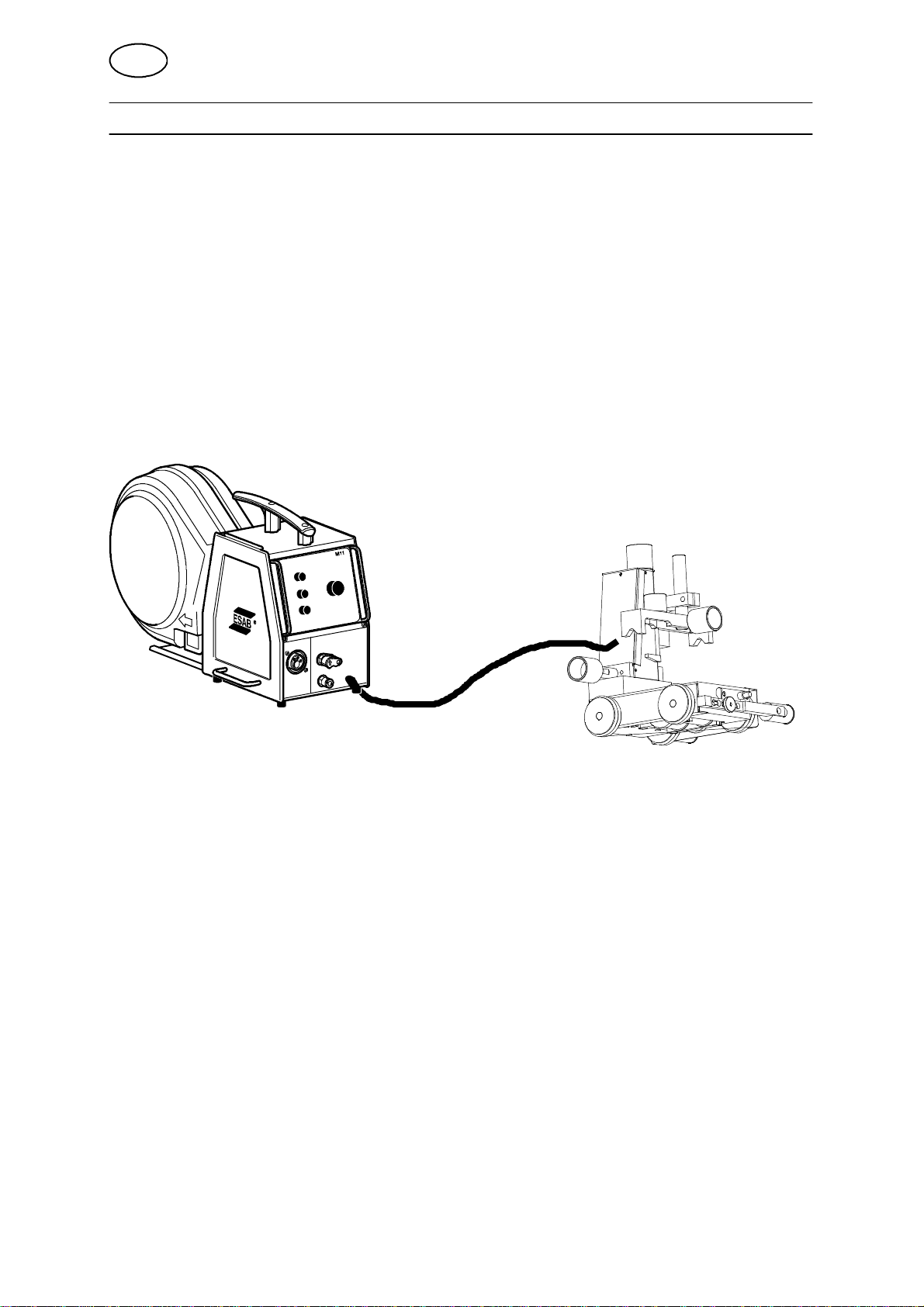

MIGGYTRAC 1001 !ESABFeed

Miggytrac 1001 is to be connected directly to the remote control socket.

No intervention in the feed unit is necessary.

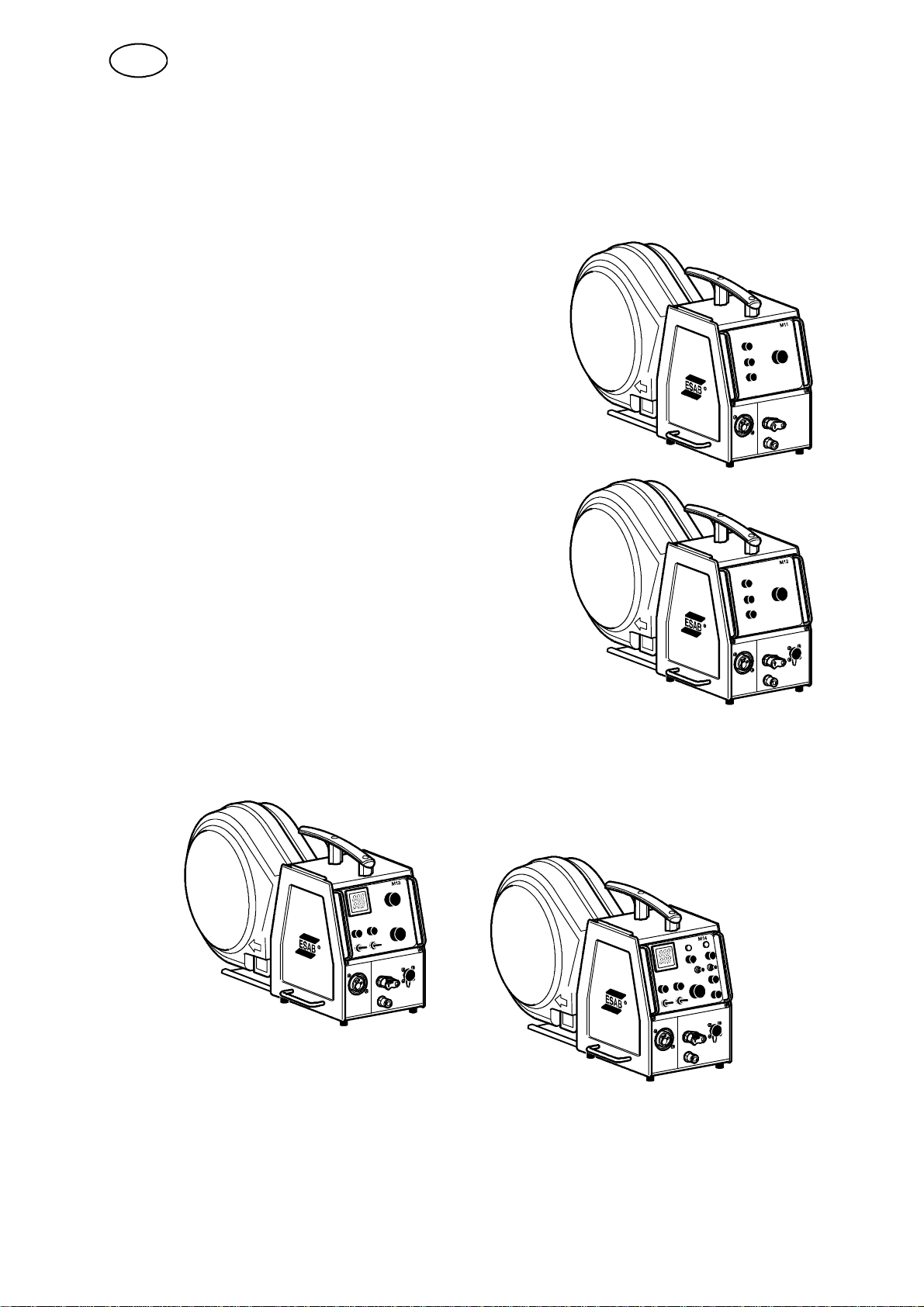

ESABFeed 30--2 with control panel M11.

Miggytrac 1001 cannot be connected to this feed unit.

ESABFeed 30--4 och 48--4 with M12 control panel.

It is not possible to adjust the voltage

from Miggytrac 1001.

ESABFeed 30--4 och 48--4 with M13 and M14 control panels.

It is possible to adjust both voltage and wire feed from Miggytrac 1001.

-- 1 0 --

fhc1i1ea

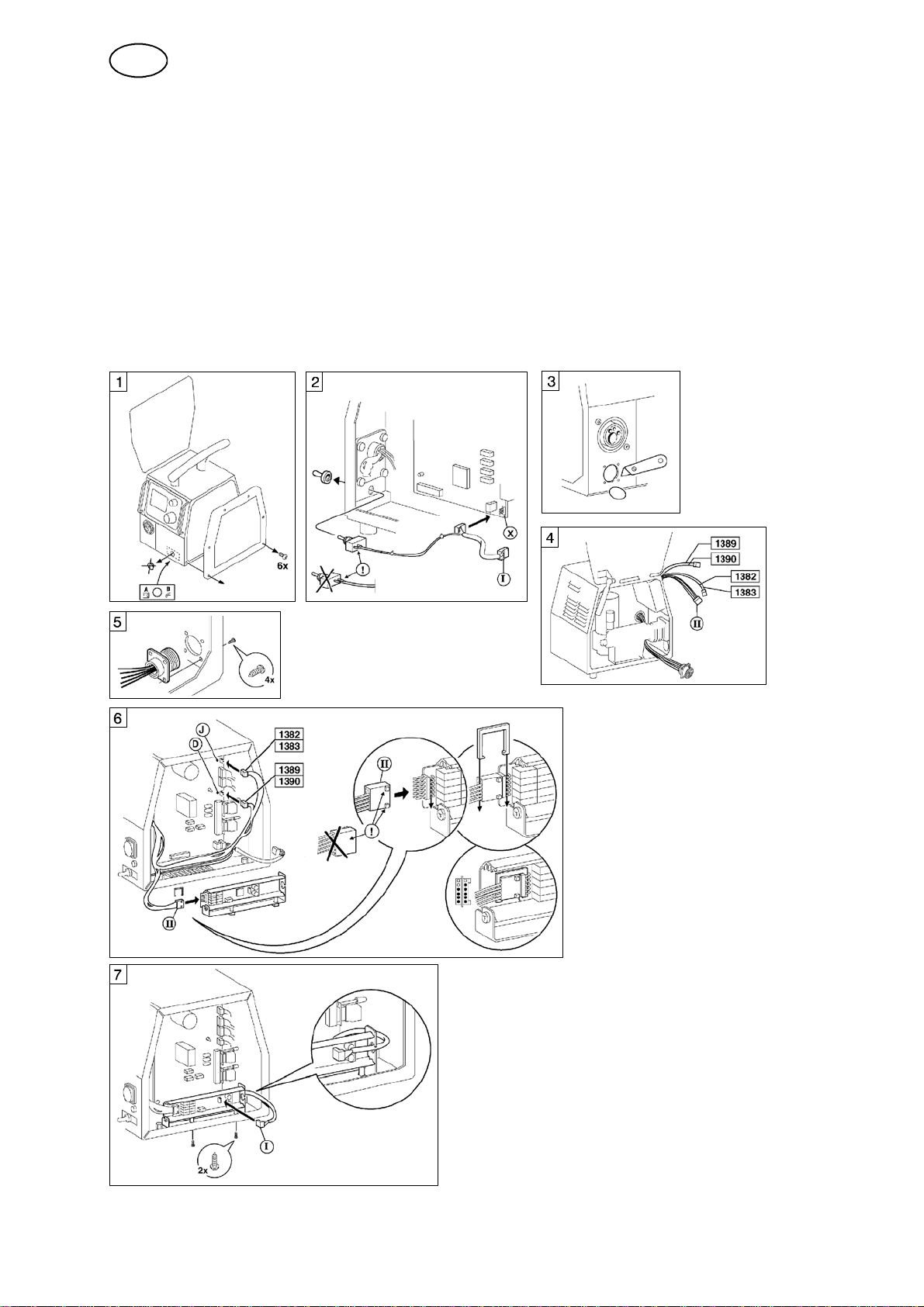

MIGGYTRAC 1001 !AristoFeed with control panel fitted

SDismount the door and fit the sticker (1).

SMount the switch with the cabling (2).

SOpen the socket for remote control connection (3).

SFit the cabling (4).

SFit the remote control socket on the front panel (5).

SConnect the cabling with the printed circuit boards (6).

SFit the printed circuit board at the bottom and then fit the door (7).
