ESAB Miggytrac B501 Manuale utente

Instruction manual

0463 404 001 GB 20150116 Valid for: serial no. 1501 xxxx

Miggytrac™ B501

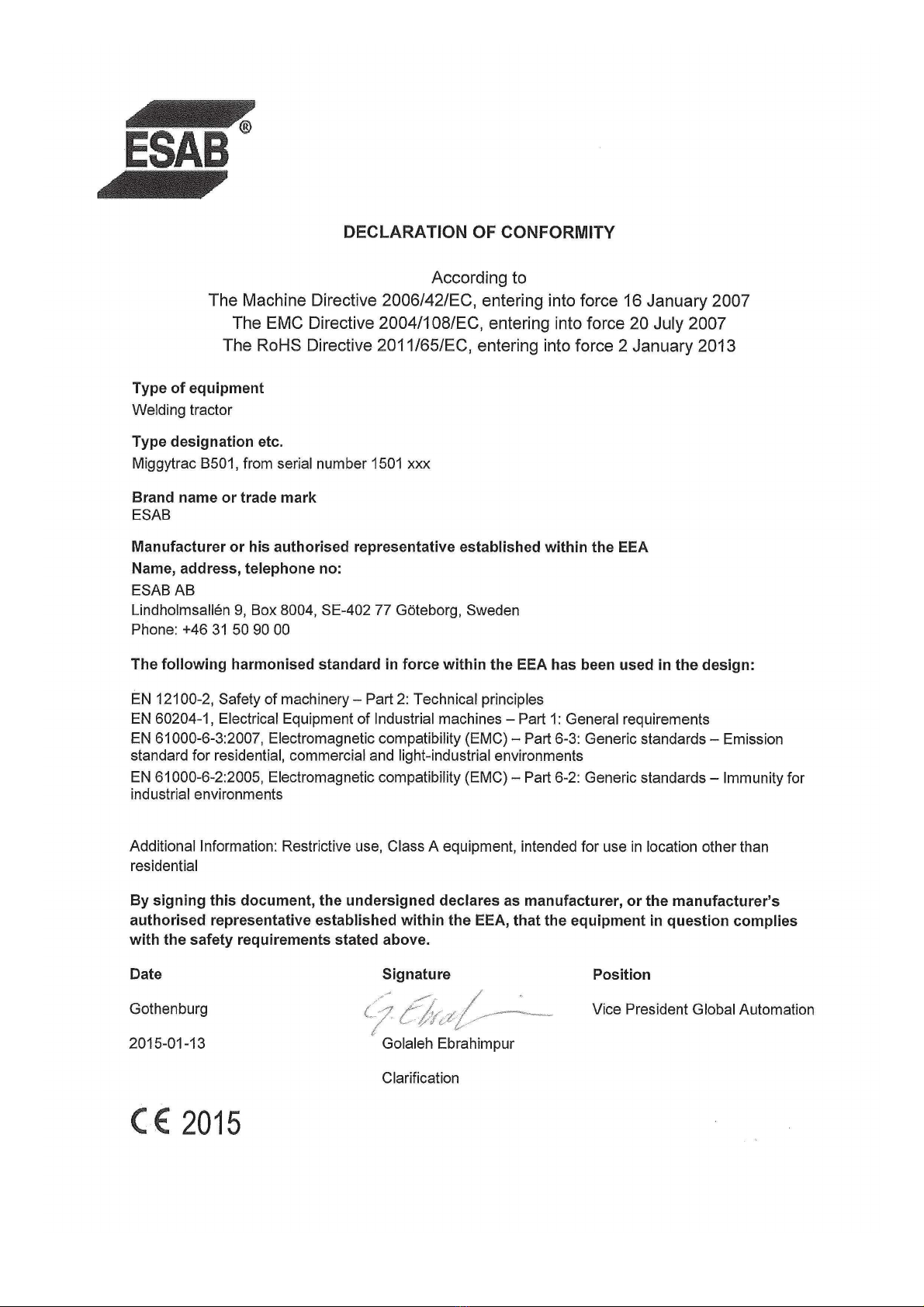

TABLE OF CONTENTS

0463 404 001 © ESAB AB 2015

1 SAFETY ................................................................................................................ 4

2 INTRODUCTION................................................................................................... 6

3 TECHNICAL DATA ............................................................................................... 7

4 INSTALLATION..................................................................................................... 8

4.1 Assembly .............................................................................................................. 8

4.2 Adjust the front arm.............................................................................................8

4.3 Install the battery ................................................................................................. 9

4.4 Install the magnet kit (optional) ........................................................................10

5 OPERATION ....................................................................................................... 11

5.1 Weld operation ................................................................................................... 11

5.2 Start and stop of tractor .................................................................................... 11

6 MAINTENANCE.................................................................................................. 12

6.1 Daily..................................................................................................................... 12

7 ORDERING SPARE PARTS ............................................................................... 13

DIMENSION DRAWING.............................................................................................14

ORDERING NUMBERS.............................................................................................15

ACCESSORIES .........................................................................................................16

Rights reserved to alter specifications without notice.

1 SAFETY

Users of ESAB equipment have the ultimate responsibility for ensuring that anyone who

works on or near the equipment observes all the relevant safety precautions. Safety

precautions must meet the requirements that apply to this type of equipment. The following

recommendations should be observed in addition to the standard regulations that apply to

the workplace.

All work must be carried out by trained personnel well-acquainted with the operation of the

equipment. Incorrect operation of the equipment may lead to hazardous situations which can

result in injury to the operator and damage to the equipment.

1. Anyone who uses the equipment must be familiar with:

○ its operation

○ location of emergency stops

○ its function

○ relevant safety precautions

○ welding and cutting or other applicable operation of the equipment

2. The operator must ensure that:

○ no unauthorised person is stationed within the working area of the equipment when it

is started up

○ no-one is unprotected when the arc is struck or work is started with the equipment

3. The workplace must:

○ be suitable for the purpose

○ be free from drafts

4. Personal safety equipment:

○ Always wear recommended personal safety equipment, such as safety glasses,

flame-proof clothing, safety gloves

○ Do not wear loose-fitting items, such as scarves, bracelets, rings, etc., which could

become trapped or cause burns

5. General precautions:

○ Make sure the return cable is connected securely

○ Work on high voltage equipment may only be carried out by a qualified

electrician

○ Appropriate fire extinquishing equipment must be clearly marked and close at hand

○ Lubrication and maintenance must not be carried out on the equipment during

operation

0463 404 001 © ESAB AB 2015

- 4 -

1 SAFETY

0463 404 001 -5- © ESAB AB 2015

WARNING!

Arc welding and cutting can be injurious to yourself and others. Take precautions

when welding and cutting. Ask for your employer's safety practices which should

be based on manufacturers' hazard data.

ELECTRIC SHOCK - Can kill

• Install and earth the unit in accordance with applicable standards

• Do not touch live electrical parts or electrodes with bare skin, wet gloves or

wet clothing

• Insulate yourself from earth and the workpiece

• Ensure your working stance is safe

FUMES AND GASES - Can be dangerous to health

• Keep your head out of the fumes

• Use ventilation, extraction at the arc, or both, to take fumes and gases away

from your breathing zone and the general area

ARC RAYS - Can injure eyes and burn skin

• Protect your eyes and body. Use the correct welding screen and filter lens

and wear protective clothing

• Protect bystanders with suitable screens or curtains

FIRE HAZARD

• Sparks (spatter) can cause fire. Make sure therefore that there are no

inflammable materials nearby

NOISE - Excessive noise can damage hearing

• Protect your ears. Use earmuffs or other hearing protection.

• Warn bystanders of the risk

MALFUNCTION - Call for expert assistance in the event of malfunction.

Read and understand the instruction manual before installing or operating.

PROTECT YOURSELF AND OTHERS!

NOTE!

Dispose of electronic equipment at the recycling

facility!

In observance of European Directive 2012/19/EC on

Waste Electrical and Electronic Equipment and its

implementation in accordance with national law, electrical

and/or electronic equipment that has reached the end of

its life must be disposed of at a recycling facility.

As the person responsible for the equipment, it is your

responsibility to obtain information on approved collection

stations.

For further information contact the nearest ESAB dealer.

2 INTRODUCTION

0463 404 001 -6- © ESAB AB 2015

2 INTRODUCTION

The Miggytrac™ B501 is designed for MIG/MAG welding of plates and beams.

The Miggytrac™ B501 is a compact battery driven tractor on which a welding torch can be

fitted. It is equipped with four wheel drive for good traction and a high torque stepper motor

for stable welding speed. The Miggytrac™ is intended for welding with 4-stroke control mode.

As an option there is an easy fit magnet kit. The magnet kit can be attached at the bottom of

the tractor to further stabilize the movement when welding slopes up to 45°.

A battery and a battery charger are not included in the delivery, refer to the "ACCESSORIES"

chapter in this manual.

ESAB's accessories for the product can be found in the "ACCESSORIES" chapter of

this manual.

3 TECHNICAL DATA

0463 404 001 -7- © ESAB AB 2015

3 TECHNICAL DATA

Miggytrac™ B501

Battery voltage 18 V DC

Operating time 8 hours

Weight 12 kg

Motor type Stepper motor

Travel speed 10 - 130 cm/min

Slide adjustment, horizontal ±32 mm

Slide adjustment, vertical ±40 mm

Adjustment, front arm ±40 mm

High friction rubber wheel 75×20 mm, 4-wheel drive

Horizontal tensile force without magnet 12 kg

Horizontal tensile force with magnet 25 kg

Vertical tensile force at 45° with magnet 11 kg

Dimensions (l×w×h) 310 × 290 × 250 mm

4 INSTALLATION

0463 404 001 -8- © ESAB AB 2015

4 INSTALLATION

4.1 Assembly

1 Knob, horisontal adjustment

2 Adjustable arm

3 Support wheel

4 Knob, vertical adjustment

5 Connection welding torch

6 Handle

7 Control panel

8 Battery

9 Driving wheels

4.2 Adjust the front arm

Adjust the front arm to be 10 mm shorter than the rear arm so that the Miggytrac™ goes

diagonally along the plate.

4 INSTALLATION

0463 404 001 -9- © ESAB AB 2015

4.3 Install the battery

The Miggytrac™ is designed for a 18 volt battery with a capacity of 4 Ah.

NOTE!

Charge the battery with an approved battery charger before use.

4 INSTALLATION

0463 404 001 - 10 - © ESAB AB 2015

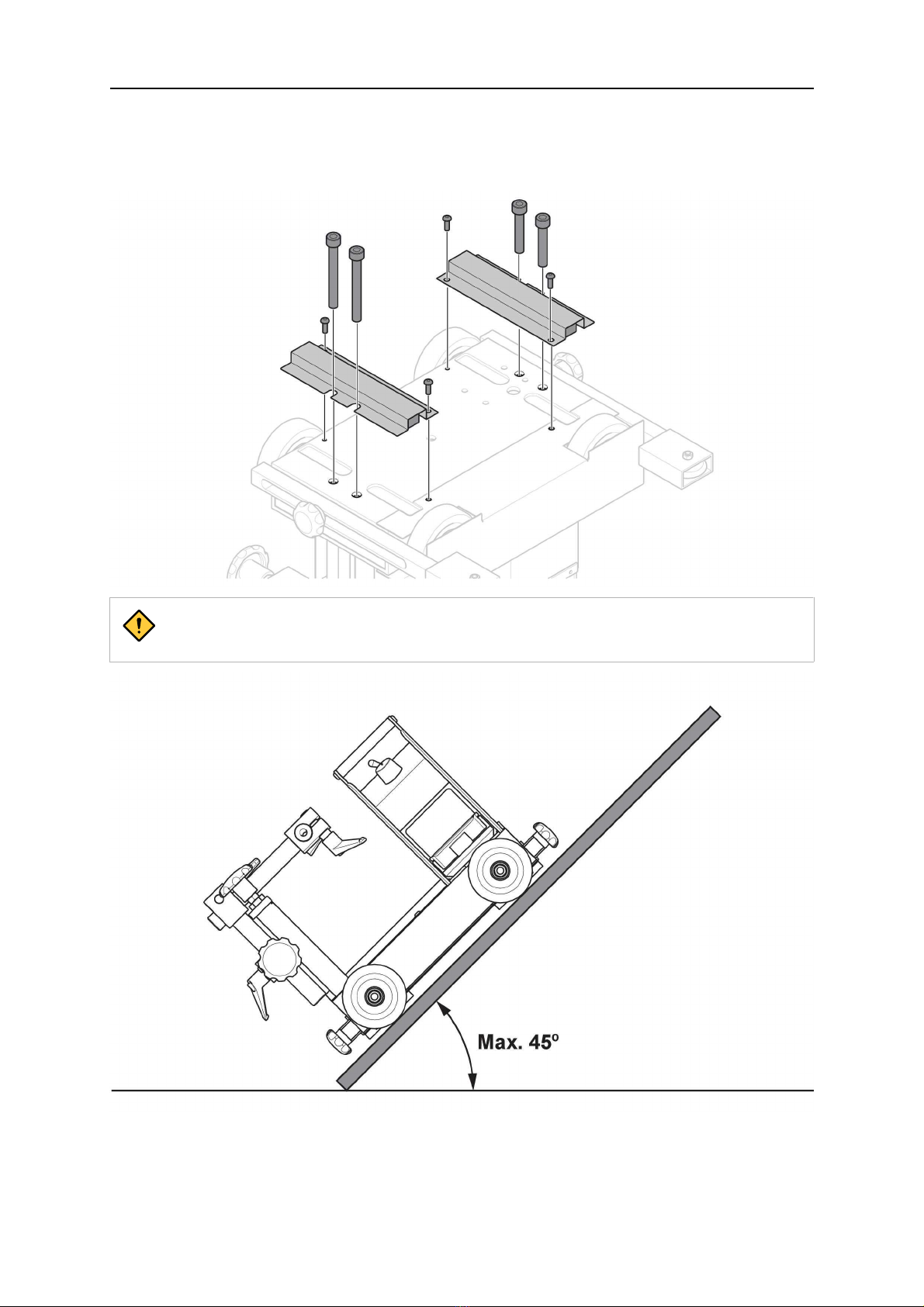

4.4 Install the magnet kit (optional)

A magnet kit can be installed at the bottom of the tractor to further stabilize the movement

and increase the friction between the drive wheels and the foundation.

CAUTION!

The maximum slope of the foundation is set to 45° for security reasons.
