ETC XDLT 26 Manuale utente

ETC Installation Guide

XDLT 26°/36° Lens Tube Front Lens Kit

Corporate Headquarters nMiddleton, WI, USA |+1 608 831 4116

New York, NY |Orlando, FL |Los Angeles, CA |Austin, TX

Web etcconnect.com |Support support.etcconnect.com |Contact etcconnect.com/contactETC

Product information and specifications subject to change. ETCintends this document to be provided in its entirety.

7462M2150 Rev A Released 2022-09

Secure the Front Lens

This kit secures the front lens in your 26° or 36° XDLT lens tube using a new lens bracket and screws

with pre-applied LOCTITE®threadlocker.

Tools required:

• 4.5 mm hex key (for accessory door)

• T20 TORX®screwdriver (for lens tube housing)

• #1 Phillips screwdriver (for lens bracket)

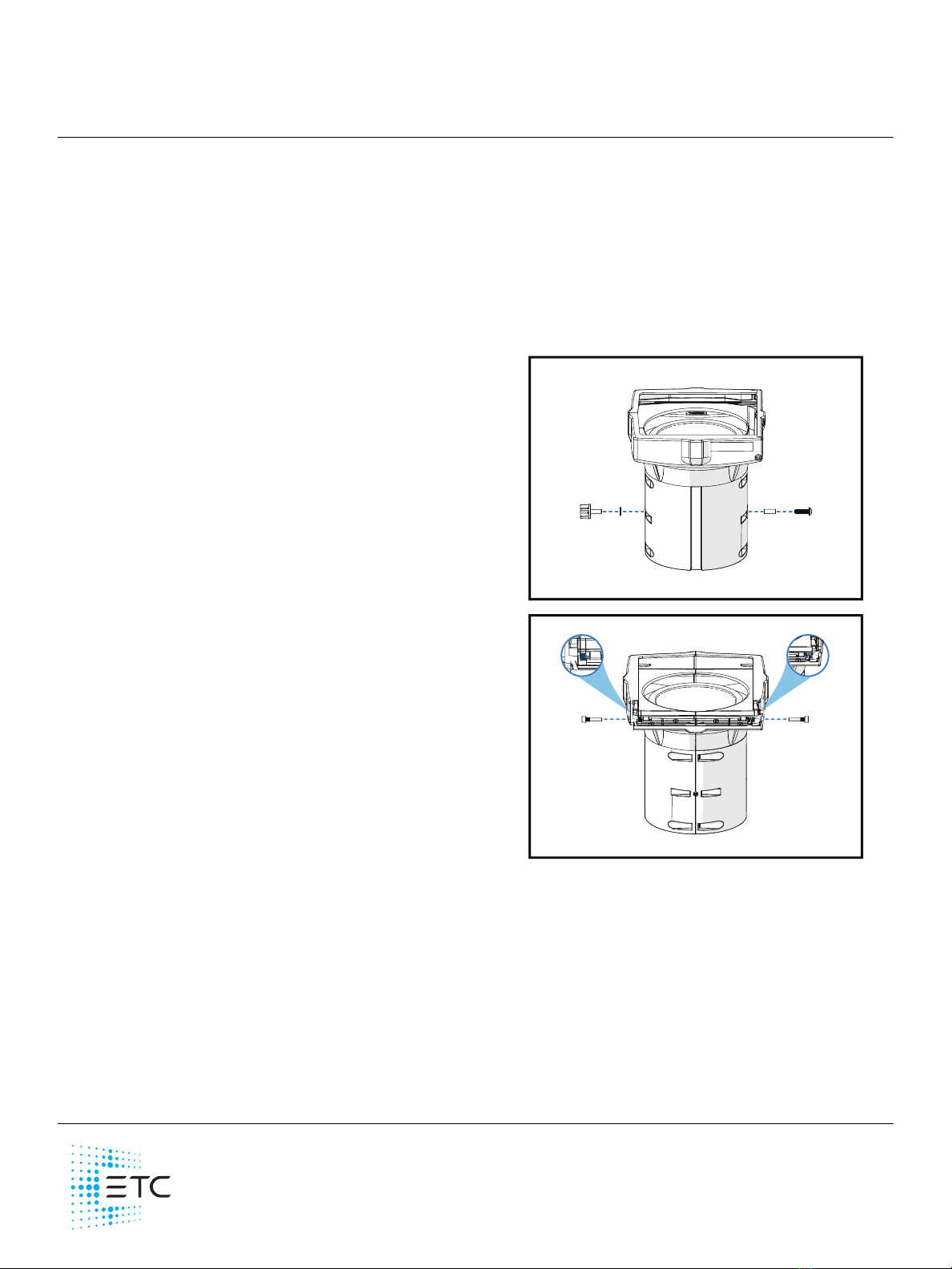

1. Remove the lens tube from the fixture,

and place the lens tube on a flat surface

with the front lens facing up.

2. Remove the beam focus knob and

washer, and remove the screw and spacer

on the opposite side of the lens tube.

Remove

knob,

washer,

spacer, and

screw

3. Open the accessory door. Use the 4.5 mm

hex key to remove the two hinge screws

securing the accessory door, taking care

to hold and then retain each spring as

your remove the hinge screw on that side.

Then remove the accessory door.

Open door, and

remove hinge

screws while

holding springs

ETC Installation Guide

XDLT 26°/36° Lens Tube Front Lens Kit

XDLT 26°/36° Lens Tube Front Lens Kit Page 2 of 3 ETC

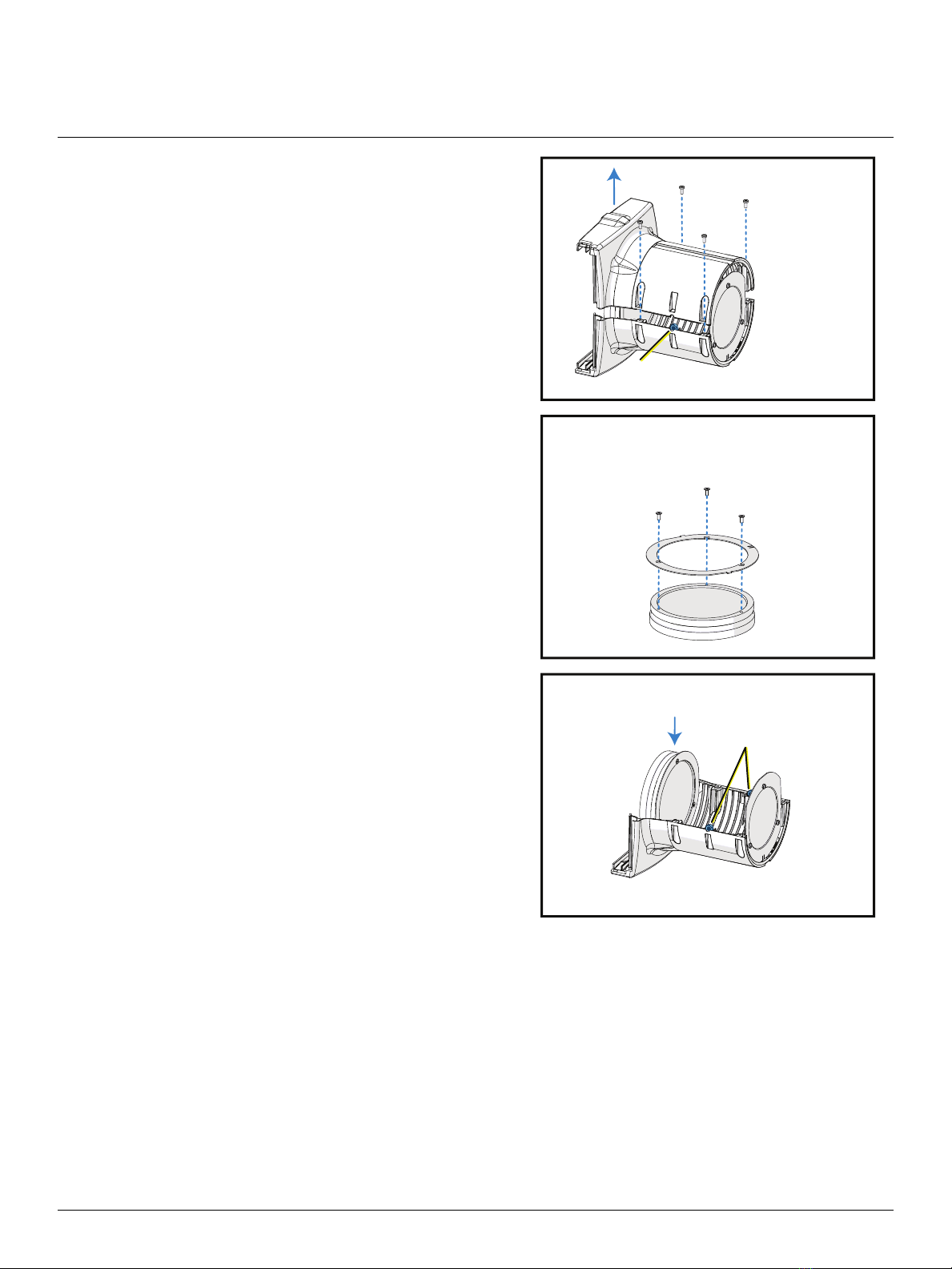

4. Place the lens tube on a flat surface with

the front lens facing out.

5. Use the T20 TORX screwdriver to remove

the four screws that secure the two halves

of the lens tube housing, and then

remove the top half of the lens tube

housing. Note the two nuts that are

nested in the lower lens tube housing,

where you removed the beam focus knob

and screw in step 2.

Remove screws,

and then remove

top housing

Retain

two nuts

6. Remove the front lens and place it

facedown on a flat, soft surface.

7. Use the #1 Phillips screwdriver to remove

the three screws and bracket as shown at

right.

8. Secure the new bracket to the lens with

the provided LOCTITE screws.

Remove old screws and

bracket, and replace with

new screws and bracket

9. Restore the front lens in the lens tube.

10. Verify that the two nuts for the beam

focus knob and opposing screw are still

nested in the lower lens tube housing.

Restore

lens

Verify

position

of nuts

ETC Installation Guide

XDLT 26°/36° Lens Tube Front Lens Kit

XDLT 26°/36° Lens Tube Front Lens Kit Page 3 of 3 ETC

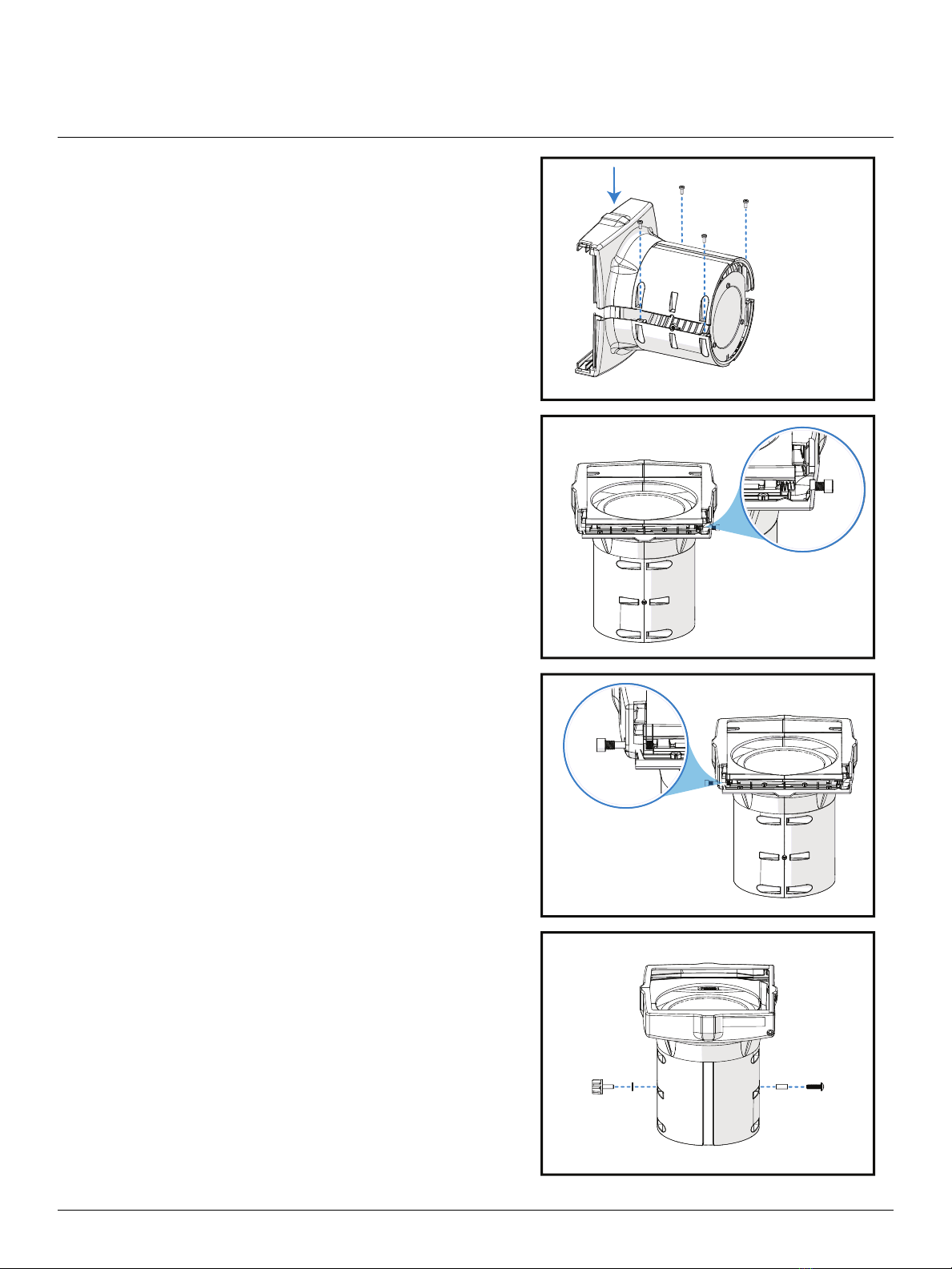

11. Restore the upper lens tube housing, and

use the T20 TORX screwdriver to secure it

with the four screws.

Restore top

housing and

secure with

screws

12. Place the lens tube on a flat surface with

the front lens facing up, and the side of

the lens tube with the accessory door

facing you.

13. Insert the hinge screw on the right side

part of the way, and then slide the spring

over the screw end from inside the lens

tube housing. Hold the screw and spring

in place, and then position the accessory

door.

Insert screw into

housing, slip spring

over screw, and then

position door

14. Position the tension spring on the left side

and hold it in place, and then insert the

screw into the housing and the spring.

15. Use the hex key to tighten both hinge

screws.

Insert tension spring

and hold in place, and

then insert screw

16. Restore the beam focus knob and washer,

and the screw and spacer on the opposite

side of the lens tube.

Restore

knob,

washer,

spacer, and

screw
