ETEKCITY EK6020 Manuale utente
2
LieferumfangPackage Contents
Table of Contents Inhaltsverzeichnis
Safety Information
Function Diagram
Set-Up
Operation
· General Operation
· Zero / Tare Function
· Unit Conversion
· Automatic Power Off
· Manual Power Off
Battery Replacement
Troubleshooting
Warranty
Sicherheitshinweise
Funktionsdiagramm
Inbetriebnahme
Betrieb
· Allgemeine Bedienung
· Null / Tara-Funktion
· Einheiten Umschalten
· Automatische Abschaltung
· Manuelle Abschaltung
Wechseln der Batterien
Fehlerbehebung
Garantie
3
4
5
6
6
7
8
9
9
9
10
11
11
12
13
14
15
15
16
17
18
18
18
19
20
20
1 x Digitale Küchenwaage
1 x Bedienungsanleitung
2 x 1,5 V AAA Batterien (Vorinstalliert)
1 x Digital Kitchen Scale
1 x User Manual
2 x 1.5 V AAA batteries (Pre-installed)
EN DE
SpezifikationenSpecifications
3
EN
Safety Information
Important Safety Information
•Always place the scale on a hard, dry and
at surface before measurement in order to
ensure accuracy.
•DO NOT exceed the 5000g weight capacity.
An overload indicator will appear on the LCD
display if the limit is exceeded.
•DO NOT immerse the scale in water or
corrosive liquids. If a liquid is spilled on the
scale platform, immediately wipe the scale
clean with a soft cloth in order to avoid
potential damage to the scale.
•When replacing batteries, make sure to insert
them under the correct polarity as indicated
within the battery compartment.
•Replace the batteries if the low-battery
indicator is displayed in order to ensure the
highest accuracy.
•DO NOT mix new and used batteries to power
the device.
•This scale is not intended for commercial or
heavy-duty use.
•When not in use, store the scale in a cool, dry
environment.
•To clean, wipe the platform surface with a
damp soft cloth.
•If the scale fails to turn on, check whether the
batteries are installed correctly. Replace the
batteries if necessary.
•If the scale is not in use for an extended period
of time, take out the batteries to extend the
scale service lifetime.
IMPORTANT: Please read and comply with all of the instructions and warnings provided in this manual
before using the product. Failure to comply with the instructions and warnings provided herein may result in
inaccurate results and/or damage to the product itself.
English

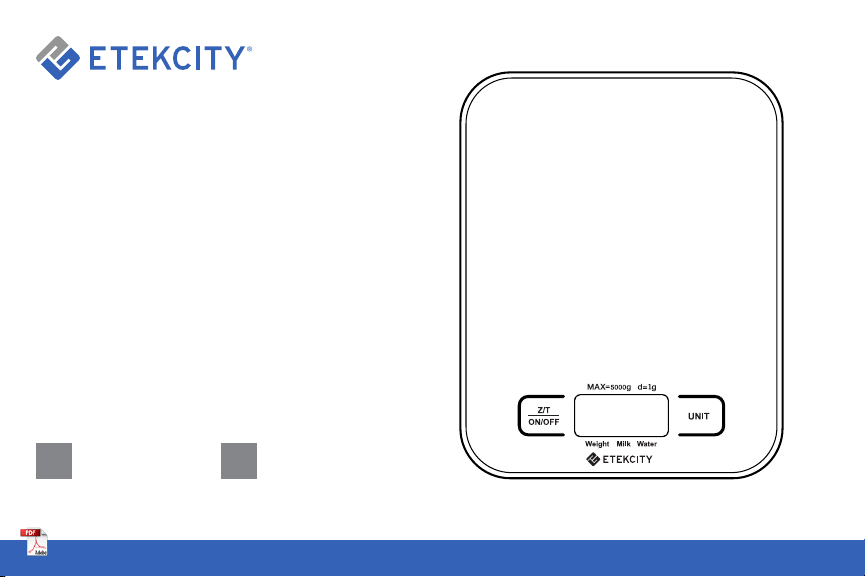

Digital Kitchen Scale
Model No.: EK6020
4
EN
Function Diagram
1. LCD Display
2. Power / Auto-Tare
3. Unit Selection
4. Battery Compartment
5. Anti-Skid Padding
3
132 5
4
5
EN

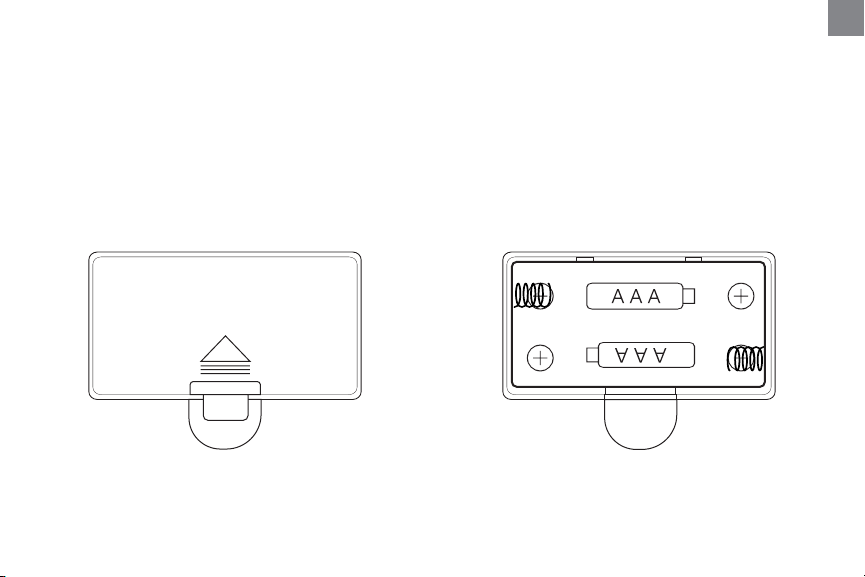

Set-Up
The included AAA batteries are preinstalled in the
scale.
1. Open the battery compartment cover located
on the backside of the scale.
2. Remove the plastic strip from the battery
compartment to allow the batteries to power
the device.
3. Reapply the battery compartment cover.
6
EN
Operation

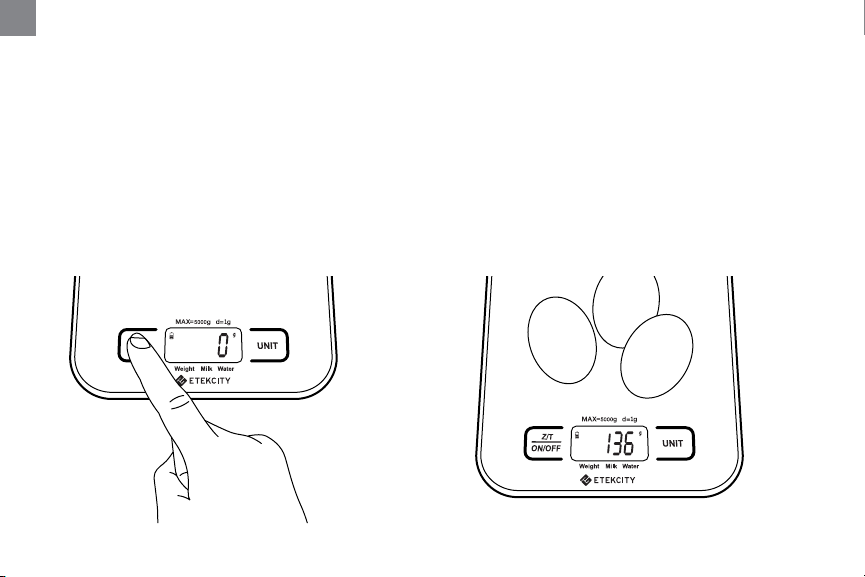

General Operation
1. Place the scale on a at and level hard surface
for measurement.
2. Press the ON/OFF button to turn on the scale.
Wait until the screen displays zero before
measuring.
3. Place the object of measurement on the center
of the weighing platform.
4. Allow the scale to adjust to the weight of the
object for a few seconds before it displays the
nal measured reading on the LCD screen.
7
EN

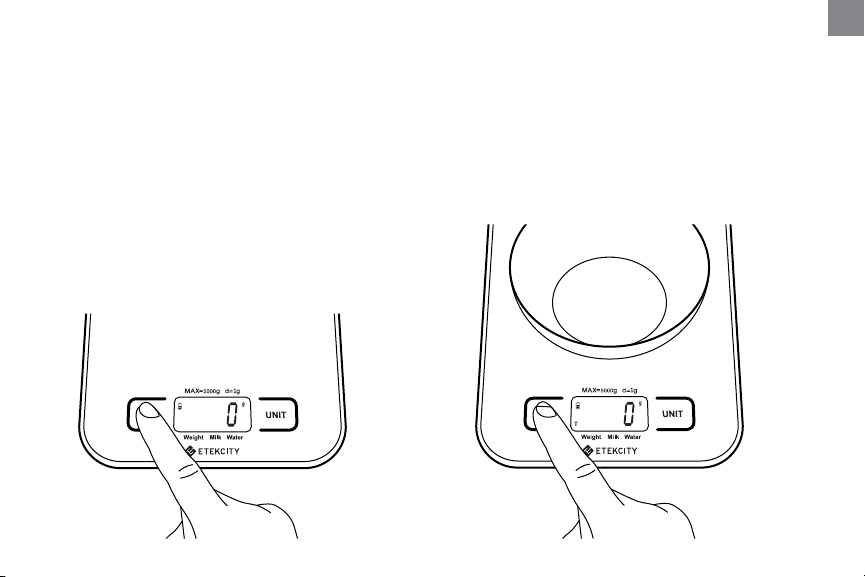

Zero / Tare Function
The tare function allows you to measure objects in a
container without having to include the container’s
weight in the nal measurement.
1. Turn on the scale and wait for the screen to
display zero. If the screen does not display
zero automatically, press the Z/T button to
auto-adjust to zero.
2. Place the desired object which is to be
excluded, on the center of the measuring
platform.
3. Press the Z/T button to tare the current
weight of the object. The screen should now
display zero.
8
EN

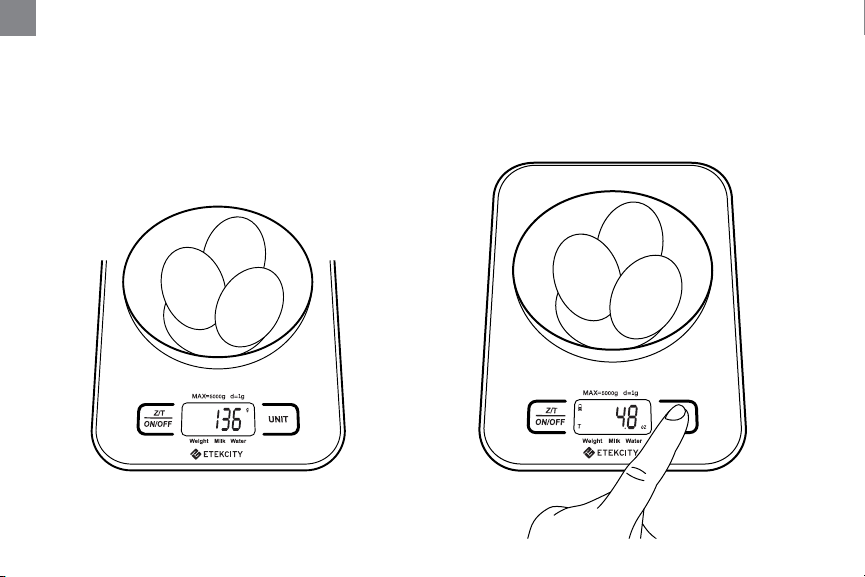

4. Place the desired item(s) to be weighed or the
center of the measuring platform or within the
tared container to calculate the net weight of
the desired item(s).
To change the unit of measurement, press the UNIT
button until the LCD display indicates the desired
unit of measurement.
Unit Conversion
9
EN
Automatic Power Off
For battery power conservation, the display
backlight will automatically power off after 30
seconds of inactivity. Additionally, the scale itself
will automatically power off after 2 minute of
inactivity.

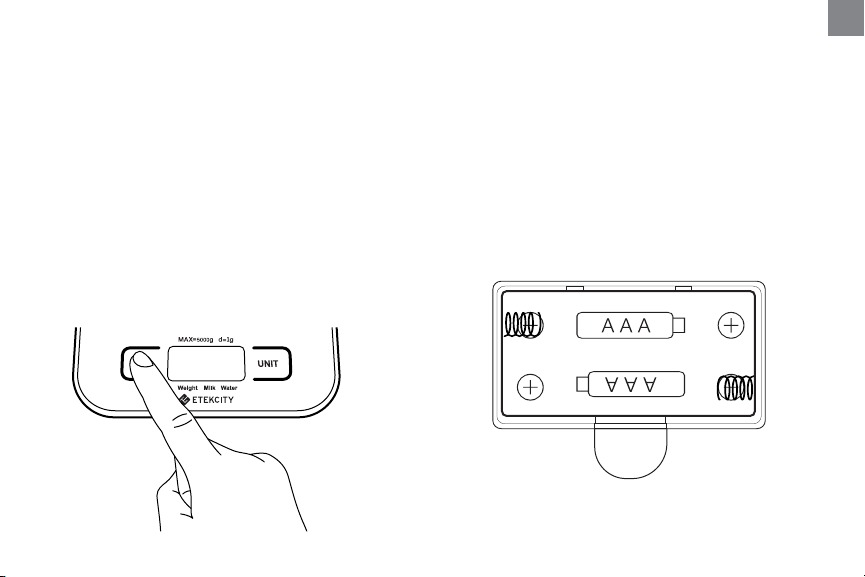

Press and hold the ON/OFF button for 2 seconds to
manually turn off the digital scale at any time.
1. Open the battery compartment cover on the
backside of the scale.
2. Take out the used batteries and dispose them
properly.
3. Install new 1.5V AAA batteries, taking note of
the correct polarity displayed in the battery
compartment.
4. Reseal the battery compartment.
Manual Power Off
Battery Replacement
10
EN
Troubleshooting
Error Message Reason Solution
“EEEE” Scale overload.
Maximum weight capacity:
5000g ( 176 oz).
Remove the object from the scale to
avoid damage.
“Err” Calibration error.
Unable to measure weight.
Turn the scale off and turn it back on
to retry measurement or auto-tare. Do
not move the scale while measuring.
“Lo” Battery power is low. Install new batteries.
