EtherWAN EL2326L Manuale utente
Gigabit Ethernet Media Converter
Quick Start Guide
This quick start guide describes how to install and use the Gigabit Ethernet media converter. The
converter introduced here provides one channel media conversion solution.
Physical Description
Product Overview
This Gigabit Ethernet media converter is a plug-and-play device. Connect the supplied AC to DC power
adaptor to the receptacle on the front panel of the Gigabit Ethernet media converter, and then attach
the plug into a standard AC outlet.

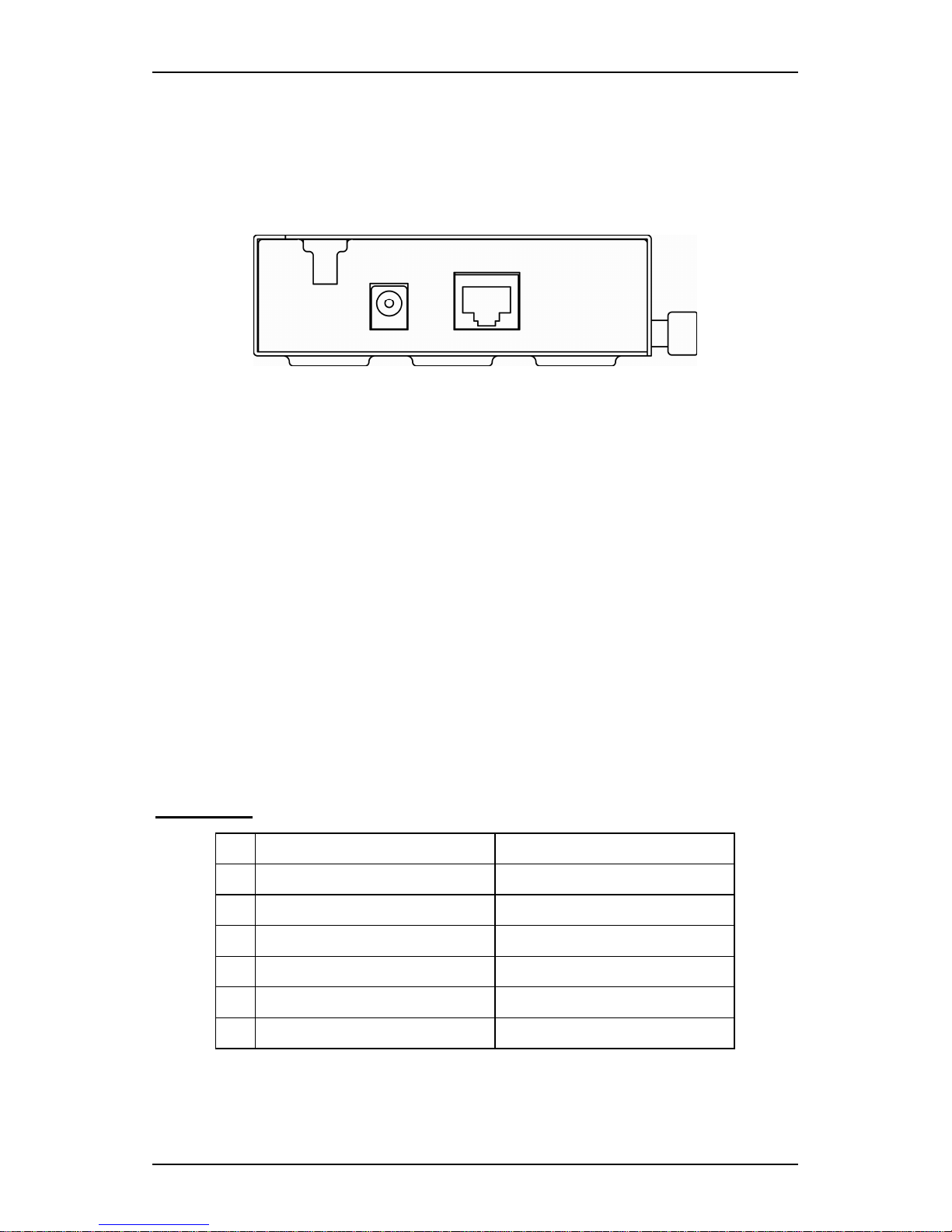

DIP Switch
No. Down Up
1 Disable LFPT Enable LFPT
2 Enable Auto-Negotiation for TX port Enable Force mode for TX port
3 TX port Force mode: Full-duplex TX port Force mode: Half-duplex
4 TX port Force mode: 100Mbps TX port Force mode: 10Mbps
5 Function reserved Function reserved
6 Function reserved Function reserved
<Note> LFPT: Link-Fault-Pass-Through function. Power must be off/on after re-setting LFPT function.

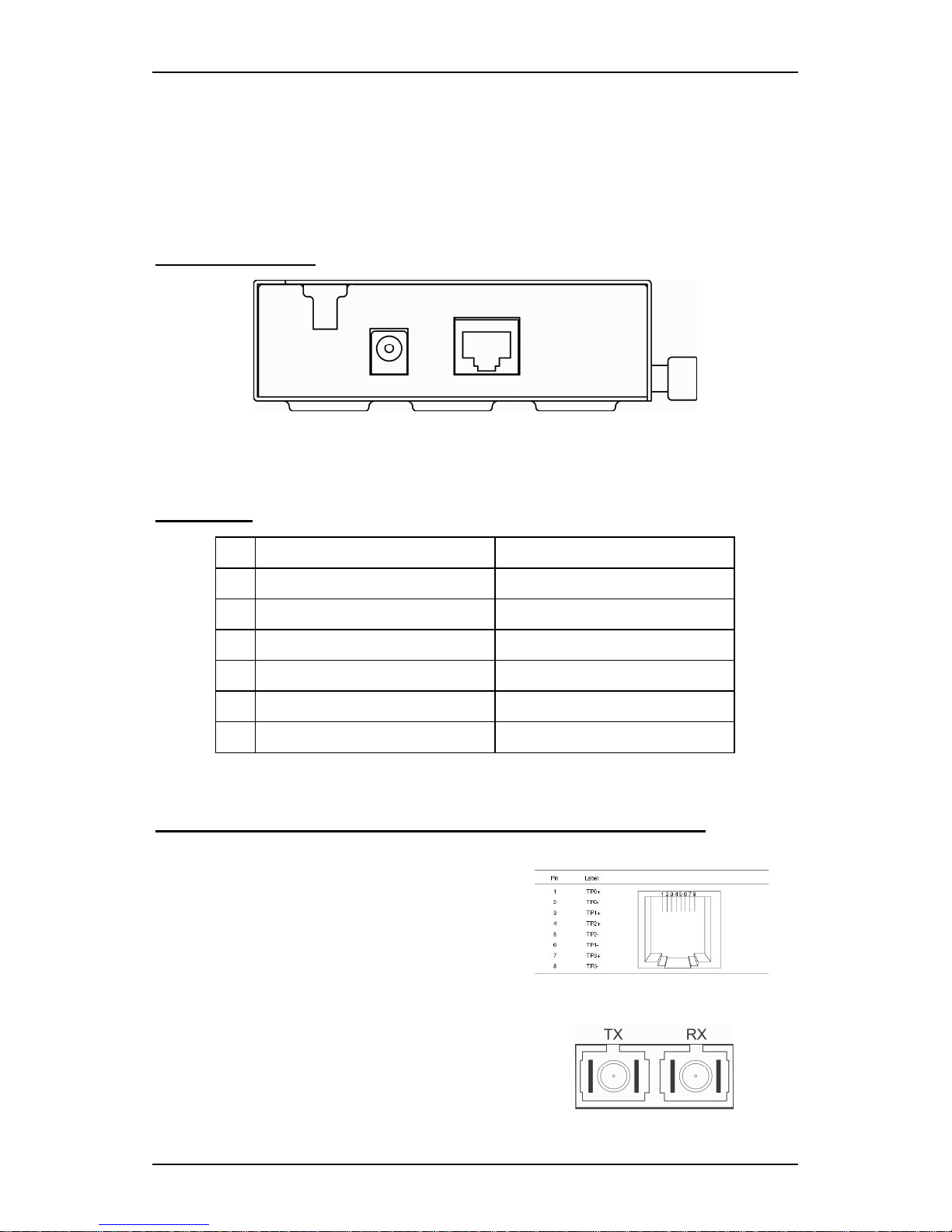

The 10/100/1000Base-TX and 1000Base-SX/LX/BX Connectors
The 10/100/1000Base-TX Connection
The following lists the pinouts of
10/100/1000Base-TX port.
The 1000Base-SX/LX Connections
The fiber port pinouts
The Tx (transmit) port of device I is connected to the
Rx (receive) port of device II, and the Rx (receive)
port of device I to the Tx (transmit) port of device II.
User’sManual 1
Gigabit Ethernet Media Converter
The WDM 1000Base-BX Connections
The fiber port pinouts
Only one optical fiber is required to transmit and
receive data.
The Port Status LEDs
LEDs State Indication
Steady Power onPOWER Off Power off
Steady Green: Connection at the speed of 1000Mbps
Amber: Connection at the speed of 100Mbps
SPEED
(TX Port
10/100/1000Mbps) Off Connection at the speed of 10Mbps
Steady A valid network connection is established on TX port
LNK stands for LINK
Flashing Transmitting or receiving Data
ACT stands for ACTIVITY
LNK/ACT
(TX)
Off No network connection is established
Steady TX port at Full-duplex mode
FDX stands for Full-duplex
FDX
Off At Half-duplex mode
Steady A valid network connection is established on Fiber port
LNK stands for LINK
Flashing Transmitting or receiving Data
ACT stands for ACTIVITY
LNK/ACT
(FX)
Off No network connection is established
2 User’s Manual
Gigabit Ethernet Media Converter
User’sManual 3
Functional Description
zComplies with IEEE802.3 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, and
IEEE802.3z 1000Base-SX/LX.
zSupports IEEE802.3x Flow control: Flow control for Full-duplex and Back pressure for
Half-duplex.
zDIP switch configuration for “Link-Fault-Pass-Through”.
zOne fiber interface supports 1000Base-SX/LX/BX fiber transmission.
zGigabit transmission supports 9K Bytes jumbo frame.
z1000Mbps-Auto/Full-duplex, 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX.
zFull wire-speed forwarding rate.
zBuilt-in Fiber Tray, for ease of fiber cable management and installation.
zOperating voltage and Max. current consumption: 0.25A @ 12VDC. Power consumption: 3W
Max.
zPower Supply: 12VDC external universal PSU.
z-5℃to 55℃(23℉to 131℉) operating temperature range.
Gigabit Ethernet Media Converter
4 User’s Manual
FCC Statement
The FCC (Federal Communications Commission) restricts the amount of radio frequency emission and
radiation coming from computer equipment.
The equipment introduced in this manual has been tested and found to comply with the limits for a
Class A digital device pursuant to Part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a commercial
environment.
This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used
in accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case
the user is required to correct the interference at his/her own expense.
Any changes or modifications not expressly approved by the manufacture would void the user’s
authority to operate the equipment.
Trademarks
Product names mentioned in this manual may be trademarks or registered trademarks of those
products.
All trademarks or brand names mentioned are properties of their respective companies.
Preface
This manual describes how to install and use the Gigabit Ethernet Media Converter. The Converter
introduced here provides one channel media conversion solution:
10/100/1000Base-TX to 1000Base-SX/LX/BX with link-fault-pass-through function
The Gigabit Ethernet Media Converter fully complies with IEEE802.3 10Base-T, IEEE802.3u
100Base-TX, IEEE802.3ab 1000Base-T, and IEEE802.3z 1000Base-SX/LX Ethernet standards.
In this manual, you will find:
zProduct overview
zFeatures on the media converter
zIllustrative LED functions
zInstallation instructions
zSpecifications
Gigabit Ethernet Media Converter
User’sManual 5
Table of Contents
QUICK START GUIDE..............................................................................................1
PHYSICAL DESCRIPTION......................................................................... 1
FUNCTIONAL DESCRIPTION..................................................................... 3
FCC STATEMENT....................................................................................................4
TRADEMARKS..........................................................................................................4
PREFACE ..................................................................................................................4
TABLE OF CONTENTS .............................................................................................5
INTRODUCTION .......................................................................................................6
PRODUCT OVERVIEW ............................................................................. 6
PRODUCT FEATURES.............................................................................. 6
PACKING LIST ........................................................................................ 7
ONE-CHANNEL MEDIA CONVERTER.....................................................................8
PHYSICAL PORTS ................................................................................... 8
PORT STATUS LEDS.............................................................................. 8
INSTALLATION ......................................................................................................10
SELECTING A SITE FOR THE EQUIPMENT............................................... 10
CABLE MANAGEMENT TRAY.................................................................. 10
CONNECTING TO POWER...................................................................... 12
SPECIFICATIONS....................................................................................................13
Gigabit Ethernet Media Converter
Introduction
The Gigabit Ethernet Media Converter provides one channel for media conversion between
10/100/1000Base-TX to 1000Base-SX/LX/BX with link-fault-pass-through function.
Product Overview
Figure 1:
Gigabit Ethernet Media Converter with link-fault-pass-through function
Product Features
zComplies with IEEE802.3 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, and
IEEE802.3z 1000Base-SX/LX.
zSupports IEEE802.3x Flow control: Flow control for Full-duplex and Back pressure for
Half-duplex.
zDIP switch configuration for “Link-Fault-Pass-Through”.
zOne fiber interface supports 1000Base-SX/LX/BX fiber transmission.
zGigabit transmission supports 9K Bytes jumbo frame.
z1000Mbps-Auto/Full-duplex, 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX.
zFull wire-speed forwarding rate.
zBuilt-in Fiber Tray, for ease of fiber cable management and installation.
zOperating voltage and Max. current consumption: 0.25A @ 12VDC. Power consumption: 3W
Max.
zPower Supply: 12VDC external universal PSU.
z-5℃to 55℃(23℉to 131℉) operating temperature range.
DIP Switch
No. Down Up
1 Disable LFPT Enable LFPT
2 Enable Auto-Negotiation for TX port Enable Force mode for TX port
3 TX port Force mode: Full-duplex TX port Force mode: Half-duplex
4 TX port Force mode: 100Mbps TX port Force mode: 10Mbps
5 Function reserved Function reserved
6 Function reserved Function reserved
<Note> LFPT: Link-Fault-Pass-Through function. Power must be off/on after re-setting LFPT function.
6 User’s Manual
Gigabit Ethernet Media Converter
User’sManual 7
Packing List
When you unpack this product package, you will find the items listed below. Please inspect the
contents, and report any apparent damage or missing items immediately to your authorized reseller.
yThe Media Converter
yUser’s Manual
yAC to DC Power Adaptor
Gigabit Ethernet Media Converter
One-Channel Media Converter
Physical Ports
Gigabit Ethernet Media Converter
This converter provides one 10/100/1000Base-TX port and one 1000Base-SX/LX/BX fiber port. For the
1000Base-SX/LX/BX fiber port, it provides options of multi-mode/single-mode or WDM
multi-mode/single-mode fiber. For the 10/100/1000Base-TX port, it uses RJ-45 connector and supports
auto MDIX for uplink purpose.

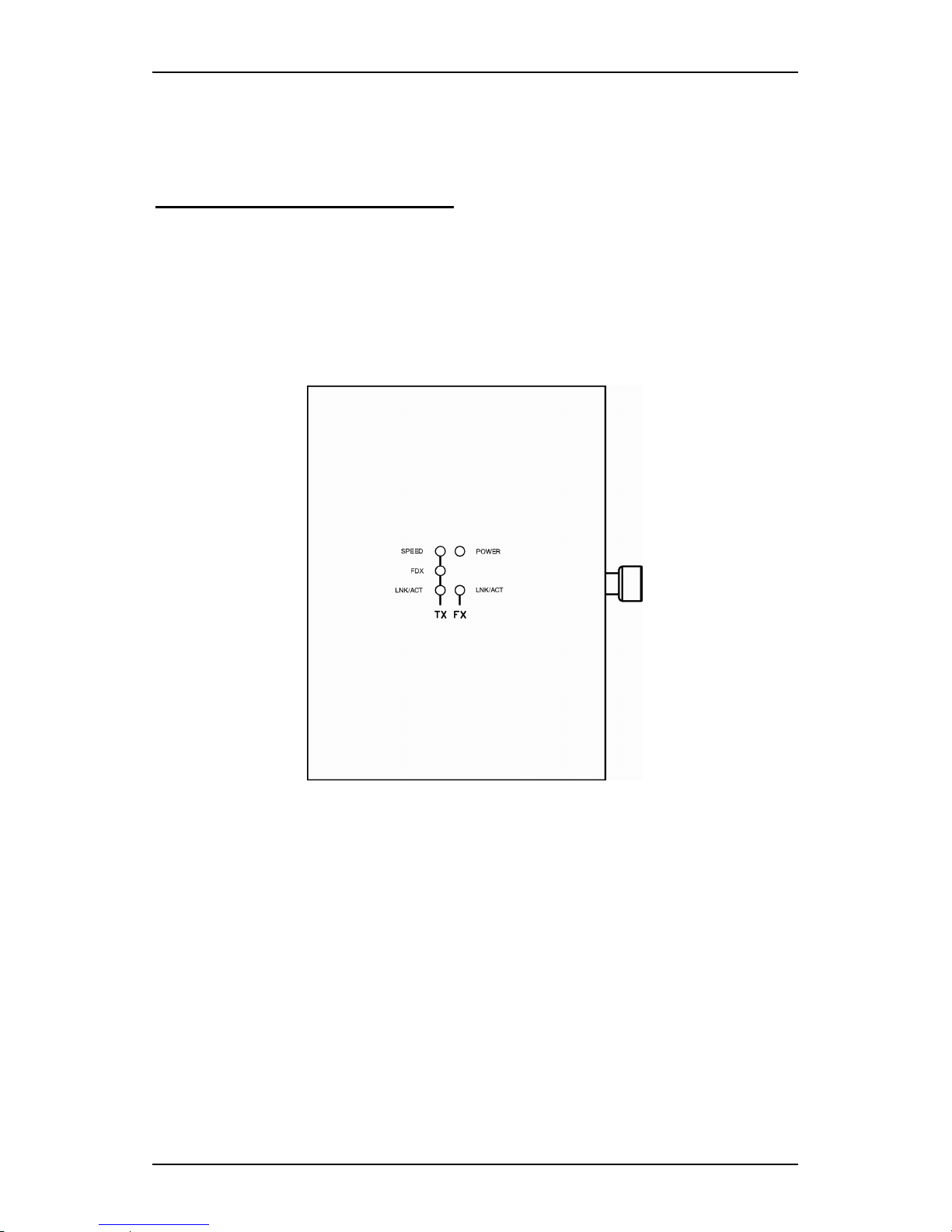

Port Status LEDs
The LED indicators give you instant feedback on status of the converter:
Figure 2:
Gigabit Ethernet Media Converter with link-fault-pass-through function
8 User’s Manual
Gigabit Ethernet Media Converter
User’sManual 9
LEDs State Indication
Steady Power onPOWER Off Power off
Steady Green: Connection at the speed of 1000Mbps
Amber: Connection at the speed of 100Mbps
SPEED
(TX Port
10/100/1000Mbps) Off Connection at the speed of 10Mbps
Steady A valid network connection is established on TX port
LNK stands for LINK
Flashing Transmitting or receiving Data
ACT stands for ACTIVITY
LNK/ACT
(TX)
Off No network connection is established
Steady TX port at Full-duplex mode
FDX stands for Full-duplex
FDX
Off At Half-duplex mode
Steady A valid network connection is established on Fiber port
LNK stands for LINK
Flashing Transmitting or receiving Data
ACT stands for ACTIVITY
LNK/ACT
(FX)
Off No network connection is established
Gigabit Ethernet Media Converter
Installation
This chapter gives step-by-step installation instructions for the Converter.
Selecting a Site for the Equipment
As with any electric device, you should place the equipment where it will not be subjected to extreme
temperatures, humidity, or electromagnetic interference. Specifically, the site you select should meet
the following requirements:
zThe ambient temperature should be between 23 and 131 degrees Fahrenheit (-5 to 55 degrees
Celsius).
zThe relative humidity should be less than 95 percent, non-condensing.
zSurrounding electrical devices should not exceed the electromagnetic field (RFC) standards for
IEC 801-3, Level 2 (3V/M) field strength.
zMake sure that the equipment receives adequate ventilation. Do not block the ventilation holes
of the equipment.
zThe power outlet should be within 1.8 meters of the product.
Cable Management Tray
Cable management tray, board of cable outlet hole, and cable outlet hole.
10 User’s Manual
